MANUAL TRANSMISSION 7B1-45
12. Apply engine oil to the needle bearing and the 3rd
gear thrust surfaces.
Install the needle bearing and the 3rd gear to the
mainshaft.
The 3rd gear dog teeth must be facing the
transmission front side.


226RS056
13. Install the 3rd block ring.
14. Check and install the 3rd-4th synchronizer assembl
y
using the following steps:
1. Check that the inserts (3) fit snugly into the clutch hub insert grooves.
2. Check that the insert springs (4) are fitted to the inserts, as shown in the illustration.
3. Check that the clutch hub (5) and the sleeve (6) slide smoothly.
4. Install the synchronizer assembly to the mainshaft.
The clutch hub face with the heavy boss must be facing the 3rd gear side.


226RS049

226RW 221
15. Select and install mainshaft snap ring using the
following instructions:
Select the snap ring which will provide the minimum
clearance between the 3rd-4th clutch hub and the
snap ring.


226RS058
There are three snap ring sizes available.
The snap rings are color-coded to indicate thei
r
thickness as shown in the figure.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7B1-52 MANUAL TRANSMISSION
2) NOISY OPERATION

Checkpoint Trouble Cause Countermeasure

Replenish or replace the gear
oilInsufficient or improper engine
oil
NG
Replace the gear(s)
Replace the gear(s)
Replace the bearing(s)
Gears (Gear whining)Lack of backlash between
meshing gears
Free running gears seizing on
the thrust face or the inner
face
Bearings (Hissing, thumping
or bumping)W orn or broken bearing(s)
Gears (Squealing at high
speeds)
Replace the gear(s)Gears (Growling, humming, or
grinding)W orn, chipped, or cracked
gear(s)
NG
NG
NG
NG
OK
OK
OK
OK
Gear oil (Metallic rattling)



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MANUAL TRANSMISSION 7B1-53
2. HARD SHIFTING

Checkpoint Trouble Cause Countermeasure

Change lever play
Clutch pedal free play
Repair or replace the
applicable parts and regrease
Readjust the clutch pedal free
play
W orn change lever sliding
portions
Improper clutch pedal free
play
Change lever operationRepair or regrease the change
lever assembly
Replenish or replace the
engine oil
Hard operating change lever
caused insufficient grease
Insufficient or improper gear
oil
OK
OK NG
NG
NG
NG
OK
OKGear oil
Continued on the next page
Shift rod and quadrant box
sliding faces, and other partsReplace the shidt rod and/or
the quadrant boxW orn shift rod and/or sliding
faces
Repair or replace the sleeveSleeve movement failure
NG
NG
OKShift block sleeve movement


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

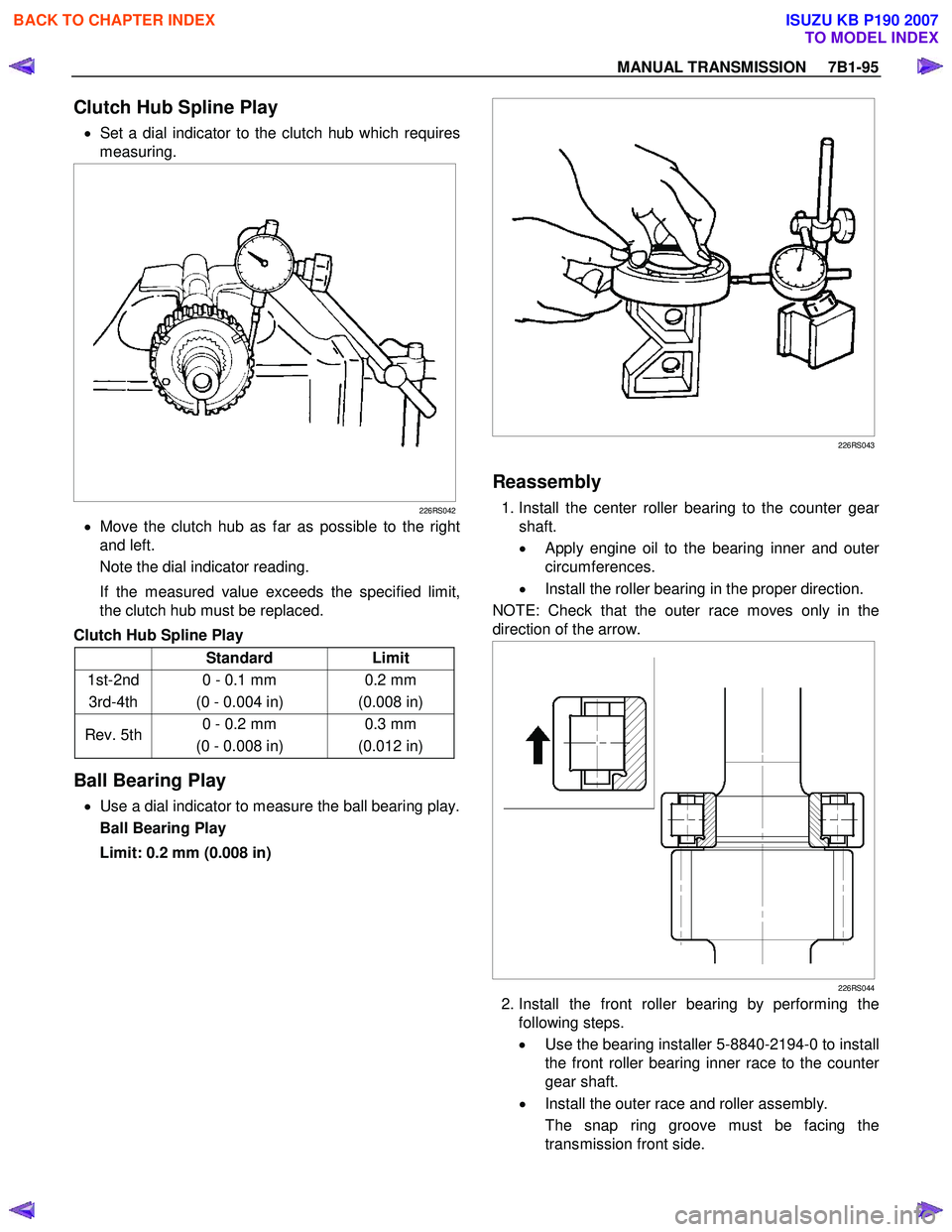

MANUAL TRANSMISSION 7B1-95
Clutch Hub Spline Play
• Set a dial indicator to the clutch hub which requires
measuring.


226RS042
• Move the clutch hub as far as possible to the right
and left.
Note the dial indicator reading.
If the measured value exceeds the specified limit,
the clutch hub must be replaced.
Clutch Hub Spline Play
Standard Limit
1st-2nd 3rd-4th 0 - 0.1 mm
(0 - 0.004 in) 0.2 mm
(0.008 in)
Rev. 5th 0 - 0.2 mm
(0 - 0.008 in) 0.3 mm
(0.012 in)
Ball Bearing Play
• Use a dial indicator to measure the ball bearing play.
Ball Bearing Play
Limit: 0.2 mm (0.008 in)





226RS043

Reassembly
1. Install the center roller bearing to the counter gear
shaft.
•
Apply engine oil to the bearing inner and outer
circumferences.
• Install the roller bearing in the proper direction.
NOTE: Check that the outer race moves only in the
direction of the arrow.


226RS044
2. Install the front roller bearing by performing the following steps.
• Use the bearing installer 5-8840-2194-0 to install
the front roller bearing inner race to the counte
r
gear shaft.
• Install the outer race and roller assembly.
The snap ring groove must be facing the
transmission front side.



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MANUAL TRANSMISSION 7B1-99
12. Apply engine oil to the needle bearing and the 3rd
gear thrust surfaces.
Install the needle bearing and the 3rd gear to the
mainshaft.
The 3rd gear dog teeth must be facing the
transmission front side.


226RS056
13. Install the 3rd block ring.
14. Check and install the 3rd-4th synchronizer assembl
y
by using the following steps:
1. Check that the inserts (3) fit snugly into the clutch hub insert grooves.
2. Check that the insert springs (4) are fitted to the inserts as shown in the illustration.
3. Check that the clutch hub (5) and the sleeve (6) slide smoothly.
4. Install the synchronizer assembly to the mainshaft.
The clutch hub face with the heavy boss must be facing the 3rd gear side.


226RS049

226RW 221
15. Select and install mainshaft snap ring using the
following instructions:
Select the snap ring which will provide the minimum
clearance between the 3rd-4th clutch hub and the
snap ring.


226RS058
There are three snap ring sizes available.
The snap rings are color-coded to indicate thei
r
thickness, as shown in the figure.


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7B1-106 MANUAL TRANSMISSION
2) NOISY OPERATION

Checkpoint Trouble Cause Countermeasure

Replenish or replace the gear
oilInsufficient or improper engine
oil
NG
Replace the gear(s)
Replace the gear(s)
Replace the bearing(s)
Gears (Gear whining)Lack of backlash between
meshing gears
Free running gears seizing on
the thrust face or the inner
face
Bearings (Hissing, thumping
or bumping)W orn or broken bearing(s)
Gears (Squealing at high
speeds)
Replace the gear(s)Gears (Growling, humming, or
grinding)W orn, chipped, or cracked
gear(s)
NG
NG
NG
NG
OK
OK
OK
OK
Gear oil (Metallic rattling)



BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

MANUAL TRANSMISSION 7B1-107
2. HARD SHIFTING

Checkpoint Trouble Cause Countermeasure

Change lever play
Clutch pedal free play
Repair or replace the
applicable parts and regrease
Readjust the clutch pedal free
play
W orn change lever sliding
portions
Improper clutch pedal free
play
Change lever operationRepair or regrease the change
lever assembly
Replenish or replace the
engine oil
Hard operating change lever
caused insufficient grease
Insufficient or improper gear
oil
OK
OK NG
NG
NG
NG
OK
OKGear oil
Continued on the next page
Shift rod and quadrant box
sliding faces, and other partsReplace the shidt rod and/or
the quadrant boxW orn shift rod and/or sliding
faces
Repair or replace the sleeveSleeve movement failure
NG
NG
OKShift block sleeve movement


BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

7B1-12 Manual Transmission (MUX)
22. Remove the transmission retaining nuts and bolts.Remove the transmission assembly (4x2 model) or
the transmission & transfer assembly (4x4 model)
from the vehicle.
23. Remove the transmission-transfer fixing bolts and nut, and disassemble the transfer from the
transmission. (4x4 model)
Installation
1. Apply grease (BESCO L-2 or equivalent) on the splined portion of the output shaft.
2. Connect the transfer to the transmission. (4x4 model)
3. Install the transmission-transfer fixing bolts and nut, and tighten them to the specified torque. (4x4
model)
Torque: 41 N ⋅m (4.2 kgf ⋅m/30 lb ⋅ft)
4. Apply a thin coat of molybdenum disulfide grease on the splined portion of the input shaft spline.
5. Slowly operate the transmission jack until the front of transmission is aligned with the rear of the
engine.
6. Align the input shaft spline with the clutch driven plate spline.
7. Install the transmission assembly (4x2 model) or the transmission & transfer assembly (4x4 model)
to the engine.
• Tighten the transmission bolts to the specified torque.
Torque: 76 N ⋅m (7.7 kgf ⋅m/56 lb ⋅ft)
8. Apply a force 69 N ⋅m (7 kgf ⋅m/51 lb ⋅ft) to the tip of
the shift fork in the direction of the transmission to
engine the clutch pressure plate and release
bearing.
Notice:
A click sound is heard when the release bearing and
the tip of the diaphragm spring engage each other.
Check to see if they are securely engaged by pushing
the tip of the shift fork toward the engine side while
applying a force of about 25 N ⋅m (2.6 kgf ⋅m/19 lb ⋅ft). If
the shift fork will not move, then they are securely
engaged. 9. Connect harness clips on the transmission left
side.
10. Install the starter assembly.
• Tighten the starter bolts to the specified torque.
Torque: 94 N ⋅m (9.6 kgf ⋅m/69 lb ⋅ft)
11. Install the transmission rear mount to the transmission.
• Tighten the transmission rear mount bolts to the specified torque.
Torque: 50 N ⋅m (5.1 kgf ⋅m/37 lb ⋅ft)
12. Install the transmission crossmember by removing four bolts and nuts.
• Tighten the transmission crossmember bolts to the specified torque.
Torque: 67 N ⋅m (6.8 kgf ⋅m/49 lb ⋅ft)
13. Install the transmission rear mount nuts fixing on crossmember from transmission crossmember.
• Tighten the transmission rear mount nuts to the specified torque.
Torque: 52 N ⋅m (5.3 kgf ⋅m/38 lb ⋅ft)
Remove the transmission jack from transmission
side.
14. Install the fuel pipe bracket bolt and connect fuel pipe clip.
• Tighten the fuel pipe bracket bolt to the specified torque.
Torque: 76 N ⋅m (7.7 kgf ⋅m/56 lb ⋅ft)
15. Install the slave cylinder fixing bolts. • Tighten the slave cylinder bolts to the specifiedtorque.
Torque: 43 N ⋅m (4.4 kgf ⋅m/32 lb ⋅ft)
RTW77BSH007201

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

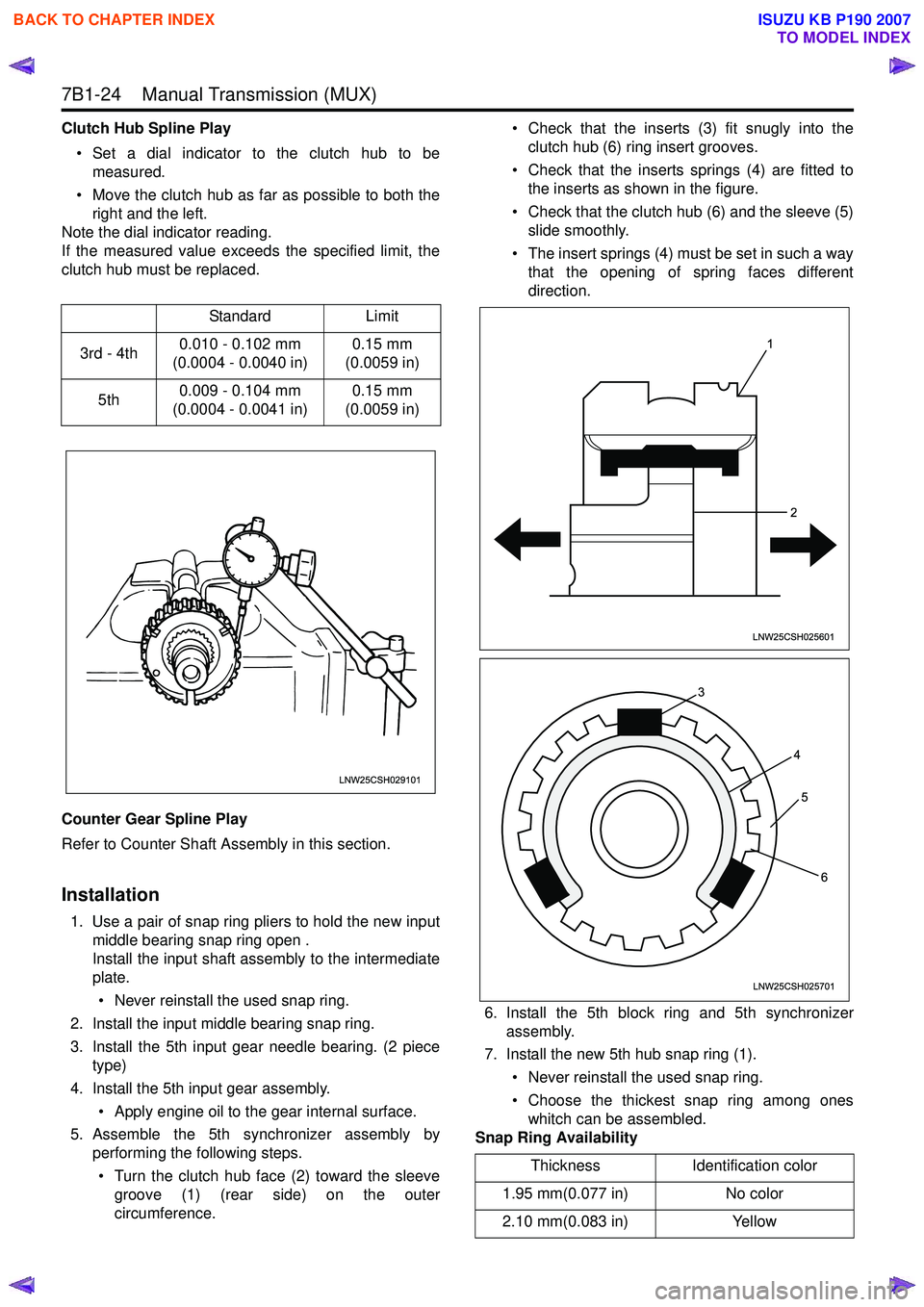

7B1-24 Manual Transmission (MUX)
Clutch Hub Spline Play• Set a dial indicator to the clutch hub to be measured.
• Move the clutch hub as far as possible to both the right and the left.
Note the dial indicator reading.
If the measured value exceeds the specified limit, the
clutch hub must be replaced.
Counter Gear Spline Play
Refer to Counter Shaft Assembly in this section.
Installation
1. Use a pair of snap ring pliers to hold the new input middle bearing snap ring open .
Install the input shaft assembly to the intermediate
plate.
• Never reinstall the used snap ring.
2. Install the input middle bearing snap ring.
3. Install the 5th input gear needle bearing. (2 piece type)
4. Install the 5th input gear assembly. • Apply engine oil to the gear internal surface.
5. Assemble the 5th synchronizer assembly by performing the following steps.
• Turn the clutch hub face (2) toward the sleeve groove (1) (rear side) on the outer
circumference. • Check that the inserts (3) fit snugly into the
clutch hub (6) ring insert grooves.
• Check that the inserts springs (4) are fitted to the inserts as shown in the figure.
• Check that the clutch hub (6) and the sleeve (5) slide smoothly.
• The insert springs (4) must be set in such a way that the opening of spring faces different
direction.
6. Install the 5th block ring and 5th synchronizer assembly.
7. Install the new 5th hub snap ring (1).
• Never reinstall the used snap ring.
• Choose the thickest snap ring among ones whitch can be assembled.
Snap Ring Availability
Standard
Limit
3rd - 4th 0.010 - 0.102 mm
(0.0004 - 0.0040 in) 0.15 mm
(0.0059 in)
5th 0.009 - 0.104 mm
(0.0004 - 0.0041 in) 0.15 mm
(0.0059 in)
LNW25CSH029101
Thickness Identification color
1.95 mm(0.077 in) No color
2.10 mm(0.083 in) Yellow
1
2
LNW25CSH025601
3 45
6
LNW25CSH025701

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Manual Transmission (MUX) 7B1-25
8. Install the counter middle roller bearing outer race,counter shaft assembly and 5th counter gear to the
intermediate plate.
• Apply engine oil to the gear internal surface.
9. Install the 3rd counter gear. • Apply engine oil to the gear internal surface.
10. Iinstall the 3rd input gear needle bearing.
11. Assemble the 3rd-4th synchronizer assembly by performing the following steps.
• Turn the clutch hub face (2) toward the sleeve groove (1) (rear side) on the outer
circumference.
• Check that the inserts (3) fit snugly into the clutch hub (6) ring insert grooves.
• Check that the inserts springs (4) are fitted to the inserts as shown in the figure.
• Check that the clutch hub (6) and the sleeve (5) slide smoothly.
• The insert springs (4) must be set in such a way that the opening of spring faces different
direction. 12. Install the 3rd input gear assembly, 3rd-4th block
ring of 3rd input gear side, and 3rd-4th
synchronizer assembly.
• Apply engine oil to the gear internal surface.
13. Install the new 3rd-4th hub snap ring (1).
• Never reinstall the used snap ring.
• Choose the thickest snap ring among ones whitch can be assembled.
Snap Ring Availability
RTW77BSH005101
1
Thickness Identification color
1.9 mm(0.075 in) No color
2.1 mm(0.083 in) Yellow
2.3 mm(0.091 in) Pink
1
2
LNW25CSH025601
3 45
6
LNW25CSH025701

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007
