ENGINE MECHANICAL (6VE1 3.5L) 6A-83
3. Insert the new pin into the piston and rotate it. If
the pin rotates smoothly with no backlash, the
clearance is normal. If there is backlash o
r
roughness, measure the clearance. If the
clearance exceeds the specified limit, the piston
must be replaced.
Clearance
Standard : 0.010 mm




0.017 mm
(0.0004 in.




0.0007 in)
Limit : 0.040 mm (0.0016 in)
Connecting Rods (11)
1. Check the connecting rod alignment If either the
bend or the twist exceeds the specified limit, the
connecting rod must be replaced.
Bend per 100 mm (3.937 in)
Limit: 0.15 (0.0059)
Twist per 100 mm (3.937 in)
Limit: 0.20 (0.0078)





015RS030
2. Measure the connecting rod thrust clearance. Use
a feeler gauge to measure the thrust clearance a
t
the large end of the connecting rod If the clearance
exceeds the specified limit, the connecting rod
must be replaced.
Standard : 0.16 mm




0.35 mm
(0.0063 in.




0.0138 in)
Limit : 0.40 mm (0.0157 in)







015RS031
3. Measure the oil clearance between the connecting
rod and the crankshaft.
1. Remove the connecting rod cap nuts and the
rod caps (12).

Arrange the removed rod caps in the cylinder
number order.
2. Clean the rod bearings and the crankshaft pins.
3. Carefully check the rod bearings. If even one
bearing is found to be damaged or badly worn,
the entire bearing assembly must be replaced
as a set. Reinstall the bearings in their original
positions. Apply plastigage to the crank pin.






015RS032
4. Reinstall the rod caps (12) to their original
positions.
Tighten the rod cap nuts.
Torque: 54 N
 m (5.5 kg
 m/40 lb ft)

6A-84 ENGINE MECHANICAL (6VE1 3.5L)
NOTE: Do not allow the crankshaft to rotate.
5. Remove the rod caps.
6. Measure the width of the plastigage and determine
the oil clearance. If the oil clearance exceeds the
limit, replace the rod bearing as a set.
Standard : 0.019 mm




0.043 mm
(0.0007 in




0.0017 in)
Limit : 0.08 mm (0.003 in)





015RS008
7. Clean the plastigage from the bearings and the
crankshaft pins.
Con




rod Bearing Selection
Select and install the new connecting rod bearings,
paying close attention to the connecting rod big end
diameter size mark (1).
NOTE: Take care not to confuse the alignment mark (2)
and the size mark (1) during the installation procedure.





015RS034


1 Size Mark Big end Bore
Diameter Crankshaft Pin
Diameter Connecting Rod
Bearing Thickness
(Reference) Color of
Size Mark Oil Clearance
(Reference)
A 56.994-57.000
(2.2439-2.2441) 1.512-1.516
(0.0595-0.0597) Yellow 0.025-0.054
(0.0010-0.0021)
B 56.988-56.994
(2.2436-2.2439) 53.922-53.937
(2.1229-2.1235) 1.508-1.512
(0.0594-0.0595) Green 0.027-0.056
(0.0011-0.0022)
C 56.982-56.988
(2.2434-2.2436) 1.504-1.508
(0.0592-0.0594) Pink 0.029-0.058
(0.0011-0.0023)

Reassembly
1. Install connecting rod
2. Install piston
3. Install piston pin

Apply a thin coat of engine oil to the piston pin.
Try to insert the piston pin into the piston pin
hole with normal finger pressure.
NOTE: When changing piston / connecting rod
combinations, do not change the piston / piston pin
combination and do not reuse the old piston pin.

Attach the piston to the connecting rod with the
piston front mark and the connecting rod fron
t
mark on the same side.

ENGINE MECHANICAL (6VE1 3.5L) 6A-85



RUW36ASH000501
 With 5
8840
0551
0 Piston pin service set
and a press, press fit the piston pin.
NOTE: Heat the connecting rod small end to a suitable
temperature to ensure smooth installation.


015RX001
Legend
(1) Press Ram
(2) Piston
(3) Connecting Rod
(4) Piston Pin

4. Install piston ring with the piston ring expander.
The No.2 compression ring must be set with the
T2 mark (1) facing up.



015RS027
 Install piston rings in the following sequence.
1. Oil ring
1. Expander ring
2. Upper side rail
3. Lower side rail
2. 2nd compression ring
 The 2nd compression ring must be set with the
T2 mark facing up.
3. 1st compression ring
 The compression ring must be set with
direction of origin.
 After installation, apply engine oil to the entire
circumference of the piston rings. Check to see
that all the rings rotate smoothly.





015RS038

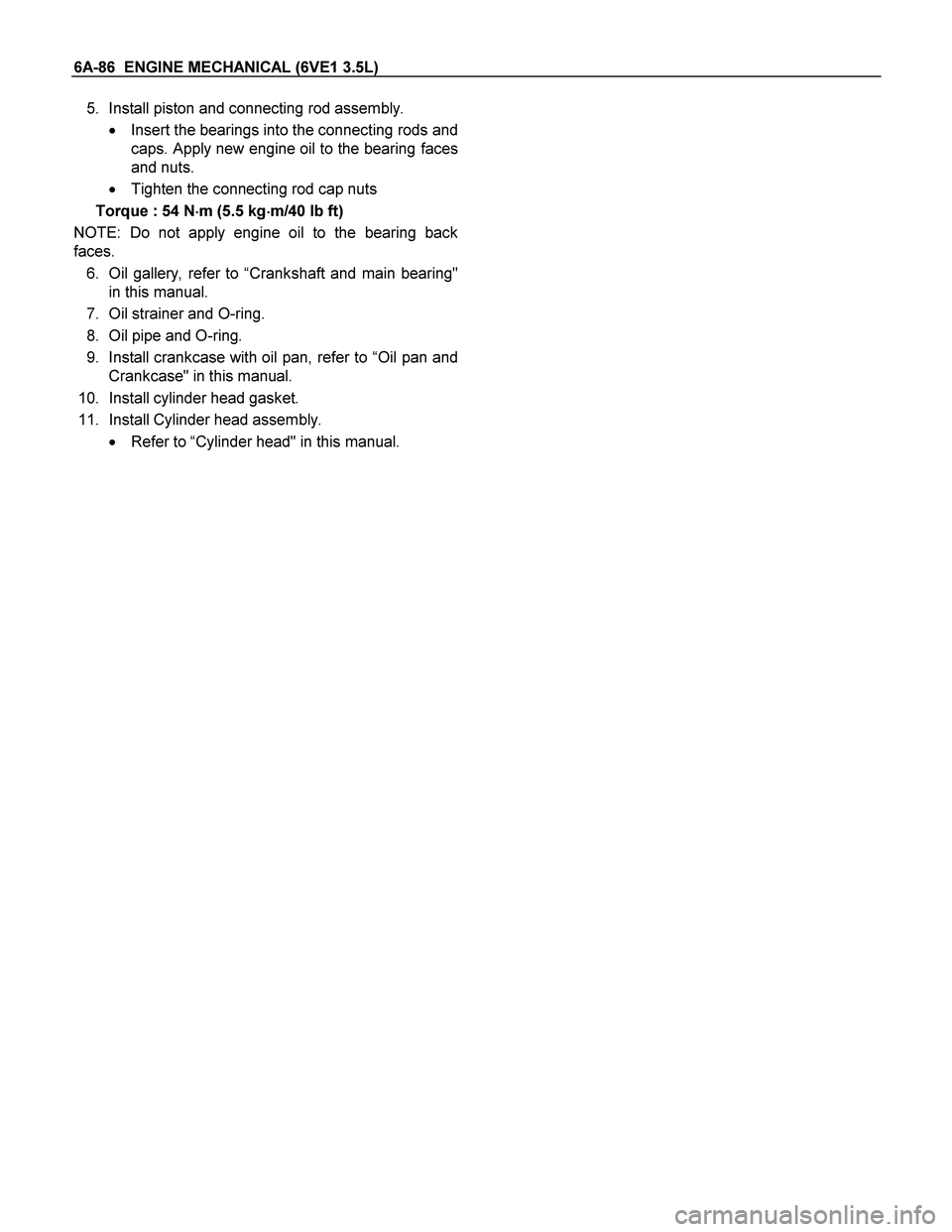

6A-86 ENGINE MECHANICAL (6VE1 3.5L)
5. Install piston and connecting rod assembly.
 Insert the bearings into the connecting rods and
caps. Apply new engine oil to the bearing faces
and nuts.
 Tighten the connecting rod cap nuts
Torque : 54 N
 m (5.5 kg
 m/40 lb ft)
NOTE: Do not apply engine oil to the bearing back
faces.
6. Oil gallery, refer to “Crankshaft and main bearing"
in this manual.
7. Oil strainer and O-ring.
8. Oil pipe and O-ring.
9. Install crankcase with oil pan, refer to “Oil pan and
Crankcase" in this manual.
10. Install cylinder head gasket.
11. Install Cylinder head assembly.
 Refer to “Cylinder head" in this manual.

ENGINE MECHANICAL (6VE1 3.5L) 6A-87
Cylinder Block
Cylinder Block and Associated Parts



012RW010
Legend
(1) Cylinder Head Assembly
(2) Cylinder Head Gasket
(3) Crankcase with Oil Pan
(4) Oil Pipe and O-Ring
(5) Oil Strainer and O-Ring
(6) Oil Pump Assembly
(7) Cylinder Block Side Bolts
(8) Oil Gallery
(9) Piston and Connecting Rod Assembly
(10) Flywheel
(11) Rear Oil Seal Retainer Assembly
(12) Main Bearing Cap
(13) Crankshaft
(14) Cylinder Block

6A-88 ENGINE MECHANICAL (6VE1 3.5L)
Disassembly
1. Remove cylinder head assembly.
2. Remove cylinder head gasket.
3. Remove crankcase with oil pan.
4. Remove oil pipe and O-ring.
5. Remove oil strainer and O-ring.
6. Remove oil pump assembly.
7. Remove crankcase side bolts.
8. Remove oil gallery.
9. Remove piston and connecting rod assembly.
10. Remove flywheel.
11. Remove rear oil seal retainer assembly.
12. Remove main bearing cap.
13. Remove crankshaft.
14. Remove cylinder block.
Inspection and Repair
1. Remove the cylinder head gasket and any other
material adhering to the upper surface of the
cylinder block. Be very careful not to allow any
material to accidentally drop into the cylinder block.
Be very careful not to scratch the cylinder block.
2. Carefully remove the oil pump, rear oil seal
retainer, and crankcase assembly installation
surface seal.
3. Wipe the cylinder block clean.
4. Visually inspect the cylinder block. If necessary,
use a flaw detector to perform a dye penetrate and
hydraulic (or air pressure) test. If cracking or othe
r
damage is discovered, the cylinder block must
either be repaired or replaced.
Flatness
1. Using a straight
edge and feeler gauge, check
that the upper surface of the cylinder block is no
t
warped.
NOTE: Be very careful not to allow any material to
accidentally drop into the upper surface of the cylinde
r
block. Be very careful not to scratch the upper surface
of the cylinder block.
2. The cylinder block must be reground or replaced i
f
the warpage exceeds the limit.
Warpage
Limit : 0.15 mm (0.0059 in)
Maximum repairable limit: 0.15 mm (0.0059 in)




012RS004
Cylinder Bore
Use a cylinder gauge to measure the cylinder bore
diameter in both the axial and thrust directions. Each
measurement should be made at six points.
CAUTION: Be very careful not to allow any material
to accidentally drop into the upper surface of the
cylinder block. Be very careful not to scratch the
upper surface of the cylinder block.
Cylinder Bore Inside Diameter
Limit : 93.530 mm (3.6823 in)
If the measurement exceed the specified limit, the
cylinder block must be replaced.
Diameter
Grade A : 93.400 mm




93.410 mm
(3.6772 in




3.6776 in)
Grade B : 93.411 mm




93.420 mm
(3.6776 in




3.6779 in)
Grade C : 93.421 mm




93.430 mm
(3.6780 in




3.6783 in)

ENGINE MECHANICAL (6VE1 3.5L) 6A-89


012RS005
NOTE: For information on piston diameter, please refer
to the section "Inspection of the Piston and Connecting
Rod Assembly" in this manual.
 The "Grade" mark (1) is stamped at the
position illustrated.





012RS006
Reassembly
1. Install cylinder block.
2. Install crankshaft.
 Install the main bearings to the cylinder block
and the main bearing caps.
 Be sure that they are positioned correctly.

Apply new engine oil to the upper and lower
main bearing faces.
NOTE: Do not apply engine oil to the bearing back
faces.






015RS012
Legend
(1) Number 1 and 4 main bearing upper and lower.
(2) Number 2 and 3 main bearing upper.
(3) Number 2 and 3 main bearing lower.

 Carefully mount the crankshaft.
 Apply engine oil to the thrust washer.
 Assemble the thrust washer to the No. 3
bearing journal. The oil grooves must face the
crankshaft.





015RS013
3. Install rear oil seal retainer.
 Remove oil on cylinder block and retainer fitting
surface.

Apply sealant (TB1207B or equivalent) to
retainer fitting surface as shown in illustration.
 The oil seal retainer must be installed within 5
minutes after sealant application before the
sealant hardens.

6A-90 ENGINE MECHANICAL (6VE1 3.5L)




015RW002
Legend
(1) Around Bolt Holes
(2) Around Dowel Pin

 Apply engine oil to oil seal lip and align a dowel
pin hole in the cylinder block with that in the
retainer.
 Tighten retainer fixing bolts to the specified
torque.
Torque: 25 N
 m (2.5 kg
 m/18.4 lb ft)




015RW001
4. Install flywheel
1. Thoroughly clean and remove the oil from the
threads of crankshaft.
2. Remove the oil from the crankshaft and
flywheel mounting faces.
3. Mount the flywheel on the crankshaft and then
install the washer.
4. Holding the crankshaft stationary, tighten the
flywheel bolts in the order shown. Torque: 54 N
 m (5.5 kg
 m/40 lb ft)
NOTE: Do not reuse the bolts and do not apply oil o
r
thread lock to the bolts.



015RS018
5. Install piston and connecting rod assembly.
 Apply engine oil to the cylinder bores, the
connecting rod bearings and the crankshaf
t
pins.
NOTE: Do not apply engine oil to the bearing back
faces.
 Check to see that the piston ring end gaps are
correctly positioned.




015RS019
Legend
(1) No.1 Compression Ring
(2) No.2 Compression Ring
(3) Oil Ring Side Rail Upper
(4) Oil Ring Side Rail Lower
(5) Piston Front Mark

ENGINE MECHANICAL (6VE1 3.5L) 6A-91
 Insert the piston/connecting rod assemblies into
each cylinder with the piston ring compressor.
 The front marks (1) must be facing the front o
f
the engine.


015RS020
6. Install oil gallery and tighten the bolts in 2 steps in
the order shown.
1st step : 29 N
 m (3.0 kg
 m/22 lb ft)
2nd step : 55

  65°



012RS007
7. Install cylinder block side bolts (1) and tighten
crankcase bolts in sequence shown in the
illustration.
Torque : 39 N
 m (4.0 kg
 m/29 lb ft)





012RW005
8. Install oil pump assembly. Refer to “Oil Pump" in
this manual.
9. Install oil strainer and O-ring.
10. Install oil pipe and O-ring.
11. Install crankcase with oil pan.
1. Completely remove all residual sealant,
lubricant and moisture from the sealing
surfaces. The surfaces must be perfectly dry.
2. Apply a correct width bead of sealant (TB

1207C or its equivalent) to the contact surfaces
of the crankcase. There must be no gaps in the
bead.
3. The oil pan must be installed within 5 minutes
after sealant application to prevent premature
hardening of sealant.

ENGINE MECHANICAL (6VE1 3.5L) 6A-93
Main Data and Specification

General Specification
Item Specifications
Engine type, number of cylinders and arrangement Water cooled, four cycle V6
Form of combustion chamber Pent-roof type
Valve mechanism 4-Cams, 4-Valves, DOHC Gear & Belt Drive
Cylinder liner type Casted in cylinder block
Total piston displacement 3494 cc
Cylinder bore x stroke 93.4mm x 85.0mm

(3.6772 in  3.3465 in)
Compression ratio 8.6
Compression pressure at 300rpm 1.37 MPa (14.0 Kg/cm2)
Engine idling speed rpm Non adjustable (750)
Valve clearance Intake: 0.28 mm (0.11 in)

Exhaust: 0.30mm (0.12 in)
Oil capacity 5.3 liters
Ignition timing
Non adjustable (12 BTDC at idle rpm)
Spark plug PK16PR11, RC10PYP4, K16PR-P11
Plug gap 1.0 mm – 1.1 mm (0.0394 in – 0.0433 in)
