Installation




8. Remove seat squab.
Lift squab clear of inertia reel assemblies withdrawing
dowels from top panel.
Carefully feed seat belt anch or plates and tongues through squab apertures.
9. Disconnect heater element harness multiplugs (if fitted) and
remove seat squab via rear passenger door.
1. Position squab in vehicle and pass seat belt tongues and
anchor plates through apertures.
2. Lift squab top roll over inertia reel assemblies, locate dowels in
panel apertures and lower and fully seat squab.
3. Fit and tighten the four squab securing screws.
4. Fit seat belt escutcheons to squab top roll.
5. Fit and fully tighten outer seat be lt lower anchor securing bolts.

6. Fit and fully tighten bolts securing centre seat belt lower
anchor plate and buckle cable.
7. Fit rear cushion. Refer to 76.70.37.
8. Fit rear head restraints.

Seating - Rear Seat Backrest Cover
Removal and Installation
Removal
1. Remove rear heel boards.
2. Remove rear seat cushion. Refer to 76.70.37.
3. Remove rear seat belt ecutcheon. Refer to 76.73.18.
4. Remove rear seat squa b. Refer to 76.70.38.
5. Place seat squab inverted on clean work surface.

6. Withdraw clips from headrest supports and remove headrests
from seat squab.

7. Remove the six clips securing re ar seat armrest aperture cover
to frame and position cover for access.

8. Slacken and remove the two sq uab mounting bracket screws
and remove brackets from frame.

9. Remove and discard the three ho g rings securing armrest rear
cover retaining strip, release strip from frame and remove arm
rest.

10. Releasing lower ends , withdraw headrest guide tubes and
trims from support boxes.

11. Release squab cover from the eight armrest aperture securing tangs.

12. Remove and discard all hog rings securing cover to outer
edge of frame.

13. Release cover retaining strip from frame top and free cover
from cushion edges.
14. Position cover for access an d remove and discard 17 hog
rings securing cover left hand panel to frame.

Installation

15. Position cover for access an d remove and discard 17 hog
rings securing cover right hand panel to frame.
16. Remove cover from seat squab.
1. Position cover on front of squab.

2. Secure cover right hand panel to frame using 17 hog rings.
3. Secure cover left hand panel to frame using 17 hog rings.

4. Position squab for access and pull cover over squab pad.

5. Ensuring that top of cover is ev enly tensioned, fit and fully seat retaining strip on frame.

6. Using 44 hog rings, secure co ver to outer edges of frame.

7. Position cover inside armrest ap erture and secure on the eight
armrest aperture tangs.

8. CAUTION: The apertures in the foam are over-size and
must not be used for guidance wh en cutting seat belt escutcheon
apertures in cover.
Using a suitable knife, carefully cut around headrest support
box and seat belt apertures.

9. With keyways facing forward, fit headrest guide tubes in
support boxes.

10. Ensure that lower segmented end of each headrest guide
tube fully seats on lower flange of support box.

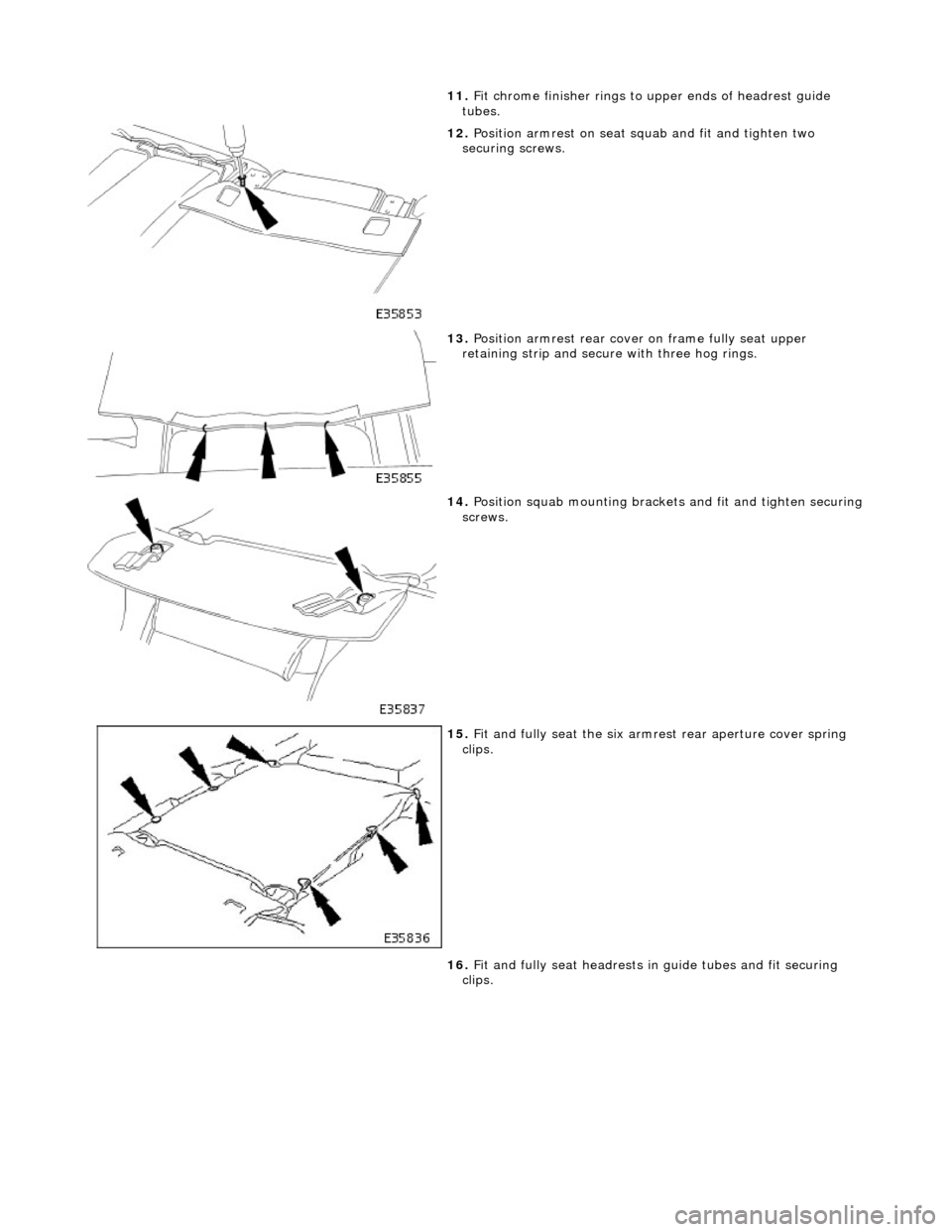

11. Fit chrome finisher rings to upper ends of headrest guide
tubes.

12. Position armrest on seat squab and fit and tighten two
securing screws.

13. Position armrest rear cover on frame fully seat upper
retaining strip and secure with three hog rings.

14. Position squab mounting brackets and fit and tighten securing screws.

15. Fit and fully seat the six armres t rear aperture cover spring
clips.
16. Fit and fully seat headrests in guide tubes and fit securing
clips.

Seating - Rear Seat Cushion Removal and Installation
Removal
Installation

1.
Heated rear seat only. Remove battery cover and disconnect ground
cable from battery terminal. Refer to 86.15.19.

2. Slacken, remove and discard 1/4 turn fastener securing each
heelboard trim panel and withdraw both panels for access.

3. Slacken and remove the seat cushion securing screws.

4. Raise rear of cushion, disconnect heater element harness multiplugs
(if fitted), and move cushion forw ard carefully feeding seat belt
buckles past cushion cut-outs.
5. Remove seat cushion from vehicle.
1. Holding outer seat belts clear, posi tion cushion in vehicle with rear
edge raised.
2. Position buckle assemblies and carefully feed them past cut-outs in
cushion.
3. Heated seat only. Connect heat er element harness multiplugs.
4. Fit and fully tighten cushion front securing screws.
5. Using new 1/4 turn fasteners, fi t and secure heelboard trims.
6. Reposition seatbelts.
7. Heated seat only. Fit ground cable to battery terminal and fit battery
cover. Refer to 86.15.15.

Seating - Rear Seat Cushion Cover
Removal and Installation
Removal
1. Remove rear heel boards.
2. Remove rear seat cushion. Refer to 76.70.37.
3. Place seat cushion inverted on clean work surface.

4. Remove and discard the eight hog rings securing cover at each
seat belt anchor aperture.

5. Remove and discard hog rings se curing outer edges of cover
and cushion to frame.

6. Remove and discard two hog ri ngs securing centre panel
overlap plastic edge fastener and release fastener from frame.

7. Withdraw centre overlap thro ugh cushion for access.and
remove and discard hog rings secu ring horizontal seam of right
hand panel to cushion.

Installation

8. Remove and discard the six ho g rings securing right hand
panel to centre of cushion.
9. Remove and discard seven hog ri ngs securing outer side of
cover left hand panel to cushion.
10. Remove and discard the four ho g rings securing horizontal
seam of left hand panel to cushion.
11. Remove and discard the six hog rings securing securing cover
left hand panel to centre of cushion.
12. Withdraw cover from seat belt anchor apertures.
13. Remove cover from cushion.
1. Position cover on cushion.

2. Secure cover right hand panel to centre of cushion using six
hog rings .

3. Position cover right hand hand panel through cushion seat belt
anchor aperture and secure hori zontal seam to cushion using
four hog rings.
4. Position cover and pass cent re overlap through cushion.
5. Secure outer side of cover righ t hand panel to cushion using
seven hog rings.

6. Secure cover left hand panel to centre of cushion using six hog
rings.
7. Position cover left hand panel th rough cushion seat belt anchor
aperture.
8. Secure horizontal seam of cover left hand panel to cushion
using four hog rings.
9. Position cover and pass cent re overlap through cushion.
10. Secure outer side of cover left hand panel to cushion using
seven hog rings.

11. Invert cushion assembly, fully se at cover centre panel overlap plastic edge fastener on frame and secure with two hog rings

12. Ensuring even tensioning, secu re outer edges of cover and
cushion to frame using hog rings.
13. Position cover at seat belt an chor apertures and secure each
with eight hog rings.
