Page 71 of 439
SAFETY TIPS
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO) which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing CO, fol-
low these safety tips:
Do not run the engine in a closed garage or in confined
areas any longer than needed to move your vehicle in or
out of the area.
If it is necessary to sit in a parked vehicle with the engine
running, adjust your heating or cooling controls to force
outside air into the vehicle. Set the blower at high speed.
WARNING!
If you are required to drive with the deck lid/liftgate
open, make sure that all windows are closed, and the
climate control blower switch is set at high speed.
DO NOT use the recirculation mode.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the belt system periodically, checking for cuts,
frays and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the belt.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69
2
Page 72 of 439
Airbag Warning Light
The light should come on and remain on for six to eight
seconds as a bulb check when the ignition switch is first
turned ON. If the LED is not lit during starting, have it
checked. If the light stays on, flickers, or comes on while
driving, have the system checked by an authorized
dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear or uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread. Inspect tread and sidewall for cuts or
cracks. Check the wheel nuts for tightness. Check the
tires (including spare) for proper pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check turn signal and high
beam indicator lights on the instrument panel.
Fluid Leaks
Check the area under the vehicle after overnight parking
for fuel, engine coolant, oil or other fluid leaks. Also, if
gasoline fumes are detected or fuel, power steering fluid,
transmission fluid or brake fluid leaks are suspected, the
cause should be located and corrected immediately.
70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 73 of 439

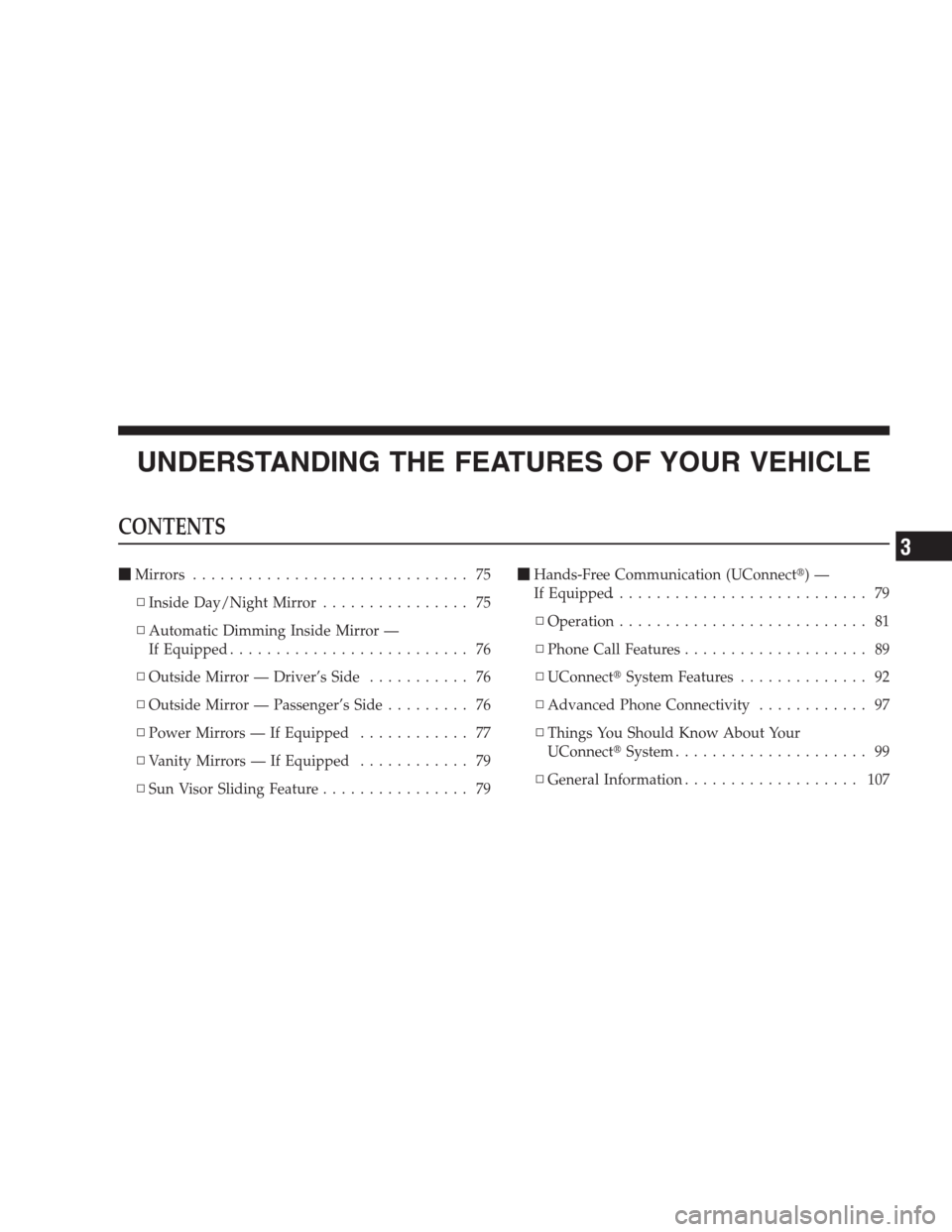

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors.............................. 75
▫Inside Day/Night Mirror................ 75
▫Automatic Dimming Inside Mirror —
If Equipped.......................... 76
▫Outside Mirror — Driver’s Side........... 76
▫Outside Mirror — Passenger’s Side......... 76
▫Power Mirrors — If Equipped............ 77
▫Vanity Mirrors — If Equipped............ 79
▫Sun Visor Sliding Feature................ 79Hands-Free Communication (UConnect)—
If Equipped............................ 79
▫Operation........................... 81
▫Phone Call Features.................... 89
▫UConnectSystem Features.............. 92
▫Advanced Phone Connectivity............ 97
▫Things You Should Know About Your
UConnectSystem..................... 99
▫General Information................... 107
3
Page 74 of 439
Voice Recognition System (VR) —
If Equipped........................... 107
▫Voice Recognition System (VR) Operation . . . 107
▫Commands......................... 109
▫Voice Training....................... 112
Seats............................... 112
▫Front Seat Adjustment................. 112
▫Manual Seat Height Adjustment —
If Equipped......................... 113
▫Manual Lumbar — If Equipped.......... 114
▫Driver’s Seatback Recline............... 114
▫Adjustable Head Restraints.............. 115
▫Heated Seats — If Equipped............. 116
▫Fold-Flat Front Passenger Seat........... 117▫Folding Rear Seat.................... 118
To Open And Close The Hood............. 119
Lights.............................. 121
▫Multifunction Lever................... 121
▫Headlights, Parking Lights And Instrument
Panel Lights........................ 121
▫Lights-On Reminder.................. 122
▫Fog Lights — If Equipped.............. 122
▫Daytime Running Lights (DRL) —
If Equipped......................... 123
▫Turn Signals........................ 123
▫High Beam/Low Beam Select Switch....... 124
▫Flash-To-Pass....................... 124
▫Off-Road Lights — If Equipped.......... 125
72 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 75 of 439
▫Map/Reading Lights.................. 126
Windshield Wipers And Washers.......... 127
▫Windshield Wiper Operation............ 127
▫Intermittent Wiper System.............. 128
▫Windshield Washers................... 128
▫Mist Feature........................ 129
Tilt Steering Column................... 130
Electronic Speed Control — If Equipped...... 131
▫To Activate......................... 131
▫To Set At A Desired Speed.............. 131
▫To Deactivate....................... 132
▫To Resume Speed.................... 132
▫To Vary The Speed Setting.............. 132▫Manual Transaxle.................... 133
▫To Accelerate For Passing............... 133
Garage Door Opener — If Equipped........ 134
▫Programming HomeLink.............. 135
▫Gate Operator/Canadian Programming..... 138
▫Using HomeLink.................... 138
▫Reprogramming A Single HomeLink
Button............................ 139
▫Security........................... 139
▫Troubleshooting Tips.................. 139
▫General Information................... 140
Power Sunroof — If Equipped............. 140
▫Opening The Sunroof.................. 141
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 73
3
Page 76 of 439

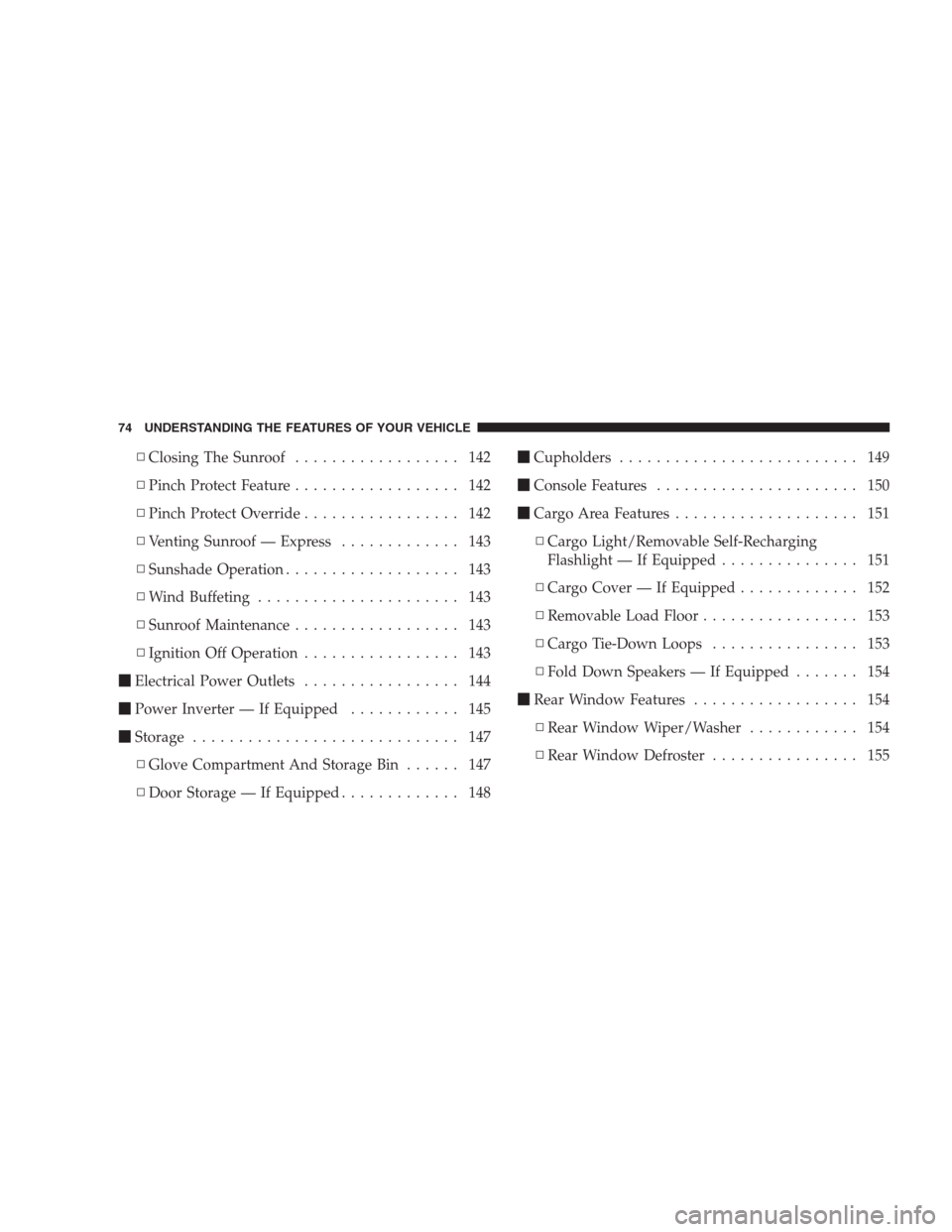

▫Closing The Sunroof.................. 142
▫Pinch Protect Feature.................. 142
▫Pinch Protect Override................. 142
▫Venting Sunroof — Express............. 143
▫Sunshade Operation................... 143
▫Wind Buffeting...................... 143
▫Sunroof Maintenance.................. 143
▫Ignition Off Operation................. 143
Electrical Power Outlets................. 144
Power Inverter — If Equipped............ 145
Storage............................. 147
▫Glove Compartment And Storage Bin...... 147
▫Door Storage — If Equipped............. 148Cupholders.......................... 149
Console Features...................... 150
Cargo Area Features.................... 151
▫Cargo Light/Removable Self-Recharging
Flashlight — If Equipped............... 151
▫Cargo Cover — If Equipped............. 152
▫Removable Load Floor................. 153
▫Cargo Tie-Down Loops................ 153
▫Fold Down Speakers — If Equipped....... 154
Rear Window Features.................. 154
▫Rear Window Wiper/Washer............ 154
▫Rear Window Defroster................ 155
74 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 77 of 439

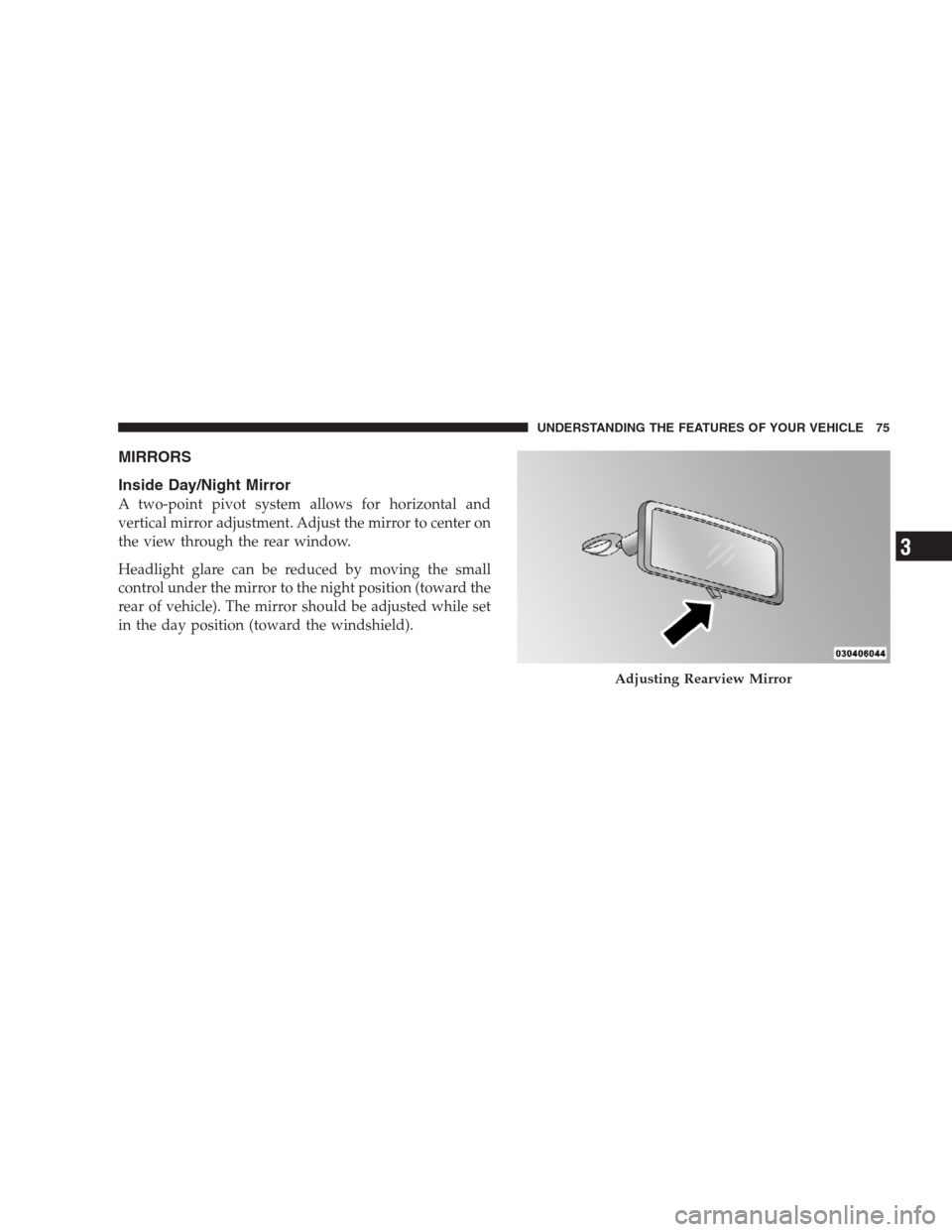

MIRRORS
Inside Day/Night Mirror
A two-point pivot system allows for horizontal and
vertical mirror adjustment. Adjust the mirror to center on
the view through the rear window.
Headlight glare can be reduced by moving the small
control under the mirror to the night position (toward the
rear of vehicle). The mirror should be adjusted while set
in the day position (toward the windshield).
Adjusting Rearview Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 75
3
Page 78 of 439

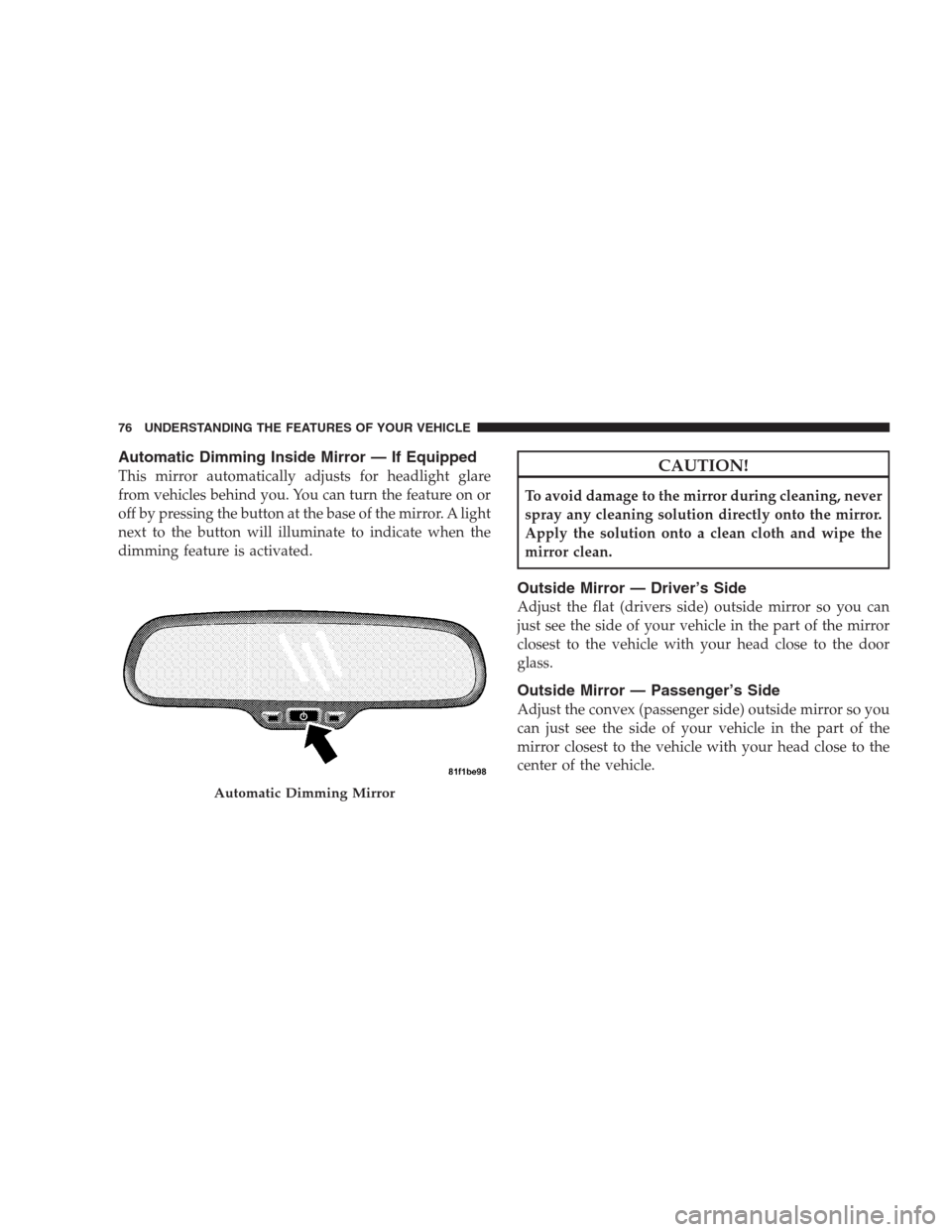

Automatic Dimming Inside Mirror — If Equipped
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirror — Driver’s Side
Adjust the flat (drivers side) outside mirror so you can
just see the side of your vehicle in the part of the mirror
closest to the vehicle with your head close to the door
glass.
Outside Mirror — Passenger’s Side
Adjust the convex (passenger side) outside mirror so you
can just see the side of your vehicle in the part of the
mirror closest to the vehicle with your head close to the
center of the vehicle.
Automatic Dimming Mirror
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 79 of 439
WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Power Mirrors — If Equipped
The control for the power mirrors is located on the
drivers door trim panel.
Power Mirror Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 77
3
Page 80 of 439

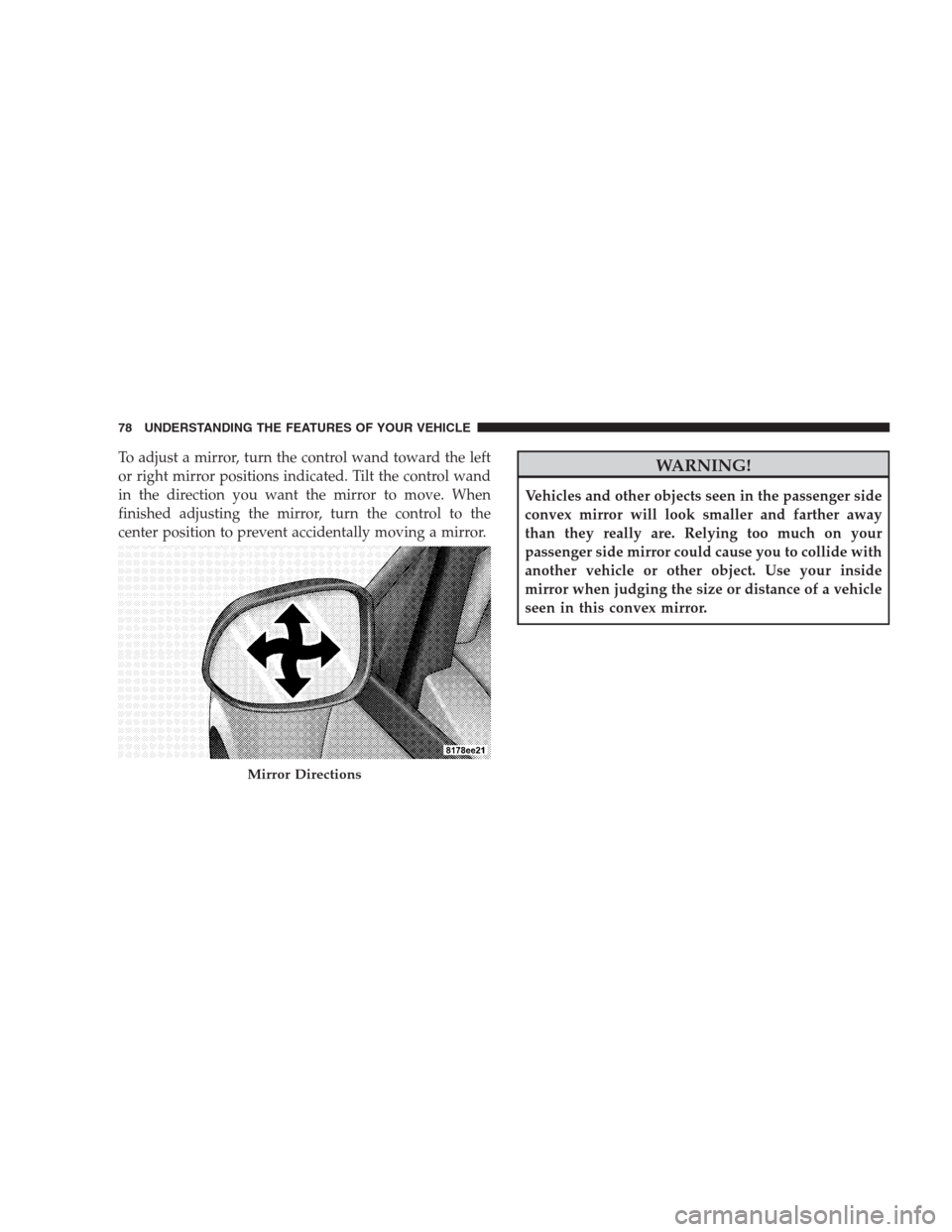

To adjust a mirror, turn the control wand toward the left
or right mirror positions indicated. Tilt the control wand
in the direction you want the mirror to move. When
finished adjusting the mirror, turn the control to the
center position to prevent accidentally moving a mirror.WARNING!
Vehicles and other objects seen in the passenger side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger side mirror could cause you to collide with
another vehicle or other object. Use your inside
mirror when judging the size or distance of a vehicle
seen in this convex mirror.
Mirror Directions
78 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
