jacking JEEP GRAND CHEROKEE SRT 2017 Owners Manual

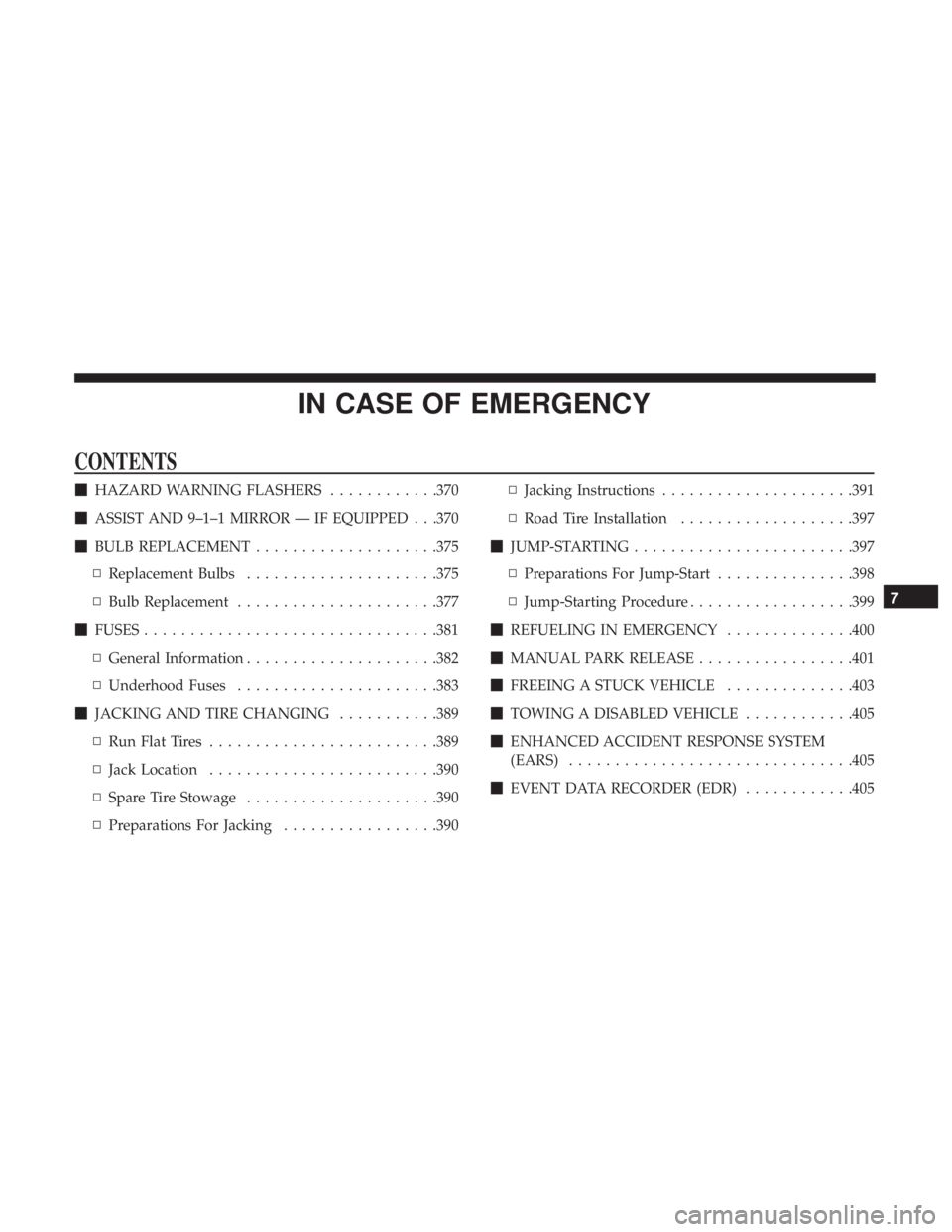

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............370
 ASSIST AND 9–1–1 MIRROR — IF EQUIPPED . . .370
 BULB REPLACEMENT ....................375
▫ Replacement Bulbs .....................375
▫ Bulb Replacement ..................... .377
 FUSES ............................... .381
▫ General Information .....................382
▫ Underhood Fuses ..................... .383
 JACKING AND TIRE CHANGING ...........389
▫ Run Flat Tires ........................ .389
▫ Jack Location ........................ .390
▫ Spare Tire Stowage .....................390
▫ Preparations For Jacking .................390 ▫
Jacking Instructions .....................391
▫ Road Tire Installation ...................397
 JUMP-STARTING ....................... .397
▫ Preparations For Jump-Start ...............398
▫ Jump-Starting Procedure ..................399
 REFUELING IN EMERGENCY ..............400
 MANUAL PARK RELEASE .................401
 FREEING A STUCK VEHICLE ..............403
 TOWING A DISABLED VEHICLE ............405
 ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .............................. .405
 EVENT DATA RECORDER (EDR) ............405
7

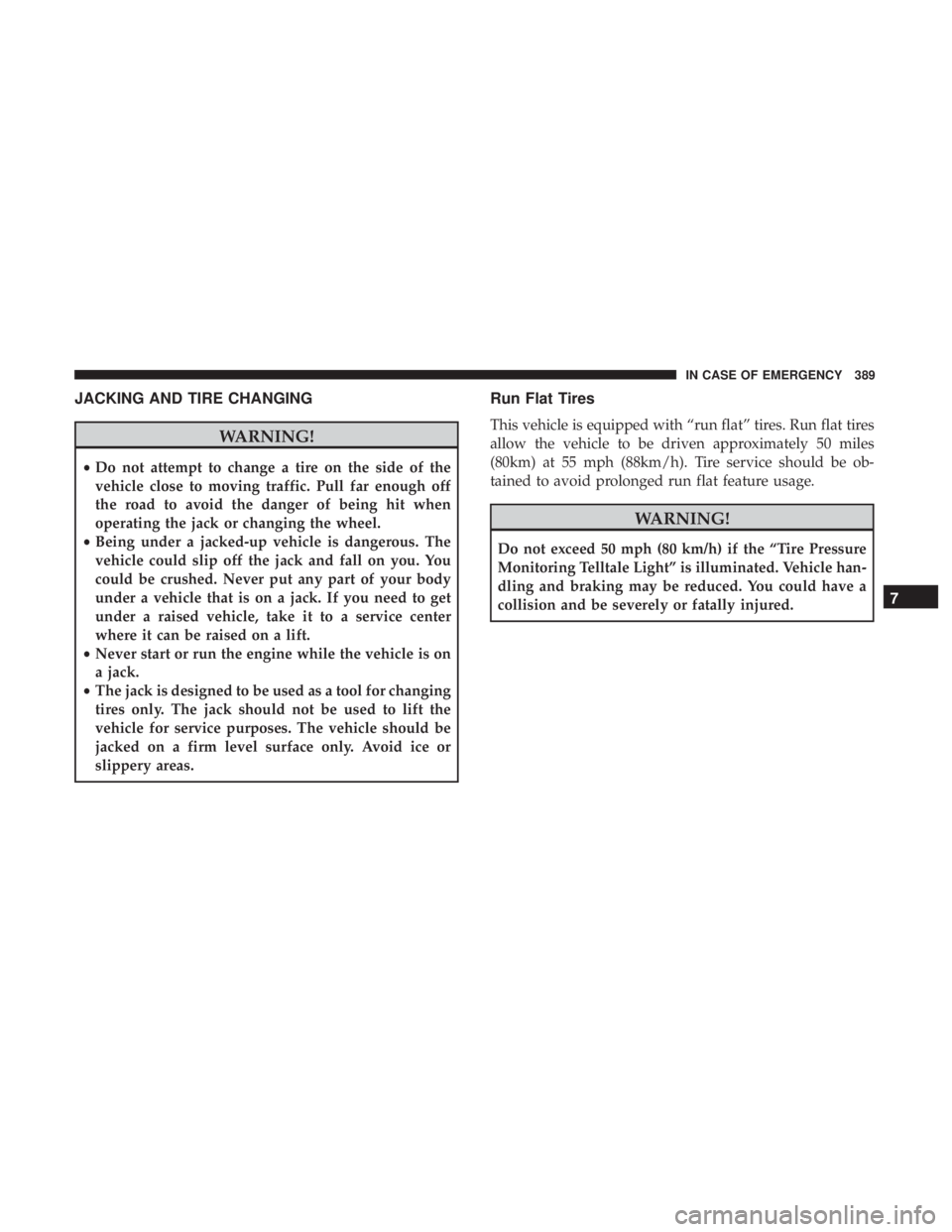

JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
• Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
• Never start or run the engine while the vehicle is on
a jack.
• The jack is designed to be used as a tool for changing
tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should be
jacked on a firm level surface only. Avoid ice or
slippery areas.
Run Flat Tires
This vehicle is equipped with “run flat” tires. Run flat tires
allow the vehicle to be driven approximately 50 miles
(80km) at 55 mph (88km/h). Tire service should be ob-
tained to avoid prolonged run flat feature usage.
WARNING!
Do not exceed 50 mph (80 km/h) if the “Tire Pressure
Monitoring Telltale Light” is illuminated. Vehicle han-
dling and braking may be reduced. You could have a
collision and be severely or fatally injured.
7
IN CASE OF EMERGENCY 389

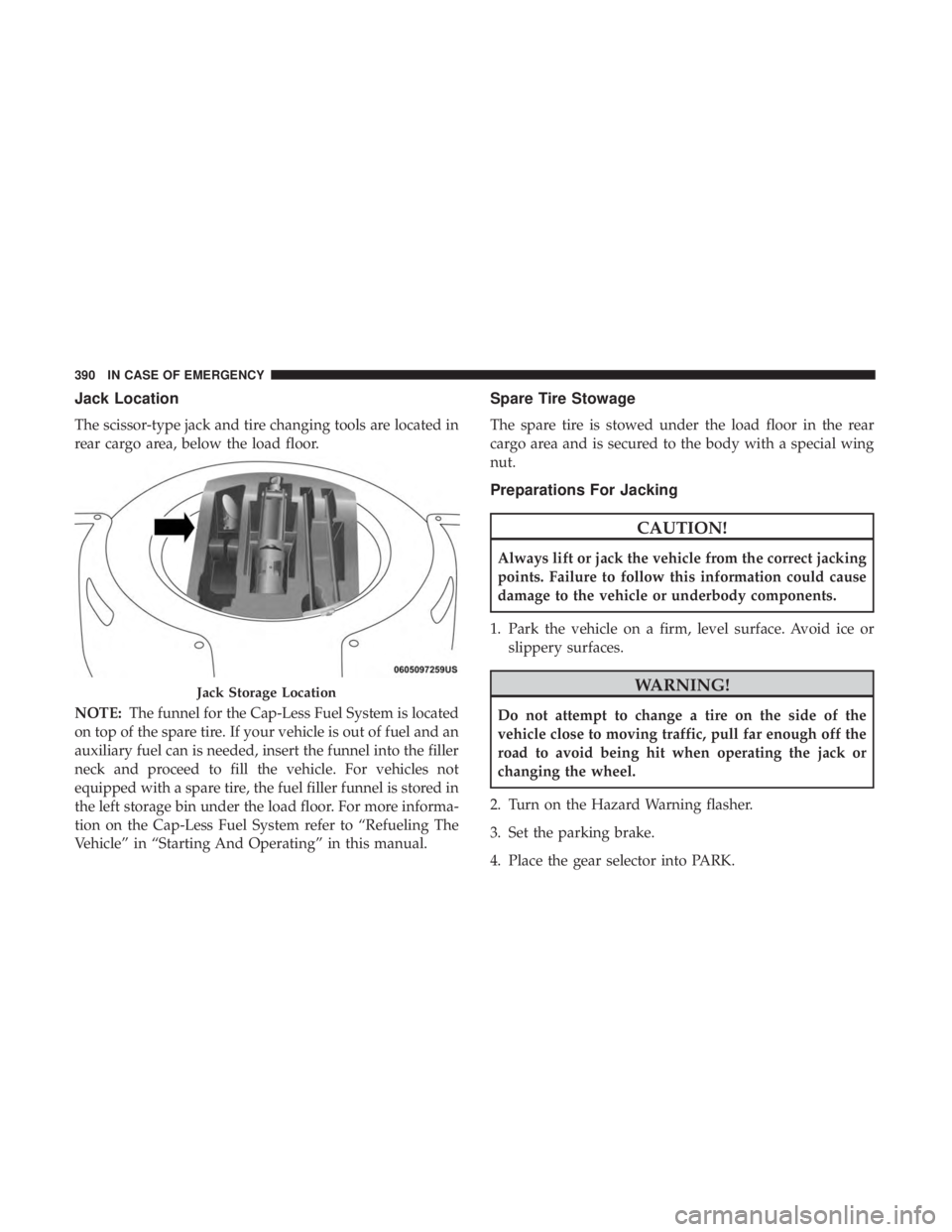

Jack Location
The scissor-type jack and tire changing tools are located in
rear cargo area, below the load floor.
NOTE:The funnel for the Cap-Less Fuel System is located
on top of the spare tire. If your vehicle is out of fuel and an
auxiliary fuel can is needed, insert the funnel into the filler
neck and proceed to fill the vehicle. For vehicles not
equipped with a spare tire, the fuel filler funnel is stored in
the left storage bin under the load floor. For more informa-
tion on the Cap-Less Fuel System refer to “Refueling The
Vehicle” in “Starting And Operating” in this manual.
Spare Tire Stowage
The spare tire is stowed under the load floor in the rear
cargo area and is secured to the body with a special wing
nut.
Preparations For Jacking
CAUTION!
Always lift or jack the vehicle from the correct jacking
points. Failure to follow this information could cause
damage to the vehicle or underbody components.
1. Park the vehicle on a firm, level surface. Avoid ice or slippery surfaces.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off the
road to avoid being hit when operating the jack or
changing the wheel.
2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Place the gear selector into PARK.
Jack Storage Location
390 IN CASE OF EMERGENCY

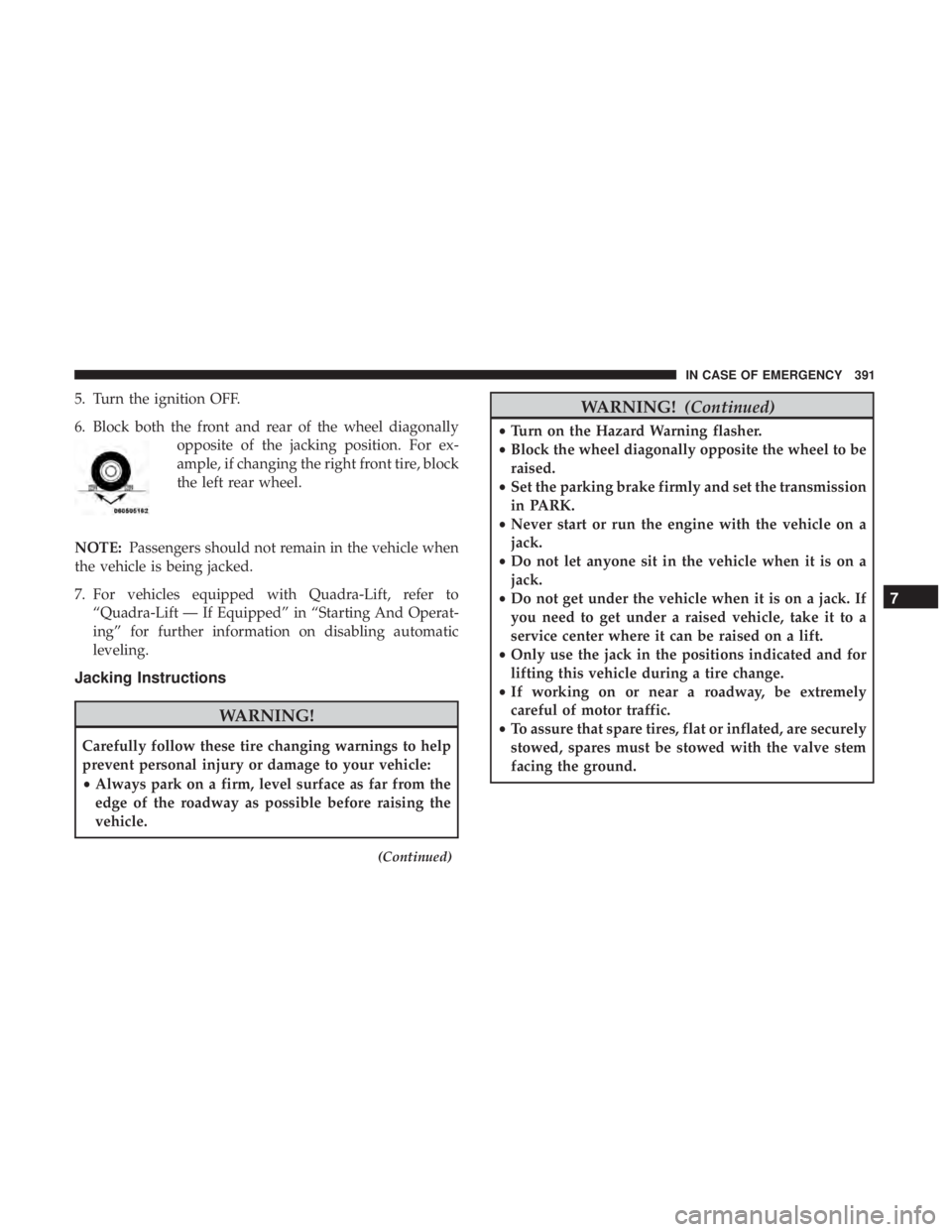

5. Turn the ignition OFF.
6. Block both the front and rear of the wheel diagonallyopposite of the jacking position. For ex-
ample, if changing the right front tire, block
the left rear wheel.
NOTE: Passengers should not remain in the vehicle when
the vehicle is being jacked.
7. For vehicles equipped with Quadra-Lift, refer to “Quadra-Lift — If Equipped” in “Starting And Operat-
ing” for further information on disabling automatic
leveling.
Jacking Instructions
WARNING!
Carefully follow these tire changing warnings to help
prevent personal injury or damage to your vehicle:
•Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
(Continued)
WARNING! (Continued)
•Turn on the Hazard Warning flasher.
• Block the wheel diagonally opposite the wheel to be
raised.
• Set the parking brake firmly and set the transmission
in PARK.
• Never start or run the engine with the vehicle on a
jack.
• Do not let anyone sit in the vehicle when it is on a
jack.
• Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
• Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
• If working on or near a roadway, be extremely
careful of motor traffic.
• To assure that spare tires, flat or inflated, are securely
stowed, spares must be stowed with the valve stem
facing the ground.
7
IN CASE OF EMERGENCY 391

CAUTION!
Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
1. Remove the spare tire, jack, and tools from storage.
2. Loosen (but do not remove) the wheel lug nuts by turning them to the left, one turn, while the wheel is still
on the ground. 3. Assemble the jack and jacking tools.

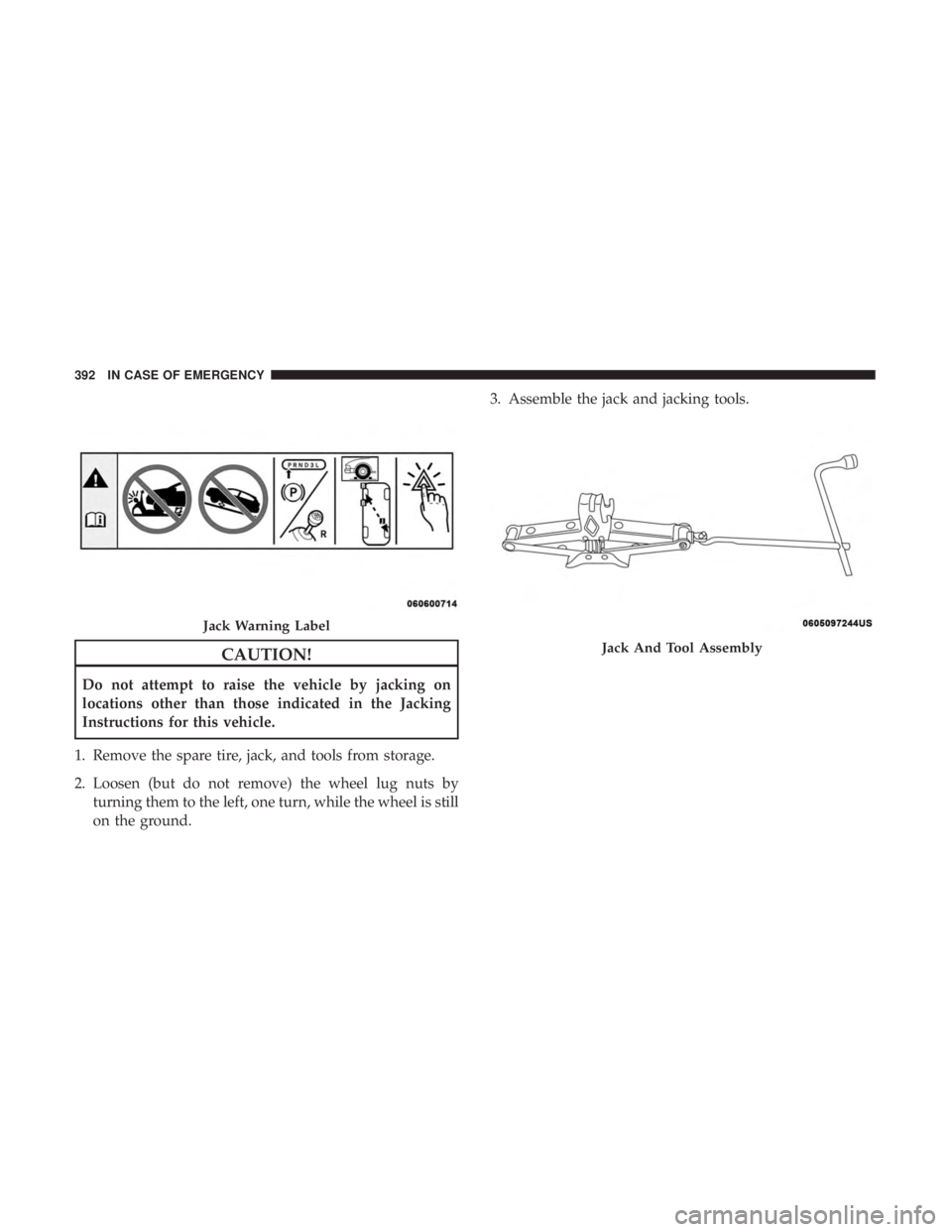

Jack Warning Label
Jack And Tool Assembly
392 IN CASE OF EMERGENCY

4. For the front axle, place the jack on the body flange justbehind the front tire as indicated by the triangular lift
point symbol on the sill molding. Do not raise the
vehicle until you are sure the jack is fully engaged.

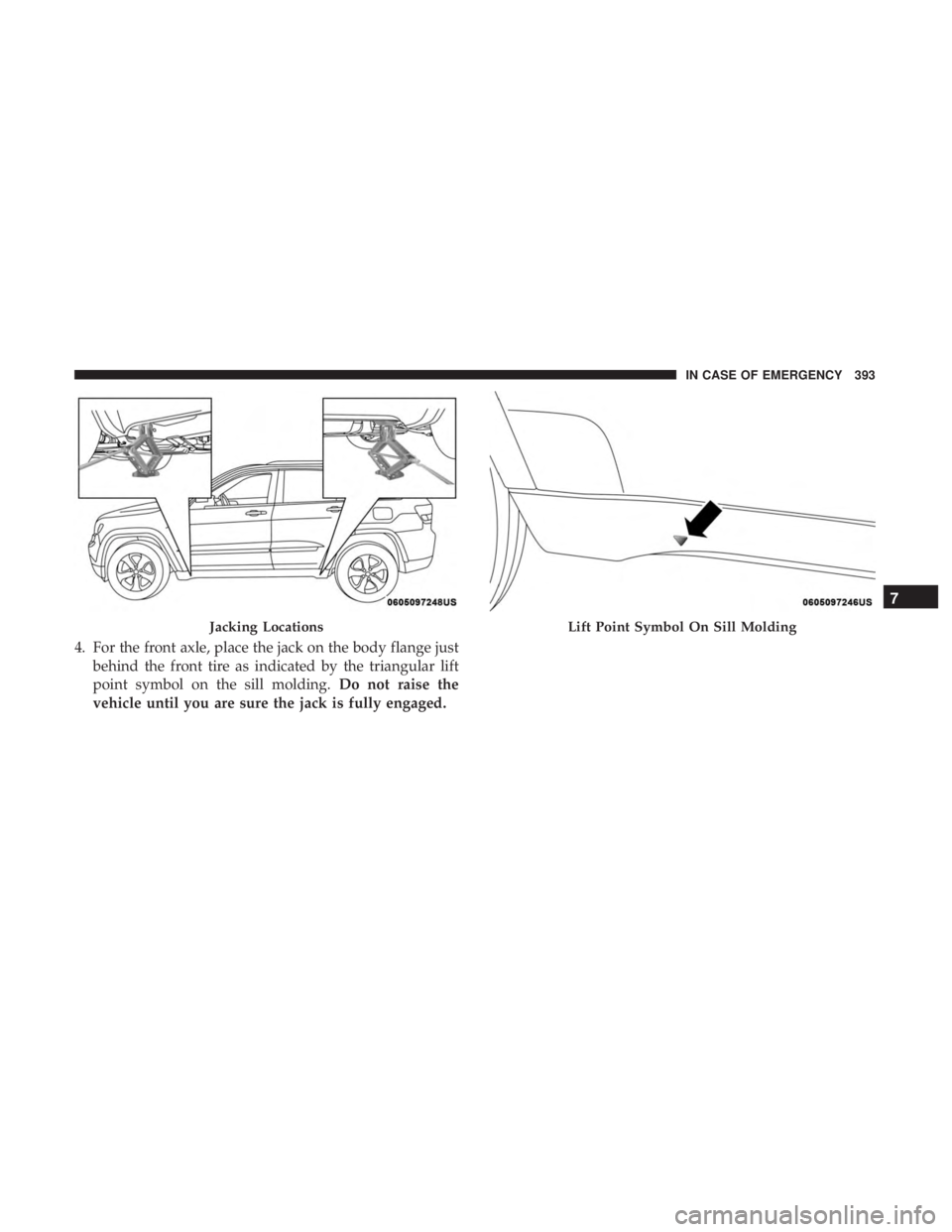

Jacking LocationsLift Point Symbol On Sill Molding
7
IN CASE OF EMERGENCY 393

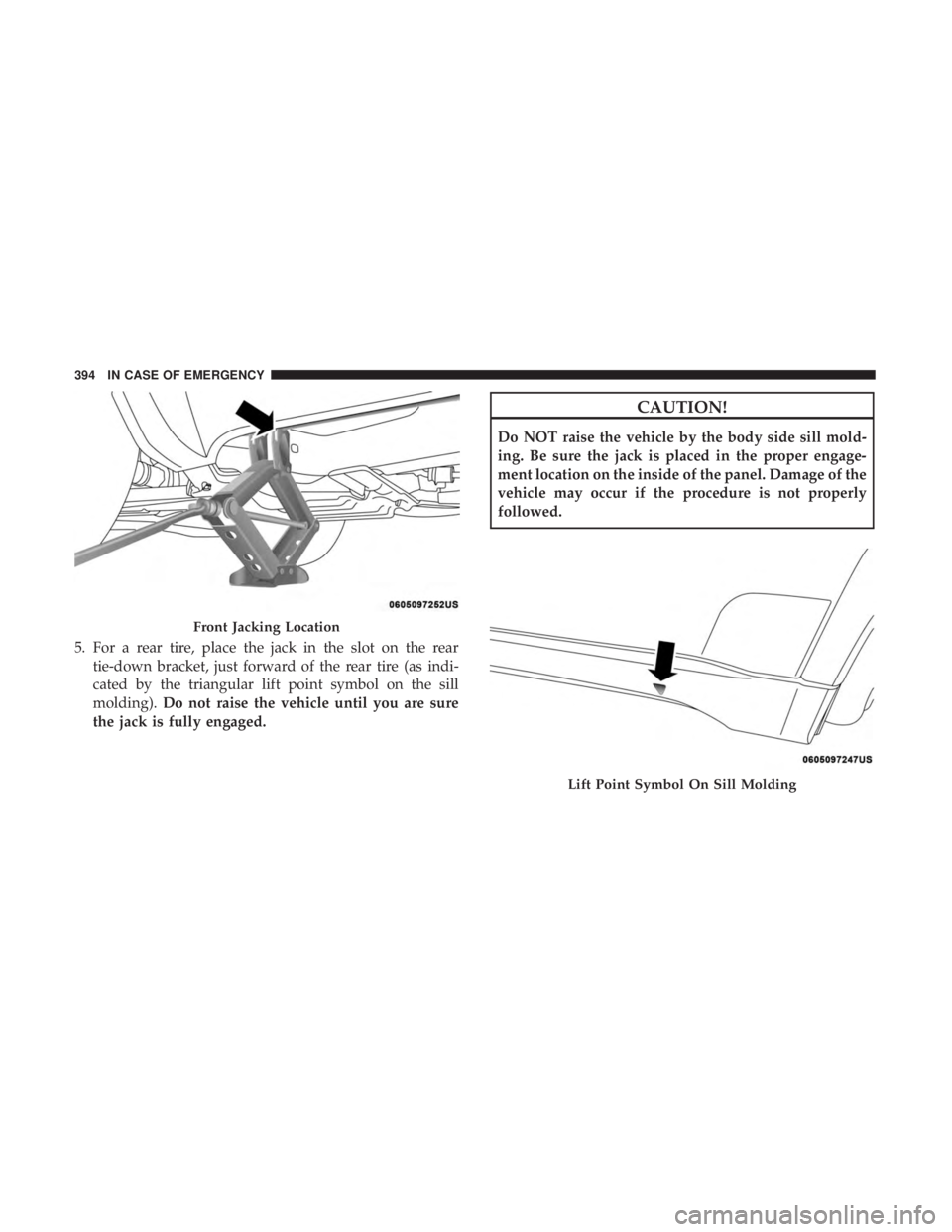

5. For a rear tire, place the jack in the slot on the reartie-down bracket, just forward of the rear tire (as indi-
cated by the triangular lift point symbol on the sill
molding). Do not raise the vehicle until you are sure
the jack is fully engaged.
CAUTION!
Do NOT raise the vehicle by the body side sill mold-
ing. Be sure the jack is placed in the proper engage-
ment location on the inside of the panel. Damage of the
vehicle may occur if the procedure is not properly
followed.
Front Jacking Location
Lift Point Symbol On Sill Molding
394 IN CASE OF EMERGENCY

6. Raise the vehicle by turning the jack screw clockwise.Raise the vehicle only until the tire just clears the surface
and enough clearance is obtained to install the spare tire.
Minimum tire lift provides maximum stability.
WARNING!
Raising the vehicle higher than necessary can make the
vehicle less stable. It could slip off the jack and hurt
someone near it. Raise the vehicle only enough to
remove the tire.
7. Remove the lug nuts and wheel. 8. Position the spare wheel/tire on the vehicle and install
the lug nuts with the cone-shaped end toward the
wheel. Lightly tighten the nuts.
CAUTION!
Be sure to mount the inflatable spare tire with the
valve stem facing outward. The vehicle could be dam-
aged if the inflatable spare tire is mounted incorrectly.

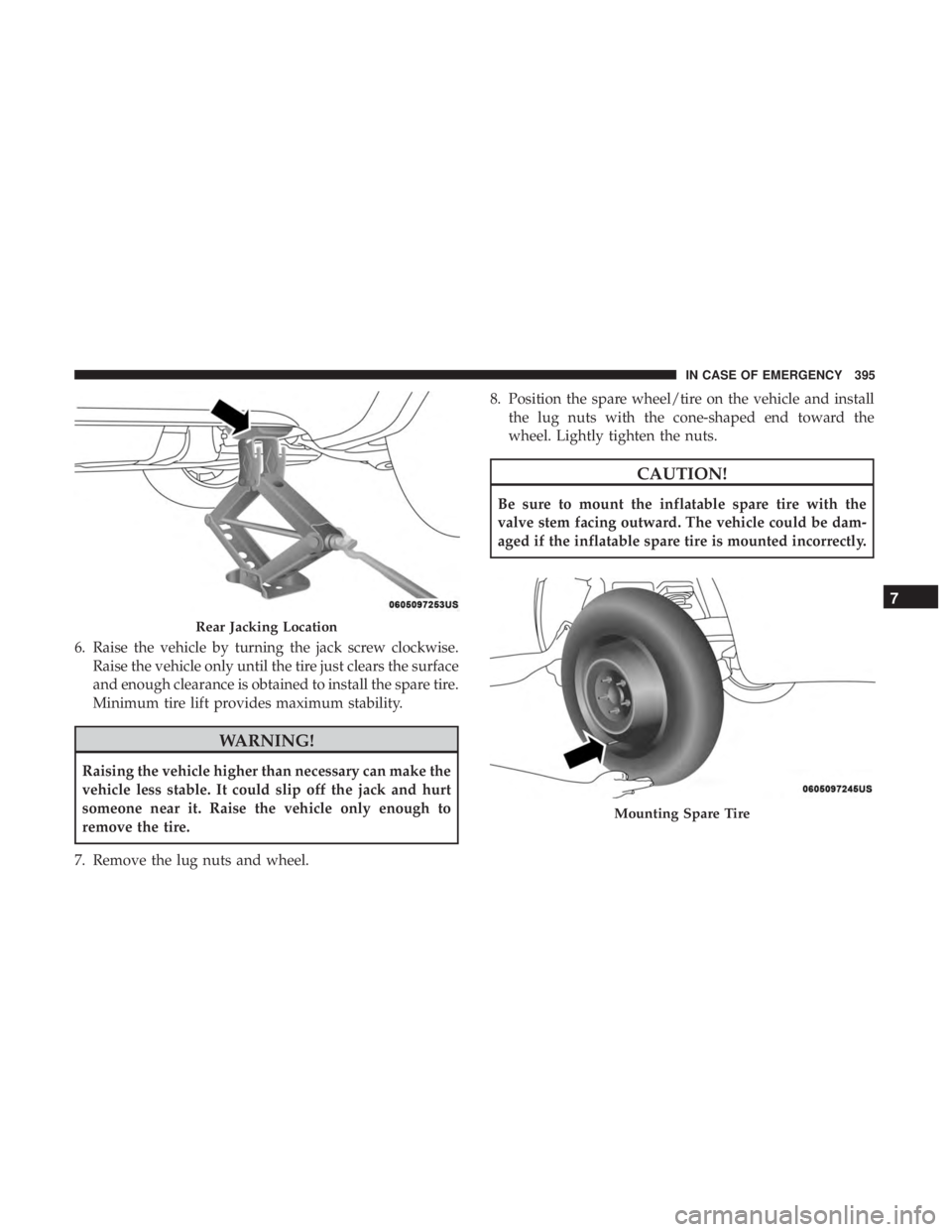

Rear Jacking Location
Mounting Spare Tire
7
IN CASE OF EMERGENCY 395

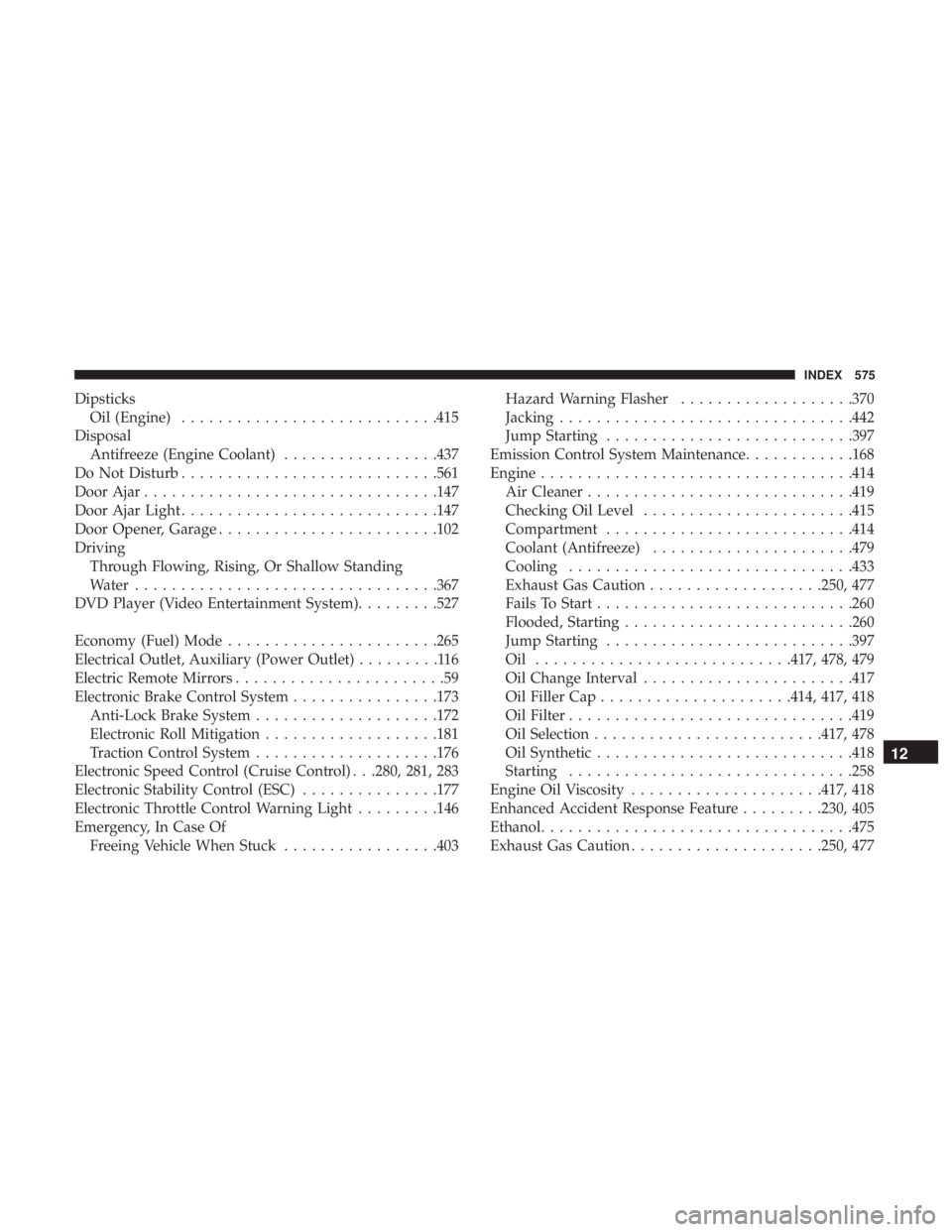

DipsticksOil (Engine) ........................... .415
Disposal Antifreeze (Engine Coolant) .................437
Do Not Disturb ........................... .561
Door Ajar ............................... .147
Door Ajar Light ........................... .147
Door Opener, Garage ....................... .102
Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .367
DVD Player (Video Entertainment System) .........527
Economy (Fuel) Mode ...................... .265
Electrical Outlet, Auxiliary (Power Outlet) .........116
Electric Remote Mirrors .......................59
Electronic Brake Control System ................173
Anti-Lock Brake System ....................172
Electronic Roll Mitigation ...................181
Traction Control System ....................176
Electronic Speed Control (Cruise Control) . . .280, 281, 283
Electronic Stability Control (ESC) ...............177
Electronic Throttle Control Warning Light .........146
Emergency, In Case Of Freeing Vehicle When Stuck .................403 Hazard Warning Flasher
...................370
Jacking ............................... .442
Jump Starting .......................... .397
Emission Control System Maintenance ............168
Engine ................................. .414
Air Cleaner ............................ .419
Checking Oil Level ...................... .415
Compartment .......................... .414
Coolant (Antifreeze) ..................... .479
Cooling .............................. .433
Exhaust Gas Caution ...................250, 477
Fails To Start ........................... .260
Flooded, Starting ........................ .260
Jump Starting .......................... .397
Oil ........................... .417, 478, 479
Oil Change Interval ...................... .417
Oil

Filler Cap .....................414, 417, 418
Oil Filter .............................. .419
Oil Selection ........................ .417, 478
Oil Synthetic ........................... .418
Starting .............................. .258
Engine Oil Viscosity .....................417, 418
Enhanced Accident Response Feature .........230, 405
Ethanol ................................. .475
Exhaust Gas Caution .....................250, 477
12
INDEX 575

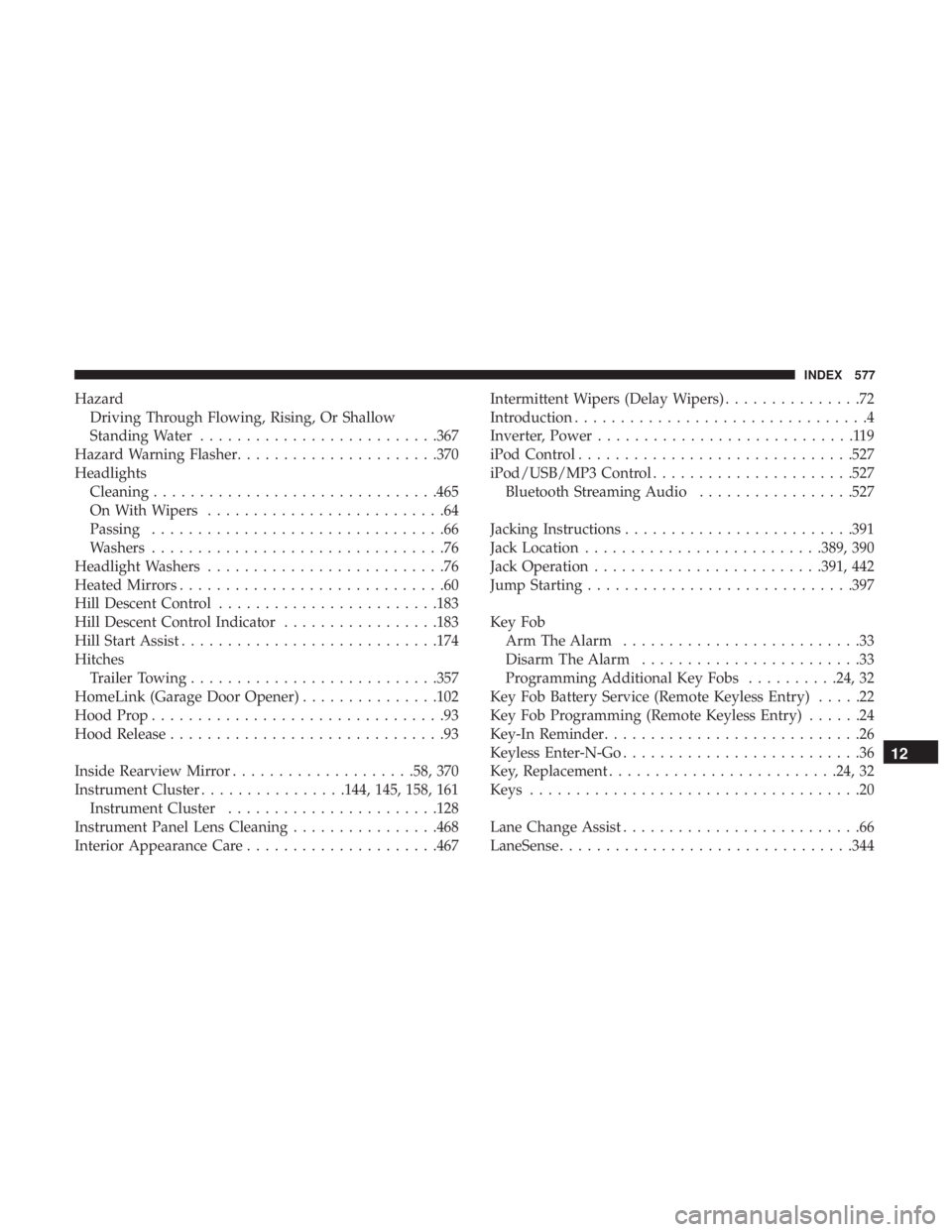

HazardDriving Through Flowing, Rising, Or Shallow
Standing Water ......................... .367
Hazard Warning Flasher ..................... .370
Headlights Cleaning .............................. .465
On With Wipers ..........................64
Passing ................................66
Washers ................................76
Headlight Washers ..........................76
Heated Mirrors .............................60
Hill Descent Control ....................... .183
Hill Descent Control Indicator .................183
Hill Start Assist ........................... .174
Hitches Trailer Towing .......................... .357
HomeLink (Garage Door Opener) ...............102
Hood Prop ................................93
Hood Release ..............................93
Inside Rearview Mirror ....................58, 370
Instrument Cluster ................144, 145, 158, 161
Instrument Cluster ...................... .128
Instrument Panel Lens Cleaning ................468
Interior Appearance Care .....................467 Intermittent Wipers (Delay Wipers)
...............72
Introduction ................................4
Inverter, Power ............................119
iPod Control ............................. .527
iPod/USB/MP3 Control ..................... .527
Bluetooth Streaming Audio .................527
Jacking Instructions ........................ .391
Jack Location ......................... .389, 390
Jack Operation ........................ .391, 442
Jump Starting ............................ .397
Key Fob Arm The Alarm ..........................33
Disarm The Alarm ........................33
Programming Additional Key Fobs ..........24, 32
Key Fob Battery Service (Remote Keyless Entry) .....22
Key Fob Programming (Remote Keyless Entry) ......24
Key-In Reminder ............................26
Keyless Enter-N-Go ..........................36
Key, Replacement ........................ .24, 32
Keys ....................................

20
Lane Change Assist ..........................66
LaneSense ............................... .344
12
INDEX 577
