JEEP RENEGADE 2015 1.G Owners Manual

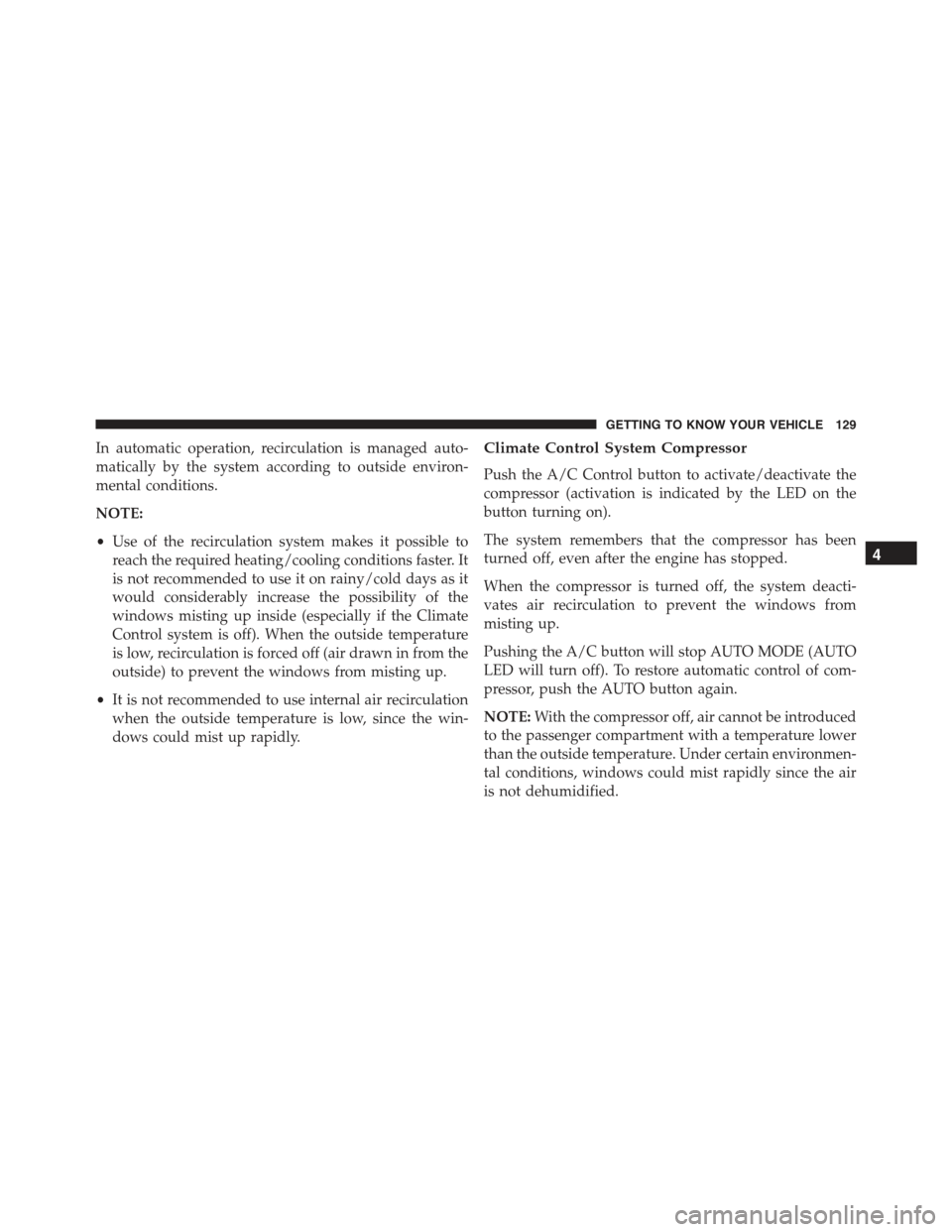

In automatic operation, recirculation is managed auto-
matically by the system according to outside environ-
mental conditions.
NOTE:
•Use of the recirculation system makes it possible to
reach the required heating/cooling conditions faster. It
is not recommended to use it on rainy/cold days as it
would considerably increase the possibility of the
windows misting up inside (especially if the Climate
Control system is off). When the outside temperature
is low, recirculation is forced off (air drawn in from the
outside) to prevent the windows from misting up.
•It is not recommended to use internal air recirculation
when the outside temperature is low, since the win-
dows could mist up rapidly.
Climate Control System Compressor
Push the A/C Control button to activate/deactivate the
compressor (activation is indicated by the LED on the
button turning on).
The system remembers that the compressor has been
turned off, even after the engine has stopped.
When the compressor is turned off, the system deacti-
vates air recirculation to prevent the windows from
misting up.
Pushing the A/C button will stop AUTO MODE (AUTO
LED will turn off). To restore automatic control of com-
pressor, push the AUTO button again.
NOTE:With the compressor off, air cannot be introduced
to the passenger compartment with a temperature lower
than the outside temperature. Under certain environmen-
tal conditions, windows could mist rapidly since the air
is not dehumidified.
4
GETTING TO KNOW YOUR VEHICLE 129

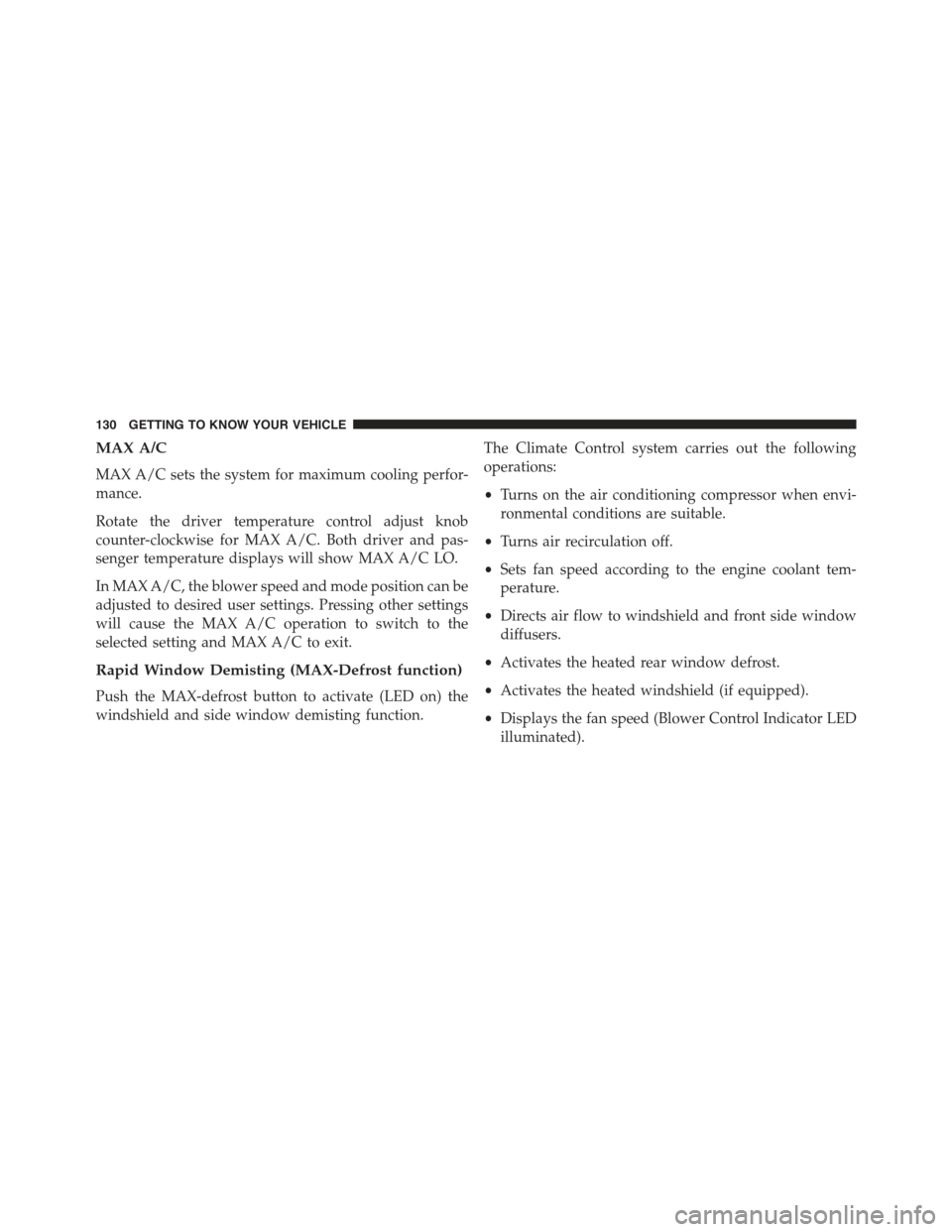

MAX A/C
MAX A/C sets the system for maximum cooling perfor-
mance.
Rotate the driver temperature control adjust knob
counter-clockwise for MAX A/C. Both driver and pas-
senger temperature displays will show MAX A/C LO.
In MAX A/C, the blower speed and mode position can be
adjusted to desired user settings. Pressing other settings
will cause the MAX A/C operation to switch to the
selected setting and MAX A/C to exit.
Rapid Window Demisting (MAX-Defrost function)
Push the MAX-defrost button to activate (LED on) the
windshield and side window demisting function.
The Climate Control system carries out the following
operations:
•Turns on the air conditioning compressor when envi-
ronmental conditions are suitable.
•Turns air recirculation off.
•Sets fan speed according to the engine coolant tem-
perature.
•Directs air flow to windshield and front side window
diffusers.
•Activates the heated rear window defrost.
•Activates the heated windshield (if equipped).
•Displays the fan speed (Blower Control Indicator LED
illuminated).
130 GETTING TO KNOW YOUR VEHICLE

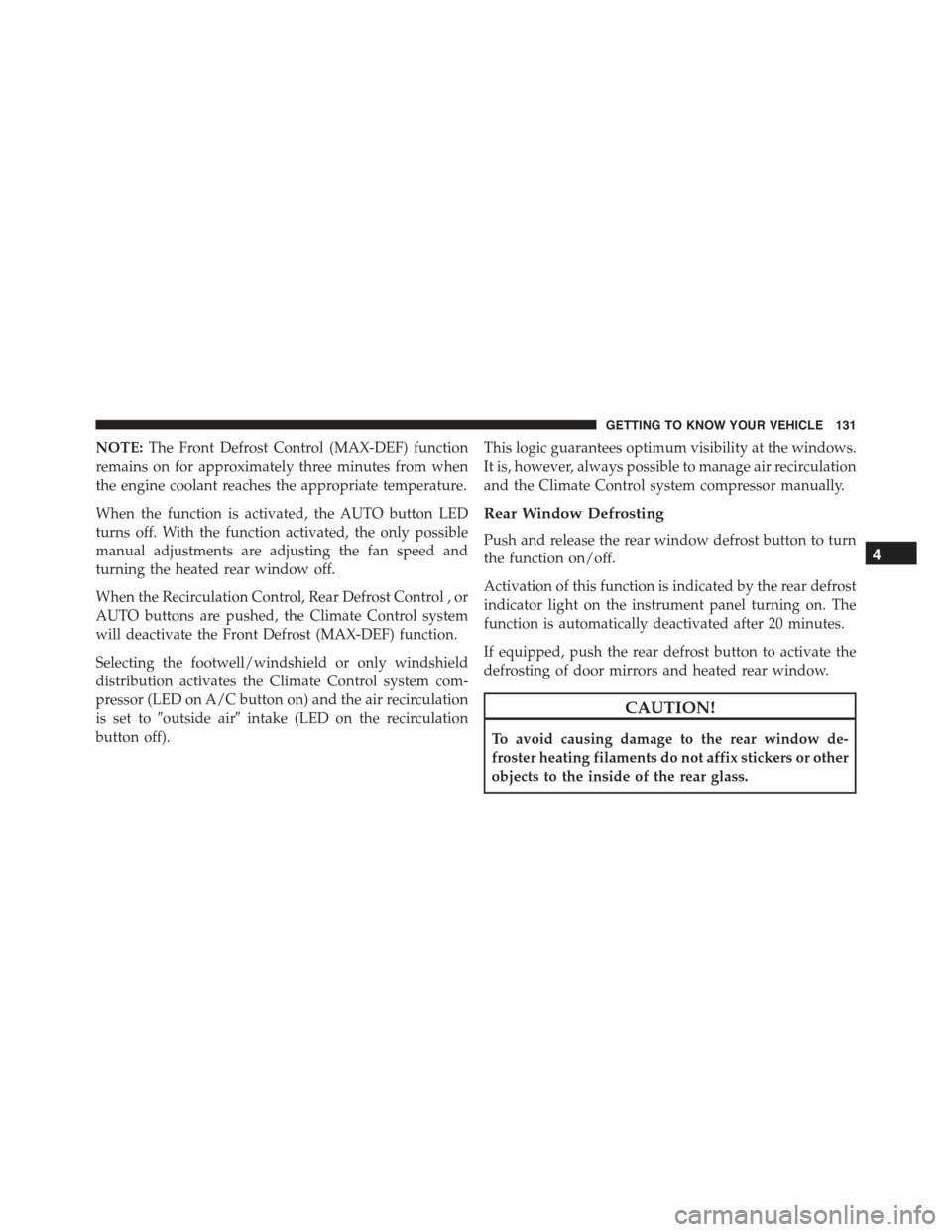

NOTE:The Front Defrost Control (MAX-DEF) function
remains on for approximately three minutes from when
the engine coolant reaches the appropriate temperature.
When the function is activated, the AUTO button LED
turns off. With the function activated, the only possible
manual adjustments are adjusting the fan speed and
turning the heated rear window off.
When the Recirculation Control, Rear Defrost Control , or
AUTO buttons are pushed, the Climate Control system
will deactivate the Front Defrost (MAX-DEF) function.
Selecting the footwell/windshield or only windshield
distribution activates the Climate Control system com-
pressor (LED on A/C button on) and the air recirculation
is set to#outside air#intake (LED on the recirculation
button off).
This logic guarantees optimum visibility at the windows.
It is, however, always possible to manage air recirculation
and the Climate Control system compressor manually.
Rear Window Defrosting
Push and release the rear window defrost button to turn
the function on/off.
Activation of this function is indicated by the rear defrost
indicator light on the instrument panel turning on. The
function is automatically deactivated after 20 minutes.
If equipped, push the rear defrost button to activate the
defrosting of door mirrors and heated rear window.
CAUTION!
To avoid causing damage to the rear window de-
froster heating filaments do not affix stickers or other
objects to the inside of the rear glass.
4
GETTING TO KNOW YOUR VEHICLE 131

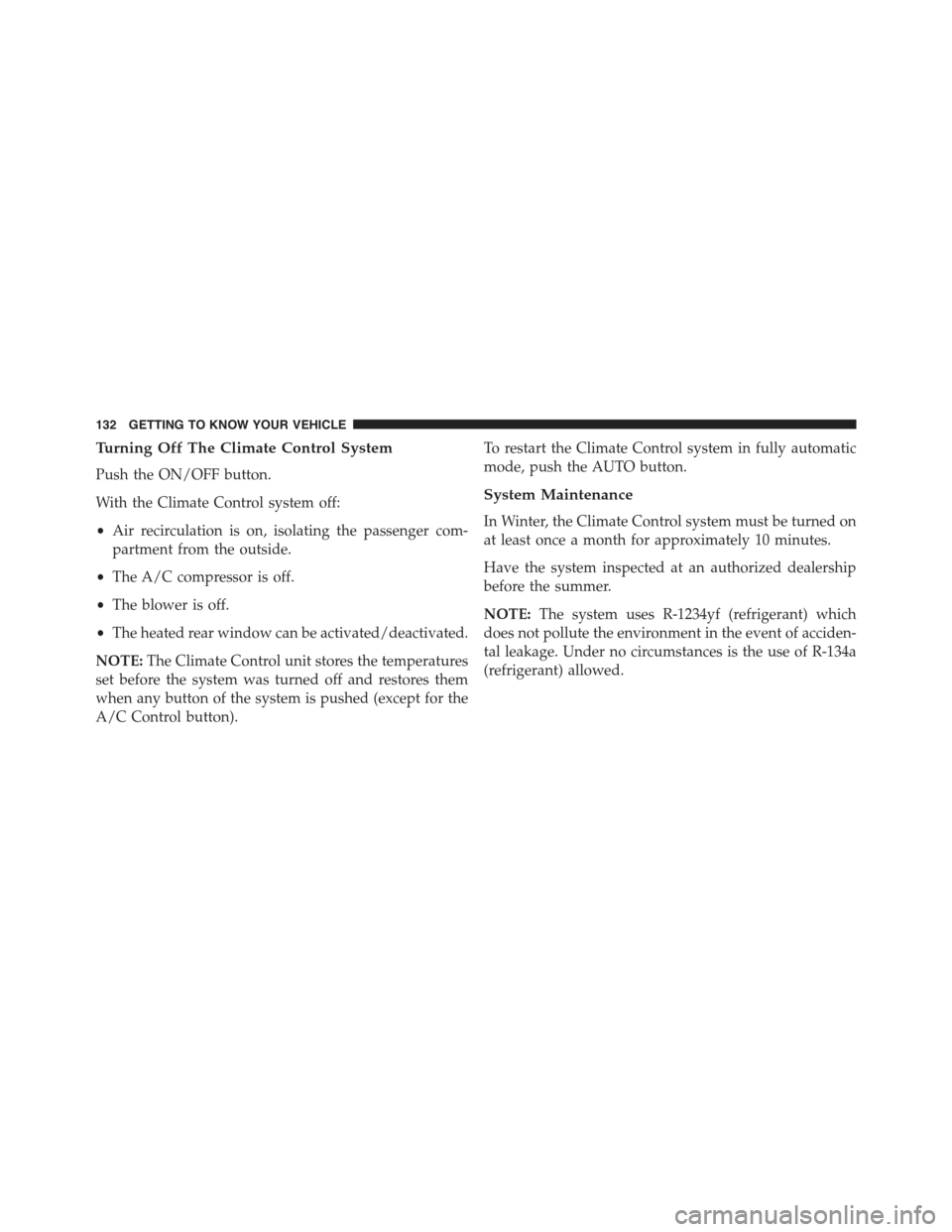

Turning Off The Climate Control System
Push the ON/OFF button.
With the Climate Control system off:
•Air recirculation is on, isolating the passenger com-
partment from the outside.
•The A/C compressor is off.
•The blower is off.
•The heated rear window can be activated/deactivated.
NOTE:The Climate Control unit stores the temperatures
set before the system was turned off and restores them
when any button of the system is pushed (except for the
A/C Control button).
To restart the Climate Control system in fully automatic
mode, push the AUTO button.
System Maintenance
In Winter, the Climate Control system must be turned on
at least once a month for approximately 10 minutes.
Have the system inspected at an authorized dealership
before the summer.
NOTE:The system uses R-1234yf (refrigerant) which
does not pollute the environment in the event of acciden-
tal leakage. Under no circumstances is the use of R-134a
(refrigerant) allowed.
132 GETTING TO KNOW YOUR VEHICLE

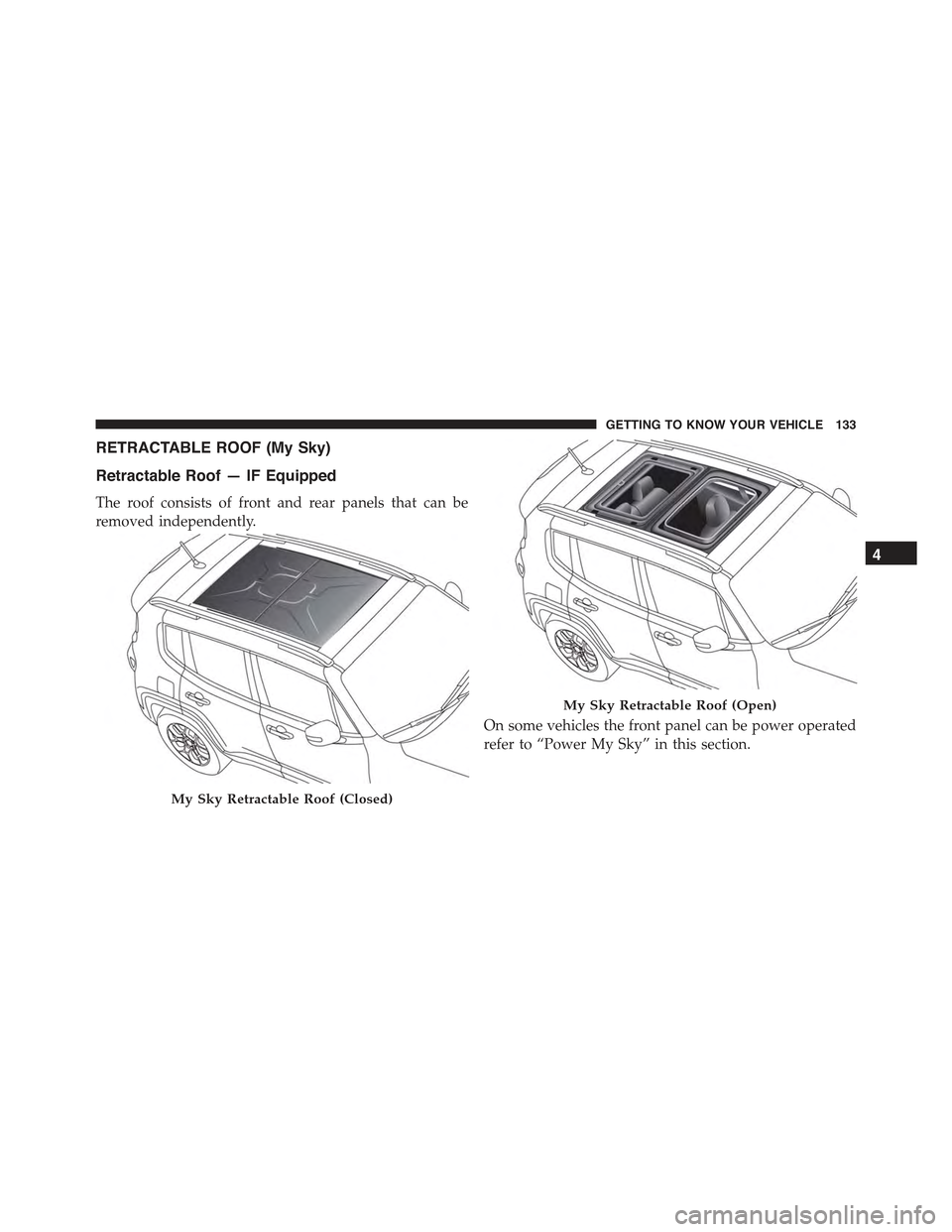

RETRACTABLE ROOF (My Sky)
Retractable Roof — IF Equipped
The roof consists of front and rear panels that can be
removed independently.
On some vehicles the front panel can be power operated
refer to “Power My Sky” in this section.
My Sky Retractable Roof (Closed)
My Sky Retractable Roof (Open)
4
GETTING TO KNOW YOUR VEHICLE 133

CAUTION!
The panels are able to withstand the snow. However,
it is recommended that you remove excessive layers
of snow that have accumulated or damage to the
panels may occur.

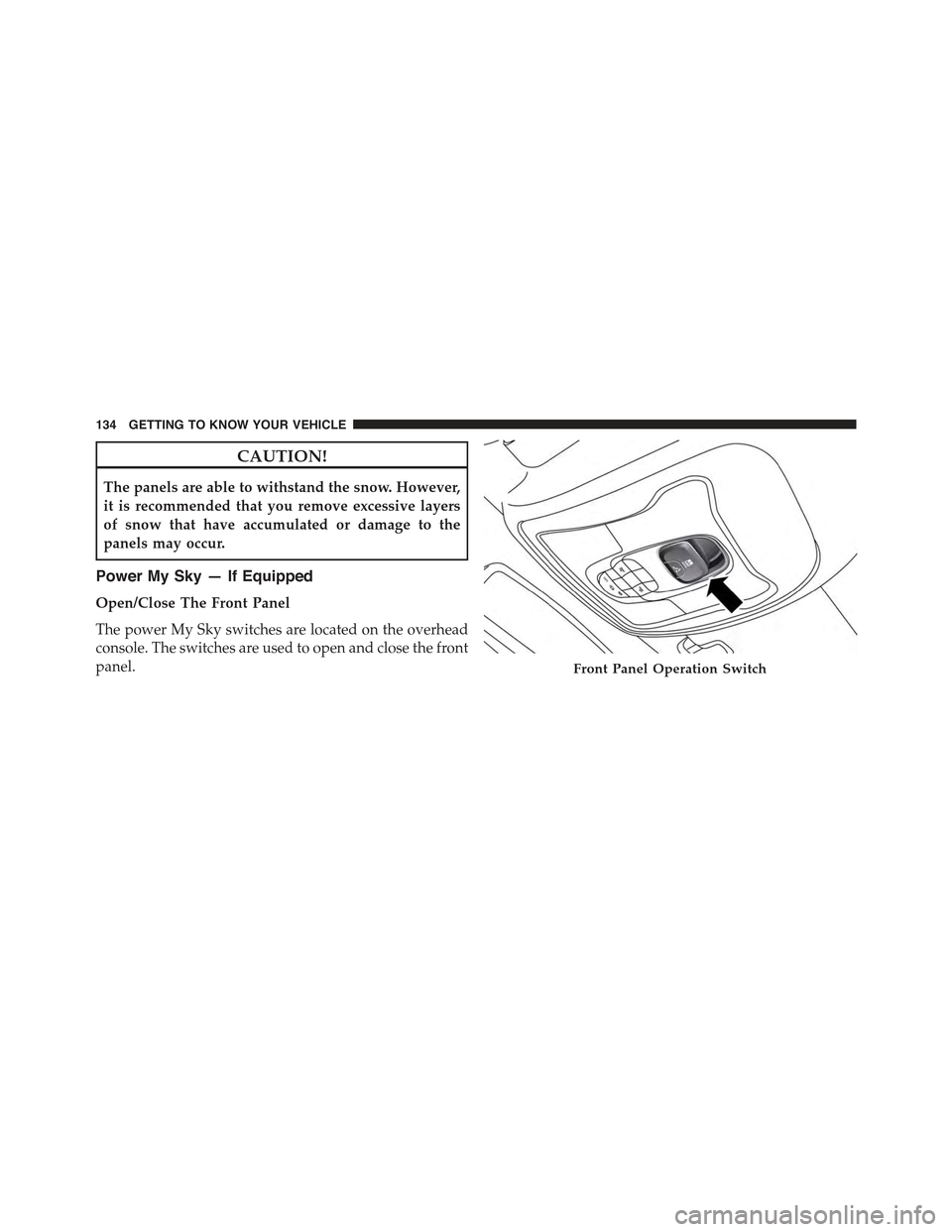

Power My Sky — If Equipped
Open/Close The Front Panel
The power My Sky switches are located on the overhead
console. The switches are used to open and close the front
panel.Front Panel Operation Switch
134 GETTING TO KNOW YOUR VEHICLE

To retract the front panel to the open position, push the
Open/Close button.
From the fully open position, pull the Open/Close
switch: the front panel will close completely.
Venting The Front Panel
To vent the front panel push and release the vent switch.
During the vent operation any push on the Open/Close
switch will stop the closing of the panel.
NOTE:If the My Sky is in open position, the vent switch
must be held until the panel vents.
Anti-Pinch Feature
The front panel of the retractable roof is equipped with a
anti-pinch safety system that is able to detect the pres-
ence of an obstacle during the opening and closing
motion of the panel.
When this event occurs, the front panel stops and re-
verses immediately.

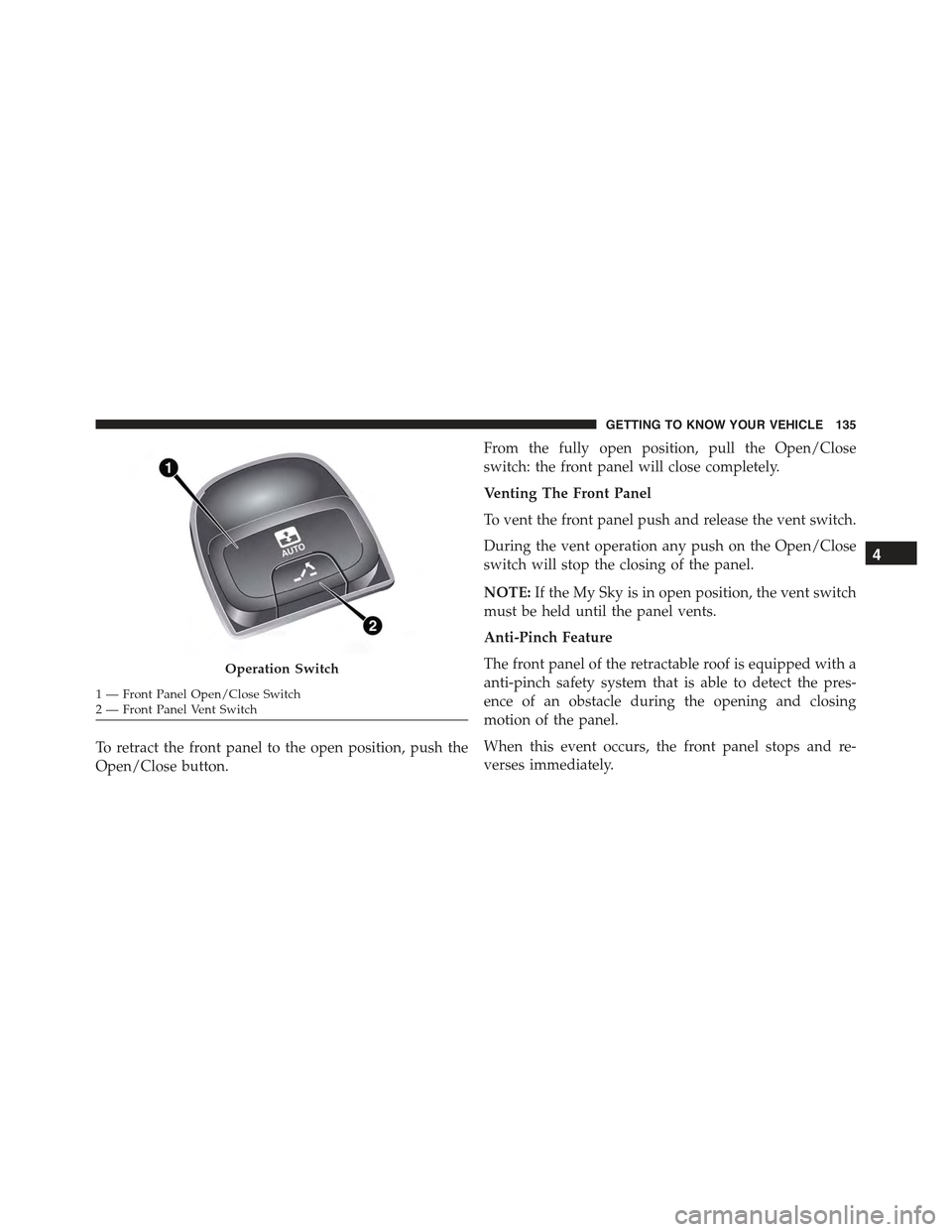

Operation Switch
1—FrontPanelOpen/CloseSwitch2—FrontPanelVentSwitch
4
GETTING TO KNOW YOUR VEHICLE 135

NOTE:With both panels removed the retractable roof
cannot be opened or closed.
Removing And Installing Panels
NOTE:
•Remove the panels only when the vehicle is stationary.
•The rear panel can be removed only when the front
panel is completely closed or removed.
Removing Panels
1. Front panel must be in the closed position to remove
panel.
2. From inside of the passenger compartment, insert the
supplied key into the latch key hole.
Supplied Key
136 GETTING TO KNOW YOUR VEHICLE

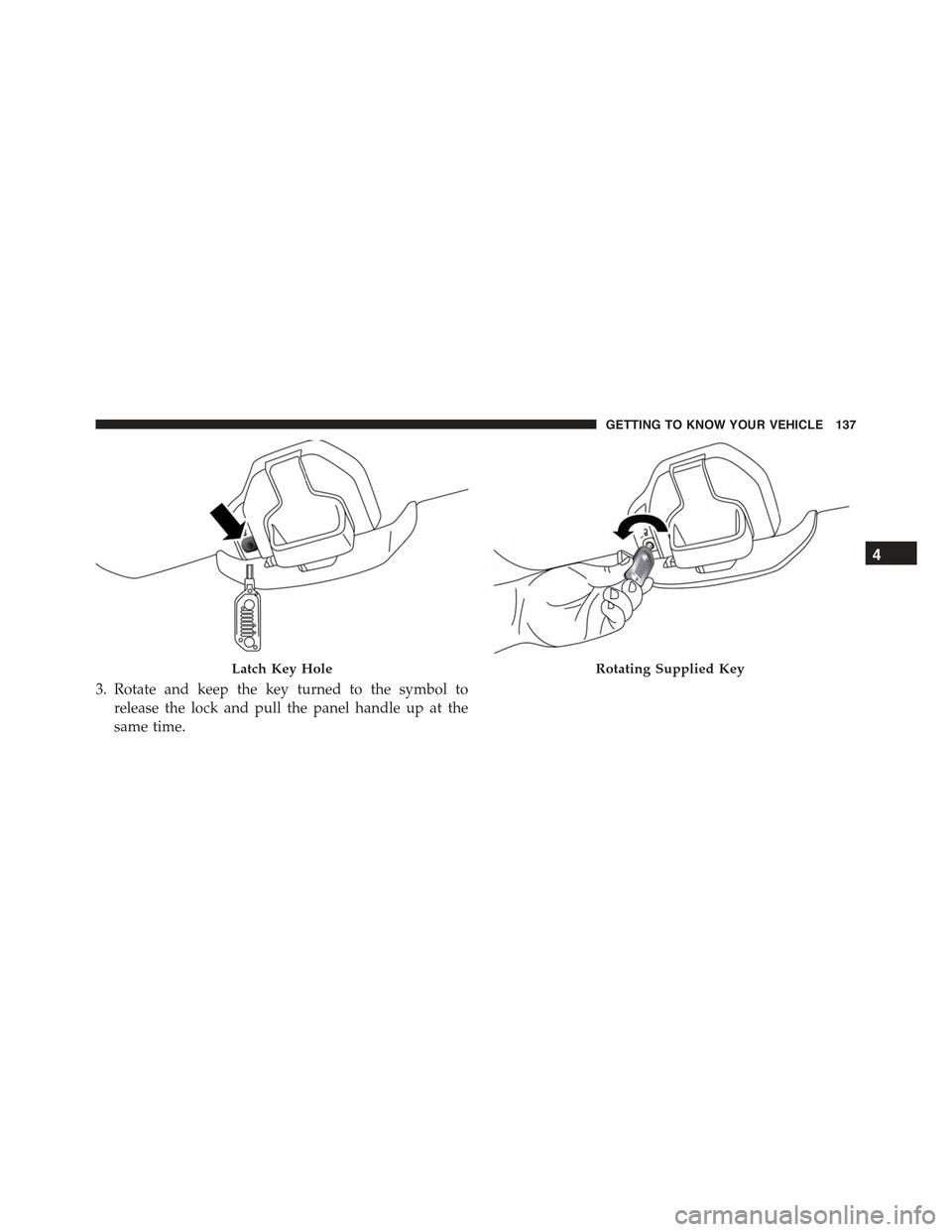

3. Rotate and keep the key turned to the symbol to
release the lock and pull the panel handle up at the
same time.
Latch Key HoleRotating Supplied Key
4
GETTING TO KNOW YOUR VEHICLE 137

4. Remove the key from the Latch Key Hole.5. Remove the panel(s).
Unlocking Panel HandleRemoving Key
138 GETTING TO KNOW YOUR VEHICLE
