Deactivation
A soft tap on the brake pedal, pushing the CANC button,
or normal brake pressure while slowing the vehicle will
deactivate the Speed Control without erasing the set speed
from memory.
Pushing the on/off button or placing the ignition to OFF
erases the set speed from memory.
REAR PARKSENSE — IF EQUIPPED
The Rear ParkSense system provides visual and audible
indications of the distance between the rear fascia and a
detected obstacle when backing up, e.g. during a parking
maneuver. Refer to ParkSense System Usage Precautions
for limitations of this system and recommendations.
Rear ParkSense will retain the last system state (enabled or
disabled) from the last ignition cycle when the ignition is
changed to the RUN position.
Rear ParkSense can be active only when the gear selector is
in REVERSE.
Rear ParkSense Sensors
The four Rear ParkSense sensors, located in the rear
fascia/bumper, monitor the area behind the vehicle that is
within the sensors’ field of view. The sensors can detectobstacles from approximately 12 inches (30 cm) up to 59
inches (150 cm) from the rear fascia/bumper in the hori-
zontal direction, depending on the location, type and
orientation of the obstacle.
Chime
By shifting the vehicle in REVERSE and in the case of the
presence of a rear obstacle, an acoustic signal that varies
with the distance of the obstacle from the bumper is
activated.
Parking Sensors
6
STARTING AND OPERATING 275

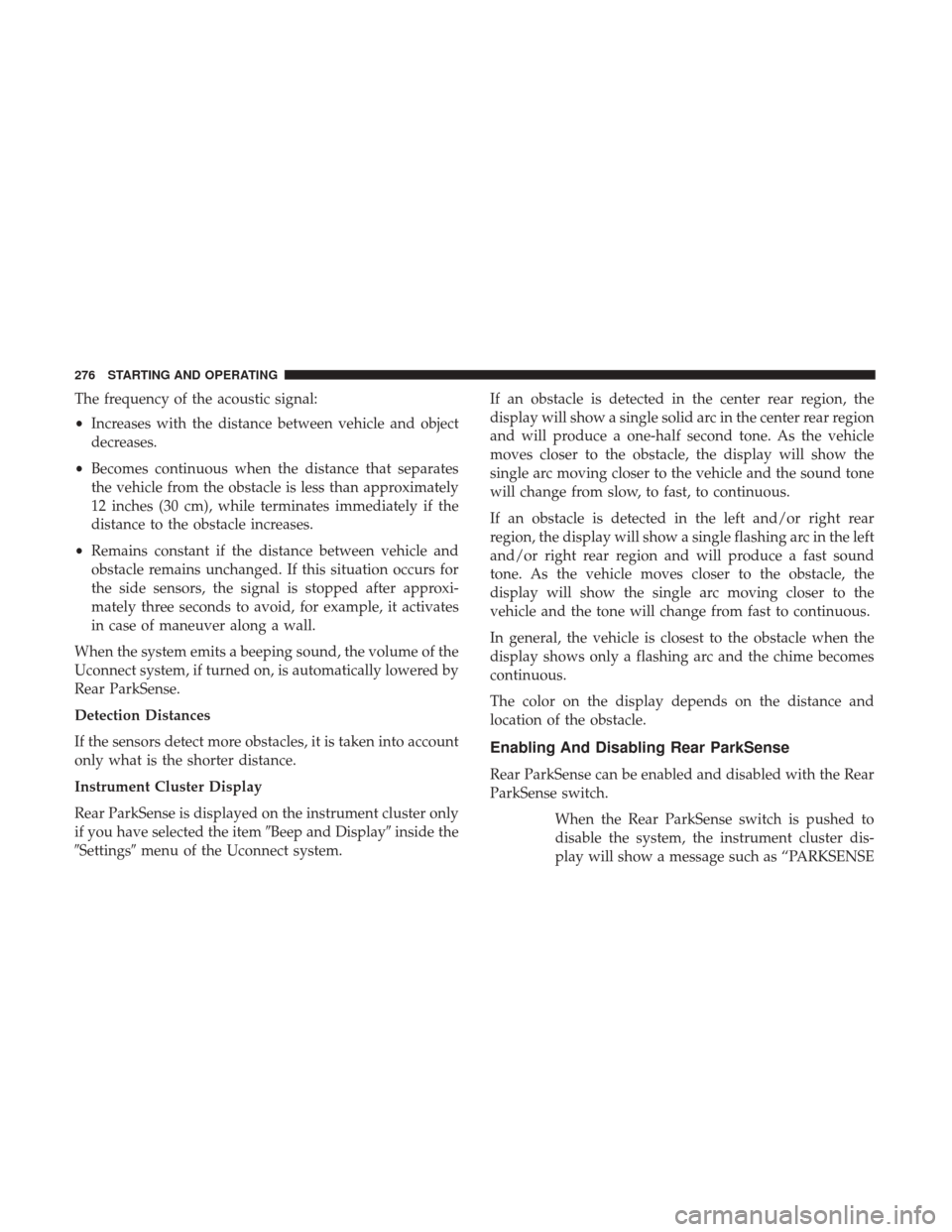

The frequency of the acoustic signal:
•Increases with the distance between vehicle and object
decreases.
• Becomes continuous when the distance that separates
the vehicle from the obstacle is less than approximately
12 inches (30 cm), while terminates immediately if the
distance to the obstacle increases.
• Remains constant if the distance between vehicle and
obstacle remains unchanged. If this situation occurs for
the side sensors, the signal is stopped after approxi-
mately three seconds to avoid, for example, it activates
in case of maneuver along a wall.
When the system emits a beeping sound, the volume of the
Uconnect system, if turned on, is automatically lowered by
Rear ParkSense.
Detection Distances
If the sensors detect more obstacles, it is taken into account
only what is the shorter distance.
Instrument Cluster Display
Rear ParkSense is displayed on the instrument cluster only
if you have selected the item Beep and Displayinside the
Settings menu of the Uconnect system. If an obstacle is detected in the center rear region, the
display will show a single solid arc in the center rear region
and will produce a one-half second tone. As the vehicle
moves closer to the obstacle, the display will show the
single arc moving closer to the vehicle and the sound tone
will change from slow, to fast, to continuous.
If an obstacle is detected in the left and/or right rear
region, the display will show a single flashing arc in the left
and/or right rear region and will produce a fast sound
tone. As the vehicle moves closer to the obstacle, the
display will show the single arc moving closer to the
vehicle and the tone will change from fast to continuous.
In general, the vehicle is closest to the obstacle when the
display shows only a flashing arc and the chime becomes
continuous.
The color on the display depends on the distance and
location of the obstacle.
Enabling And Disabling Rear ParkSense
Rear ParkSense can be enabled and disabled with the Rear
ParkSense switch.
When the Rear ParkSense switch is pushed to
disable the system, the instrument cluster dis-
play will show a message such as “PARKSENSE

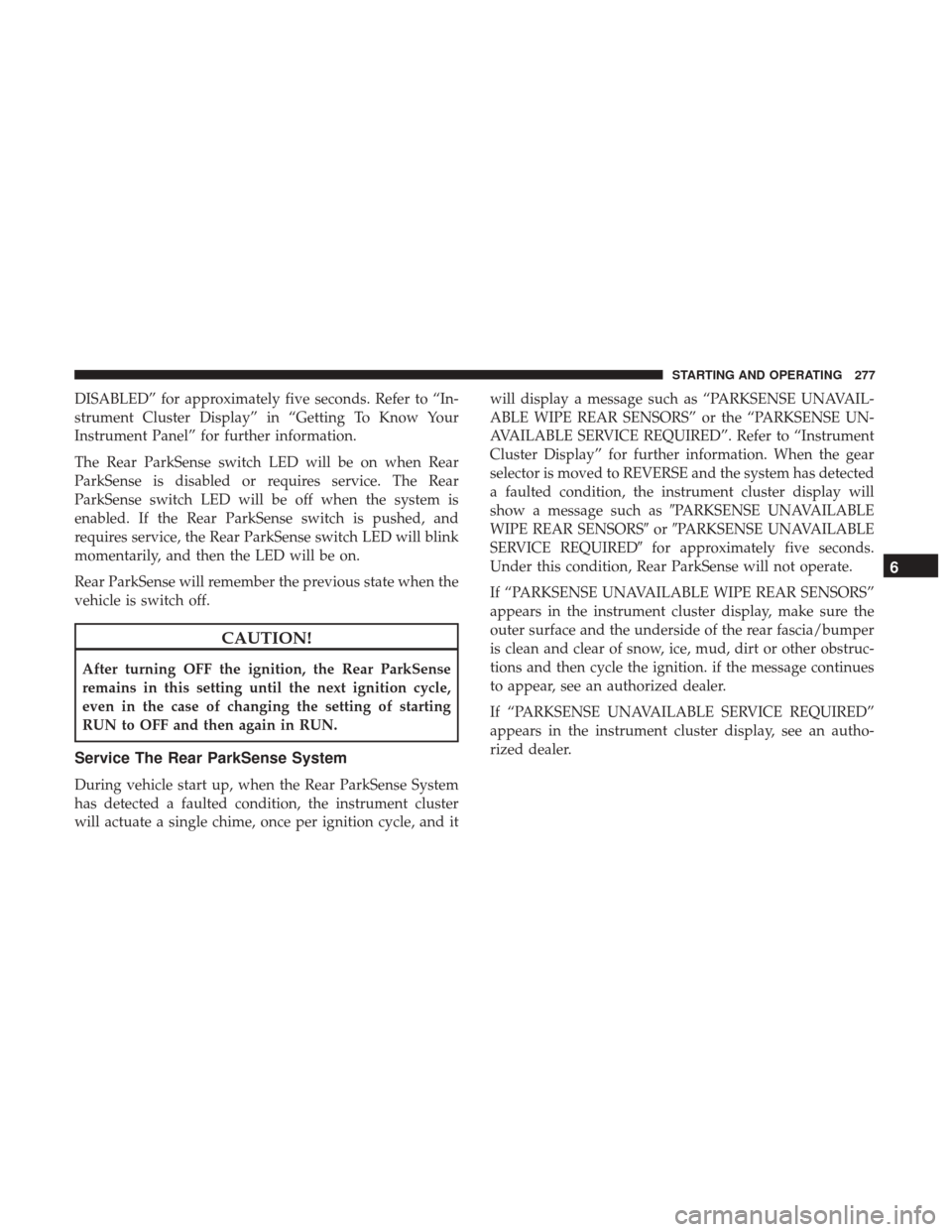

276 STARTING AND OPERATING

DISABLED” for approximately five seconds. Refer to “In-
strument Cluster Display” in “Getting To Know Your
Instrument Panel” for further information.
The Rear ParkSense switch LED will be on when Rear
ParkSense is disabled or requires service. The Rear
ParkSense switch LED will be off when the system is
enabled. If the Rear ParkSense switch is pushed, and
requires service, the Rear ParkSense switch LED will blink
momentarily, and then the LED will be on.
Rear ParkSense will remember the previous state when the
vehicle is switch off.
CAUTION!
After turning OFF the ignition, the Rear ParkSense
remains in this setting until the next ignition cycle,
even in the case of changing the setting of starting
RUN to OFF and then again in RUN.
Service The Rear ParkSense System
During vehicle start up, when the Rear ParkSense System
has detected a faulted condition, the instrument cluster
will actuate a single chime, once per ignition cycle, and itwill display a message such as “PARKSENSE UNAVAIL-
ABLE WIPE REAR SENSORS” or the “PARKSENSE UN-
AVAILABLE SERVICE REQUIRED”. Refer to “Instrument
Cluster Display” for further information. When the gear
selector is moved to REVERSE and the system has detected
a faulted condition, the instrument cluster display will
show a message such as
PARKSENSE UNAVAILABLE
WIPE REAR SENSORS orPARKSENSE UNAVAILABLE
SERVICE REQUIRED for approximately five seconds.
Under this condition, Rear ParkSense will not operate.
If “PARKSENSE UNAVAILABLE WIPE REAR SENSORS”
appears in the instrument cluster display, make sure the
outer surface and the underside of the rear fascia/bumper
is clean and clear of snow, ice, mud, dirt or other obstruc-
tions and then cycle the ignition. if the message continues
to appear, see an authorized dealer.
If “PARKSENSE UNAVAILABLE SERVICE REQUIRED”
appears in the instrument cluster display, see an autho-
rized dealer.
6
STARTING AND OPERATING 277

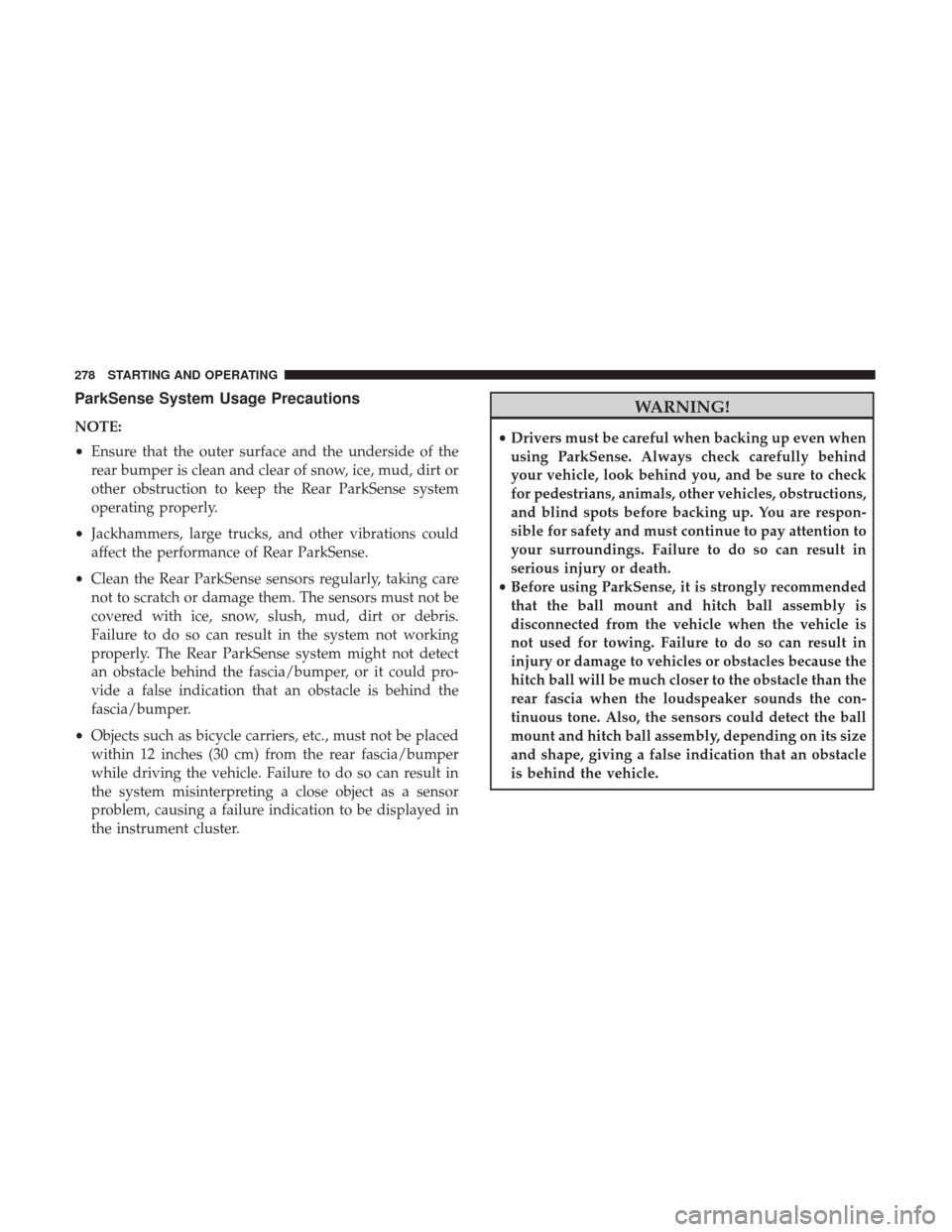

ParkSense System Usage Precautions
NOTE:
•Ensure that the outer surface and the underside of the
rear bumper is clean and clear of snow, ice, mud, dirt or
other obstruction to keep the Rear ParkSense system
operating properly.
• Jackhammers, large trucks, and other vibrations could
affect the performance of Rear ParkSense.
• Clean the Rear ParkSense sensors regularly, taking care
not to scratch or damage them. The sensors must not be
covered with ice, snow, slush, mud, dirt or debris.
Failure to do so can result in the system not working
properly. The Rear ParkSense system might not detect
an obstacle behind the fascia/bumper, or it could pro-
vide a false indication that an obstacle is behind the
fascia/bumper.
• Objects such as bicycle carriers, etc., must not be placed
within 12 inches (30 cm) from the rear fascia/bumper
while driving the vehicle. Failure to do so can result in
the system misinterpreting a close object as a sensor
problem, causing a failure indication to be displayed in
the instrument cluster.
WARNING!
• Drivers must be careful when backing up even when
using ParkSense. Always check carefully behind
your vehicle, look behind you, and be sure to check
for pedestrians, animals, other vehicles, obstructions,
and blind spots before backing up. You are respon-
sible for safety and must continue to pay attention to
your surroundings. Failure to do so can result in
serious injury or death.
• Before using ParkSense, it is strongly recommended
that the ball mount and hitch ball assembly is
disconnected from the vehicle when the vehicle is
not used for towing. Failure to do so can result in
injury or damage to vehicles or obstacles because the
hitch ball will be much closer to the obstacle than the
rear fascia when the loudspeaker sounds the con-
tinuous tone. Also, the sensors could detect the ball
mount and hitch ball assembly, depending on its size
and shape, giving a false indication that an obstacle
is behind the vehicle.
278 STARTING AND OPERATING

CAUTION!
•ParkSense is only a parking aid and it is unable to
recognize every obstacle, including small obstacles.
Parking curbs might be temporarily detected or not
detected at all. Obstacles located above or below the
sensors will not be detected when they are in close
proximity.
• The vehicle must be driven slowly when using
ParkSense in order to be able to stop in time when an
obstacle is detected. It is recommended that the
driver looks over his/her shoulder when using
ParkSense.
If it’s necessary to keep the trailer hitch and hitch ball
assembly mounted for a long period, it is possible to filter
out the trailer hitch and hitch ball assembly presence in
sensor field of view. The filtering operation must be
performed only by an authorized dealer.
LANESENSE — IF EQUIPPED
LaneSense Operation
The LaneSense system is operational at speeds above
37 mph (60 km/h) and below 112 mph (180 km/h). The LaneSense system uses a forward looking camera to detect
lane markings and measure vehicle position within the
lane boundaries.
When both lane markings are detected and the driver
unintentionally drifts out of the lane (no turn signal
applied), the LaneSense system provides a haptic warning
in the form of torque applied to the steering wheel to
prompt the driver to remain within the lane boundaries. If
the driver continues to unintentionally drift out of the lane,
the LaneSense system provides a visual warning through
the instrument cluster display to prompt the driver to
remain within the lane boundaries.
The driver may manually override the haptic warning by
applying torque into the steering wheel at any time.
When only a single lane marking is detected and the driver
unintentionally drifts across the lane marking (no turn
signal applied), the LaneSense system provides a visual
warning through the instrument cluster display to prompt
the driver to remain within the lane. When only a single
lane marking is detected, a haptic (torque) warning will not
be provided.
6
STARTING AND OPERATING 279

CavityMaxi FuseCartridge Fuse Micro Fuse Description
F23 ––30 Amp Green Heated Windshield –
If Equipped
F24 ––15 Amp Blue Electronic Unit Sup-
ply Automatic Trans-mission
F30 ––20 Amp Yellow
(Customer Installed) 12V Rear Cargo Out-
let Constant Battery Powered
F83 –40 Amp Green –Air Conditioning Fan
F84 ––30 Amp Green Power Supply All
Wheel Drive
F87 ––5 Amp Tan Gear Selector Auto-
matic Transmission
F88 ––7.5 Amp Brown Heated Outside Mir-
rors
F89 ––30 Amp Green Heated Rear Window
F90 ––5 Amp Tan IBS Sensor (Battery
State Of Charge)
344 IN CASE OF EMERGENCY

Setting NameSelectable Options
LaneSense Strength — If Equipped Low
Medium High
NOTE: When this feature is selected, it sets the strength of the steering wheel feedback for potential lane departures.
The amount of directional torque the steering system can apply to the steering wheel to correct for vehicle lane de-
parture can be set at “Low,” “Medium” or “High.”
Blind Spot Alert — If Equipped Off
LightsLights & Chime
NOTE:
•When this feature is selected, the Blind Spot Alert feature can be set to Off, Lights or Lights and Chime. The Blind
Spot Alert feature can be activated in Lights mode. When this mode is selected, the Blind Spot Monitor (BSM) sys-
tem is activated and will only show a visual alert in the outside mirrors. When Lights & Chime mode is activated,
the Blind Spot Monitor (BSM) will show a visual alert in the outside mirrors as well as an audible alert when the
turn signal is on. When Off is selected, the Blind Spot Monitor (BSM) system is deactivated.
•If your vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not dam-
aged, the sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sensor align-
ment. A sensor that is misaligned will result in the BSM not operating to specification.
Electric Park Brake Service Mode — If Equipped On Off
NOTE: This feature provides a means for a technician or vehicle owner to utilize a vehicle integrated, menu driven
system, to command the electric park brake retraction, to service the rear foundation brakes (brake pads, calipers, ro-
tors, etc.).
452 MULTIMEDIA

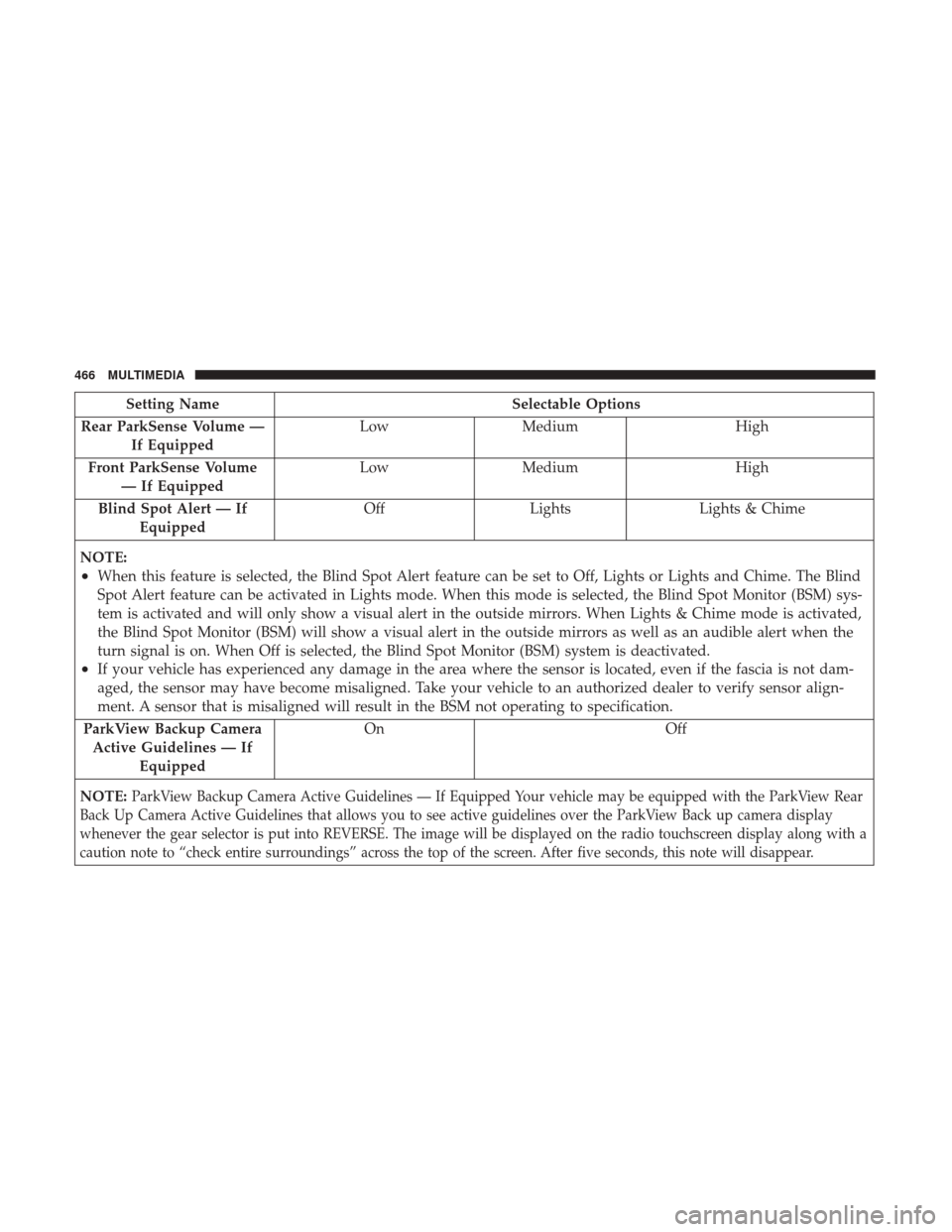

Setting NameSelectable Options
Rear ParkSense Volume — If Equipped Low
Medium High
Front ParkSense Volume — If Equipped Low
Medium High
Blind Spot Alert — If Equipped Off
Lights Lights & Chime
NOTE:
•When this feature is selected, the Blind Spot Alert feature can be set to Off, Lights or Lights and Chime. The Blind
Spot Alert feature can be activated in Lights mode. When this mode is selected, the Blind Spot Monitor (BSM) sys-
tem is activated and will only show a visual alert in the outside mirrors. When Lights & Chime mode is activated,
the Blind Spot Monitor (BSM) will show a visual alert in the outside mirrors as well as an audible alert when the
turn signal is on. When Off is selected, the Blind Spot Monitor (BSM) system is deactivated.
•If your vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not dam-
aged, the sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sensor align-
ment. A sensor that is misaligned will result in the BSM not operating to specification.
ParkView Backup Camera Active Guidelines — If Equipped On Off
NOTE:
ParkView Backup Camera Active Guidelines — If Equipped Your vehicle may be equipped with the ParkView Rear
Back Up Camera Active Guidelines that allows you to see active guidelines over the ParkView Back up camera display
whenever the gear selector is put into REVERSE. The image will be displayed on the radio touchscreen display along with a
caution note to “check entire surroundings” across the top of the screen. After five seconds, this note will disappear.
466 MULTIMEDIA
