display JEEP WRANGLER 2015 JK / 3.G Owner's Manual

•Personal Settings Not Avail. – Vehicle in Motion —
manual transmission
•Door Ajar (with vehicle graphic showing which door is
open. A single chime sounds if the vehicle is in
motion).
•Gate Ajar (with vehicle graphic showing the Liftgate/
back door open and A single chime )
•Check Gascap (refer to “Adding Fuel” in “Starting
And Operating” for more details)
•Oil Change Required (with a single chime)
•ECO (Fuel Saver Indicator) — if equipped
Oil Change Required
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will display in the EVIC display for approximately 5
seconds after a single chime has sounded to indicate the
next scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON position. To
turn off the message temporarily, push and release the
MENU button. To reset the oil change indicator system
(after performing the scheduled maintenance), perform
the following procedure:
1. Turn the ignition switch to the ON position.Do not
start the engine.
2. Fully push the accelerator pedal slowly three times
within 10 seconds.
3. Turn the ignition switch to the LOCK position.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 331

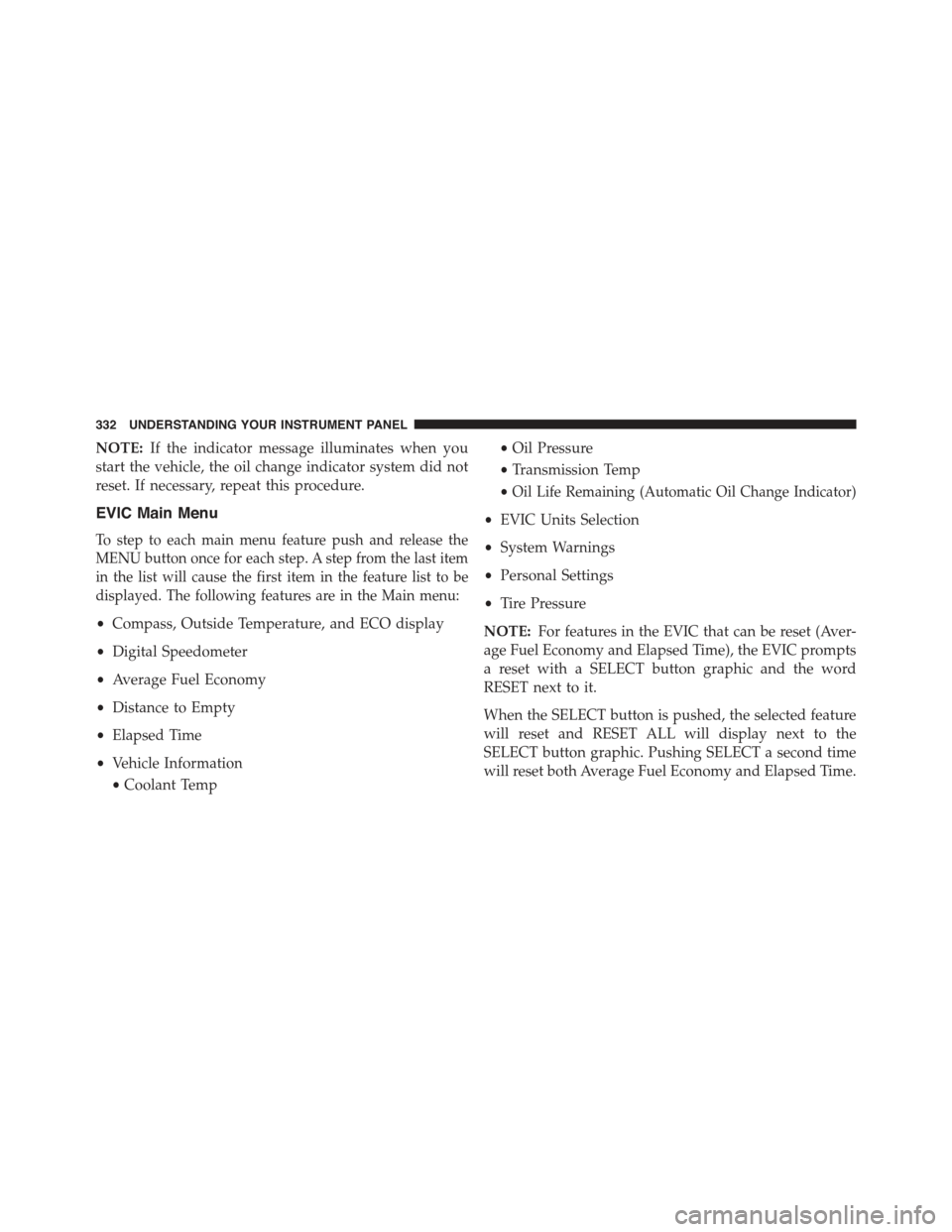

NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
EVIC Main Menu
To step to each main menu feature push and release the
MENU button once for each step. A step from the last item
in the list will cause the first item in the feature list to be
displayed. The following features are in the Main menu:
•Compass, Outside Temperature, and ECO display
•Digital Speedometer
•Average Fuel Economy
•Distance to Empty
•Elapsed Time
•Vehicle Information
•Coolant Temp
•Oil Pressure
•Transmission Temp
•Oil Life Remaining (Automatic Oil Change Indicator)
•EVIC Units Selection
•System Warnings
•Personal Settings
•Tire Pressure
NOTE:For features in the EVIC that can be reset (Aver-
age Fuel Economy and Elapsed Time), the EVIC prompts
a reset with a SELECT button graphic and the word
RESET next to it.
When the SELECT button is pushed, the selected feature
will reset and RESET ALL will display next to the
SELECT button graphic. Pushing SELECT a second time
will reset both Average Fuel Economy and Elapsed Time.
332 UNDERSTANDING YOUR INSTRUMENT PANEL

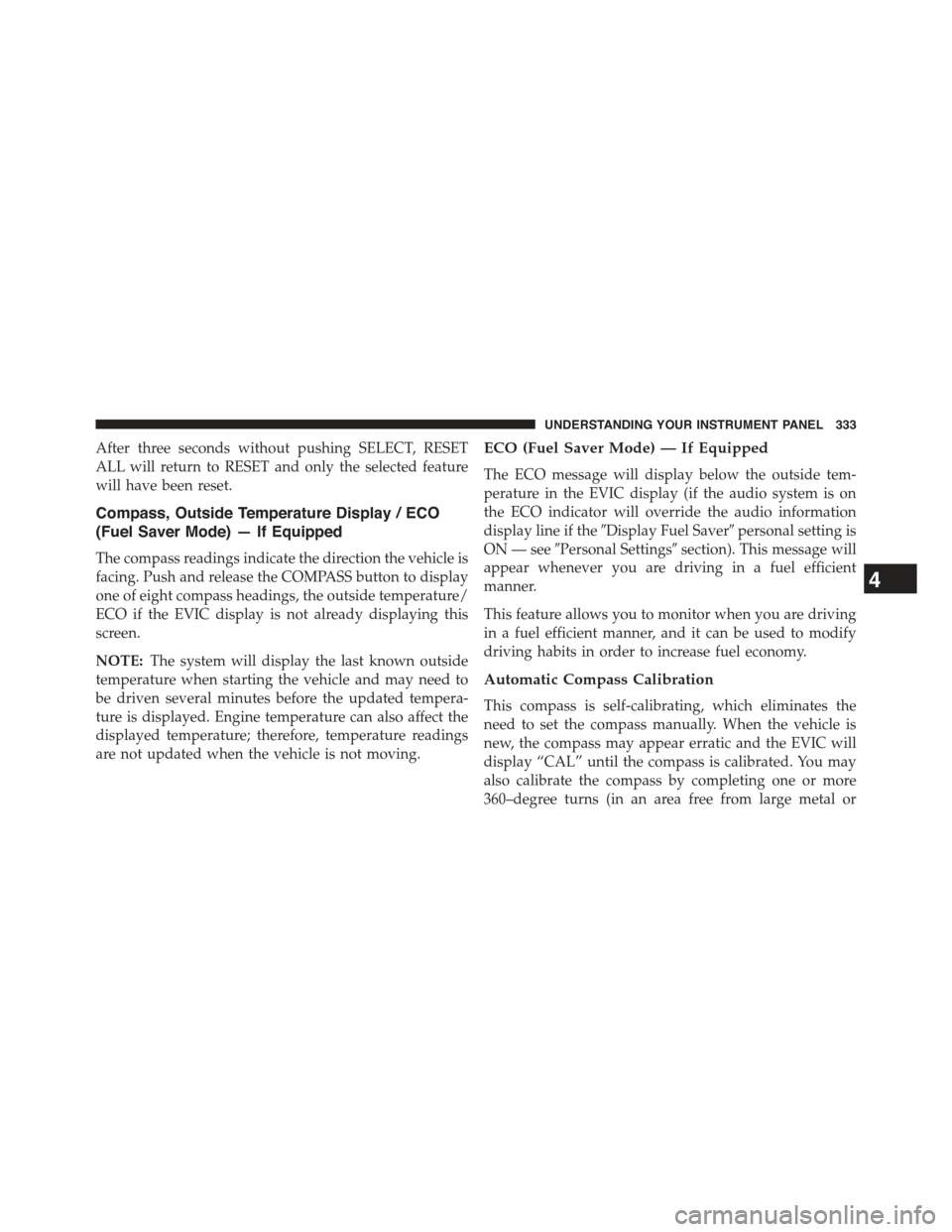

After three seconds without pushing SELECT, RESET
ALL will return to RESET and only the selected feature
will have been reset.
Compass, Outside Temperature Display / ECO
(Fuel Saver Mode) — If Equipped
The compass readings indicate the direction the vehicle is
facing. Push and release the COMPASS button to display
one of eight compass headings, the outside temperature/
ECO if the EVIC display is not already displaying this
screen.
NOTE:The system will display the last known outside
temperature when starting the vehicle and may need to
be driven several minutes before the updated tempera-
ture is displayed. Engine temperature can also affect the
displayed temperature; therefore, temperature readings
are not updated when the vehicle is not moving.
ECO (Fuel Saver Mode) — If Equipped
The ECO message will display below the outside tem-
perature in the EVIC display (if the audio system is on
the ECO indicator will override the audio information
display line if the#Display Fuel Saver#personal setting is
ON — see#Personal Settings#section). This message will
appear whenever you are driving in a fuel efficient
manner.
This feature allows you to monitor when you are driving
in a fuel efficient manner, and it can be used to modify
driving habits in order to increase fuel economy.
Automatic Compass Calibration
This compass is self-calibrating, which eliminates the
need to set the compass manually. When the vehicle is
new, the compass may appear erratic and the EVIC will
display “CAL” until the compass is calibrated. You may
also calibrate the compass by completing one or more
360–degree turns (in an area free from large metal or
4
UNDERSTANDING YOUR INSTRUMENT PANEL 333

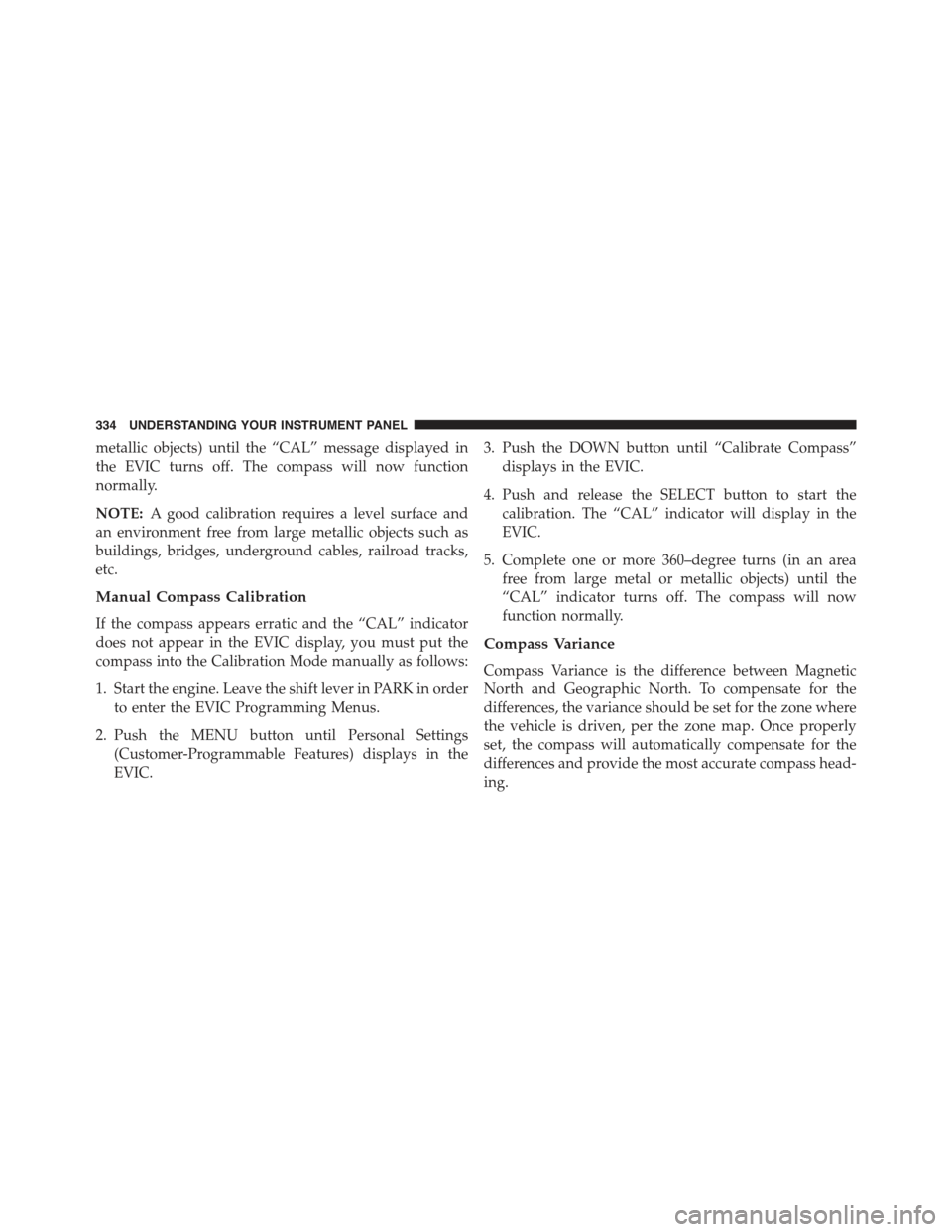

metallic objects) until the “CAL” message displayed in
the EVIC turns off. The compass will now function
normally.
NOTE:A good calibration requires a level surface and
an environment free from large metallic objects such as
buildings, bridges, underground cables, railroad tracks,
etc.
Manual Compass Calibration
If the compass appears erratic and the “CAL” indicator
does not appear in the EVIC display, you must put the
compass into the Calibration Mode manually as follows:
1. Start the engine. Leave the shift lever in PARK in order
to enter the EVIC Programming Menus.
2. Push the MENU button until Personal Settings
(Customer-Programmable Features) displays in the
EVIC.
3. Push the DOWN button until “Calibrate Compass”
displays in the EVIC.
4. Push and release the SELECT button to start the
calibration. The “CAL” indicator will display in the
EVIC.
5. Complete one or more 360–degree turns (in an area
free from large metal or metallic objects) until the
“CAL” indicator turns off. The compass will now
function normally.
Compass Variance
Compass Variance is the difference between Magnetic
North and Geographic North. To compensate for the
differences, the variance should be set for the zone where
the vehicle is driven, per the zone map. Once properly
set, the compass will automatically compensate for the
differences and provide the most accurate compass head-
ing.
334 UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:Magnetic materials should be kept away from
the top of the instrument panel; this is where the compass
sensor is located.
To Change The Compass Variance:
1. Turn the ignition switch RUN (it is not necessary to
start the engine).
2. Push the MENU button until Personal Settings
(Customer-Programmable Features) displays in the
EVIC.
3. Push the DOWN button until “Compass Variance”
message and the last variance zone number displays
in the EVIC.
4. Push and release the SELECT button until the proper
variance zone is selected according to the map.
5. Push and release the COMPASS button to exit.
Compass Variance Map
4
UNDERSTANDING YOUR INSTRUMENT PANEL 335

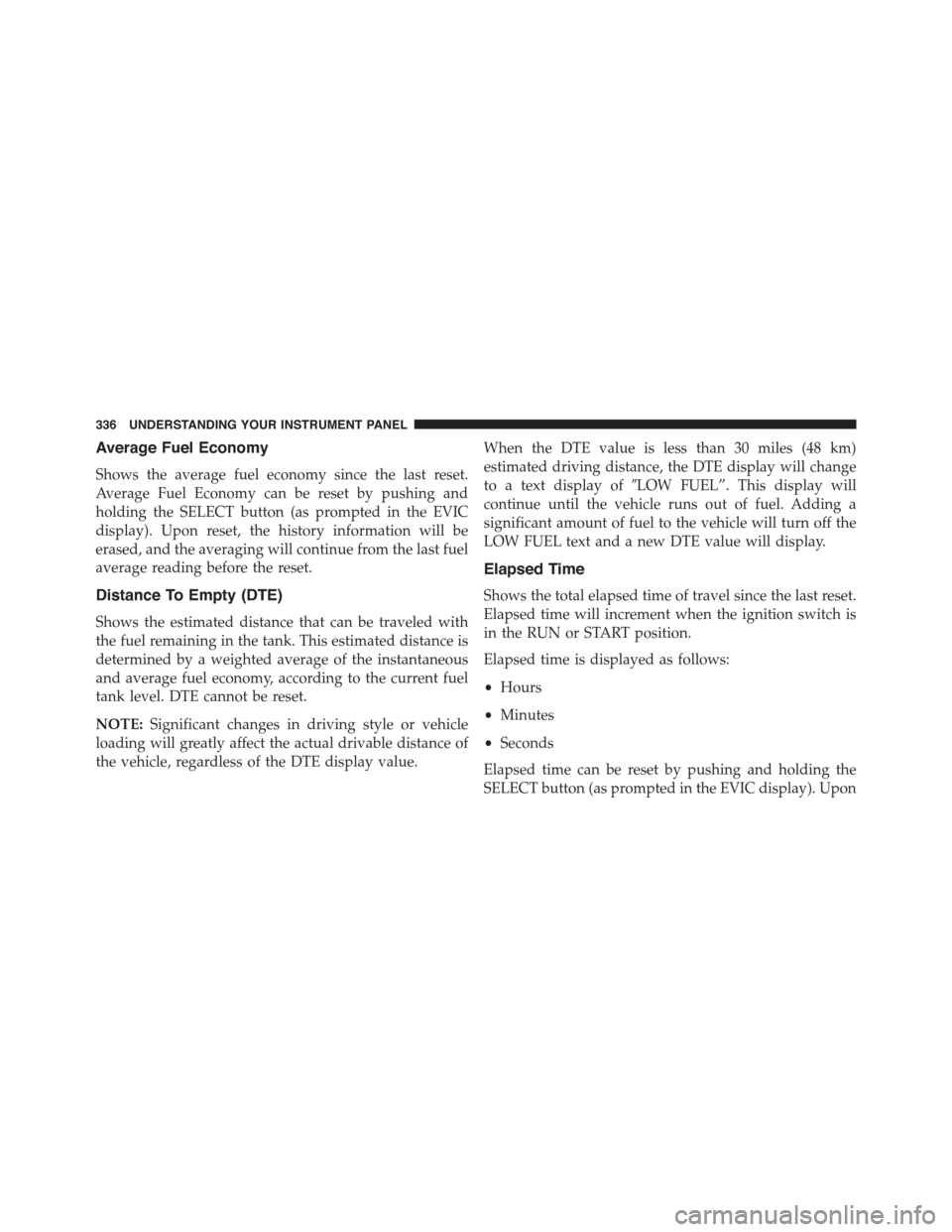

Average Fuel Economy
Shows the average fuel economy since the last reset.
Average Fuel Economy can be reset by pushing and
holding the SELECT button (as prompted in the EVIC
display). Upon reset, the history information will be
erased, and the averaging will continue from the last fuel
average reading before the reset.
Distance To Empty (DTE)
Shows the estimated distance that can be traveled with
the fuel remaining in the tank. This estimated distance is
determined by a weighted average of the instantaneous
and average fuel economy, according to the current fuel
tank level. DTE cannot be reset.
NOTE:Significant changes in driving style or vehicle
loading will greatly affect the actual drivable distance of
the vehicle, regardless of the DTE display value.
When the DTE value is less than 30 miles (48 km)
estimated driving distance, the DTE display will change
to a text display of#LOW FUEL”. This display will
continue until the vehicle runs out of fuel. Adding a
significant amount of fuel to the vehicle will turn off the
LOW FUEL text and a new DTE value will display.
Elapsed Time
Shows the total elapsed time of travel since the last reset.
Elapsed time will increment when the ignition switch is
in the RUN or START position.
Elapsed time is displayed as follows:
•Hours
•Minutes
•Seconds
Elapsed time can be reset by pushing and holding the
SELECT button (as prompted in the EVIC display). Upon
336 UNDERSTANDING YOUR INSTRUMENT PANEL

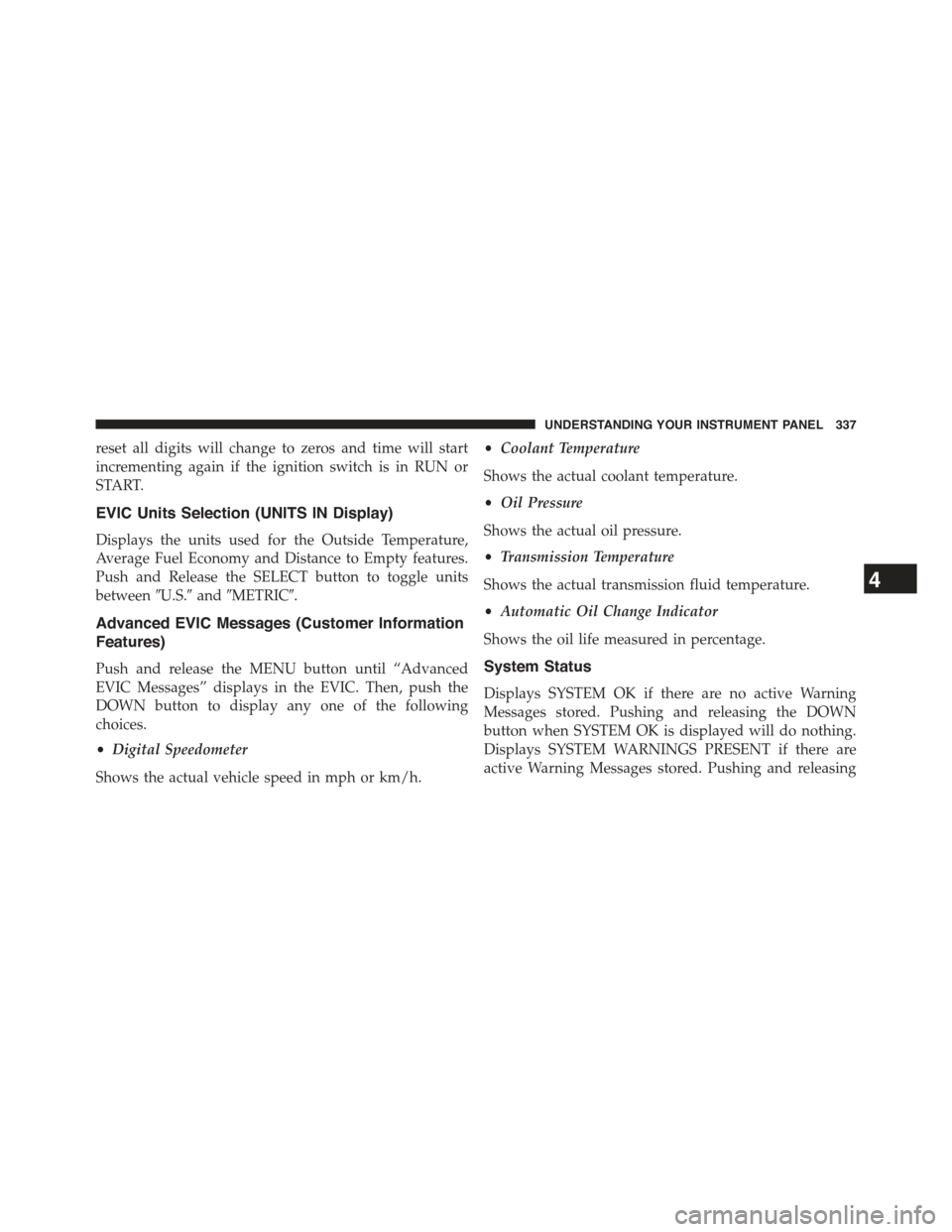

reset all digits will change to zeros and time will start
incrementing again if the ignition switch is in RUN or
START.
EVIC Units Selection (UNITS IN Display)
Displays the units used for the Outside Temperature,
Average Fuel Economy and Distance to Empty features.
Push and Release the SELECT button to toggle units
between#U.S.#and#METRIC#.
Advanced EVIC Messages (Customer Information
Features)
Push and release the MENU button until “Advanced
EVIC Messages” displays in the EVIC. Then, push the
DOWN button to display any one of the following
choices.
•Digital Speedometer
Shows the actual vehicle speed in mph or km/h.
•Coolant Temperature
Shows the actual coolant temperature.
•Oil Pressure
Shows the actual oil pressure.
•Transmission Temperature
Shows the actual transmission fluid temperature.
•Automatic Oil Change Indicator
Shows the oil life measured in percentage.
System Status
Displays SYSTEM OK if there are no active Warning
Messages stored. Pushing and releasing the DOWN
button when SYSTEM OK is displayed will do nothing.
Displays SYSTEM WARNINGS PRESENT if there are
active Warning Messages stored. Pushing and releasing
4
UNDERSTANDING YOUR INSTRUMENT PANEL 337

the DOWN button when SYSTEM WARNINGS PRES-
ENT is displayed will display each stored warning for
each button push. Push and release the MENU button to
return to the Main Menu.
Personal Settings (Customer-Programmable
Features)
Personal Settings allows the driver to set and recall
features when the vehicle speed is at 0 mph (0 km/h)
(manual transmission) or when the shift lever is in PARK
(auto transmission).
Push and release the MENU button until Personal Set-
tings displays in the EVIC.
Use the DOWN button to display one of the following
choices:
Language
When in this display you may select one of five lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the SELECT button while in this display to select English,
Espanol or Francais. Then, as you continue, the informa-
tion will display in the selected language.
Auto Lock Doors
When this feature is selected, all doors will lock automati-
cally when the vehicle reaches a speed of 15 mph (24 km/h).
The auto door lock feature can be enabled or disabled, to
make your selection, press and release the SELECT button
until a check-mark appears next to the feature showing the
system has been activated or the check-mark is removed
showing the system has been deactivated.
Auto Unlk On Exit
When ON is selected, all doors will unlock when the
vehicle is stopped and the transmission is in the PARK or
NEUTRAL position and the driver’s door is opened. To
make your selection, press and release the SELECT
button until “On” or “Off” appears.
338 UNDERSTANDING YOUR INSTRUMENT PANEL

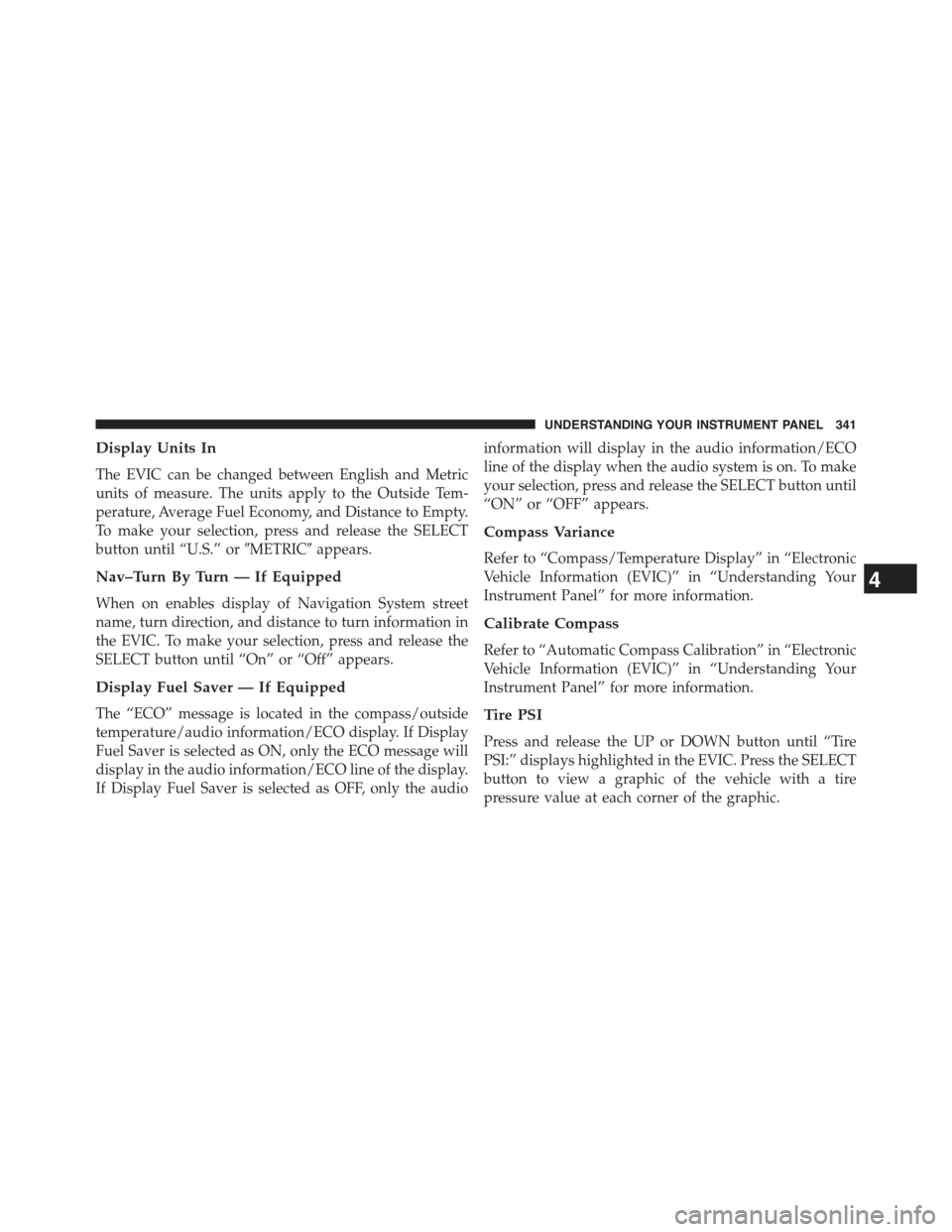

Display Units In
The EVIC can be changed between English and Metric
units of measure. The units apply to the Outside Tem-
perature, Average Fuel Economy, and Distance to Empty.
To make your selection, press and release the SELECT
button until “U.S.” or#METRIC#appears.
Nav–Turn By Turn — If Equipped
When on enables display of Navigation System street
name, turn direction, and distance to turn information in
the EVIC. To make your selection, press and release the
SELECT button until “On” or “Off” appears.
Display Fuel Saver — If Equipped
The “ECO” message is located in the compass/outside
temperature/audio information/ECO display. If Display
Fuel Saver is selected as ON, only the ECO message will
display in the audio information/ECO line of the display.
If Display Fuel Saver is selected as OFF, only the audio
information will display in the audio information/ECO
line of the display when the audio system is on. To make
your selection, press and release the SELECT button until
“ON” or “OFF” appears.
Compass Variance
Refer to “Compass/Temperature Display” in “Electronic
Vehicle Information (EVIC)” in “Understanding Your
Instrument Panel” for more information.
Calibrate Compass
Refer to “Automatic Compass Calibration” in “Electronic
Vehicle Information (EVIC)” in “Understanding Your
Instrument Panel” for more information.
Tire PSI
Press and release the UP or DOWN button until “Tire
PSI:” displays highlighted in the EVIC. Press the SELECT
button to view a graphic of the vehicle with a tire
pressure value at each corner of the graphic.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 341

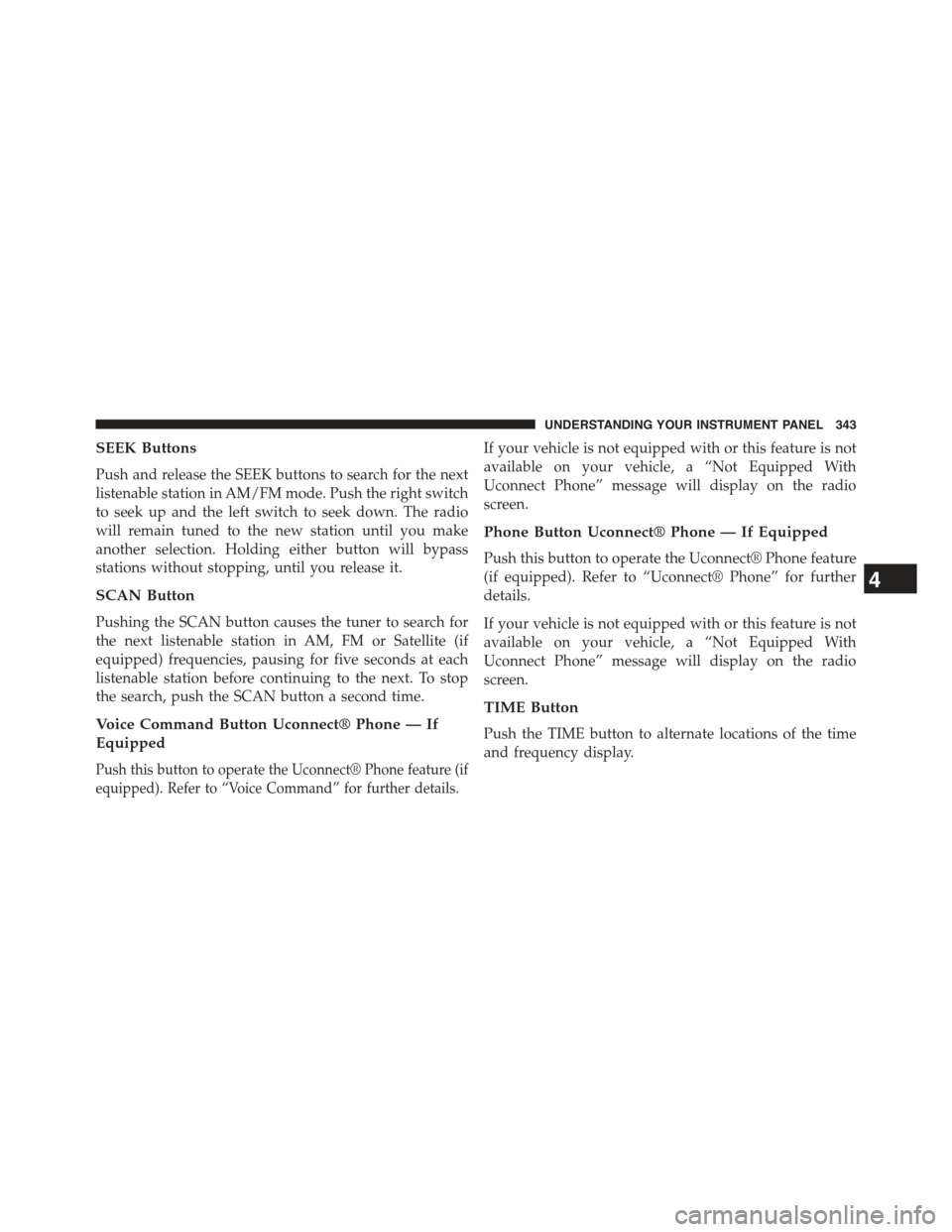

SEEK Buttons
Push and release the SEEK buttons to search for the next
listenable station in AM/FM mode. Push the right switch
to seek up and the left switch to seek down. The radio
will remain tuned to the new station until you make
another selection. Holding either button will bypass
stations without stopping, until you release it.
SCAN Button
Pushing the SCAN button causes the tuner to search for
the next listenable station in AM, FM or Satellite (if
equipped) frequencies, pausing for five seconds at each
listenable station before continuing to the next. To stop
the search, push the SCAN button a second time.
Voice Command Button Uconnect® Phone — If
Equipped
Push this button to operate the Uconnect® Phone feature (if
equipped). Refer to “Voice Command” for further details.
If your vehicle is not equipped with or this feature is not
available on your vehicle, a “Not Equipped With
Uconnect Phone” message will display on the radio
screen.
Phone Button Uconnect® Phone — If Equipped
Push this button to operate the Uconnect® Phone feature
(if equipped). Refer to “Uconnect® Phone” for further
details.
If your vehicle is not equipped with or this feature is not
available on your vehicle, a “Not Equipped With
Uconnect Phone” message will display on the radio
screen.
TIME Button
Push the TIME button to alternate locations of the time
and frequency display.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 343
