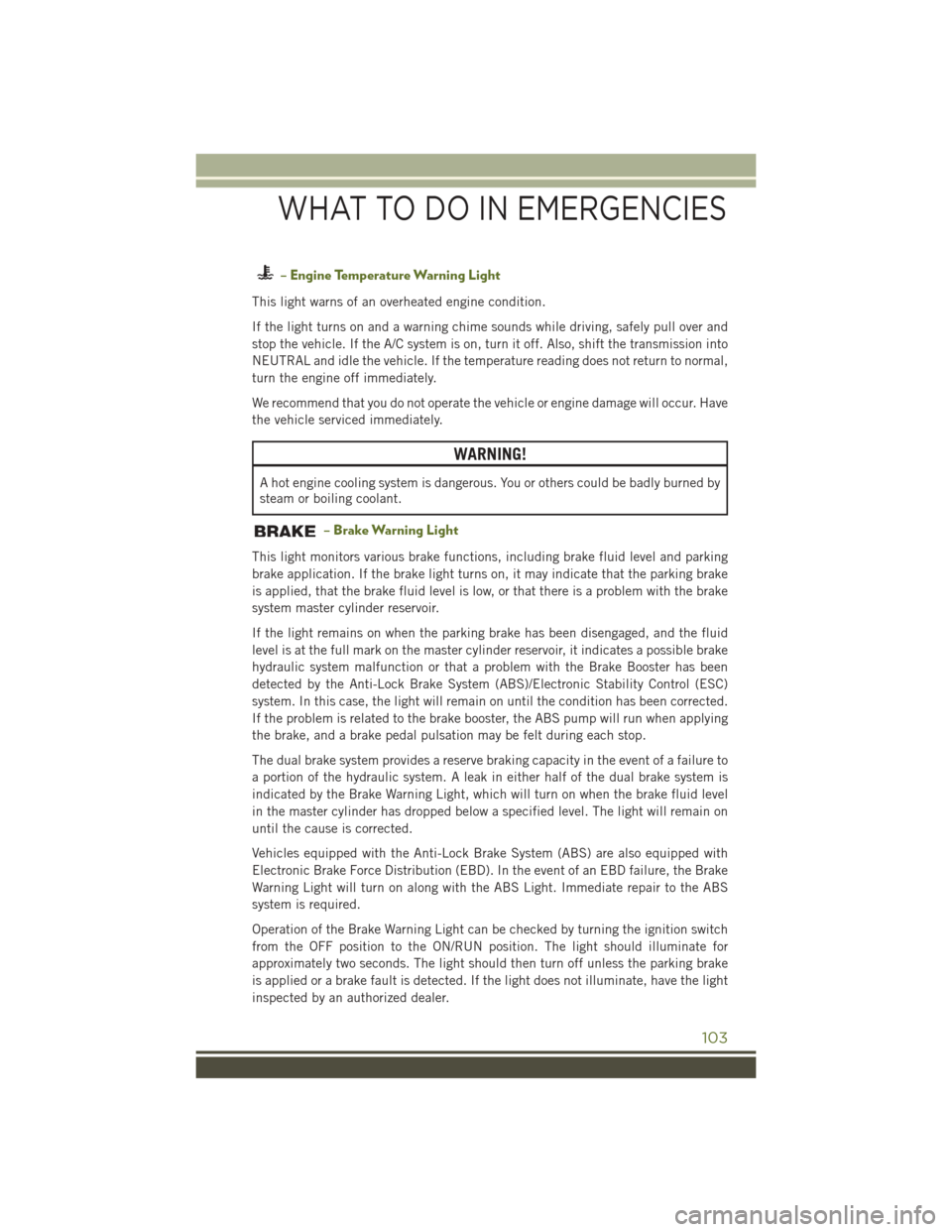

– Engine Temperature Warning Light
This light warns of an overheated engine condition.
If the light turns on and a warning chime sounds while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also, shift the transmission into
NEUTRAL and idle the vehicle. If the temperature reading does not return to normal,
turn the engine off immediately.
We recommend that you do not operate the vehicle or engine damage will occur. Have
the vehicle serviced immediately.
WARNING!
A hot engine cooling system is dangerous. You or others could be badly burned by
steam or boiling coolant.
– Brake Warning Light
This light monitors various brake functions, including brake fluid level and parking
brake application. If the brake light turns on, it may indicate that the parking brake
is applied, that the brake fluid level is low, or that there is a problem with the brake
system master cylinder reservoir.
If the light remains on when the parking brake has been disengaged, and the fluid
level is at the full mark on the master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the Brake Booster has been
detected by the Anti-Lock Brake System (ABS)/Electronic Stability Control (ESC)
system. In this case, the light will remain on until the condition has been corrected.
If the problem is related to the brake booster, the ABS pump will run when applying
the brake, and a brake pedal pulsation may be felt during each stop.
The dual brake system provides a reserve braking capacity in the event of a failure to
a portion of the hydraulic system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on when the brake fluid level
in the master cylinder has dropped below a specified level. The light will remain on
until the cause is corrected.
Vehicles equipped with the Anti-Lock Brake System (ABS) are also equipped with
Electronic Brake Force Distribution (EBD). In the event of an EBD failure, the Brake
Warning Light will turn on along with the ABS Light. Immediate repair to the ABS
system is required.
Operation of the Brake Warning Light can be checked by turning the ignition switch
from the OFF position to the ON/RUN position. The light should illuminate for
approximately two seconds. The light should then turn off unless the parking brake
is applied or a brake fault is detected. If the light does not illuminate, have the light
inspected by an authorized dealer.
WHAT TO DO IN EMERGENCIES
103

ENGINE COMPARTMENT — 3.6L
1. Battery
2. Integrated Power Module (Fuses)
3. Engine Oil Dipstick
4. Engine Oil Fill
5. Brake Fluid Reservoir
MAINTAINING YOUR VEHICLE
122

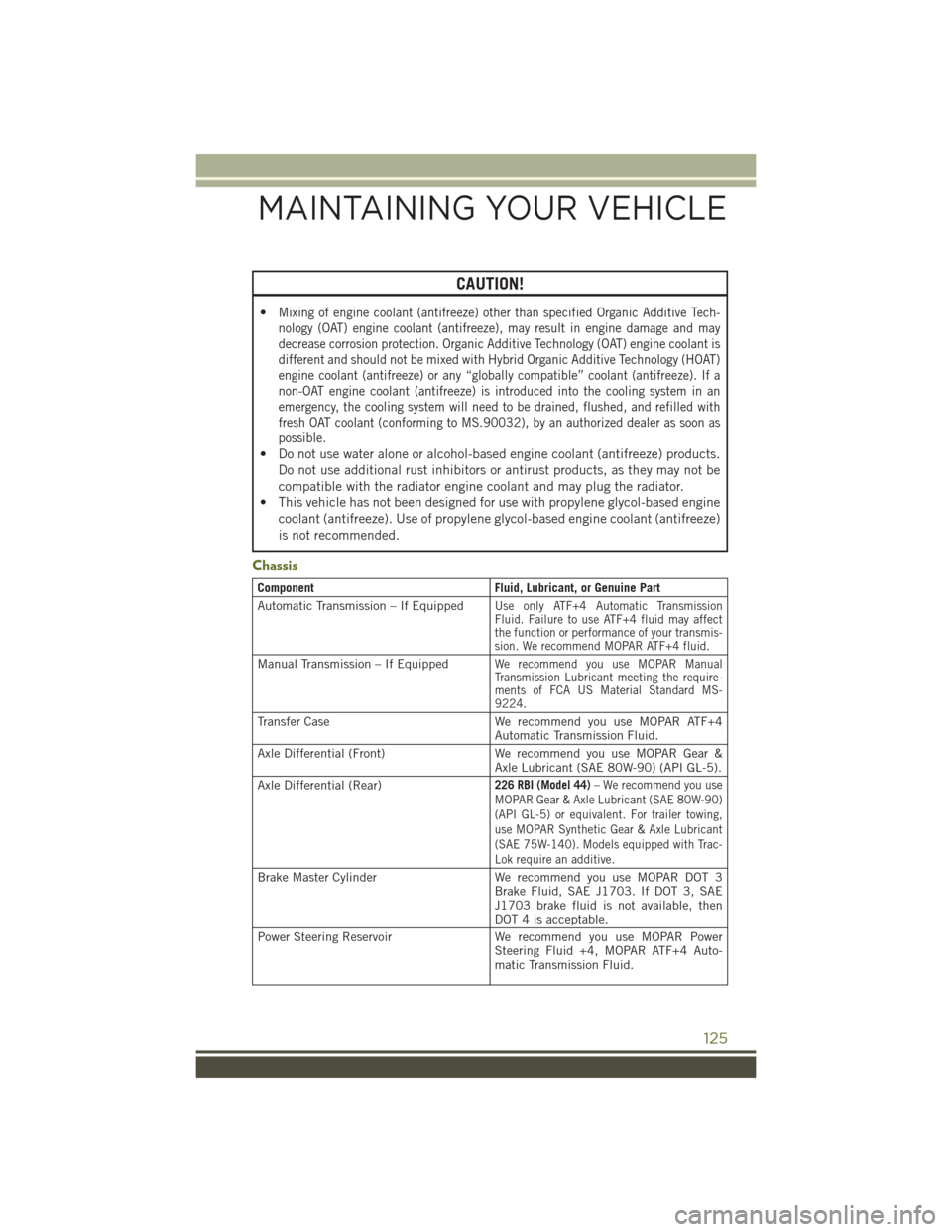

CAUTION!
•Mixing of engine coolant (antifreeze) other than specified Organic Additive Tech-
nology (OAT) engine coolant (antifreeze), may result in engine damage and may
decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is
different and should not be mixed with Hybrid Organic Additive Technology (HOAT)
engine coolant (antifreeze) or any “globally compatible” coolant (antifreeze). If a
non-OAT engine coolant (antifreeze) is introduced into the cooling system in an
emergency, the cooling system will need to be drained, flushed, and refilled with
fresh OAT coolant (conforming to MS.90032), by an authorized dealer as soon as
possible.
• Do not use water alone or alcohol-based engine coolant (antifreeze) products.Do not use additional rust inhibitors or antirust products, as they may not be
compatible with the radiator engine coolant and may plug the radiator.
• This vehicle has not been designed for use with propylene glycol-based engine
coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze)
is not recommended.
Chassis
Component Fluid, Lubricant, or Genuine Part
Automatic Transmission – If Equipped
Use only ATF+4 Automatic Transmission
Fluid. Failure to use ATF+4 fluid may affect
the function or performance of your transmis-
sion. We recommend MOPAR ATF+4 fluid.
Manual Transmission – If EquippedWe recommend you use MOPAR Manual
Transmission Lubricant meeting the require-
ments of FCA US Material Standard MS-
9224.
Transfer Case We recommend you use MOPAR ATF+4
Automatic Transmission Fluid.
Axle Differential (Front) We recommend you use MOPAR Gear &
Axle Lubricant (SAE 80W-90) (API GL-5).
Axle Differential (Rear)
226 RBI (Model 44) – We recommend you use
MOPAR Gear & Axle Lubricant (SAE 80W-90)
(API GL-5) or equivalent. For trailer towing,
use MOPAR Synthetic Gear & Axle Lubricant
(SAE 75W-140). Models equipped with Trac-
Lok require an additive.
Brake Master Cylinder We recommend you use MOPAR DOT 3
Brake Fluid, SAE J1703. If DOT 3, SAE
J1703 brake fluid is not available, then
DOT 4 is acceptable.
Power Steering Reservoir We recommend you use MOPAR Power
Steering Fluid +4, MOPAR ATF+4 Auto-
matic Transmission Fluid.
MAINTAINING YOUR VEHICLE
125

Once A Month Or Before A Long Trip:
• Check engine oil level
• Check windshield washer fluid level
• Check the tire inflation pressures and look for unusual wear or damage
• Check the fluid levels of the coolant reservoir, brake master cylinder, powersteering and automatic transmission, and fill as needed
• Check function of all interior and exterior lights
Required Maintenance Intervals
Refer to the maintenance schedules on the following page for the required mainte-
nance intervals.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
• Change oil and filter
• Rotate the tires. Rotate at the first sign of irregular wear, even if it occurs before the oil
indicator system turns on.
• Inspect battery and clean and tighten terminals as required
• Inspect automatic transmission fluid if equipped with dipstick
• Inspect brake pads, shoes, rotors, drums, hoses and park brake
• Inspect engine cooling system protection and hoses
• Inspect exhaust system
• Inspect engine air cleaner if using in dusty or off-road conditions
• Inspect all door latches for presence of grease, reapply if necessary.
MAINTAINING YOUR VEHICLE
127

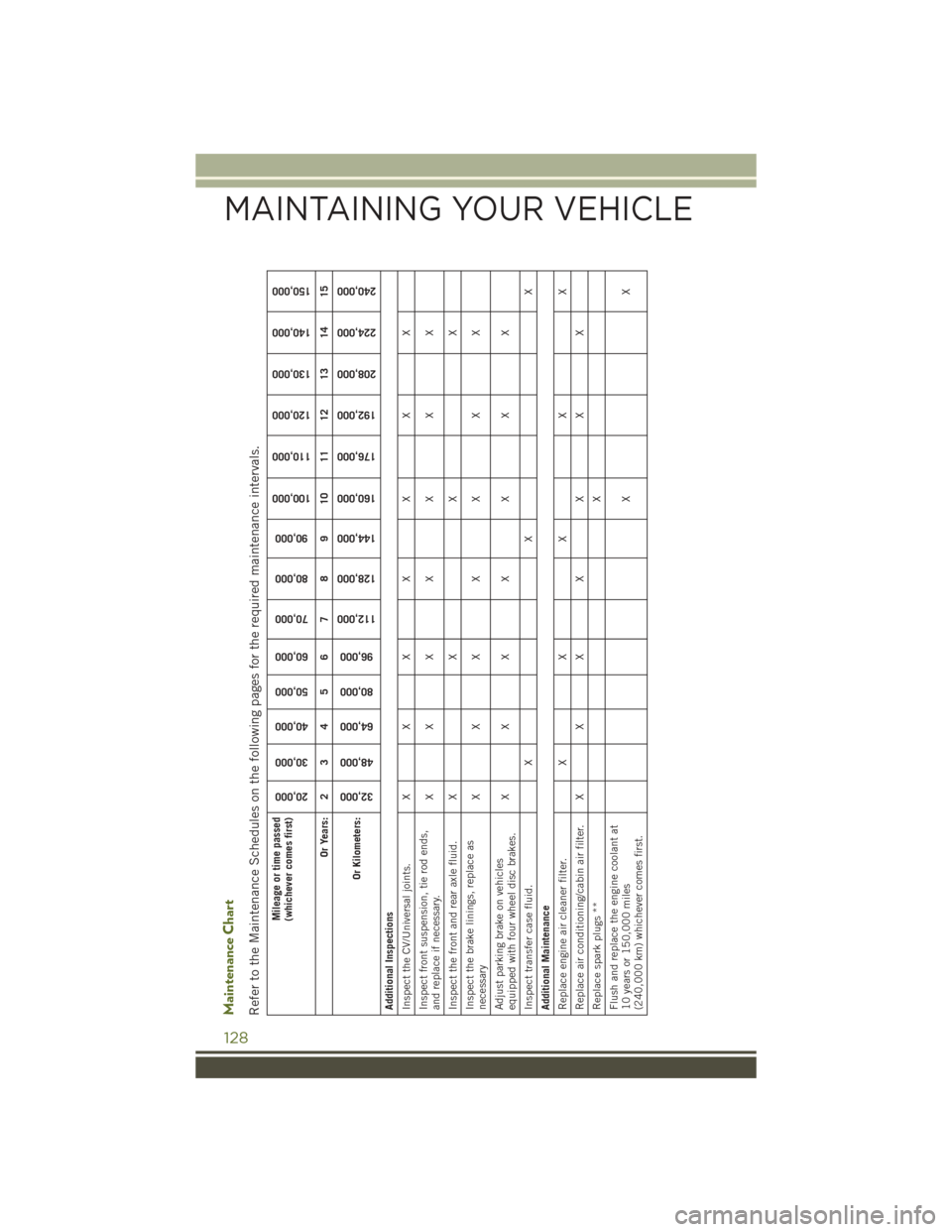

Maintenance ChartRefer to the Maintenance Schedules on the following pages for the required maintenance intervals.
Mileage or time passed
(whichever comes first)
20,000
30,000
40,000
50,000
60,000
70,000
80,000
90,000
100,000
110,000
120,000
130,000
140,000
150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers:
32,000
48,000
64,000
80,000
96,000
112,000
128,000
144,000
160,000
176,000
192,000
208,000
224,000
240,000
Additional Inspections
Inspect the CV/Universal joints. X X X X X X X
Inspect front suspension, tie rod ends,
and replace if necessary. XXX X X X X
Inspect the front and rear axle fluid. X X X X
Inspect the brake linings, replace as
necessary XXX X X X X
Adjust parking brake on vehicles
equipped with four wheel disc brakes. XXX X X X X
Inspect transfer case fluid. X X X
Additional Maintenance
Replace engine air cleaner filter. X X X X X
Replace air conditioning/cabin air filter. X X X X X X X
Replace spark plugs ** X
Flush and replace the engine coolant at
10 years or 150,000 miles
(240,000 km) whichever comes first. XX
MAINTAINING YOUR VEHICLE
128

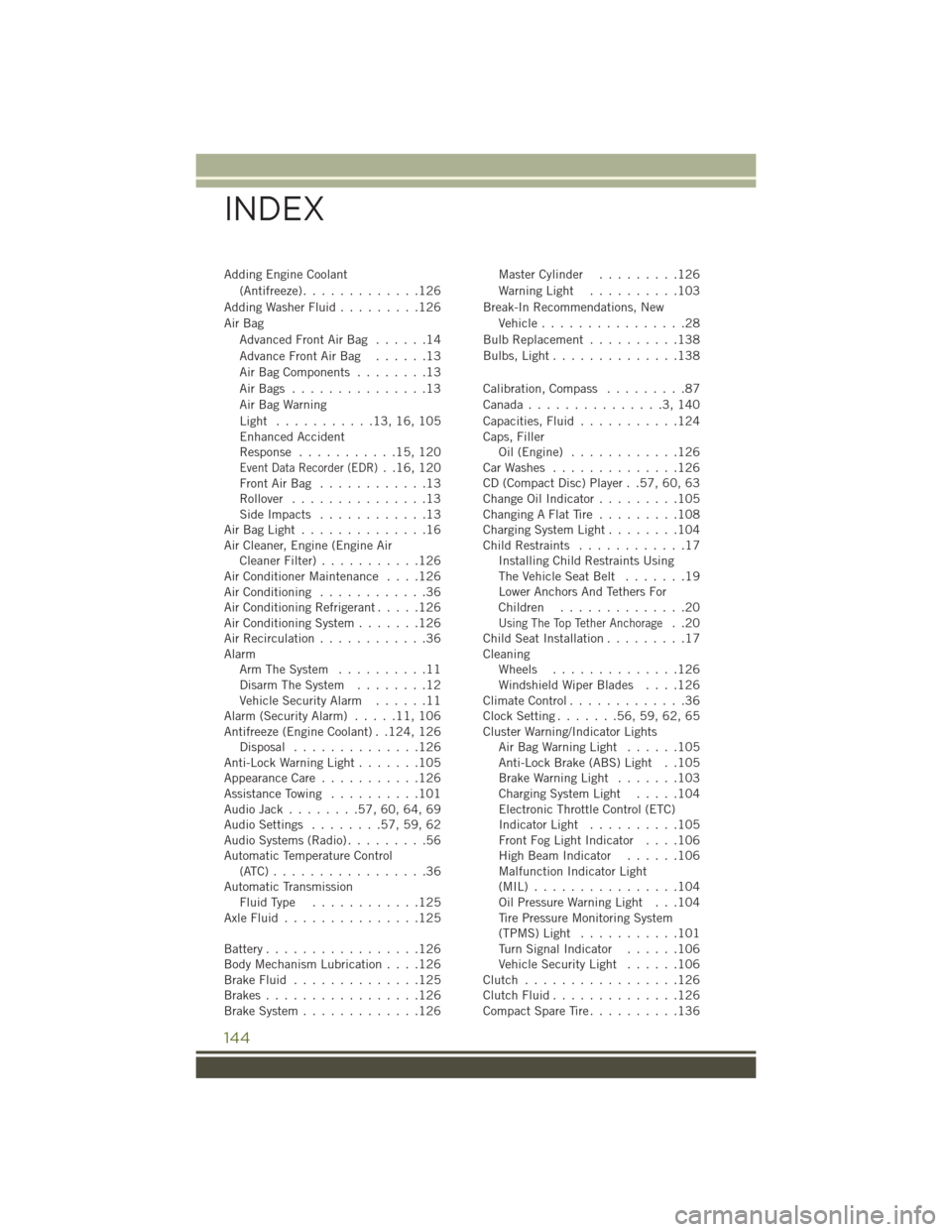

Adding Engine Coolant(Antifreeze) .............126
Adding Washer Fluid .........126
Air Bag AdvancedFrontAirBag ......14
AdvanceFrontAirBag ......13
AirBagComponents ........13
AirBags ...............13
Air Bag Warning
Light ...........13,16,105
Enhanced Accident
Response ...........15,120
Event Data Recorder (EDR). .16, 120
FrontAirBag ............13
Rollover ...............13
SideImpacts ............13
AirBagLight..............16
Air Cleaner, Engine (Engine Air Cleaner Filter) ...........126
Air Conditioner Maintenance ....126
Air Conditioning ............36
Air Conditioning Refrigerant .....126
Air Conditioning System .......126
Air Recirculation ............36
Alarm Arm The System ..........11
Disarm The System ........12
Vehicle Security Alarm ......11
Alarm (Security Alarm) .....11,106
Antifreeze (Engine Coolant) . .124, 126 Disposal ..............126
Anti-Lock Warning Light .......105
Appearance Care ...........126
Assistance Towing ..........101
Audio Jack ........57,60,64,69
Audio Settings ........57,59,62
Audio Systems (Radio) .........56
Automatic Temperature Control (ATC).................36
Automatic Transmission FluidType ............125
AxleFluid...............125
Battery .................126
Body Mechanism Lubrication ....126
BrakeFluid ..............125
Brakes.................126
Brake System .............126 Master Cylinder
.........126
Warning Light ..........103
Break-In Recommendations, New Vehicle ................28
Bulb Replacement ..........138
Bulbs,Light..............138
Calibration, Compass .........87
Canada...............3,140
Capacities, Fluid ...........124
Caps, Filler Oil (Engine) ............126
CarWashes ..............126
CD (Compact Disc) Player . .57, 60, 63
Change Oil Indicator .........105
ChangingAFlatTire .........108
Charging System Light ........104
Child Restraints ............17
Installing Child Restraints Using
The Vehicle Seat Belt .......19
Lower Anchors And Tethers For
Children ..............20
Using The Top Tether Anchorage..20
Child Seat Installation .........17
Cleaning Wheels ..............126
Windshield Wiper Blades ....126
Climate Control .............36
Clock Setting .......56,59,62,65
Cluster Warning/Indicator Lights AirBagWarningLight ......105
Anti-Lock Brake (ABS) Light . .105
Brake Warning Light .......103
Charging System Light .....104
Electronic Throttle Control (ETC)
Indicator Light ..........105
Front Fog Light Indicator ....106
High Beam Indicator ......106
Malfunction Indicator Light
(MIL)................104
Oil Pressure Warning Light . . .104
Tire Pressure Monitoring System
(TPMS) Light ...........101
Turn Signal Indicator ......106
Vehicle Security Light ......106
Clutch .................126
ClutchFluid..............126
CompactSpareTire..........136
INDEX
144

Compass Calibration..........87
Cooling System ............126
Adding Coolant (Antifreeze) . .126
Coolant Capacity .........124
Coolant Level ...........126
Disposal Of Used Coolant ....126
Drain, Flush, And Refill .....126
Inspection ............126
Points To Remember ......126
Pressure Cap ...........126
Selection Of Coolant
(Antifreeze) ........124, 126
Corrosion Protection .........126
Customer Assistance ......139, 140
Defects, Reporting ..........140
Delay (Intermittent) Wipers ......30
Dimmer Control .............28
Dimmer Switch, Headlight ....28,29
Disabled Vehicle Towing ....101, 117
Disarming, Security System ......12
Disposal Antifreeze (Engine Coolant) . . .126
DoorLocks ...............10
Driver Cockpit ............6,55
Driver's Seat Back Tilt .........24
ECO ...................87
Electronic Speed Control (Cruise Control) ................32
Electronic Stability Control (ESC) . .101
Electronic Stability Control (ESC) OFF Indicator ...........104
Electronic Throttle Control Warning Light ................105
Electronic Vehicle Information Center (EVIC)..............86,88
Emergencies, What To Do In .....101
Emergency ...............101
Emergency, In Case Of Jacking ..............108
Jump Starting ..........113
Tow Hooks ............115
Towing ...............101
Engine AirCleaner ............126
Break-In Recommendations . . .28
Checking Oil Level ........126 Coolant (Antifreeze)
.......124
Cooling ...............126
FuelRequirements ........124
Jump Starting ..........113
Oil .............. 124, 126
Oil Filler Cap ...........126
Oil Selection ........124, 126
Overheating ............107
Enhanced Accident Response Feature ...............120
Exhaust System ............126
FAQ...................142
Filters Air Cleaner ............126
EngineOil ......... 124, 126
Engine Oil Disposal .......126
Flashers TurnSignal ............106
Flash-To-Pass ..............
29
Fluid, Brake ..............125
Fluid Capacities ............124
Fluids, Lubricants And Genuine Parts ................124
FogLights ............29,106
FoldingRearSeat ...........25
Four Wheel Drive ............92
Operation ..............92
Shifting ...............92
Systems ..............92
Four Wheel Drive Operation ......92
Freeing A Stuck Vehicle .......119
Frequently Asked Questions .....142
Fuel Octane Rating ..........124
Requirements ..........124
Specifications ..........124
Tank Capacity ..........124
Fuses..................132
Gear Select Lever Override ......116
General Maintenance .........126
Glass Cleaning ............126
GPS Navigation (Uconnect GPS) . . .75
Headlights Cleaning .............126
Dimmer Switch ..........28
INDEX
145
