Page 501 of 1575

KIA CARNIVAL 2007  Workshop Manual a.Substitute a  known good set of wheels and tires.
b. Perform  a  road  test.
c. If  the  vehicle still exhibits  a  shake or vibration, note  the  vehicle speed
and/or engine  rpm which  it occurs.

Page 502 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >
SPECIFICATIONS
FRONT SUSPENSION  SYSTEM
Items Specification
Type Macpherson strut
Shock  Absorber Type
Gas
Stroke mm (in) 195.5 (7.70)
Expansion mm (in) 595.5 ±  3  (23.4

Page 503 of 1575

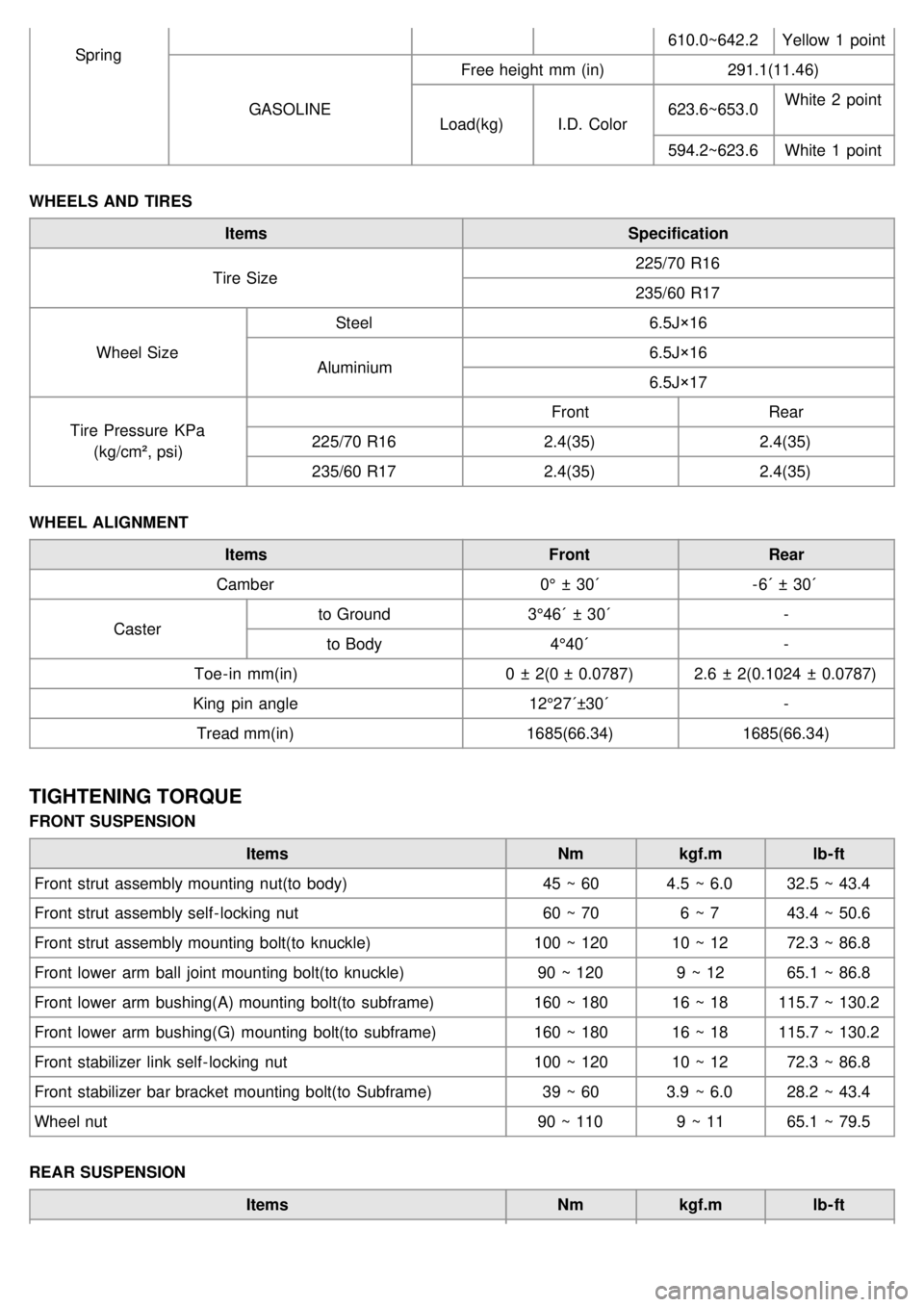

KIA CARNIVAL 2007  Workshop Manual Spring610.0~642.2
Yellow  1  point
GASOLINE Free height mm (in)
291.1(11.46)
Load(kg) I.D.  Color623.6~653.0
White  2  point
y
594.2~623.6 White  1  point
WHEELS AND  TIRES Items Specification
Tire S

Page 504 of 1575

KIA CARNIVAL 2007  Workshop Manual Rear  shock absorber  bracket mounting bolt(to  body)80 ~ 1108  ~ 1157.9  ~ 79.5
Rear  shock absorber  bracket mounting nut(to  body) 90 ~ 1209~ 1265.1  ~ 86.8
Rear  shock absorber  nut  (to  rear  kn

Page 505 of 1575

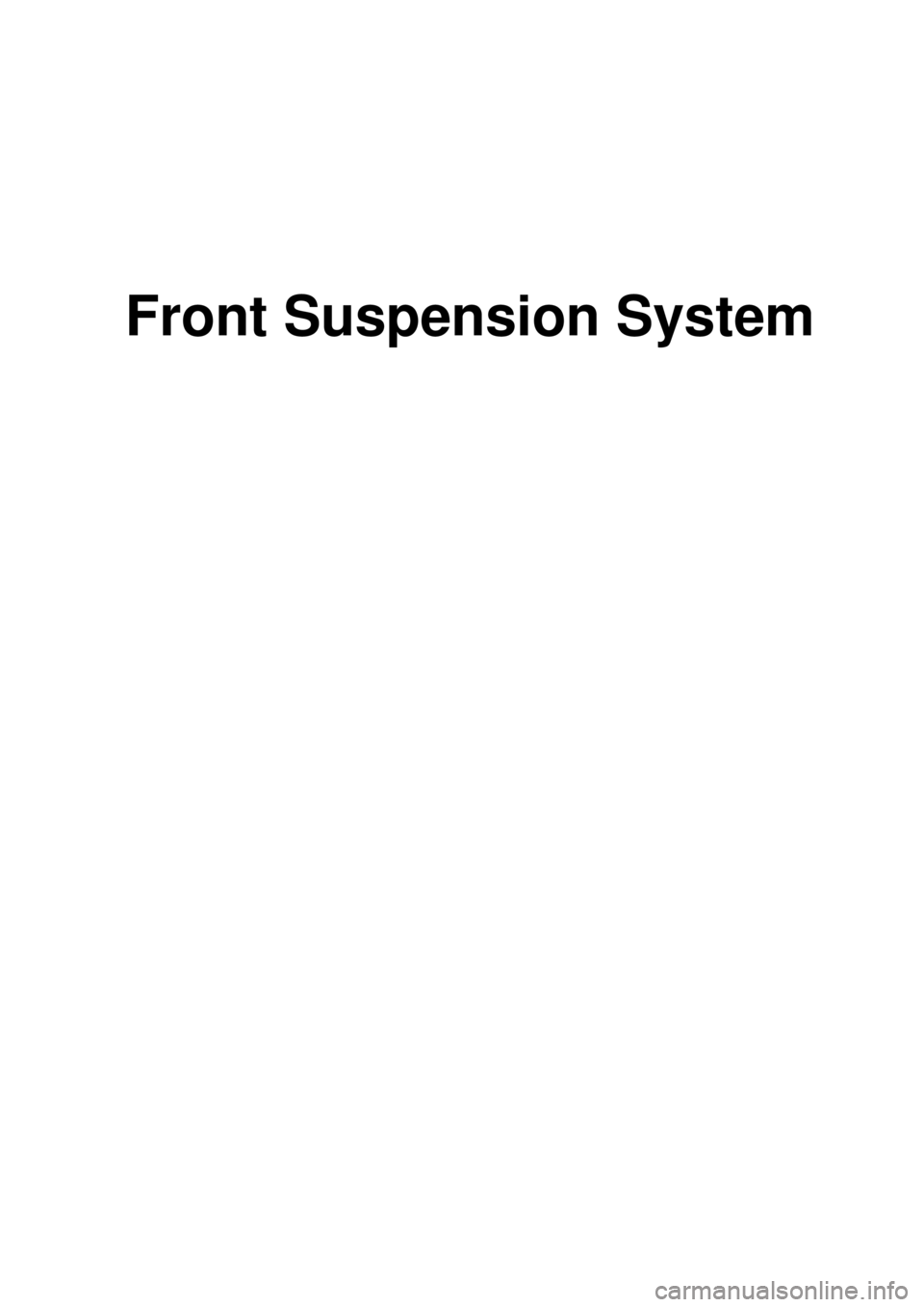

KIA CARNIVAL 2007  Workshop Manual  Front Suspension System

Page 506 of 1575

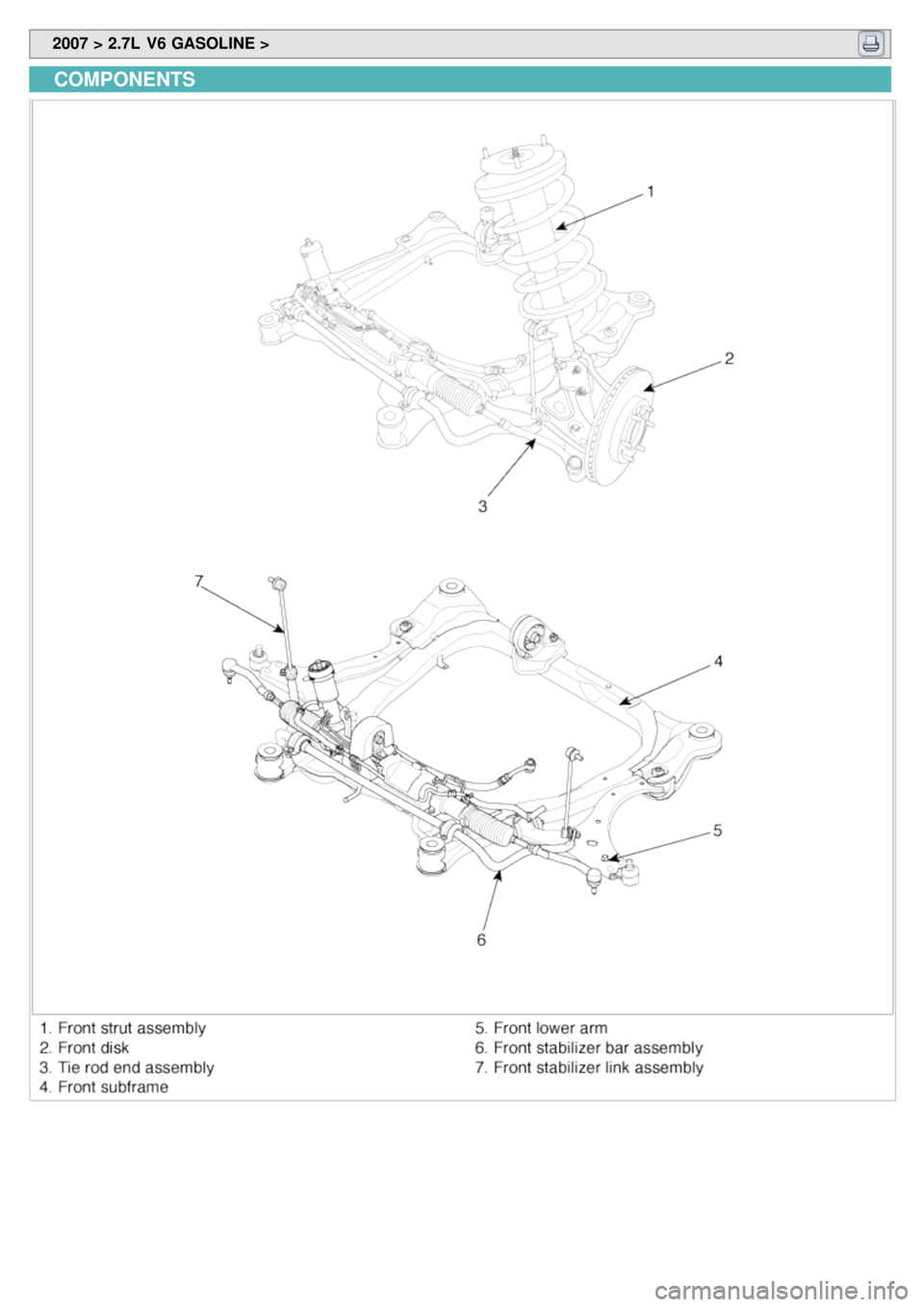

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >
COMPONENTS

Page 507 of 1575

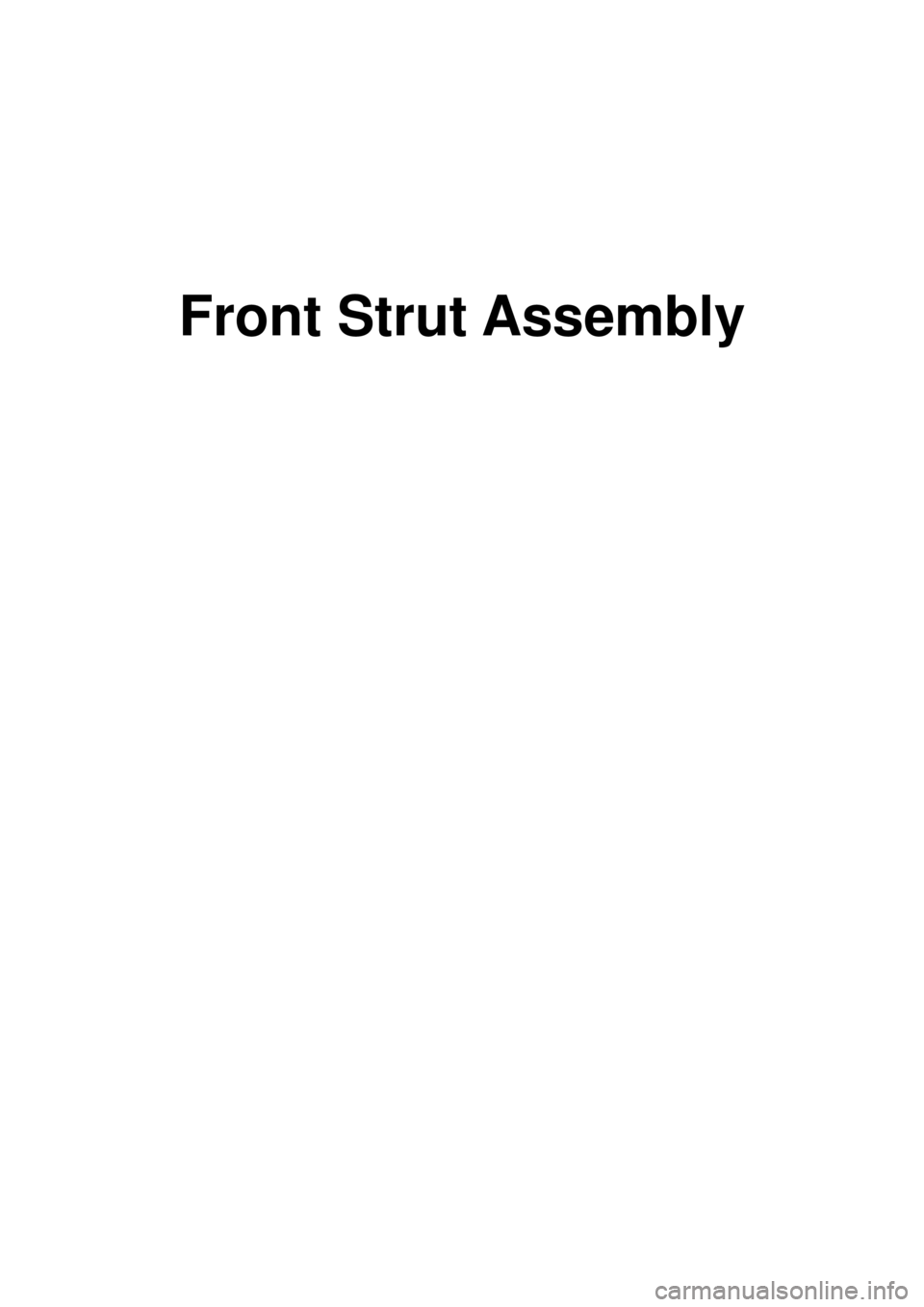

KIA CARNIVAL 2007  Workshop Manual Front Strut Assembly

Page 508 of 1575

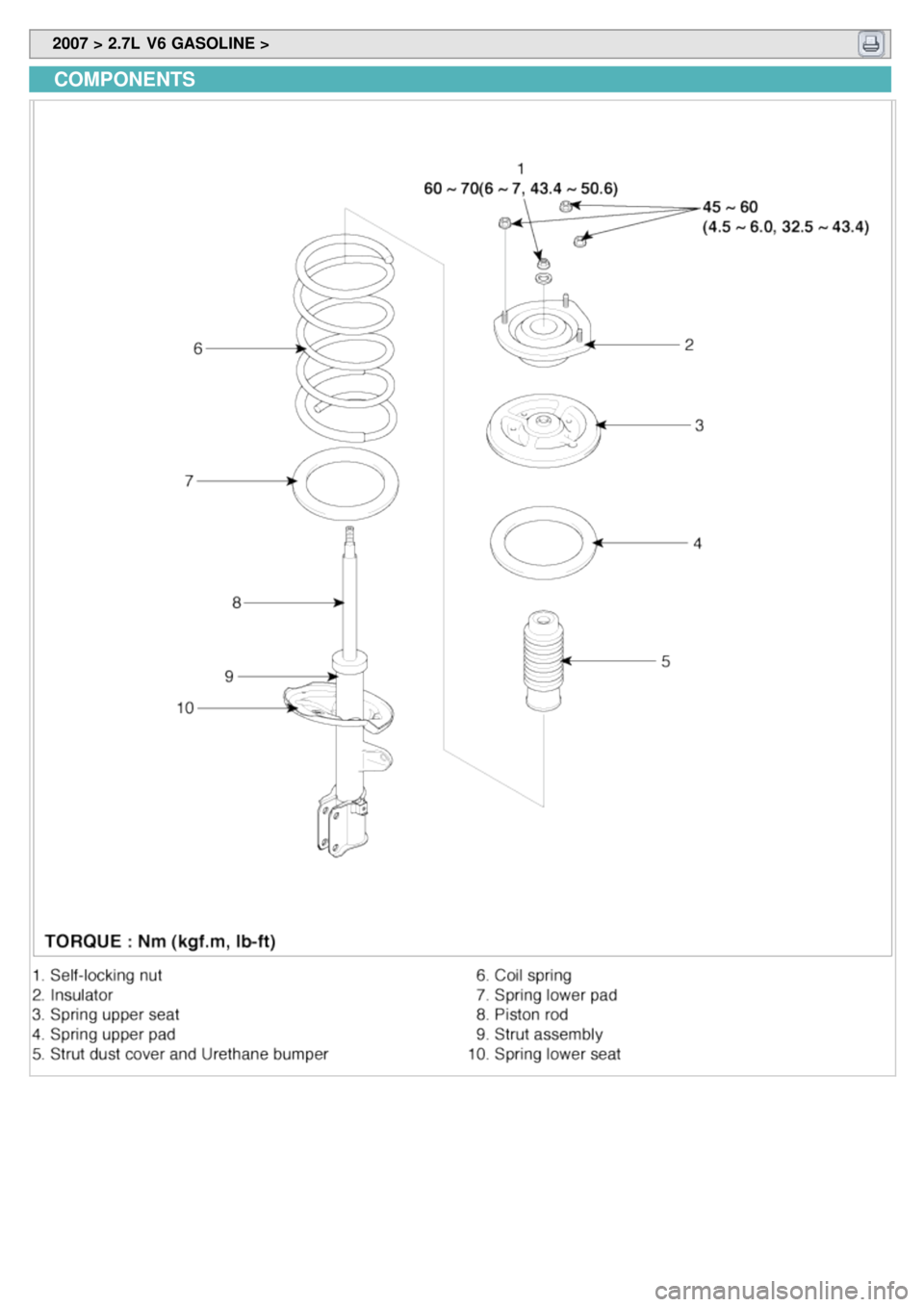

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >
COMPONENTS

Page 509 of 1575

KIA CARNIVAL 2007  Workshop Manual  2007 > 2.7L  V6 GASOLINE >
REMOVAL
1.Loosen the  wheel nuts slightly.
Raise  the  front  of the  vehicle,  and make sure  it is securely supported.
2. Remove the  front  wheel and tire  (A)  from fr

Page 510 of 1575

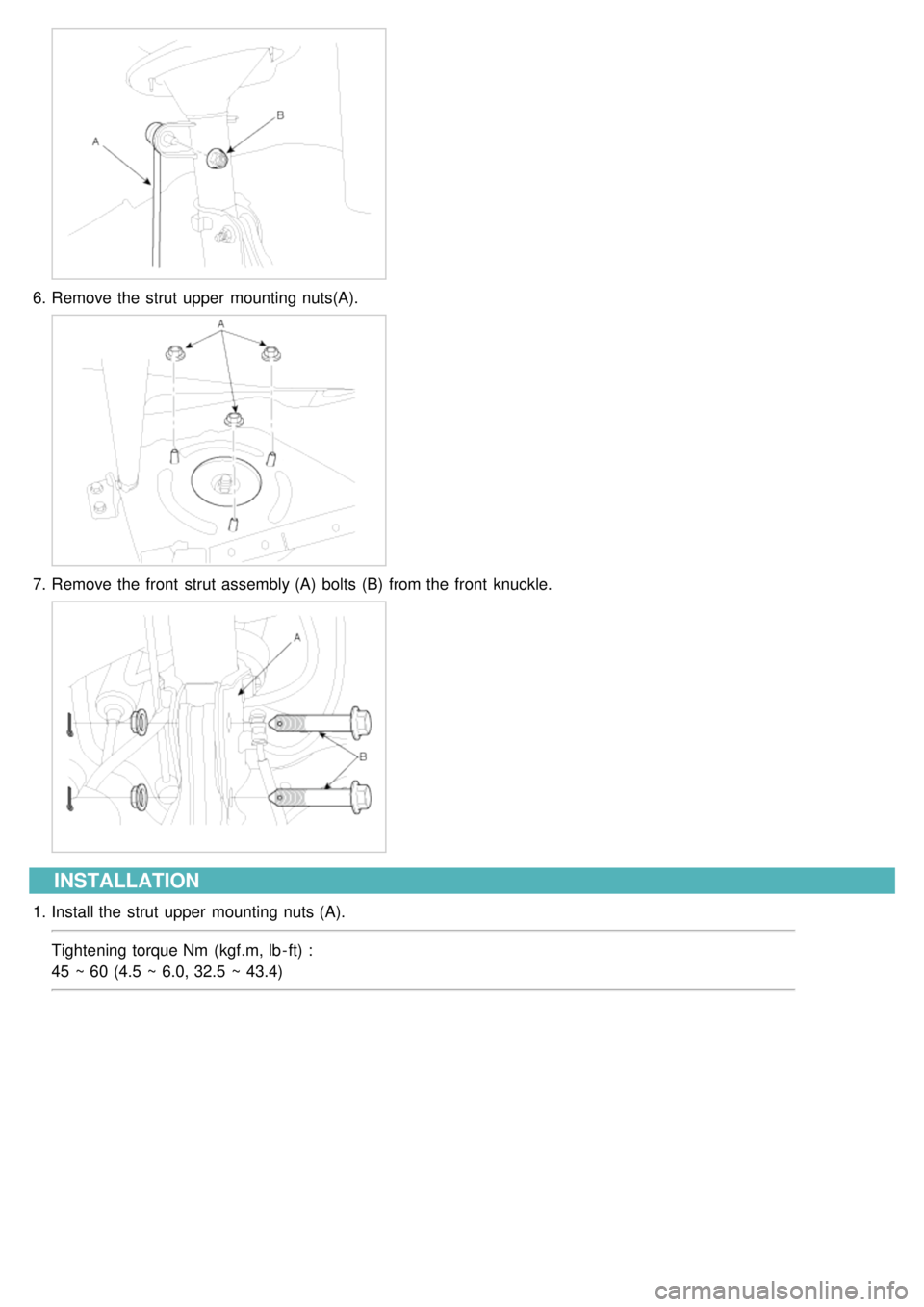

KIA CARNIVAL 2007  Workshop Manual 6.Remove the  strut  upper  mounting nuts(A).
7.Remove the  front  strut  assembly (A)  bolts (B)  from the  front  knuckle.
INSTALLATION
1.Install the  strut  upper  mounting nuts (A).
Tightening tor
