KIA CARNIVAL 2007 Workshop Manual

2007 > 2.7L V6 GASOLINE >

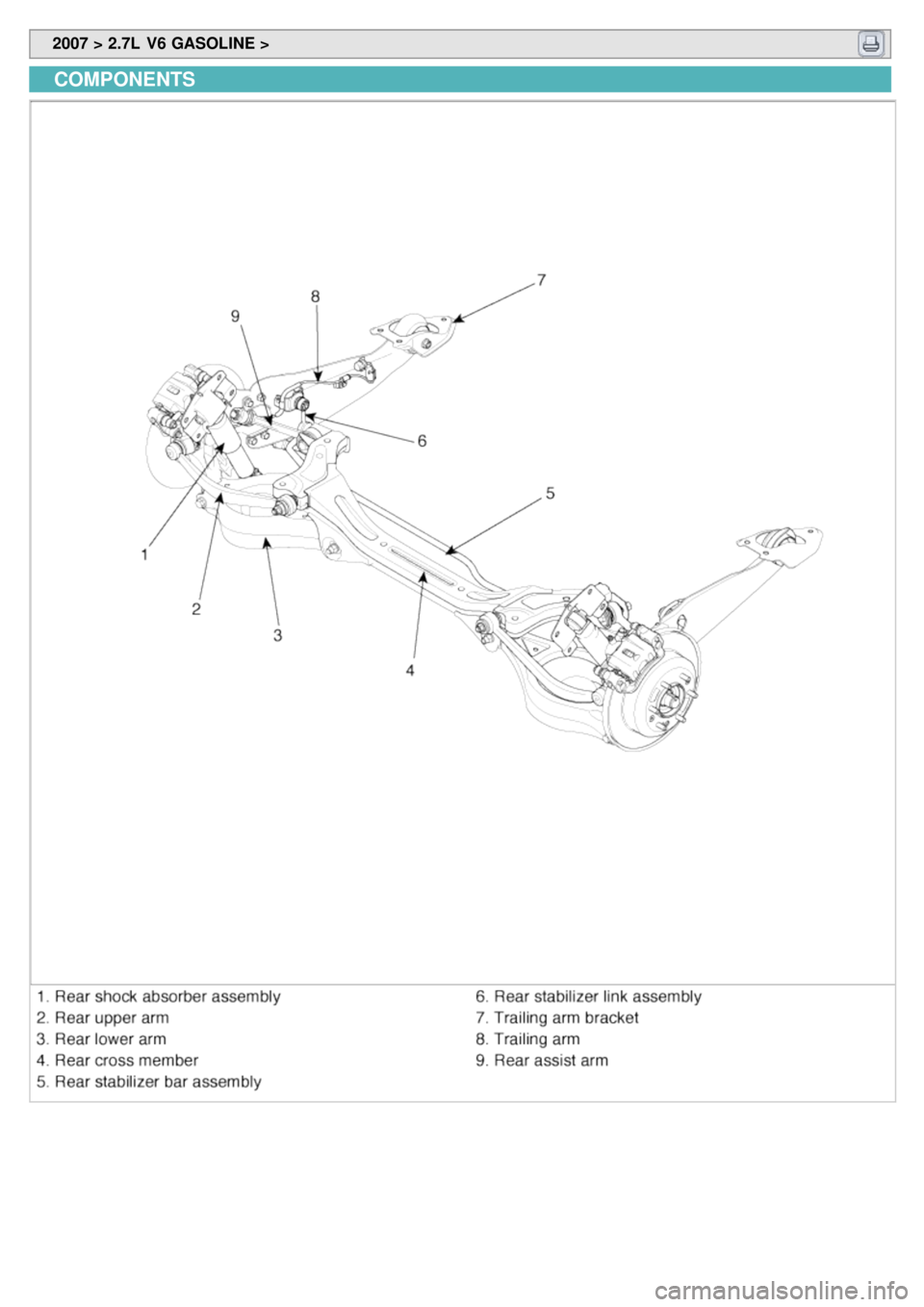

COMPONENTS

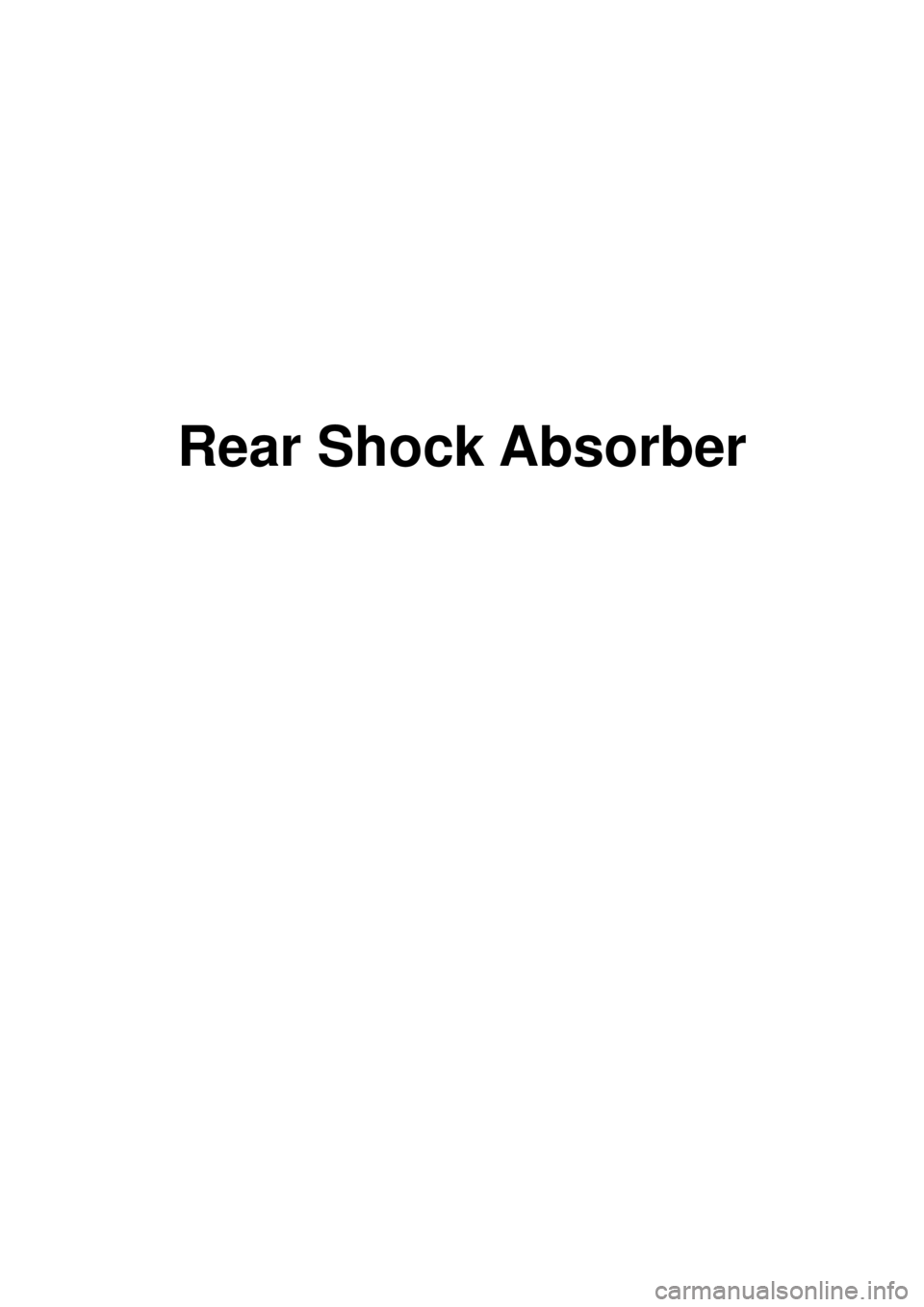

Rear Shock Absorber

2007 > 2.7L V6 GASOLINE >

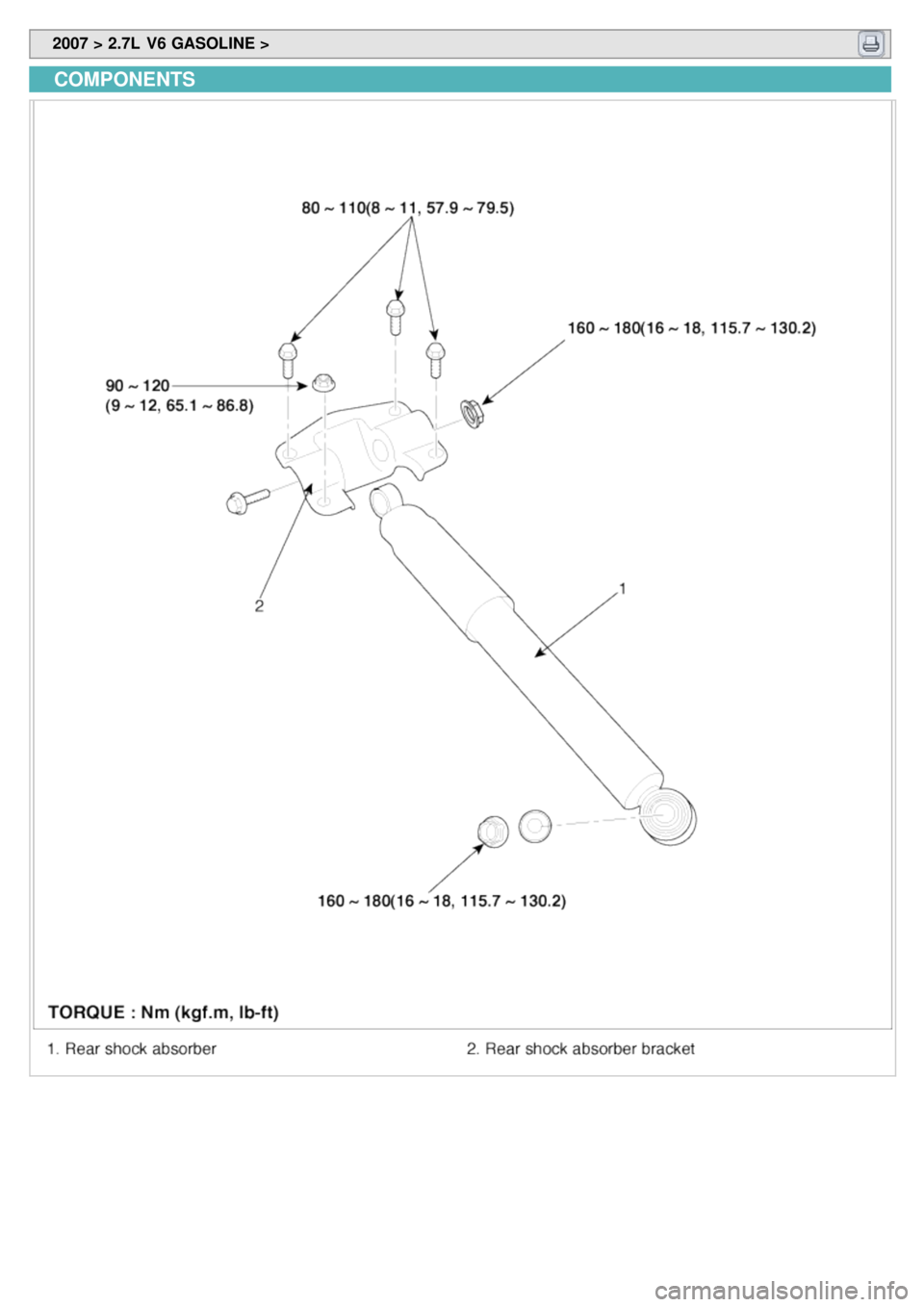

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REMOVAL
1.Loosen the wheel nuts slightly.
Raise the rear of the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire (A) from rear hub (B).
Be careful not to damage the hub bolts (C) when removing the rear wheel and tire (A).
3. Remove the rear shock absorber assembly mounting bolts (A) and nut (B) from the baby.
4.Remove the rear shock absorber assembly nut (B) from the rear knuckle, then remove the shock absorber
assembly (A).
5.Remove the rear shock absorber bracket bolt (A).

INSTALLATION
1.Install the connecting bolt (A) between the rear shock absorber and the bracket.
Tightening torque Nm(kgf.m, lb - ft) :
160 ~ 180 (16 ~ 18, 115.7 ~ 130.2)
2.Install the rear shock absorber (A) to the knuckle temporarily.
3.Install the rear shock absorber bracket mounting bolts (A) and nut (B).
Tightening torque Nm(kgf.m, lb - ft) :
Bolt : 80 ~ 110 (8 ~ 11, 59.7 ~ 79.5)
Nut : 90 ~ 120 (9 ~ 12, 65.1 ~ 86.8)

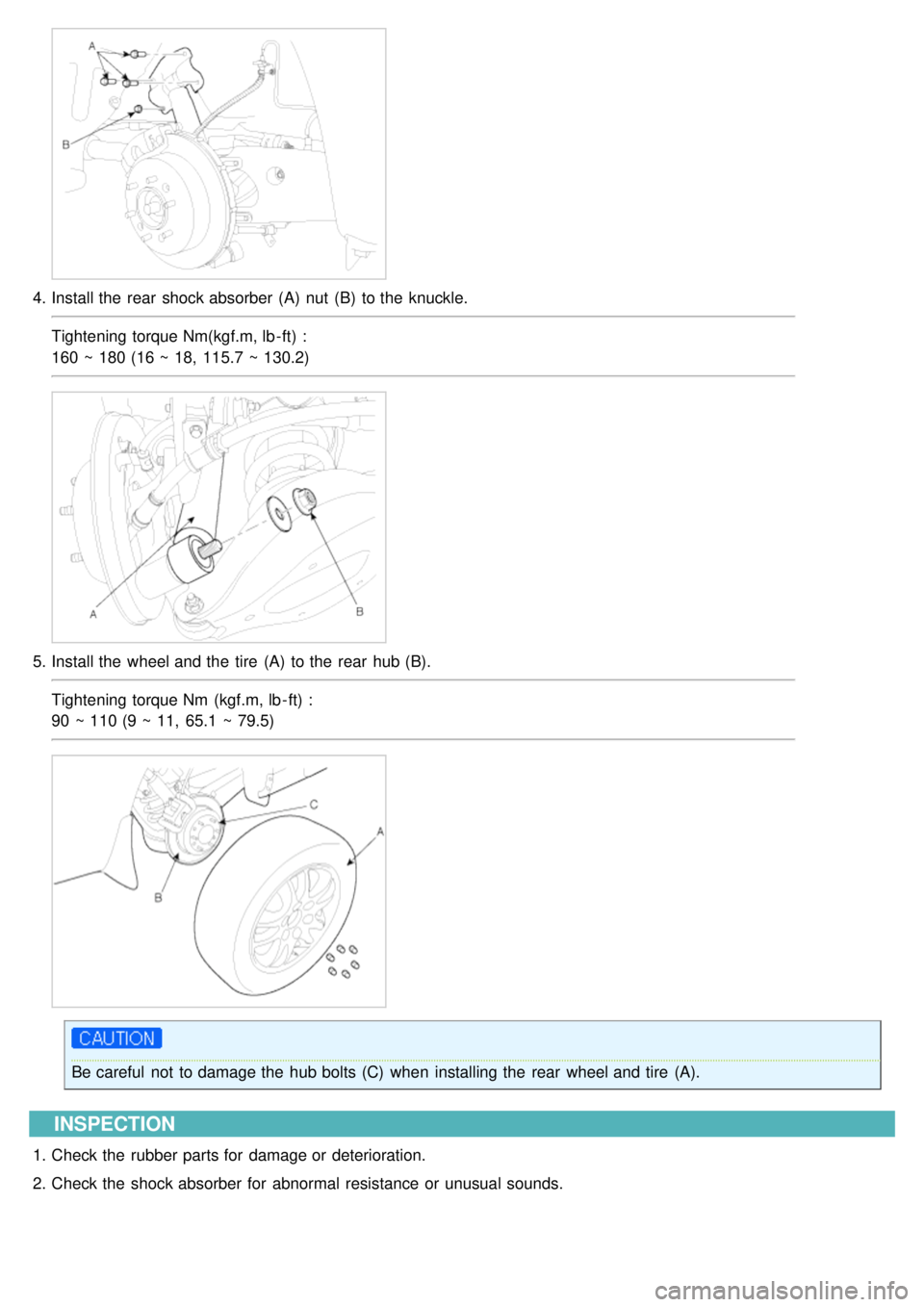

4.Install the rear shock absorber (A) nut (B) to the knuckle.
Tightening torque Nm(kgf.m, lb - ft) :
160 ~ 180 (16 ~ 18, 115.7 ~ 130.2)
5.Install the wheel and the tire (A) to the rear hub (B).
Tightening torque Nm (kgf.m, lb - ft) :
90 ~ 110 (9 ~ 11, 65.1 ~ 79.5)
Be careful not to damage the hub bolts (C) when installing the rear wheel and tire (A).
INSPECTION
1.Check the rubber parts for damage or deterioration.
2. Check the shock absorber for abnormal resistance or unusual sounds.

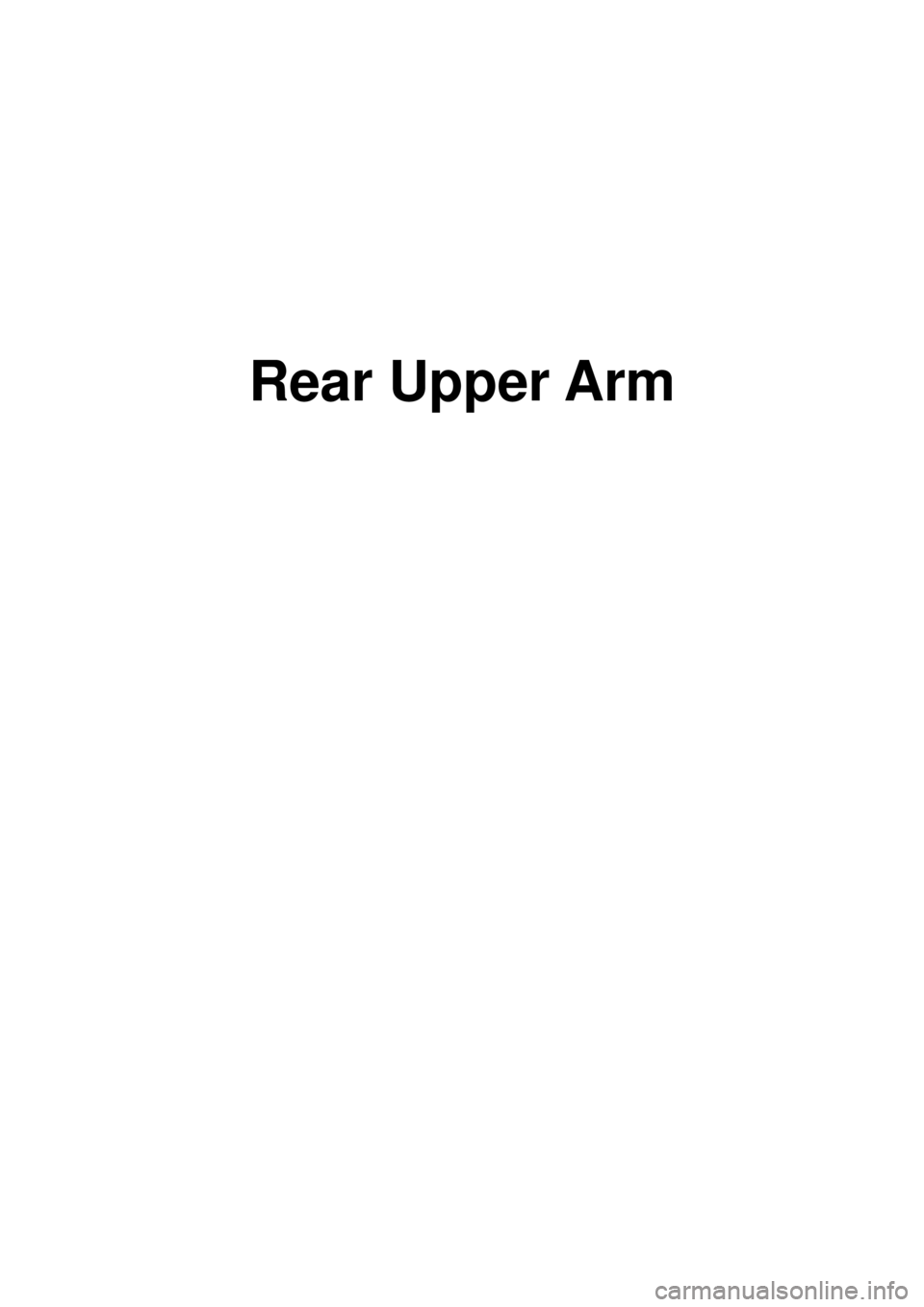

Rear Upper Arm

2007 > 2.7L V6 GASOLINE >

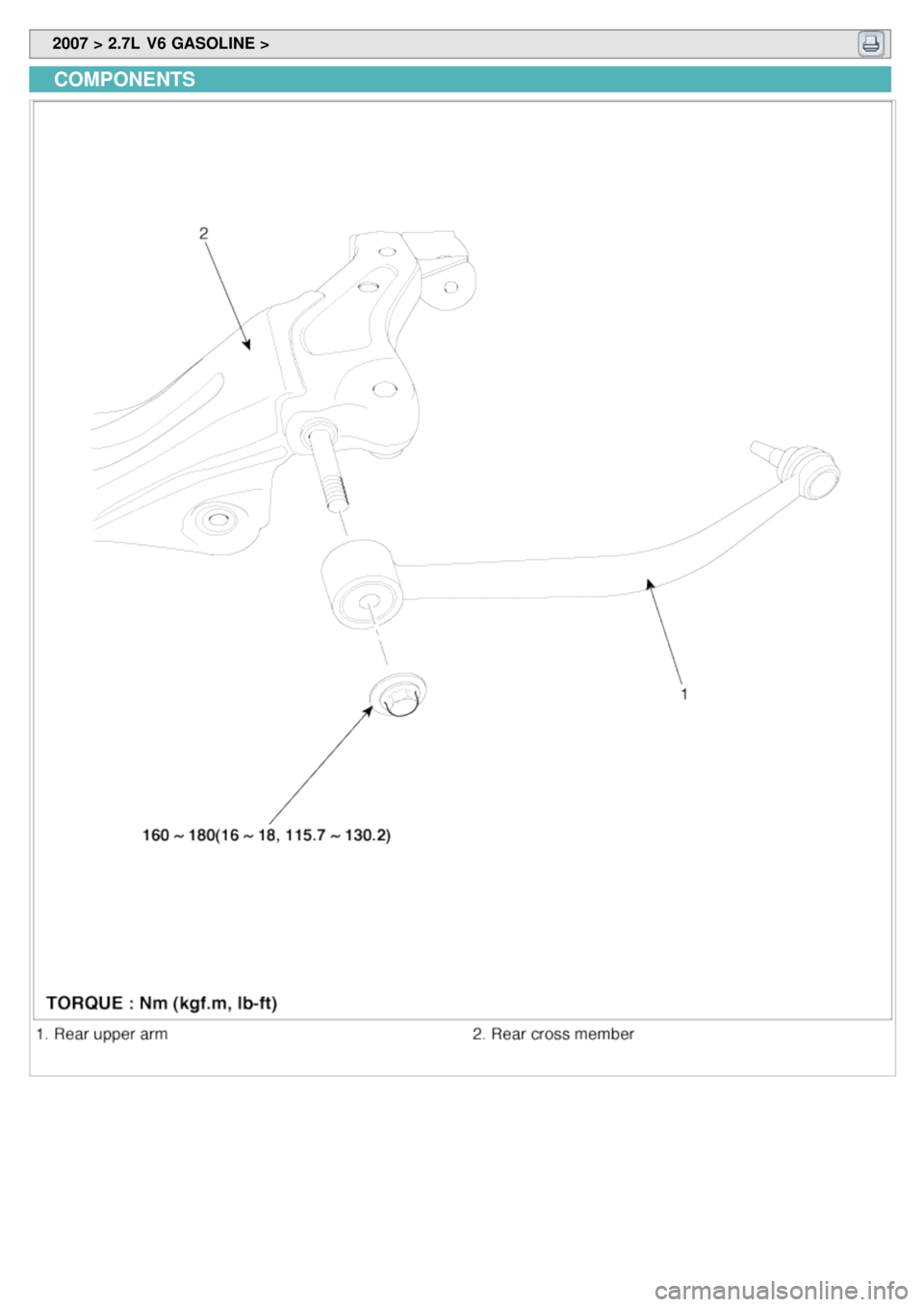

COMPONENTS

2007 > 2.7L V6 GASOLINE >
REMOVAL
1.Loosen the wheel nuts slightly. Raise the rear of the vehicle, and make sure it is securely supported.
2. Remove the rear wheel and tire (A) from rear hub (B).
Be careful not to damage the hub bolts (C) when removing the rear wheel and tire (A).
3. Remove the brake caliper mounting bolts (A), and then place the brake caliper assembly (B) with wire as shown in
the illustration.
4.Remove the rear upper arm ball joint self - locking nut (A) and the cotter pin.

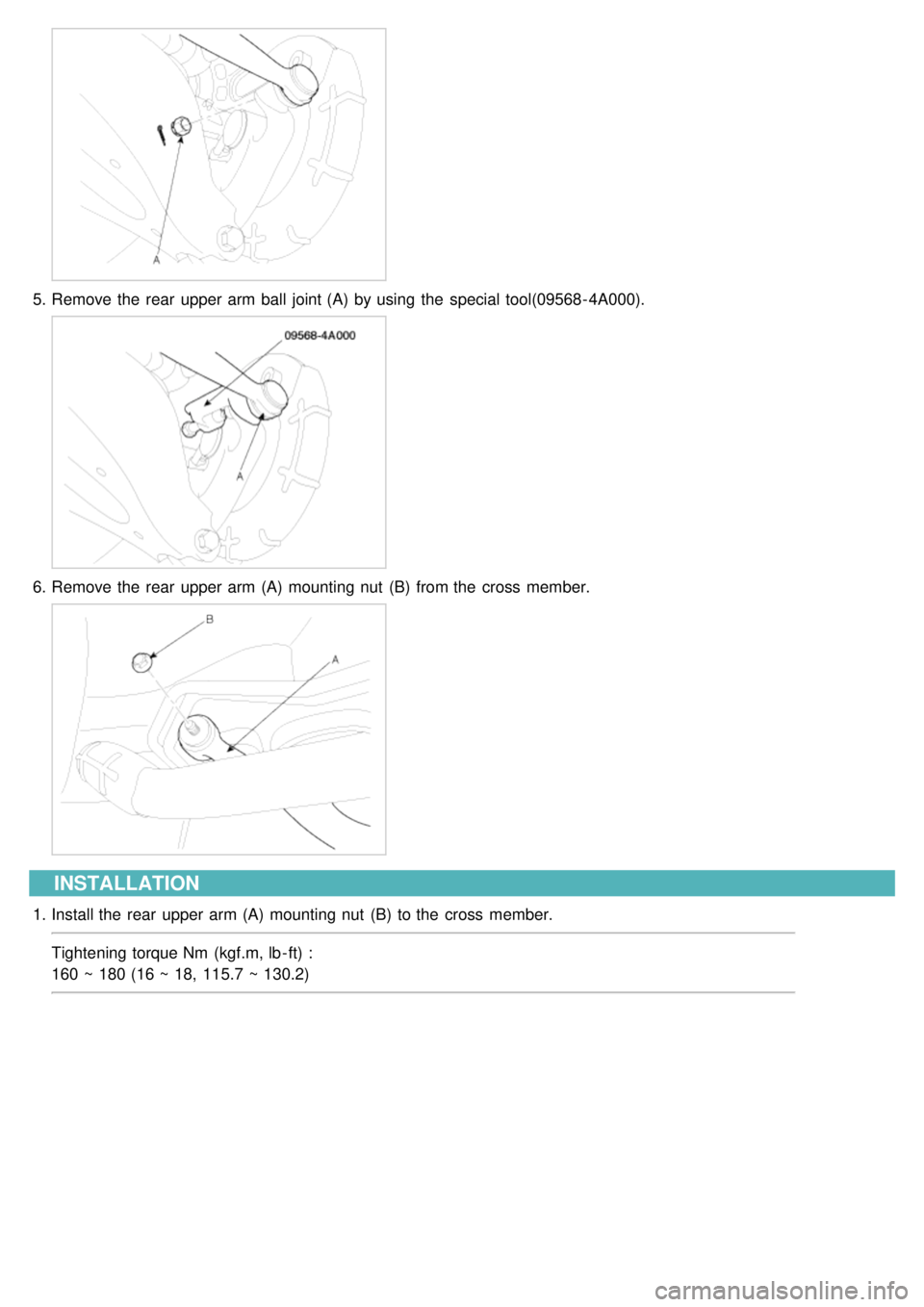

5.Remove the rear upper arm ball joint (A) by using the special tool(09568- 4A000).
6.Remove the rear upper arm (A) mounting nut (B) from the cross member.
INSTALLATION
1.Install the rear upper arm (A) mounting nut (B) to the cross member.
Tightening torque Nm (kgf.m, lb - ft) :
160 ~ 180 (16 ~ 18, 115.7 ~ 130.2)
