Page 439 of 479
779
Maintenance
LIGHT BULBS

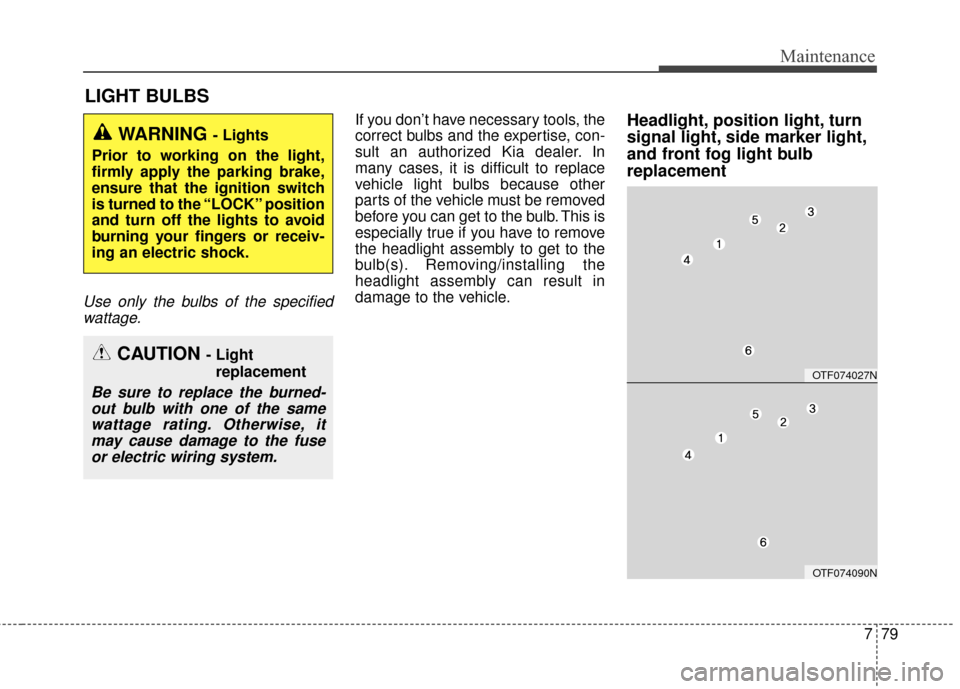

Use only the bulbs of the specifiedwattage.
If you don’t have necessary tools, the
correct bulbs and the expertise, con-
sult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlight assembly to get to the
bulb(s). Removing/installing the
headlight assembly can result in
damage to the vehicle.Headlight, position light, turn
signal light, side marker light,
and front fog light bulb
replacementWARNING - Lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the “LOCK” position
and turn off the lights to avoid
burning your fingers or receiv-
ing an electric shock.
CAUTION - Light replacement
Be sure to replace the burned-out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
OTF074027N
OTF074090N
Page 440 of 479
Maintenance
80
7

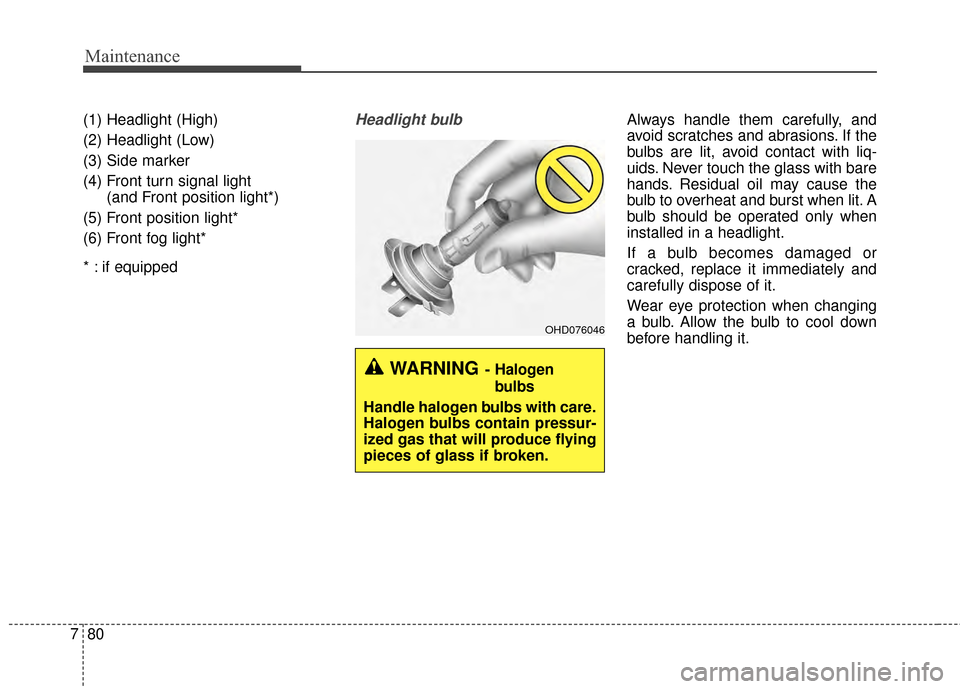

(1) Headlight (High)
(2) Headlight (Low)
(3) Side marker
(4) Front turn signal light
(and Front position light*)
(5) Front position light*
(6) Front fog light*
* : if equippedHeadlight bulbAlways handle them carefully, and
avoid scratches and abrasions. If the
bulbs are lit, avoid contact with liq-
uids. Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit. A
bulb should be operated only when
installed in a headlight.
If a bulb becomes damaged or
cracked, replace it immediately and
carefully dispose of it.
Wear eye protection when changing
a bulb. Allow the bulb to cool down
before handling it.
OHD076046
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
Page 444 of 479
Maintenance
84
7
Ty p e B
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
Front fog light
1.Turn off the engine.
2.Remove the under cover by rotat-
ing the screws.
3.Reach your hand into the back of the front bumper.
4.Disconnect the power connector.
5.Remove the bulb-socket from the housing by turning the socket
counter clockwise until the tabs on
the socket align with the slots on
the housing.
CAUTION
When you remove the siderepeater cover, be careful not todamage the side repeater coverand vehicle surface.
OTF074067NOTF070048N
Page 465 of 479
48
Specifications & Consumer information
BULB WATTAGE
* : if equipped
Light BulbWattage Bulb type
Front Headlamps (Low)
55H118B
Headlamps (Low) - HID type* 35D1S
Headlamps (High) 55H1L/H7L
Front turn signal lamps 28P28/8W
Front position lamps 8/LED P28/8W/LED
Front fog lamps* 35/LEDH8L/LED
Side Repeater lamps* 5/LEDWY5W/LED
Smart cornering lamp* 5555
Side marker LEDLED
Rear Rear fog lamps*
21P21W
Bulb type Rear Stop/Tail lamps (outside) 28/8
P28/8W
Rear tail lamps (Inside) 27/8, 28/8 P27/8W, P28/8W
LED type Rear Stop/Tail lamps (outside) LED
LED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps 21/27P21W/P27W
Back-up lamps 16#921
High mounted stop lamp* LEDLED
License plate lamps 5W5W
Interior Map lamps
10W10W
Room lamps 10C10W
Vanity mirror lamps5C5W
Glove box lamp5C5W
Trunk lamp 5C5W
Page 476 of 479
