battery KIA OPTIMA 2020 Features and Functions Guide

Features of your vehicle
116
4
Do not use the interior lights for
extended periods when the engine is
not running.
It may cause battery discharge.Automatic turn off function
The interior lights automatically turn
off approximately 20 minutes after
the ignition switch is turned off, if the
lights are in the ON position.
If your vehicle is equipped with the
theft alarm system, the interior lights
automatically turn off approximately
5 seconds after the system is armed.
Room lamp
: The light stays on at all times.
INTERIOR LIGHTS
WARNING - Interior
Lights
Do not use the interior lights
when driving in the dark.
Accidents could happen
because the driver’s view may
be obscured by interior lights.
OJF045066
OJF045067
OJF045068
■Type A
■ Type B
■ Type C
JFa PE USA 4.qxp 5/15/2019 3:21 PM Page 116

Features of your vehicle
118
4
Trunk room lamp (if equipped)
The trunk room lamp comes on
when the trunk is opened.
✽ ✽
NOTICE
The trunk room lamp comes on as
long as the trunk lid opens. To pre-
vent unnecessary battery drain,
close the trunk lid securely after
using the trunk.
Vanity mirror lamp
Opening the lid of the vanity mirror will
automatically turn on the mirror light.
* The actual sunvisor lamp in the vehi-
cle may differ from the illustration.
Glove box lamp (if equipped)
The glove box lamp comes on when
the glove box is opened.
To prevent unnecessary battery
drain, close the glove box securely
after using the glove box.
CAUTION- Vanity mirror
lamp
Always have the switch in theoff position when the vanity mir-ror lamp is not in use. If the sun-visor is closed without the lampoff, it may discharge the batteryor damage the sunvisor.
OJF048069OJF045072OJF045071
JFa PE USA 4.qxp 5/15/2019 3:22 PM Page 118

4121
Features of your vehicle
MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OJF045059
1. Fan speed control knob
2. Front windshield defroster button
3. Rear window defroster button
4. Air conditioning button
5. Air intake control button
6. Mode selection buttons
7. Temperature control button
✽ ✽NOTICE
Operating the blower when the
ignition switch is in the ON posi-
tion could cause the battery to dis-
charge. Operate the blower when
the engine is running.
JFa PE USA 4.qxp 5/15/2019 3:22 PM Page 121

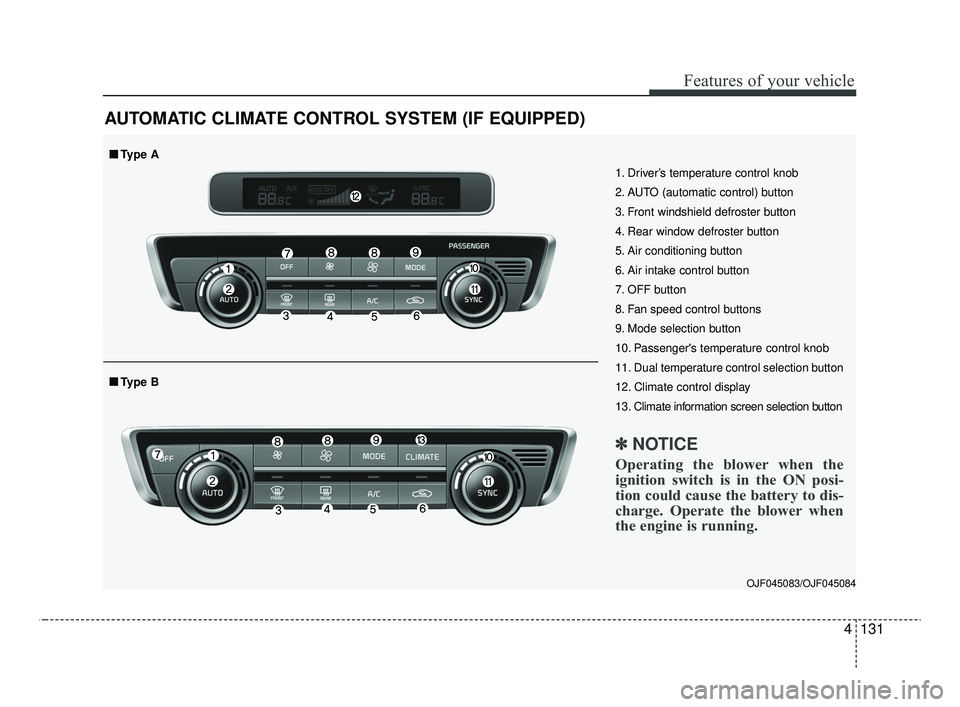

4131
Features of your vehicle
AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OJF045083/OJF045084
1. Driver’s temperature control knob
2. AUTO (automatic control) button
3. Front windshield defroster button
4. Rear window defroster button
5. Air conditioning button
6. Air intake control button
7. OFF button
8. Fan speed control buttons
9. Mode selection button
10. Passenger's temperature control knob
11. Dual temperature control selection button
12. Climate control display
13. Climate information screen selection button
✽ ✽NOTICE
Operating the blower when the
ignition switch is in the ON posi-
tion could cause the battery to dis-
charge. Operate the blower when
the engine is running.
■ ■Type B
■ ■Type A
JFa PE USA 4.qxp 5/15/2019 3:23 PM Page 131

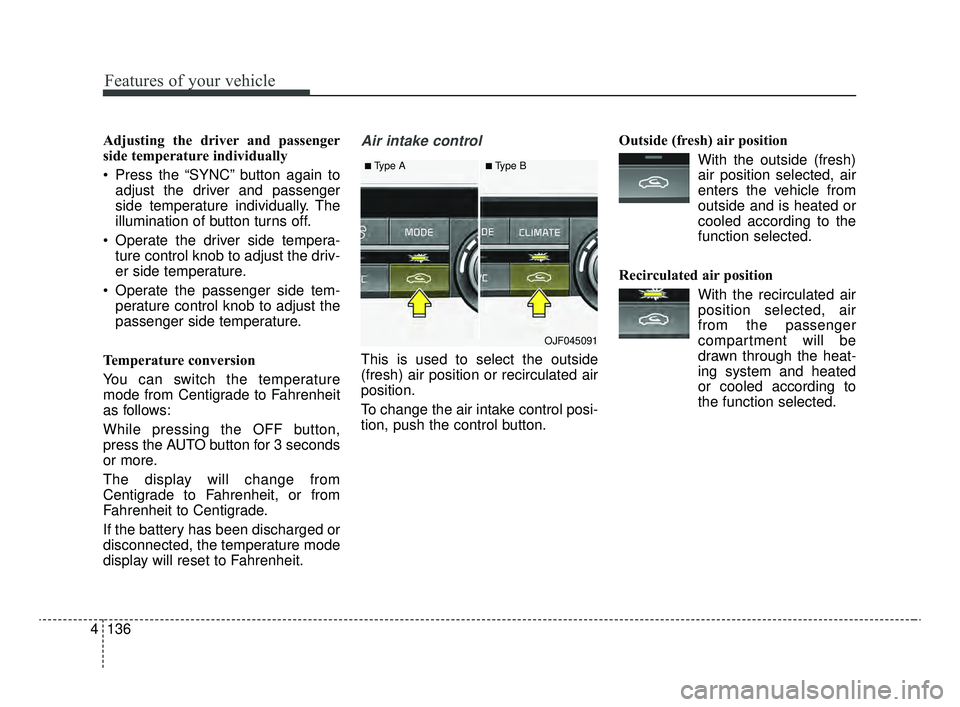

Features of your vehicle
136
4
Adjusting the driver and passenger
side temperature individually
Press the “SYNC” button again to
adjust the driver and passenger
side temperature individually. The
illumination of button turns off.
Operate the driver side tempera- ture control knob to adjust the driv-
er side temperature.
Operate the passenger side tem- perature control knob to adjust the
passenger side temperature.
Temperature conversion
You can switch the temperature
mode from Centigrade to Fahrenheit
as follows:
While pressing the OFF button,
press the AUTO button for 3 seconds
or more.
The display will change from
Centigrade to Fahrenheit, or from
Fahrenheit to Centigrade.
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Fahrenheit.Air intake control
This is used to select the outside
(fresh) air position or recirculated air
position.
To change the air intake control posi-
tion, push the control button. Outside (fresh) air position
With the outside (fresh)air position selected, air
enters the vehicle from
outside and is heated or
cooled according to the
function selected.
Recirculated air position With the recirculated airposition selected, air
from the passenger
compartment will be
drawn through the heat-
ing system and heated
or cooled according to
the function selected.
■Type A■Type B
OJF045091
JFa PE USA 4.qxp 5/15/2019 3:23 PM Page 136

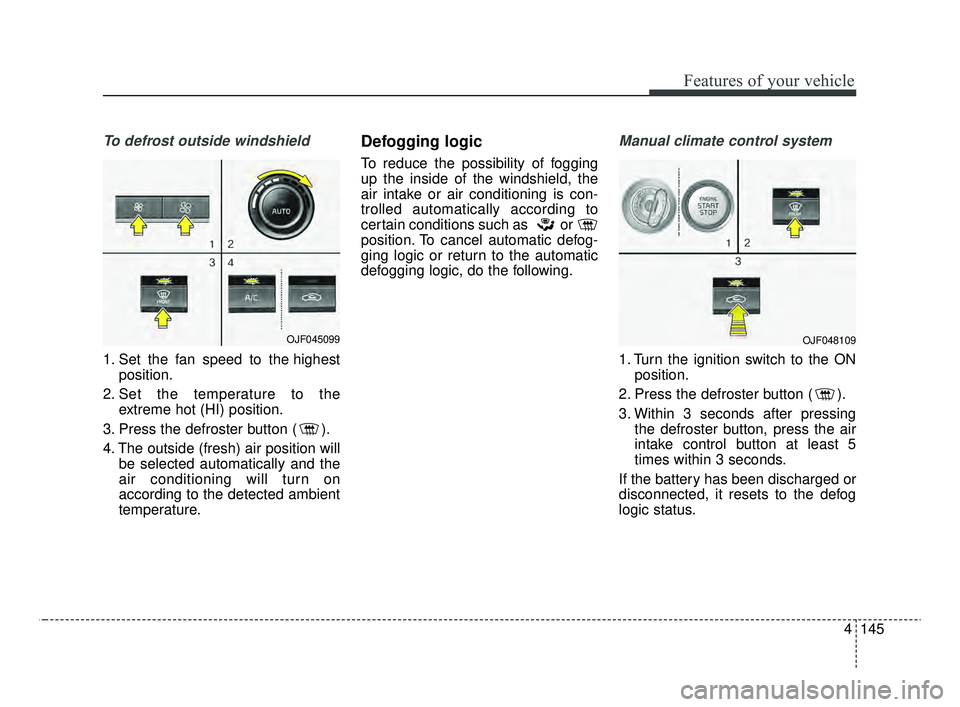

4145
Features of your vehicle
To defrost outside windshield
1. Set the fan speed to the highestposition.
2. Set the temperature to the extreme hot (HI) position.
3. Press the defroster button ( ).
4. The outside (fresh) air position will be selected automatically and the
air conditioning will turn on
according to the detected ambient
temperature.
Defogging logic
To reduce the possibility of fogging
up the inside of the windshield, the
air intake or air conditioning is con-
trolled automatically according to
certain conditions such as or
position. To cancel automatic defog-
ging logic or return to the automatic
defogging logic, do the following.
Manual climate control system
1. Turn the ignition switch to the ONposition.
2. Press the defroster button ( ).
3. Within 3 seconds after pressing the defroster button, press the air
intake control button at least 5
times within 3 seconds.
If the battery has been discharged or
disconnected, it resets to the defog
logic status.
OJF045099OJF048109
JFa PE USA 4.qxp 5/15/2019 3:24 PM Page 145

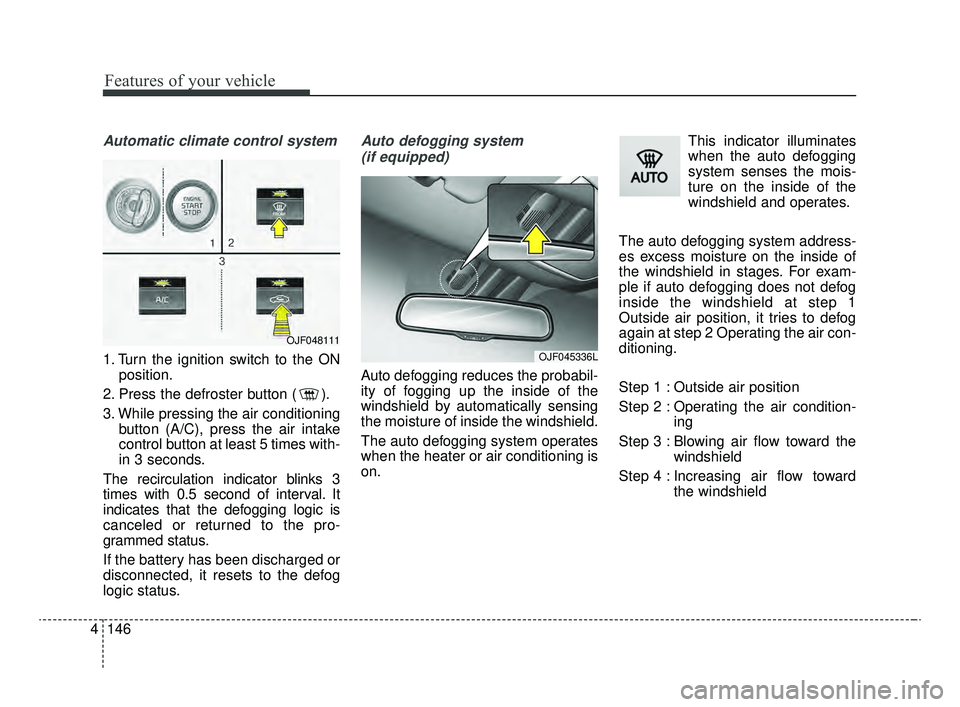

Features of your vehicle
146
4
Automatic climate control system
1. Turn the ignition switch to the ON
position.
2. Press the defroster button ( ).
3. While pressing the air conditioning button (A/C), press the air intake
control button at least 5 times with-
in 3 seconds.
The recirculation indicator blinks 3
times with 0.5 second of interval. It
indicates that the defogging logic is
canceled or returned to the pro-
grammed status.
If the battery has been discharged or
disconnected, it resets to the defog
logic status.
Auto defogging system (if equipped)
Auto defogging reduces the probabil-
ity of fogging up the inside of the
windshield by automatically sensing
the moisture of inside the windshield.
The auto defogging system operates
when the heater or air conditioning is
on. This indicator illuminates
when the auto defogging
system senses the mois-
ture on the inside of the
windshield and operates.
The auto defogging system address-
es excess moisture on the inside of
the windshield in stages. For exam-
ple if auto defogging does not defog
inside the windshield at step 1
Outside air position, it tries to defog
again at step 2 Operating the air con-
ditioning.
Step 1 : Outside air position
Step 2 : Operating the air condition- ing
Step 3 : Blowing air flow toward the windshield
Step 4 : Increasing air flow toward the windshield
OJF045336L
OJF048111
JFa PE USA 4.qxp 5/15/2019 3:24 PM Page 146

4153
Features of your vehicle
* The actual sunvisor lamp in the vehi-cle may differ from the illustration.Power outlet (if equipped)
The power outlet is designed to pro-
vide power for mobile telephones or
other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 10
amps with the engine running. Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged peri-
ods of time with the engine off could
cause the battery to discharge.
Only use 12V electric accessories which are less than 10A in electric
capacity.
Close the cover when not in use.
Some electronic devices can cause electronic interference when
plugged into a vehicle’s power out-
let. These devices may cause
excessive audio static and malfunc-
tions in other electronic systems or
devices used in your vehicle.
Push the plug in as far as it will go. If good contact is not made, the
plug may overheat and the fuse
may open.
CAUTION- Vanity mirror
lamp
If you use the vanity mirror lamp,turn off the lamp before return-ing the sunvisor to its originalposition, otherwise it couldresult in battery discharge andpossible sunvisor damage.
OJFA045122
OJFA045338
■ Front seat
■Rear seat
JFa PE USA 4.qxp 5/15/2019 3:24 PM Page 153

Features of your vehicle
154
4
Plug in battery equipped electronic
devices with reverse current protec-
tion. The current from the battery
may flow into the vehicle’s electri
cal/electronic system and cause
system malfunction.USB charger (if equipped)
The USB charger is designed to
recharge batteries of small size elec-
trical devices using a USB cable. The
electrical devices can be recharged
when the Engine Start/Stop button is
in ACC/ON/START position. The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the
USB port after use.
Some devices are not supported
for fast charging but will be
charged with normal speed.
Use the USB charger when the engine is running to prevent bat-
tery discharge.
Only devices that fit the USB port can be used.
The USB charger can be used only for battery charging purposes.
WARNING - Electric shock
Do not put a finger or a foreign
object (pen, etc.) into a power
outlet and do not touch with a
wet hand. You may receive an
electric shock.
OJFA045337
OJF045229L
■ Front seat
■Rear seat
JFa PE USA 4.qxp 5/15/2019 3:24 PM Page 154

• To decrease the cruising speed . . . . . . . . . . . . . . . . . . 5-93
• To temporarily accelerate with the cruise control on . 5-93
• To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . . 5-93
• To resume cruising speed at more than approximately 20 mph (30 km/h) . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-94
• To turn cruise control off . . . . . . . . . . . . . . . . . . . . . . 5-94
Smart cruise control with stop & go system . . . . 5-95
• Smart cruise control switch . . . . . . . . . . . . . . . . . . . . 5-97
• Smart cruise control speed . . . . . . . . . . . . . . . . . . . . . 5-97
• Vehicle to vehicle distance setting . . . . . . . . . . . . . . 5-102
• When the lane ahead is clear . . . . . . . . . . . . . . . . . . 5-103
• When there is a vehicle ahead of you in yourlane . 5-104
• To adjust the sensitivity of smart cruise control . . 5-108
• To convert to cruise control mode . . . . . . . . . . . . . . 5-109
• Limitations of the system . . . . . . . . . . . . . . . . . . . . . 5-109
Drive mode integrated control system . . . . . . . . 5-116
• Drive mode (for Automatic Transmission) . . . . . . . 5-116
• Drive mode (for Dual Clutch Transmission) . . . . . 5-120
Blind-spot Collision Warning (BCW) . . . . . . . . 5-124
• BCW (Blind-spot Collision Warning)/ LCA (Lane Change Assist) . . . . . . . . . . . . . . . . . . 5-125
• RCCW (Rear Cross-traffic Collision Warning) . . . 5-128
• Driver's attention. . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-132
Lane Keeping Assist (LKA) system . . . . . . . . . . 5-134
• LKA operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-135
• LKA malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-141
• LKA function change . . . . . . . . . . . . . . . . . . . . . . . . 5-142
Driver Attention Warning (DAW) . . . . . . . . . . . 5-143
• System setting and activation . . . . . . . . . . . . . . . . . . 5-143
• Resetting the system . . . . . . . . . . . . . . . . . . . . . . . . . 5-145
• System disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-146
• System malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . 5-146
Economical operation . . . . . . . . . . . . . . . . . . . . . 5-148
Special driving conditions . . . . . . . . . . . . . . . . . . 5-150
• Hazardous driving conditions . . . . . . . . . . . . . . . . . 5-150
• Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-150
• Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-151
• Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-151
• Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-152
• Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . 5-153
• Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-153
• Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-153
Winter driving . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-154
• Snowy or icy conditions . . . . . . . . . . . . . . . . . . . . . . 5-154
• Use high quality ethylene glycol coolant . . . . . . . . . 5-156
• Check battery and cables . . . . . . . . . . . . . . . . . . . . . 5-156
• Change to "winter weight" oil if necessary . . . . . . 5-156
• Check spark plugs and ignition system. . . . . . . . . . 5-156
5
JFa PE USA 5.QXP 5/15/2019 3:20 PM Page 2
