Page 3 of 50
VIDEOS & QR CODES . . . . . . . . . . . . .
02
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . .
03
Indicators & Warning Lights . . . . . . . . . . .
04
Fuel Efficiency . . . . . . . . . . . . . . . . . . . .
04
Advanced Tire Pressure Monitoring System
(ATPMS) . . . . . . . . . . . . . . . . . . . . . . .
05
Hybrid Indicators at Startup . . . . . . . . . . .
06
Active ECO System (ECODynamics) . . . . . .
07
LCD Controls and Modes* . . . . . . . . . . . . .
08
Trip Computer / Tripmeter . . . . . . . . . . . .
08
Service Mode . . . . . . . . . . . . . . . . . . . .
09
User Settings Mode. . . . . . . . . . . . . . . . .
09
HYBRID SYSTEM DISPLAYS

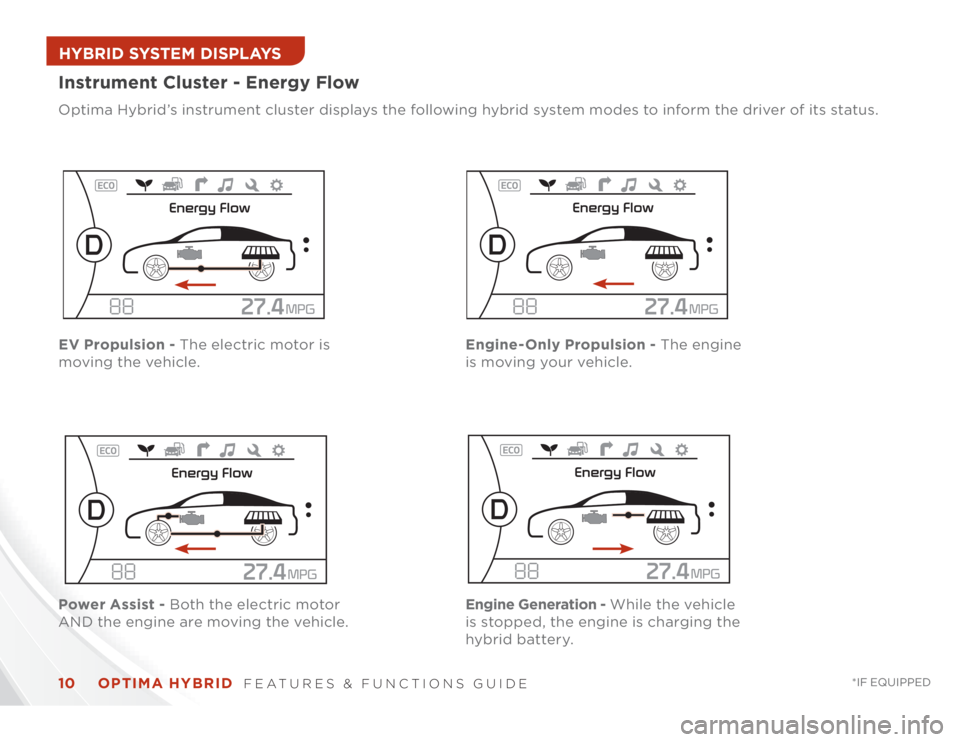

Instrument Cluster - Energy Flow . . . . . . . .
10
Instrument Cluster - ECO Level . . . . . . . . .
12
Navigation System Display*. . . . . . . . . . . .
13
DRIVER’S PANEL
Hood Release Lever and Latch . . . . . . . . . .
14
Fuel Door and Trunk Release Buttons . . . . .
14
ENGINE START/STOP Button . . . . . . . . . .
15
Electronic Stability Control (ESC) . . . . . . . .
16
Instrument Panel Dimmer . . . . . . . . . . . . .
16
Hill-Start Assist Control (HAC) . . . . . . . . . .
16
Power Windows, Window Lock
& Central Door Lock . . . . . . . . . . . . . . . .
17
Power/Heated Outside Mirrors* . . . . . . . . .
17
Electric Folding Mirrors* . . . . . . . . . . . . . .
17
Automatic Door Lock/Unlock . . . . . . . . . .
17
Blind Spot Detection (BSD) . . . . . . . . . . . .
18
Auto Hold . . . . . . . . . . . . . . . . . . . . . .
19
Electronic Parking Brake (EPB)* . . . . . . . . .
19
STEERING WHEEL CONTROLS
Headlights & High Beams . . . . . . . . . . . . .
20
Turn Signals & Fog Lights . . . . . . . . . . . . .
20
Windshield Wipers & Washers . . . . . . . . . .
21
Heated Steering Wheel Button. . . . . . . . . .
22
Tilt/Telescopic Steering Wheel* . . . . . . . . .
22
Audio Controls . . . . . . . . . . . . . . . . . . .
23
Cruise Control . . . . . . . . . . . . . . . . . . . .
23

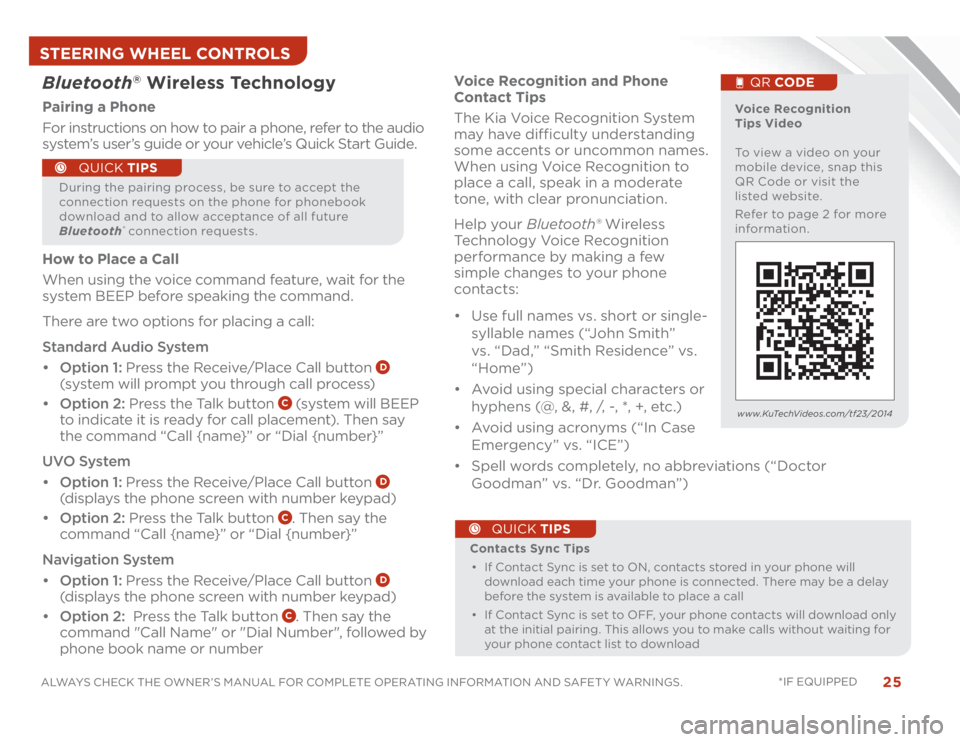

Bluetooth® Wireless Technology . . . . . . . . .
24
AUDIO SYSTEM
Standard Audio System* . . . . . . . . . . . . .
26
UVO System* . . . . . . . . . . . . . . . . . . . .
28
Navigation System*. . . . . . . . . . . . . . . . .
29
CENTER PANEL
Digital Clock . . . . . . . . . . . . . . . . . . . . .
30
Aux/USB/iPod® Port & Power Outlets* . . . . .
30
Automatic Climate Control (UVO System)* . .
31
Automatic Climate Control
(Navigation System)*. . . . . . . . . . . . . . . .
32
Seat Warmers/ Ventilated Seats* . . . . . . . .
33
Automatic Gear Shift / Sportmatic® Shifting*
33
SEATING
Driver Position Memory System*. . . . . . . . .
34
Power Adjustable Driver’s Seat* . . . . . . . . .
34
Manual Adjustable Driver’s Seat* . . . . . . . .
35
Front Seat Headrest Adjustment . . . . . . . .
35
OTHER KEY FEATURES
Smart Key . . . . . . . . . . . . . . . . . . . . . .
36
HomeLink ® / Auto-Dimming Rearview Mirror*
37
Map/Room/Dome Lamps . . . . . . . . . . . . .
38
Panoramic Sunroof Operation* . . . . . . . . .
39
Sunvisor. . . . . . . . . . . . . . . . . . . . . . . .
39
Back-up Warning System
(Rear Parking Assist System)* . . . . . . . . . .
40
Rear-Camera Display* . . . . . . . . . . . . . . .
40
Fuel Cap/Malfunction Indicator . . . . . . . . .
41
Tire Mobility Kit* . . . . . . . . . . . . . . . . . .
41
Service Plug (Safety Plug) & 12V Battery
Compartment . . . . . . . . . . . . . . . . . . . .
42
Hybrid Battery Vent (Air Intake) . . . . . . . . .
42
Child Safety Locks . . . . . . . . . . . . . . . . .
43
SAFETY
Safety Belts . . . . . . . . . . . . . . . . . . . . .
44
Safety Belt Retractor Inertial Locks . . . . . . .
44
Occupant Detection System (ODS) /
PASSENGER AIR BAG OFF Indicator . . . . . .
44
LEGAL DISCLAIMERS
(See Back Inside Cover Page)
MAINTENANCE
(See Back Cover)
ESSENTIAL FEATURESActive ECO System (ECODynamics) . . .
07
Advanced Tire Pressure Monitoring
System (ATPMS) . . . . . . . . . . . . . . .
05
Air Conditioning / Climate Control . . . .
31
Audio Controls* . . . . . . . . . . . . . . .
23
Audio System – Standard* . . . . . . . . .
26
Audio System – Navigation System*. . . .
29
Audio System – UVO System* . . . . . . .
28
Aux/USB/iPod® Port & Power Outlets* . .
30
Bluetooth® Wireless Technology* . . . . .
24
Cruise Control* . . . . . . . . . . . . . . . .
23
Digital Clock . . . . . . . . . . . . . . . . .
30
Fuel Efficiency . . . . . . . . . . . . . . . .
04
Hybrid Displays – Navigation System* . .
13
Instrument Cluster / Hybrid Displays . . .
03
PASSENGER AIR BAG OFF Indicator . . .
44
Rear-Camera Display* . . . . . . . . . . . .
40
Tire Mobility Kit* . . . . . . . . . . . . . . .
41
Windshield Wipers & Washers . . . . . . .
21
Driving while distracted can result in a loss of
vehicle control that may lead to an accident, severe
personal injury and death. The driver ’s primary
responsibility is in the safe and legal operation of
a vehicle, and use of any handheld devices, other
equipment or vehicle systems which take the
driver ’s eyes, attention and focus away from the safe
operation of a vehicle or that are not permissible by
law should never be used during operation of the
vehicle.OPTIMA HYBRID
FEATURES & FUNCTIONS GUIDE
*IF EQUIPPED
Page 7 of 50
5
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED The TPMS indicator
functions as both Low Tire
Pressure Light and TPMS Malfunction Indicator.
The TPMS indicator
A
will illuminate if one or more
tires is significantly underinflated, the vehicle has
a spare tire installed without TPMS or the outside
temperature becomes significantly colder.
The LCD screen in the instrument cluster will display
the Low Tire Pressure indicator
B showing which
tire(s) are underinflated.
OInflate tire(s) to specifications to turn off Low Tire
Pressure Light
by using an accurate digital tire
pressure gauge. See front driver’s door jamb for
PSI specification
OThe TPMS Malfunction Indicator
will illuminate
after it blinks for approximately one minute
when there is a problem with the Tire Pressure
Monitoring System. See your dealer for service
Advanced Tire Pressure Monitoring System (ATPMS)
Kia Tire Pressure
Monitoring System
Video
To view a video on your
mobile device, snap this
QR Code or visit the
listed website.
Refer to page 2 for more
information.
QR CODE
O
OEven with TPMS, tire pressure should be checked manually at least once a month. Only adjust
tire pressure on “cold tires”
OFor proper maintenance, safety, and optimal fuel economy, maintain recommended tire
inflation pressures and stay within the load limits and weight distribution recommended for
your vehicle
OIn winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the
recommended tire inflation pressure during warm weather
QUICK TIPS
www.KuTechVideos.com/tf23/2014
REMINDER: Consult your dealer for service if Low Tire Pressure Light remains illuminated after inflating
your tire(s).
AB
INSTRUMENT CLUSTER
Page 8 of 50
OPTIMA HYBRID
FEATURES & FUNCTIONS GUIDE
6
*IF EQUIPPED
A ECO GUIDE — Indicates how economically the vehicle is being driven.
OOGreen zone: High-efficiency range
OO
White zone: Normal-efficiency range
OORed zone: Low-efficiency range B EV MODE — Illuminates when the
electric motor is powering the
vehicle.C READY — Illuminates when the
hybrid system is operational.
Even if the engine is off, the
vehicle can be driven.D State of Charge (SOC) — Displays
the hybrid battery charge status.E Active ECO — Automatically activated each time the vehicle is started. Turn system
ON/OFF using the ECO button on the steering wheel.
O OOActive ECO ON (Eco indicator illuminated): Adjusts the engine, transaxle and A/C system to conserve fuel
O OOActive ECO OFF (Eco indicator not illuminated): Provides more power when driving up steep roads or carrying
heavy loadsF
Service Indicator — Illuminates when a malfunction occurs in the vehicle’s hybrid system. Have an authorized
hybrid Kia dealer address the concern as soon as possible.
Hybrid Indicators at Startup
REMINDER: Avoid starting or driving the vehicle when the fuel tank is
empty. As the engine will be incapable of charging the high-voltage
hybrid battery, the battery will lose its charge and may be damaged.
1
023 4 5 6rpm
x 1000
ODO
000456
miles
Active
ON
1
023 4 5 6rpm
x 1000
ODO
000456
miles
Active
ON
O
If Active ECO is turned off, switch back to Active ECO as
soon as possible for maximum fuel efficiency and to restore
the ECODynamics ON center display.
QUICK TIPS
AB
C
D
F
E
Optima Hybrid Overview
Video
To view a video on your
mobile device, snap this
QR Code or visit the
listed website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/tf23/2014
INSTRUMENT CLUSTER
Page 10 of 50
OPTIMA HYBRID
FEATURES & FUNCTIONS GUIDE
8
*IF EQUIPPED
INSTRUMENT CLUSTER
REMINDER: Appearance of Tripmeter display may differ as equipped.
REMINDER: All stored driving information (except Odometer and
Range) is reset if the battery is disconnected.Trip Computer / TripmeterThe Trip Computer is a driver
information system that
displays information related
to driving when the ENGINE
START/STOP button is in the
ON position.
To cycle through the LCD
modes, press the MENU/
MODE button
A.
When in the TRIP COMPUTER
mode, press the SELECT button
B to cycle through the screens.
When displaying TRIP A or
TRIP B screens, press and hold
the ENTER/RESET button
C to
reset the Tripmeter to zero.
LCD Controls and Modes* Press Mode button
A to scroll through different LCD modes.
Press Select button B to scroll through the menu items.
Press OK button
C to select the item.
CRUISECANCEL
RESSET
OK
A
(LCD Display Control buttons located on Steering Wheel)
B
C
Ty p e B
Trip Computer Mode:
Displays driving information for tripmeter, fuel
economy, etc. Hybrid Information Mode:
Displays the Eco Level and Hybrid Energy Flow status
Tu r n - by -Tu r n M o d e : Displays the state of the
Navigation System
Service Modes: Informs on upcoming service
intervals A/V Mode: Displays the state of the A/V System
User Settings Mode: Change settings of the doors,
lamps and other features
LCD modes:
.
Range
.
Average MPG
.
Instant MPG.
Trip A
.
Average MPH
.
Elapsed Time (E/T ).
Trip B
.
Average MPH
.
Elapsed Time (E/T )
Page 11 of 50
9
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED INSTRUMENT CLUSTERTo enter Service
Mode, press the MENU
button
A, scroll to
the Service mode and
press SELECT button
B. Then press the OK
button
C . S y s t e m w i l l
display number of miles
remaining until next
service is due, and type
of service.
Service ModeTo reset the Service Mode system, press and hold
the OK button
C for more than 1 second. To turn
Service In OFF, go to User Settings. Service
To set up the maintenance schedule:
O . ! / /O 0 $ !O
O 1 0 0 + *O
A and
toggle to Service Interval
OO . ! / /O 0 $ !O % O 1 0 0 + *O
C
to select the desired maintenance
schedule To enter the User Setting mode on the LCD* cluster, press the
MENU/MODE button
A when the vehicle is at a standstill and with
the ENGINE START/STOP button in the ON position or the engine
running.
You can navigate the selections on the
display by pressing the SELECT button
B,
and then selecting the item by pressing the
OK button
C.
Doors:
- Auto Door Lock*
- Auto Door Unlock*
- Two Press Unlock*
- Horn Feedback*
Lamps:
- One-Touch Turn Lamp*
- Headlamp Delay*
- Welcome Light*
User Settings Mode
P
Service in
0000
mi
00days
P
Service in
Off
P
Service IntervalBack
Off
On2500
mi.
36 month
P
User Settings
Door
Lamp
Convenient
Service
P
Service required
OK
CRUISECANCEL
RESSET
ACB
(located on Steering Wheel)
When service is required, the following screen
will be displayed: Service Required.Convenient:
- Language
- Temperature
- AVG Fuel Economy Reset
- Easy Seat Access*
- Steering Position*
Service:
- Service Interval On/Off
Driver Assist*:
- RCTA (Rear Cross Traffic Alert)
Page 12 of 50
OPTIMA HYBRID
FEATURES & FUNCTIONS GUIDE
10
*IF EQUIPPED
Instrument Cluster - Energy FlowOptima Hybrid’s instrument cluster displays the following hybrid system modes to inform the driver of its status.HYBRID SYSTEM DISPLAYSEV Propulsion - The electric motor is
moving the vehicle.
Power Assist - Both the electric motor
AND the engine are moving the vehicle.Engine-Only Propulsion - The engine
is moving your vehicle.
Engine Generation - While the vehicle
is stopped, the engine is charging the
hybrid battery.
Page 13 of 50
11
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED Instrument Cluster - Energy FlowOptima Hybrid’s instrument cluster displays the following hybrid system modes to
inform the driver of its status.
Optima Hybrid
Cluster Overview Video
To view a video on your
mobile device, snap this
QR Code or visit the
listed website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/tf23/2014
HYBRID SYSTEM DISPLAYSPower Reserve - While the engine
powers the vehicle, it is also recharging
the hybrid battery.
Vehicle Stop - The vehicle’s hybrid
system is standing by.Engine Brake/Regeneration -
The regenerative braking system is
recharging the hybrid battery.
Engine Generation/Regeneration -
The engine and the regenerative braking
system are both recharging the hybrid battery.
Page 14 of 50
OPTIMA HYBRID
FEATURES & FUNCTIONS GUIDE
12
*IF EQUIPPED
Instrument Cluster - ECO LevelECO Level - The more economically you drive,
the more leaves/flowers appear. When the ECO
level reaches the top, the system registers a
point toward the saved ECO Score.
Range - Estimates how far you can go before
refueling is required.ECO Score - The Total ECO Score display indicates the
number of times the ECO Level has reached its maximum.
Average Fuel Consumption - Calculates average* fuel
consumption from the distance driven and amount of fuel
injected into the engine / total fuel used.Optima Hybrid’s instrument cluster displays the following hybrid system modes to inform the driver of its status.HYBRID SYSTEM DISPLAYS
Page 15 of 50
13
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED Navigation System Display*When equipped, Optima Hybrid’s Navigation screen also provides information on
economical operation and hybrid system modes, including ECODynamics. To enter the
Hybrid display mode, press the Settings key on the audio control unit. Press the on-screen
INFO/UVO icon, then press HYBRID.
Energy Flow - Displays the current flow of
power between the Optima Hybrid’s main
powertrain components. It’s similar to
the Energy Flow Screen in the LCD in the
instrument cluster. Car Mode - The more economically you
drive, the more the ECO Level bars fill
up. As you continue to maintain high fuel
efficiency, leaves will appear and begin to
fly off the vehicle.
Average Fuel Economy - Displays the
average fuel economy over the duration
of a trip.
PM
ECO Level
50
40
30
20
10
MPG
NOW 30 min10 min 20 min
Average
Fuel Economy
13.4 MPGElectric
Gasoline
Average
Fuel Economy
PM
Optima Hybrid
Navigation System
ECODynamics Display
Video
To view a video on your
mobile device, snap this
QR Code or visit the
listed website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/tf23/2014
Earth Mode - The more economically you
drive, the more the ECO Level bars fill up,
and the earth becomes more blue. As you
continue to maintain high fuel efficiency,
the earth will start growing leaves.
PM
HYBRID SYSTEM DISPLAYS
Page 27 of 50
25
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPERATING INFORMATION AND SAFET Y WARNINGS. *IF EQUIPPED
Voice Recognition and Phone
Contact Tips
The Kia Voice Recognition System
may have difficulty understanding
some accents or uncommon names.
When using Voice Recognition to
place a call, speak in a moderate
tone, with clear pronunciation.
Help your Bluetooth® Wireless
Technology Voice Recognition
performance by making a few
simple changes to your phone
contacts:
OUse full names vs. short or single-
syllable names (“John Smith”
vs. “Dad,” “Smith Residence” vs.
“Home”)
OAvoid using special characters or
hyphens (@, &, #, /, -, *, +, etc.)
OAvoid using acronyms (“In Case
Emergency” vs. “ICE”)
OSpell words completely, no abbreviations (“Doctor
Goodman” vs. “Dr. Goodman”) Contacts Sync Tips
OIf Contact Sync is set to ON, contacts stored in your phone will
download each time your phone is connected. There may be a delay
before the system is available to place a call
OIf Contact Sync is set to OFF, your phone contacts will download only
at the initial pairing. This allows you to make calls without waiting for
your phone contact list to download
QUICK TIPS
Bluetooth
® Wireless Technology
Pairing a Phone
For instructions on how to pair a phone, refer to the audio
system’s user’s guide or your vehicle’s Quick Start Guide.
During the pairing process, be sure to accept the
connection requests on the phone for phonebook
download and to allow acceptance of all future
Bluetooth
® connection requests.
QUICK TIPS
Voice Recognition
Tips Video
To view a video on your
mobile device, snap this
QR Code or visit the
listed website.
Refer to page 2 for more
information.
QR CODE
www.KuTechVideos.com/tf23/2014
How to Place a Call
When using the voice command feature, wait for the
system BEEP before speaking the command.
There are two options for placing a call:
Standard Audio System
OOption 1: Press the Receive/Place Call button
D
(system will prompt you through call process)
OOption 2: Press the Talk button
C (system will BEEP
to indicate it is ready for call placement). Then say
the command “Call {name}” or “Dial {number}”
UVO System
OOption 1: Press the Receive/Place Call button
D
(displays the phone screen with number keypad)
OOption 2: Press the Talk button
C. Then say the
command “Call {name}” or “Dial {number}”
Navigation System
OOption 1: Press the Receive/Place Call button
D
(displays the phone screen with number keypad)
OOption 2: Press the Talk button
C. Then say the
command "Call Name" or "Dial Number", followed by
phone book name or number
STEERING WHEEL CONTROLS
