KIA Rio 2005 2.G User Guide

3-1
KNOWING YOUR VEHICLEKeys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Keyless Entry System . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11
Safety Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-20
Air Bag - Supplemental Restraint System . . . . . . . . . 3-46
Rear Hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-54
Trunk Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-55
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-57
Fuel Filler Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-59
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-62
Interior Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-65
Cup Holders and Console Storage Compartment . . . 3-66
Sunglass Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-67
Luggage Net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-68
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-69
Power Outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-70
Tonneau Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-71
3
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 1

KeysThe key code number is stamped into the plate
attached to the key set. If you should lose your keys,
this number will enable an Authorized Kia Dealer to
duplicate the keys easily. Remove the plate and store it
in a safe place. Also, record the code number and keep
it in a safe and handy place, but not in the vehicle.Knowing Your Vehicle3-2
WARNING – Ignition Key
Leaving children unattended in a vehicle with
the ignition key is dangerous even if the key is
not in the ignition. Children copy adults and
they could place the key in the ignition. The
ignition key would enable children to operate
power windows or other controls, or even
make the vehicle move which could result in
serious bodily injury or even death. Never
leave the keys in your vehicle with unsuper-
vised children.
AN7B03001
Key code
CAUTION
Use only Kia original parts for the ignition key in
your vehicle. If an aftermarket key is used, the
ignition switch may not return to ON after
START. If this happens, the starter will continue
to operate causing damage to the starter motor
and possible fire due to excessive current in the
wiring.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 2

Keyless Entry System (If Equipped)You can also lock or unlock the door from the outside
with the transmitter.
LOCK - To lock the door, depress this button.
UNLOCK - To unlock the door, depress this button.
3-3
1V2B03006B
✻ ✻
NOTICE
• The transmitter will not work under the follow-
ing conditions :
- Ignition key is in the ignition key hole.
- The battery of transmitter is discharged.
 The operational distance(5m) is exceeded.
 The transmitter may not operate when the
weather is very cold or when there are other
vehicles or objects around the vehicle. When
the transmitter does not work correctly, open
and close the door with the ignition key.
 If you have a problem with the transmitter,
contact an Authorized Kia Dealer.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 3

This device complies with Industry Canada
Standard RSS-210.Operation is subject to the follow-
ing two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
Battery ReplacementThe transmitter uses a 3-Volt, lithium-type battery. The
battery will normally last for several years. If it ever
needs replacement, use the following procedure:
1. Using a screwdriver, loosen the screw on the back of
the transmitter and pry the back off with a thin tool.
2. Remove the battery from the back.
3. Insert a new battery, making sure the “Plus(+)” side
faces down, and reassemble the transmitter.
Knowing Your Vehicle3-4
✻ ✻
NOTICE
Using an incorrect battery can cause the transmit-
ter to malfunction. Make sure the replacement
battery has the same specification as the battery it
replaces.
1V2B03006
WARNING
Changes or modifications not expressly
approved by the party responsible for compli-
ance could void the user's authority to operate
the equipment.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 4

3-5
Door LocksManual Door LocksOperating Door Locks – With Key
 Both front doors can be locked and unlocked with
the key.
 Turn the key toward front of vehicle to unlock and
toward rear of vehicle to lock the door.
 Once a door is unlocked, it may be opened by lifting
the door handle.
Operating Door Locks – Without Key
To lock any door without the key, push the inside door
lock button down and close the door.
✻ ✻
NOTICE
Always remove the ignition key, engage the park-
ing brake, close all windows and lock all doors
when leaving your vehicle unattended.
1B31040011B3104002B
UNLOCKLOCK
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 5

Automatic Door Locks (If Equipped)If you lock/unlock the driver’s door or the passenger
door with a key or the door lock knob, all the doors
and rear hatch will lock/unlock automatically.
Knowing Your Vehicle3-6Operating Door Locks from Inside the Vehicle
 To lock a door, push the door lock button down.
 To unlock a door, pull the door lock button up.
 To open a door, pull the door handle towards the
middle of your vehicle.
The door ajar warning light will illuminate if a door is
not fully closed. Close the door completely and the
light will go out.
WARNING
Never leave children or animals unattended in
the vehicle. An enclosed vehicle can become
extremely hot, causing death or severe injury
to children or to animals who cannot escape
the vehicle.
1B3104002C
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 6

3-7
The child safety lock is provided to help prevent chil-
dren from accidentally opening the rear doors from
inside the vehicle.
 To lock a rear door so that it cannot be opened from
the inside, push the child safety lock located on the
rear edge of the door to the “LOCK” position
(toward front of vehicle) before closing the door.
 To open a rear door while the child safety lock is
engaged, lift the outside door handle.
WARNING - Rear Door Locks
If children accidentally open the rear doors
while the vehicle is in motion, they could fall
out and be seriously or fatally injured. To pre-
vent children from opening the rear doors
from the inside, the rear door safety locks
should be used whenever children are in the
vehicle.
Rear Door Child Safety Lock
OMSA2010A
FREE LOCK
CAUTION
The doors should always be fully closed and
locked while the vehicle is in motion to prevent
accidental opening of the doors. Locked doors
will also discourage potential intruders when the
vehicle stops or slows.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 7

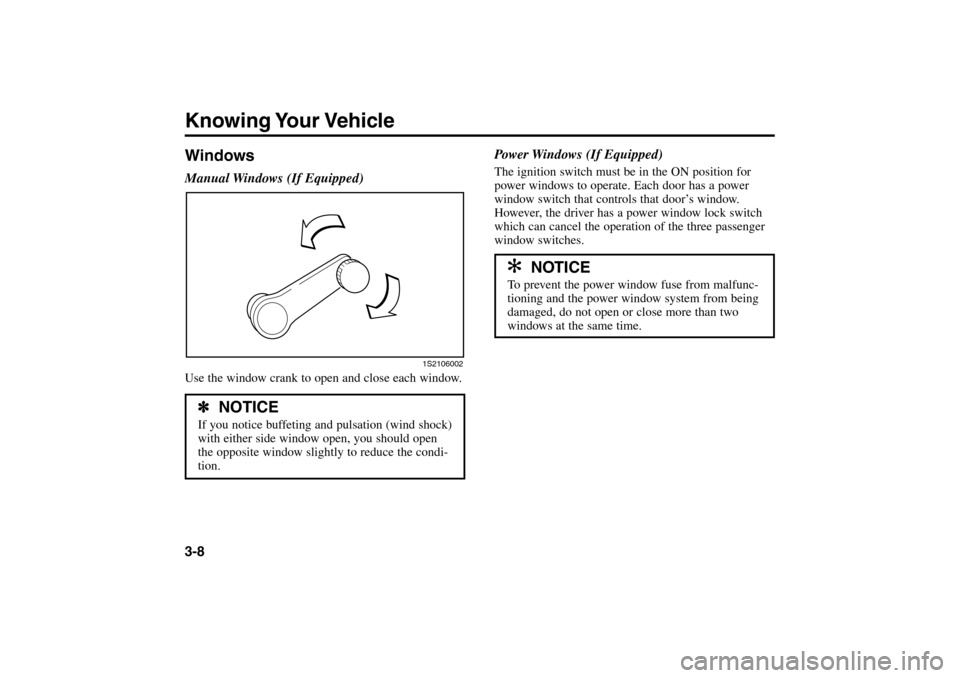

Knowing Your Vehicle3-8WindowsManual Windows (If Equipped)Use the window crank to open and close each window.
Power Windows (If Equipped)The ignition switch must be in the ON position for
power windows to operate. Each door has a power
window switch that controls that door’s window.
However, the driver has a power window lock switch
which can cancel the operation of the three passenger
window switches.
✻ ✻
NOTICE
To prevent the power window fuse from malfunc-
tioning and the power window system from being
damaged, do not open or close more than two
windows at the same time.
1S2106002
✽ ✽
NOTICEIf you notice buffeting and pulsation (wind shock)
with either side window open, you should open
the opposite window slightly to reduce the condi-
tion.
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 8

3-9
Driver’s Door Power Window Controls
All windows can be opened or closed using the power
window master control on the driver’s door. To open a
window, press down on the corresponding power win-
dow switch. To close a window, pull up on the corre-
sponding power window switch.Driver’s Window Automatic-Down Window
SwitchThe driver’s window has an “Automatic-Down” fea-
ture. To activate the express-down feature, momentari-
ly depress the front of the switch to the second detent
position. To cancel this feature, pull up on the front of
the switch and then release it.
Driver’s Power Window SwitchThe driver’s power window switch provides two (2)
separate window-down functions.
 Depressing the driver’s power window switch com-
pletely, automatically lowers (Automatic-Down) the
driver’s window. To cancel this function, pull up on
the front of the switch and release it.
 Depressing the driver’s power window switch par-
tially (to the first detent) provides precise control of
the window-down position.
To raise/close the driver’s window, pull up on the
power window switch.Power Window Timer (If Equipped)The power windows can be operated for approximately
30 seconds after the ignition key is turned to the ACC
or LOCK position. However, if the front doors are
opened, the power windows cannot be operated even
within the 30 seconds after the ignition key removal.
AS2B03008D
Power window
lock switch
Power window
master control
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 9

Knowing Your Vehicle3-10 Power Window Lock Switch FeatureThe driver can disable the power window switches on
all passenger doors by depressing the power window
lock switch located on the driver’s door to ON. When
the power window lock switch is ON, only the driver’s
master control can operate the windows.
OFF
ON
WARNING - Passengers
• Keep the power window lock switch on the
driver’s door in the ON (depressed) position
except when someone is operating a passen-
ger door window. Serious injury can result
from unintentional window operation, espe-
cially to children.
 Always double check to make sure all arms,
hands, and other obstructions are safely out
of the way before closing a window.✻ ✻
NOTICE
If you experience buffeting and pulsation (wind
shock) with either side window open, you should
open the opposite window slightly to reduce the
condition.
1FJB2011C
RIO ENG CNA 3.qxd 7/29/05 5:13 PM Page 10
