✽✽NOTICE
Not all fuse panel descriptions in this
manual may be applicable to your vehi-
cle. It is accurate at the time of printing.
When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.Inner fuse panel Engine compartment fuse panel
OXM079026/OXM079027/OXM079028

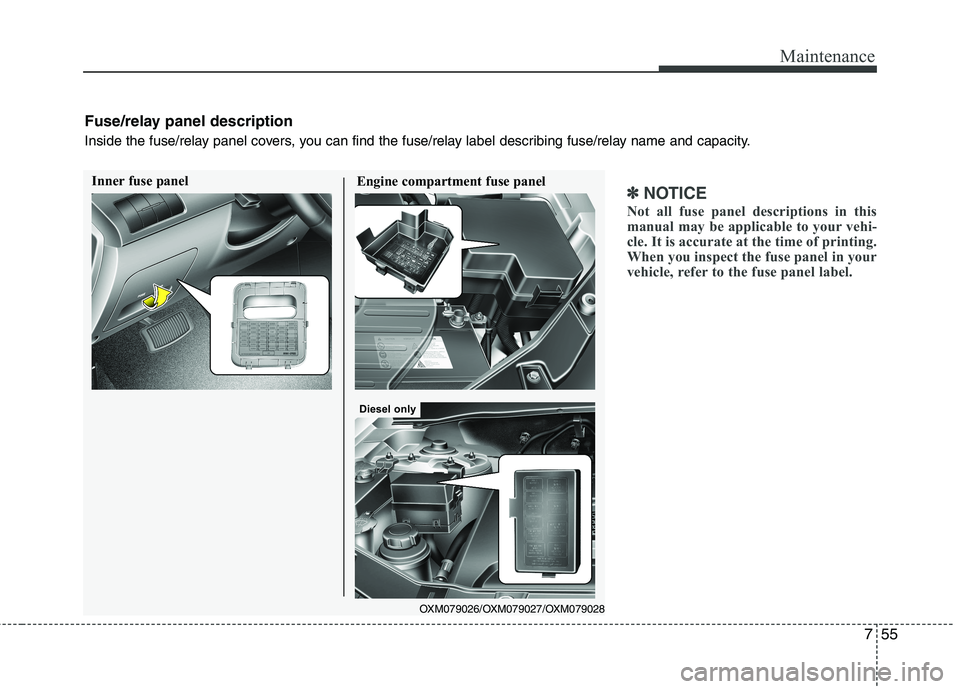

Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Diesel only

Maintenance
56
7
Inner fuse panel (Instrument panel)
1 15A REAR SEAT WARMER LH, RH
2 20A DOOR LOCK, TAILGATE
3 10A THEFT ALARM HORN
4 7.5A RHEOSTAT, IMS
5 10A CLUSTER, SMART KEY, RSE MONITOR, TPMS, AUDIO, REAR PARKING ASSIST SYSTEM
BUZZER, ESP SWITCH, DBC SWITCH, DBC RELAY 'S1', AUTO HLLD SENSOR(4),
HLLD ACTUATOR
6 10A SPORT MODE SWITCH, 4WD ECU
7 20A HEAD LAMP WASHER
8 20A REAR AIR CONDITIONING MOTOR
9 7.5A AIR CONDITIONING SYSTEM, CLUSTER IONIZER, HEAD LAMP WASHER RELAY,
PDM UNIT, FUSIBLE LINK BOX(PTC-3 RELAY'S1'), RAIN SENSOR(1),
SUNROOF MOTOR UNIT(3), ECM(10)
10 15A REAR WIPER, WASHER
11 10A OIL LEVEL SENSOR UNIT(4), PDM UNIT(B9), SMART KEY ECU (A14), 4WD ECU(4), TCU(K3),
GEAR SHIFT INDICATOR, POWER WINDOW
No. Symbol Fuse rating Protected component
RR
3
2
RR
1

757
Maintenance

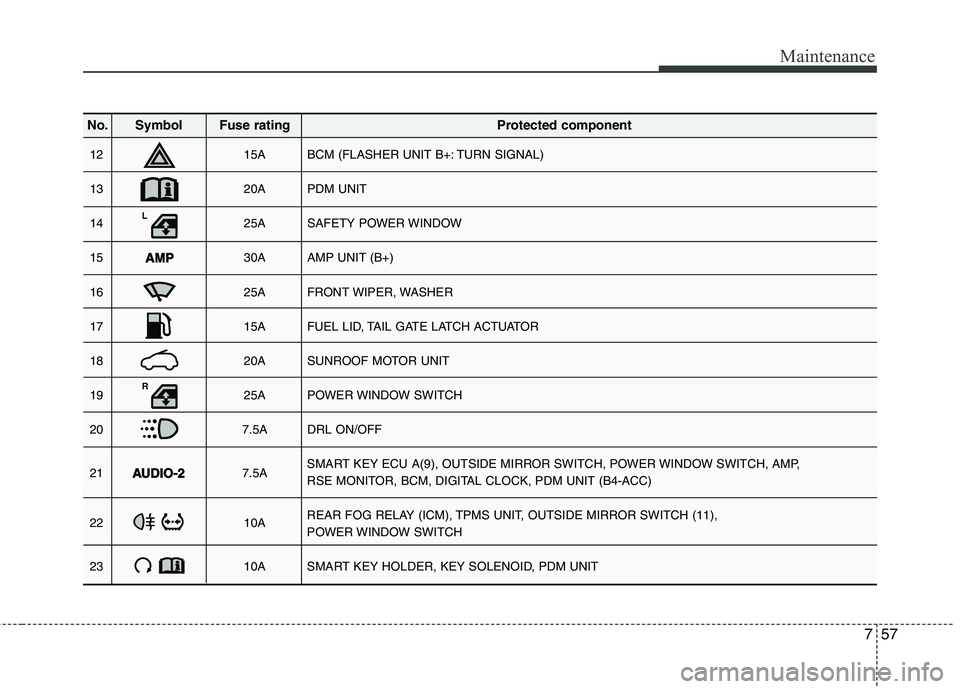

12 15A BCM (FLASHER UNIT B+: TURN SIGNAL)
13 20A PDM UNIT
14 25A SAFETY POWER WINDOW
15 30A AMP UNIT (B+)
16 25A FRONT WIPER, WASHER
17 15A FUEL LID, TAIL GATE LATCH ACTUATOR
18 20A SUNROOF MOTOR UNIT
19 25A POWER WINDOW SWITCH
20 7.5A DRL ON/OFF
21 7.5ASMART KEY ECU A(9), OUTSIDE MIRROR SWITCH, POWER WINDOW SWITCH, AMP,
RSE MONITOR, BCM, DIGITAL CLOCK, PDM UNIT (B4-ACC)
22 10A REAR FOG RELAY (ICM), TPMS UNIT, OUTSIDE MIRROR SWITCH (11),
POWER WINDOW SWITCH
23 10A SMART KEY HOLDER, KEY SOLENOID, PDM UNIT
No. Symbol Fuse rating Protected component
L
R

Maintenance
58
7

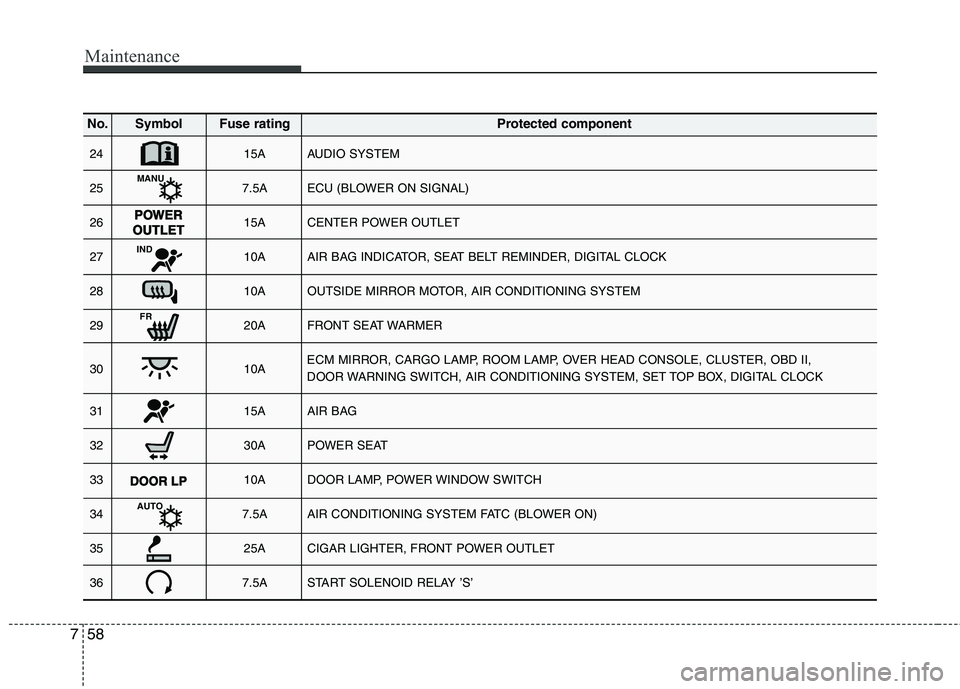

24 15A AUDIO SYSTEM
25 7.5A ECU (BLOWER ON SIGNAL)
26 15A CENTER POWER OUTLET
27 10A AIR BAG INDICATOR, SEAT BELT REMINDER, DIGITAL CLOCK
28 10A OUTSIDE MIRROR MOTOR, AIR CONDITIONING SYSTEM
29 20A FRONT SEAT WARMER
30 10A ECM MIRROR, CARGO LAMP, ROOM LAMP, OVER HEAD CONSOLE, CLUSTER, OBD II,
DOOR WARNING SWITCH, AIR CONDITIONING SYSTEM, SET TOP BOX, DIGITAL CLOCK
31 15A AIR BAG
32 30A POWER SEAT
33 10A DOOR LAMP, POWER WINDOW SWITCH
34 7.5A AIR CONDITIONING SYSTEM FATC (BLOWER ON)
35 25A CIGAR LIGHTER, FRONT POWER OUTLET
36 7.5A START SOLENOID RELAY ’S’
No. Symbol Fuse rating Protected component
MANU
IND
FR
AUTO

759
Maintenance
Engine compartment main fuse panel
1 30A ECU 20A, SENSOR 1 10A, SENSOR 2 10A, SENSOR 3 10A, SENSOR 4 15A, PCU(2.4L ENGINE)20A
2
10A
3
10A
4 ECU(K3) ECU(K5) ECU(K6)
IGNITION COILCONDENSOR
IGNITION COILCONDENSOR
COOLING FAN1 RELAY IMMOBILIZER(4) CAMSHAFT POSITION SEN-
SOR 1 T2(1) CAMSHAFT POSITION SEN-
SOR 2 T2(1)
COOLING FAN 1 RELAY
PURGE CONTROL SOLENOID
VALVE(1) IMMOBILIZER(4) CRANKSHAFT POSITION SEN- SOR T2(1)PURGE CONTROL SOLENOID
VALVE
COOLING RELAY'S1' IMMOBILIZER(4) PCU(A99)
STOP SWITCH(3-N.C) STOP SWITCH(3-N.C)
10A
5 LAMBDA SENSOR(2) CRANKSHAFT POSITION SEN- SOR SENSOR DSL(3)INJECTION 1 T2(1)
INJECTION 3 T2(1)
INJECTION 2 T2(1)
INJECTION 4 T2(1)INJECTION 6
INJECTION HARNESS, INJECTION 4 PCU(A75) INJECTION 2
No. Symbol Fuse rating Protected component
DIESEL 2.4 GASOLINE 3.5 GASOLINE
ECU
3
SENSO
R1
SENSO
R2
SENSO
R3

Maintenance
60
7
No. Symbol Fuse rating Protected component
8 10A A/CON COMPRESSOR
9 15A FUEL PUMP
10 7.5A BACK UP LAMP, REAR PARKING ASSIST SYSTEM, ECM MIRROR, TCU K(53)
11 7.5A DIAGNOSIS(15), FUSIBLE LINK BOX(FLUID FILLER RELAY 'S1'), GLOW RELAY UNIT(4),
WATER TEMPERATURE SENSOR DIESEL(1), ABS UNIT(3), ESP UNIT(31), STOP SWITCH(3)
12 7.5A ECU, AIR FLOW SENSOR(5), SUB START RELAY
No. Symbol Fuse rating Protected component
15A
6 DIESEL 2.4 GASOLINE 3.5 GASOLINE
EGR COOLING VALVE(2)
VGT ACTUATOR HONEY- WELL(1)
VGT ACTUATOR KAMTEC(3)
P REGUL VALVE(2) FUEL METER UNIT(2)
FUSIBLE LINK BOX(PTC-1
RELAY 'S1')
FUEL PUMP RELAY'S1'O2 SENSOR UP BIN T2(3)
O2 SENSOR UP LIN T2(4)
O2 SENSOR DN FR T2(3)
FUEL PUMP RELAY'S1'
O2 SENSOR 4 PCU(A100) O2 SENSOR 1 O2 SENSOR 3 O2 SENSOR 2
FUEL PUMP RELAY'S1'
7 15A TCU(K1) TCU(K2)PCU K T2(6)
PCU A T2(50)
PCU(A52) PCU(A77)SENSOR4
F/PUMP
B/UP
LP

761
Maintenance
13 50ASUNROOF 20A, SEAT WARMER REAR 15A, HEAD LAMP WASHER 20A, PDM 20A,
SMART KEY 10A
14 50A COOLING FAN LOW(1), COOLING FAN HI(2)
15 15A FRONT DEICER
16 40A IGNITION SWITCH(IG2, ST), START SOLENOID
17 30A IGNITION SWITCH(IG1, ACC)
18 15A HORN LH, RH
19 15A DBC RELAY(ICM), STOP SWITCH"L“, ECU DIESEL(K45), SMART ECU A(24:BRAKE SWITCH),
REAR COMINATION LAMP, HIGH MOUNTED STOP LIGHT, ABS UNIT(14), ESP UNIT(34)
20 15A BATTERY SENSOR
21 60A MODULE 15A, DOOR LAMP 10A, ROOM LAMP 10A, SEAT WARMER FRONT 20A,
POWER SEAT 30A
22 40A BLOWER MOTOR
No. Symbol Fuse rating Protected component
B+4
IGN2
IGN1
STOP LP
B+
SENSO
R
B+2

Maintenance
62
7

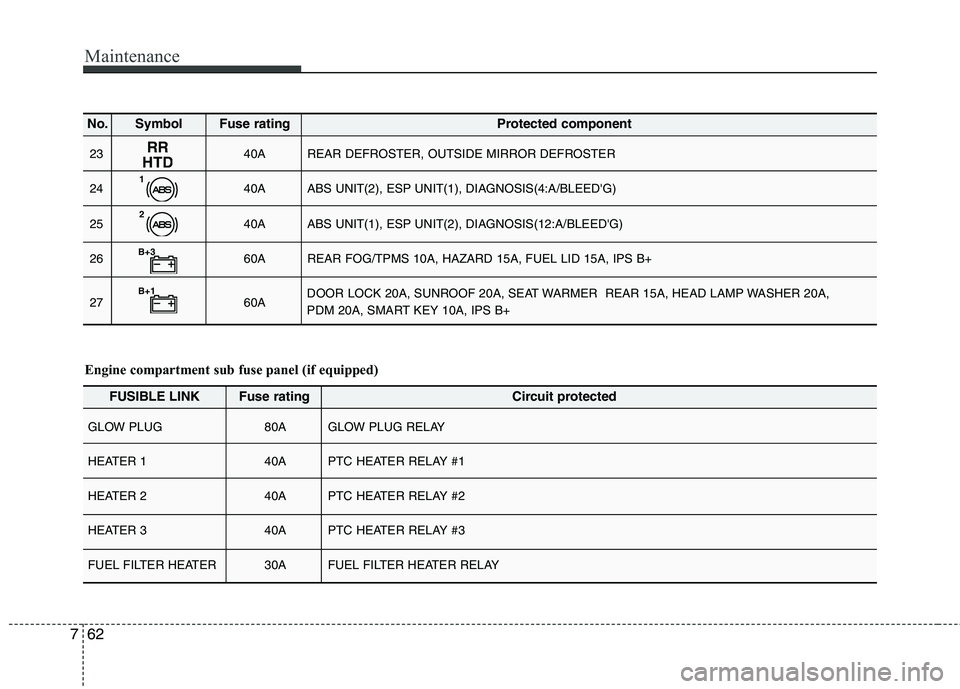

23 40A REAR DEFROSTER, OUTSIDE MIRROR DEFROSTER
24 40A ABS UNIT(2), ESP UNIT(1), DIAGNOSIS(4:A/BLEED'G)
25 40A ABS UNIT(1), ESP UNIT(2), DIAGNOSIS(12:A/BLEED'G)
26 60A REAR FOG/TPMS 10A, HAZARD 15A, FUEL LID 15A, IPS B+
27 60A DOOR LOCK 20A, SUNROOF 20A, SEAT WARMER REAR 15A, HEAD LAMP WASHER 20A,
PDM 20A, SMART KEY 10A, IPS B+
No. Symbol Fuse rating Protected component
GLOW PLUG 80A GLOW PLUG RELAY
HEATER 1 40A PTC HEATER RELAY #1
HEATER 2 40A PTC HEATER RELAY #2
HEATER 3 40A PTC HEATER RELAY #3
FUEL FILTER HEATER 30A FUEL FILTER HEATER RELAY
FUSIBLE LINK Fuse rating Circuit protected
RR
HTD1
2
B+3
B+1
Engine compartment sub fuse panel (if equipped)
