Your vehicle at a glance
6 2
ENGINE COMPARTMENT
OUM074100L
■ ■Gasoline Engine (Theta II 2.4L) - GDI
❈The actual engine room in the vehicle may differ from the illustration.1. Engine coolant reservoir ...................7-36
2. Engine oil filler cap ...........................7-35
3. Brake fluid reservoir ..........................7-39
4. Air cleaner.........................................7-42
5. Fuse box ...........................................7-69
6. Negative battery terminal..................7-49
7. Positive battery terminal ...................7-49
8. Radiator cap .....................................7-38
9. Engine oil dipstick .............................7-34
10. Windshield washer fluid reservoir ...7-40
Page 16 of 576
27
Your vehicle at a glance
OUM074115L
■ ■Gasoline Engine (THETA 2.0L) T-GDI
❈The actual engine compartment in the vehicle may differ from the illustration.1. Engine coolant reservoir ...................7-36
2. Engine oil filler cap ...........................7-35
3. Brake fluid reservoir ..........................7-39
4. Air cleaner.........................................7-42
5. Fuse box ...........................................7-69
6. Negative battery terminal..................7-49
7. Positive battery terminal ...................7-49
8. Radiator cap .....................................7-38
9. Engine oil dipstick .............................7-34
10. Windshield washer fluid reservoir ...7-40
Page 17 of 576
Your vehicle at a glance
8 2
OUMA074001
■ ■Gasoline Engine (Lambda 3.3L) - GDI
❈The actual engine compartment in the vehicle may differ from the illustration.1. Engine coolant reservoir ...................7-36
2. Engine oil filler cap ...........................7-35
3. Brake fluid reservoir ..........................7-39
4. Air cleaner.........................................7-42
5. Fuse box ...........................................7-69
6. Negative battery terminal..................7-49
7. Positive battery terminal ...................7-49
8. Radiator cap .....................................7-38
9. Engine oil dipstick .............................7-34
10. Windshield washer fluid reservoir ...7-40
Page 180 of 576
495
Features of your vehicle

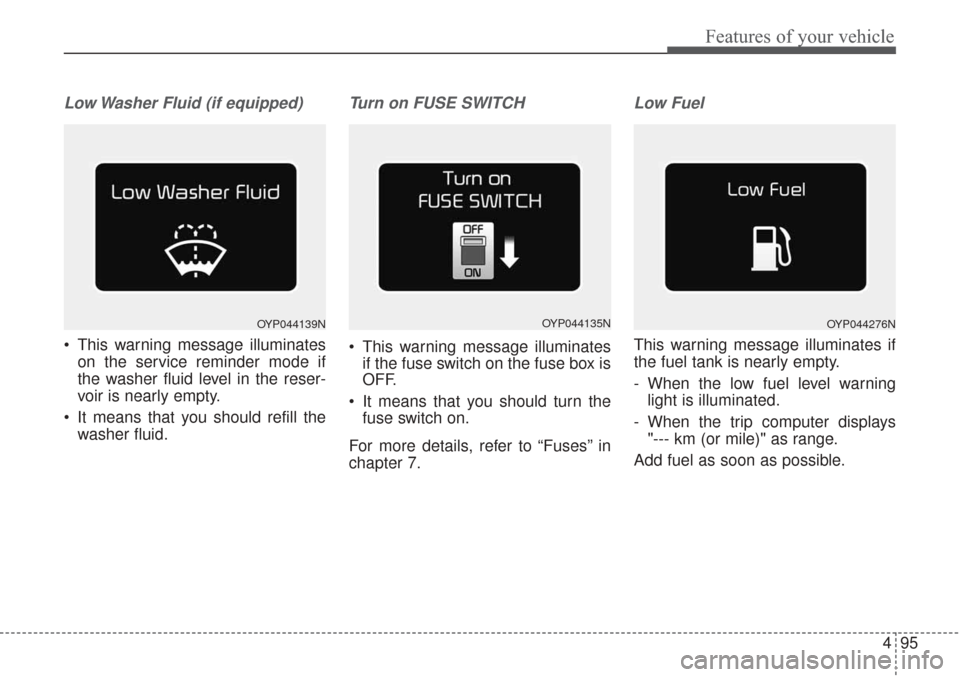

Low Washer Fluid (if equipped)
This warning message illuminateson the service reminder mode if
the washer fluid level in the reser-
voir is nearly empty.
It means that you should refill the washer fluid.
Turn on FUSE SWITCH
This warning message illuminatesif the fuse switch on the fuse box is
OFF.
It means that you should turn the fuse switch on.
For more details, refer to “Fuses” in
chapter 7.
Low Fuel
This warning message illuminates if
the fuel tank is nearly empty.
- When the low fuel level warning light is illuminated.
- When the trip computer displays "--- km (or mile)" as range.
Add fuel as soon as possible.
OYP044139NOYP044135NOYP044276N
Page 455 of 576
73
Maintenance

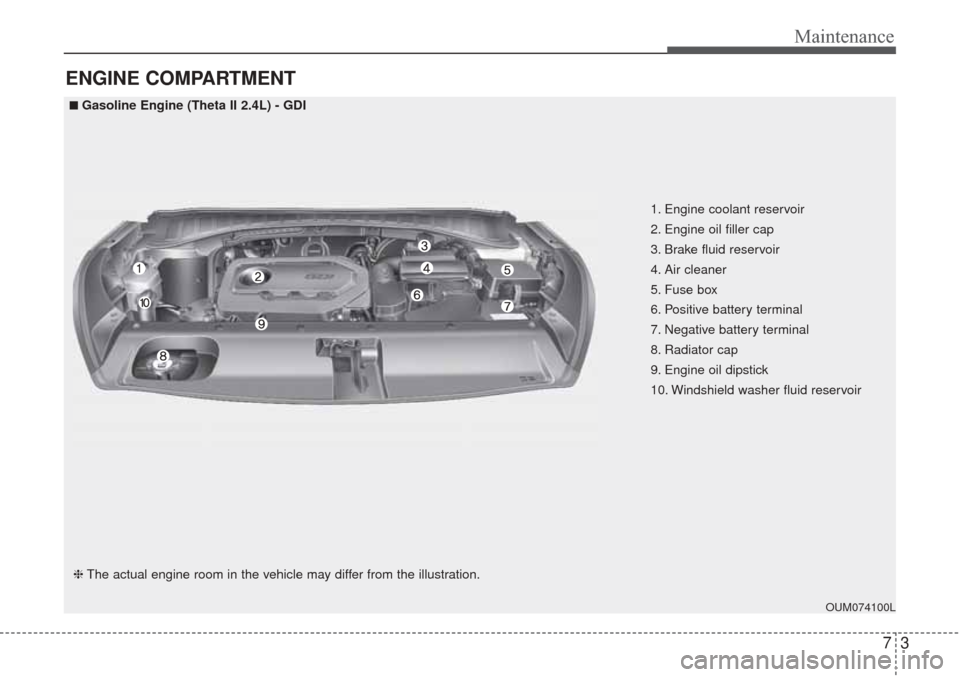

ENGINE COMPARTMENT
OUM074100L
■ ■Gasoline Engine (Theta II 2.4L) - GDI
❈The actual engine room in the vehicle may differ from the illustration. 1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Radiator cap
9. Engine oil dipstick
10. Windshield washer fluid reservoir
Page 456 of 576
Maintenance
47

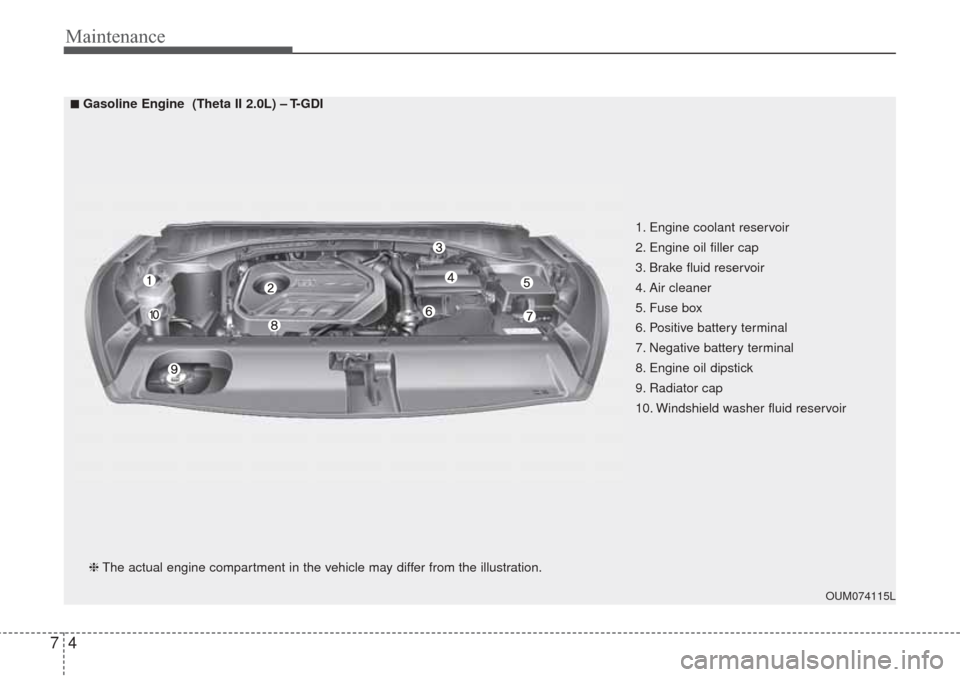

OUM074115L
■ ■Gasoline Engine (Theta II 2.0L) – T-GDI❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Engine oil dipstick
9. Radiator cap
10. Windshield washer fluid reservoir
Page 457 of 576
75
Maintenance

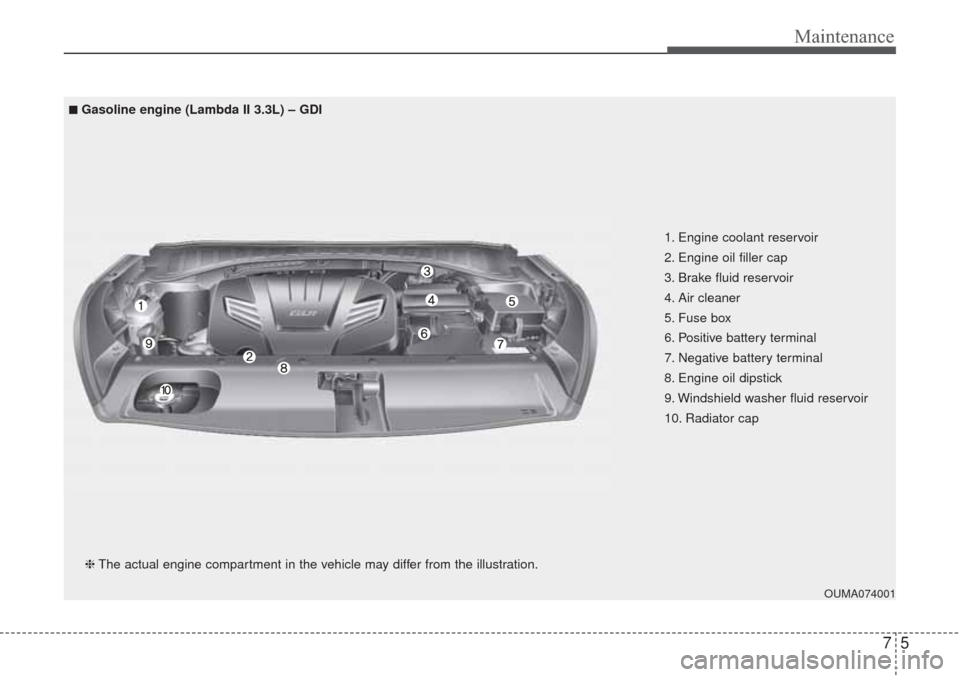

OUMA074001
1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Engine oil dipstick
9. Windshield washer fluid reservoir
10. Radiator cap
■ ■Gasoline engine (Lambda II 3.3L) – GDI❈ The actual engine compartment in the vehicle may differ from the illustration.
Page 521 of 576
769
Maintenance

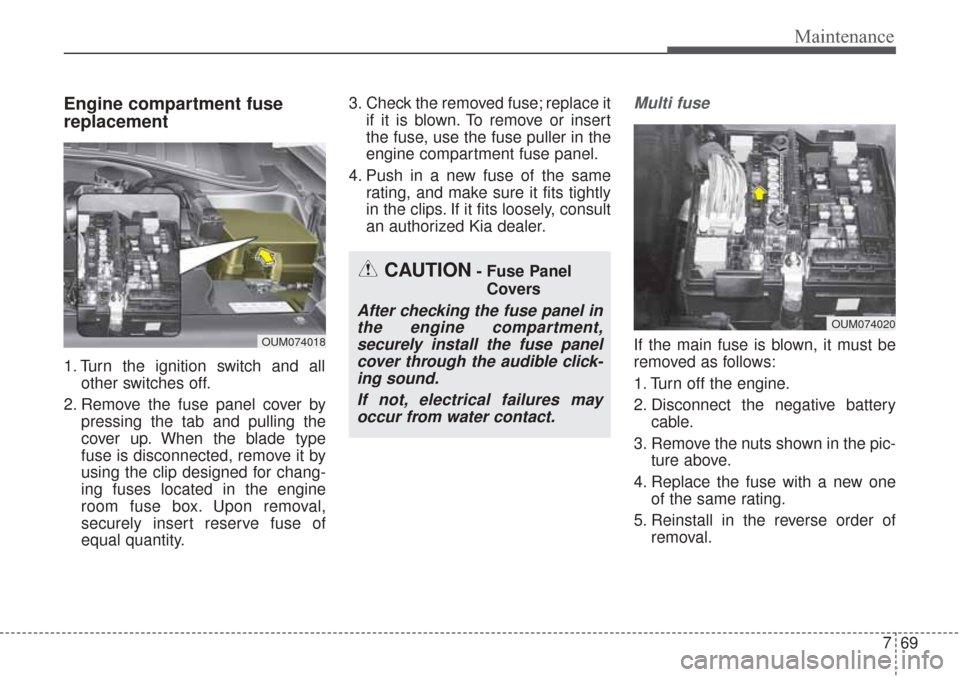

Engine compartment fuse
replacement
1. Turn the ignition switch and allother switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the
cover up. When the blade type
fuse is disconnected, remove it by
using the clip designed for chang-
ing fuses located in the engine
room fuse box. Upon removal,
securely insert reserve fuse of
equal quantity. 3. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized Kia dealer.
Multi fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative batterycable.
3. Remove the nuts shown in the pic- ture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.
OUM074020
CAUTION- Fuse Panel
Covers
After checking the fuse panel inthe engine compartment,securely install the fuse panelcover through the audible click-ing sound.
If not, electrical failures mayoccur from water contact.
OUM074018
Page 522 of 576
Maintenance
70
7
✽ ✽

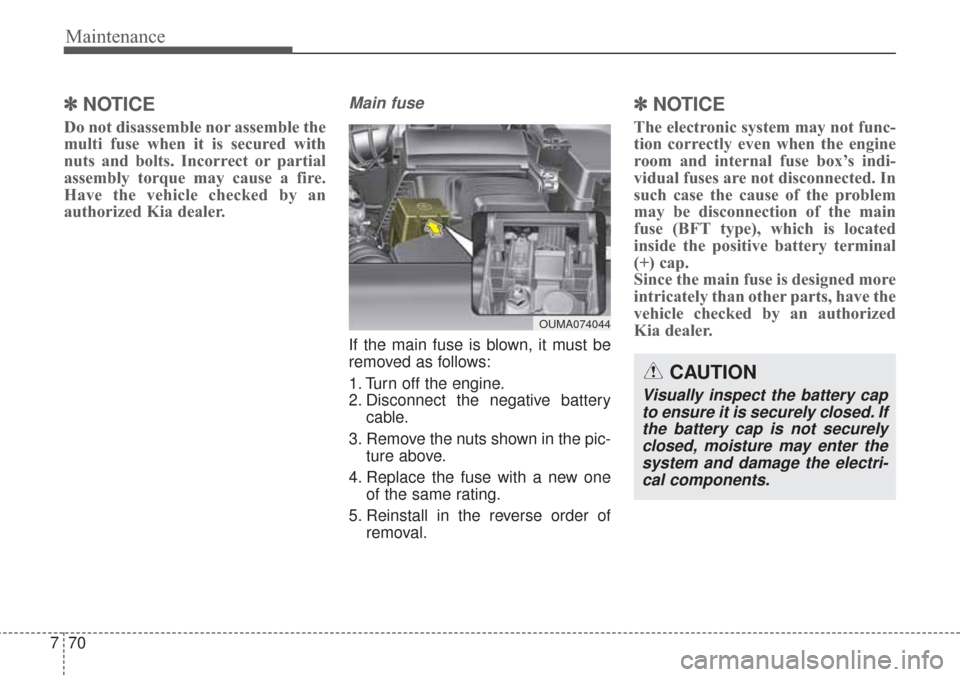

NOTICE
Do not disassemble nor assemble the
multi fuse when it is secured with
nuts and bolts. Incorrect or partial
assembly torque may cause a fire.
Have the vehicle checked by an
authorized Kia dealer.
Main fuse
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery
cable.
3. Remove the nuts shown in the pic- ture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.
✽ ✽NOTICE
The electronic system may not func-
tion correctly even when the engine
room and internal fuse box’s indi-
vidual fuses are not disconnected. In
such case the cause of the problem
may be disconnection of the main
fuse (BFT type), which is located
inside the positive battery terminal
(+) cap.
Since the main fuse is designed more
intricately than other parts, have the
vehicle checked by an authorized
Kia dealer.
OUMA074044
CAUTION
Visually inspect the battery cap
to ensure it is securely closed. Ifthe battery cap is not securelyclosed, moisture may enter thesystem and damage the electri-cal components.
Page 525 of 576
773
Maintenance

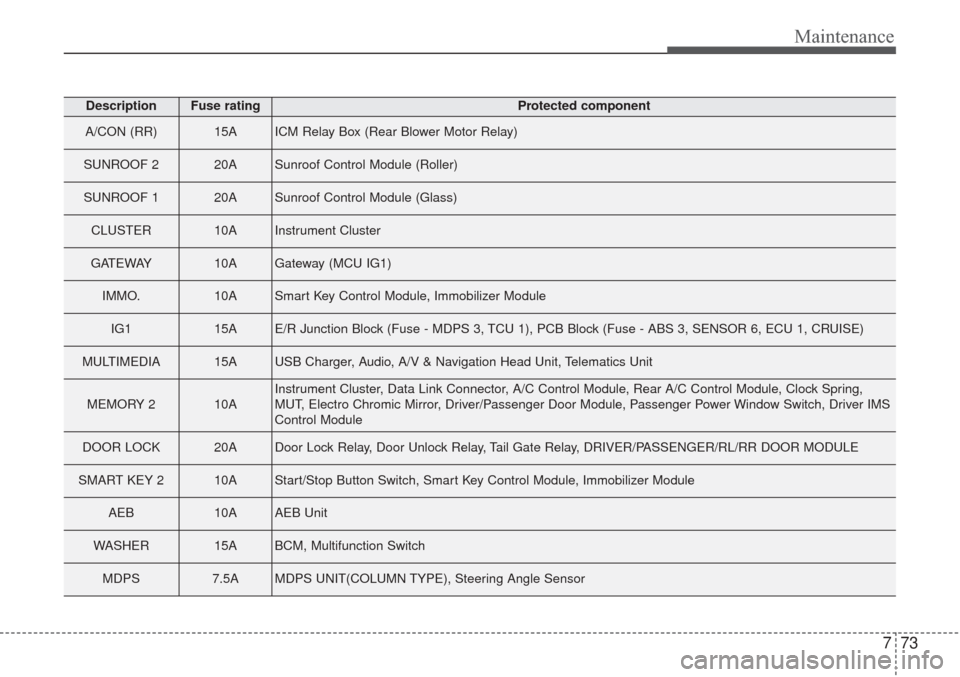

DescriptionFuse ratingProtected component
A/CON (RR) 15AICM Relay Box (Rear Blower Motor Relay)
SUNROOF 2 20ASunroof Control Module (Roller)
SUNROOF 1 20ASunroof Control Module (Glass)
CLUSTER 10AInstrument Cluster
GATEWAY10AGateway (MCU IG1)
IMMO.10ASmart Key Control Module, Immobilizer Module
IG1 15AE/R Junction Block (Fuse - MDPS 3, TCU 1), PCB Block (Fuse - ABS 3, SENSOR 6, ECU 1, CRUISE)
MULTIMEDIA 15AUSB Charger, Audio, A/V & Navigation Head Unit, Telematics Unit
MEMORY 2 10AInstrument Cluster, Data Link Connector, A/C Control Module, Rear A/C Control Module, Clock Spring,
MUT, Electro Chromic Mirror, Driver/Passenger Door Module, Passenger Power Window Switch, Driver IMS
Control Module
DOOR LOCK 20ADoor Lock Relay, Door Unlock Relay, Tail Gate Relay, DRIVER/PASSENGER/RL/RR DOOR MODULE
SMART KEY 2 10AStart/Stop Button Switch, Smart Key Control Module, Immobilizer Module
AEB10AAEB Unit
WASHER 15ABCM, Multifunction Switch
MDPS 7.5AMDPS UNIT(COLUMN TYPE), Steering Angle Sensor
