audio KIA SORENTO 2022 Features and Functions Guide
[x] Cancel search | Manufacturer: KIA, Model Year: 2022, Model line: SORENTO, Model: KIA SORENTO 2022Pages: 66, PDF Size: 5.7 MB
Page 21 of 66
19†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
(But tons located on right side of the steering wheel)
REMINDERS:
•
Current highway speeds and controlled or limited access road information may var y
. Future navigation updates may change this information
•
If the driver changes the speed while in automatic speed set ting mode, it deactivates and enters a manual mode
•
When the ignition is cycled, the system returns to its previous state, on or off
60mph
B
C
D
E
A
Highway Driving Assist (HDA)*†4
Highway Driving Assist (HDA) is designed to adjust the speed of the vehicle when driving on limited/controlled access highways/freeways . The system can adjust the vehicle’s speed based on available highway speed information . The automatic speed setting mode is designed to set the speed automatically by adjusting to the current speed limits of the highway the vehicle is traveling on .
To activate HDA , turn Smar t Cruise Control (SCC) on by pressing the Driving Assist CRUISE / Driving Assist Mode CRUISE C V U U P O A on the Steering Wheel . When HDA is activated and the conditions are met, the Instrument Cluster indicator B will illuminate green . If the conditions are not met, HDA will be in standby mode and the indicator light B will illuminate white . When in operation, and if both lanes are recognized, the Instrument Cluster will show the lanes illuminated white and the HDA indicator illuminated green B .
If HDA is activated, conditions are met and the SCC speed is set by the driver (at the posted
highway speed limit or slower), HDA will enter the automatic speed setting mode . The set speed and AUTO will be displayed C in green and an audible alert will sound .
HDA will operate only when these conditions are met:
•
The vehicle is traveling slower than 110 mph or the highway speed limit
•
When driving on limited/controlled access highways/freeways
•
When the SCC is on and operating
•
When the SCC speed is set to current posted highway speed or slower
HDA User Settings:
To enable HDA , press the Mode button D on the Steering Wheel and go to User Settings in the Instrument Cluster . Press the Move (OK) button E up/down and press to Driver Assistance, then Driving Assist, Highway Driving Assist . Then press the OK button E to enable .
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup
hard key on the audio head unit, then press VEHICLE on the screen to enter Vehicle Settings .
Highway Driving Assist is not a substitute for safe driving, may not detect all objects around the vehicle, and only functions on cer tain federal highways . Always drive safely and use caution .
See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions .
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Highway Driving Assist (HDA) Video
QR CODE
Page 22 of 66
20†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Rear View Monitor (RVM)†4
Rear View Monitor is a supplemental system that displays the view behind the vehicle through the audio head unit screen .
RVM activates when the:
•Ignition or the Engine Start/Stop button* (Green Light) is in the ON position
•Gear Shift Lever is in the R (Reverse) position
REMINDERS:
•RVM is ON by default when the ignition is cycled
•
While the Rear View Monitor is active the volume will be lowered on all audio modes
•
Through normal use and after inclement weather or washing, the rear camera may become dir t y . Use a clean, microfiber cloth to remove any dir t, debris or spots that may have accumulated on the lens
Rear View Monitor is not a substitute for proper and safe backing-up procedures . Rear View Monitor may not display ever y object behind the vehicle . Always drive safely and use caution when backing up .
Images are for illustrative purposes only and may not reflect actual feature or operation . See section 4 in the Owner ’s Manual for more information .
(Camera)
(Rear-Camera Display)
DRIVE
SPORT
SMART
AUTO
HOLD
ECO
MUD
SAND SNOWTERRAIN
P
R
D
N
- P D B U F E C F M P X H F B S T I J G U L O P C
4 V S S P V O E 7 J F X . P O J U P S 4 7 .
J T B Q B S L J O H T V Q Q P S U T Z T U F N U I B U T I P X T U I F B S F B T B S P V O E U I F G S P O U
S F B S
M F G U B O E S J H I U T J E F T P G U I F W F I J D M F W J B G P V S D B N F S B T E J T Q M B Z F E P O U P U I F B V E J P I F B E V O J U T D S F F O
1 S F T T A to turn SVM ON/OFF .
•
When OFF: The camera view will automatically display on the audio head unit screen when the vehicle is shifted into Reverse . The camera view will turn off when the vehicle is shifted out of Reverse
•
When ON: The camera view will display on the audio head unit screen in both Drive and Reverse . In Drive, the camera view will continue to display until the vehicle is traveling at speeds above approximately 9 mph . If you keep SVM on, the camera view will reappear on the audio head unit screen whenever the vehicle speed drops below approximately 9 mph
The Surround View Monitoring (SVM) is only a supplemental device . Drivers should not rely solely on the SVM information when parking and backing up . Drivers should always pay at tention and directly check the left/right and rear .
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 4 in the Owner ’s Manual for more information .
REMINDERS:
•
The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance . The Surround View Monitor system is only a supplemental device . Drivers should not rely solely on the SVM information when parking and backing up . Drivers should always pay at tention and directly check the left/right and rear
•
While the SVM is active the volume will be lowered on all audio modes
Surround View Monitor (SVM)*†4
To change the SVM settings, press the onscreen settings icon B, while the system is operating .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Surround View Monitor (SVM) Video
QR CODE
The Front SVM camera will turn off when the gear shift is moved into Park or Reverse or the SVM but ton is pressed .
QUICK TIP
B
A
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Page 23 of 66
21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Rear Cross-Traffic Collision Avoidance Assist (RCCA)*†4
REMINDERS:
•
The RCCA feature can be turned OFF/ON in User Set tings, under Driver Assistance, Parking Safet y
•
When vehicle power is cycled, RCCA will remain in the previous state
•
When a vehicle is approaching within the sensing range, and traveling faster than 3 mph, the RCCA system will show a warning
•
RCCA is a supplemental system . It is not a substitute for safe driving, and may not detect all objects around or behind the vehicle . Do not solely rely on this system and always pay at tention to the road and its conditions
Rear Cross-Traffic Collision-Avoidance Assist (RCCA) is designed, under certain conditions, to warn the driver and potentially activate the Electronic Stability Control (ESC) and temporarily apply braking, if it detects cross traffic approaching the vehicle, when vehicle is in reverse .
When the RCCA rear-corner radar sensors detect approaching vehicles from the rear left or rear right side of the vehicle A .
RCCA will sound a warning, the warning indicators on the outside rearview mirror will illuminate and a message will appear on the Instrument Cluster LCD B . If RCCA detects that the collision risk has increased, the system automatically applies the brakes to reduce your speed, potentially helping to minimize the effects of a possible collision .
RCCA is designed to operate under the following conditions:
•
When the gear shift is in Reverse
•When the vehicle is moving slower than 6 mph
RCCA User Settings:
•To go to the User Settings menu in the Instrument Cluster, press the Mode button C on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•
To turn RCCA on when in User Settings , press the Move (OK) button D up/down, select Driver Assistance, Parking Safety, Rear Cross-Traffic Safety and then press OK D
•
To set the warning timing, go to User Settings , press the Move (OK) button D up/down, then go to Driver Assistance, Warning Time and press the OK button D . There are two settings:
– Early: Maximizes the amount of distance between the vehicles before the initial warning occurs
– Normal: This setting allows for a nominal amount of distance between the vehicles before
the initial warning occurs
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•The default Warning Timing is set to Normal . If the Warning Timing is changed, the warning time of other Driver Assistance systems may also change
Refer to section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Rear Cross-Traffic Collision Avoidance Assist (RCCA) Video
QR CODE
RCCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings on the audio head unit . Go to Driver Assistance, then Warning Volume
QUICK TIP
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
(But tons located on right side of the steering wheel)
B
C
D
A
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Page 27 of 66
See section 5 in the Owner ’s Manual for more information .
HAC helps prevent the vehicle from rolling backwards when accelerating from a stop while on a steep incline . The HAC automatically activates whether the ESC is OFF or ON but does NOT activate when the ESC has malfunctioned .
Hill-Start Assist Control (HAC)†8
REMINDERS:
•
HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .
•In the event of HAC system malfunction, see an Authorized Kia Dealer for ser vice
•
HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
HOLD
HOLD
# V U U P O Q B O F M M P D B U F E M F G U P G 4 U F F S J O H 8 I F F M
Instrument Cluster Illumination Control
With the parking lights/headlights ON, press the button A (+) or (-) to adjust the brightness of the instrument panel illumination .
REMINDER: The Instrument Cluster illumination Control does not adjust brightness on the audio head unit screens . Use the display set tings in the Setup menu to adjust the brightness on the screen .
BA
•When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation .
•HAC provides a t wo-second delay before the vehicle may star t rolling backwards
QUICK TIPS
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers . It is a good idea to keep the ESC turned on for daily driving whenever possible .
Press the ESC OFF button B to turn Traction Control OFF/ON .
To turn OFF both the Traction Control and Stability Control, press and hold for more than 3 seconds . Press it again to turn ON .
REMINDERS:
•
ESC is active by default at vehicle star tup . When the ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
Electronic Stability Control (ESC)†6
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Electronic Stability Control Video
QR CODE
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 5 in the Owner ’s Manual for more information .
DRIVER'S PANEL
DRIVER’SPANEL
25†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .

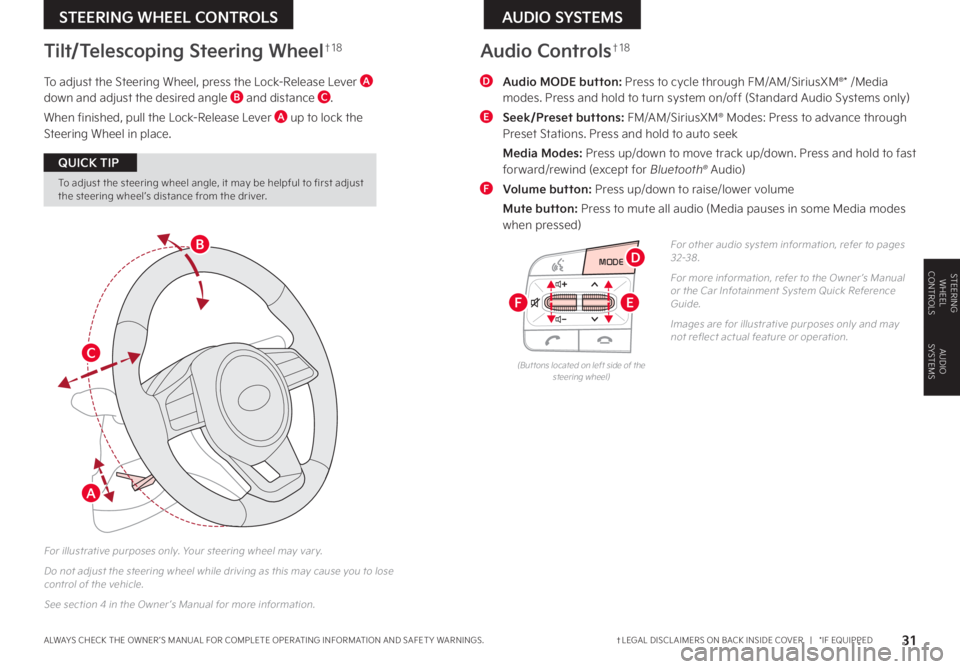

Page 33 of 66
31†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
(But tons located on left side of the steering wheel)
Audio Controls†1 8
D Audio MODE button: Press to cycle through FM/AM/SiriusXM®* /Media modes
. Press and hold to turn system on/off (Standard Audio Systems only)
E Seek/Preset buttons: FM/AM/SiriusXM® Modes: Press to advance through Preset Stations . Press and hold to auto seek
Media Modes: Press up/down to move track up/down . Press and hold to fast forward/rewind (except for Bluetooth® Audio)
F Volume button: Press up/down to raise/lower volume
Mute button: Press to mute all audio (Media pauses in some Media modes when pressed)
For other audio system information, refer to pages 32-38 .
For more information, refer to the Owner ’s Manual or the Car Infotainment System Quick Reference Guide .
Images are for illustrative purposes only and may not reflect actual feature or operation .
EF
D
AUDIO SYSTEMS
AUDIOSYSTEMS
To adjust the Steering Wheel, press the Lock-Release Lever A down and adjust the desired angle B and distance C .
When finished, pull the Lock-Release Lever A up to lock the Steering Wheel in place .
For illustrative purposes only . Your steering wheel may var y .
Do not adjust the steering wheel while driving as this may cause you to lose control of the vehicle .
See section 4 in the Owner ’s Manual for more information .
A
B
C
To adjust the steering wheel angle, it may be helpful to first adjust the steering wheel’s distance from the driver .
QUICK TIP
Tilt/Telescoping Steering Wheel†1 8
STEERING WHEEL
CONTROLS
STEERING WHEEL CONTROLS
Page 34 of 66
32†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
(But tons located on left side of the steering wheel)
Bluetooth® Wireless Technology†3, 16
For more information, refer to the Car Infotainment System Quick Reference Guide or the Owner ’s Manual
. For Bluetooth® Wireless Technology FAQs, go to w w w . kia .com, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA . Refer to your Owner ’s Manual for more specific Bluetooth® Wireless Technology phone pairing and operation instructions .
Your vehicle’s steering wheel but tons may differ from those in the illustrations .
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving .
Images are for illustrative purposes only and may not reflect actual feature or operation .
A
Talk button: Press to activate voice recognition/bring up menus/place calls with minimal voice command prompts from the system . Press and hold to exit voice recognition
UVO link with Navigation system* – When enrolled with a UVO link subscription, press this button to activate the UVO Voice Assist to use navigation guidance and search destinations
B Volume button: Press up/down to raise/lower speaker volume
Mute button: Press to mute the microphone during a call
C Receive/Place Call button: Press to place/answer calls . If no phone is paired, press the button to pair a phone
D End Call button: Press to end a call, reject an incoming call or cancel a function
REMINDER: Bluetooth® Wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device
Pairing a Phone
For instructions on how to pair a phone, refer to the Car Multimedia System User ’s Manual or your vehicle’s Quick Start Guide .
How to Place a Call
When using the voice command feature, wait for the system BEEP before speaking the command .
There are two options for placing a call:
•Option 1: Press the Receive/Place Call button C (displays the phone screen with call history)
•Option 2: Press the Talk button* A . Then say the command “Call {name}” or “Dial {number}”, followed by contact name or number
AUDIO SYSTEMS
AUDIOSYSTEMS
B
CD
A
•When using the voice command feature, wait for the system BEEP before speaking the command
•
Phone book transfer upload time varies by phone model and with number of phone book entries
•Because of differences in phone qualit y, ser vice providers and Bluetooth® Wireless Technology chip programming, functionalit y may differ from one phone to another
•The system may register or pair multiple Bluetooth® devices . See the Car Multimedia System User ’s Manual for more information on setup and limitations
QUICK TIPS
During the pairing process, be sure to accept the connection requests on the phone for phone book download and to allow acceptance of all future Bluetooth® connection requests .
QUICK TIP
Page 35 of 66
33†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Voice Recognition* and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names . Improve the per formance by making a few simple changes to your phone contacts, listed below . To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips .
•Use full names (first and last names) vs . short or single-syllable names (“John Smith” vs . “Dad,” “Smith Residence” vs . “Home”)
•Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc .)
•Avoid using acronyms (“In Case of Emergency” vs . “ICE”) or words with all capital letters
•Spell words completely, no abbreviations (“Doctor Smith” vs . “Dr . Smith”)
Bluetooth® Wireless Technology†3, 16 (continued)
AUDIO SYSTEMS
AUDIOSYSTEMS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Voice Recognition Tips Video
QR CODE
•Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
•When placing a call, speak in a natural, moderate tone, with clear pronunciation . The system may have trouble recognizing commands if you speak too softly or too loudly
•Always wait for the beep before speaking any commands
•Close windows and sunroof and turn off A /C – Open windows, sunroof, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•Press the talk but ton and say “Help” to get a list of available commands
•The system may register or pair multiple Bluetooth® devices . See the Car Infotainment System Quick Reference Guide for more information on setup and limitations .
QUICK TIPS
Page 36 of 66
34†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Android Auto™†3 / Apple CarPlay®†3 Setup
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death . The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle .
REMINDERS:
•Android Auto™ compatibility requirements for connection:
– UVO link with Navigation (USB cable connection only): OS Android™ 5 .0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
– Standard Audio System - Value (USB cable & wireless connection):
– USB cable connection - OS Android™ 5 .0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
– Wireless connection - OS Android™ 9 .0 or higher with data plan for applicable feat ure(s)
•Apple CarPlay® compatibility requirements for connection:
– UVO link with Navigation (USB cable connection only): iOS soft ware 8 .0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s)
– Standard Audio System-Value (Wireless connection only): iOS soft ware 10 .0 and higher with data plan for applicable feature(s)
•
It is recommended to always update your phone to the latest operating system release
•
Wireless Android Auto™ system only works for cer tain Android models . Use the manufacturer ’s USB cable when wireless feature is not available
Refer to the Car Infotainment System Quick Reference Guide for more information .
AUDIO SYSTEMS
AUDIOSYSTEMS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Wireless Apple CarPlay & Android Auto Video
QR CODE
•If Android Auto™ / Apple CarPlay® randomly disconnects:
– Ensure the USB cable is cer tified by the phone manufacture for both power and data
– Clean the phones por t, which the USB cable connects to, with disposable compressed air
– The Phone should not be disturbed while driving as this can cause a disconnection at the phone’s USB por t
– Visit the phone manufactures website for Android Auto™ / Apple CarPlay® app concerns
QUICK TIPS
Android Auto™ compatible smartphone setup – Download the Android Auto™ app from the Google Play™ Store†3 . Open the Android Auto™ app and proceed with the onscreen instructions to complete setup on the mobile device .
Wireless Connection setup for Android Auto™ & Apple CarPlay® (Standard Audio System & Standard Audio System-Value with UVO link):
1 . Press the SETUP key on the audio head unit
2 . Press DEVICE CONNECTION SETTINGS
3 . Press PHONE PROJECTION, then ADD NEW
Cable Connection setup for Android Auto™ (Standard Audio System, Standard Audio System-Value with UVO link & UVO link with Navigation):
1 . Press the SETUP key on the audio head unit
2 . Press DEVICE CONNECTION, select Android Auto™ and then select ENABLE ANDROID AUTO . Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Android Auto™
3 . Connect the Android™ device with the vehicle’s USB port using the manufacturer ’s cable provided with your phone
4 . From the vehicle’s home screen, select the Android Auto™ button, where you’ll see all the Android Auto™ supported apps
Cable Connection setup for Apple CarPlay® (UVO link with Navigation only):
1 . Connect the Apple CarPlay® compatible iPhone®†3 with the vehicle’s USB port using the manufacturer ’s cable provided with your iPhone®
2 . Press the SETUP key on the audio head unit
3 . Press DEVICE CONNECTION on the screen and select Apple CarPlay®
4 . Select ENABLE APPLE CARPL AY . Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Apple CarPlay®
5 . From the audio head unit home screen, select the Apple CarPlay® button, where you’ll see all the Apple CarPlay® supported apps
Page 37 of 66
35 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
MEDIARADIO
TRACK >
SETUP
< SEEK
POWERPUSHVOL ENTER
TUNE
FILE
Audio System Setup Options – Press the SETUP key, then using the touchscreen, press the menu item to enter (Display, Sound, Clock/ Calendar, Phone, System) . Adjust the available settings for each equipped audio system setup option by pressing the onscreen buttons/arrows . Audio system setup options may include the following:
Display settings – Adjusting the Brightness, Mode Popup, MP3 Information Display
Sound settings – Sound Settings, Speed Dependent Volume Control, Voice Recognition Volume, Touchscreen Beep
Clock/Calendar settings – Clock Settings, Time Format, Calendar Settings, Clock Display
System settings – Memor y Information, Prompt Feedback, Language
Presets: Press the favorite (star) button near the station information
Custom Key H A programmable key to provide quick access to one of several available system features .
To Program the Custom Key: Press the SETUP key, then press the Custom button . Select one of the available features you would like the Custom button to open .
Map/software updates - To keep your map and software up to date, free of charge, visit the official Kia update webpage at https://update .kia .com/US/EN/Main . Note, visiting a dealer for software update may include an additional charge .
Your vehicle’s audio system may differ from that in the illustration . For fur ther audio system operations, refer to the Car Infotainment System Quick Reference Guide
Sound Settings – To adjust the Standard Audio Systems sound settings:
1 .
Press the SETUP key on the audio head unit or the onscreen MENU button, when in MEDIA mode
2 . Select the onscreen SOUND button
3 .
Select the menu item (Position, Tone, Speed Dependent Volume, Beep)
4 .
Using the touchscreen, press arrows to adjust the settings
Standard Audio System* — FM/AM/Media (USB, Aux, Bluetooth® Audio)*
Press briefly to do the following:• FM/AM mode: Play the previous/next frequency .• SiriusXM® mode: Change the channel .• MEDIA mode: Change the track, file or title (except for AUX) .
Press and hold to do the following (over 0.8 seconds):• FM/AM mode: Move quickly through all of the frequencies . When released, the system seeks the next available frequency .• MEDIA mode: Rewinds or fast for wards the track or file (except for AUX and Bluetooth® Audio) .
A programmable key to provide quick access to one of several available system features
Press to Power ON/OFF . Rotate to adjust Volume
Press to select FM/AM/SiriusXM® modes
Press to enter MEDIA mode
Press to display SETUP/Set tings mode
Rotate to change Radio/SiriusXM® Station/Media tracks/files . Press to select
(LCD Display Screen)
REMINDERS:
•
To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park .
•
Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y
AUDIO SYSTEMS
AUDIOSYSTEMS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Standard Audio System Video
QR CODE
•Volume level bet ween different audio modes:
– When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc .), the audio system saves the previous volume level you were listening to . For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume . If the volume is turned down low on your device it will remain low even if the system volume is turned up
•This system suppor ts Android Auto™ (USB & wireless connection) and Apple CarPlay® (wireless connection only)
•When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the smar tphone’s navigation system may also be available
•A warning screen may appear periodically to remind users that the audio system should be operated when the engine is running to prevent bat ter y discharge
QUICK TIPS
Page 38 of 66
36†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
AUDIO SYSTEMS
AUDIOSYSTEMS
UVO link Activation*†1 (Systems equipped with UVO link only):
Follow these steps to activate your UVO link system:
1 . Enter the activation screen on your vehicle’s head unit:
a . Press SETUP key b . Press UVO icon c . Press Activate UVO
2 . Read and agree to Terms of Service and Privacy Policy and press SUBMIT
3 . Enter phone number or email address to receive a verification code, then press SUBMIT
4 . Follow these steps to receive your verification code using your phone text message or email:
a . Check your phone text message or email for verification codeb . Open the link in your text or email . A page will open requesting that you create your account
N o t e : If you already have a Kia Owners Portal account using the email or phone number as your login ID, you will need to provide your password prior to receiving the verification code
REMINDER: This vehicle is not equipped with over-the-air system updates .
c . Enter your first name, last name, email, phone number, an account password, and click CREATE ACCOUNT . A page will open displaying your verification code
d . Enter the code in the head unit and press ACTIVATE
e . Go back to the page with your verification code and press “I have entered my PIN .” A link will be provided to download the Kia Access with UVO link app from your app store . After installing the app, log in and enjoy
(But tons on overhead console*)
UVO
PASSENGEROFFAIR BAG
BCA
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Kia Access with UVO link App Video
QR CODE
UVO link is currently unavailable for model year 2022 vehicles sold or purchased in Massachuset ts . See UVO Terms of Ser vice at owners .kia .com for more information .
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death . The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle .
Virtual Assistant A – Press to connect to a virtual assistant to hear information about the UVO features
UVO Voice Local Search B (systems with navigation) - Press to connect to the search function to find points of interest or other locations, like “cafe”
UVO Voice Local Search B (non-navigation systems) - Press to activate phone projection with Android Auto™ or Apple CarPlay® (smartphone must be connected via wireless or USB cable — see previous page for availability and setup
Roadside Assist C – Press to connect to a Roadside Assistant where you can request vehicle towing services
Reminder: These buttons may be located in the rearview mirror or the overhead console .
For more information, refer to the Car Infotainment System Quick Reference Guide . On cer tain models, UVO Assistance but tons are located on the Rear view Mirror .
UVO Assistance*†1
UVO Assistance Video
