lights KIA SORENTO 2022 Features and Functions Guide

TABLE OF CONTENTS
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . 03Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . 04Tire Pressure Monitoring System (TPMS) . . . . . . 05Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05Drive Mode Integrated Control System* . . . . . . . 06
VEHICLE SETTINGSTrip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . 07LCD Instrument Cluster Modes . . . . . . . . . . . . . . . . 07User Settings – Instrument Cluster . . . . . . . . . . . . 08Vehicle Settings* – Audio Head Unit . . . . . . . . . . . 08Vehicle Auto-Shut Off* . . . . . . . . . . . . . . . . . . . . . . . 09Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . 09
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA)* . . . . . . 10Blind-Spot Collision-Avoidance Assist (BCA)* . . . 11Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . . . 12Blind-Spot View Monitor (BVM)* . . . . . . . . . . . . . . . . 13Driver Attention Warning (DAW)
. . . . . . . . . . . . . . . . 14Leading Vehicle Departure Alert (LVDA) . . . . . . . . 15Safe Exit Assist (SEA)* . . . . . . . . . . . . . . . . . . . . . . . . . 15Smart Cruise Control (SCC)* . . . . . . . . . . . . . . . . . . . 16Cruise Control (CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17Navigation-based Smart Cruise Control - (NSCC)* 17Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . . . 18Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . 19Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . . 20Surround View Monitor (SVM)* . . . . . . . . . . . . . . . . . 20Rear Cross-Traffic Collision-Avoidance Assist (RCCA)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21Rear Occupant Alert with Ultrasonic Sensors . . . . 22Reverse Parking Collision-Avoidance Assist . . . . . . 23Forward/Reverse Parking Distance Warning (PDW)* 2 3Intelligent Speed Limit Assist (ISL A)* . . . . . . . . . . . . 24
DRIVER’S PANELInstrument Cluster Illumination Control . . . . . . . . . 25Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . . . 25Electronic Stability Control (ESC) . . . . . . . . . . . . . . . 25Reverse Parking Aid Function* . . . . . . . . . . . . . . . . . 26Engine Start/Stop Button* . . . . . . . . . . . . . . . . . . . . . . 26Power Windows, Window Lock & Central Door Lock / Auto Door Lock/Unlock . . . . . . . . . . 27Electronic Child Safety Lock System . . . . . . . . . . . . 27Rear Door Locks - Double Pull to Open . . . . . . . . . 27Power Folding Outside Mirrors* . . . . . . . . . . . . . . . . 28Power/Heated Outside Mirrors* . . . . . . . . . . . . . . . . 28Manual Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . 28
STEERING WHEEL CONTROLSHeadlights & High Beams . . . . . . . . . . . . . . . . . . . . . . 29Daytime Running Lights (DRL) / High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 29Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . 30Windshield Wipers & Washers / Rear Wiper & Washer* . . . . . . . . . . . . . . . . . . . . . . . 30Tilt/Telescoping Steering Wheel . . . . . . . . . . . . . . . . 31
AUDIO SYSTEMSAudio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Bluetooth® Wireless Technology . . . . . . . . . . . . . . . 32 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . 34Standard Audio System* . . . . . . . . . . . . . . . . . . . . . . . 35UVO link Activation* / UVO Assistance* . . . . . . . . . 36Kia Access with UVO link App Download . . . . . . . 37Kia Access with UVO link App Features Guide . . 37UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . 38
CENTER PANELDigital Clock / Multimedia USB Port, Power Outlets & USB Charger Port . . . . . . . . . . . 39Wireless Smartphone Charging System* . . . . . . . . 40Manual Climate Control* . . . . . . . . . . . . . . . . . . . . . . . 41Automatic Climate Control* . . . . . . . . . . . . . . . . . . . . 42Automatic Gear Shift with Sportmatic® Shifting . 43
CENTER PANEL (CONTINUED)Dual Clutch Transmission (DCT)* . . . . . . . . . . . . . . . 44AWD (All-Wheel Drive) Lock* . . . . . . . . . . . . . . . . . . . 45Idle, Stop & Go (ISG) System . . . . . . . . . . . . . . . . . . . 45Electronic Parking Brake (EPB) / Auto Hold . . . . .46Heated Steering Wheel* . . . . . . . . . . . . . . . . . . . . . . . 47Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . . . 47
SEATINGFront Seat Headrest Adjustment* . . . . . . . . . . . . . .48Driver Position Memory System* . . . . . . . . . . . . . . .48Power Adjustable Driver ’s Seat* / Power Lumbar* 49Manual Adjustable Driver ’s Seat* . . . . . . . . . . . . . . .492nd-Row Folding Seat / Auto-Folding Seat . . . . . .503rd-Row Folding Seat / One-Touch Slide & Fold . . 51
OTHER KEY FEATURESSunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Remote Keyless Entry (Folding Key)* . . . . . . . . . . . 52Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . . . . 52Smart Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54Smart Liftgate with Auto Open* . . . . . . . . . . . . . . . . 55Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56Panoramic Sunroof with Power Sunshade* . . . . . 56HomeLink® with Auto-Dimming Rearview Mirror* 57Hood Release Lever and Latch . . . . . . . . . . . . . . . . . 58Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . 58Fuel Filler Lid Release . . . . . . . . . . . . . . . . . . . . . . . . . .58
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . 59Child-Protector Rear Door Lock . . . . . . . . . . . . . . . . 59Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
MAINTENANCE CHART . . . . . . . . . .Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover
2*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE

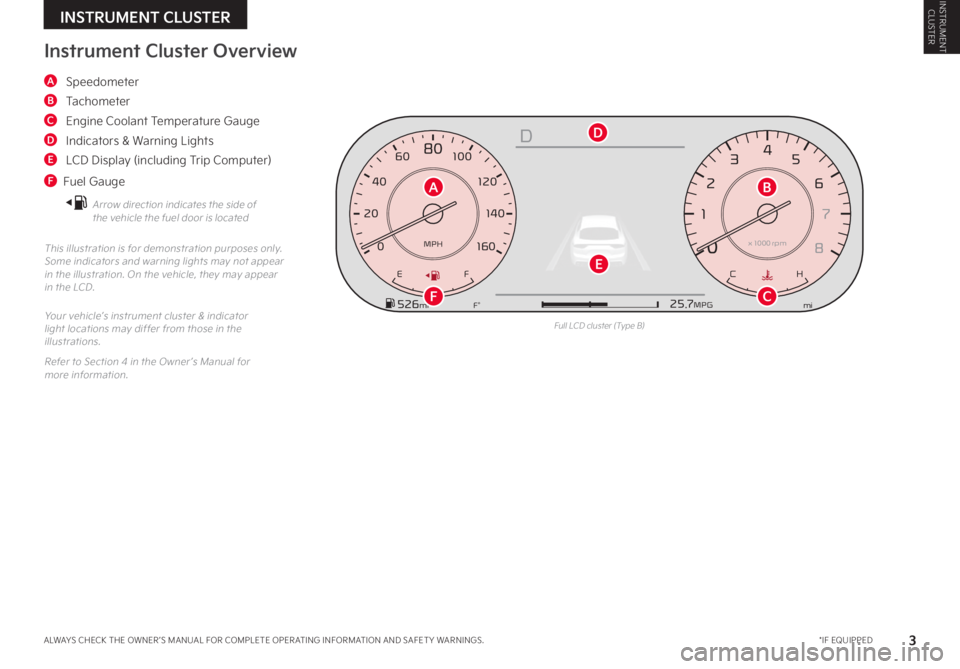

Instrument Cluster Overview
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in the illustration . On the vehicle, they may appear in the LCD .
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations .
Refer to Section 4 in the Owner ’s Manual for more information .
A Speedometer
B Tachometer
C Engine Coolant Temperature Gauge
D Indicators & Warning Lights
E LCD Display (including Trip Computer)
F
Fuel Gauge
Arrow direction indicates the side of the vehicle the fuel door is located
Full LCD cluster (Type B)
EPB
AUTO
0 6
CH
１ 5
2
D
4
3x１
000 rpm
E F
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
１ 7
8
2
6
3
4
5
E F CH
１60
20
１40
40
１20
60
１00
80
MPH
526mi miF°25.7MPG
x１ 000 rpm
3 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
AB
C
D
E
F
INSTRUMENT CLUSTERINSTRUMENT CLUSTER

4*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
Indicators & Warning Lights
Engine Oil Pressure Warning Light
Malfunction Indicator Light
Electric Parking Brake (EPB) Warning Light*
Seat Belt Warning Light
Light ON Indicator Light
High Beam Indicator Light
Low Beam Indicator Light*
Front Fog Light Indicator Light
High Beam Assist Indicator Light*
Parking Brake & Brake Fluid Warning Light
For ward Collision-Avoidance Assist (FCA) Warning Light*
All-Wheel Drive (AWD) Warning Light*
All-Wheel Drive (AWD) Lock Indicator Light*
Electronic Power Steering (EPS) Warning Light
Charging System Warning Light*
Airbag Warning Light
Low Fuel Level Warning Light
Immobilizer Indicator Light*
Engine Coolant Temperature Warning Light*
Icy Road Warning Indicator Light*

Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator Light
Anti-Lock Braking System (ABS) Warning Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
Electronic Stabilit y Control (ESC) Indicator Light
AUTO HOLD Indicator*
Cruise Control Indicator Light*
EPB
AUTO
06
CH
１ 5
2
D
4
3x１
000 rpm
E F
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
１ 7
8
2
6
3
4
5
E F CH
１60
20
１40
40
１20
60
１00
80
MPH
526mi miF°25.7MPG
x１ 000 rpm
/Cruise Control ON/SET Indicator Light*
Washer Fluid Warning Light*
Master Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (t wo separate indicators on Instrument Cluster lit at same time)
Lane Keeping Assist Indicator Light
LED Headlamp Warning Indicator*
Downhill Brake Assist (DBC) Indicator*
Auto Stop Indicator Light*
SPORT Mode Indicator Light
ECO Mode Indicator Light
Conventional cluster (Type A)
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in the illustration . On the vehicle, they may appear in the LCD .
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations .
Refer to Section 4 in the Owner ’s Manual for more information .
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER

7 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Trip Modes / Trip Computer
The Trip Computer is a driver information system that displays information related to driving on the display when the Engine Start/Stop button is in the ON position .
To cycle through the LCD Instrument Cluster modes, press the Mode button A .
To select and enter the Trip Computer mode , press the Move button B up/down and then press Set/Reset (OK) B to enter . To cycle through and select the different screens (Fuel Economy, Trip A , Trip B), press the Move button B up/down again and then press the OK button B . When displaying the TRIP A or TRIP B screens, press and hold the OK button B to reset the Tripmeter to zero .
Press the OK button B to go back to the previous mode/item .
REMINDERS:
•
Appearance of the Trip Computer display may differ as equipped
•
All stored driving information (except Odometer and Range) is reset if the bat ter y is disconnected
LCD Instrument
Cluster Modes
Press the Mode button A to cycle through the different LCD Instrument Cluster Modes:
Trip Computer Mode: Displays driving information for tripmeter, fuel economy, drive info, drive mode, etc .
Turn-by-Turn Mode*: Displays the route guidance and destination information
Information Mode*: Displays the speedometer, engine temperature, TPMS and AWD traction information
User Settings Mode: Change settings of the Driver Assistance, doors, lights, sound other features
Master Warning Mode: Displays information on low tire pressure warnings, Blind-Spot Collision Warning (BCW)* system malfunction and other systems
Driving Assist Mode: Displays information on Smart Cruise Control with Stop & Go*, Lane Safety and Driver Attention Warning* . In AWD AUTO MODE, the cluster displays the traction force distribution status of the front and rear wheels . In AWD LOCK MODE, the cluster doesn’t display the status
Your vehicle’s steering wheel but tons may differ from those in the illustrations .
(Type B Cluster)
FUEL ECONOMY
• Average Fuel Economy • Instant Fuel Economy
ACCUMULATED INFO
• Tr ipme t e r • Fuel Economy • Timer
DRIVE INFO
• Tr ipme t e r • Fuel Economy • Timer
Fuel Economy
N
Average 12.4 MPG
0 50
25(Type A; Controls located on Steering Wheel)
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Instrument Cluster’s LCD Display Video
QR CODE
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
Driving while distracted is dangerous and should be avoided
. Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving .
Your vehicle’s LCD modes may differ from those in the illustrations .
Refer to section 4 in the Owner ’s Manual for more information .
VEHICLESETTINGS
VEHICLE SETTINGS
B
A

8*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
To enter the User Settings mode in the LCD Instrument Cluster Modes, press the Mode button A (Instrument Cluster Type A) when the vehicle is at a standstill, shift lever in Park, and with the Engine/Start Stop button in the ON position, select User Settings by pressing the Move (OK) button B up/down .
You can navigate the selections on the display by pressing the Move (OK) button B up/down, and then selecting the item by pressing the OK button B . Press the OK button B up/down to go back to the previous mode/item .
User Settings mode:
Driver Assistance •Speed Limit •Warning Timing •Warning Volume •Haptic Warning •Driver At tention Warning •For ward Safet y •Lane Safet y •Blind-Spot Safet y •Parking Safet y
Climate* •Recirculate Air •Automatic Ventilation •Defog/Defrost Options
Lights •Ambient Lighting* •One-Touch Turn Signal •Headlamp Delay •High Beam Assist
Sound •Parking Distance Warning Volume* •Welcome Sound*
Door/Liftgate •Automatically Lock/Unlock* •Two Press Unlock* •Horn Feedback* •Power Liftgate Speed* •Power Liftgate Opening Height •Smart Liftgate*
Cluster* •Service Interval •Energy Consumption Reset •Content Selection •Welcome Sound •Theme Selection
Reset •Reset the User Set tings menus (except language and ser vice inter val)
Convenience •Seat-Easy Access •Rear Occupant Aler t* •Welcome Mirror/Light* •Wireless Charging System* •Auto Rear Wiper (when in Reverse) •Heated/Ventilated Features •Wipers/Lights Display* •Gear Position Pop-Up* •Icy Road Warning* •Vehicle Auto-Shut Off*
Other Features •Fuel Economy Auto Reset •Speedometer Unit •Fuel Economy Unit •Temperature Unit •Tire Pressure Unit
User Settings - Instrument Cluster
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODE
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
Vehicle Settings* -
Audio Head Unit
To enter the Vehicle Settings mode in the audio head unit C, press the SETUP key on the audio head unit or the onscreen SETUP icon
. Then press VEHICLE , which will take you to Vehicle Settings . Use the touchscreen to navigate through the menus .
Vehicle Settings:
Driver Assistance: Driving Convenience*, Warning Time*, Warning Volume*, Driver Attention
Warning*, Forward Safety*, Lane Safety*, Blind-Spot Safety*, Parking Safety*
Drive Mode: Drive Mode Alert*
Climate*: Recirculate Air*, Automatic Ventilation*, Defog/Defrost Options*, Climate Features*
Lights*: Ambient Light*, One Touch Turn Signal*, Headlight Display*, High Beam Assist*
Door*: Auto Lock*, Auto Unlock*, Walk-Away Lock*, Two-Press Unlock*, Smart Trunk*
Cluster*: Service Interval*, Energy Consumption Reset*, Content Selection*,
Cluster Voice Guidance Volume*, Welcome Sound*, Theme Selection*
Convenience*: Rear Occupant Alert*, Welcome Mirror Light*, Wireless Charging System*, Vehicle Auto-Shut Off*
Seat*: Seat Position Change Alert*, Smart Posture Care*, Heated/ Ventilated Features*, Seat East Access*, Rear Seat Heating Control*
Reset: Reset Vehicle Settings to Factory Defaults
12:00 AM Jan. 1MenuVehicle SettingsDriving Convenience
Drive Mode
Climate
LightsDriver
AssistanceWarning TimingLateWarning VolumeOffDriver Attention Warning
VEHICLESETTINGS
VEHICLE SETTINGS
B
C
A

13†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
LKA User Settings:
•
To turn LK A ON, with the ignition on or the Engine Start/Stop button* in the ON position, press the Lane Safety/LK A button* A . The instrument cluster indicator will initially illuminate white indicating the system is on
•To turn LK A on in the user settings, go to the User Settings menu in the Instrument Cluster, press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•To switch between LK A modes (Lane Keep Assist, Lane Departure Warning), go to User Settings in the Instrument Cluster . Press the Move (OK) button C up/down and select desired setting and press the OK button C
REMINDERS:
•
LK A will not issue a warning if the turn signals or hazard lights are activated
•
When the ignition is cycled, LK A will return to the previously set state
•
Some models access set tings through the Vehicle Set tings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Set tings
Lane Keeping Assist (LKA)†4 (continued)
HOLD
(Located on Panel to the left of the steering wheel)
Lane Keeping Assist and Lane Depar ture Warning are not substitutes for safe driving and may not always aler t the driver if the vehicle is driven outside of its lane . Always drive safely and use caution .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Actual User Set tings steps may var y by model . Refer to section 4 in the Owner ’s Manual for more information .
Blind-Spot View Monitor
(BVM)*†4
Blind-Spot View Monitor (BVM) is designed to display the rear and side of the vehicle blind spot areas in the Instrument Cluster LCD when the system is activated .
To turn BVM on, go to User Settings in the Instrument Cluster by pressing the Mode button D on the Steering Wheel (Instrument Cluster Type A) . Select Driver Assistance > Blind-Spot Safety > Blind-Spot View and press the OK button E .
BVM will operate when the Engine Start/Stop button is on and the turn signal is activated .
BVM will not operate when the Engine Start/Stop button is off, a turn signal is deactivated or another warning screen comes up on the Instrument Cluster LCD .
See section 4 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .
(But tons located on right side of the steering wheel)
(But tons located on right side of the steering wheel)

The LK A Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit .
QUICK TIP
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Blind-Spot View Monitor (BVM) Video
QR CODE
OK
MODE
OK CRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISEB
C
A
OK
MODE
OKCRUISE
MODE
OKOK
OKOK
OKOK
OKOK
CRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
CRUISECRUISE
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
E
D

See section 5 in the Owner ’s Manual for more information .
HAC helps prevent the vehicle from rolling backwards when accelerating from a stop while on a steep incline . The HAC automatically activates whether the ESC is OFF or ON but does NOT activate when the ESC has malfunctioned .
Hill-Start Assist Control (HAC)†8
REMINDERS:
•
HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position .
•In the event of HAC system malfunction, see an Authorized Kia Dealer for ser vice
•
HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
HOLD
HOLD
#VU UPO
QBOFM
MPDBUFE
MFGU
PG
4UFFSJOH
8IFFM

Instrument Cluster Illumination Control
With the parking lights/headlights ON, press the button A (+) or (-) to adjust the brightness of the instrument panel illumination .
REMINDER: The Instrument Cluster illumination Control does not adjust brightness on the audio head unit screens . Use the display set tings in the Setup menu to adjust the brightness on the screen .
BA
•When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation .
•HAC provides a t wo-second delay before the vehicle may star t rolling backwards
QUICK TIPS
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers . It is a good idea to keep the ESC turned on for daily driving whenever possible .
Press the ESC OFF button B to turn Traction Control OFF/ON .
To turn OFF both the Traction Control and Stability Control, press and hold for more than 3 seconds . Press it again to turn ON .
REMINDERS:
•
ESC is active by default at vehicle star tup . When the ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will illuminate whenever the ESC is in operation
Electronic Stability Control (ESC)†6
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Electronic Stability Control Video
QR CODE
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 5 in the Owner ’s Manual for more information .
DRIVER'S PANEL
DRIVER’SPANEL
25†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .

29 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
OFFOFF
AUTO
OFFOFF
AUTO
REMINDERS:
•
High Beam Assist does not operate below cer tain speeds, or in some lighting and driving conditions
. Please be aware of your surroundings and exercise proper road etiquet te when operating a vehicle using the high beams
•DRL only operates during the day time
•HBA will operate when vehicle speed exceeds 25 mph
•
If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously . If the lever is pulled toward you while HBA is operational, HBA will turn off
•If the light switch is switched to the headlight position, HBA will turn off and low beams will be on continuously
•
When the HBA indicator illuminates on the instrument cluster, the HBA is not working properly . See an authorized Kia dealer for ser vice
B
C
A
STEERING WHEEL CONTROLS
STEERING WHEEL CONTROLS
To operate:
•Rotate the switch to change the Headlight function A
•Push the lever to turn the High Beams ON B
•Pull the lever to flash the Headlights/High Beams C
AUTO Light position – When the light switch is in the AUTO Light position, the tail lights and headlights will turn ON/OFF automatically depending on the amount of light outside the vehicle .
Daytime Running Lights (DRL)* – DRL may help others to see the front of your vehicle during the day . The lights will turn on automatically when the ignition or Engine Start/Stop button is ON and the headlight switch is in the AUTO position, unless one of the following occurs:
•Headlights are on
•Parking brake is applied
•Engine is turned off
•Headlight switch is in the OFF position
High Beam Assist (HBA) – High Beam Assist is designed to automatically adjust the headlight range by switching between high and low beams based on light detected from other vehicles and road conditions .
To enable HBA , toggle the light switch to the AUTO Light position and turn on the high beams by pushing the lever away from you . The High Beam Assist indicator will illuminate .
Headlight position
Parking light position
AUTOAuto Light / HBA* /DRL*
OFFOFF position
Headlights & High Beams
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 4 in the Owner ’s Manual for more information .

30*IF EQUIPPEDSORENTO FEATURES & FUNCTIONS GUIDE
To operate:
•Move lever Up/Down D to change Wiper modes
•Push switch E to adjust Intermittent Wipe Speed
•Pull lever to spray and wipe F
Windshield Wipers & Washers
MIST: Single wipe
OFF: Wiper off
INT/AUTO*: Intermittent Wipe/Rain Sensing*
LO: Slow wipe
HI: Fast wipe
OFFOFF
AUTO
OFFOFF
AUTO
MIST
OFF
AUTO
LO
HI
HIREARLO
OFF
MIST OFF
AUTO
LO
HI
HIREARLO
OFF
MIST OFF
AUTO
LO
HI
HIREARLO
OFF
MIST OFF
AUTO
LO
HI
HIREARLO
OFF
HI: Fast wipe
LO: Slow wipe
OFF: Wiper off
Rear Wiper & Washer*
To operate:
•Rotate Rear Wiper switch to change Wiper modes G
•Push to spray and wipe H
B
C
D
E
GH
F
A
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Wipers and Wipers Stalk Video
QR CODE
•Moving switch E up increases intermit tent wipe frequency and wipe speed . Moving switch down decreases frequency of wipes
•Set the wiper to the OFF position when the wiper is not in use
QUICK TIPS
On Rear Wipers, the intermit tent wipe function is not adjustable . LO and HI sets wiper speed .
QUICK TIP
STEERING WHEEL CONTROLS
STEERING WHEEL CONTROLS
Turn Signals & Fog Lights*
To operate:
•Slightly move lever up/down to activate One-Touch Lane Change Signal A
•Turn Signals – Move lever Up/Down for Right/Left Turn Signal B
•Fog Lights – Press toggle switch C to turn Fog Lights ON/OFF
REMINDER: Headlights must be ON for Fog Light operation
One-Touch Lane Change Signal is activated by briefly pressing the Turn Signal Lever up/down slightly for less than 1 second and then releasing A . The lane change signal will blink 3 times .
To turn the One-Touch Lane Change Signal OFF/ON, go to User Settings Mode in the LCD Instrument Cluster modes .
Refer to section 4 in the Owner ’s Manual for more information . For illustrative purposes only . Your actual display, but tons and/or features may var y .
One-Touch Lane Change Signal

55†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS.
See section 4 in the Owner ’s Manual for more information.
Images are for illustrative purposes only and may not reflect actual feature or operation.
The Smart Liftgate with Auto Open can be operated from several controls to either open, close or lock the Liftgate. The Smart Liftgate with Auto Open will close the Liftgate, lock all doors and Liftgate and then arm the vehicle.
When the Smart Key fob is on your person and you are near the back of the vehicle, within close proximity, the hazard lights will blink and a chime will sound for about 3 seconds as an alert that the Smart Power Liftgate is about to open. Then the alert system will blink and chime two additional times before opening the Smart Power Liftgate.
The Smart Liftgate with Auto Open feature is off by default. To enable the Smart Power Liftgate, go to User Settings in the LCD Instrument Cluster modes.
REMINDERS:
•All doors are closed and locked after about 15 seconds
•The Smar t Liftgate with Auto Open feature will not operate when:
-
The doors are recently closed and locked, and the Smar t Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles
-A door is not locked or closed
-The Smar t Key is in the vehicle
•
Press any but ton on the Smar t Key fob during the Detect and Aler t stage, or move out of the detection area, to deactivate the Smar t Liftgate with Auto Open function
•
When the ignition is on, the Smar t Liftgate with Auto Open will only operate with the gear shift in the Park (P) position
•
The Smar t Key must be outside of the vehicle for the Smar t Liftgate with Auto Open to operate
•When closing, be mindful of any objects or persons
Smart Liftgate with Auto Open*†2 0
OTHER KEY FEATURES
OTHER KEY FEATURES
Refer to the inside front cover for more information on QR codes.www.youtube.com/KiaFeatureVideos
Smart Power Liftgate Video
QR CODE
•
During the Smar t Liftgate with Auto Open aler t, the Smar t Liftgate with Auto Open can be deactivated with the Smar t Key by pressing any but ton on the key fob or moving away from the detection area
•
The open height and speed can be adjusted. For information on how to set the open height and speed, see your owner ’s manual
QUICK TIPS
