JACKING THE CAR
If the car is to be lifted, go to a Lancia Dealership which is equipped
with the arm hoist or workshop lift.
Jack up the car only by positioning the jack arms or the shop jack in
the points shown in the figures.
TOWING THE CAR
The car is delivered with two tow rings: the short tow ring shall be
fitted at the front and the long one at the back.
Tow rings are arranged in tool container.
Side figures show how rear (long) ring was arranged, within spare
wheel and in the container of kit Fix & Go automatic, respectively.
For versions with Dual FuNction System gearbox, make sure that it is
in neutral N (checking that the car moves when pushed) and proceed
as for towing a normal car with mechanical gearbox.
L0D0203m
L0D0342m
L0D0369m

288
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
TOW HITCH CAP REMOVAL PROCEDURE
To avoid damaging the cap A, proceed as follows:
❒take the screwdriver provided in the tool kit;
❒insert the screwdriver in the cap slot B;
❒put the hand thumb on the cap to prevent damaging it (see the
figure);
❒remove the cap (without turning it) making a movement
perpendicular to the supporting surface (see the figure).
L0D0250m
L0D0251m

289
WARNING
LIGHTS AND
MESSAGES
CAR
MAINTENANCE
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
WARNING
WARNING
Do not start the engine when towing the car.
WARNING
While the car is being towed with the
engine off, remember that the brake pedal
and steering will require more effort as
you no longer have the benefit of the brake
booster and the electrical power steering.
Do not use flexible cables to tow. Avoid
jerking. Whilst towing, ensure that the
coupling to the car does not damage the
surrounding components. When towing the
car, you must comply with the specific
traffic regulations regarding the tow hitch
and how to tow on the road. TOW RING HOOKING
Proceed as follows:
❒take the tow ring B from its support;
❒tighten the ring on the rear or front threaded pin.
Before starting to tow, turn the ignition
key to MAR and then to STOP. Do not
remove the key. If the key is removed, the
steering lock engages automatically which
prevents the wheels being turned.
L0D0204m
L0D0205m

290
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
CAR MAINTENANCE
SCHEDULED SERVICING ................................... 291
SERVICE SCHEDULE .......................................... 292
ANNUAL INSPECTION SCHEDULE .................... 294
ADDITIONAL CHECKS ........................................ 294
CHECKING FLUID LEVELS ................................ 297
DIESEL FUEL FILTER (green filter) .................... 304
BATTERY .............................................................. 305
WHEELS AND TYRES ......................................... 309
RUBBER HOSES ................................................... 311
WINDSCREEN/REAR WINDOW WIPERS............ 311
BODYWORK ......................................................... 314
INTERIORS ........................................................... 317

SCHEDULED SERVICING
Correct maintenance is essential for ensuring long
car life under the best conditions.
This is why Lancia has programmed a series of
checks and maintenance operations every 20,000
km.
It is however important to remember that scheduled
servicing does not completely cover all the car’s
requirements: also in the initial period before
20,000 km service coupon and later, between one
coupon and another, ordinary care is still required
such as for example routine check and topping up
the level of fluids, tyre pressure check, etc...
IMPORTANT The Programmed Maintenance
coupons are specified by the Manufacturer. The
failure to have them carried out may invalidate the
warranty.
Scheduled Servicing is performed by all Lancia
Dealership, at pre-established times.If during each operation, in addition to the ones
programmed, the need arises for further
replacements or repairs, these may be carried out
only with the explicit agreement of the Customer.
IMPORTANT You are advised to contact Lancia
Dealership in the event of any minor operating
faults, without waiting for the next service coupon.
If your car is used frequently for towing, the
interval between one service coupon and the other
must be reduced.
291
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

292
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
SERVICE SCHEDULE
Thousands of km
Check tyre conditions/wear and
adjust pressure if required
Check light system operation
(headlights, direction indicators, hazard lights, boot lights,
passenger compartment lights, dashboard warning lights, etc.)
Check windscreen/washer
(nozzles/and blade position regulation)
Check front disk brake pad conditions and wear
Check rear drum brake lining conditions
and wear
Sight inspect the conditions of: body external parts, underbody
protection pipes and hoses (exhaust, fuel, brakes),
rubber parts (boots, sleeves, bushes, etc.)
Check for bonnet and boot lock cleanness, lever cleanness
and lubrication
Check tension and adjust accessory drive belts
(excluding engines with automatic belt tighteners)
Check tension and adjust accessory drive belts
Check and adjust tappet clearance
(1.48V(where provided)-1.9 Multijet versions)
20 40 60 80 100 120 140 160 180
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●●● ●●●●
●●●
●●●●● ●●●●
●●●●● ●●●●
●
●● ● ●
●● ● ●

293
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
Thousands of km
Check and adjust handbrake lever stroke
Check exhaust emissions/smoke
(1.3 Multijet and 1.9 Multijet versions)
Check exhaust emissions (petrol versions)
Check antievaporation system (petrol versions)
Change fuel filter cartridge (“green filter”) (diesel versions)
Change air cleaner cartridge (petrol versions)
Change air cleaner cartridge (1.9 Multijet versions) (❏)
Top up fluids
(engine coolant, brakes, windscreen washer, battery, DFN etc.)
Check timing belt conditions (■)
Replace timing belt (*) (■)
Change spark plugs (petrol versions)
Check engine control system operation
(through diagnosis socket)
Change engine oil and oil filter (❏)
Change engine oil and oil filter (Multijet version with DPF) (**)
Change brake fluid (or every 2 years)
Change pollen filter (or every year)
(*) Or every 4 years for particularly demanding use:
- cold/hot climates;
- driving in the city idling for a long time;
- dusty roads or roads covered with sand and/or salt
Or every 5 years, regardless of the km covered and conditions of use.
(**) Engine oil and oil filter shall be changed when the corresponding warning light turns on (see section “Warning lights and Messages”),
or in any case every 2 years.
(
❏) Every 30.000 km for 1.3 Multijet versions
(
■) Excluding 1.3 Multijet versions
20 40 60 80 100 120 140 160 180
●● ● ●
●● ● ●
●● ● ●
●●
●●●
●●●
●●●●● ●●●●
●●●●● ●●●●
●●
●
●● ● ●
●● ● ●
●●●●● ●●●●
(●)(●)(●)(●)(●)(●)(●)(●)(●)
●●●
●●●●● ●●●●

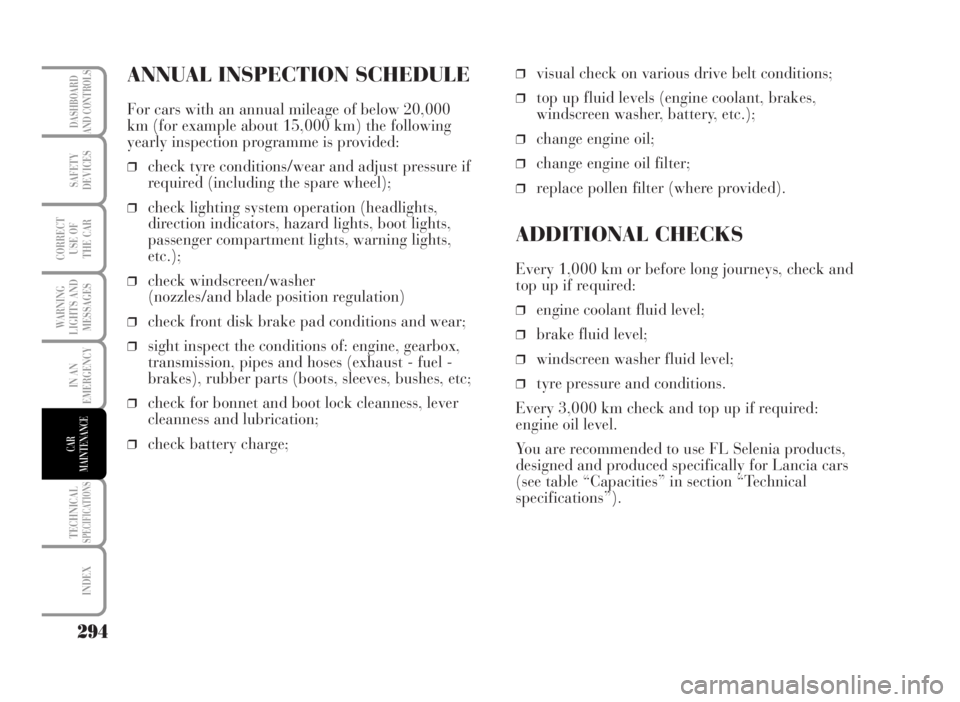

ANNUAL INSPECTION SCHEDULE
For cars with an annual mileage of below 20,000
km (for example about 15,000 km) the following
yearly inspection programme is provided:
❒check tyre conditions/wear and adjust pressure if
required (including the spare wheel);
❒check lighting system operation (headlights,
direction indicators, hazard lights, boot lights,
passenger compartment lights, warning lights,
etc.);
❒check windscreen/washer
(nozzles/and blade position regulation)
❒check front disk brake pad conditions and wear;
❒sight inspect the conditions of: engine, gearbox,
transmission, pipes and hoses (exhaust - fuel -
brakes), rubber parts (boots, sleeves, bushes, etc;
❒check for bonnet and boot lock cleanness, lever
cleanness and lubrication;
❒check battery charge;
❒visual check on various drive belt conditions;
❒top up fluid levels (engine coolant, brakes,
windscreen washer, battery, etc.);
❒change engine oil;
❒change engine oil filter;
❒replace pollen filter (where provided).
ADDITIONAL CHECKS
Every 1,000 km or before long journeys, check and
top up if required:
❒engine coolant fluid level;
❒brake fluid level;
❒windscreen washer fluid level;
❒tyre pressure and conditions.
Every 3,000 km check and top up if required:
engine oil level.
You are recommended to use FL Selenia products,
designed and produced specifically for Lancia cars
(see table “Capacities” in section “Technical
specifications”).
294
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

IMPORTANT - Engine oil
Should prevailing use of the car be under one of the
following specially heavy conditions:
❒trailer or caravan towing;
❒dusty roads;
❒short distances (less than 7-8 km) repeated and
with external temperatures below zero;
❒frequently idling engines or long distance low
speed driving (e.g. taxis or door-to-door
deliveries) or in case of a long term inactivity;
replace engine oil more frequently than required on
“Service schedule”.
IMPORTANT - Air cleaner
If the car is used on dusty roads change the air
cleaner more frequently than the indications in the
“Service schedule”.
If in doubt as to how often the engine oil and air
cleaner should be changed according to how you use
the car, contact a Lancia Dealership.IMPORTANT - Pollen filter
If the vehicle is used frequently in dusty or heavily
polluted environments it is advisable to replace the
filtering element more frequently; in particular it
should be replaced if a reduction of the amount of
air admitted to the passenger compartment is noted.
IMPORTANT - Diesel filter
The possibility of topping up with diesel fuel not
complying with EN590 European Norm might
make it necessary to replace the filter more
frequently than indicated in the “Service schedule”.
295
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

IMPORTANT - Battery
The charge in the battery should be checked at the
start of winter to limit the risk of electrolyte
freezing.This check should be carried out more frequently if
the car is used mainly for short trips, or if it is fitted
with accessories that permanently absorb electricity
even with the ignition key removed, especially in the
case of after market accessories. If the car is used in
hot climates or particularly harsh conditions it is
wise to check the level of the battery fluid
(electrolyte) more frequently than specified in the
“Service schedule” in this section.
296
WARNING
LIGHTS AND
MESSAGES
TECHNICALSPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT
USE OF
THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
Car maintenance should be entrusted to Lancia Dealership. For routine and minor maintenance
operations you wish to carry out yourself, always make sure you have the proper equipment,
genuine Lancia spare parts and the necessary fluids; do not however carry out these operations if
you have no experience.
