display Lexus CT200h 2014 (in English) Owner's Guide

1012. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
Items displayed can be switched by
pressing the “DISP” switch.
■Energy monitor
→P. 1 0 6
■Current fuel consumption/Average fuel consumption after refueling
Displays the instant fuel consumption and average fuel consumption after
refueling.
Use the displayed average fuel consumption as a reference.
■Average fuel consumption
Displays the average fuel consumption since the function was reset.
• The function can be reset by pressing the “DISP” switch for longer than 1 second
when the average fuel consumption is displayed.
• Use the displayed average fuel consumption as a reference.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining.
• This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning
the power switch off, the display may not be updated.
■Elapsed time
Displays the elapsed time since the hybrid system was started or the function
was reset.
The function can be reset by pressing th e “DISP” switch for longer than 1 second
when the elapsed time is displayed.
■Average vehicle speed
Displays the average vehicle speed since the function was reset.
The function can be reset by pushing the “DISP” switch for longer than 1 second
when the average vehicle speed is displayed.
Drive information
CT200h_OM_OM76135E_(EE).book Page 101 Friday, May 30, 2014 1 1:14 AM

1022. Instrument cluster
CT200h_OM_OM76135E_(EE)
■Setting
→P. 5 8 9
■Display off
A blank screen is displayed
■System check display
After turning the power switch to ON mode , opening image is displayed while system
operation is checked. When the system check is complete, the normal screen will return.
■When disconnecting and reconnecting 12-volt battery terminals
The drive information will be reset.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
CT200h_OM_OM76135E_(EE).book Page 102 Friday, May 30, 2014 1 1:14 AM

103
2
2. Instrument cluster
Instrument cluster
CT200h_OM_OM76135E_(EE)
Multi-information display (with color display)∗
The multi-information display presents the
driver with a variety of vehicle data.
●Menu icons
Displays the following information
when an icon is selected. (→P. 1 0 4 )
Some of the information may be dis-
played automatically depending on
the situation.
Drive information
Select to display various drive data. ( →P. 1 0 4 )
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
•Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display (if equipped)
Select to enable selection of an audio source or track on the display using the
meter control switches.
Select to display the cruise control/dynamic radar cruise control information,
when the system is used. ( →P. 205, 208)
The displayed icon changes depending on the system used.
Warning message display
Select to display warning me ssages and measures to be taken if a malfunction is
detected. ( →P. 5 2 1 )
Settings display
Select to change the meter display settings. ( →P. 5 8 9 )
∗: If equipped
Display contents
Cruise control/Dynamic radar cruise control display (if equipped)
CT200h_OM_OM76135E_(EE).book Page 103 Friday, May 30, 2014 1 1:14 AM

1042. Instrument cluster
CT200h_OM_OM76135E_(EE)
●Energy monitor
Displays the status of the hybrid system.(→P. 1 0 6 )
●Lexus parking assist-sensor (if equipped)
Automatically displayed when the system is used ( →P. 2 1 9 )
The multi-information display is oper-
ated using the meter control switches. Select an item/change pages
Enter/Set
Return to the previous screen
Press:
Displays the screen registered to
When no screen has been registered, the drive information screen will be displayed.
Press and hold:
Registers the currently displayed screen to ( →P. 589)
The registration confirmation screen is displayed. If the selected screen cannot be
registered, a registration failure message will be shown.
Items displayed can be switched by pressing or of the meter control
switches to select and pressing or .
■Current fuel consumption*1
Displays the current rate of fuel consumption
■Average fuel consumption (after reset*2/after start/after refuel)*1
Displays the average fuel consumption since the function was reset, the hybrid
system was started, and the vehicle was refueled, respectively
Use the displayed average fuel consumption as a reference.
■Average vehicle speed (after reset*2/a f t e r s t a r t )*1
Displays the average vehicle speed since the function was reset and the
hybrid system was started, respectively
■Elapsed time (after reset*2/a f t e r s t a r t )*1
Displays the elapsed time since the function was reset and the hybrid system
was started, respectively
Operating the meter control switches
1
2
3
4
Drive information
CT200h_OM_OM76135E_(EE).book Page 104 Friday, May 30, 2014 1 1:14 AM

1052. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
■Distance (driving range/after start)*1
Displays the estimated maximum distance that can be driven with the quantity
of fuel remaining and the distance driven after the hybrid system was started
respectively.
• This distance is computed based on your average fuel consumption. As a result,the actual distance that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning
the power switch off, the display may not be updated.
■Energy monitor
→ P. 1 0 6
■Display off
A blank screen is displayed
*1: Displayed when the item is set in “D rive Info 1” or “Drive Info 2”. (→P. 5 8 9 )
*2: The function can be reset by pressing the of the meter control switches for longer
than 1 second when the item to reset is displayed.
If there is more than one item that can be reset, the item selection screen will appear.
■System check display
After turning the power switch to ON mode , opening image is displayed while system
operation is checked. When the system check is complete, the normal screen will return.
■Po p - u p d i s p l a y
In some situations, a pop-up display will be temporarily displayed on the multi-informa-
tion display.
The following pop-up displays can be set on/off. ( →P. 5 8 9 )
• Route guidance display of the navigati on system-linked system (if equipped)
• Incoming call display of the hands-free phone system (if equipped)
■When disconnecting and reconnecting 12-volt battery terminals
The drive information will be reset.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
CT200h_OM_OM76135E_(EE).book Page 105 Friday, May 30, 2014 1 1:14 AM

1062. Instrument cluster
CT200h_OM_OM76135E_(EE)

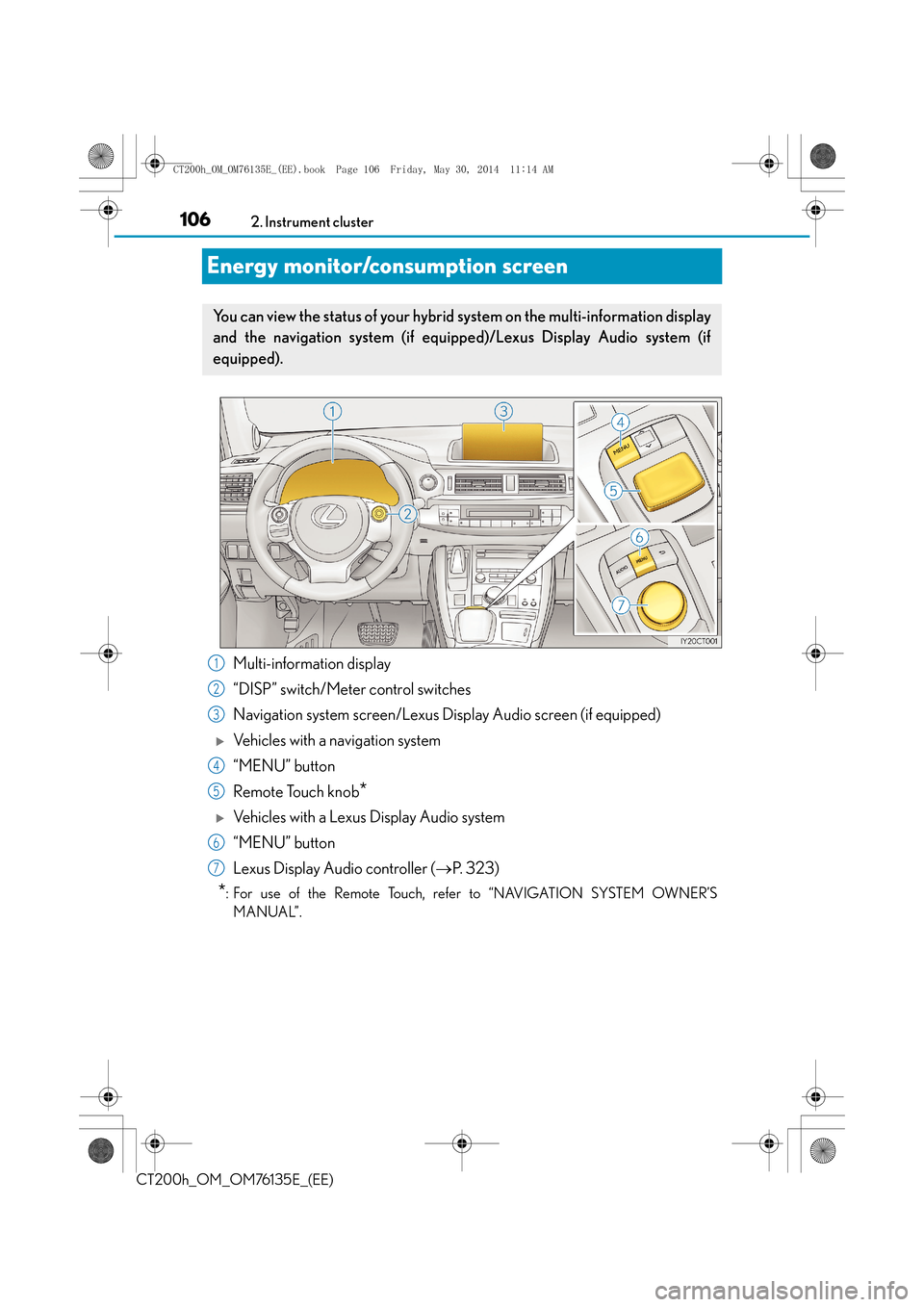

Energy monitor/consumption screen
Multi-information display
“DISP” switch/Meter control switches
Navigation system screen/Lexus Display Audio screen (if equipped)
XVehicles with a navigation system
“MENU” button
Remote Touch knob
*
XVehicles with a Lexus Display Audio system
“MENU” button
Lexus Display Audio controller ( →P. 323)
*: For use of the Remote Touch, refer to “NAVIGATION SYSTEM OWNER’S
MANUAL”.
You can view the status of your hybrid system on the multi-information display
and the navigation system (if equippe d)/Lexus Display Audio system (if
equipped).
1
2
3
4
5
6
7
CT200h_OM_OM76135E_(EE).book Page 106 Friday, May 30, 2014 1 1:14 AM

1072. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
XNavigation system screen
Press the “MENU” button on the
Remote Touch, and then select “Car”
on the “Menu” screen.
If the “Trip information” or “Past record”
screen is displayed, select “Energy”.
XLexus Display Audio screen
Press the “MENU” button on the Lexus
Display Audio controller, and then
select “Car” on the “MENU” screen.
If the “Energy monitor” screen does not
appear, move the controller to the right
and select “Energy”.
XMulti-information display
Vehicles with monochrome display:
Press the “DISP” switch on the steering wheel several times to select the energy
monitor display.
Vehicles with color display:
Press or of the meter control switches and select , and then press or to select the energy monitor display.
Energy monitor
CT200h_OM_OM76135E_(EE).book Page 107 Friday, May 30, 2014 1 1:14 AM

1082. Instrument cluster
CT200h_OM_OM76135E_(EE)
■Navigation system screen/Lexus Display Audio screen
Navigation system screenLexus Display Audio screen
When the vehicle is
powered by the
electric motor (trac-
tion motor)
When the vehicle is
powered by both the
gasoline engine and
the electric motor
(traction motor)
When the vehicle is
powered by the gas-
oline engine
When the vehicle is
charging the hybrid
battery (traction bat-
tery)
When there is no
energy flow
CT200h_OM_OM76135E_(EE).book Page 108 Friday, May 30, 2014 11:14 AM

1092. Instrument cluster
2
Instrument cluster
CT200h_OM_OM76135E_(EE)
These images are examples only, and may vary slightly from actual conditions.
■Multi-information display screen
Hybrid battery (trac-
tion battery) status
LowFullLowFull
Navigation system screenLexus Display Audio screen
Monochrome displayColor display
When the vehicle is
powered by the
electric motor (trac-
tion motor)
When the vehicle is
powered by both the
gasoline engine and
the electric motor
(traction motor)
When the vehicle is
powered by the gas-
oline engine
When the vehicle is
charging the hybrid
battery (traction bat-
tery)
CT200h_OM_OM76135E_(EE).book Page 109 Friday, May 30, 2014 11:14 AM

1102. Instrument cluster
CT200h_OM_OM76135E_(EE)
These images are examples only, and may vary slightly from actual conditions.
■Trip information
XNavigation system screen
Press the “MENU” button on the Remote Touch, and then select “Car” on the
“Menu” screen.
If the “Energy monitor” or “Past record” sc reen is displayed, select “Trip informa-
tion”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Regenerated energy in the past
15 minutes
One symbol indicates 30 Wh.
Up to 5 symbols are shown.
Average vehicle speed since the hybrid system was started.
Elapsed time since the hybrid system was started.
Cruising range ( →P. 112)
When there is no
energy flow
Hybrid battery (trac-
tion battery) status
LowFullLowFull
Fuel consumption (vehicles with a n avigation system or Lexus Display
Audio system)
Monochrome displayColor display
1
2
3
4
5
6
7
CT200h_OM_OM76135E_(EE).book Page 110 Friday, May 30, 2014 1 1:14 AM
