clock Lexus ES350 2015 Owner's Manual - ES 300h, ES 350

5
ES350_300h_OM_OM33B99U_(U)
1
9 8
7
6 4 3
2
10
5
5-10. PhonebookContact settings ......................... 434
Messaging setting ..................... 438
5-11. Bluetooth
®
What to do if... (Troubleshooting) ................... 439
Bluetooth
®................................... 443
5-12. Other function “Information” screen................. 449
USB photo ......................................451
Weather information ................ 453
Voice command system .......... 455
Mobile Assistant......................... 459
LEXUS Enform Remote ........... 461
6-1. Using the air conditioning system and defogger
Automatic air conditioning system .......................................... 464
Heated steering wheel/ seat heaters/seat
ventilators.................................... 477
6-2. Using the interior lights Interior lights list ..........................479• Interior light............................480
• Personal lights .......................480 6-3. Using the storage features
List of storage features ............ 482• Glove box ............................... 484
• Console box .......................... 485
• Cup holders ........................... 486
• Auxiliary box.......................... 487
Trunk features ..............................488
6-4. Other interior features Sun visors and vanity mirrors ................... 490
Clock ................................................491
Power outlets ............................... 492
Armrest.......................................... 494
Rear sunshade/ rear door sunshades.............. 495
Trunk storage extension .......... 498
Coat hooks ................................... 499
Assist grips ...................................500
Garage door opener ................ 501
Compass .......................................508
LEXUS Enform Safety Connect........................................513
6Interior features

3685-2. Setup
ES350_300h_OM_OM33B99U_(U)
Select “General” or “Camera” on the “Display” screen or select “Dis-
play” on each audio menu screen. (→P. 375)
Adjust the display as desired by turning the controller clockwise (+) or
counterclockwise (-).
To select “Contrast”, “Brightness”, “Color” or “Tone”, move the controller to the
left. (“Colour” and “Tone” are available when “Display” on the audio settings
screen for each audio source is selected.)
■Changing the sample image (when “General” is selected)
Move the controller to the right and select the desired sample image.
Adjusting the screen quality
1
2

463
ES350_300h_OM_OM33B99U_(U)
6Interior features
6-1. Using the air conditioning system and defogger
Automatic air conditioning system ..........................................464
Heated steering wheel/ seat heaters/seat
ventilators ................................... 477
6-2. Using the interior lights Interior lights list.......................... 479• Interior light ........................... 480
• Personal lights....................... 480 6-3. Using the storage features
List of storage features ............ 482• Glove box ...............................484
• Console box...........................485
• Cup holders ...........................486
• Auxiliary box .......................... 487
Trunk features ............................. 488
6-4. Other interior features Sun visors and vanity mirrors ................... 490
Clock................................................ 491
Power outlets ............................... 492
Armrest .......................................... 494
Rear sunshade/ rear door sunshades .............. 495
Trunk storage extension ..........498
Coat hooks ................................... 499
Assist grips................................... 500
Garage door opener................. 501
Compass ...................................... 508
LEXUS Enform Safety Connect ....................................... 513

491
ES350_300h_OM_OM33B99U_(U)
6-4. Other interior features
6
Interior features
Clock
Pressing and holding will move
the clock hands backward.
Pressing and holding will move
the clock hands forward.
The clock can be adjusted by pressing the buttons.
1
2

550
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the
same type as that already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
XGasoline vehiclesXHybrid vehicles
Engine oil selection →P. 7 0 6
Oil quantity (Low → Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel
1
2
3

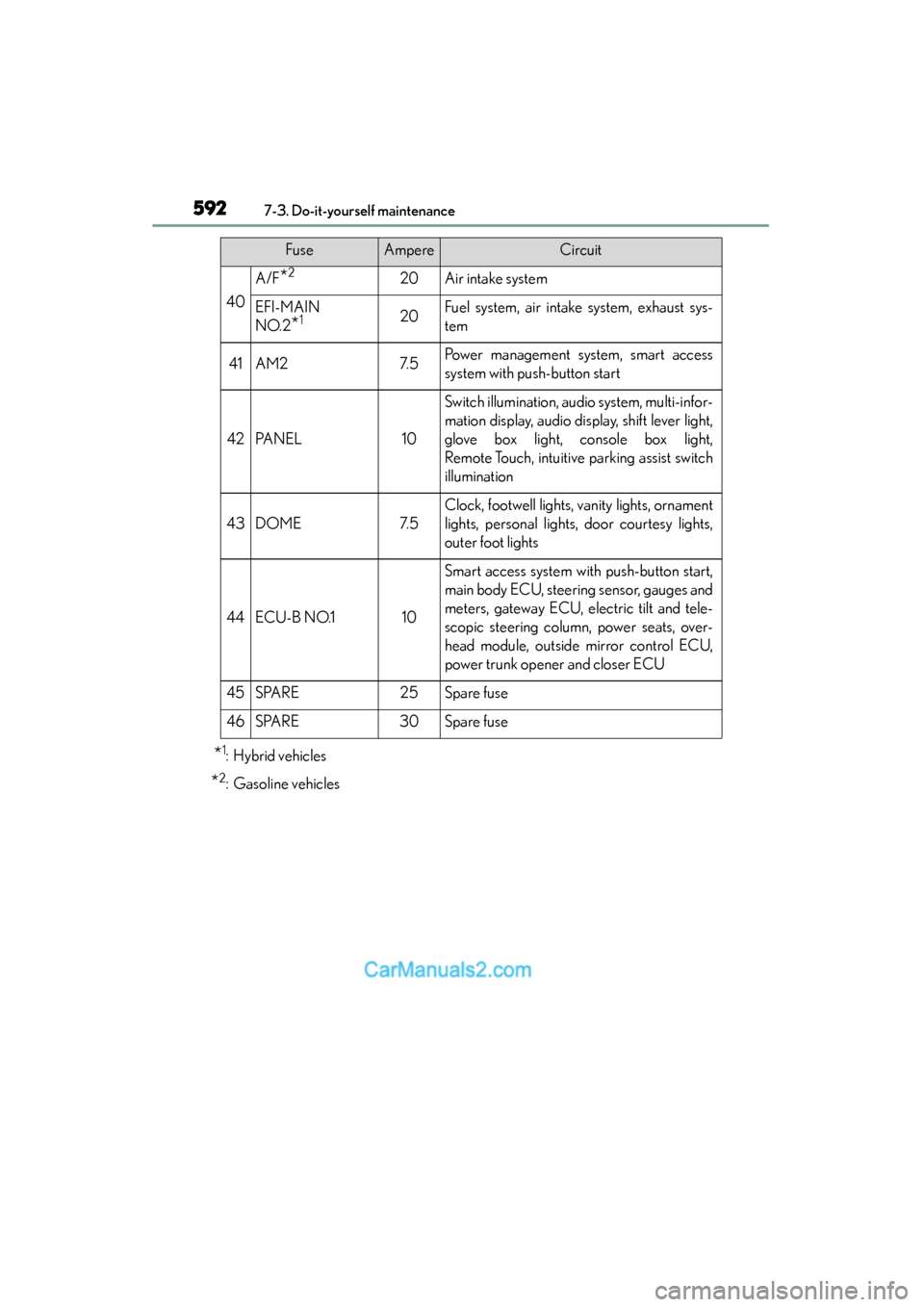

592
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
*1:Hybrid vehicles
*2: Gasoline vehicles
40
A/F*220Air intake system
EFI-MAIN
NO.2
*120Fuel system, air intake system, exhaust sys-
tem
41AM27. 5Power management system, smart access
system with push-button start
42PA N E L10
Switch illumination, audio system, multi-infor-
mation display, audio display, shift lever light,
glove box light, console box light,
Remote Touch, intuitive parking assist switch
illumination
43DOME7. 5
Clock, footwell lights, vanity lights, ornament
lights, personal lights, door courtesy lights,
outer foot lights
44ECU-B NO.110
Smart access system with push-button start,
main body ECU, steering sensor, gauges and
meters, gateway ECU, electric tilt and tele-
scopic steering column, power seats, over-
head module, outside mirror control ECU,
power trunk opener and closer ECU
45SPARE25Spare fuse
46SPARE30Spare fuse
FuseAmpereCircuit

594
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
■Driver’s side instrument panel
FuseAmpereCircuit
1ECU-IG1 NO.210
Main body ECU, audio system, shift lock sys-
tem, outside mirror control ECU, tension
reducer, windshield wipers, heated steering
wheel, multi-information display, audio dis-
play, intuitive parking assist, tire pressure
warning system, moon roof, auto anti-glare
inside rear view mirror, raindrop sensor, rear
sunshade, wireless door lock system, power
trunk opener and closer ECU
2ECU-IG1 NO.110
Electric cooling fan, windshield wiper de-
icer, VSC, ABS, charging system, steering
sensor, electronic controlled transmission,
electric power steering, gateway ECU, elec-
tric tilt and telescopic steering column
3PA N E L N O. 25Clock
4TA I L15Parking lights, side marker lights, license
plate lights
5DOOR F/R20Power window, outside mirror control ECU
6DOOR R/R20Po w e r w i n d o w
7DOOR F/L20Power window, outside mirror control ECU
8DOOR R/L20Po w e r w i n d o w
9H-LP LVL7. 5Automatic headlight leveling system
10WA S H E R10Windshield washer
11A/C-IG17. 5Air conditioning system, PTC heater, gauges
and meters, seat heaters and ventilators

600
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
■Headlight high beamTurn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Exchange the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
Replacing light bulbs
1
2
3
4

ES350_300h_OM_OM33B99U_(U)
6017-3. Do-it-yourself maintenance
7
Maintenance and care
■Headlight low beam (halogen bulb)Turn the bulb base counter-
clockwise.
Unplug the connector while
pressing the lock release.
Exchange the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
1
2
3
4

602
ES350_300h_OM_OM33B99U_(U)
7-3. Do-it-yourself maintenance
■Halogen fog lights (if equipped)Remove the bolt and partly
remove the under cover, and
unplug the connector while
pushing the lock release.
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert. Turn
it clockwise to set.
1
2
3
