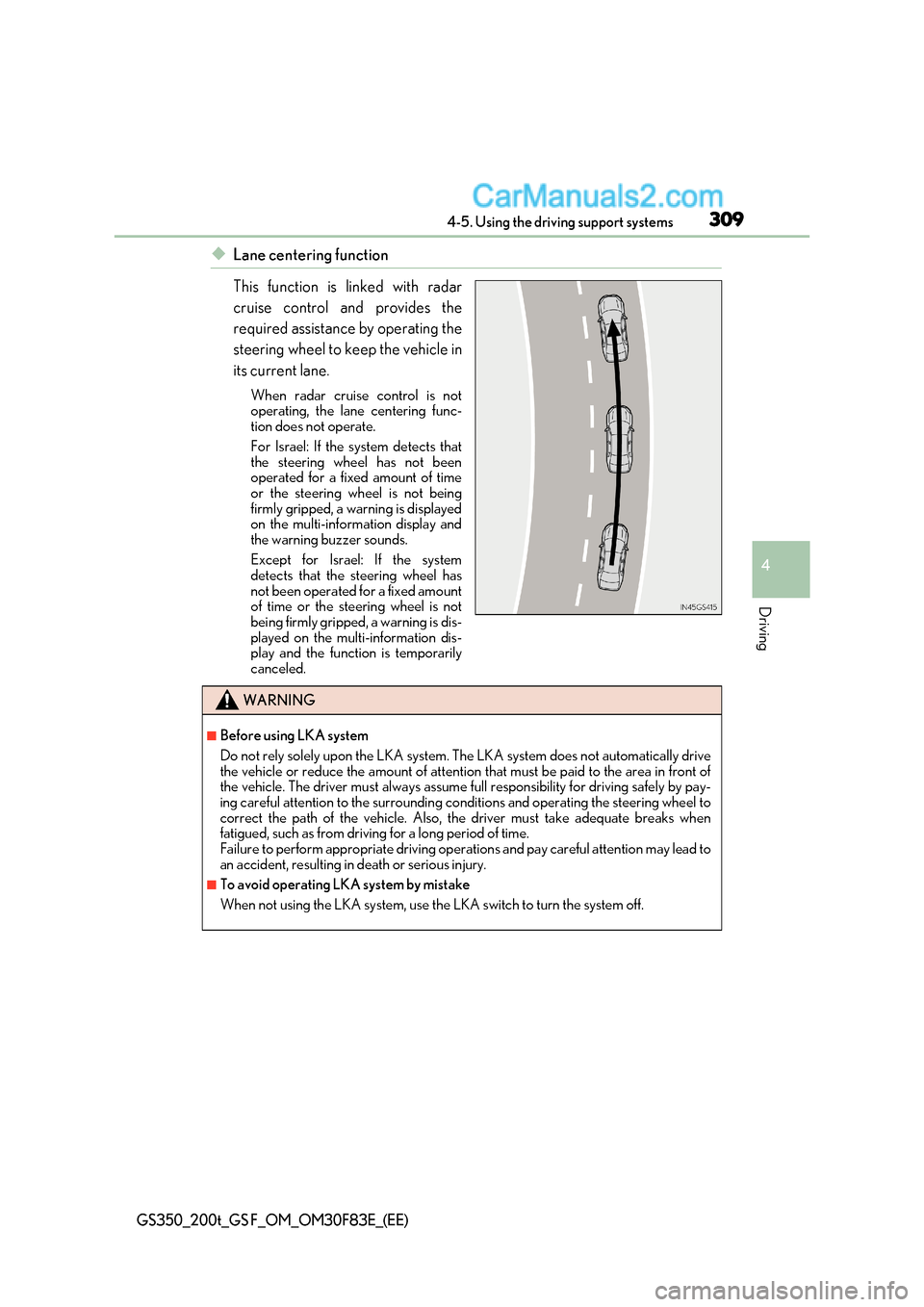

◆Lane centering function
This function is linked with radar
cruise control and provides the
required assistance by operating the
steering wheel to keep the vehicle in
its current lane.
When radar cruise control is not
operating, the lane centering func-
tion does not operate.
For Israel: If the system detects that
the steering wheel has not been
operated for a fixed amount of time
or the steering wheel is not being
firmly gripped, a warning is displayed
on the multi-information display and
the warning buzzer sounds.
Except for Israel: If the system
detects that the steering wheel has
not been operated for a fixed amount
of time or the steering wheel is not
being firmly gripped, a warning is dis-
played on the multi-information dis-
play and the function is temporarily
canceled.
WARNING
■Before using LKA system
Do not rely solely upon the LKA system. Th e LKA system does not automatically drive
the vehicle or reduce the amount of attention that must be paid to the area in front of
the vehicle. The driver must always assume full responsibility for driving safely by pay-
ing careful attention to the surrounding conditions and operating the steering wheel to
correct the path of the vehicle. Also, the driver must take adequate breaks when
fatigued, such as from driving for a long period of time.
Failure to perform appropriate driving operat ions and pay careful attention may lead to
an accident, resulting in death or serious injury.
■To avoid operating LKA system by mistake
When not using the LKA system, use the LKA switch to turn the system off.

311
4-5. Using the driving support systems
4
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
Press the LKA switch to turn the LKA
system on.
The LKA indicator illuminates and a
message is displayed on the multi-infor-
mation display.
Press the LKA switch again to turn the
LKA system off.
When the LKA system is turned on or
off, operation of the LKA system contin-
ues in the same condition the next time
the engine is started.
Turning LKA system on

3124-5. Using the driving support systems
GS350_200t_GS F_OM_OM30F83E_(EE)
LKA indicator
The illumination condition of the
indicator informs the driver of the
system operation status.
Illuminated in white:
LKA system is operating.
Illuminated in green:
Steering wheel assistance of the steer-
ing assist function or lane centering
function is operating.
Flashing in orange:
Lane departure alert function is operat-
ing.
Operation display of steering wheel
operation support
Indicates that steering wheel assistance of the steering assist function or lane
centering function is operating.
Lane departure alert function display
Displayed when the multi-information display is switched to the driving assist
system information screen.
Indications on multi-information display
1
2
3
Inside of displayed white lines is
whiteInside of displayed white lines is
black
Indicates that the system is recognizing
white (yellow) lines. When the vehicle
departs from its lane, the white line dis-
played on the side the vehicle departs
from flashes orange. Indicates that the system is not able to
recognize white (yellow) lines or is
temporarily canceled.

317
4
4-5. Using the driving support systems
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
LDA (Lane Departure Alert with steering control)
When driving on highways and freeways with white (yellow) lines, this function
alerts the driver when the vehicle might depart from its lane and provides assis-
tance by operating the steering wheel to keep the vehicle in its lane.
The LDA system recognizes visible
white (yellow) lines with the camera
sensor on the upper portion of the front
windshield.
◆Lane departure alert function
When the system determines that
the vehicle might depart from its
lane, a warning is displayed on the
multi-information display and the
warning buzzer sounds to alert the
driver.
When the warning buzzer sounds,
check the surrounding road situation
and carefully operate the steering
wheel to move the vehicle back to
the center of the lane.
: If equipped
Summary of functions
Functions included in LDA system

3184-5. Using the driving support systems
GS350_200t_GS F_OM_OM30F83E_(EE)
◆Steering control function
When the system determines that
the vehicle might depart from its
lane, the system provides assistance
as necessary by operating the steer-
ing wheel in small amounts for a
short period of time to keep the
vehicle in its lane.
For Israel: If the system detects that
the steering wheel has not been
operated for a fixed amount of time
or the steering wheel is not being
firmly gripped, a warning is displayed
on the multi-information display and
the warning buzzer sounds.
Except for Israel: If the system
detects that the steering wheel has
not been operated for a fixed amount
of time or the steering wheel is not
being firmly gripped, a warning is dis-
played on the multi-information dis-
play and the function is temporarily
canceled.
◆Vehicle sway warning function
When the vehicle is swaying or
appears as if it may depart from its
lane multiple times, the warning
buzzer sounds and a message is dis-
played on the multi-information dis-
play to alert the driver.

3204-5. Using the driving support systems
GS350_200t_GS F_OM_OM30F83E_(EE)
Press the LDA switch to turn the LDA
system on.
The LDA indicator illuminates and a
message is displayed on the multi-infor-
mation display.
Press the LDA switch again to turn the
LDA system off.
When the LDA system is turned on or
off, operation of the LDA system contin-
ues in the same condition the next time
the engine is started.
Turning LDA system on

321
4-5. Using the driving support systems
4
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
LDA indicator
The illumination condition of the
indicator informs the driver of the
system operation status.
Illuminated in white:
LDA system is operating.
Illuminated in green:
Steering wheel assistance of the steer-
ing control function is operating.
Flashing in orange:
Lane departure alert function is operat-
ing.
Operation display of steering wheel
operation support
Indicates that steering wheel assistance of the steering control function is
operating.
Lane departure alert function display
Displayed when the multi-information display is switched to the driving assist
system information screen.
Indications on multi-information display
1
2
3
Inside of displayed white lines is
whiteInside of displayed white lines is
black
Indicates that the system is recognizing
white (yellow) lines. When the vehicle
departs from its lane, the white line dis-
played on the side the vehicle departs
from flashes orange. Indicates that the system is not able to
recognize white (yellow) lines or is
temporarily canceled.

323
4-5. Using the driving support systems
4
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
■Temporary cancellation of functions
When operation conditions are no longer met, a function may be temporarily canceled.
However, when the operation conditions are met again, operation of the function is auto-
matically restored. ( P. 322)
■Steering control function
Depending on the vehicle speed, lane departure situation, road conditions, etc., the
driver may not feel the function is operating or the function may not operate at all.
■Lane departure alert function
The warning buzzer may be difficult to hear due to external noise, audio playback, etc.
■Hands off steering wheel alert
For Israel: When the system determines that the driver has removed the hands from the
steering wheel while the steering control functi on is operating, a warning message is dis-
played on the multi-information display and the buzzer sounds.
Except for Israel: When the system determines that the driver has removed the hands
from the steering wheel while the steering cont rol function is operating, a warning mes-
sage is displayed on the multi-information display.
If the driver continues to keep the hands off of the steering wheel, the buzzer sounds, a
warning message is displayed and the function is temporarily canceled. This alert also
operates in the same way when the vehicle is driven with the steering whee l lightly
gripped. However, depending on the road conditions, etc., the function may not cancel.
■White (yellow) lines are on ly on one side of road
The LDA system will not operate for the side on which white (yellow) lines could not be
recognized.

3264-5. Using the driving support systems
GS350_200t_GS F_OM_OM30F83E_(EE)
RSA (Road Sign Assist)
RSA recognizes specific road signs
using the camera sensor and provides
information to the driver via the multi-
information display.
If the system judges that the vehicle is being driven over the speed limit, perform-
ing prohibited actions, etc. in relation to the recogniz
ed road signs, it alerts the
driver using a warning display and warning buzzer *
.
* : This setting needs to be customized.
: If equipped
Summary of function
Camera sensor
WARNING
■Before using the RSA
Do not rely solely upon the RSA system. RS A is a system which supports the driver by
providing information, but it is not a replacement for a driver’s own vision and aware-
ness. Drive safely by always paying careful attention to the traffic rules.
Inappropriate or negligent driving could lead to an unexpected accident.

327
4-5. Using the driving support systems
4
Driving
GS350_200t_GS F_OM_OM30F83E_(EE)
After the camera sensor recognizes a sign, it is displayed on the mu lti-informa-
tion display when the vehicle passes the sign. ● When the driving assist system infor-
mation is selected, a maximum of 3
signs can be displayed. ( P. 121, 129)
● When other than the driving assist
system information is selected, a
speed limit sign or an all canceled
sign can be displayed. ( P. 121, 129)
A no overtaking sign and a speed
limit sign with supplemental mark are
not displayed. Howeve r, if signs other
than speed limit signs are recog-
nized, they are mentioned in a stack
under the current speed limit sign.
Indication on the mult i-information display
