611-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
Information provided in the table shows your child restraint system suit-
ability for various seating positions.

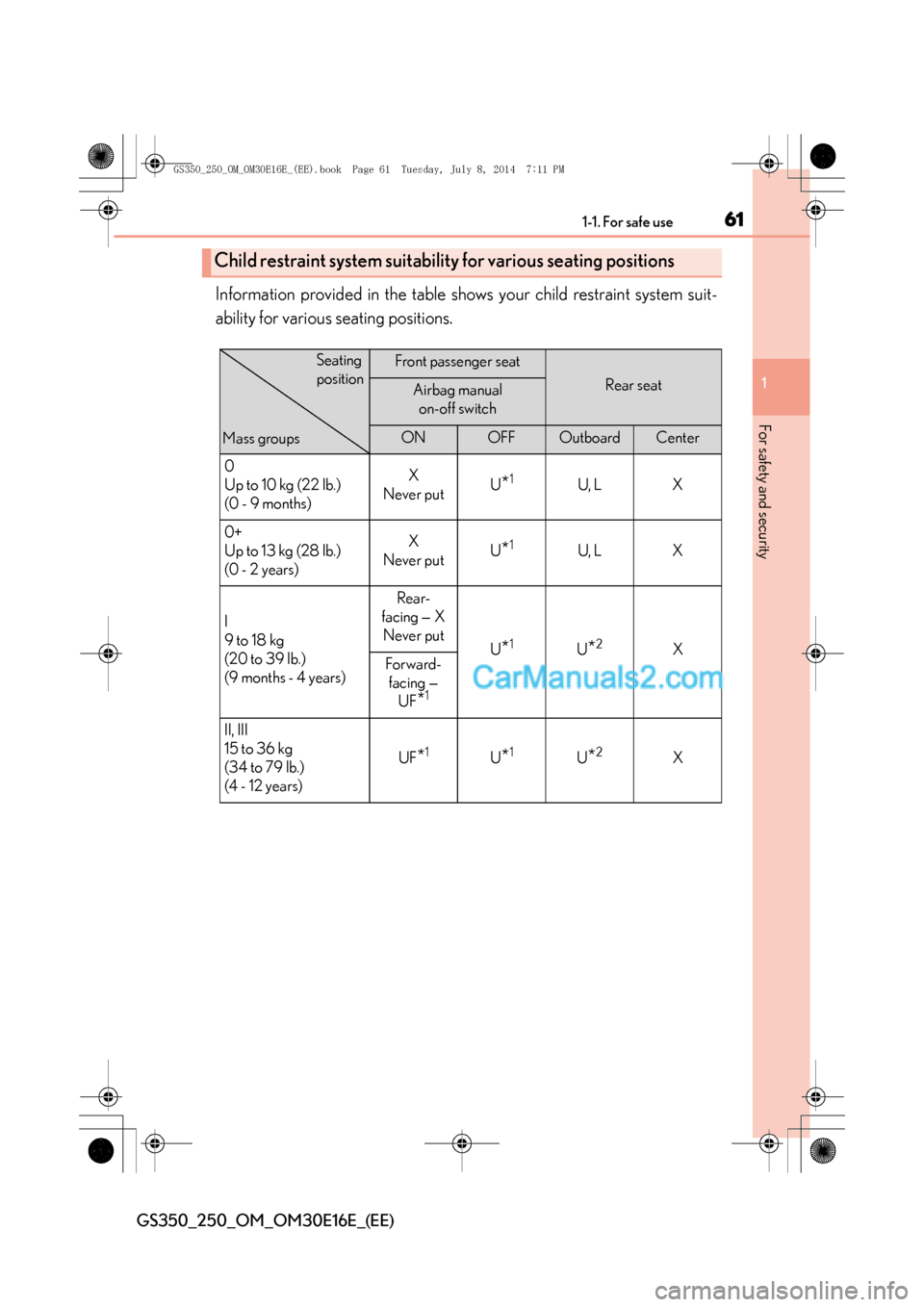

Child restraint system suitability for various seating positions
Front passenger seat
Rear seatAirbag manual on-off switch
ONOFFOutboardCenter
0
Up to 10 kg (22 lb.)
(0 - 9 months) X
Never put U
*1U, L X
0+
Up to 13 kg (28 lb.)
(0 - 2 years) X
Never put U
*1U, L X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years) Rear-
facing — X Never put U
*1U*2X
Forward-
facing — UF
*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years) UF
*1U*1U*2X
Mass groupsSeating
position
GS350_250_OM_OM30E16E_(EE).book Page 61 Tuesday, July 8, 2014
7:11 PM

621-1. For safe use
GS350_250_OM_OM30E16E_(EE)
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved for
use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint sys- tems approved for use in this mass group.
L: Suitable for child restraint systems shown in the child restraint system list.
X: Not suitable seat position for children in this mass group.
*1: Adjust the front seatback to the most upright position. Move the front seat to the rearmost position.
If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
If the passenger seat is equipped with a vertical height adjuster, it must be placed
in the upper most position.
Follow these procedures:
• For installing a baby seat with support base If the baby seat interferes with the seatback when latching the baby seat into
the support base, adjust the seatback rearward until there is no interference.
• For installing a forward-facing child seat If there is gap between the child seat and the seatback, tilt the seatback rear-
ward until good contact is achieved.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the
seat cushion forward.
• For installing a junior seat If the child in your child restraint system is in a very upright position, adjust the
seatback to the most comfortable position.
If the seat belt shoulder anchor is ahead of the child seat belt guide, move the
seat cushion forward.
*2: If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
GS350_250_OM_OM30E16E_(EE).book Page 62 Tuesday, July 8, 2014 7:11 PM

631-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
The child restraint system mentioned in the table may not be available out-
side of the EU area.
Other child restraint system which is different from the system mentioned
in the table can be used, but the suitability of the systems must be carefully
checked with the child restraint system manufacturer concerned and the
seller of those seats.

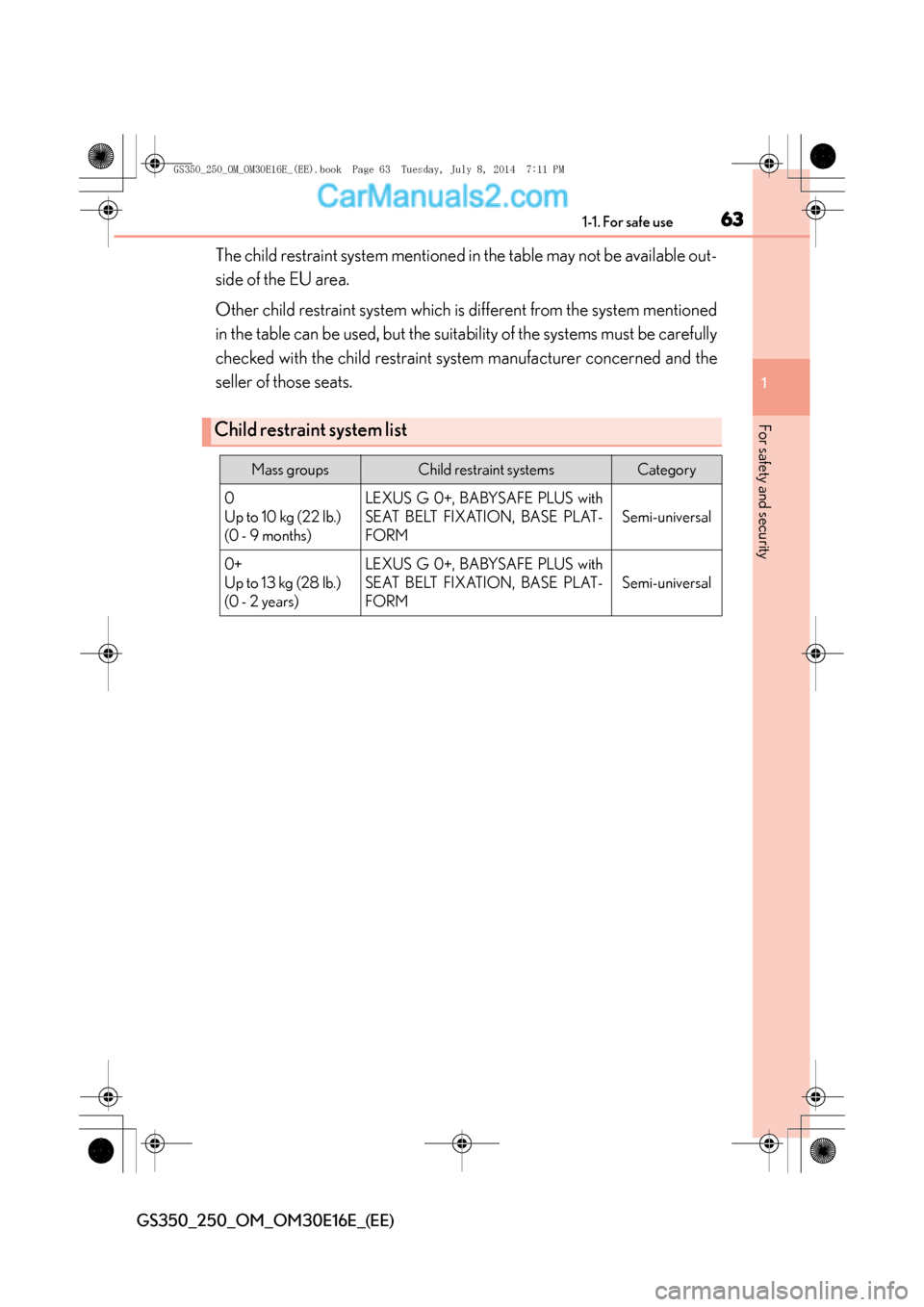

Child restraint system list
Mass groupsChild restraint systemsCategory
0
Up to 10 kg (22 lb.)
(0 - 9 months)LEXUS G 0+, BABYSAFE PLUS with
SEAT BELT FIXATION, BASE PLAT-
FORM
Semi-universal
0+
Up to 13 kg (28 lb.)
(0 - 2 years)LEXUS G 0+, BABYSAFE PLUS with
SEAT BELT FIXATION, BASE PLAT-
FORM
Semi-universal
GS350_250_OM_OM30E16E_(EE).book Page 63 Tuesday, July 8, 2014 7:11 PM

641-1. For safe use
GS350_250_OM_OM30E16E_(EE)
Information provided in the table shows your child restraint system suit-
ability for various seating positions.

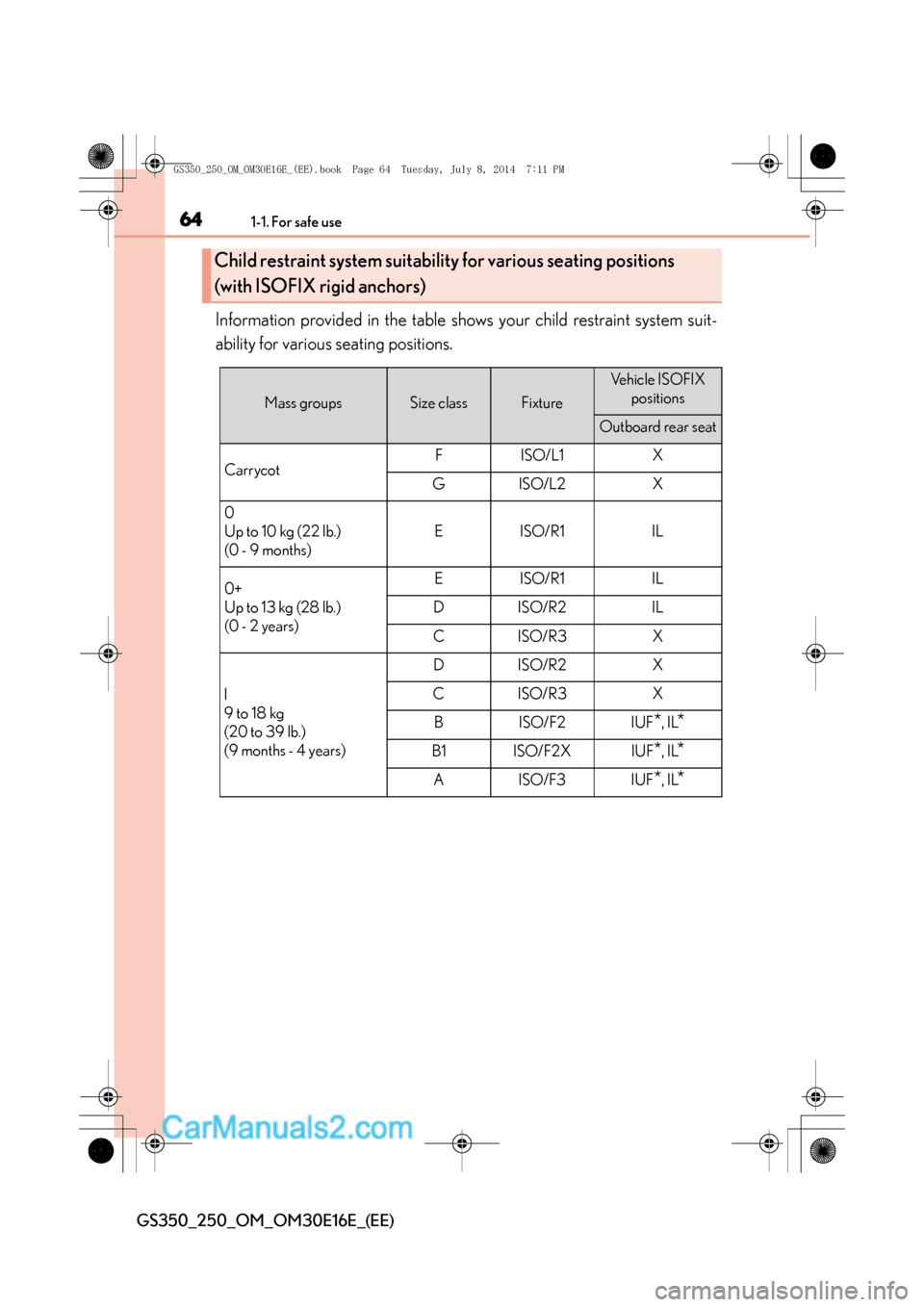

Child restraint system suitability for various seating positions
(with ISOFIX rigid anchors)
Mass groupsSize classFixture
Vehicle ISOFIX positions
Outboard rear seat
Carrycot FISO/L1 X
GISO/L2 X
0
Up to 10 kg (22 lb.)
(0 - 9 months) EISO/R1 IL
0+
Up to 13 kg (28 lb.)
(0 - 2 years) EISO/R1 IL
DISO/R2 IL
CISO/R3 X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years) DISO/R2 X
CISO/R3 X BISO/F2IUF
*, IL*
B1 ISO/F2X IUF*, IL*
AISO/F3IUF*, IL*
GS350_250_OM_OM30E16E_(EE).book Page 64 Tuesday, July 8, 2014 7:11 PM

651-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of univer-sal category approved for use in this mass group.
IL: Suitable for child restraint systems shown in the ISOFIX child restraint system list.
When using a “LEXUS MINI” or “LEXUS MIDI”, adjust the support leg
and the ISOFIX connectors as follows: Lock the ISOFIX connectors
where numbers 3, 4 and 5 can
be seen.
Lock the support leg where 5th
hole can be seen.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass group and/or this size class.
*: If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
The child restraint system mentioned in the table may not be available out-
side of the EU area.
Other child restraint systems different from the systems mentioned in the
table can be used, but the suitability of the systems must be carefully
checked with the child restraint system manufacturer and retailer.
1
2
GS350_250_OM_OM30E16E_(EE).book Page 65 Tuesday, July 8, 2014 7:11 PM

661-1. For safe use
GS350_250_OM_OM30E16E_(EE)

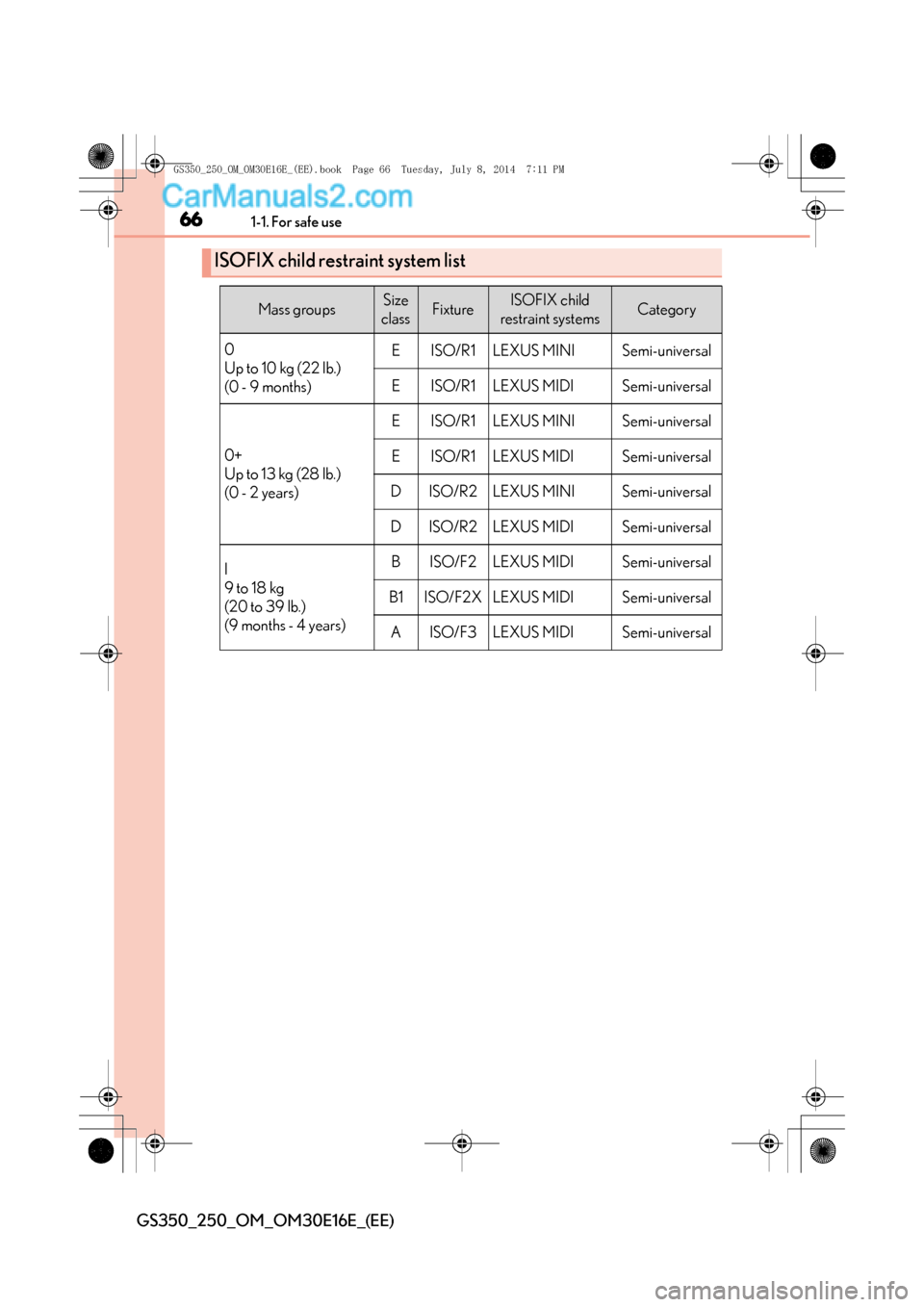

ISOFIX child restraint system list
Mass groupsSize
classFixtureISOFIX child
restraint systemsCategory
0
Up to 10 kg (22 lb.)
(0 - 9 months)EISO/R1LEXUS MINISemi-universal
EISO/R1LEXUS MIDISemi-universal
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
EISO/R1LEXUS MINISemi-universal
EISO/R1LEXUS MIDISemi-universal
DISO/R2LEXUS MINISemi-universal
DISO/R2LEXUS MIDISemi-universal
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)BISO/F2LEXUS MIDISemi-universal
B1ISO/F2XLEXUS MIDISemi-universal
AISO/F3LEXUS MIDISemi-universal
GS350_250_OM_OM30E16E_(EE).book Page 66 Tuesday, July 8, 2014 7:11 PM

671-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)

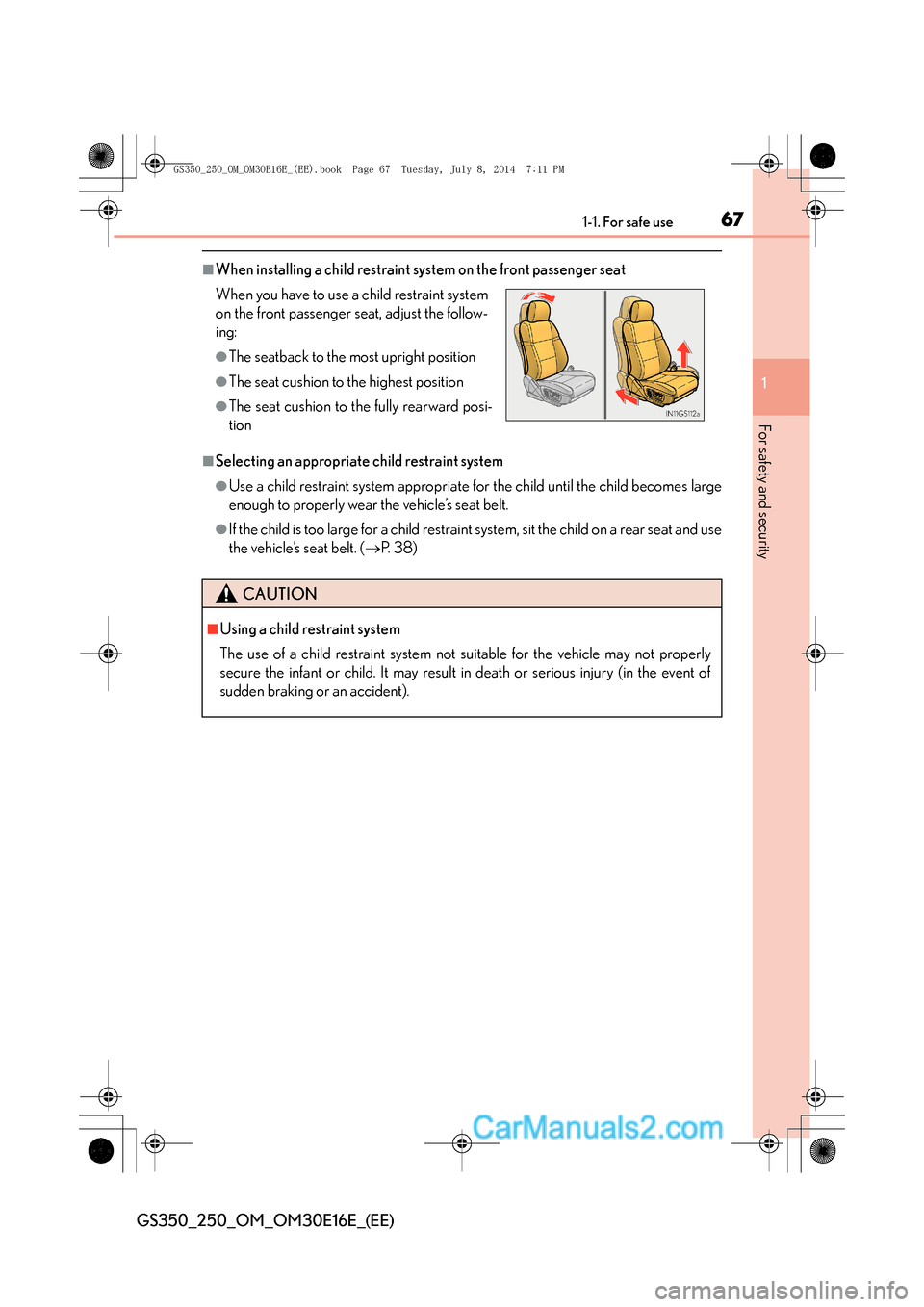

■When installing a child restraint system on the front passenger seat
■Selecting an appropriate child restraint system
●Use a child restraint system appropriate for the child until the child becomes large
enough to properly wear the vehicle’s seat belt.
●If the child is too large for a child restraint system, sit the child on a rear seat and use
the vehicle’s seat belt. (→P. 3 8 )
When you have to use a child restraint system
on the front passenger seat, adjust the follow-
ing:
●The seatback to the most upright position
●The seat cushion to the highest position
●The seat cushion to the fully rearward posi-
tion
CAUTION
■Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not properly
secure the infant or child. It may result in death or serious injury (in the event of
sudden braking or an accident).
GS350_250_OM_OM30E16E_(EE).book Page 67 Tuesday, July 8, 2014
7:11 PM

681-1. For safe use
GS350_250_OM_OM30E16E_(EE)
CAUTION

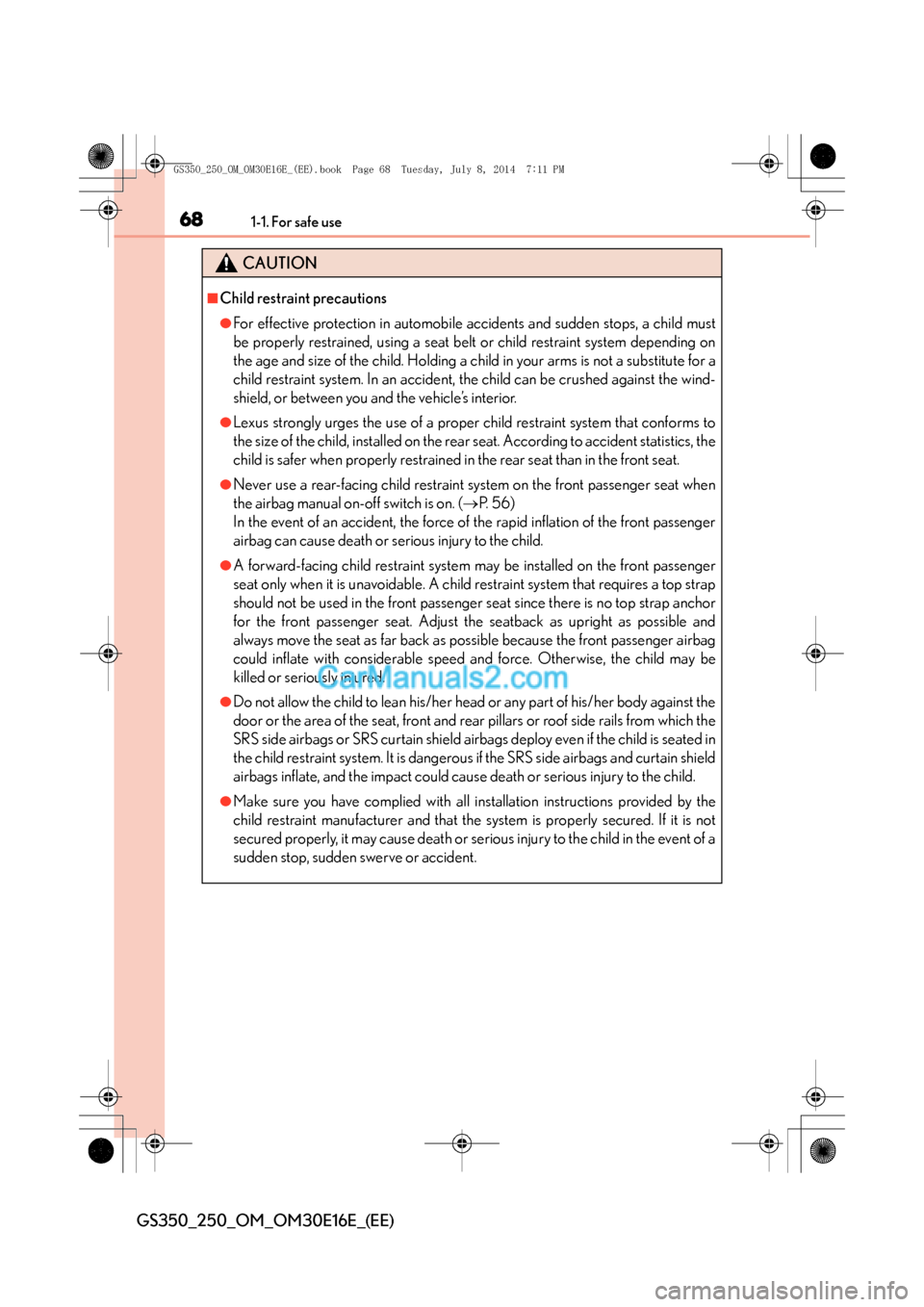

■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the wind-
shield, or between you and the vehicle’s interior.
●Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.
●Never use a rear-facing child restraint system on the front passenger seat when
the airbag manual on-off switch is on. (→P. 5 6 )
In the event of an accident, the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child.
●A forward-facing child restraint system may be installed on the front passenger
seat only when it is unavoidable. A child restraint system that requires a top strap
should not be used in the front passenger seat since there is no top strap anchor
for the front passenger seat. Adjust the seatback as upright as possible and
always move the seat as far back as possible because the front passenger airbag
could inflate with considerable speed and force. Otherwise, the child may be
killed or seriously injured.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front and rear pillars or roof side rails from which the
SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and curtain shield
airbags inflate, and the impact could cause death or serious injury to the child.
●Make sure you have complied with all installation instructions provided by the
child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop, sudden swerve or accident.
GS350_250_OM_OM30E16E_(EE).book Page 68 Tuesday, July 8, 2014 7:11 PM

691-1. For safe use
1
For safety and security
GS350_250_OM_OM30E16E_(EE)
CAUTION
■When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could
result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut
the belt.
■When the child restraint system is not in use
●Keep the child restraint system properly secured on the seat even if it is not in use.
Do not store the child restraint system unsecured in the passenger compartment.
●If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the trunk. If a head restraint was removed when installing a
child restraint system, always install the head restraint before driving. This will pre-
vent it from injuring passengers in the event of a sudden stop, sudden swerve or
accident.
GS350_250_OM_OM30E16E_(EE).book Page 69 Tuesday, July 8, 2014 7:11 PM

701-1. For safe use
GS350_250_OM_OM30E16E_(EE)
Installing child restraints
Seat belts (An ELR belt requires a
locking clip)
ISOFIX rigid anchors
Lower anchors are provided for the
outboard rear seats. (Buttons display-
ing the location of the anchors are
attached to the seats.)
Anchor brackets (for top strap)
An anchor bracket is provided for
each rear seat.
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using a seat belt or ISOFIX rigid
anchors. Attach the top strap wh en installing a child restraint.
