glove box Lexus GS300 1999 Comfort Adjustment

COMFORT ADJUSTMENT
191
16G062

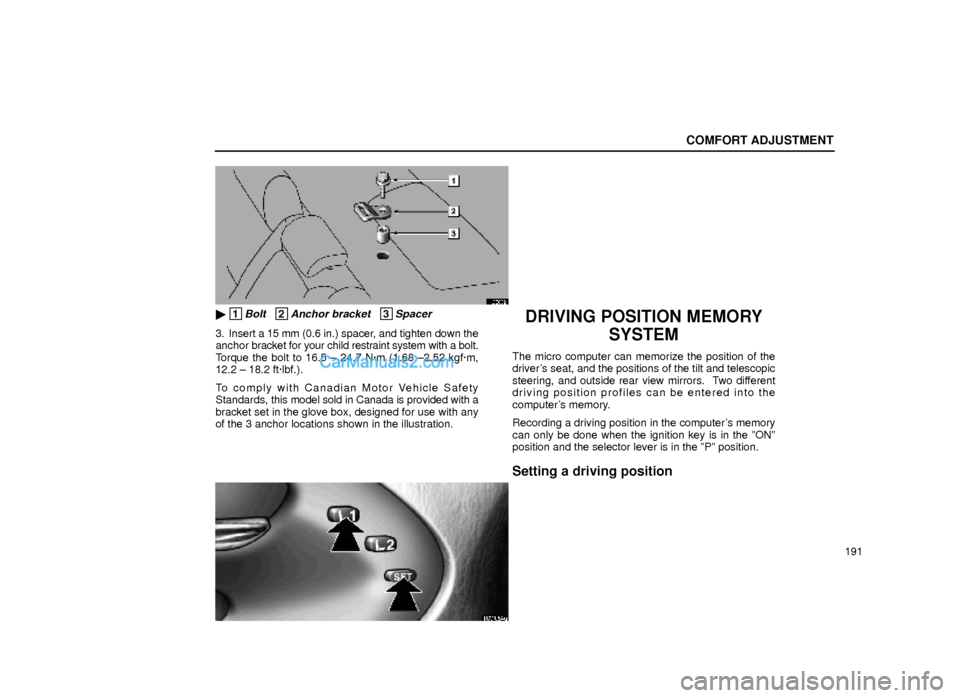

1Bolt 2Anchor bracket 3Spacer
3. Insert a 15 mm (0.6 in.) spacer, and tighten down the
anchor bracket for your child restraint system with a bolt.
Torque the bolt to 16.5 ± 24.7 N´m (1.68 ±2.52 kgf´m,
12.2 ± 18.2 ft´lbf.).
To comply with Canadian Motor Vehicle Safety
Standards, this model sold in Canada is provided with a
bracket set in the glove box, designed for use with any
of the 3 anchor locations shown in the illustration.
DRIVING POSITION MEMORY
SYSTEM
The micro computer can memorize the position of the
driver's seat, and the positions of the tilt and telescopic
steering, and outside rear view mirrors. Two different
driving position profiles can be entered into the
computer's memory.
Recording a driving position in the computer's memory
can only be done when the ignition key is in the ºONº
position and the selector lever is in the ºPº position.
Setting a driving position
16G064a
