Lexus GS300 2019 Owner's Manual

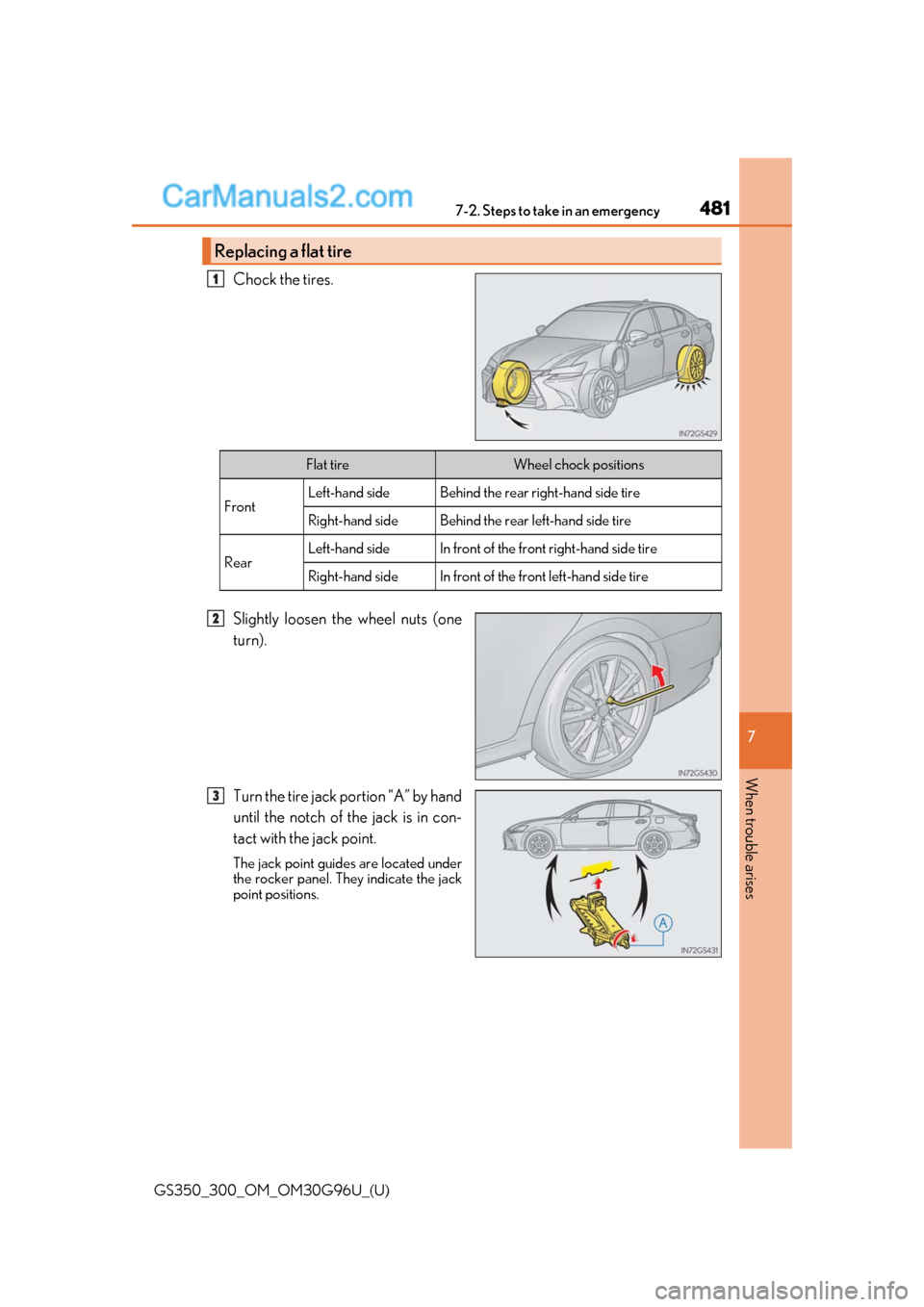

4817-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises
Chock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by hand
until the notch of the jack is in con-
tact with the jack point.
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3

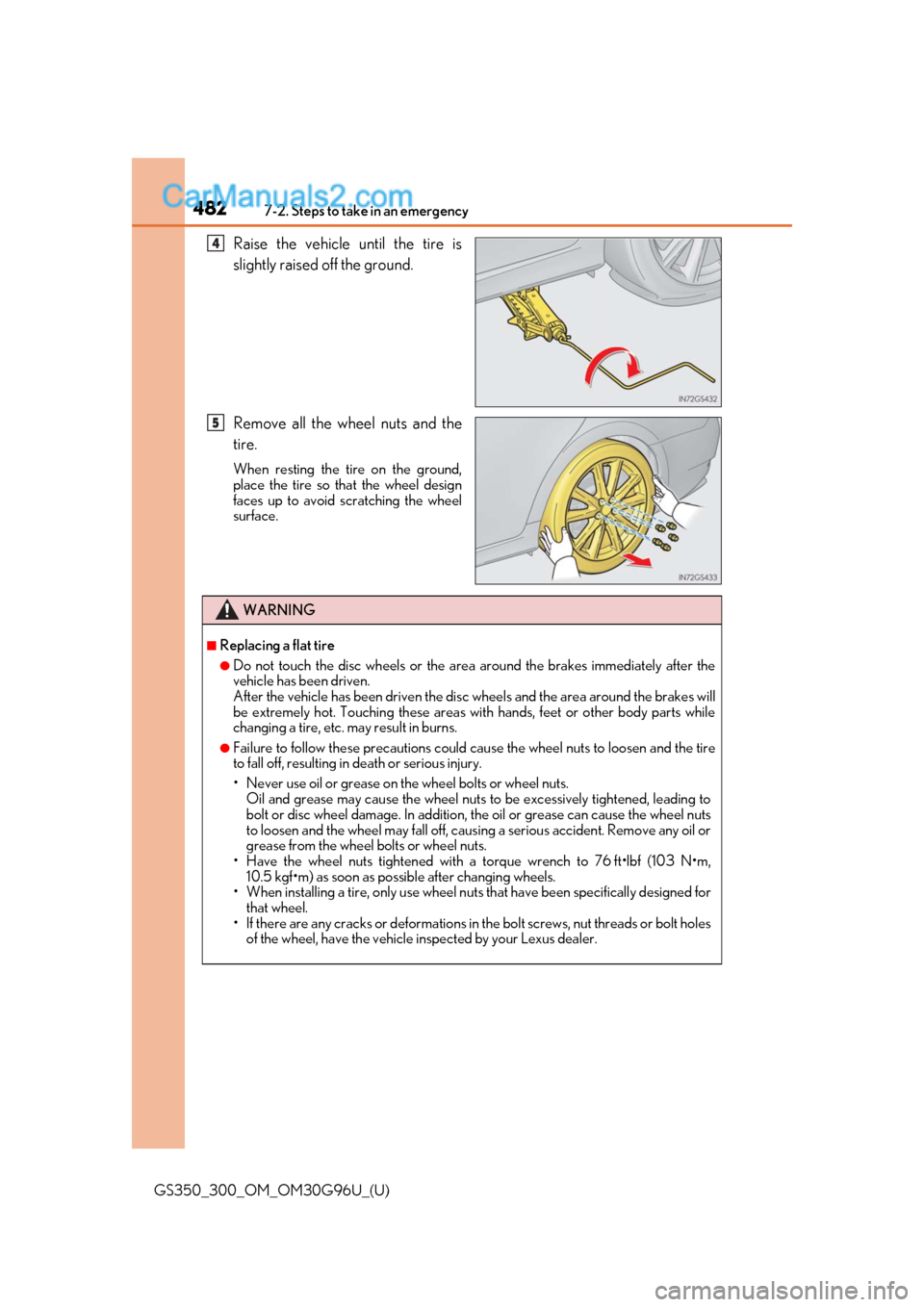

4827-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
4
5
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately after the
vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes will
be extremely hot. Touching these areas with hands, feet or other body parts while
changing a tire, etc. may result in burns.
●Failure to follow these precautions could cau se the wheel nuts to loosen and the tire
to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts. Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, causing a serious accident. Remove any oil or
grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for
that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes
of the wheel, have the vehicle inspected by your Lexus dealer.

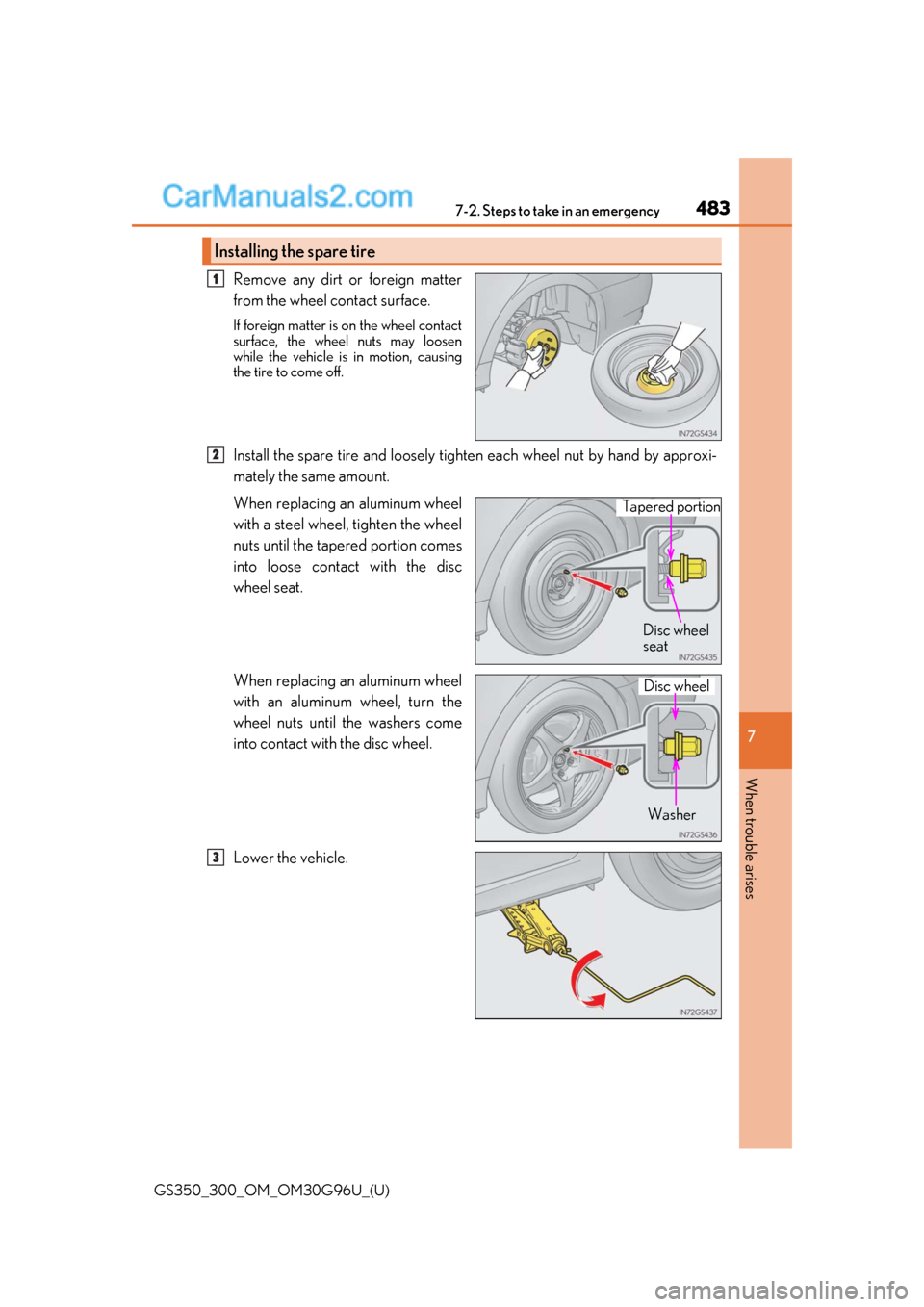

4837-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, causing
the tire to come off.
Install the spare tire and loosely tighte n each wheel nut by hand by approxi-
mately the same amount.
When replacing an aluminum wheel
with a steel wheel, tighten the wheel
nuts until the tapered portion comes
into loose contact with the disc
wheel seat.
When replacing an aluminum wheel
with an aluminum wheel, turn the
wheel nuts until the washers come
into contact with the disc wheel.
Lower the vehicle.
Installing the spare tire
1
2
Tapered portion
Disc wheel
seat
Washer
Disc wheel
3

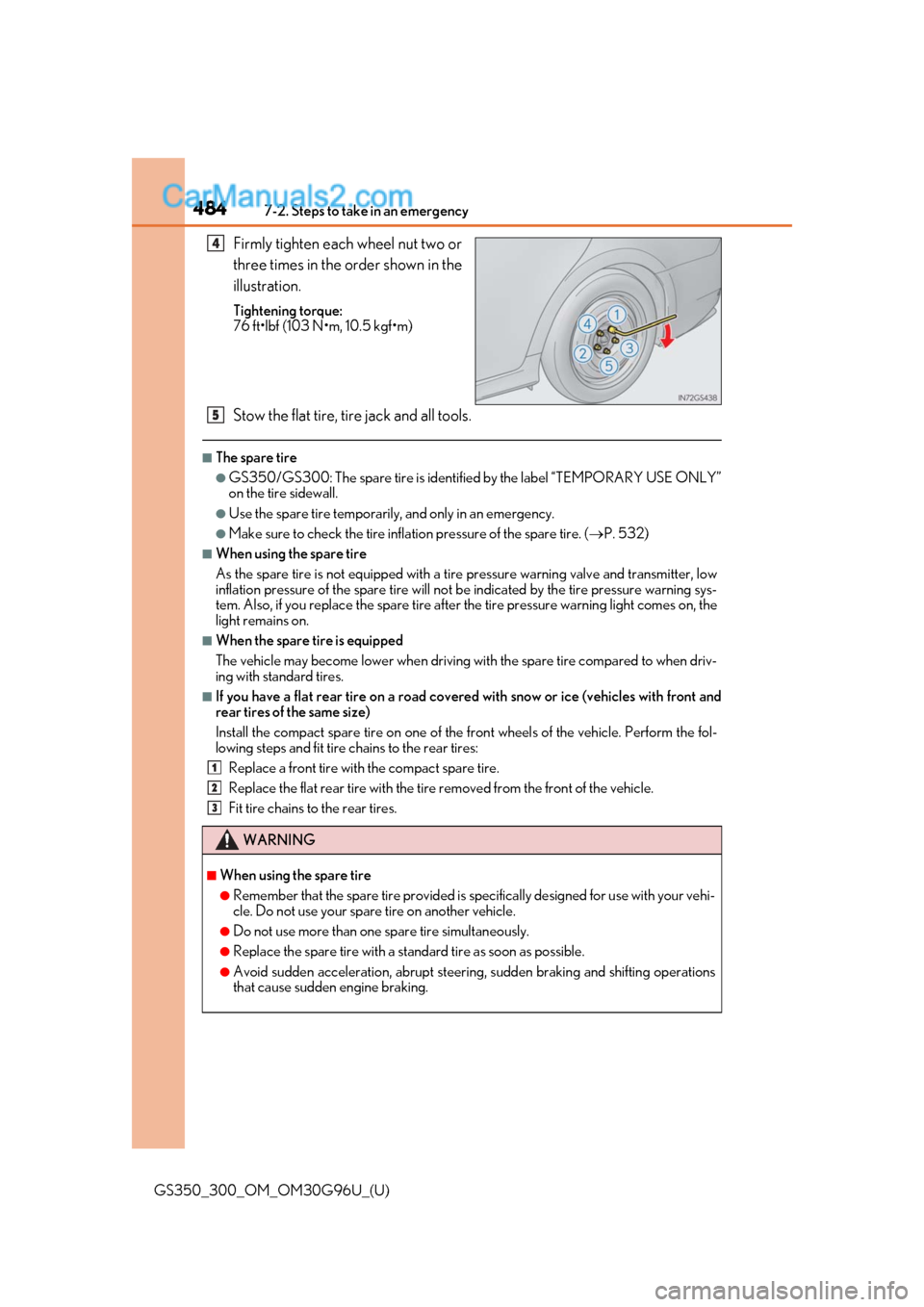

4847-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
■The spare tire
●GS350/GS300: The spare tire is identified by the label “TEMPORARY USE ONLY”
on the tire sidewall.
●Use the spare tire temporarily , and only in an emergency.
●Make sure to check the tire inflat ion pressure of the spare tire. (P. 532)
■When using the spare tire
As the spare tire is not equipped with a tire pressure warning valve and transmitter, low
inflation pressure of the spare tire will not be indicated by the tire pressure warning sys-
tem. Also, if you replace the spare tire after the tire pressure warning light comes on, the
light remains on.
■When the spare tire is equipped
The vehicle may become lower when driving with the spare tire compared to when driv-
ing with standard tires.
■If you have a flat rear tire on a road covered with snow or ice (vehicles with front and
rear tires of the same size)
Install the compact spare tire on one of the front wheels of the vehicle. Perform the fol-
lowing steps and fit tire chains to the rear tires:
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires.
4
WARNING
■When using the spare tire
●Remember that the spare tire provided is specifically designed for use with your vehi-
cle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tire simultaneously.
●Replace the spare tire with a stan dard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
5
1
2
3

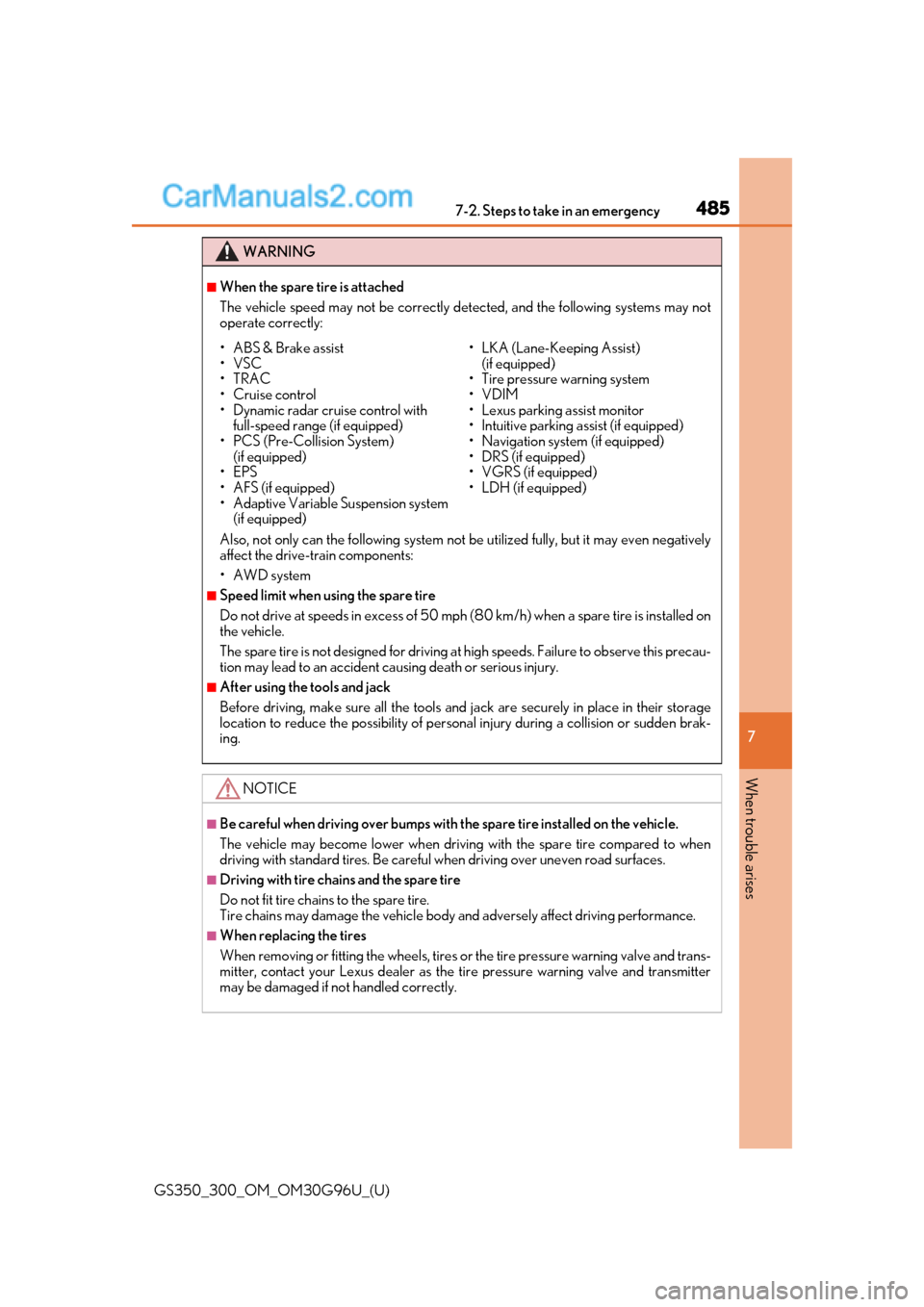

4857-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises
WARNING
■When the spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
Also, not only can the following system not be utilized fully, but it may even negatively
affect the drive-train components:
•AWD system
■Speed limit when using the spare tire
Do not drive at speeds in excess of 50 mp h (80 km/h) when a spare tire is installed on
the vehicle.
The spare tire is not designed for driving at high speeds. Failure to observe this precau-
tion may lead to an accident causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibilit y of personal injury during a collision or sudden brak-
ing.
NOTICE
■Be careful when driving over bumps with the spare tire installed on the vehicle.
The vehicle may become lower when driving with the spare tire compared to when
driving with standard tires. Be careful when driving over uneven road surfaces.
■Driving with tire chains and the spare tire
Do not fit tire chains to the spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and trans-
mitter, contact your Lexus dealer as the tire pressure warning valve and transmitter
may be damaged if not handled correctly.
• ABS & Brake assist
•VSC
•TRAC
• Cruise control
• Dynamic radar cruise control with
full-speed range (if equipped)
• PCS (Pre-Collision System)
(if equipped)
•EPS
• AFS (if equipped)
• Adaptive Variable Suspension system
(if equipped) • LKA (Lane-Keeping Assist)
(if equipped)
• Tire pressure warning system
•VDIM
• Lexus parking assist monitor
• Intuitive parking assist (if equipped)
• Navigation system (if equipped)
• DRS (if equipped)
• VGRS (if equipped)
• LDH (if equipped)

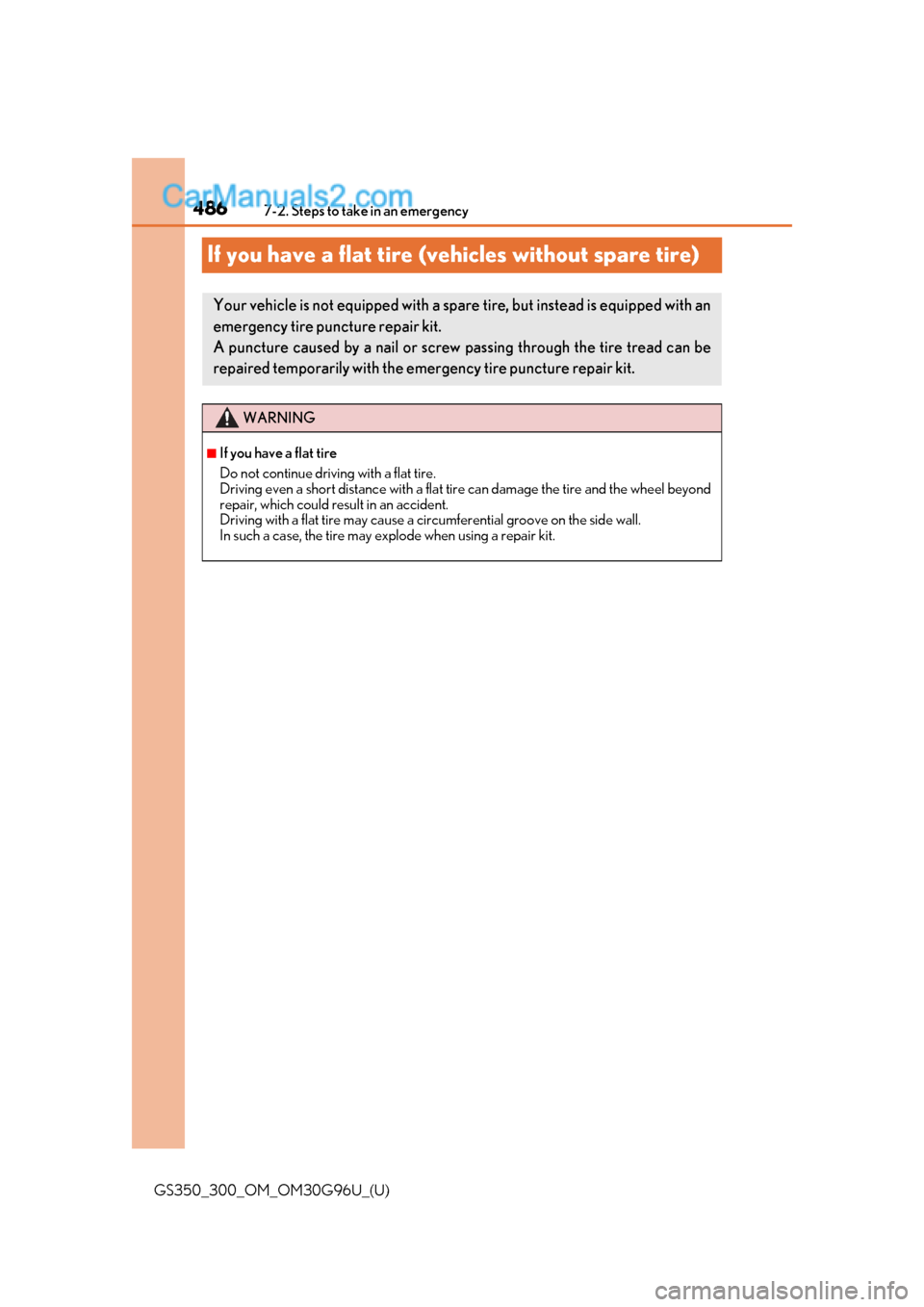

486
GS350_300_OM_OM30G96U_(U)7-2. Steps to take in an emergency
If you have a flat tire (vehicles without spare tire)
Your vehicle is not equipped with a spar
e tire, but instead is equipped with an
emergency tire puncture repair kit.
A puncture caused by a nail or screw passing through the tire tread can be
repaired temporarily with the emer gency tire puncture repair kit.
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat ti re can damage the tire and the wheel beyond
repair, which could resu lt in an accident.
Driving with a flat tire may cause a ci rcumferential groove on the side wall.
In such a case, the tire may explode when using a repair kit.

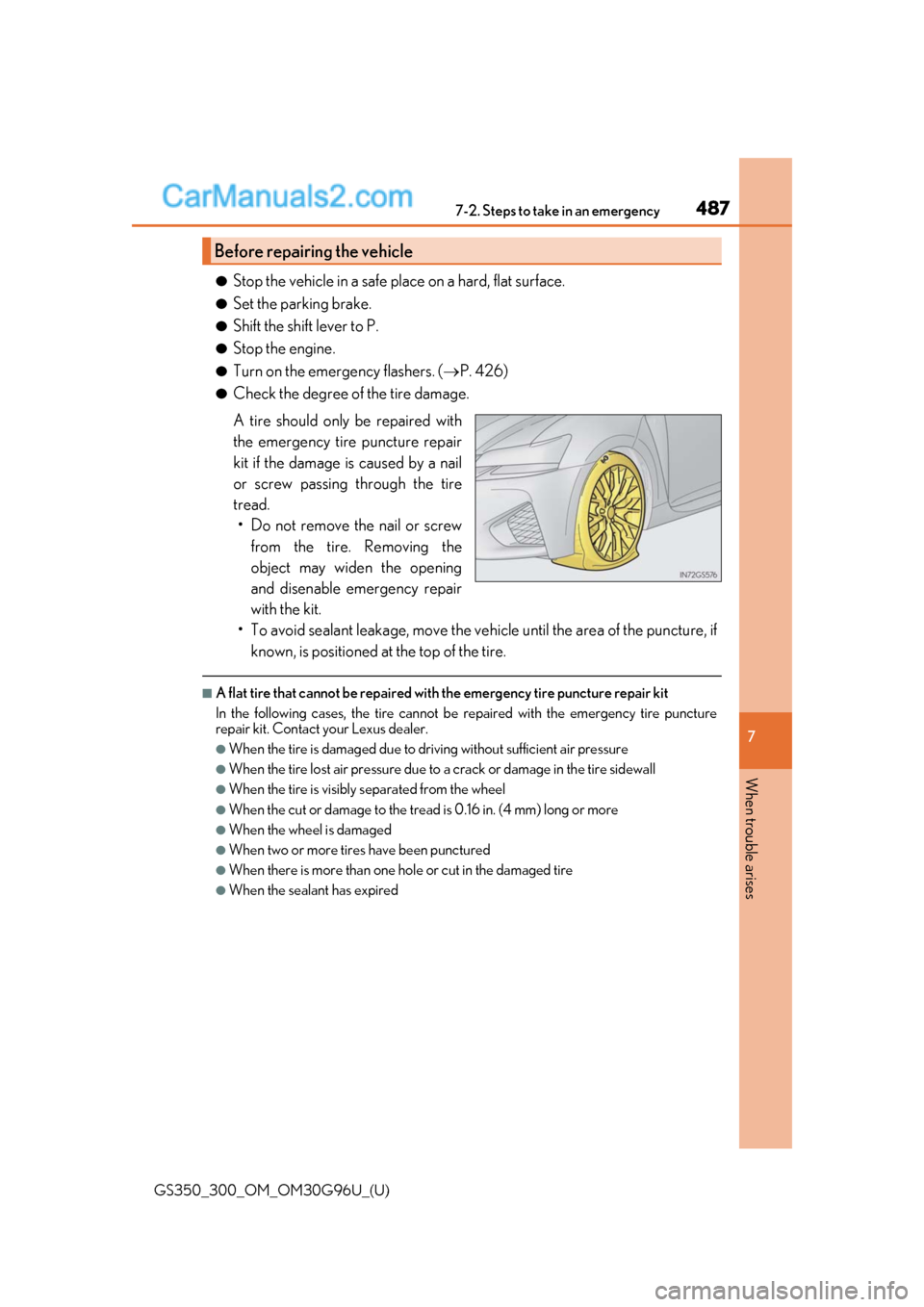

4877-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises
●Stop the vehicle in a safe pl ace on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. ( P. 426)
●Check the degree of the tire damage.
A tire should only be repaired with
the emergency tire puncture repair
kit if the damage is caused by a nail
or screw passing through the tire
tread.
• Do not remove the nail or screw from the tire. Removing the
object may widen the opening
and disenable emergency repair
with the kit.
• To avoid sealant leakage, move the vehi cle until the area of the puncture, if
known, is positioned at the top of the tire.
■A flat tire that cannot be repaired with the emergenc y tire puncture repair kit
In the following cases, the tire cannot be repaired with the emergency tire puncture
repair kit. Contact your Lexus dealer.
●When the tire is damaged due to driving without sufficient air pressure
●When the tire lost air pressure due to a crack or damage in the tire sidewall
●When the tire is visibly separated from the wheel
●When the cut or damage to the tread is 0.16 in. (4 mm) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When there is more than one hole or cut in the damaged tire
●When the sealant has expired
Before repairing the vehicle

4887-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
*: Use of the jack (P. 481)

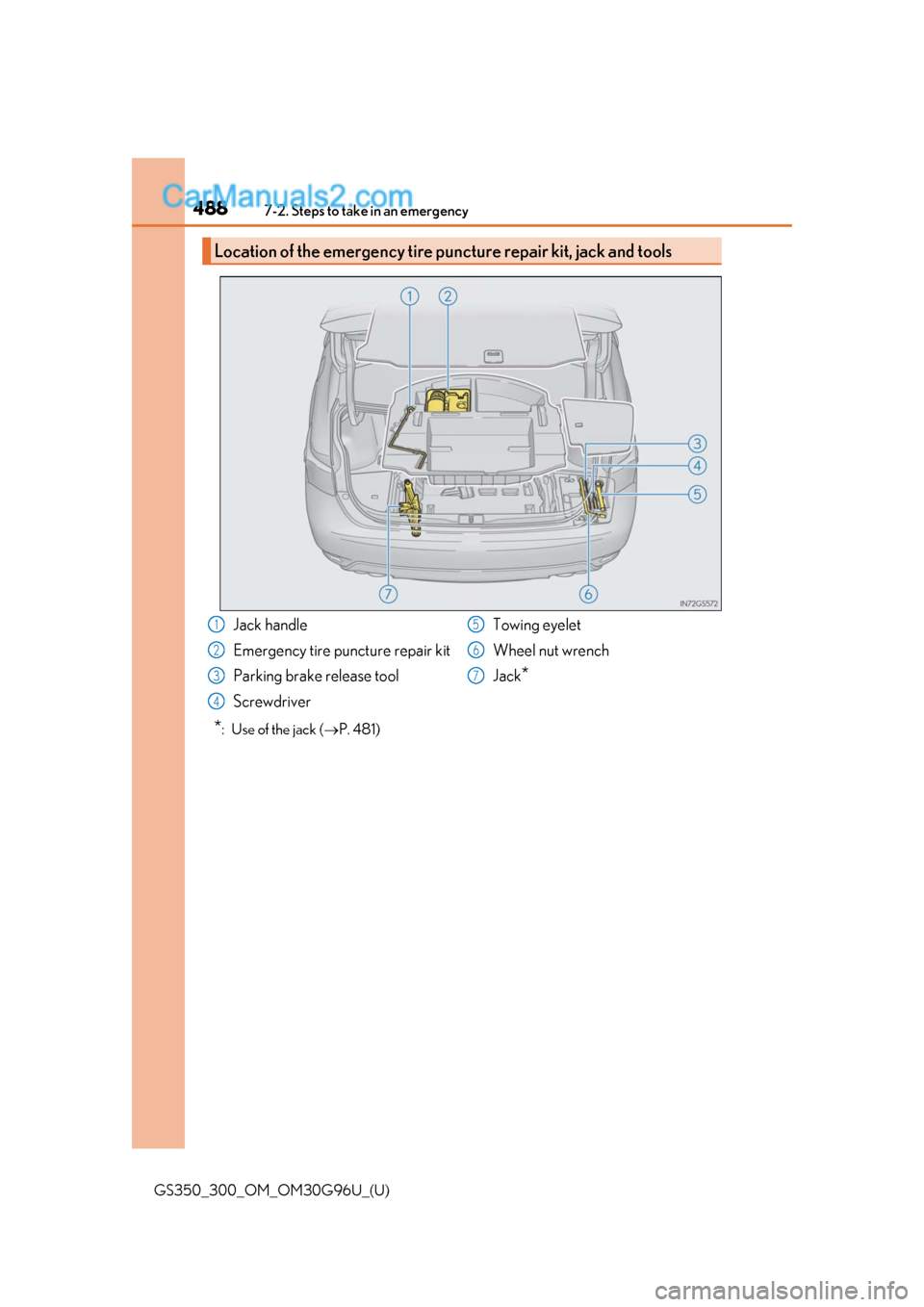

Location of the emergency tire puncture repair kit, jack and tools
Jack handle
Emergency tire puncture repair kit
Parking brake release tool
Screwdriver Towing eyelet
Wheel nut wrench
Jack
*
1
2
3
4
5
6
7

4897-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
7
When trouble arises

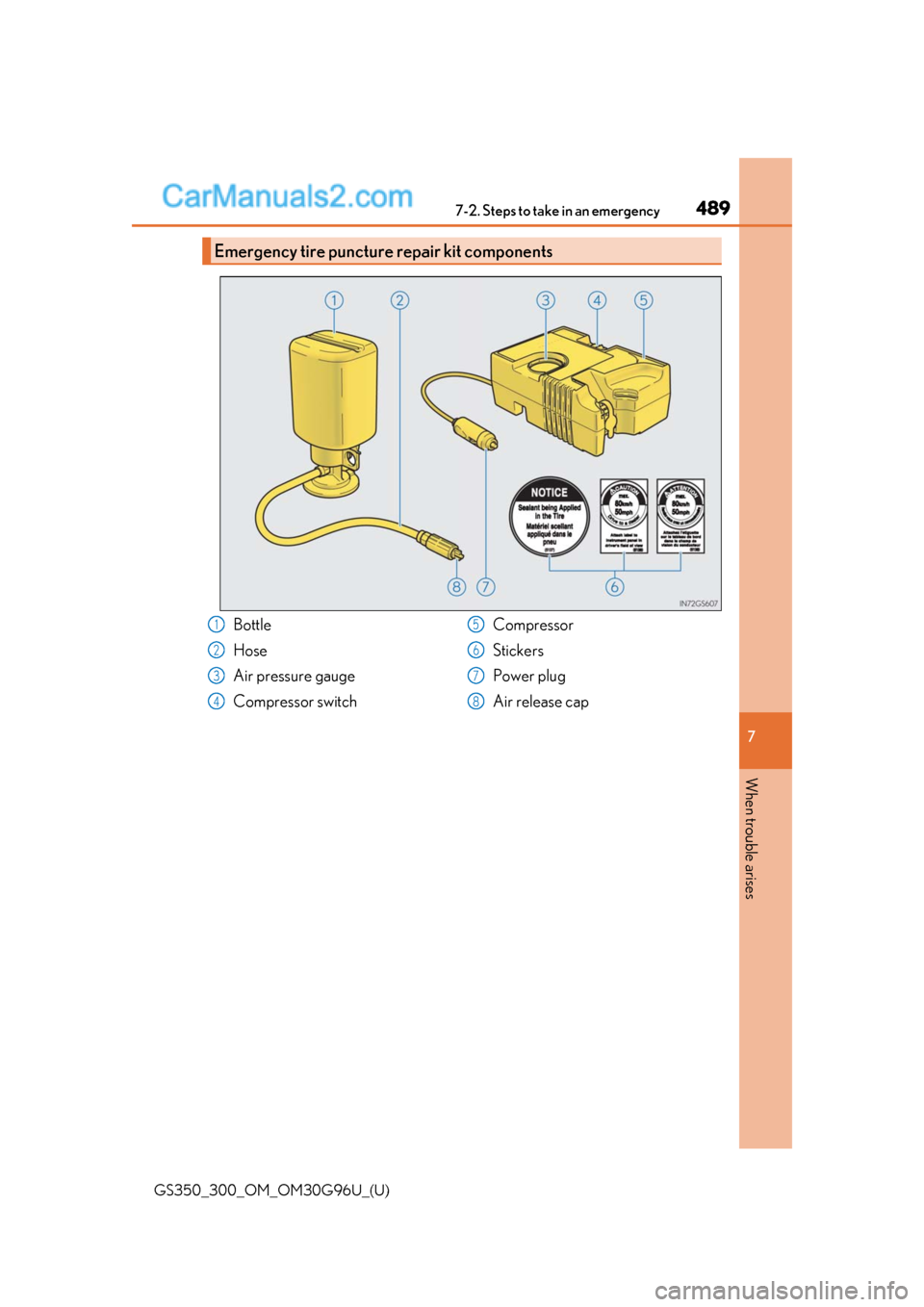

Emergency tire puncture repair kit components
Bottle
Hose
Air pressure gauge
Compressor switch Compressor
Stickers
Power plug
Air release cap1
2
3
4
5
6
7
8

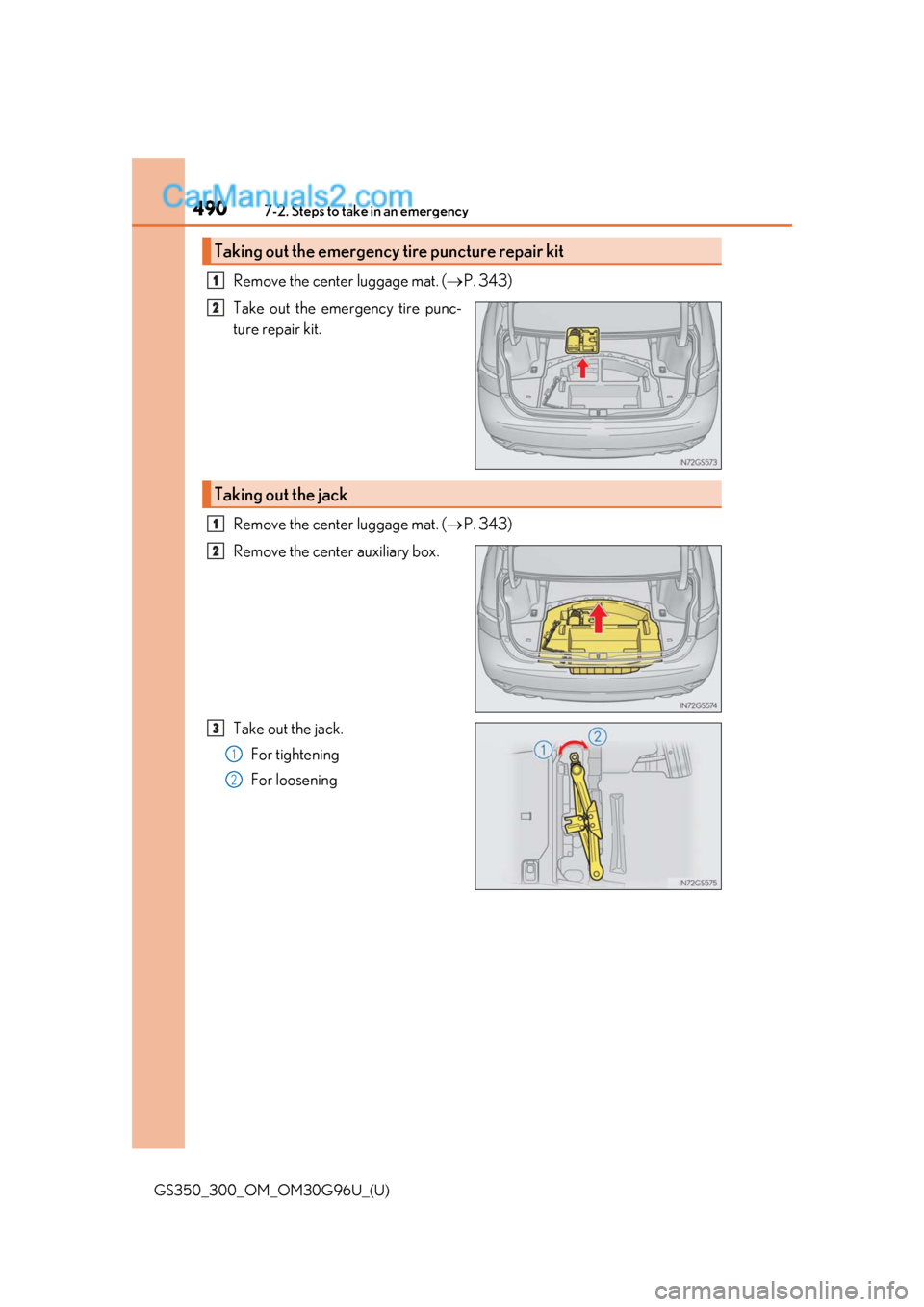

4907-2. Steps to take in an emergency
GS350_300_OM_OM30G96U_(U)
Remove the center luggage mat. (P. 343)
Take out the emergency tire punc-
ture repair kit.
Remove the center luggage mat. ( P. 343)
Remove the center auxiliary box.
Take out the jack. For tightening
For loosening
Taking out the emergency tire puncture repair kit
1
2
Taking out the jack
1
2
3
1
2
