Lexus GS300h 2013 Owner's Manual

2754-2. Driving procedures
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

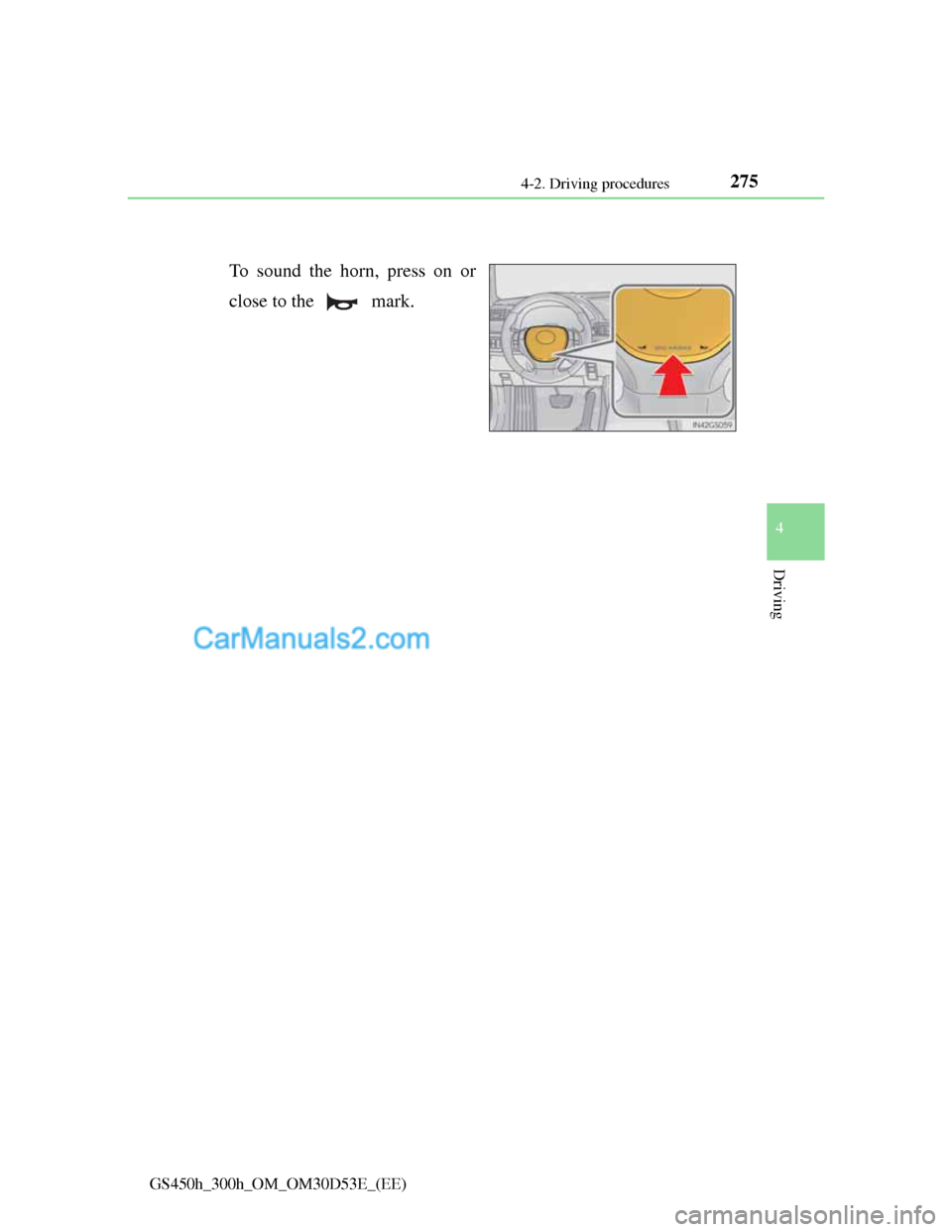

Horn
To sound the horn, press on or
close to the mark.

2724-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)

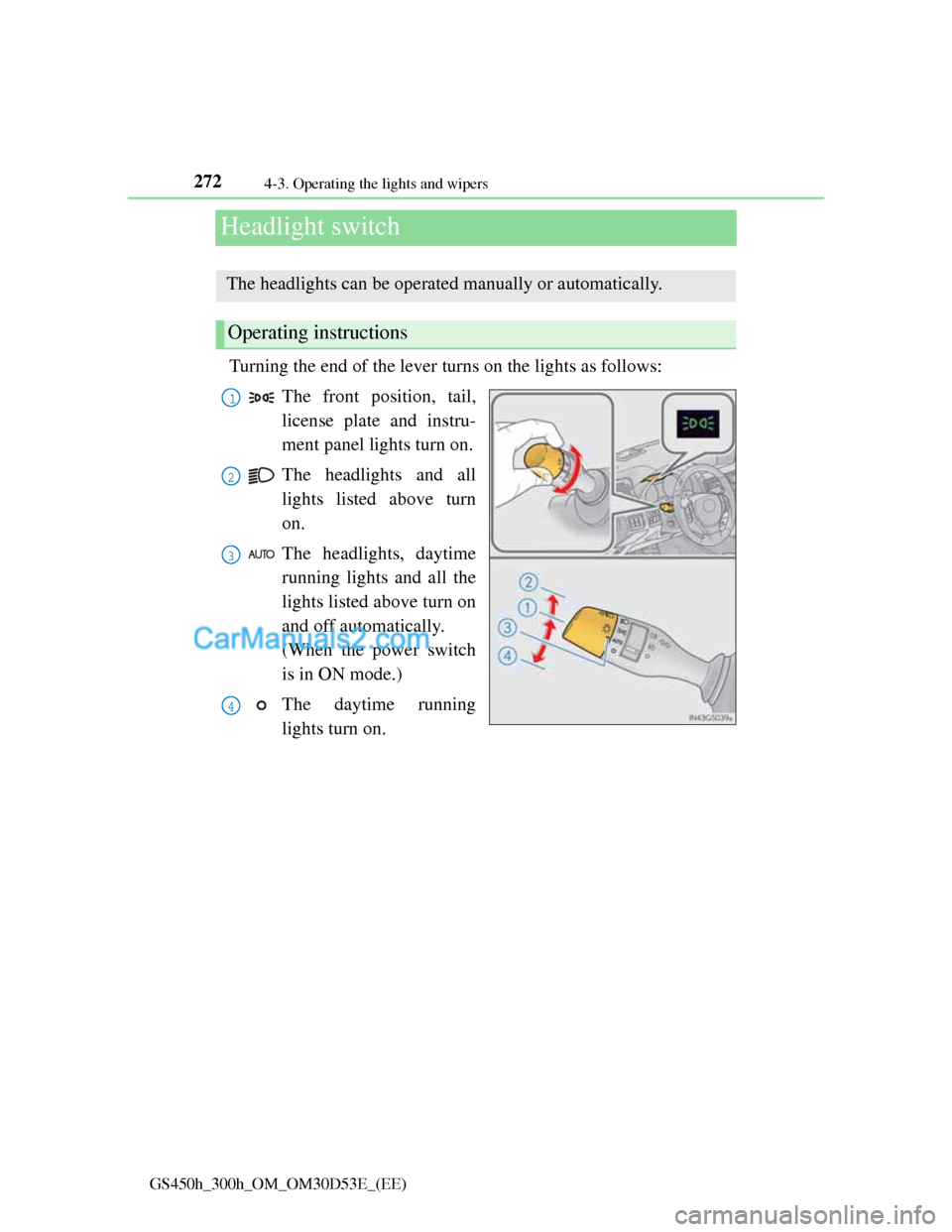

Headlight switch
Turning the end of the lever turns on the lights as follows:
The front position, tail,
license plate and instru-
ment panel lights turn on.
The headlights and all
lights listed above turn
on.
The headlights, daytime
running lights and all the
lights listed above turn on
and off automatically.
(When the power switch
is in ON mode.)
The daytime running
lights turn on.
The headlights can be operated manually or automatically.
Operating instructions
1
2
3
4

2734-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

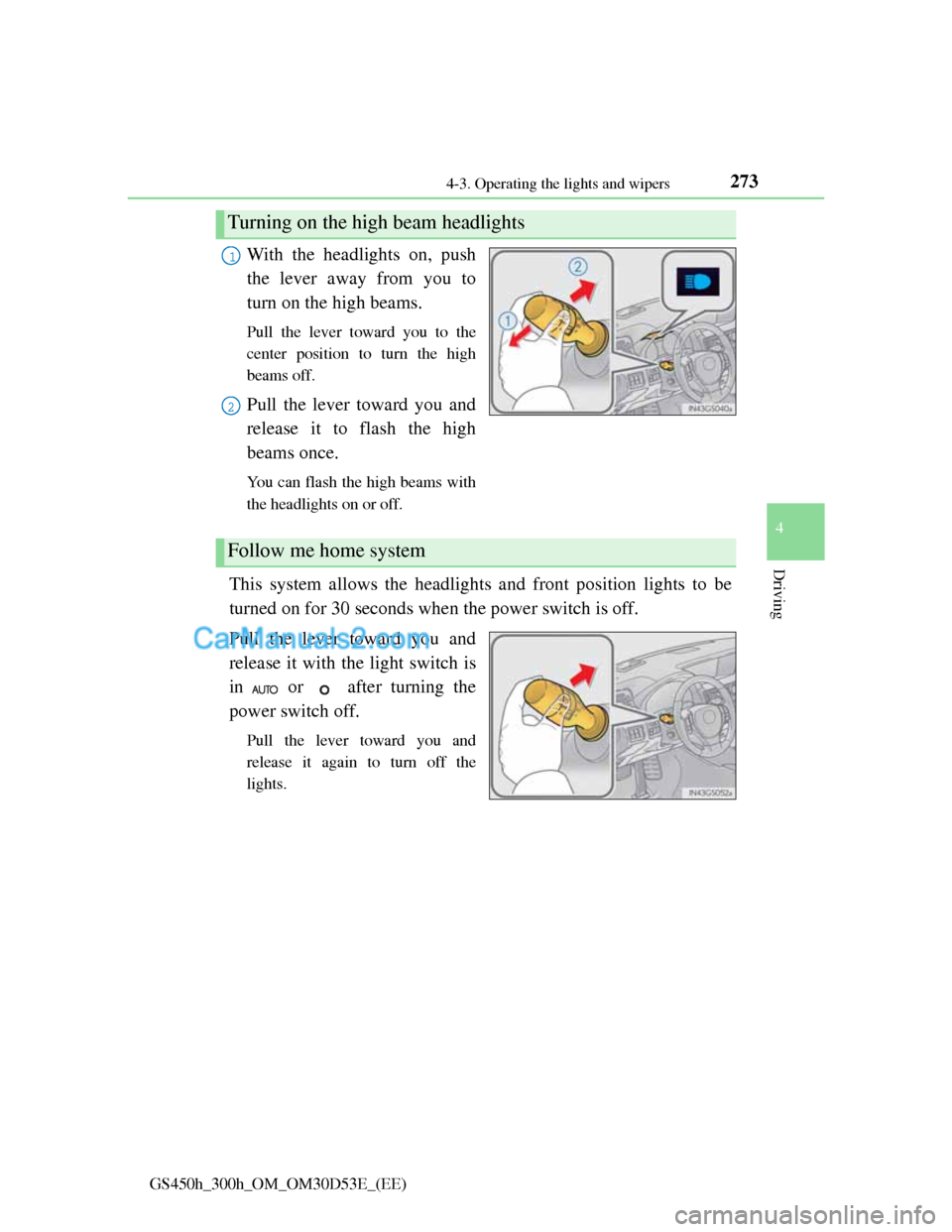

With the headlights on, push
the lever away from you to
turn on the high beams.
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with
the headlights on or off.
This system allows the headlights and front position lights to be
turned on for 30 seconds when the power switch is off.
Pull the lever toward you and
release it with the light switch is
in or after turning the
power switch off.
Pull the lever toward you and
release it again to turn off the
lights.
Turning on the high beam headlights
1
2
Follow me home system

2744-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)

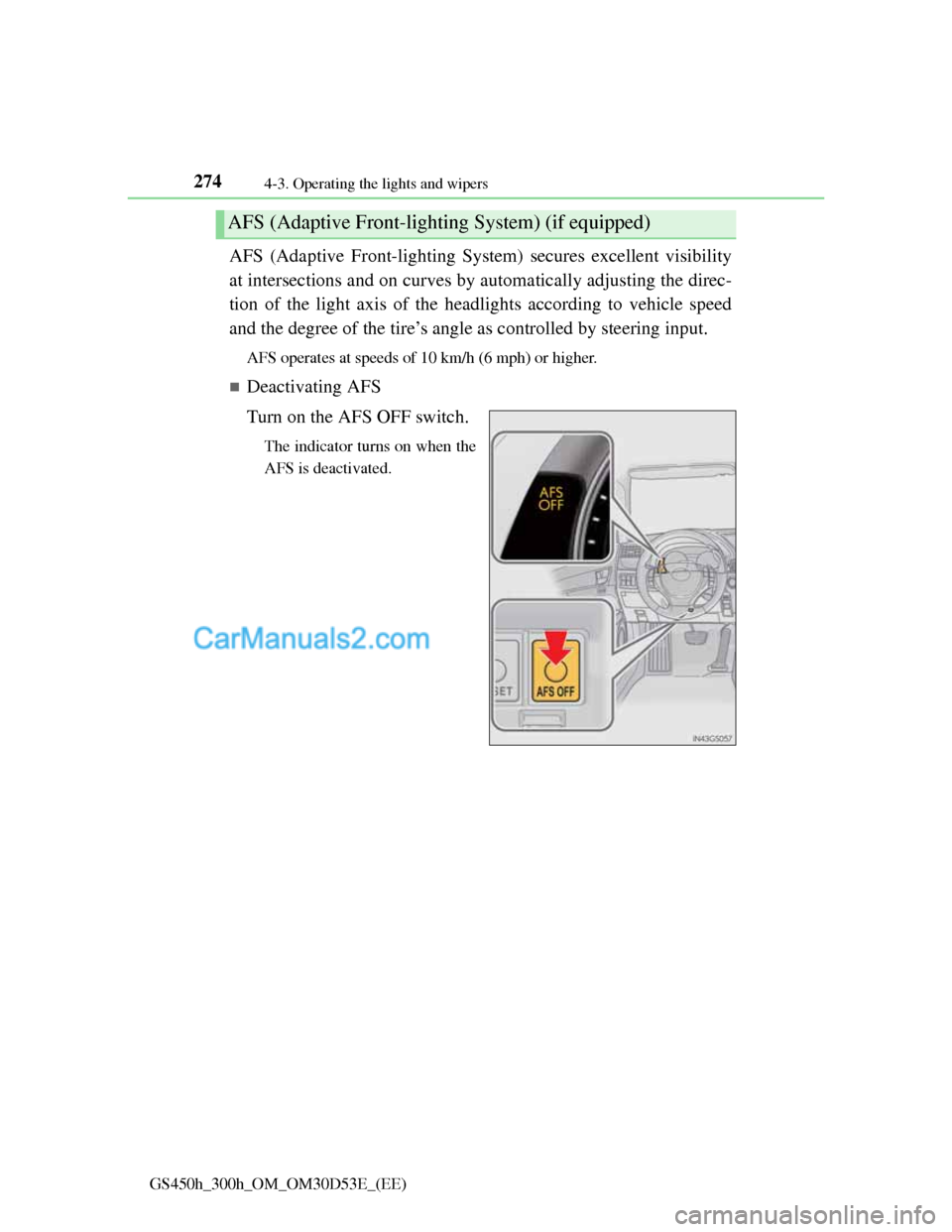

AFS (Adaptive Front-lighting System) secures excellent visibility
at intersections and on curves by automatically adjusting the direc-
tion of the light axis of the headlights according to vehicle speed
and the degree of the tire’s angle as controlled by steering input.
AFS operates at speeds of 10 km/h (6 mph) or higher.
Deactivating AFS
Turn on the AFS OFF switch.
The indicator turns on when the
AFS is deactivated.
AFS (Adaptive Front-lighting System) (if equipped)

2754-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

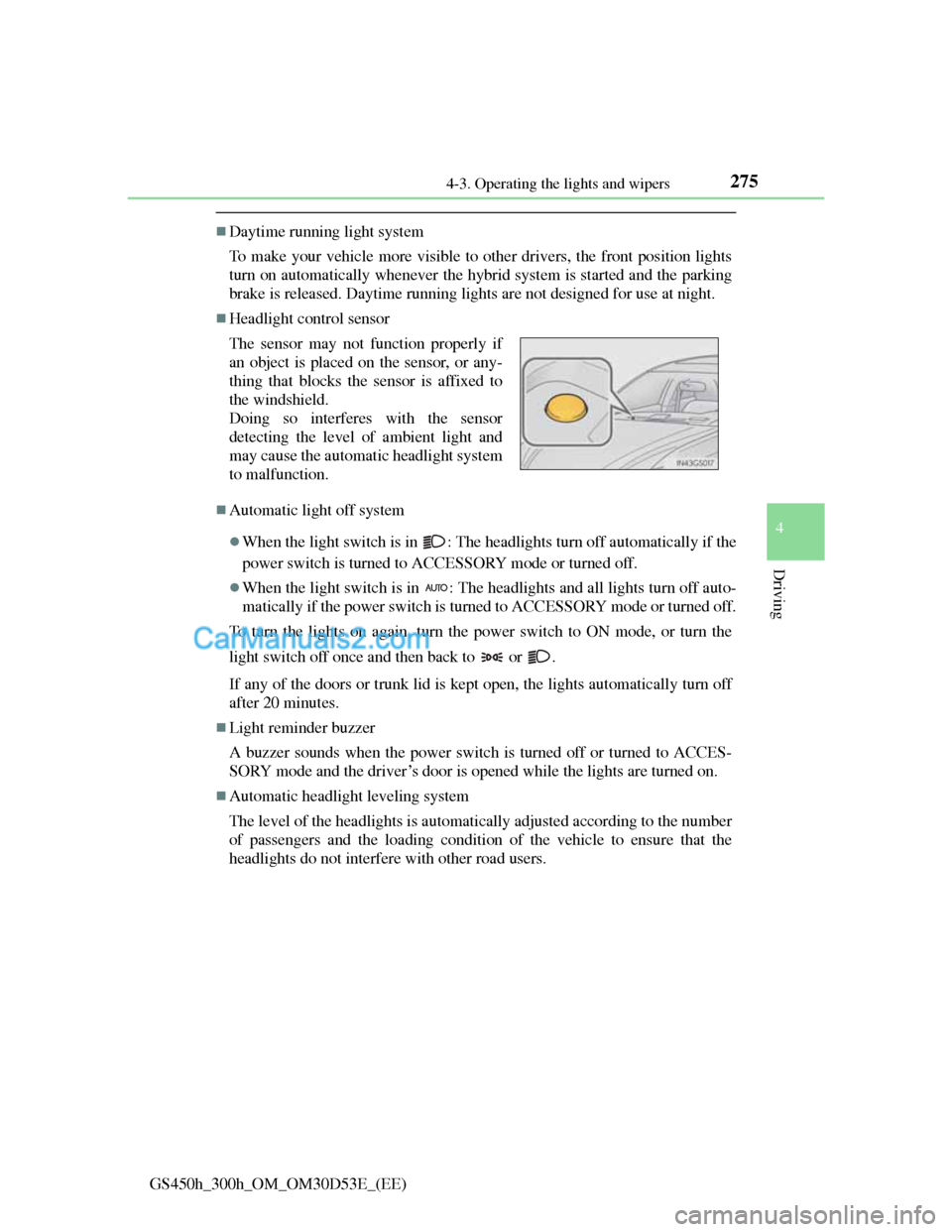

Daytime running light system
To make your vehicle more visible to other drivers, the front position lights
turn on automatically whenever the hybrid system is started and the parking
brake is released. Daytime running lights are not designed for use at night.
Headlight control sensor
Automatic light off system
When the light switch is in : The headlights turn off automatically if the
power switch is turned to ACCESSORY mode or turned off.
When the light switch is in : The headlights and all lights turn off auto-
matically if the power switch is turned to ACCESSORY mode or turned off.
To turn the lights on again, turn the power switch to ON mode, or turn the
light switch off once and then back to or .
If any of the doors or trunk lid is kept open, the lights automatically turn off
after 20 minutes.
Light reminder buzzer
A buzzer sounds when the power switch is turned off or turned to ACCES-
SORY mode and the driver’s door is opened while the lights are turned on.
Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users. The sensor may not function properly if
an object is placed on the sensor, or any-
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight system
to malfunction.

2764-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)

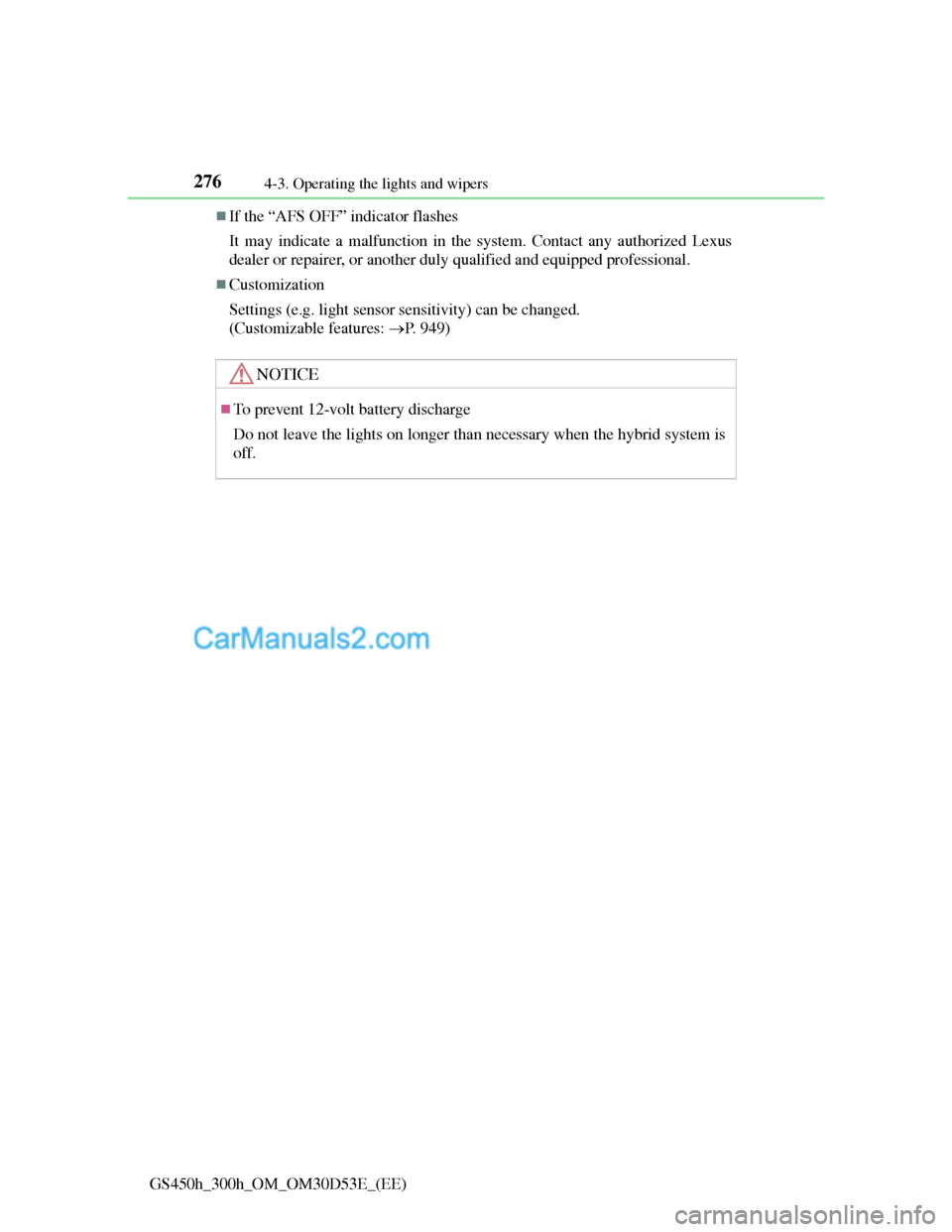

If the “AFS OFF” indicator flashes
It may indicate a malfunction in the system. Contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features: P. 949)
NOTICE
To prevent 12-volt battery discharge
Do not leave the lights on longer than necessary when the hybrid system is
off.

277
4 4-3. Operating the lights and wipers
Driving
GS450h_300h_OM_OM30D53E_(EE)

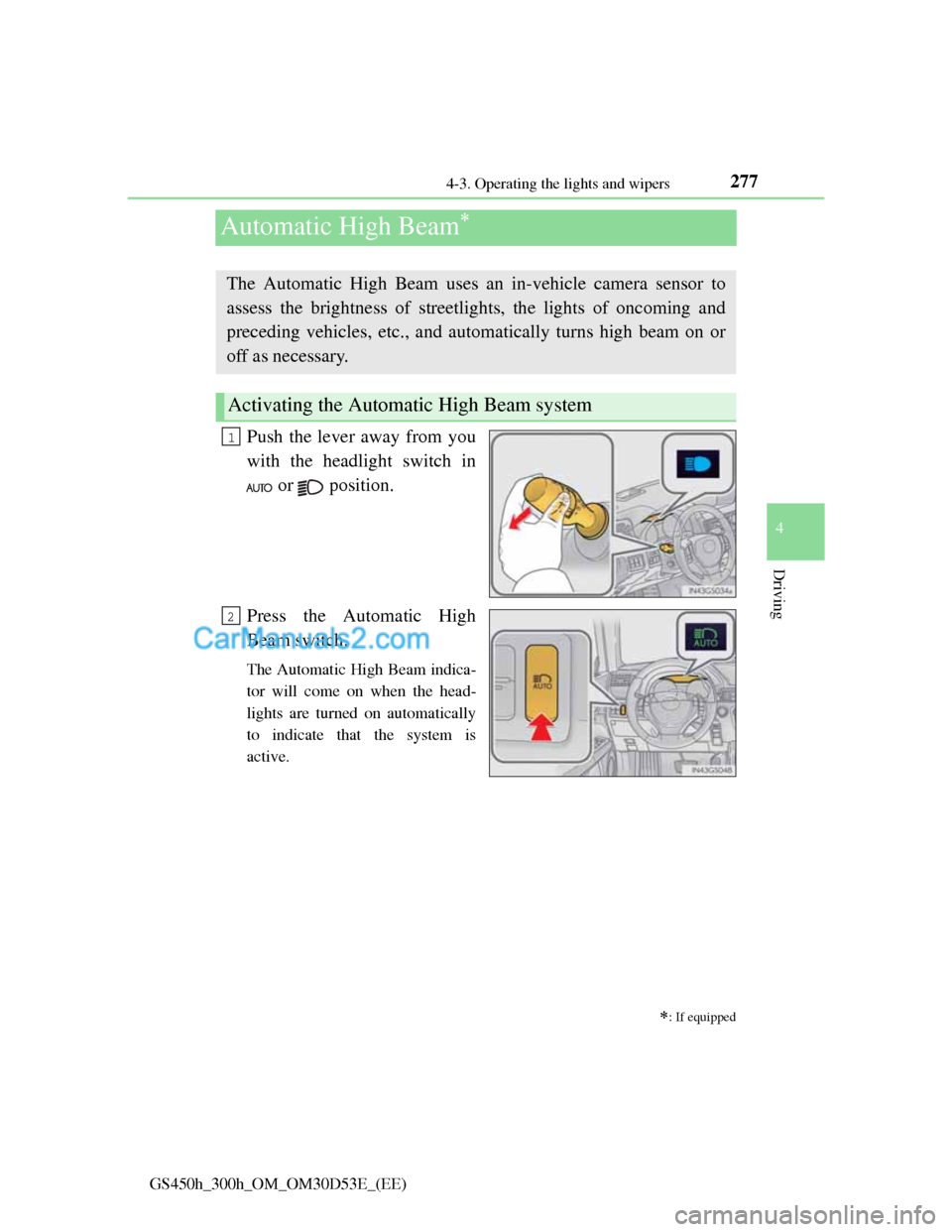

Automatic High Beam
Push the lever away from you
with the headlight switch in
or position.
Press the Automatic High
Beam switch.
The Automatic High Beam indica-
tor will come on when the head-
lights are turned on automatically
to indicate that the system is
active.
: If equipped
The Automatic High Beam uses an in-vehicle camera sensor to
assess the brightness of streetlights, the lights of oncoming and
preceding vehicles, etc., and automatically turns high beam on or
off as necessary.
Activating the Automatic High Beam system
1
2

2784-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)

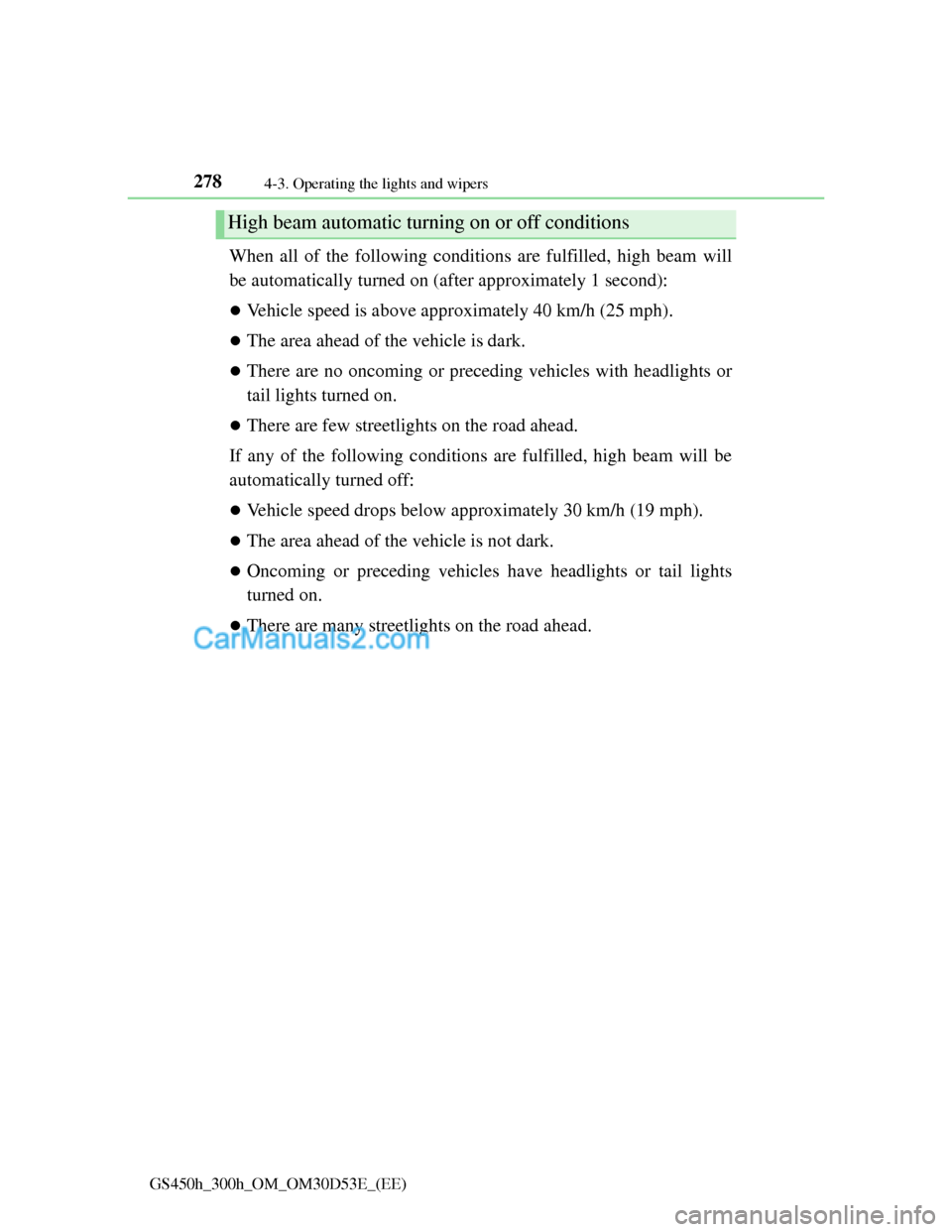

When all of the following conditions are fulfilled, high beam will
be automatically turned on (after approximately 1 second):
Vehicle speed is above approximately 40 km/h (25 mph).
The area ahead of the vehicle is dark.
There are no oncoming or preceding vehicles with headlights or
tail lights turned on.
There are few streetlights on the road ahead.
If any of the following conditions are fulfilled, high beam will be
automatically turned off:
Vehicle speed drops below approximately 30 km/h (19 mph).
The area ahead of the vehicle is not dark.
Oncoming or preceding vehicles have headlights or tail lights
turned on.
There are many streetlights on the road ahead.
High beam automatic turning on or off conditions

2794-3. Operating the lights and wipers
4
Driving
GS450h_300h_OM_OM30D53E_(EE)

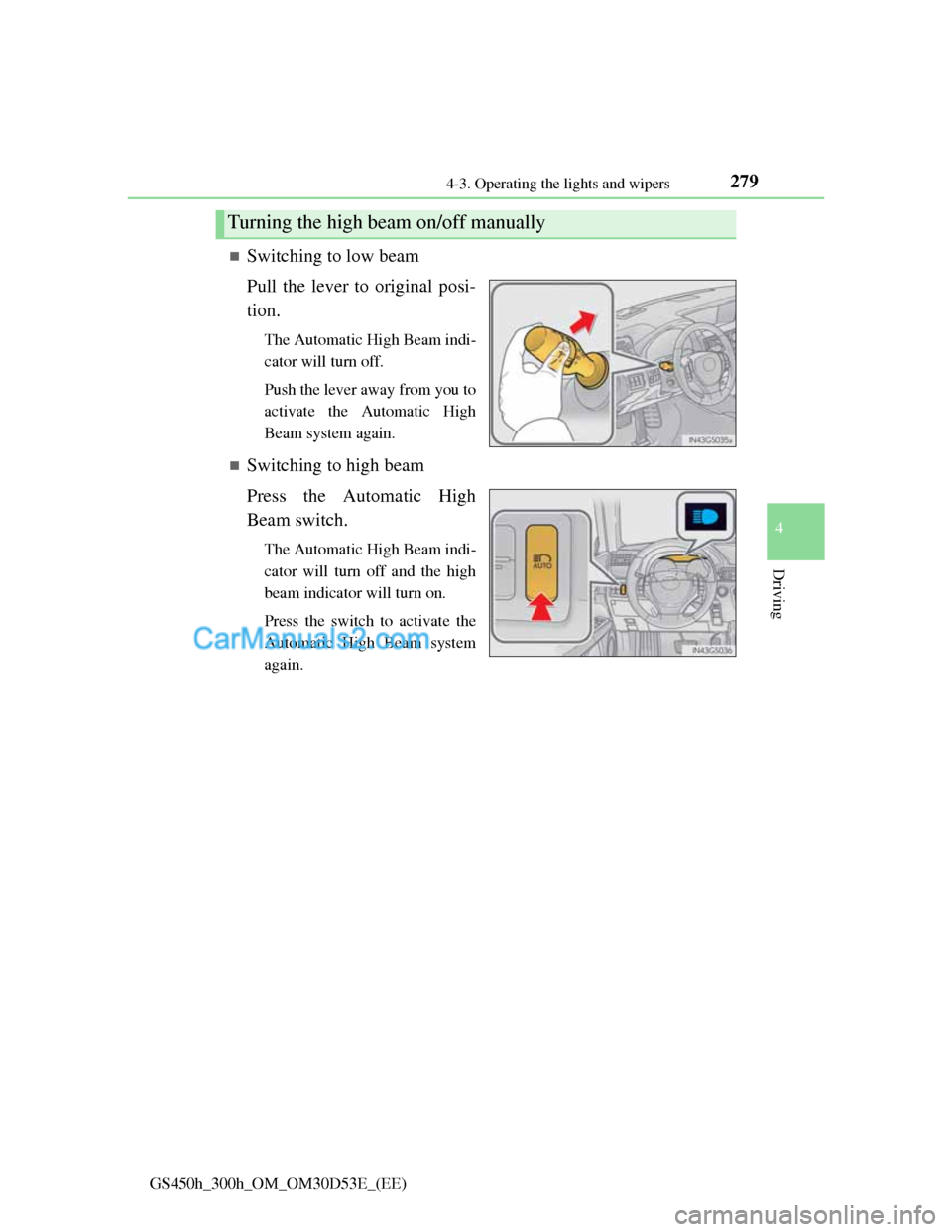

Switching to low beam
Pull the lever to original posi-
tion.
The Automatic High Beam indi-
cator will turn off.
Push the lever away from you to
activate the Automatic High
Beam system again.
Switching to high beam
Press the Automatic High
Beam switch.
The Automatic High Beam indi-
cator will turn off and the high
beam indicator will turn on.
Press the switch to activate the
Automatic High Beam system
again.
Turning the high beam on/off manually

2804-3. Operating the lights and wipers
GS450h_300h_OM_OM30D53E_(EE)

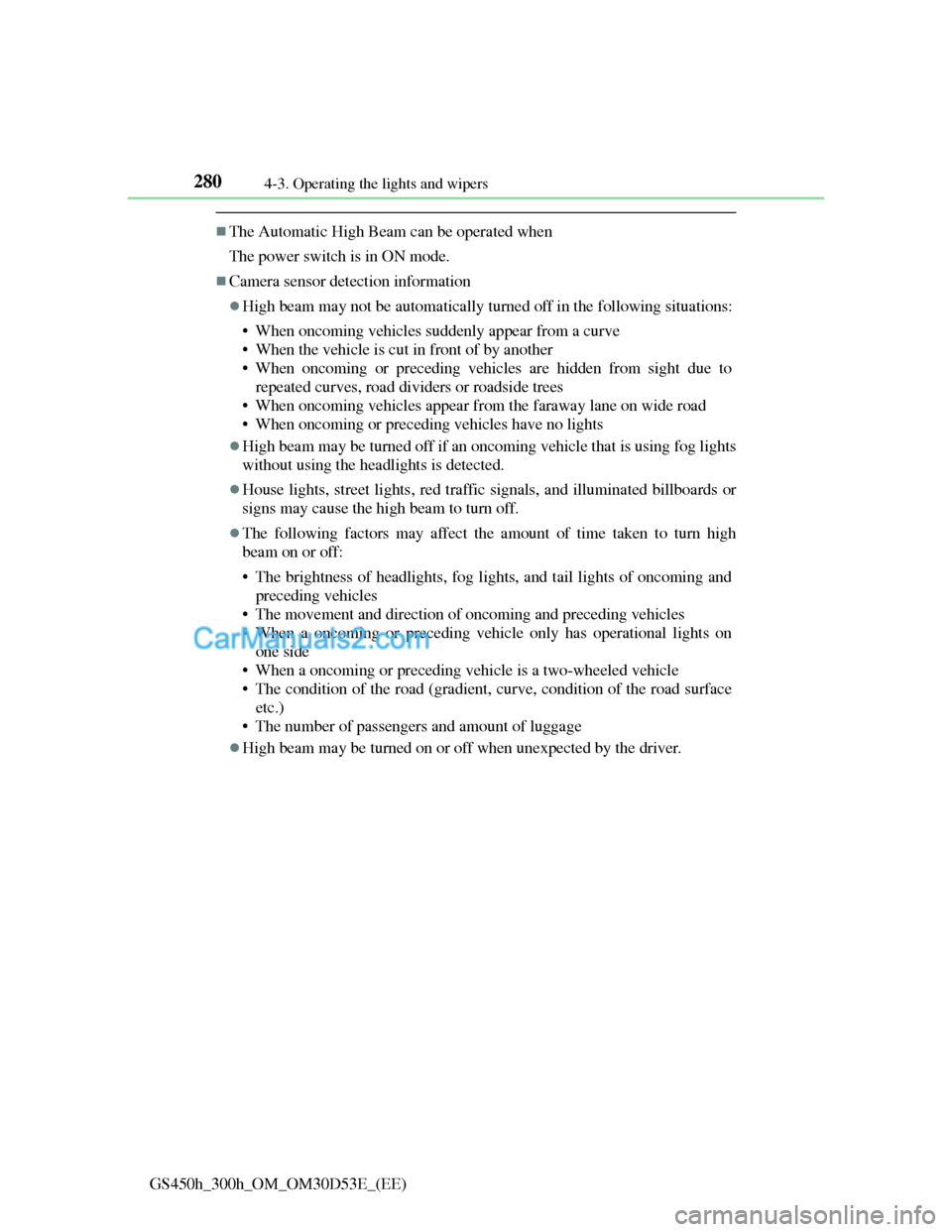

The Automatic High Beam can be operated when
The power switch is in ON mode.
Camera sensor detection information
High beam may not be automatically turned off in the following situations:
• When oncoming vehicles suddenly appear from a curve
• When the vehicle is cut in front of by another
• When oncoming or preceding vehicles are hidden from sight due to
repeated curves, road dividers or roadside trees
• When oncoming vehicles appear from the faraway lane on wide road
• When oncoming or preceding vehicles have no lights
High beam may be turned off if an oncoming vehicle that is using fog lights
without using the headlights is detected.
House lights, street lights, red traffic signals, and illuminated billboards or
signs may cause the high beam to turn off.
The following factors may affect the amount of time taken to turn high
beam on or off:
• The brightness of headlights, fog lights, and tail lights of oncoming and
preceding vehicles
• The movement and direction of oncoming and preceding vehicles
• When a oncoming or preceding vehicle only has operational lights on
one side
• When a oncoming or preceding vehicle is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface
etc.)
• The number of passengers and amount of luggage
High beam may be turned on or off when unexpected by the driver.
