Lexus GS450h 2009 Owner's Manual

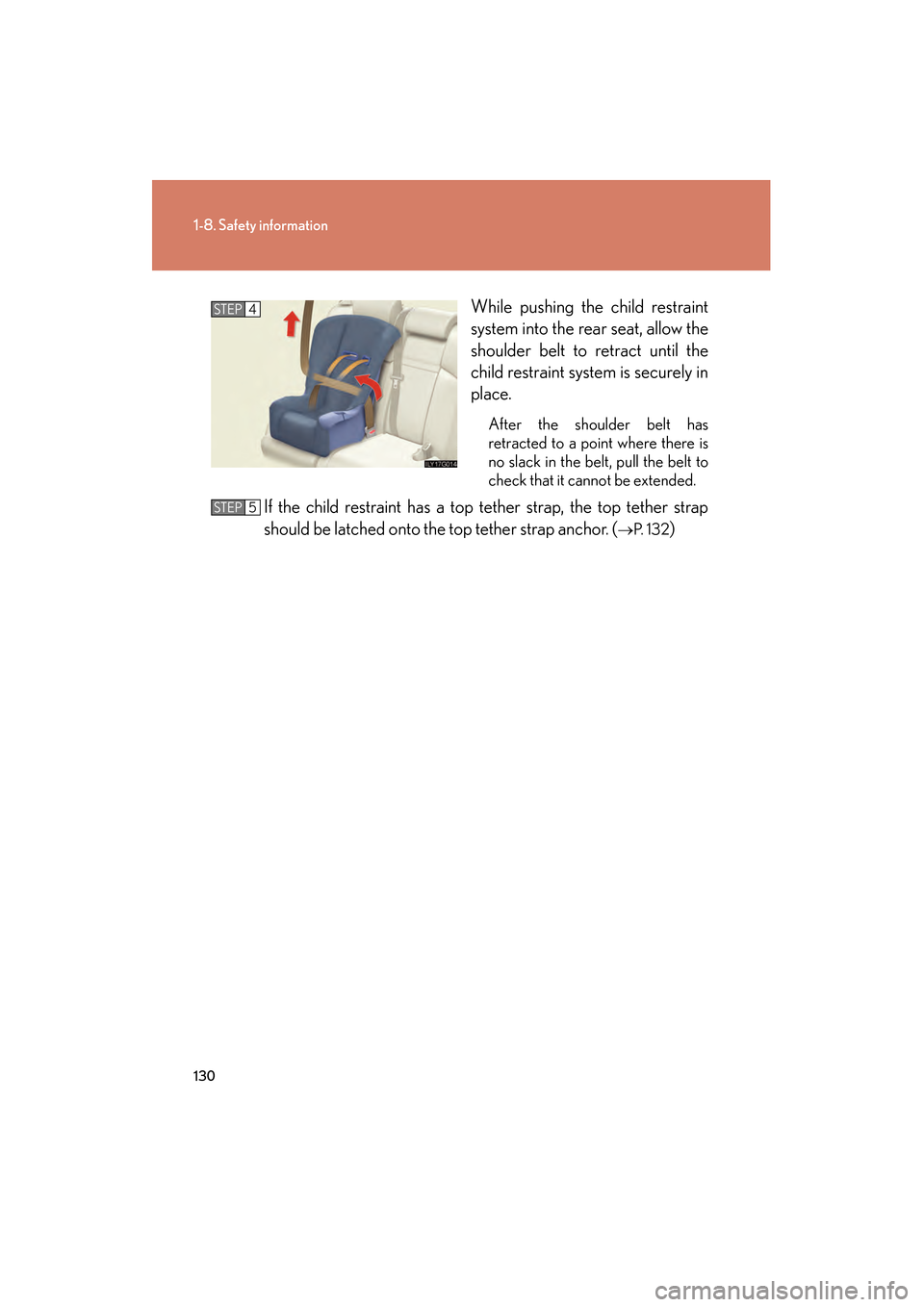

130
1-8. Safety information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. (
→P. 1 3 2)
STEP4
STEP5
GS450h_HV_U.book Page 130 Monday, April 27, 2009 10:10 AM

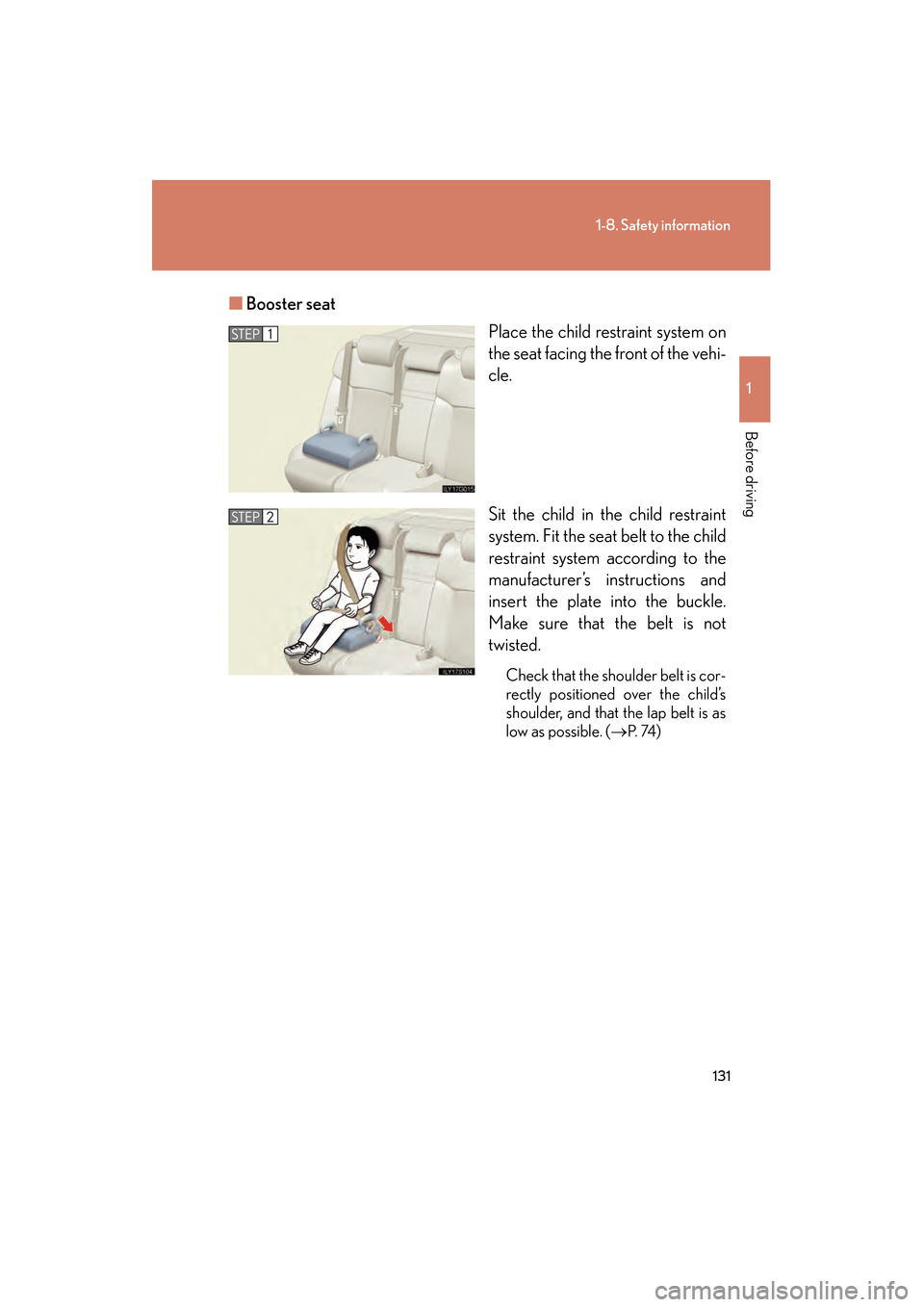

131
1-8. Safety information
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Booster seat
Place the child restraint system on
the seat facing the front of the vehi-
cle.
Sit the child in the child restraint
system. Fit the seat belt to the child
restraint system according to the
manufacturer’s instructions and
insert the plate into the buckle.
Make sure that the belt is not
twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder, and that the lap belt is as
low as possible. (→
P. 74)
STEP1
STEP2
GS450h_HV_U.book Page 131 Monday, April 27, 2009 10:10 AM

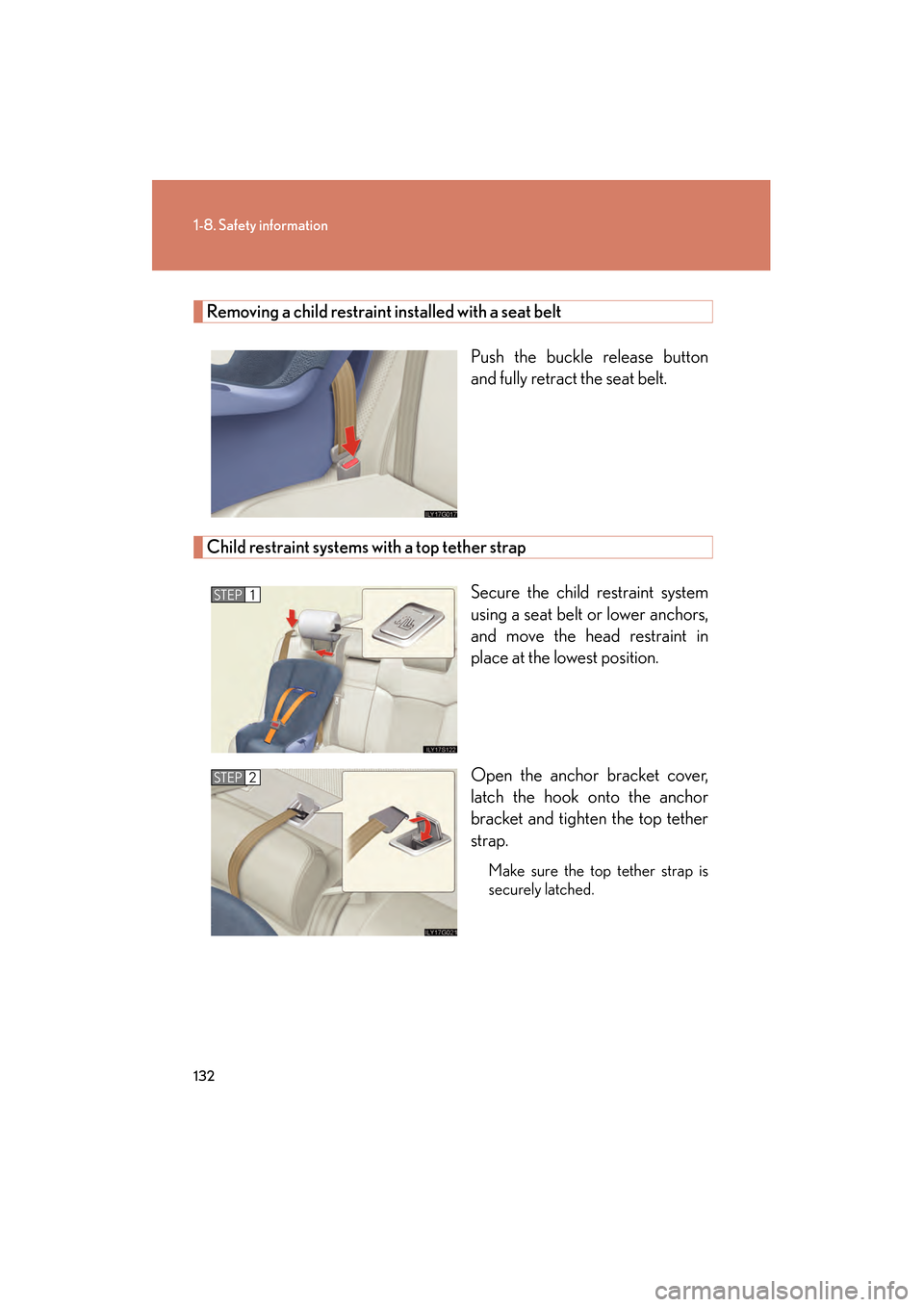

132
1-8. Safety information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
Removing a child restraint installed with a seat beltPush the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strapSecure the child restraint system
using a seat belt or lower anchors,
and move the head restraint in
place at the lowest position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
STEP1
STEP2
GS450h_HV_U.book Page 132 Monday, April 27, 2009 10:10 AM

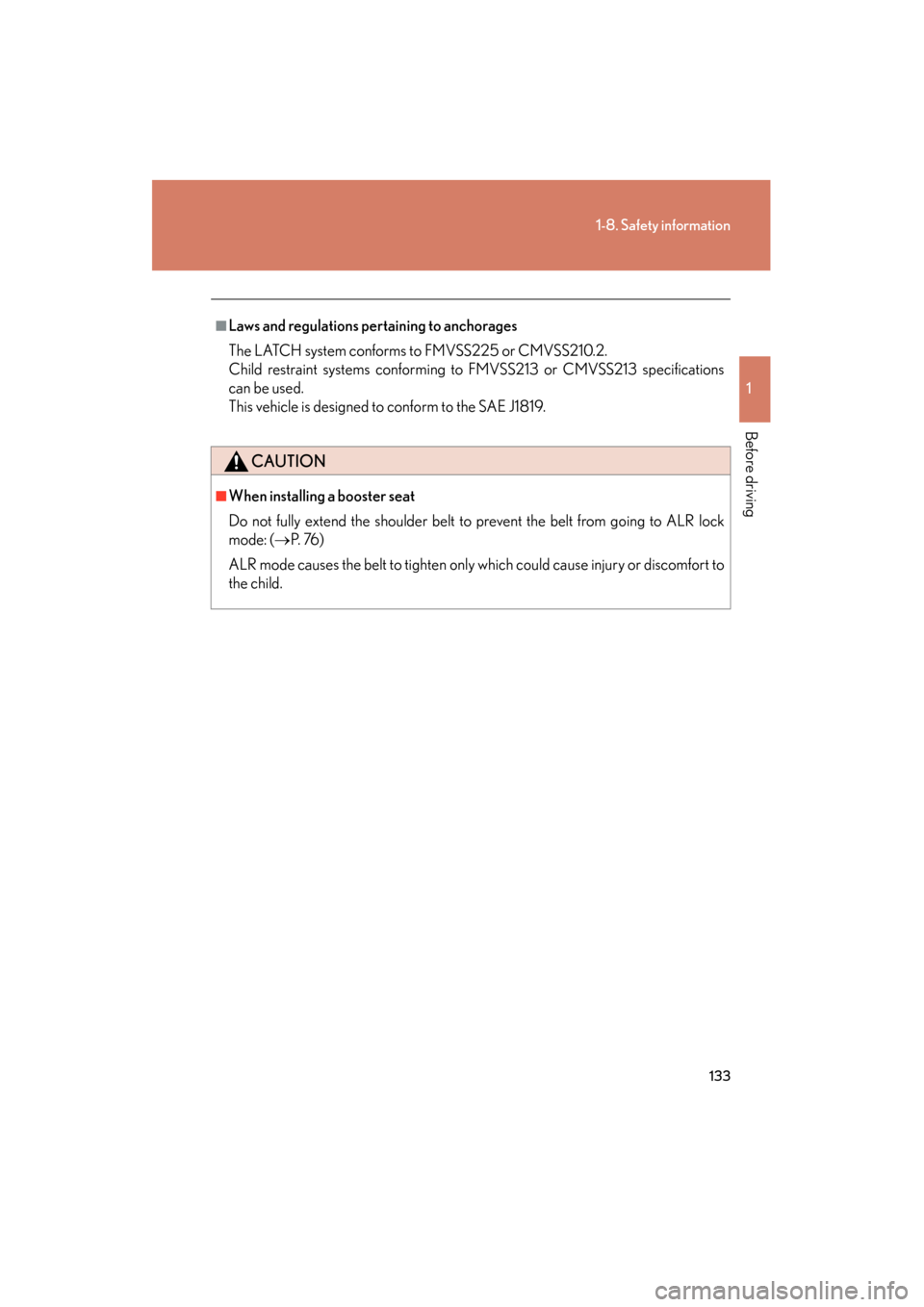

133
1-8. Safety information
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR lock
mode: ( →P. 76 )
ALR mode causes the belt to tighten only which could cause injury or discomfort to
the child.
GS450h_HV_U.book Page 133 Monday, April 27, 2009 10:10 AM

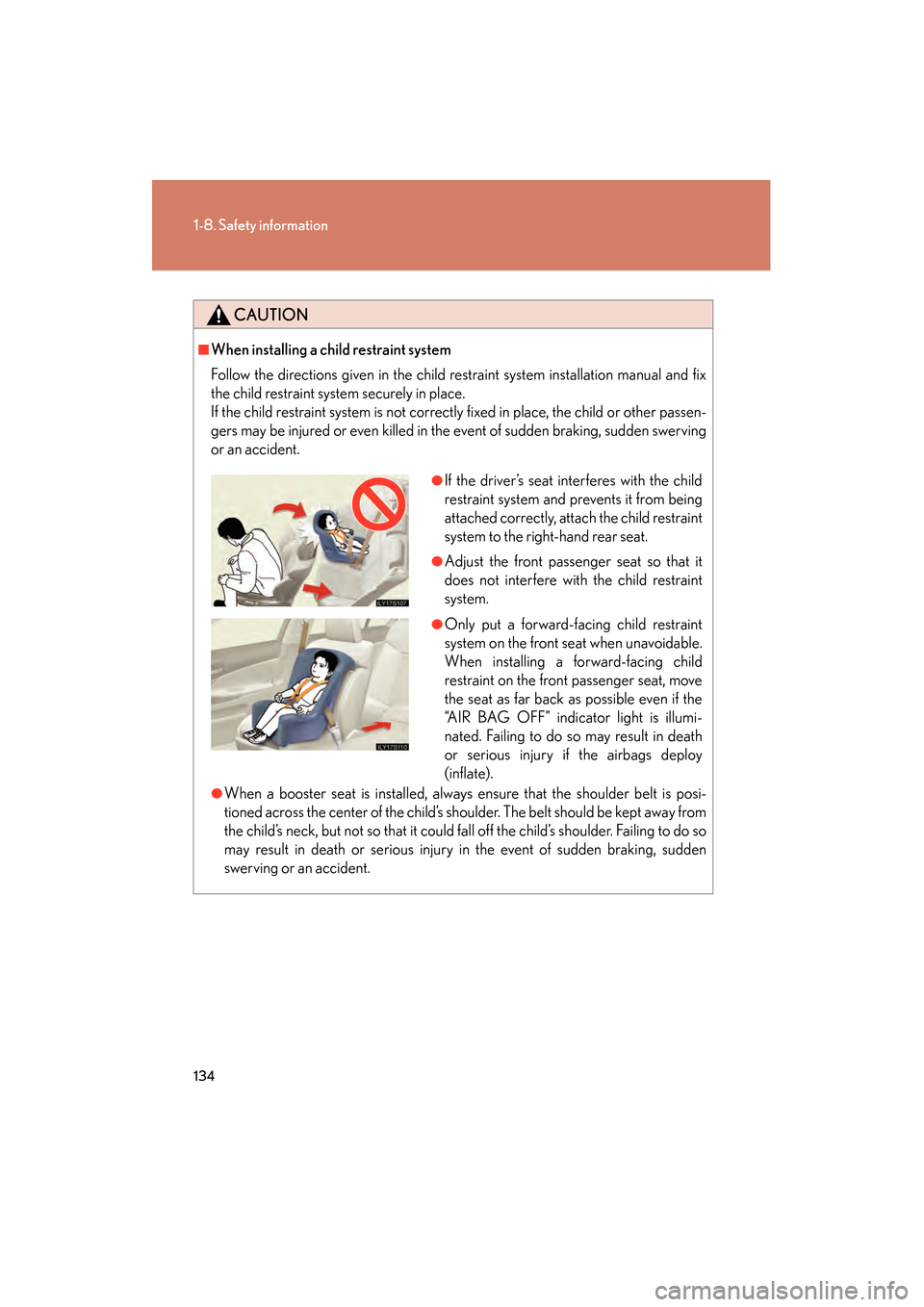

134
1-8. Safety information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passen-
gers may be injured or even killed in the event of sudden braking, sudden swerving
or an accident.
●When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child’s shoulder. The belt should be kept away from
the child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so
may result in death or serious injury in the event of sudden braking, sudden
swerving or an accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Adjust the front passenger seat so that it
does not interfere with the child restraint
system.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint on the front passenger seat, move
the seat as far back as possible even if the
“AIR BAG OFF” indicator light is illumi-
nated. Failing to do so may result in death
or serious injury if the airbags deploy
(inflate).
GS450h_HV_U.book Page 134 Monday, April 27, 2009 10:10 AM

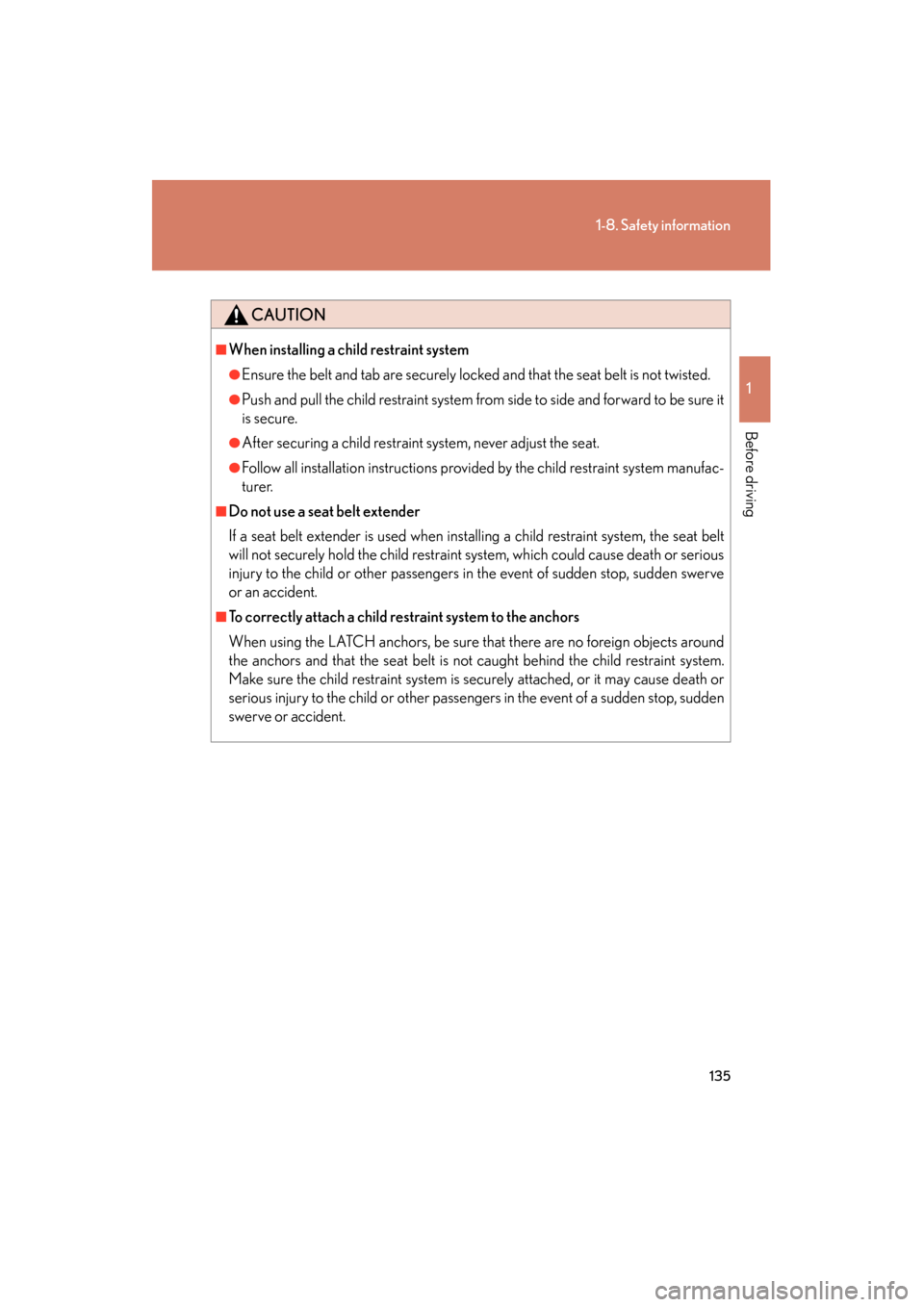

135
1-8. Safety information
1
Before driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
CAUTION
■When installing a child restraint system
●Ensure the belt and tab are securely locked and that the seat belt is not twisted.
●Push and pull the child restraint system from side to side and forward to be sure it
is secure.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufac-
turer.
■Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of sudden stop, sudden swerve
or an accident.
■To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects around
the anchors and that the seat belt is not caught behind the child restraint system.
Make sure the child restraint system is securely attached, or it may cause death or
serious injury to the child or other passengers in the event of a sudden stop, sudden
swerve or accident.
GS450h_HV_U.book Page 135 Monday, April 27, 2009 10:10 AM

136
1-8. Safety information
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
GS450h_HV_U.book Page 136 Monday, April 27, 2009 10:10 AM

When driving2
137
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
2-1. Driving proceduresDriving the vehicle.................. 138
Power (ignition) switch .......... 148
Transmission.............................. 152
Turn signal lever ....................... 156
Parking brake ........................... 157
Horn ............................................ 158
2-2. Instrument cluster Gauges and meters ................ 159
Indicators and warning lights ........................ 163
Multi-information display ..... 166 2-3. Operating the lights and
windshield wipers
Headlight switch ...................... 169
Fog light switch ......................... 172
Windshield wipers and washer ..................................... 173
Headlight cleaner switch ..... 178
2-4. Using other driving systems
Cruise control........................... 179
Dynamic radar cruise control ..................................... 183
Intuitive parking assist ........... 195
Rear view monitor system .... 210
AVS (Adaptive Variable Suspension System) ............ 213
Driving assist systems ............ 214
PCS (Pre-Collision System) ...... 221
2-5. Driving information Cargo and luggage ............... 227
Vehicle load limits ................... 231
Winter driving tips ................. 232
Trailer towing .......................... 236
Dinghy towing......................... 237
GS450h_HV_U.book Page 137 Monday, April 27, 2009 10:10 AM

138
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
2-1. Driving procedures
Driving the vehicle
Starting on a steep inclineFirmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driving.
■Starting the hybrid system ( →P. 148)
■ Driving
With the brake pedal depressed, shift the shift lever to “D”. (→P. 1 5 2 )
Release the parking brake. (→ P. 1 5 7 )
Gradually release the brake pedal and gently push the accel-
erator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in “D”, push the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the
shift lever to “P”. (
→P. 1 5 2 )
■Parking the vehicle
With the shift lever in “D”, push the brake pedal.
Set the parking brake. (→ P. 1 5 7 )
Shift the shift lever to “P”. (→ P. 1 5 2 )
Stop the hybrid system.
Lock the door, making sure that you have the electronic key on
your person.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
GS450h_HV_U.book Page 138 Monday, April 27, 2009 10:10 AM

139
2-1. Driving procedures
2
When driving
GS_HV_U (OM30B44U)
April 27, 2009 10:09 am
■Driving in the rain
●Drive carefully when it is raining, because visibility will be reduced, the windows
may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, because the road surface will be especially
slippery.
●Refrain from high speeds when driving on an expressway in the rain, because
there may be a layer of water between the tires and the road surface, preventing
the steering and brakes from operating properly.
■Breaking in your new Lexus
To extend the life of the vehicle, the following precautions are recommended to
observe:
●For the first 186 miles (300 km):
Avoid sudden stops.
●For the first 621 miles (1000 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive continuously in the low range in the “S” position.
• Do not drive at a constant speed for extended periods.
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. (→P. 566)
GS450h_HV_U.book Page 139 Monday, April 27, 2009 10:10 AM
