4917-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)
*: For the EV drive mode operating conditions (P. 222).
Warning messageDetails/Actions
Indicates that the EV drive mode has been automatically canceled*
The reason the EV drive mode is not available (thebattery charge is low, speed is higher than the EVdrive mode operating speed range, accelerator pedal
is depressed too much) may be displayed. A buzzer also sounds. Drive the vehicle for a while.
(Flashes)

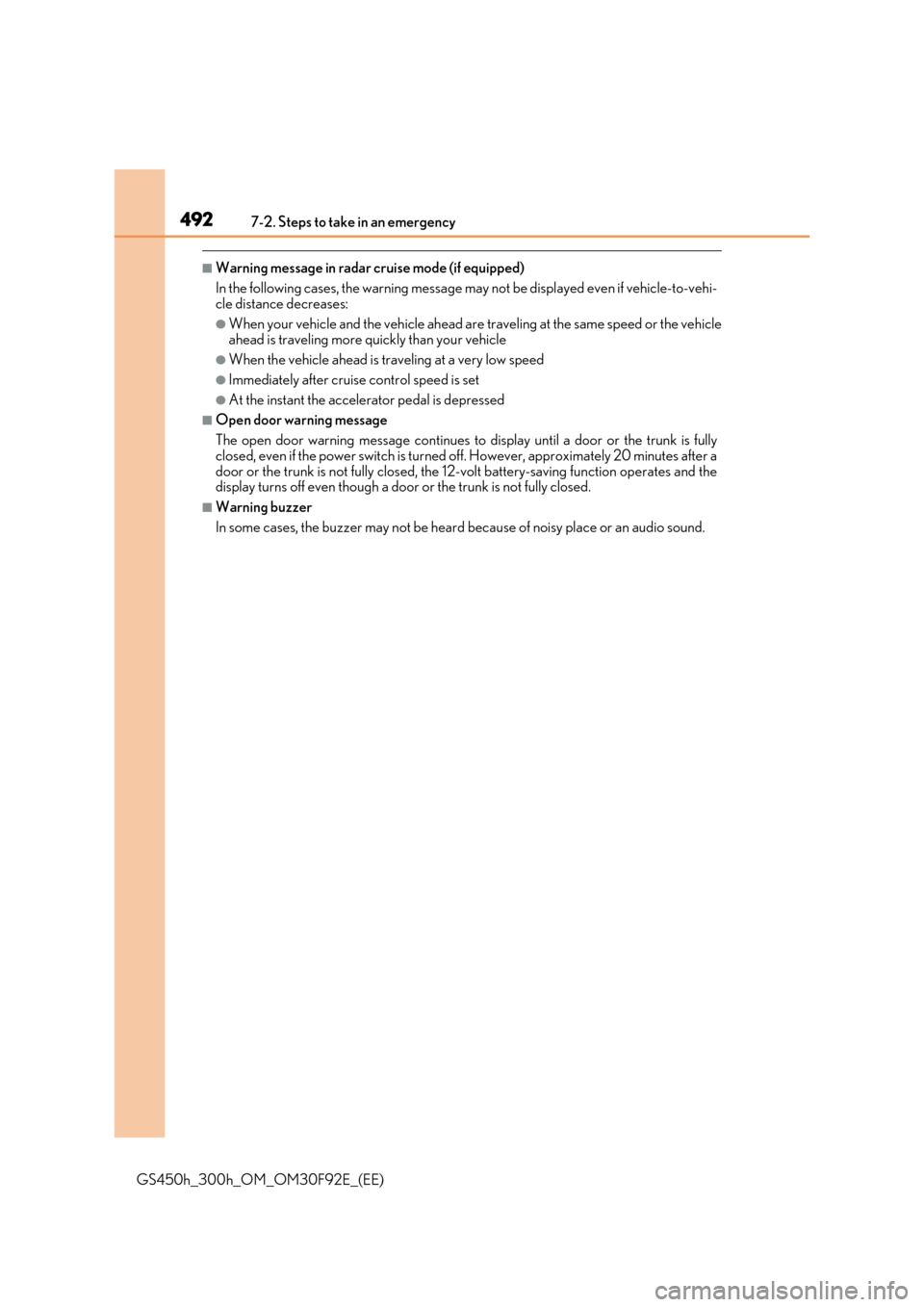

4927-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)
■Warning message in radar cruise mode (if equipped)
In the following cases, the warn ing message may not be displayed even if vehicle-to-vehi- cle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or the vehicle
ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
■Open door warning message
The open door warning message continues to display until a door or the trunk is fully
closed, even if the power switch is turned off. However, approximately 20 minutes after a door or the trunk is not fully closed, the 12-volt battery-saving function operates and thedisplay turns off even though a door or the trunk is not fully closed.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio sound.

4937-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

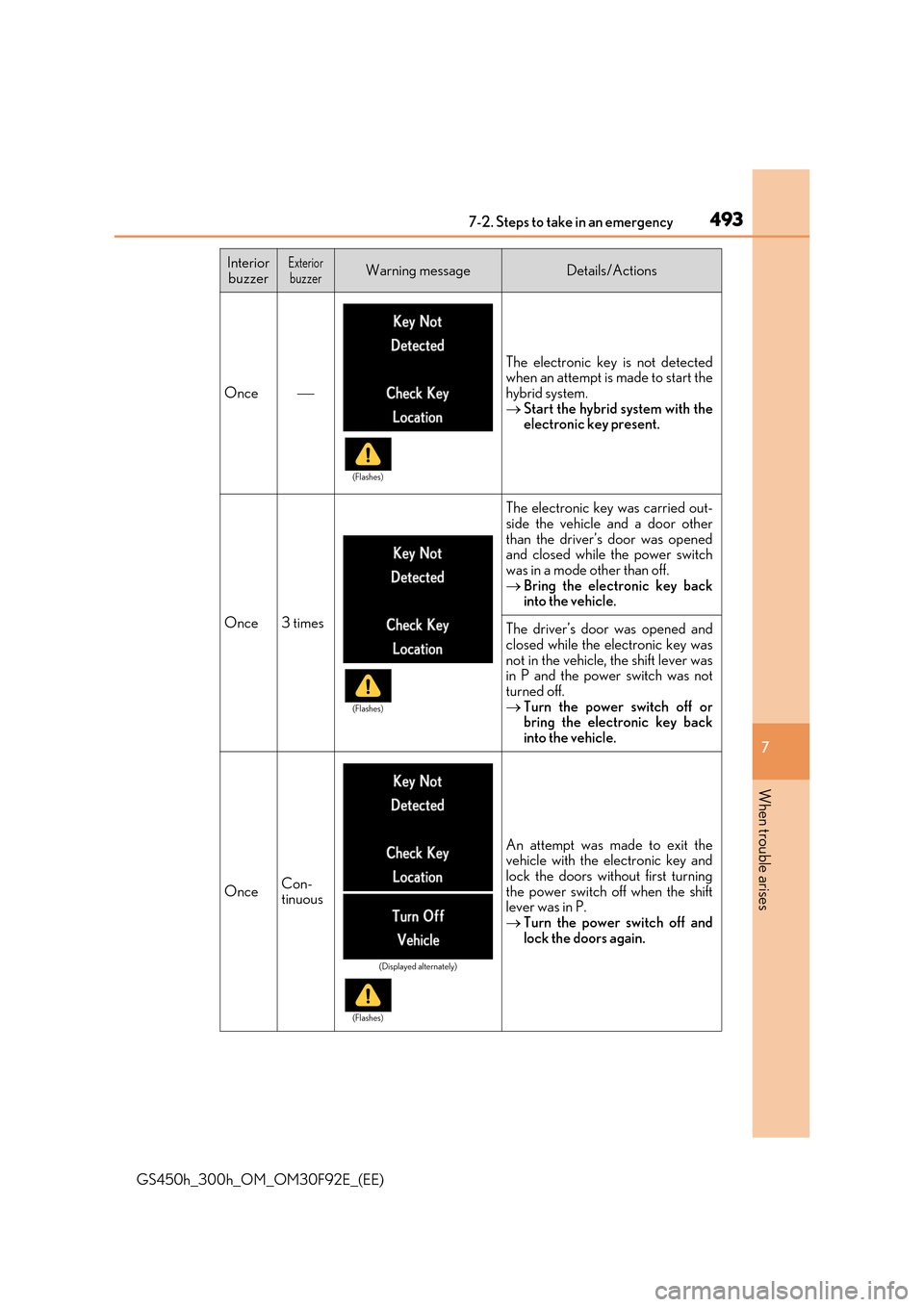

Interior buzzerExteriorbuzzerWarning messageDetails/Actions
Once
The electronic key is not detectedwhen an attempt is made to start the
hybrid system.  Start the hybrid system with the electronic key present.
Once3 times
The electronic key was carried out-
side the vehicle and a door other than the driver’s door was openedand closed while the power switch
was in a mode other than off.  Bring the electronic key back into the vehicle.
The driver’s door was opened and
closed while the electronic key was not in the vehicle, the shift lever wasin P and the power switch was not
turned off.  Turn the power switch off or bring the electronic key back
into the vehicle.
OnceCon- tinuous
An attempt was made to exit thevehicle with the electronic key andlock the doors without first turning
the power switch off when the shift lever was in P. Turn the power switch off and
lock the doors again.
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)

4947-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

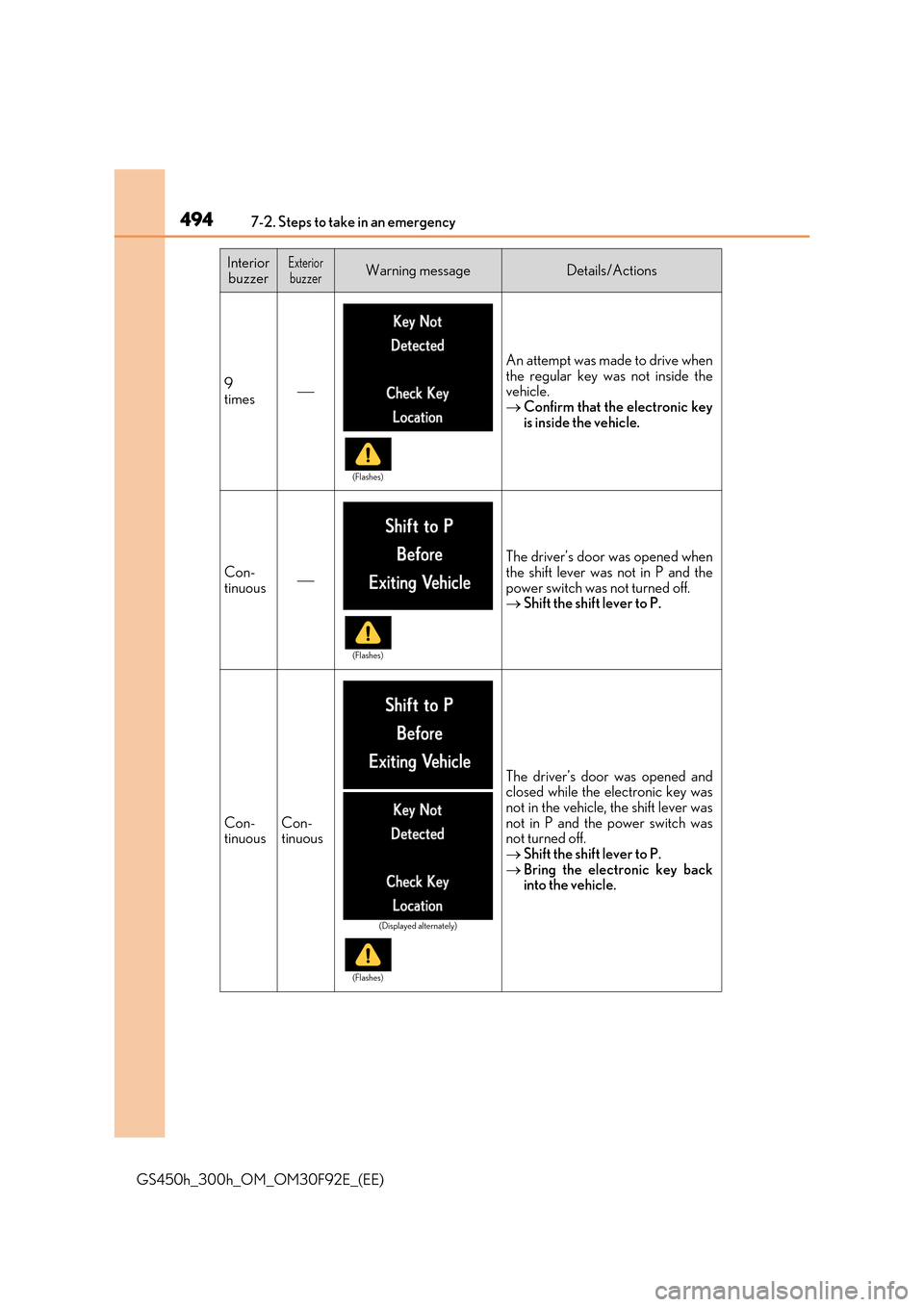

9 times
An attempt was made to drive when
the regular key was not inside the vehicle.
 Confirm that the electronic key is inside the vehicle.
Con-
tinuous
The driver’s door was opened when the shift lever was not in P and the
power switch was not turned off.  Shift the shift lever to P.
Con- tinuousCon-tinuous
The driver’s door was opened andclosed while the electronic key wasnot in the vehicle, the shift lever was
not in P and the power switch was not turned off. Shift the shift lever to P.
 Bring the electronic key back into the vehicle.
InteriorbuzzerExteriorbuzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Displayed alternately)
(Flashes)

5287-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

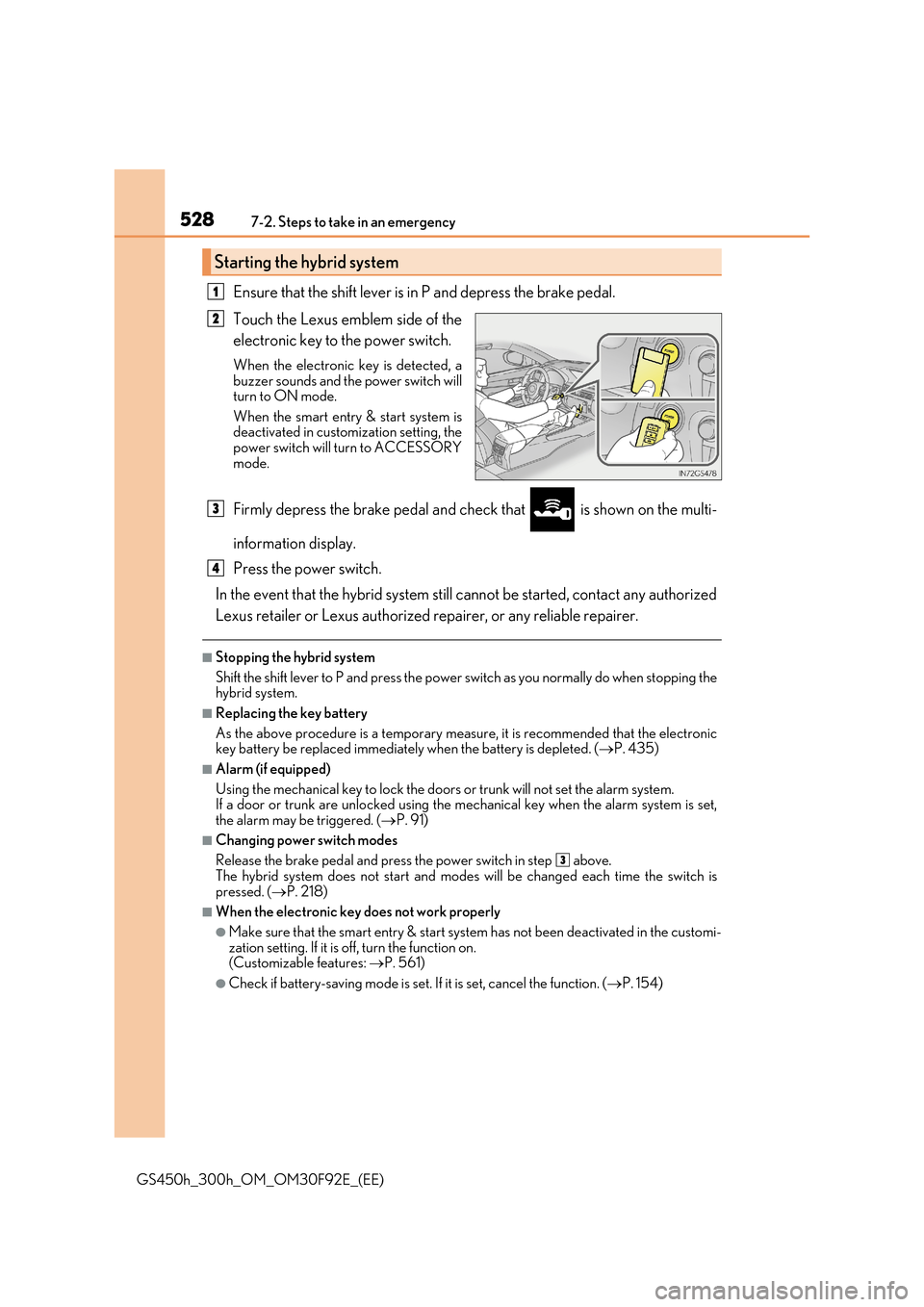

Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the power switch.
When the electronic key is detected, a buzzer sounds and the power switch willturn to ON mode.
When the smart entry & start system is deactivated in customization setting, thepower switch will turn to ACCESSORY
mode.
Firmly depress the brake pedal and ch eck that is shown on the multi-
information display.
Press the power switch.
In the event that the hybrid system still cannot be started, contact any authorized
Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■Stopping the hybrid system
Shift the shift lever to P and press the power switch as you normally do when stopping the hybrid system.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic key battery be replaced immediately when the battery is depleted. ( P. 435)
■Alarm (if equipped)
Using the mechanical key to lock the doors or trunk will not set the alarm system. If a door or trunk are unlocked using the me chanical key when the alarm system is set,
the alarm may be triggered. ( P. 91)
■Changing power switch modes
Release the brake pedal and press the power switch in step above.
The hybrid system does not start and modes will be changed each time the switch is pressed. ( P. 218)
■When the electronic key does not work properly
●Make sure that the smart entry & start system has not been deactivated in the customi- zation setting. If it is off, turn the function on. (Customizable features: P. 561)
●Check if battery-saving mode is set. If it is set, cancel the function. (P. 154)
Starting the hybrid system
1
2
3
4
3

535
7
7-2. Steps to take in an emergency
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

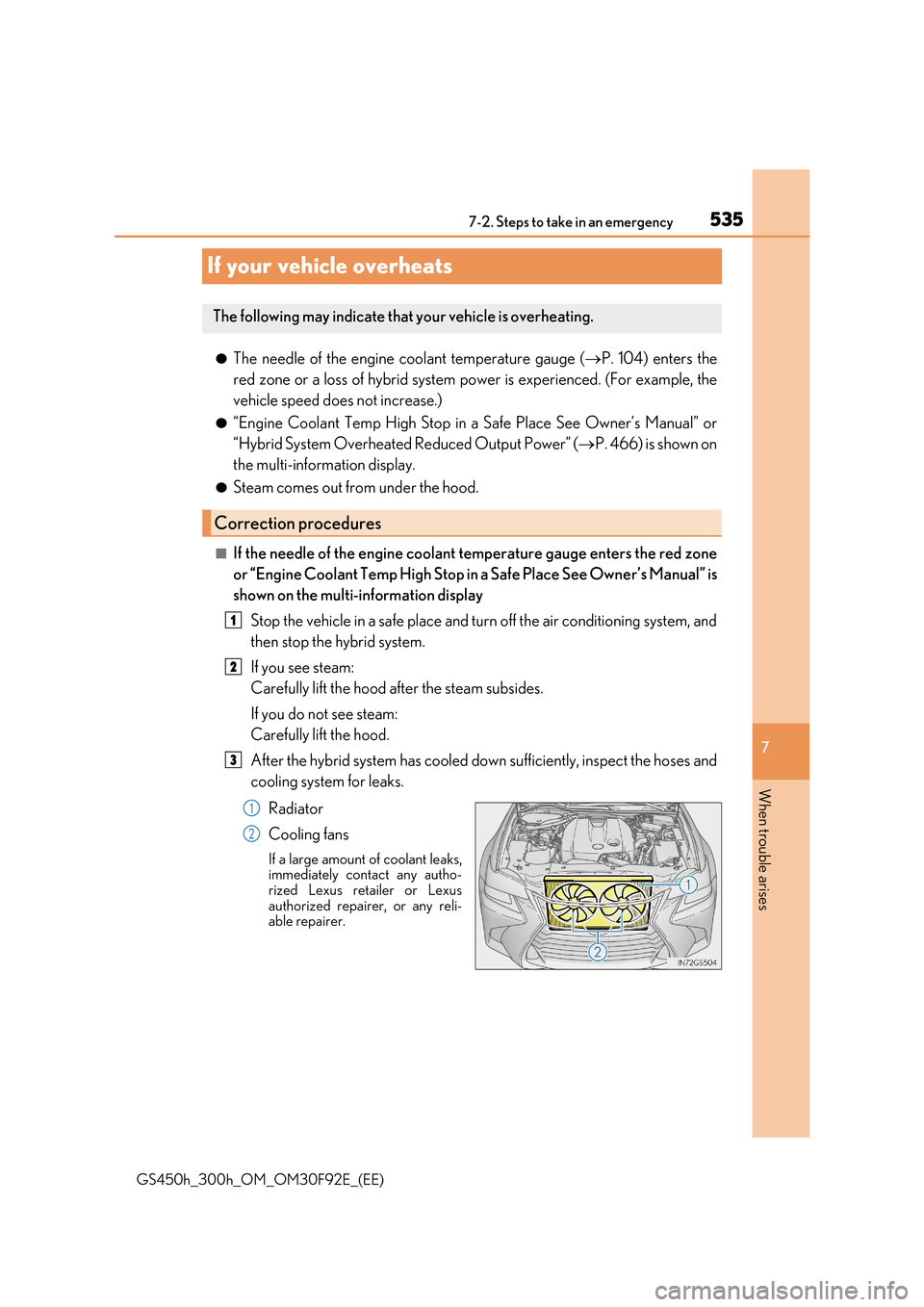

If your vehicle overheats
●The needle of the engine coolant temperature gauge ( P. 104) enters the
red zone or a loss of hybrid system power is experienced. (For example, the
vehicle speed does not increase.)
●“Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” or
“Hybrid System Overheated Reduced Output Power” ( P. 466) is shown on
the multi-information display.
●Steam comes out from under the hood.
■If the needle of the engine coolant temperature gauge enters the red zone
or “Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
shown on the multi-information display
Stop the vehicle in a safe place and turn off the air conditioning system, and
then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has cooled down sufficiently, inspect the hoses and
cooling system for leaks.
Radiator
Cooling fans
If a large amount of coolant leaks, immediately contact any autho-
rized Lexus retailer or Lexus authorized repairer, or any reli-able repairer.
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

5377-2. Steps to take in an emergency
7
When trouble arises
GS450h_300h_OM_OM30F92E_(EE)

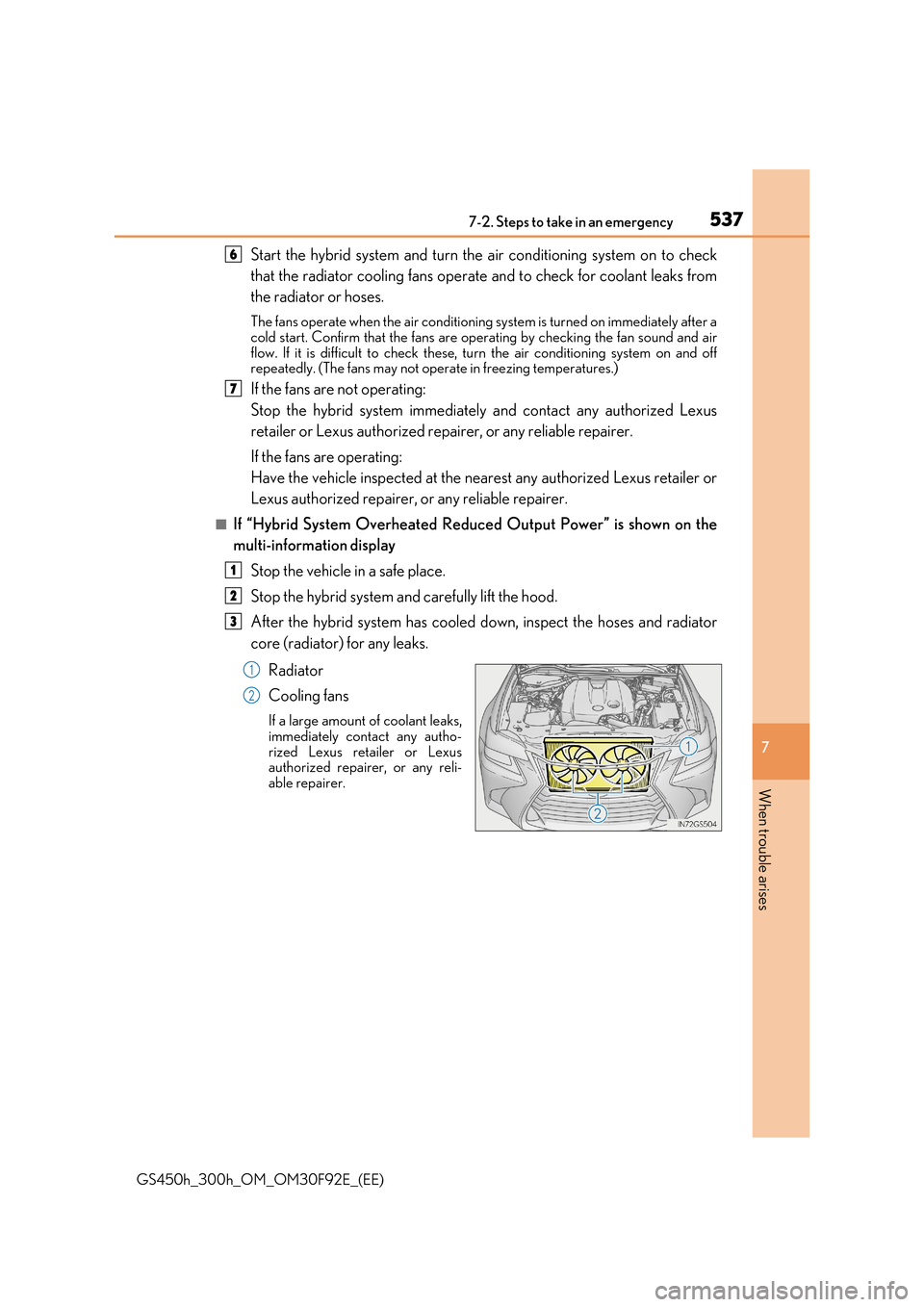

Start the hybrid system and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks from
the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are op erating by checking the fan sound and air flow. If it is difficult to check these, tu rn the air conditioning system on and off repeatedly. (The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the hybrid system immediately and contact any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer.
If the fans are operating:
Have the vehicle inspected at the nearest any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.
■If “Hybrid System Overheated Reduced Output Power” is shown on the
multi-information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has cooled down, inspect the hoses and radiator
core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks, immediately contact any autho-
rized Lexus retailer or Lexus authorized repairer, or any reli-able repairer.
6
7
1
2
3
1
2

5387-2. Steps to take in an emergency
GS450h_300h_OM_OM30F92E_(EE)

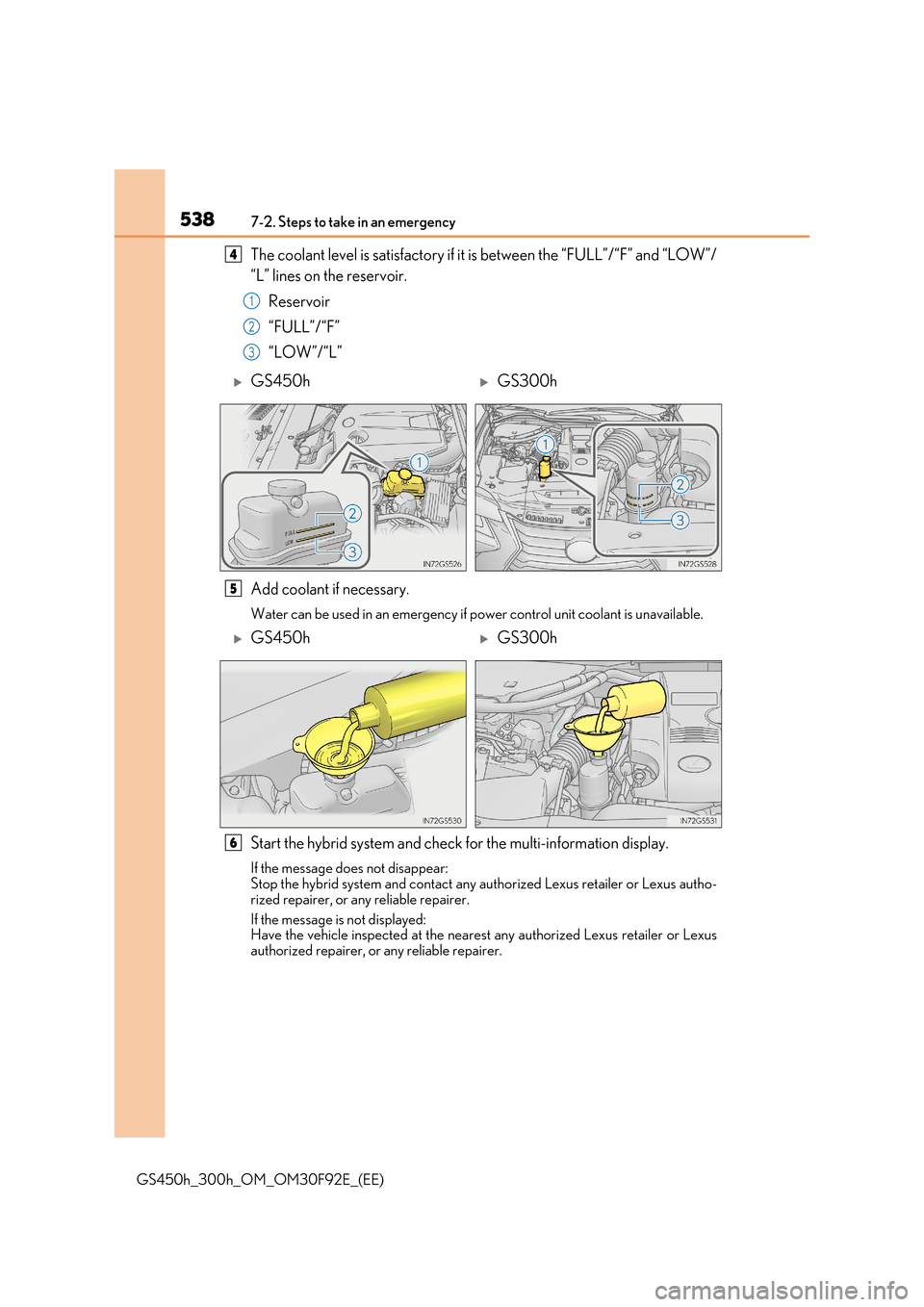

The coolant level is satisfactory if it is between the “FULL”/“F” and “LOW”/
“L” lines on the reservoir.
Reservoir
“FULL”/“F”
“LOW”/“L”
Add coolant if necessary.
Water can be used in an emergency if po wer control unit coolant is unavailable.
Start the hybrid system and check for the multi-information display.
If the message does not disappear: Stop the hybrid system and contact any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.
If the message is not displayed: Have the vehicle inspected at the nearest any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.
4
1
2
3
GS450hGS300h
5
GS450hGS300h
6

551
8
8-1. Specifications
Vehicle specifications
GS450h_300h_OM_OM30F92E_(EE)

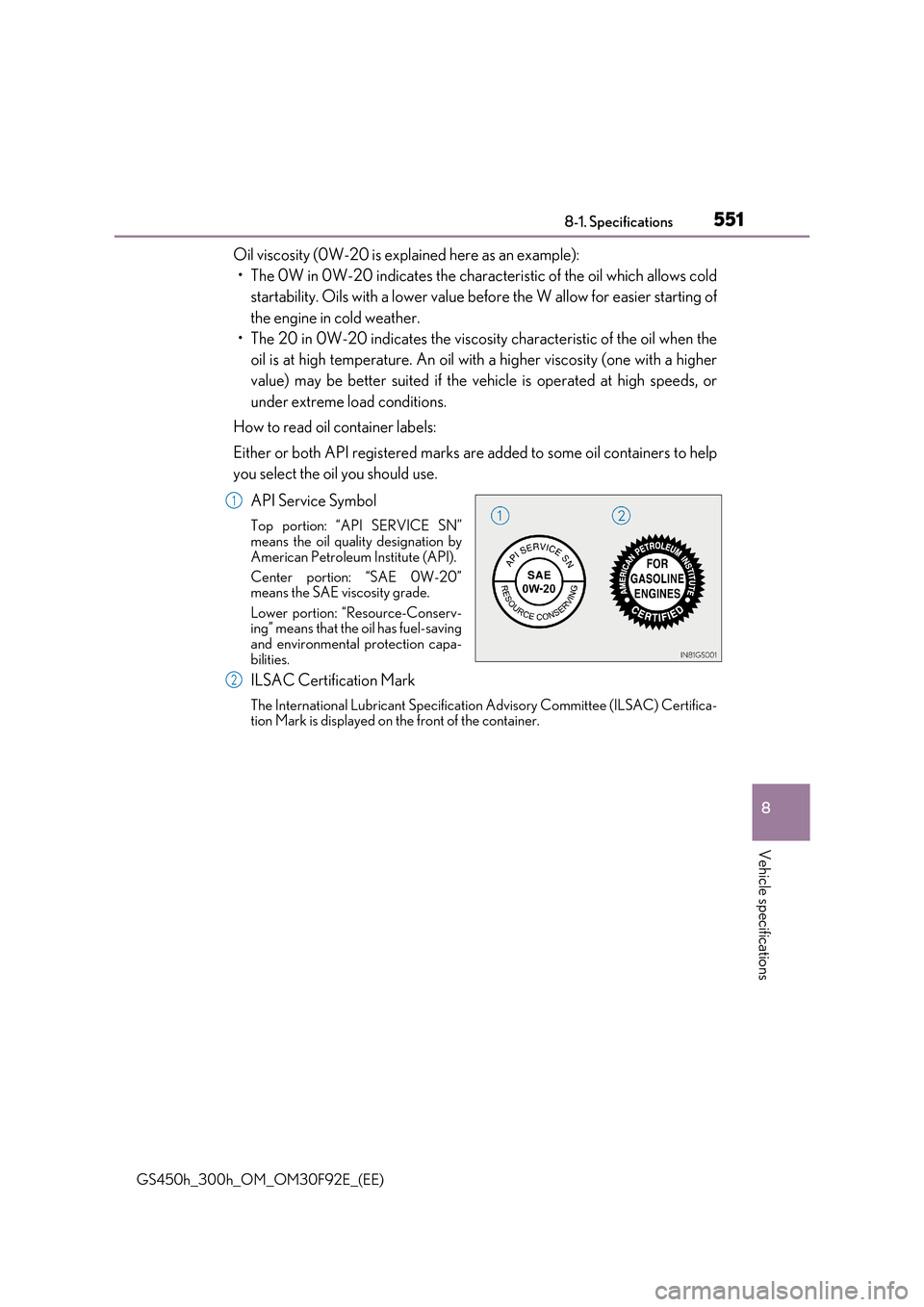

Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows cold
startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks are added to some oil containers to help
you select the oil you should use.
API Service Symbol
Top portion: “API SERVICE SN” means the oil quality designation by
American Petroleum Institute (API).
Center portion: “SAE 0W-20” means the SAE viscosity grade.
Lower portion: “Resource-Conserv- ing” means that the oil has fuel-saving and environmental protection capa-
bilities.
ILSAC Certification Mark
The International Lubricant Specificatio n Advisory Committee (ILSAC) Certifica- tion Mark is displayed on the front of the container.
1
2

5628-2. Customization
GS450h_300h_OM_OM30F92E_(EE)
Some function settings are changed simu ltaneously with other functions being
customized. Contact any authorized Lexus retailer or Lexus authorized repairer,
or any reliable repairer.
Settings that can be changed using the Remote Touch
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Meters and multi-information display ( P. 111)
Customizable features
1
2
3
FunctionDefault
setting
Customized
setting
Speed warning Off On — O —
Speed warning setting 30 km/h (20 mph) 30 to 260 km/h (20 to 160 mph) —O—
Language*1English
French
—O—
German
Spanish
Italian
Russian
Units*1km (L/100 km)km (km/L)OO—miles (MPG)
EV indicator On Off — O —
switch settingsDrive information 1Desired status screen*2—O—
Drive information screen dis-
played on the first screen of
(Drive information 1)
Current fuel
consumption
*3—O—Average fuel economy (after reset)
Drive information screen dis-
played on the second screen of
(Drive information 2)
Distance (range)
*3—O—Average speed
(after reset)
123
