GX460_OM_OM60J63U_(U)
3-6. Using the storage featuresList of storage features............... 529
• Glove box ..................................... 531
• Console box ................................ 532
• Coin holder.................................. 534
• Bottle holders/door pockets ......................................... 535
• Cup holders................................. 536
• Auxiliary boxes........................... 539
3-7. Other interior features Cool box ........................................... 541
Sun visors......................................... 544
Vanity mirror .................................. 545
Clock ................................................. 546
Conversation mirror................... 547
Power outlet (12 V DC) ........... 548
Power outlet (120 V AC) ........ 550
Heated steering wheel.............. 555
Seat heaters and ventilators .... 557
Armrest ........................................... 560
Coat hooks ...................................... 561
Assist grips ...................................... 562
Floor mat.......................................... 563
Luggage compartment features.......................................... 565
Garage door opener.................. 574
Compass......................................... 582
Safety Connect ............................. 587 4-1. Maintenance and care
Cleaning and protecting the vehicle exterior................... 596
Cleaning and protecting the vehicle interior ..................... 601
4-2. Maintenance Maintenance requirements ..... 604
General maintenance ................ 607
Emission inspection and maintenance (I/M)
programs ......................................... 611
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................... 612
Hood ................................................... 617
Engine compartment................... 618
Tires ................................................... 636
Tire inflation pressure................. 643
Wheels ............................................. 647
Air conditioning filter................. 650
Electronic key battery ................ 652
Checking and replacing fuses ................................................ 655
Headlight aim (vehicles with low beam halogen bulbs)....... 668
Light bulbs ....................................... 670
4Maintenance and care
GX460_OM_OM60J63U_(U).book Page 5 Thursday, March 29, 2012 9:10 AM

196
2-1. Driving procedures
GX460_OM_OM60J63U_(U)
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
The turn signal lever can be used to show the following intentions of the
driver:Right turn
Left turn
Lane change to the right
(push and hold the lever part-
way)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash
until you release the lever.
GX460_OM_OM60J63U_(U).book Page 196 Thursday, March 29, 2012 9:10 AM

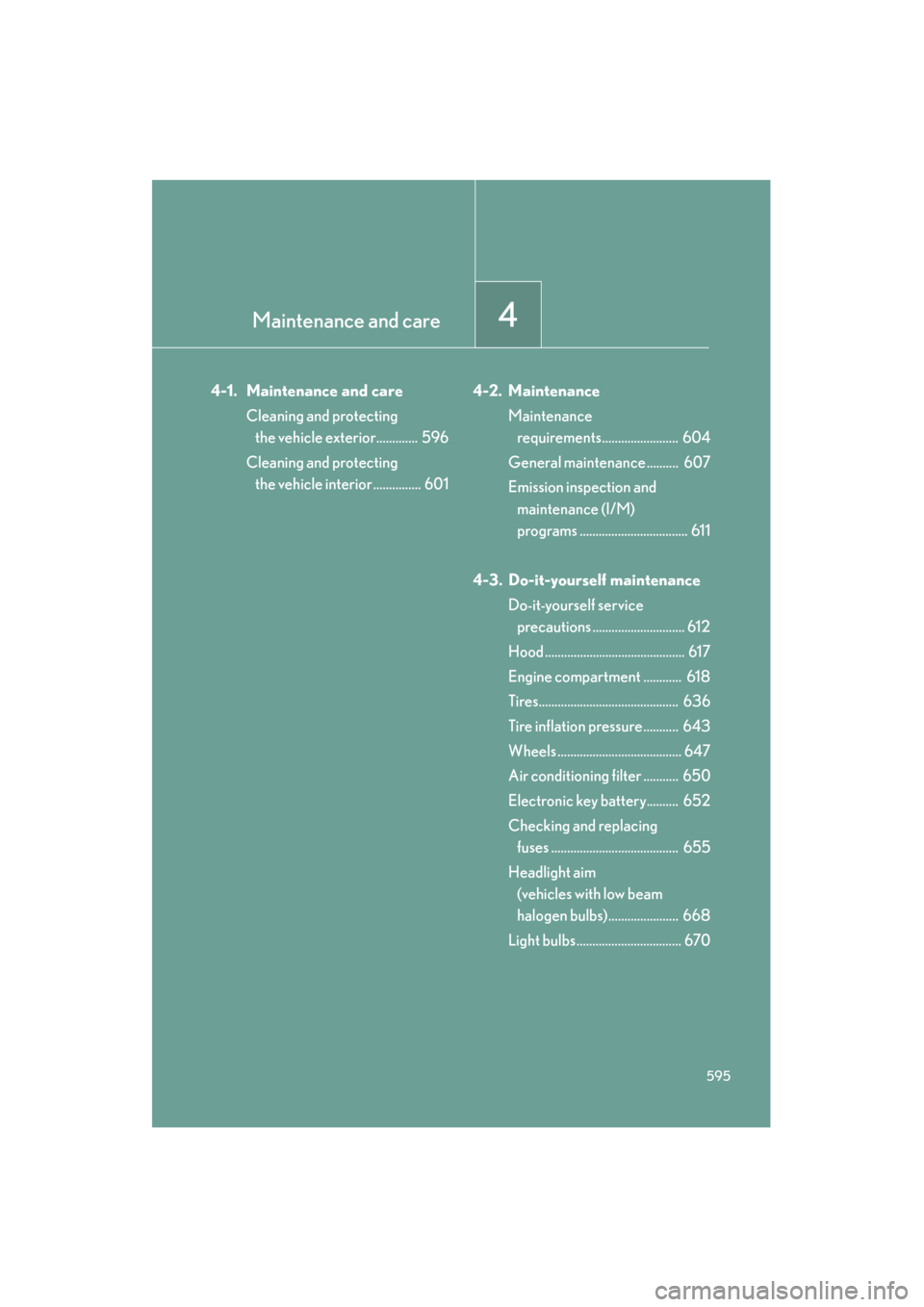

Maintenance and care4
595
GX460_OM_OM60J63U_(U)
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 596
Cleaning and protecting the vehicle interior ............... 601 4-2. Maintenance
Maintenance requirements........................ 604
General maintenance .......... 607
Emission inspection and maintenance (I/M)
programs .................................. 611
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ............................. 612
Hood ............................................ 617
Engine compartment ............ 618
Tires............................................ 636
Tire inflation pressure........... 643
Wheels ....................................... 647
Air conditioning filter ........... 650
Electronic key battery.......... 652
Checking and replacing fuses ........................................ 655
Headlight aim (vehicles with low beam
halogen bulbs)...................... 668
Light bulbs................................. 670
GX460_OM_OM60J63U_(U).book Page 595 Thursday, March 29, 2012 9:10 AM

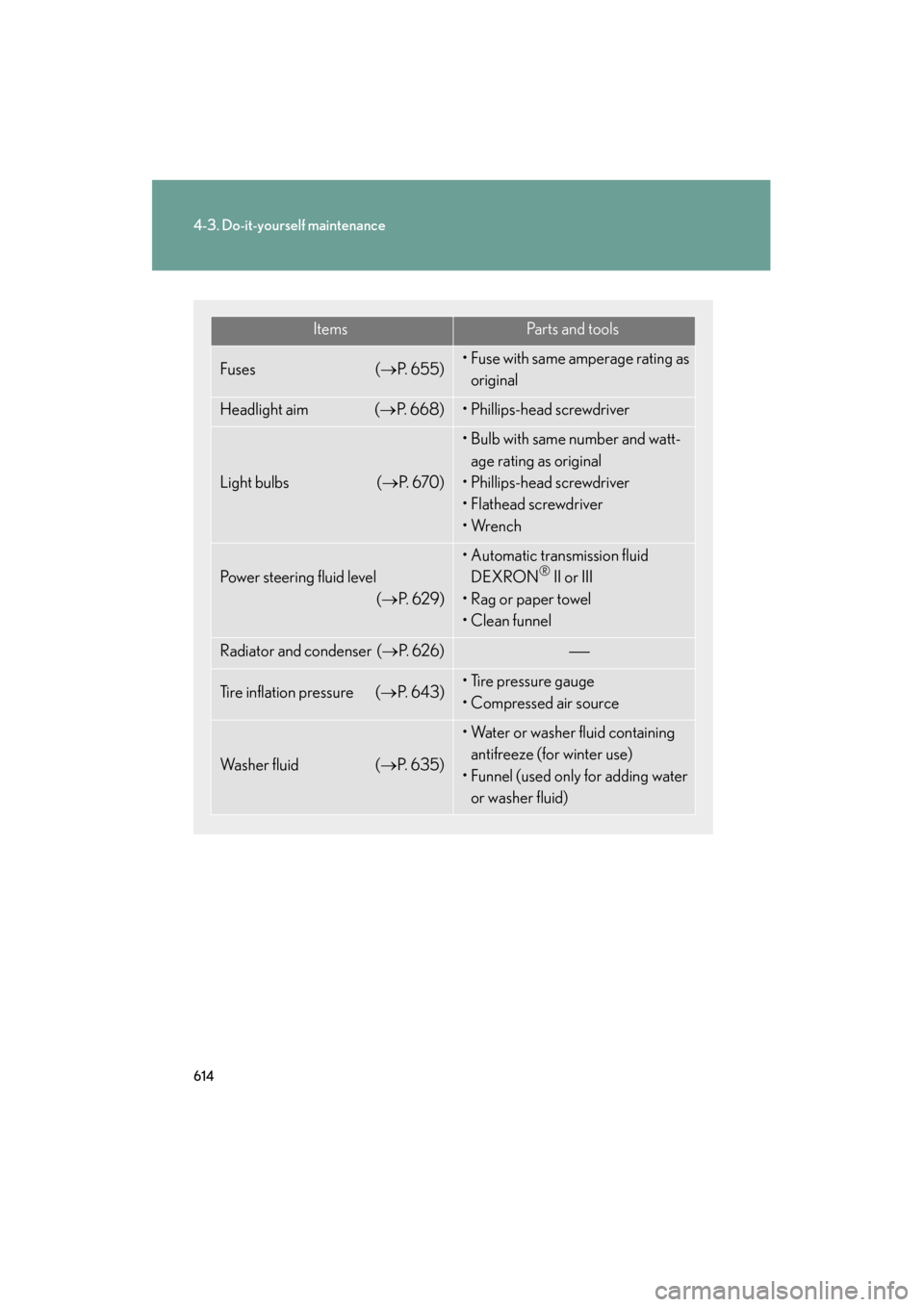

614
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
ItemsParts and tools
Fuses(→ P. 6 5 5 )• Fuse with same amperage rating as
original
Headlight aim ( →P. 668)• Phillips-head screwdriver
Light bulbs (→ P. 6 7 0 )
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Power steering fluid level (→ P. 6 2 9 )
• Automatic transmission fluid
DEXRON® II or III
•Rag or paper towel
• Clean funnel
Radiator and condenser ( →P. 6 2 6 )
Tire inflation pressure ( →P. 643)• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( →P. 6 3 5 )
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water or washer fluid)
GX460_OM_OM60J63U_(U).book Page 614 Thursday, March 29, 2012 9:10 AM

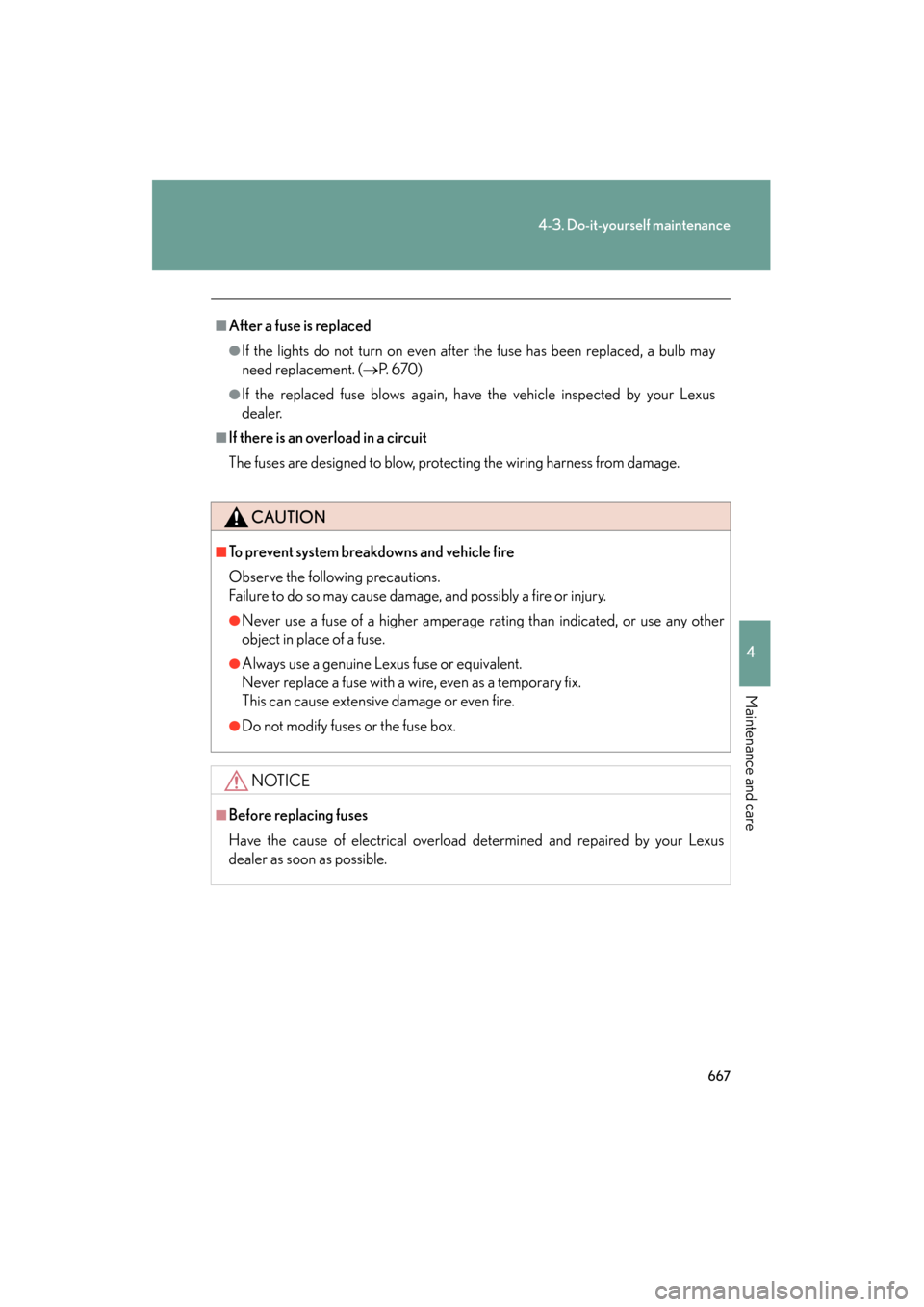

667
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 6 7 0 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer as soon as possible.
GX460_OM_OM60J63U_(U).book Page 667 Thursday, March 29, 2012 9:10 AM

668
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
Headlight aim (vehicles with low beam halogen bulbs)∗
∗: If equipped
■ Vertical movement adjustment bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gas and the area around
the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
STEP1
STEP2
STEP3
STEP4
GX460_OM_OM60J63U_(U).book Page 668 Thursday, March 29, 2012 9:10 AM

670
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replacement
seems difficult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
■ Prepare a replacement light bulb
Check the wattage and color of the light bulb being replaced.
(→ P. 76 9 )
■ Remove the engine compartment cover
→ P. 6 1 9
■ Front bulb locations
Headlight low beam
(halogen bulb)
Headlight high beam
and daytime running lights
Parking/front side marker light
Front turn signal light
Fog light
GX460_OM_OM60J63U_(U).book Page 670 Thursday, March 29, 2012 9:10 AM

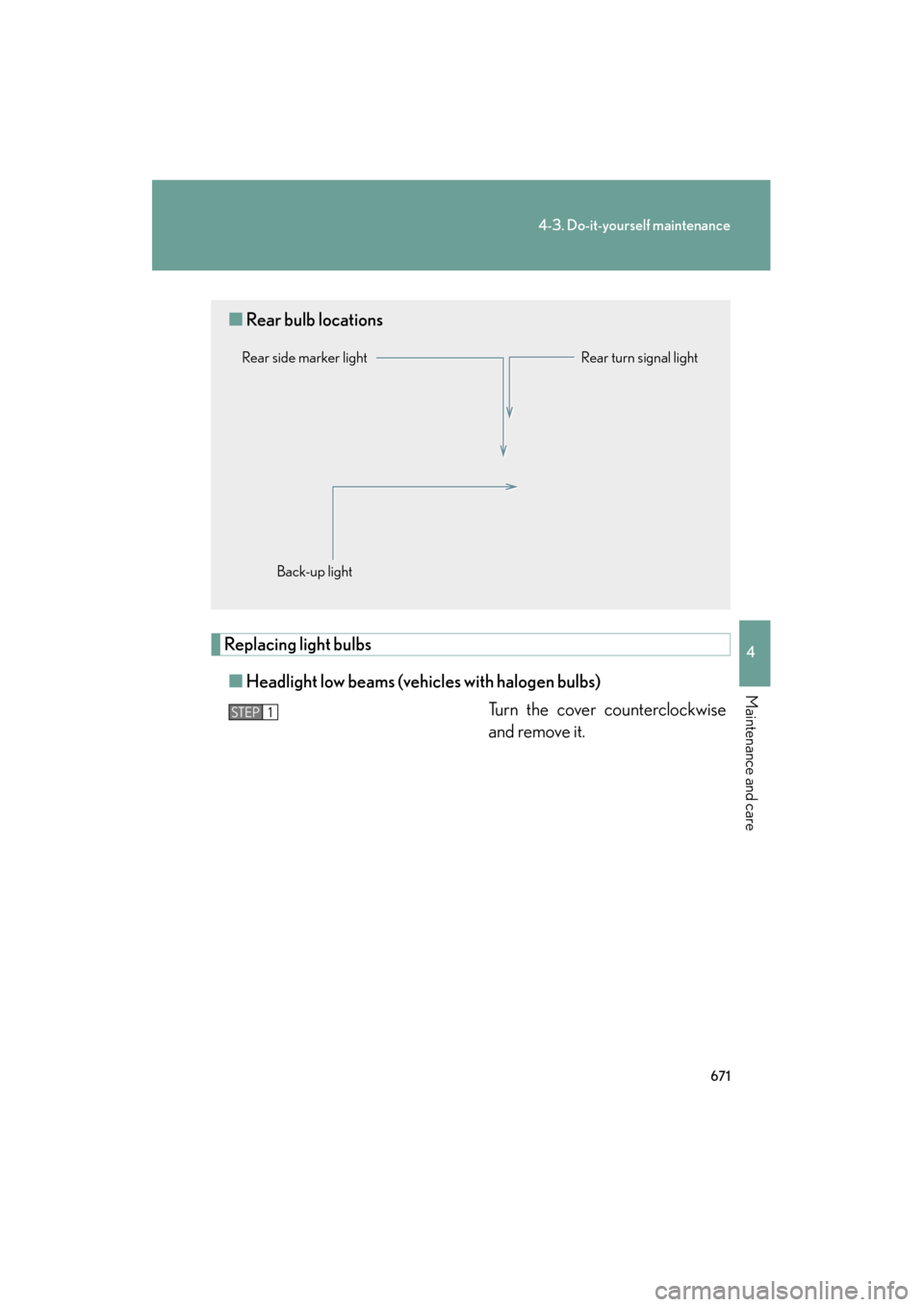

671
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)
Replacing light bulbs■ Headlight low beams (vehicles with halogen bulbs)
Turn the cover counterclockwise
and remove it.
■Rear bulb locations
Rear turn signal light
Back-up light
Rear side marker light
STEP1
GX460_OM_OM60J63U_(U).book Page 671 Thursday, March 29, 2012 9:10 AM

672
4-3. Do-it-yourself maintenance
GX460_OM_OM60J63U_(U)Turn the bulb base counterclock-
wise.
Unplug the connector while push-
ing the lock release.
STEP2
STEP3
GX460_OM_OM60J63U_(U).book Page 672 Thursday, March 29, 2012 9:10 AM

673
4-3. Do-it-yourself maintenance
4
Maintenance and care
GX460_OM_OM60J63U_(U)■
Headlight high beams and daytime running lights
Turn the bulb base counterclock-
wise.
Unplug the connector while push-
ing the lock release.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 673 Thursday, March 29, 2012 9:10 AM
