audio Lexus GX470 2007 Using other driving systems /

239
3-6. Other interior features
3
Interior features

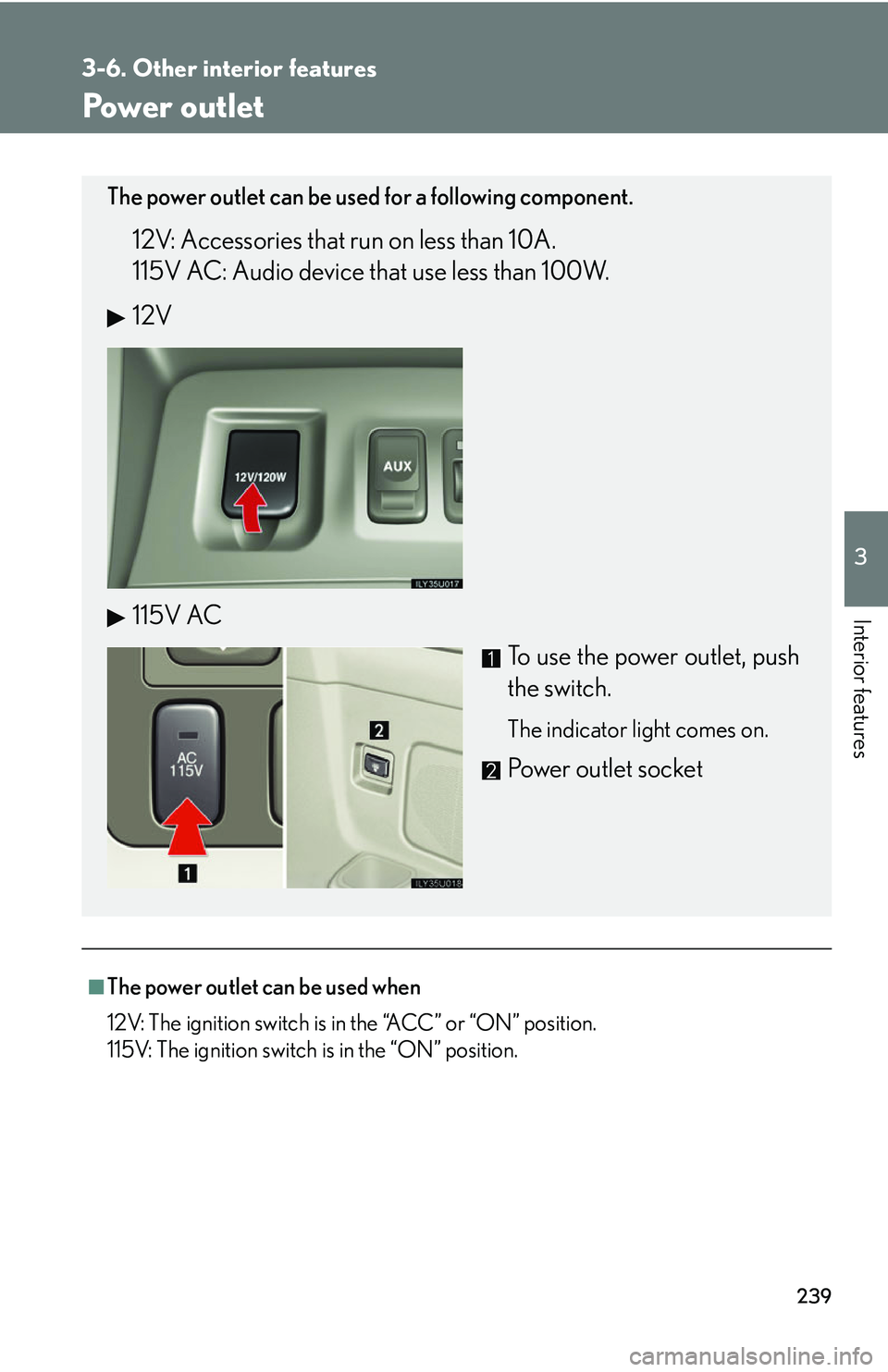

Power outlet
■The power outlet can be used when
12V: The ignition switch is in the “ACC” or “ON” position.
115V: The ignition switch is in the “ON” position.
The power outlet can be used for a following component.
12V: Accessories that run on less than 10A.
115V AC: Audio device that use less than 100W.
12V
115V AC
To use the power outlet, push
the switch.
The indicator light comes on.
Power outlet socket

276
4-1. Maintenance and care
NOTICE
■Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces.
●Non-seat portions: Organic substances su ch as benzene or gasoline, alkaline or
acidic solutions, dye, or bleach.
●Seats: Acidic solutions, such as thinner, benzene, or alcohol.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces.
●Remove any dust or dirt on leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended pe riods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio syst em may be damaged if water comes into
contact with electrical components under the floor of the vehicle, and may also
cause the body to rust.
■Cleaning the inside of the rear window
Be careful not to scratch or damage the heater wires or antenna.

325
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
25DOME10
Ignition switch light, interior lights,
personal lights, foot lights, running
board lights, door courtesy lights,
inside door handle lights, trip infor-
mation display
26RADIO NO.120Audio system, navigation system
27ECU-B10
Multiplex communication system,
vehicle stability control system, wire-
less remote control system, inside
rear view mirror, air conditioning sys-
tem, electronic modulated suspen-
sion, driving position memory system,
power windows, moon roof, rear view
monitor system
28ECU-B NO.210Theft deterrent system
29ABS MTR40
Anti-lock brake system, vehicle sta-
bility control system, active traction
control system, brake assist system
30AM230Starting system, IGN, SRS, GAUGE,
ST2
31ABS SOL30
Anti-lock brake system, vehicle sta-
bility control system, active traction
control system, brake assist system
32ALT-S7. 5Charging system
33MAYDAY7. 5Lexus Link System
34HORN10Horns

326
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
35A/F HEATER15A/F sensor
36TRN-HAZ15Turn signal lights
37ETCS10Electronic throttle control system
38EFI20
Multiport fuel injection system/
sequential multiport fuel injection
system
39D FR P/W20Po w e r w i n d o w
40DR/LCK25Power door lock
41TOW I N G30To w i n g c o n v e r t e r
42RADIO NO.230Audio system, navigation system
43A/PUMP50
Multiport fuel injection system/
sequential multiport fuel injection
system

329
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
22ACC7. 5
Shift lock control system, power out-
let, outside rear view mirror, audio
system, navigation system, power
rear view mirrors, trip information
display, rear view monitor system
23CIG10Cigarette lighter
24POWER OR
TI&TE30Power windows, moon roof, tilt and
telescopic steering
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 3 3 1 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

5
When trouble arises
371
5-2. Steps to take in an emergency
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■When the battery is removed or discharged
The power windows and moon roof must be initialized.
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any pa rt other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Once your vehicle's engine has started, remove the jumper
cables in the exact reverse ord er in which they were con-
nected.
Once the engine starts, have the ve hicle checked at your Lexus dealer
as soon as possible.STEP5

406
Alphabetical index
Alphabetical index
A/C (Air conditioning system) ........ 162
ABS (Anti-lock Brake System) ........ 132
Active traction control......................... 132
Air conditioning system (A/C)Air conditioning filter .........................315
Automatic air conditioning system .................................................... 162
Airbags Airbag operating conditions........... 59
Airbag precautions for your child.......................................................... 64
Airbag warning light ........................348
Curtain shield airbag precautions .......................................... 66
General airbag precautions ........... 63
Locations of airbags............................ 56
Modification and disposal of airbags .................................................... 67
Side airbag precautions .................... 65
Side and curtain shield airbags operating conditions ....................... 59
SRS airbags ............................................. 56
Alarm ............................................................. 51
Antenna .......................................... 178, 269
Armrest ..................................................... 243
Ashtrays .................................................... 237
Audio system Antenna ....................................................178
CD player/changer ............................ 181
DVD information ...............................209
DVD player ..........................................200
DVD video/audio .............................205
MP3/WMA disc ................................ 188
Optimal use............................................194
Radio .......................................................... 173
Rear sear entertainment system ..................................................200 Steering switches ................................198
Video CD ................................................212
Automatic light control system............111
Automatic transmission ........................ 98
BA (Brake Assist)...................................132
Back door ...................................................... 11
Back-up lights Wattage ................................................. 386
Battery Battery .................................................... 299
Checking............................................... 299
If the vehicle battery is discharged ........................................ 370
Preparing and checking before winter...................................... 146
Brake Fluid .......................................................... 296
Parking brake........................................ 102
Care Exterior .................................................... 272
Interior...................................................... 274
Seat belts ................................................275
Cargo capacity....................................... 140
Cargo hooks .......................................... 245
CD player ................................................... 181
Center differential lock ......................... 121
Chains ......................................................... 147
Child-protectors..........................................7
Child restraint system (CRS) Definition ................................................... 74
Installation ................................................. 77
Installing CRS with lower anchorages ............................................ 81
Installing CRS with seatbelts ...........78A
B
C

412
Alphabetical index
Steering wheelAdjustment............................................... 35
Audio switches .................................... 198
Driving position memory...................24
Storage feature......................................228
Stuck If your vehicle becomes stuck..... 375
Sun visors .................................................233
Switch “2nd STRT” switch ............................... 99
Center differential lock switch ........121
“DAC” switch ....................................... 130
Fog light switch .......................................113
Height control off switch.................. 123
Light switches ........................................... 111
Power door lock switch ........................6
Power window switch .......................... 41
“RSCA OFF” switch............................ 68
Window lock switch ............................. 41
Wipers and washer switch ...............114
Tail lights Switch ........................................................... 111
Theft deterrent system Alarm ............................................................ 51
Theft prevention labels .......................... 53
Tire inflation pressure ........................ 385
Tire information Glossary.................................................395
Size ........................................................... 392
Tire identification number ...............391
Uniform Tire Quality Grading.... 393 Tires
Chains....................................................... 147
Checking............................................... 302
If you have a flat tire ......................... 356
Inflation pressure ............................... 385
Information ........................................... 390
Pressure warning system .............. 302
Replacing .............................................. 356
Rotating tires........................................ 302
Size ........................................................... 385
Snow tires................................................ 148
Tools........................................................... 356
Total load capacity .................................144
Towing Dinghy towing ......................................160
Emergency towing ........................... 339
Trailer towing ........................................150
Trip information display ...................... 108
Trip meter ................................................. 103
Turn signal lights Replacing light bulbs ......................... 331
Switch ..........................................................101
Wattage ................................................. 386
Vanity lights Vanity lights...........................................234
Wattage ................................................. 386
Vanity mirrors ............................................234
Vehicle identification number......... 379
Vehicle load limits ..................................144
VSC (Vehicle Stability Control) ......132
T
V
