484
5-1. Essential information
●If emergency towing cannot be performed
The vehicle cannot be towed by anot her v
ehicle in the following situa-
tions because the front wheels may be lock
ed by the parking lock.
Transport the vehicle with both front wheels or all 4 wheels lifted using
a flatbed or wheel-lift type truck.
• There is a malfunction in the smar t acces
s system with push-button
start.
• The P position control system is malfunctioning. ( P. 5 0 2 )
• The 12-volt battery is discharged.
Installing towing eyelets
Remove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.

510
5-2. Steps to take in an emergency
Alerts the driver that the
vehicle is out of the lanes
(while the LKA system is
operating).A buzzer also sounds.
The lane markings and/
or the steering wheel
marking flash.
At the same time,
will appear on
the head-up display (the
image flashes).
Check the road condi-
tions and drive the vehicle
at a safe speed.
Indicates that the hybrid
system has overheated A buzzer also sounds.Stop and check.
( P. 5 4 1 )
(Flashes)
Indicates that the traction
battery is low
The warning buzzer
sounds intermittently.
When stopping the vehi-
cle for a long period of
time, change the shift
position to P. The battery
cannot be charged with
the shift position in N.
(Flashes)
Indicates that the traction
battery power has
dropped because a long
period of time has
elapsed after changing
the shift position to NThe warning buzzer
sounds continuously.
Restart the hybrid system
when starting the vehicle.
Wa r n i n g m e s s a g eDetailsCorrection procedure

512
5-2. Steps to take in an emergency

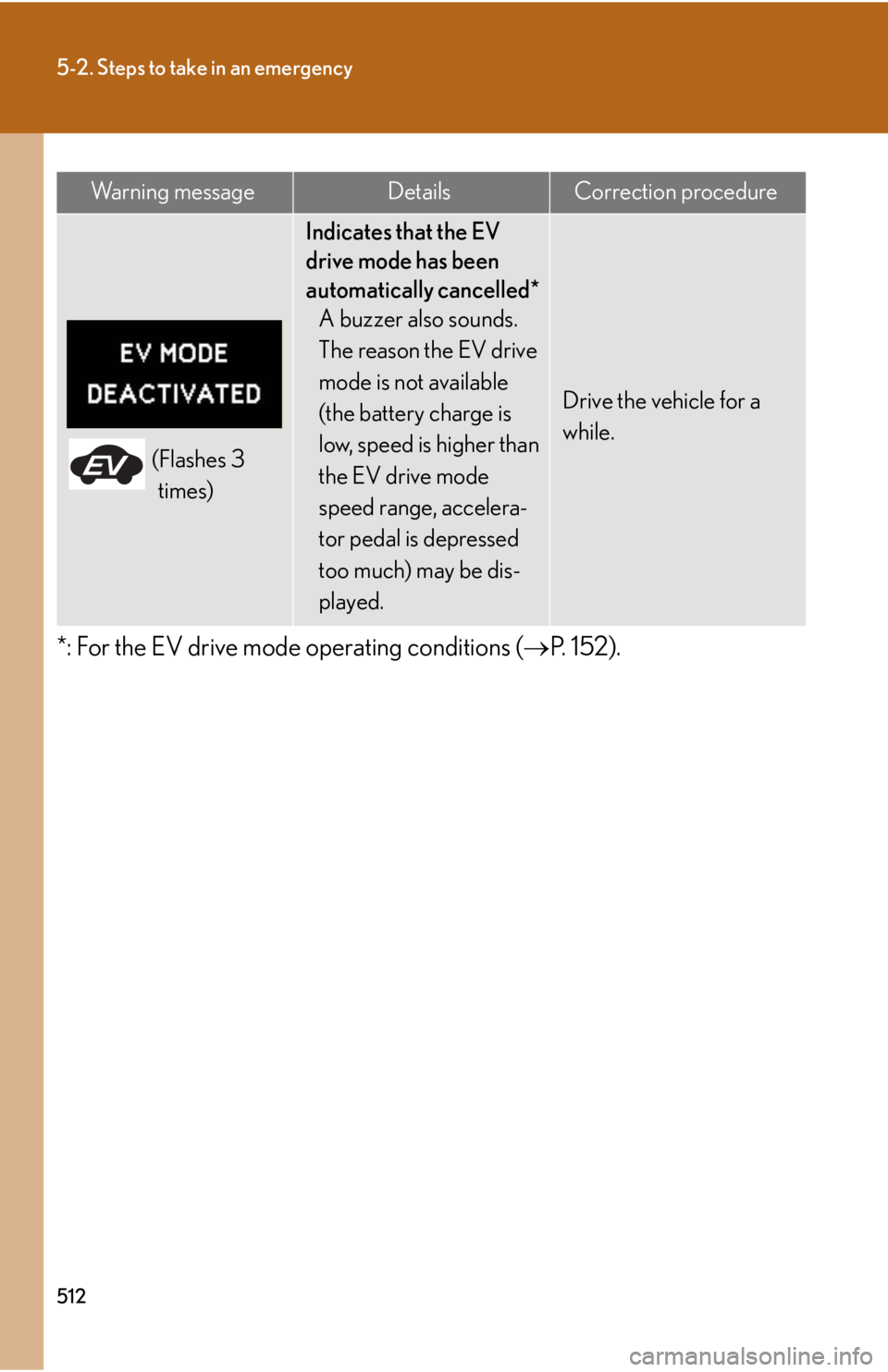

*: For the EV drive mode operating conditions (P. 152).
(Flashes 3
times)
Indicates that the EV
drive mode has been
automatically cancelled* A buzzer also sounds.
The reason the EV drive
mode is not available
(the battery charge is
low, speed is higher than
the EV drive mode
speed range, accelera-
tor pedal is depressed
too much) may be dis-
played.
Drive the vehicle for a
while.
Wa r n i n g m e s s a g eDetailsCorrection procedure

518
5-2. Steps to take in an emergency

Po w e r w a s t u r n e d
off due to the
automatic power
off function.
Next time when
starting the hybrid
system, increase
the engine speed
slightly and main-
tain that level for
approximately 5
minutes to
recharge the 12-
volt battery.
OnceThe electronic key
has a low battery.Replace the elec-
tronic key battery.
(P. 4 5 3 )
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

530
5-2. Steps to take in an emergency
If the hybrid system will not start
Reasons for the hybrid system not starting vary depending on the situation.
Check the following and perform the appropriate procedure:
■The hybrid system will not start even though the correct starting
procedure is being followed. ( P. 1 4 7 )
One of the following may be the cause of the problem:
● The electr
onic key may not be functioning properly.* (P. 5 3 3 )
● Ther
e may not be sufficient fuel in the vehicle’s tank. 
Refuel the vehicle.
● Ther
e may be a malfunction in the immobilizer system.* (P. 9 6 )
● Ther
e may be a malfunction in the P position control system.* 
( P. 1 5 0 , 502 )
● The hybrid s
ystem may be malfunc tioning due to an electrical
problem such as an open circuit or a blown fuse. However,
depending on the type of malfunc tion, an interim measure is avail-
able to start the hybrid system. ( P. 4 5 5)
*: It may not be possible to shift out of the P position.
■The interior lights and headlights are dim, or the horn does not
sound or sounds at a low volume.
One of the following may be the cause of the problem:
● The 12-
volt battery may be discharged. (P. 5 3 6 )
● The 12-
volt battery terminal co nnections may be loose or cor-
roded.

5
When trouble arises
531
5-2. Steps to take in an emergency
Emergency start function
When the hybrid system does not start, the following steps can be used as
an interim measure to start the hybrid system if the “POWER” switch is
functioning normally:Set the parking brake.
Turn the “POWER” switch to ACCESSORY mode.
Press and hold the “POWER” swit ch for abou
t 15 seconds while
depressing the brake pedal firmly.
Even if the hybrid system can be started using the above steps, the system
may be malfunctioning. Ha
ve the vehicle inspected by your Lexus dealer.
■The interior lights and headlights do not turn on, or the horn does
not sound.
One of the following may be the cause of the problem:
●One or both of the 12-
volt battery terminals may be discon -
nected.
● The 12-
volt battery may be discharged. (P. 5 3 6 )
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.

5
When trouble arises
533
5-2. Steps to take in an emergency
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked functions
Doors
Use the mechanical key (P
. 39)
in order to perform the following
oper
ations (driver’s door only):
Locks all the doors
Closes the windows and moon
roof (turn and hold)
*
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows and moon
roof (turn and hold)
*
*: This setting must be customized at your Lexus dealer.
If communication between the electron ic key and vehicle is interrupted
( 
P. 4 9 ) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
r
emote control cannot be used. In such cases, the doors and trunk can be
opened and the hybrid system can be started by following the procedure
below.

5
When trouble arises
535
5-2. Steps to take in an emergency
To change “POWER” switch modes: Within 10 seconds of the
buzzer sounding, release the brake pedal and press the
“P
OWER” switch. Modes can be changed each time the switch is
pressed. ( P. 1 4 8 )
To start the hybrid system: Press the “POWER” switch within 10
seconds of the buzz
er sounding, keeping the brake pedal
depressed.
In the event that the hybrid system still cannot be oper
ated, contact your
Lexus dealer.
■Stopping the hybrid system
In the same method as the normal hybrid system stopping procedure, completely
stop
the vehicle and then press the “POWER” switch.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec -
tronic key battery be replaced immediately when the battery is depleted. 
(  P. 4 5 3 )
■When the electronic key does not work properly
Make sure that the smart access system wi th
push-button start has not been deacti-
vated in the customization setting. If it is off, turn the function on. 
(Customizable features  P. 5 7 2)

536
5-2. Steps to take in an emergency
If the vehicle 12-volt battery is discharged
The following procedures may be used to start the hybrid system if the vehi-
cle’s 12-volt battery is discharged. 
You can also call your Lexus dealer or a qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.
Open the hood and fuse box
co
ver.
Push the tab in and lift the lid off.
Open the exclusive jump start -
ing terminal cover.
Slightly pull the tab to open the
cover.

5
When trouble arises
537
5-2. Steps to take in an emergency
Connect the jumper cables according to the following procedure:
Connect a positive jumper cable clamp to the exclusive jump start-
ing terminal on your vehicle
Connect the clamp on the other end of the positiv
e cable to the pos-
itive (+) battery terminal on the second v
ehicle
Connect a negative cable clamp to the negative (-) battery terminal
on the second vehicle
Connect the clamp at the other end of the negative cable to a solid,
stationary, unpainted metallic point aw
ay from the exclusive jump
starting terminal and any moving part s, as shown in the illustration.
Start the engine of the second v
ehicle. Increase the engine
speed slightly and maintain that le
vel for approximately 5 min-
utes to recharge the 12-volt battery of your vehicle.
Maintain the engine sp eed of the second v
ehicle and start the
hybrid system of your vehicle by turning the “POWER” switch
to ON mode.
Make sure the “READY” indicator comes on. If the indicator
does not come on, contact your Lexus dealer.
Once the hybrid system has star
ted, remove the jumper cables
in the exact reverse order from which they were connected.
