automatic transmission Lexus IS F 2012 Owner's Manual

1
2
3
4
5
6
7
3
IS F_U
2-1. Driving proceduresDriving the vehicle ........................ 126
Engine (ignition) switch .............. 134
Automatic transmission.............. 138
Turn signal lever ............................ 147
Parking brake ................................. 148
Horn.................................................... 149
2-2. Instrument cluster Gauges and meters ..................... 150
Indicators and warning lights................................................. 154
Multi-information display........... 157
2-3. Operating the lights and windshield wipers
Headlight switch ............................ 162
Fog light switch .............................. 166
Windshield wipers and washer............................................. 168
Headlight cleaner switch ............ 172
2-4. Using other driving systems Cruise control ................................ 173
Dynamic radar cruise control.............................................. 177
Intuitive parking assist ................... 191
Driving assist systems.................. 197
PCS (Pre-Collision System) .......... 203 2-5. Driving information
Cargo and luggage ...................... 210
Vehicle load limits......................... 213
Winter driving tips ........................ 214
Trailer towing .................................. 216
Dinghy towing ................................. 217
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ............................................ 220
Rear window and outside rear view
mirror defoggers ....................... 228
Windshield wiper de-icer ......... 229
3-2. Using the audio system Audio system type ....................... 230
Using the radio.............................. 233
Using the CD player.................... 241
Playing back MP3 and WMA discs.................................. 248
Operating an iPod....................... 256
Operating a USB memory....... 264
Optimal use of the audio system ............................................ 273
Using the AUX port ................... 275
Using the steering wheel audio switches ............................ 277
2When driving
3Interior features

IS F_U
13
C
Seat heater switches P. 349
Automatic transmission shift lever P. 138
Shift lock override button P. 497
Cigarette lighter ∗
Ashtray
∗
Auxiliary box
∗
P. 347
P. 346
P. 339
∗: If equipped

When driving2
125
IS F_U
2-1. Driving proceduresDriving the vehicle.................. 126
Engine (ignition) switch ......... 134
Automatic transmission ........ 138
Turn signal lever ....................... 147
Parking brake ........................... 148
Horn ............................................ 149
2-2. Instrument cluster Gauges and meters ................ 150
Indicators and warning lights ......................................... 154
Multi-information display ..... 157
2-3. Operating the lights and windshield wipers
Headlight switch...................... 162
Fog light switch ........................ 166
Windshield wipers and washer ..................................... 168
Headlight cleaner switch...... 172 2-4. Using other driving
systems
Cruise control.......................... 173
Dynamic radar cruise control ...................................... 177
Intuitive parking assist ............ 191
Driving assist systems ............. 197
PCS (Pre-Collision System) ...... 203
2-5. Driving information Cargo and luggage ................ 210
Vehicle load limits ................... 213
Winter driving tips .................. 214
Trailer towing ........................... 216
Dinghy towing.......................... 217

138
2-1. Driving procedures
IS F_U
Automatic transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever an d selecting a shift position
While the “ENGINE
START STOP” switch is
in IGNITION ON
mode, depress the brake
pedal and move the shift
lever.
*: To improve fuel efficiency andreduce noises, set the shift lever
in the D position for normal driv-
ing.
Shift
positionFunction
PPa r k i n g t h e v e h i c l e / starting the engine
RReversing
NNeutral
DNormal driving*
MM mode driving (→ P. 1 4 3 )

143
2-1. Driving procedures
2
When driving
IS F_U
Selecting gears in the M positionTo enter M mode, shift the shift lever to the M position. Gears can then be
selected by operating the shift lever or paddle shift switches, allowing you
to drive in the gear of your choosing. Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear, from 1 to 8, will
be displayed in the meter cluster.
When in the M position, the gear will not change unless the shift lever or
paddle shift switches are operated.
However, even when in the M position, the gears will be automatically
changed in the following situations:
● When vehicle speed drops (downshift only).
● When the automatic transmission fluid or engine coolant temperature
is low.

146
2-1. Driving procedures
IS F_U
■Automatic gear selection when the vehicle is stopped
●When the vehicle comes to a stop, the transmission will automatically downshift
to allow you to start off in 1st gear.
●When the vehicle is idling at high rpm in order to warm up, and the vehicle is on
a slippery road, the transmission will automatically shift to 2nd gear for stopping
and starting off.
■If the automatic transmission fluid te mperature warning message is displayed
■AI-SHIFT
The AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the D position. How-
ever, operating the “-” paddle shift switch will restrict the function’s operation. (Shift-
ing the shift lever to the M position cancels the function.)
CAUTION
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in the vehi-
cle skidding to the side or spinning.
If the automatic transmission fluid tempera-
ture warning message is displayed while driv-
ing, make sure you return to normal D
position driving and reduce speed by easing
off the accelerator pedal. Stop the vehicle in a
safe place, shift the shift lever to the P position
and let the engine idle until the warning mes-
sage goes out.
When the warning message goes out, the
vehicle can be driven again.
If the warning message does not go out after
waiting a while, have your vehicle inspected
by your Lexus dealer.

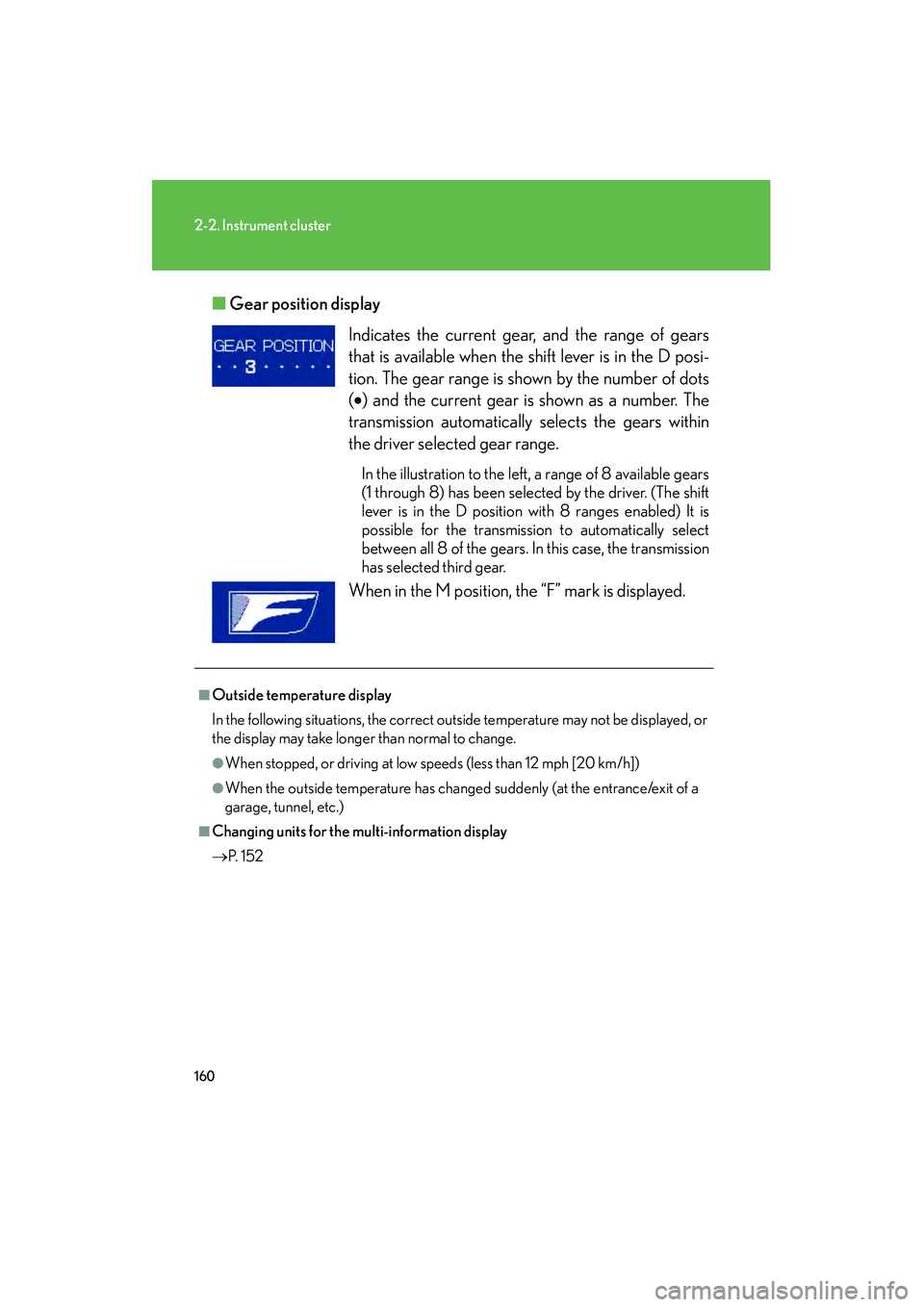

160
2-2. Instrument cluster
IS F_U■
Gear position display
Indicates the current gear, and the range of gears
that is available when the shift lever is in the D posi-
tion. The gear range is shown by the number of dots
(•) and the current gear is shown as a number. The
transmission automatically selects the gears within
the driver selected gear range.
In the illustration to the left, a range of 8 available gears
(1 through 8) has been selected by the driver. (The shift
lever is in the D position with 8 ranges enabled) It is
possible for the transmission to automatically select
between all 8 of the gears. In this case, the transmission
has selected third gear.
When in the M position, the “F” mark is displayed.
■Outside temperature display
In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change.
●When stopped, or driving at low speeds (less than 12 mph [20 km/h])
●When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
■Changing units for the multi-information display
→ P. 1 5 2

387
4-2. Maintenance
4
Maintenance and care
IS F_U
Vehicle interior
ItemsCheck points
Accelerator pedal• Moves smoothly (without uneven pedal effort or catching)?
Automatic transmission “Park”
mechanism• Can the vehicle be held securely on an incline with the shift lever in
P?
Brake pedal
• Moves smoothly?
• Does it have appropriate clearance and correct amount of free play?
Brakes
• Not pull to one side when applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Head restraints• Move smoothly and lock securely?
Indicators/buzzers•Function properly?
Lights
• Do all the lights come on?
• Headlights aimed correctly? (→ P. 4 4 5 )
Pa r k i n g b r a ke
• Moves smoothly?
• Can hold the vehicle securely on
an incline?
Seat belts
• Does the seat belt system operate smoothly?
• Are the belts undamaged?
Seats• Do the seat controls operate prop- erly?

443
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_U
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t
12RR DOOR RH20 APo w e r w i n d o w s
13FR DOOR RH20 APo w e r w i n d o w s , o u t s i d e r e a r v i e w
mirrors
14AM27. 5 ASmart access system with push-button
start
15RH-IG7. 5 A
Seat belts, intuitive parking assist,
automatic transmission, seat heaters,
windshield wiper de-icer
16FR S/HTR RH15 ASeat heaters
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, outside rear view
mirrors, VDIM, air conditioning sys-
tem, pre-collision seat belt, electric tilt
and telescopic steering, power win-
dows, navigation system, headlights,
front fog lights, parking lights, license
plate lights, windshield washer
FuseAmpereCircuit

464
5-2. Steps to take in an emergency
IS F_U
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Have the vehicle inspected by your Lexus dealer immediately. Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Malfunction indicator lampIndicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.
SRS warning lightIndicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
