4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
Air conditioning filter

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.

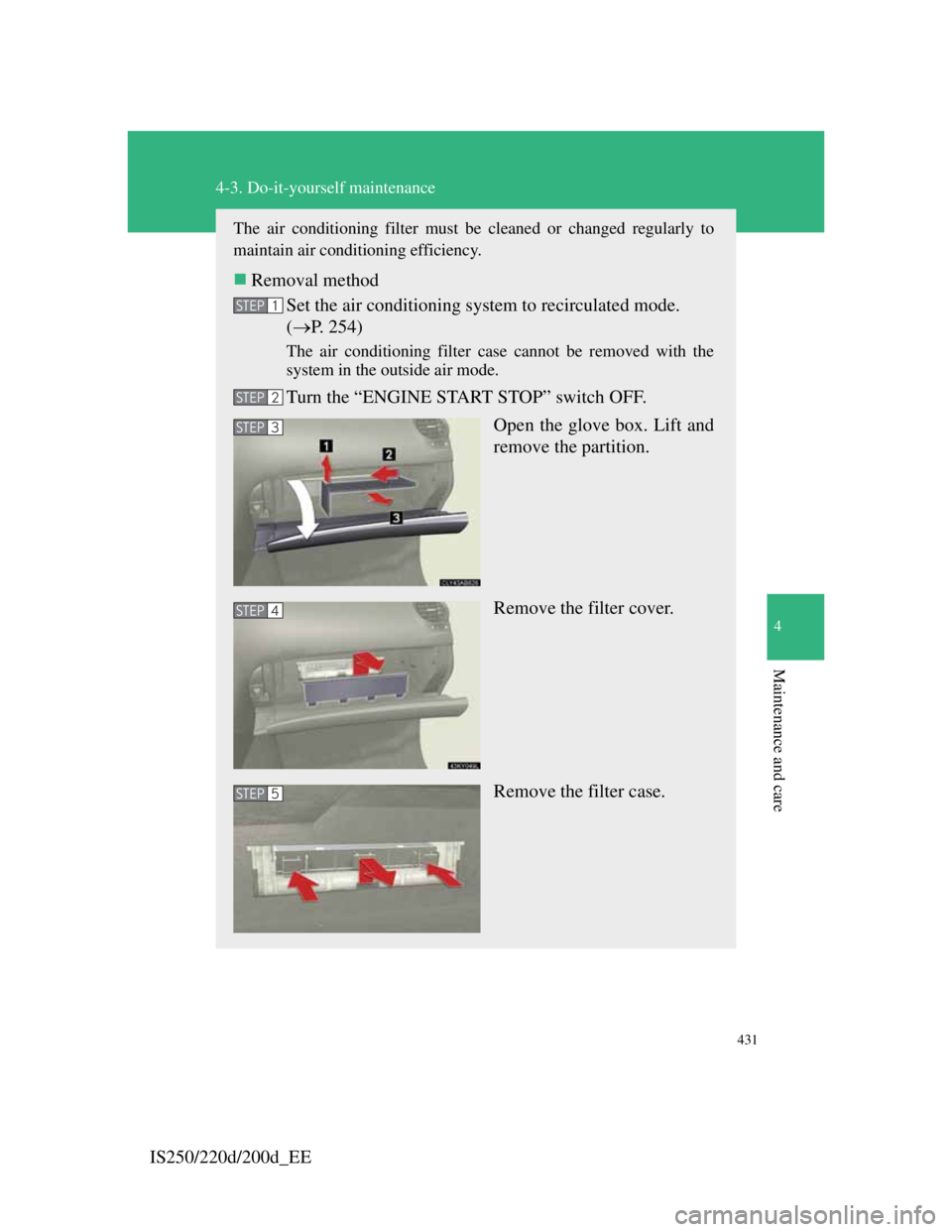

Removal method
Set the air conditioning system to recirculated mode.
(P. 254)
The air conditioning filter case cannot be removed with the
system in the outside air mode.
Turn the “ENGINE START STOP” switch OFF.
Open the glove box. Lift and
remove the partition.
Remove the filter cover.
Remove the filter case.
STEP1
STEP2
STEP3
STEP4
STEP5

432
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to
the “Lexus Service Booklet” or “Lexus Warranty Booklet”.)
If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.

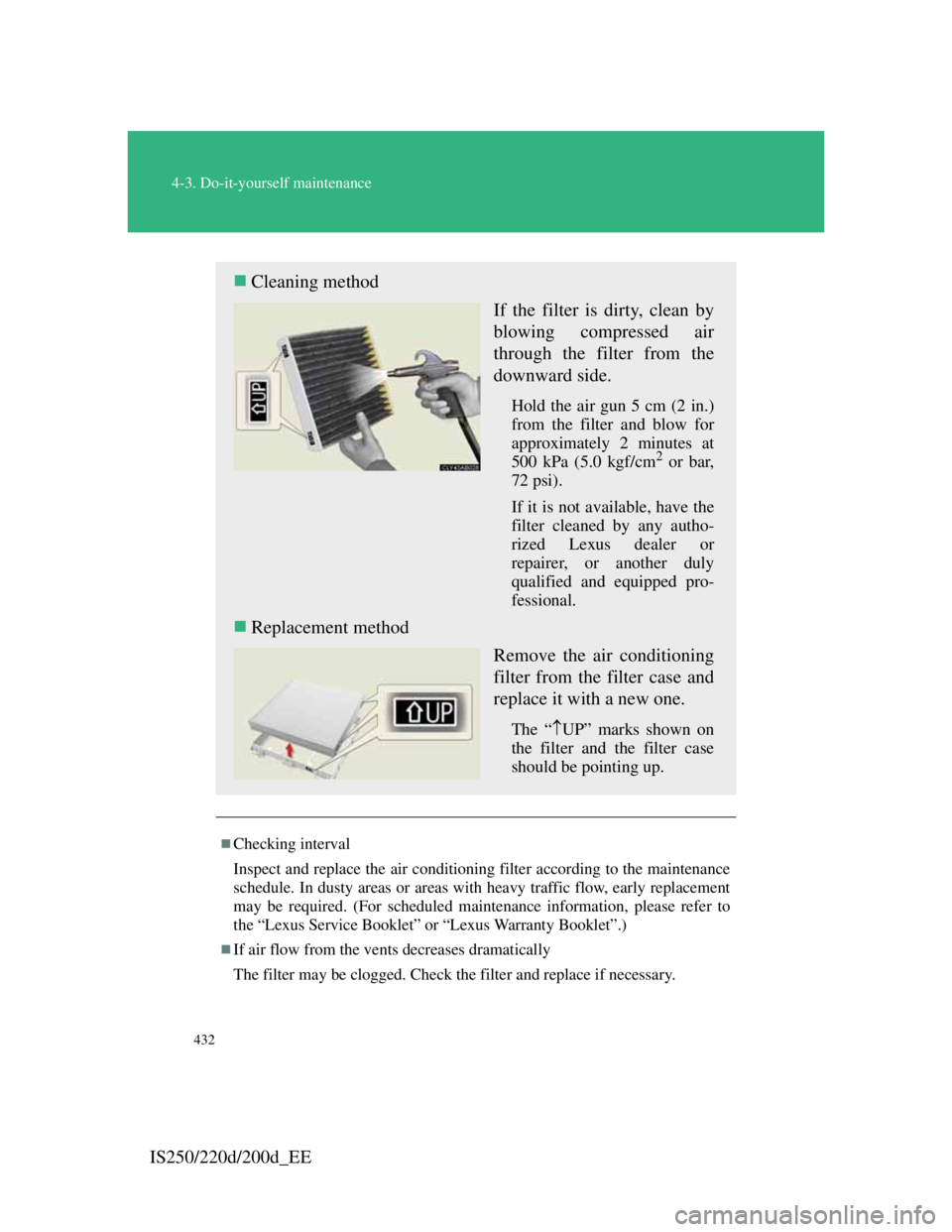

Cleaning method
If the filter is dirty, clean by
blowing compressed air
through the filter from the
downward side.
Hold the air gun 5 cm (2 in.)
from the filter and blow for
approximately 2 minutes at
500 kPa (5.0 kgf/cm
2 or bar,
72 psi).
If it is not available, have the
filter cleaned by any autho-
rized Lexus dealer or
repairer, or another duly
qualified and equipped pro-
fessional.
Replacement method
Remove the air conditioning
filter from the filter case and
replace it with a new one.
The “UP” marks shown on
the filter and the filter case
should be pointing up.

433
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
NOTICE
To prevent damage to the system
When using the air conditioning system, make sure that a filter is always
installed.
When cleaning the filter, do not clean the filter with water.

434
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
Electronic key battery

435
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
Replace the battery with a new one if it is discharged.
You will need the following items:
Flathead screwdriver
Small Phillips-head screwdriver
Lithium battery (CR1632)

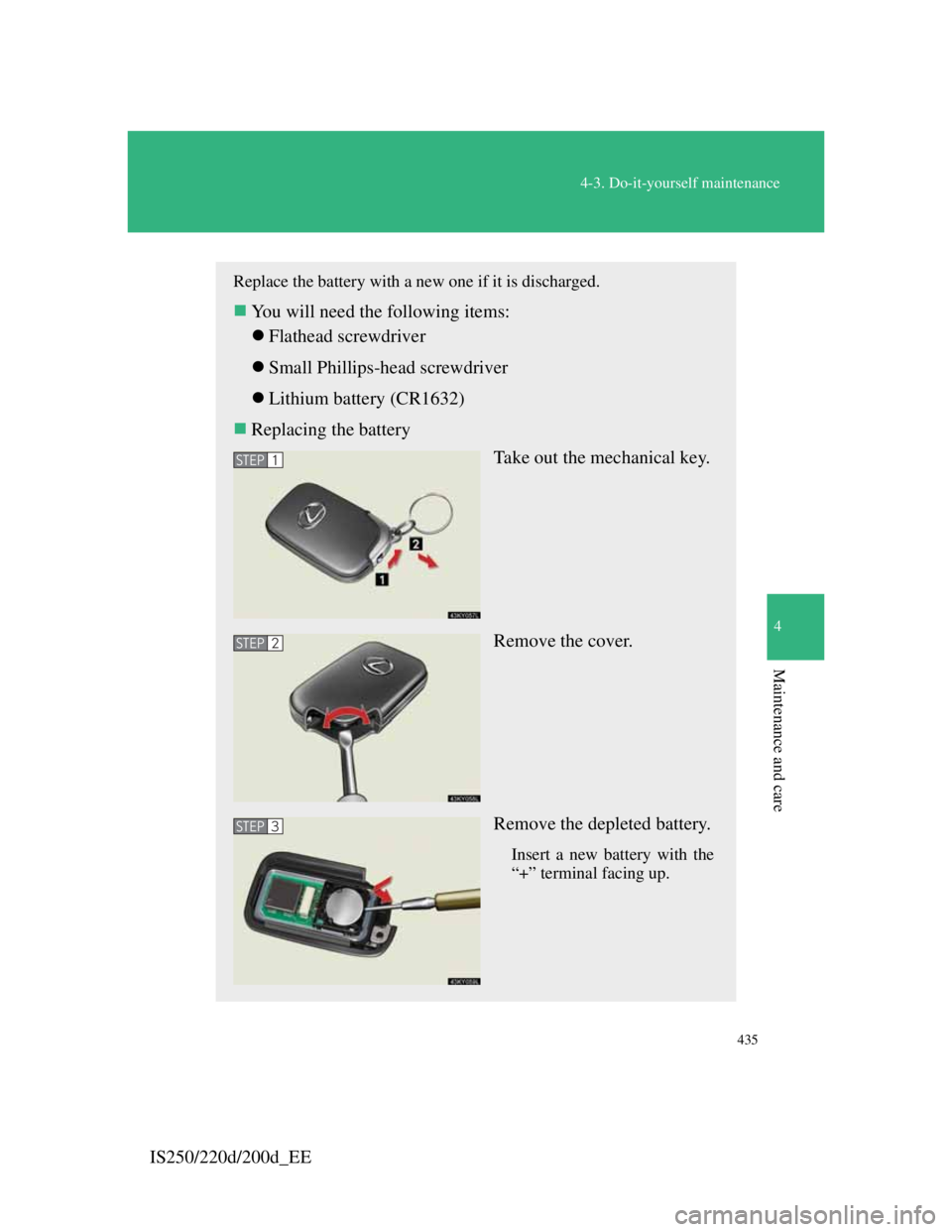

Replacing the battery
Take out the mechanical key.
Remove the cover.
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP1
STEP2
STEP3

436
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
If the electronic key battery is discharged
The following symptoms may occur.
The smart entry & start system and wireless remote control will not
function properly.
The operational range is reduced.
Use a CR1632 lithium battery
Batteries can be purchased at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional, jewelers, or camera
stores.
Replace only with the same or equivalent type recommended by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Dispose of used batteries according to the local laws.
When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus
dealer can replace the battery for you.
CAUTION
Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
Certification for the smart entry & start system
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCOR-
RECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.

437
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other components inside the remote control.
Do not bend either of the battery terminals.

438
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch OFF.
Engine compartment (type B fuse box): Remove the
engine compartment cover. (P. 407)
Open the fuse box cover.
Engine compartment (type A fuse box: Left-hand drive vehi-
cles)
Push the tabs in and lift the
lid off.
Engine compartment (type A fuse box: Right-hand drive vehi-
cles)
Push the tabs in and lift the
lid off.STEP1
STEP2
STEP3

439
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
Engine compartment (type B fuse box)
Push the tabs in and lift the
lid off.
Driver’s side instrument panel
Remove the lid.
Passenger’s side instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage
ratings” (P. 442) for details about which fuse to check.
STEP4
