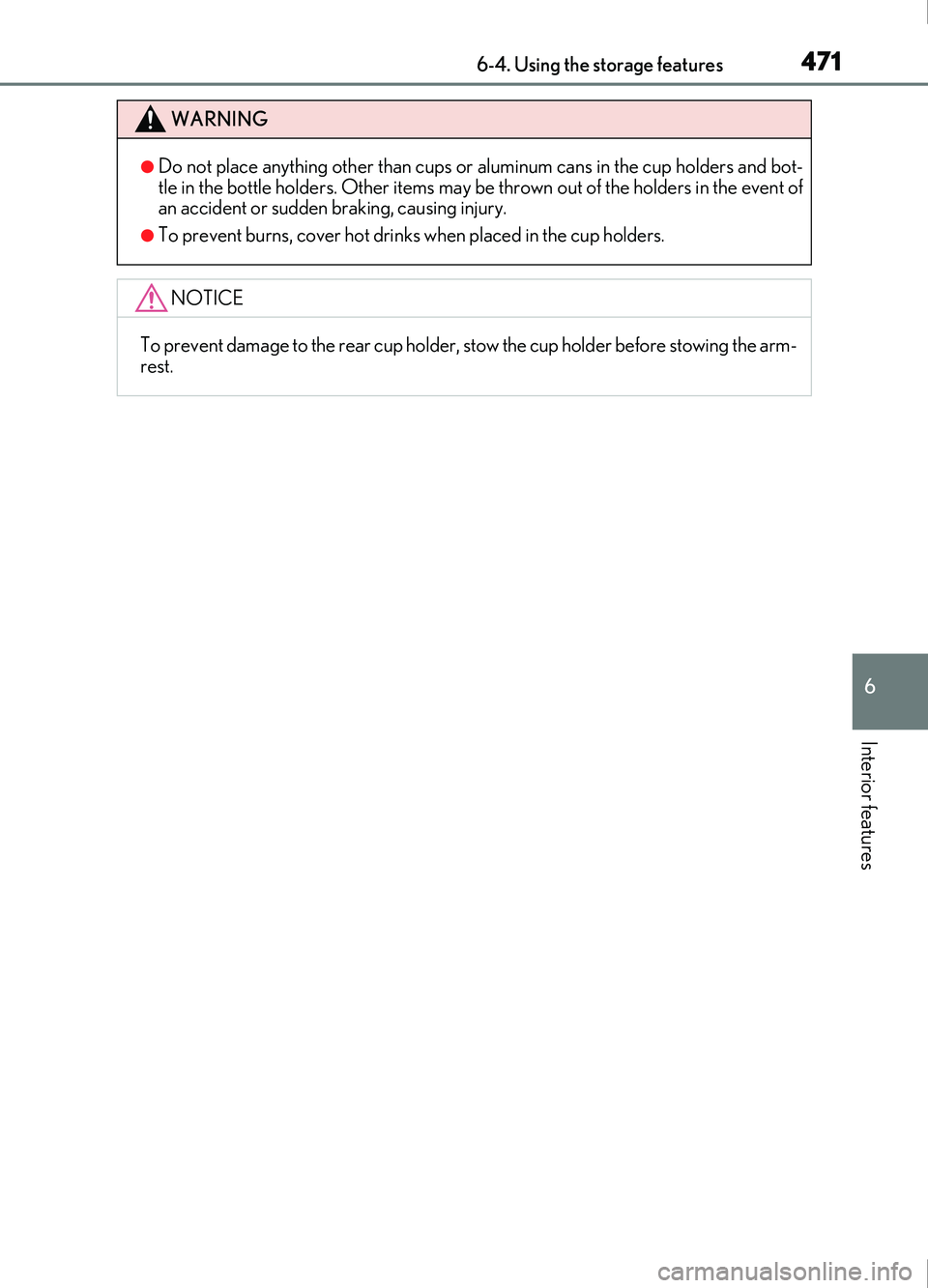

4716-4. Using the storage features
6
Interior features
IS200t_EE(OM53D77E)
WARNING
●Do not place anything other than cups or aluminum cans in the cup holders and bot-
tle in the bottle holders. Other items may be thrown out of the holders in the event of
an accident or sudden braking, causing injury.
●To prevent burns, cover hot drinks when placed in the cup holders.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.

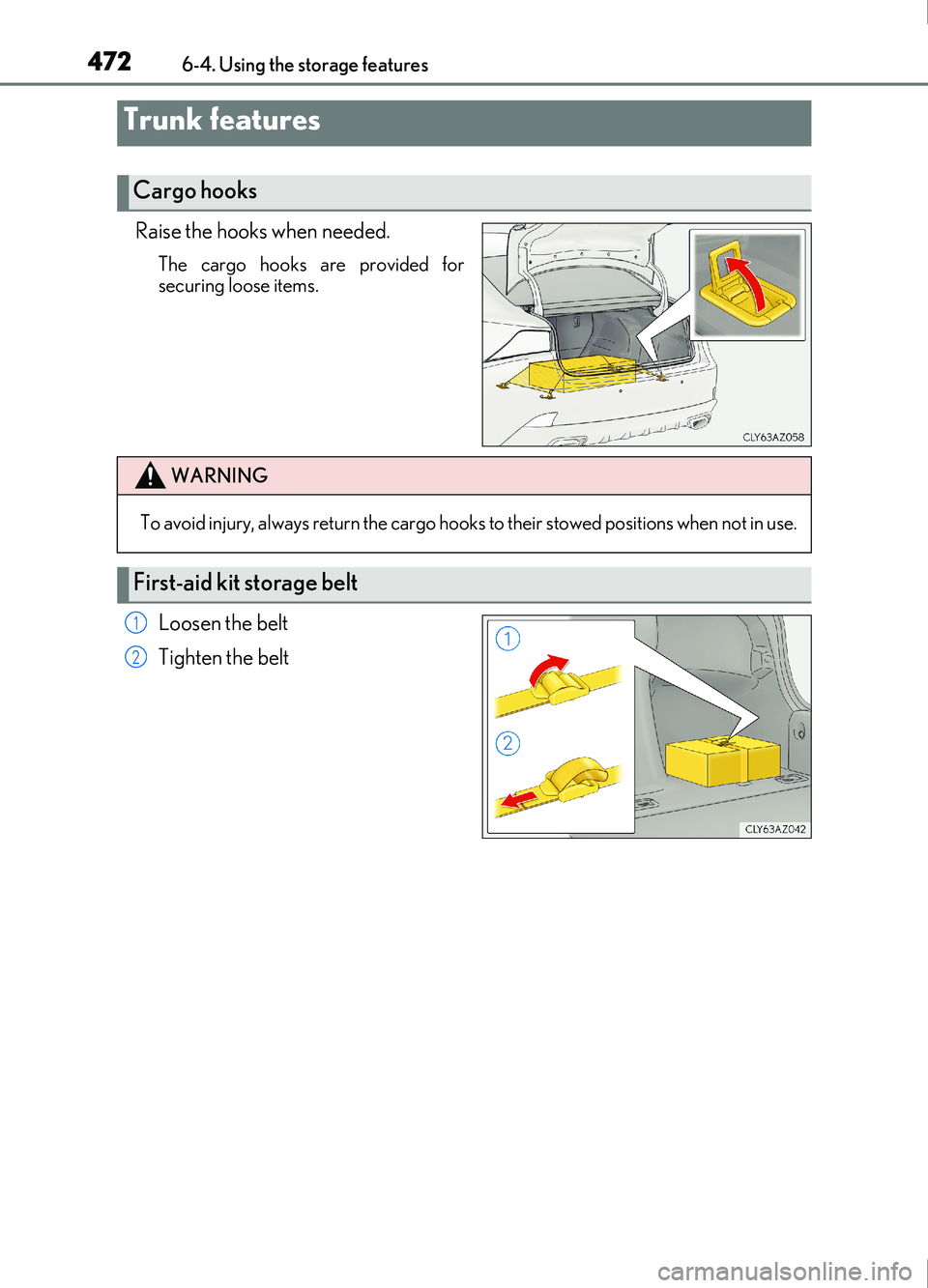

4726-4. Using the storage features
IS200t_EE(OM53D77E)
Raise the hooks when needed.
The cargo hooks are provided for
securing loose items.
Loosen the belt
Tighten the belt
Trunk features
Cargo hooks
WARNING
To avoid injury, always return the cargo hooks to their stowed positions when not in use.
First-aid kit storage belt
1
2

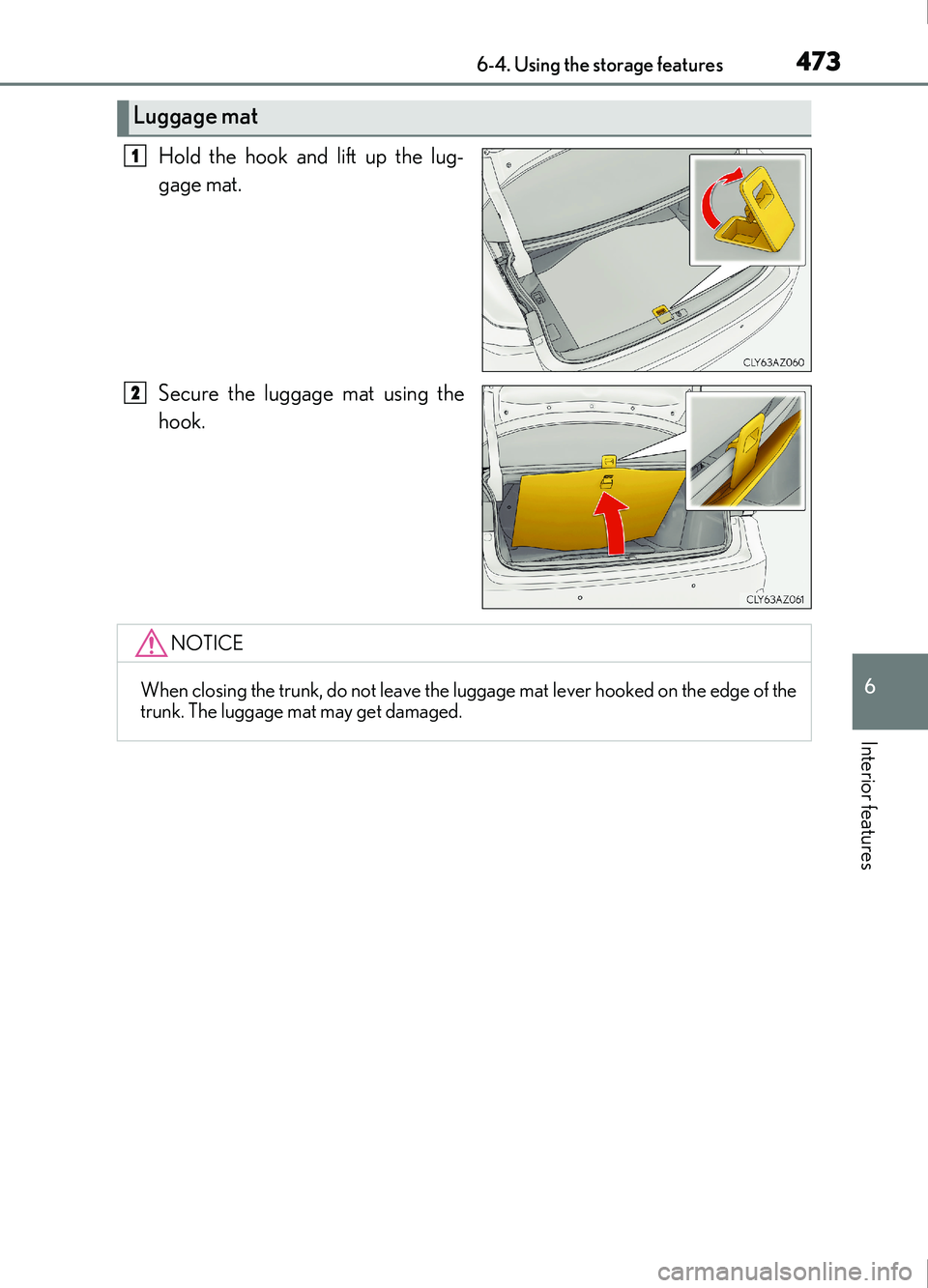

4736-4. Using the storage features
6
Interior features
IS200t_EE(OM53D77E)
Hold the hook and lift up the lug-
gage mat.
Secure the luggage mat using the
hook.
Luggage mat
1
2
NOTICE
When closing the trunk, do not leave the luggage mat lever hooked on the edge of the
trunk. The luggage mat may get damaged.

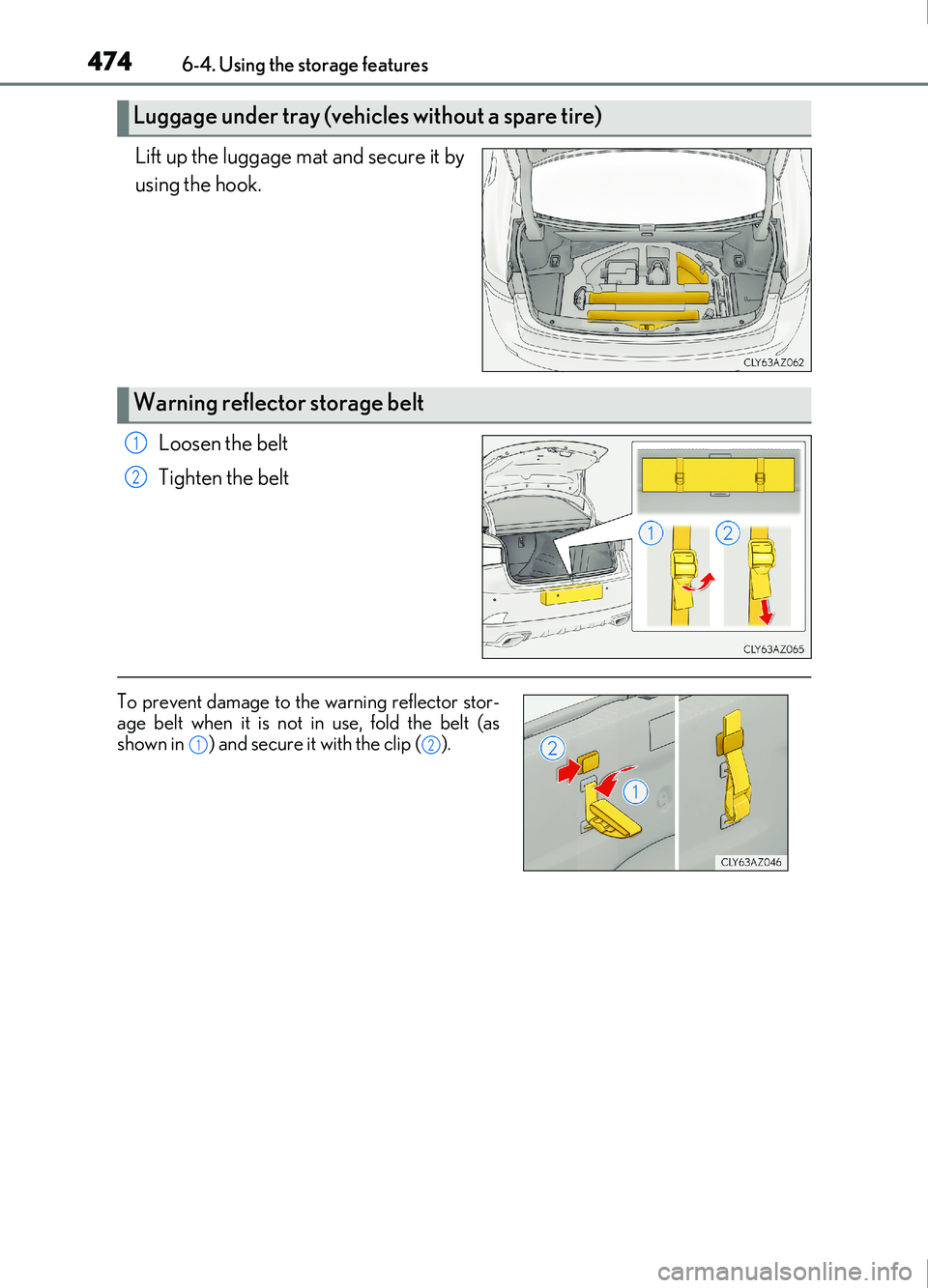

4746-4. Using the storage features
IS200t_EE(OM53D77E)
Lift up the luggage mat and secure it by
using the hook.Loosen the belt
Tighten the belt
Luggage under tray (vehicles without a spare tire)
Warning reflector storage belt
1
2
To prevent damage to the warning reflector stor-
age belt when it is not in use, fold the belt (as
shown in ) and secure it with the clip ( ).
12

475
IS200t_EE(OM53D77E)
6
Interior features
6-5. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
Slide the cover to open.
The light turns on when the cover is
opened.
The clock can be adjusted. Pressing and holding will move the
clock hands backward.
Pressing and holding will move the
clock hands forward.
Other interior features
Sun visors
1
2
Vanity mirrors
Clock
1
2

4766-5. Using the other interior features
IS200t_EE(OM53D77E)
The power outlet can be used for 12 V accessories that run on less than 10 A.
Open the lid.
●The power outlet can be used when the engine switch is in ACCESSORY or IGNI-
TION ON mode.
●Vehicles with Stop & Start system: When the engine restarts after having been stopped
by the Stop & Start system, the power outlet may be temporarily unusable, but this is
not a malfunction.
Power outlet
●On some models: To fully close the console
box with the cable routed to outside the con-
sole box, insert the cable into the holder.
NOTICE
●To avoid the damaging the power outlet, close the power outlet lid when the power
outlet is not in use. Foreign objects or liq uids that enter the power outlet may cause a
short circuit.
●To prevent blown fuse, do not use an acce ssory that uses more than 12 V 10 A.
●To prevent battery discharge, do not use the power outlet longer than necessary
when the engine is off.

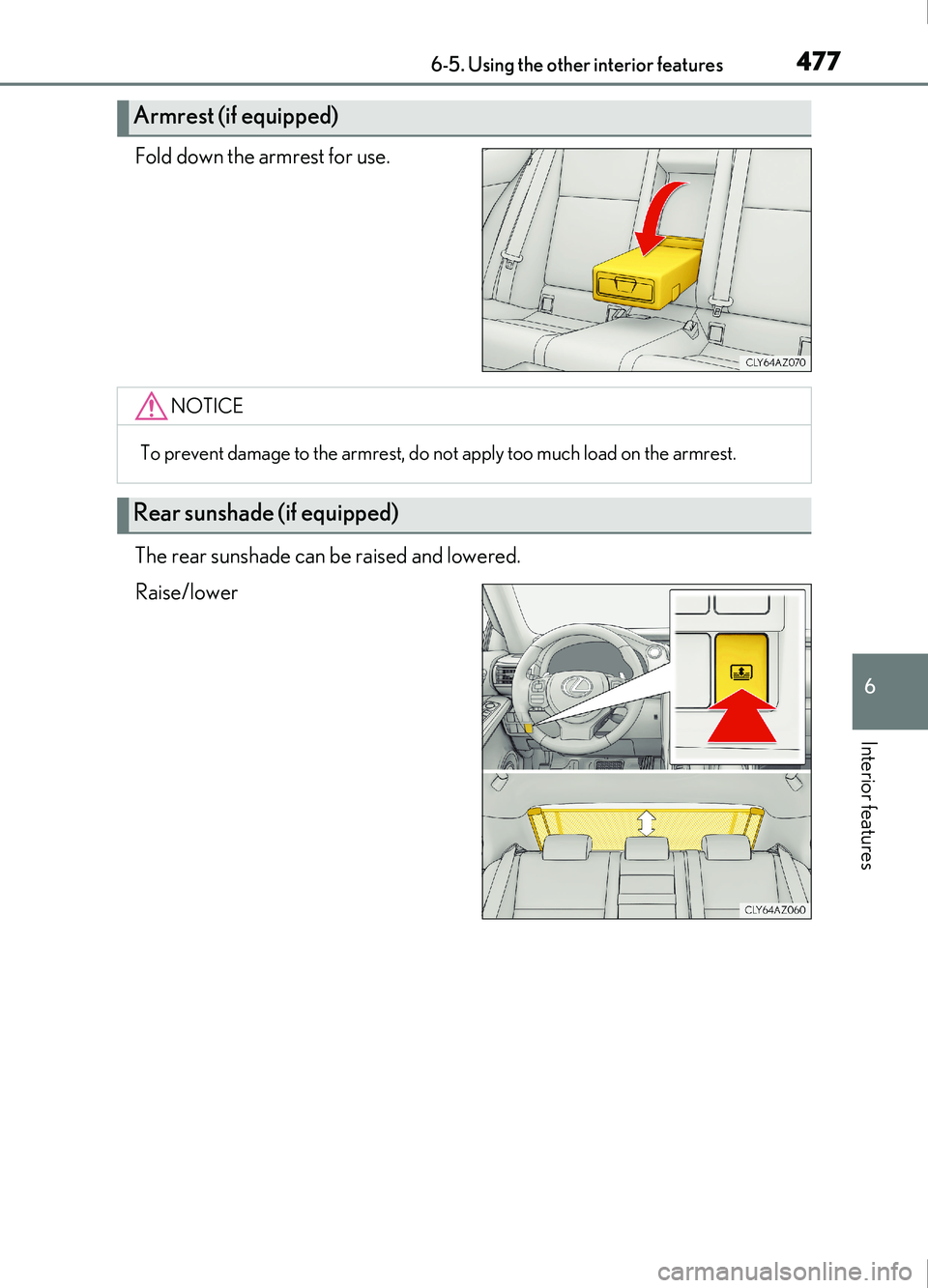

4776-5. Using the other interior features
6
Interior features
IS200t_EE(OM53D77E)
Fold down the armrest for use.
The rear sunshade can be raised and lowered.
Raise/lower
Armrest (if equipped)
NOTICE
To prevent damage to the armrest, do not apply too much load on the armrest.
Rear sunshade (if equipped)

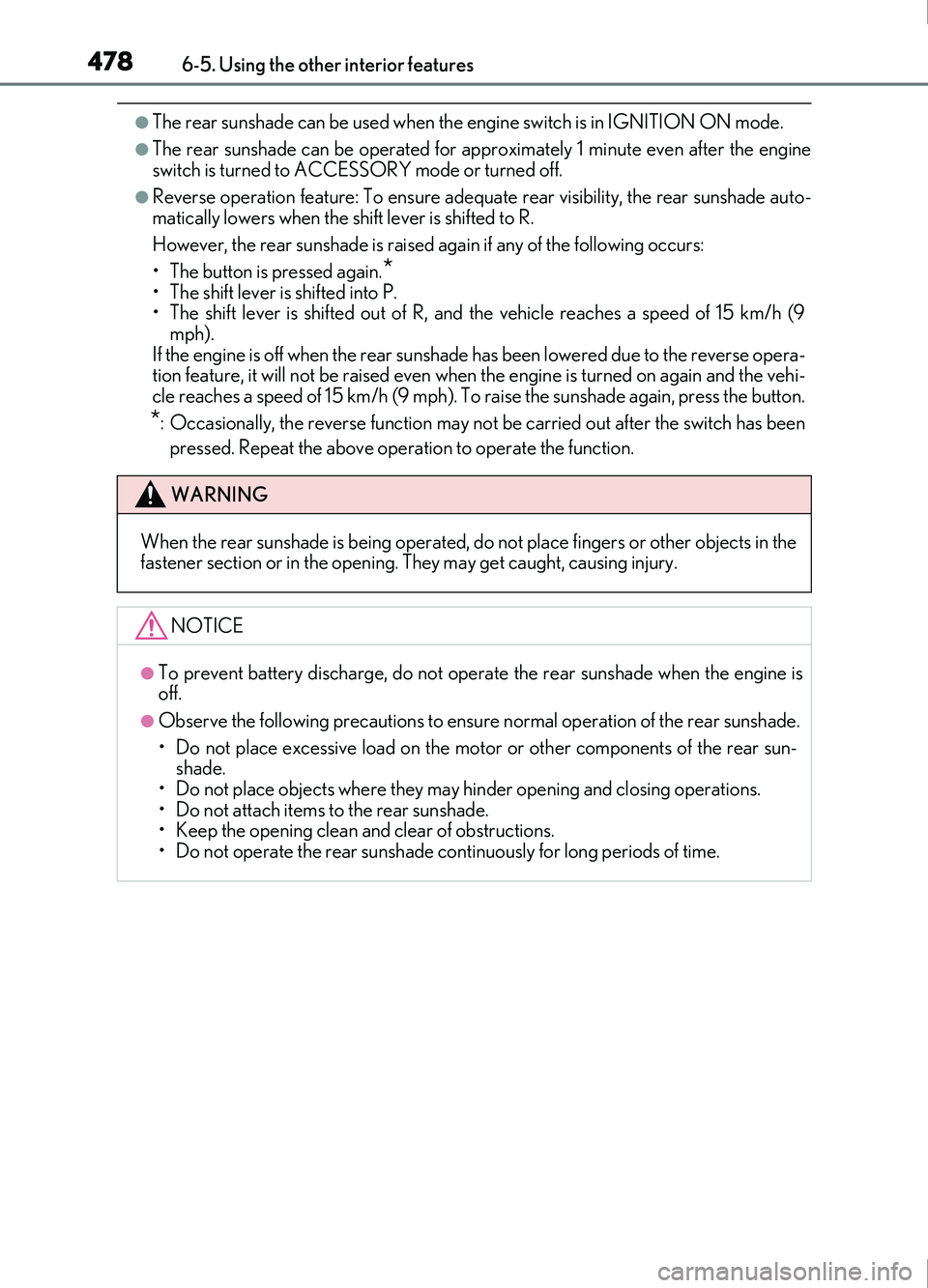

4786-5. Using the other interior features
IS200t_EE(OM53D77E)
●The rear sunshade can be used when the engine switch is in IGNITION ON mode.
●The rear sunshade can be operated for approximately 1 minute even after the engine
switch is turned to ACCESSORY mode or turned off.
●Reverse operation feature: To ensure adequate rear visibility, the rear sunshade auto-
matically lowers when the shift lever is shifted to R.
However, the rear sunshade is raised again if any of the following occurs:
• The button is pressed again.
*• The shift lever is shifted into P.
• The shift lever is shifted out of R, and the vehicle reaches a speed of 15 km/h (9
mph).
If the engine is off when the rear sunshade has been lowered due to the reverse opera-
tion feature, it will not be raised even when the engine is turned on again and the vehi-
cle reaches a speed of 15 km/h (9 mph). To raise the sunshade again, press the button.
*: Occasionally, the reverse function may not be carried out after the switch has been
pressed. Repeat the above operation to operate the function.
WARNING
When the rear sunshade is being operated, do not place fingers or other objects in the
fastener section or in the opening. They may get caught, causing injury.
NOTICE
●To prevent battery discharge, do not oper ate the rear sunshade when the engine is
off.
●Observe the following precautions to ensure normal operation of the rear sunshade.
• Do not place excessive load on the motor or other components of the rear sun-
shade.
• Do not place objects where they may hinder opening and closing operations.
• Do not attach items to the rear sunshade.
• Keep the opening clean and clear of obstructions.
• Do not operate the rear sunshade continuously for long periods of time.

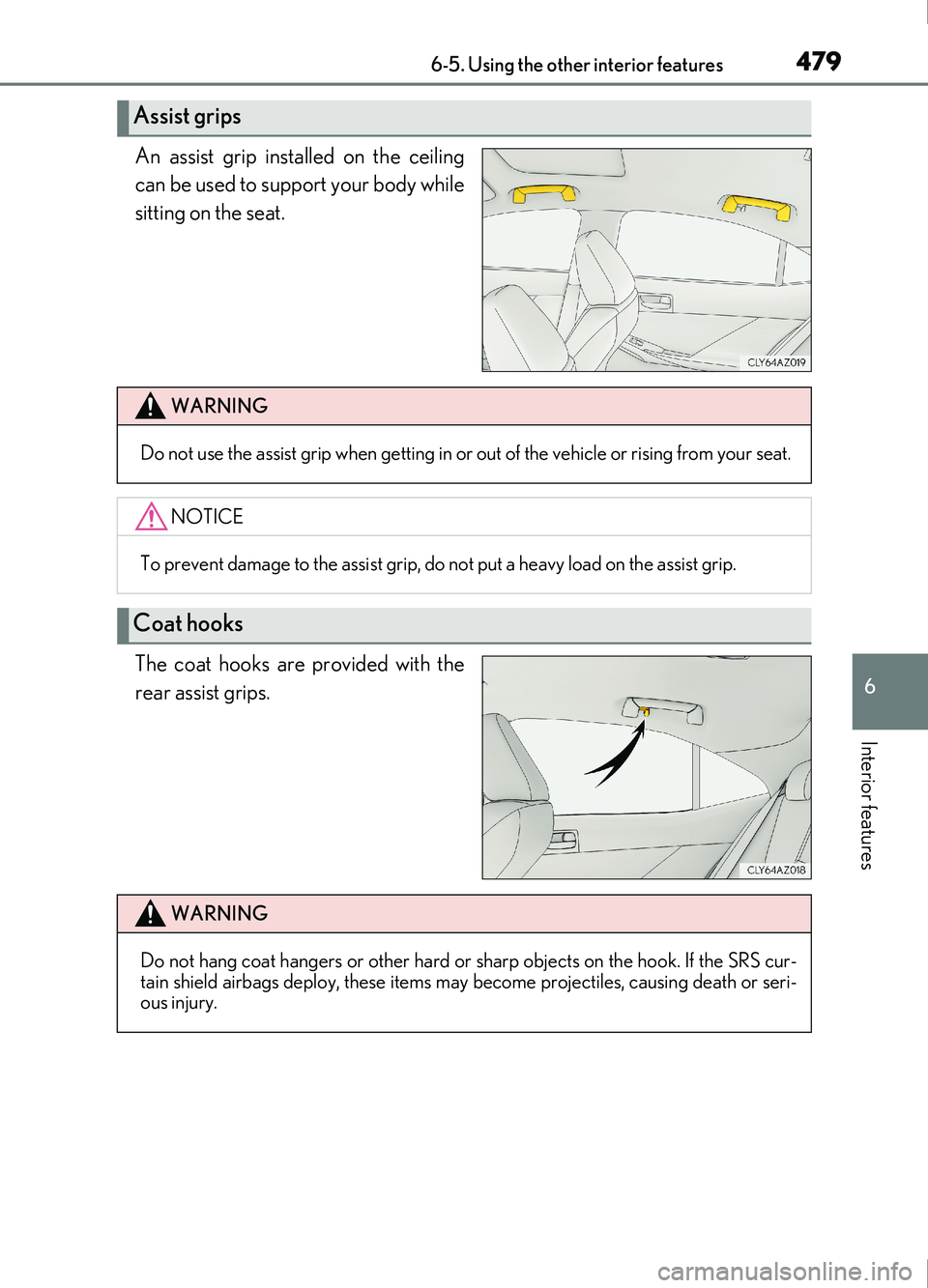

4796-5. Using the other interior features
6
Interior features
IS200t_EE(OM53D77E)
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
The coat hooks are provided with the
rear assist grips.
Assist grips
WARNING
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist grip.
Coat hooks
WARNING
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri-
ous injury.

4806-5. Using the other interior features
IS200t_EE(OM53D77E)
“SOS” button
Indicator lights
Microphone
■Automatic Collision Notification
If any airbag deploys, the system is designed to automatically call the Public
Safety Answering Point (PSAP).
*The responding agent receives the vehicle's
location and attempts to speak with the vehicle occupants to assess the level
of emergency. If the occupants are unable to communicate, the agent auto-
matically treats the call as an emer gency, contacts the nearest emergency
services provider to describe the situation, and requests that assistance be
sent to the location.
*: In some cases, the call cannot be made.(P. 482)
ERA-GLONASS

: If equipped
ERA-GLONASS is a telematics service that uses Global Navigation Satellite
System (GLONASS) data and embedded cellular technology to enable the
following emergency calls to be made: Automatic emergency calls (Auto-
matic Collision Notification) and manual emergency calls (by pressing the
“SOS” button). This service is require d by Eurasian Customs Union Regula-
tions.
System components
1
2
3
Emergency Notification Services
