key Lexus IS250 2009 Owner's Guide

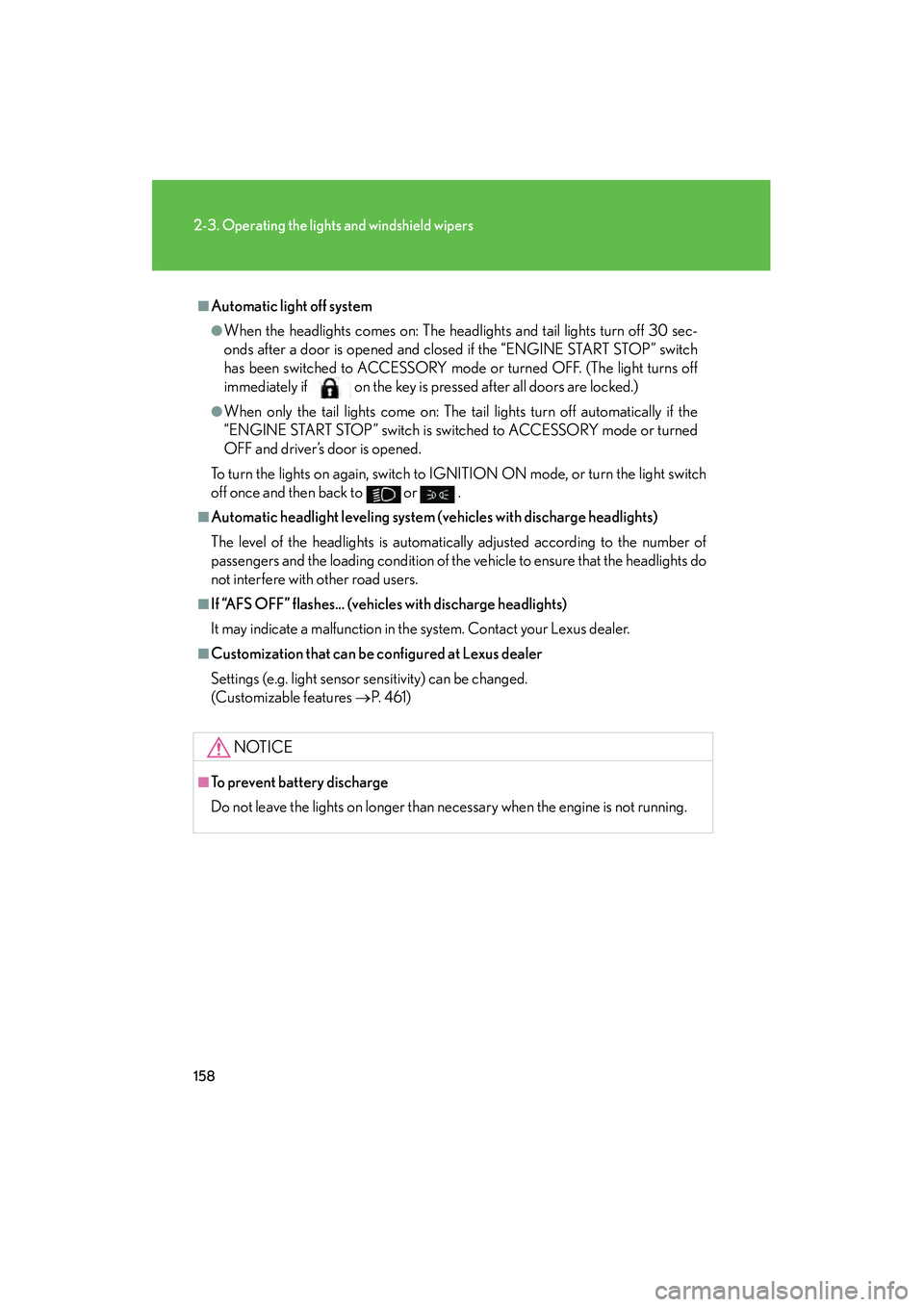

158
2-3. Operating the lights and windshield wipers
08_IS350/250_U_(L/O_0808)
■Automatic light off system
●When the headlights comes on: The headlights and tail lights turn off 30 sec-
onds after a door is opened and closed if the “ENGINE START STOP” switch
has been switched to ACCESSORY mode or turned OFF. (The light turns off
immediately if on the key is pressed after all doors are locked.)
●When only the tail lights come on: The tail lights turn off automatically if the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF and driver’s door is opened.
To turn the lights on again, switch to IGNITION ON mode, or turn the light switch
off once and then back to or
.
■Automatic headlight leveling system (vehicles with discharge headlights)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If “AFS OFF” flashes... (vehicles with discharge headlights)
It may indicate a malfunction in the system. Contact your Lexus dealer.
■Customization that can be configured at Lexus dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features

P. 4 61 )
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.

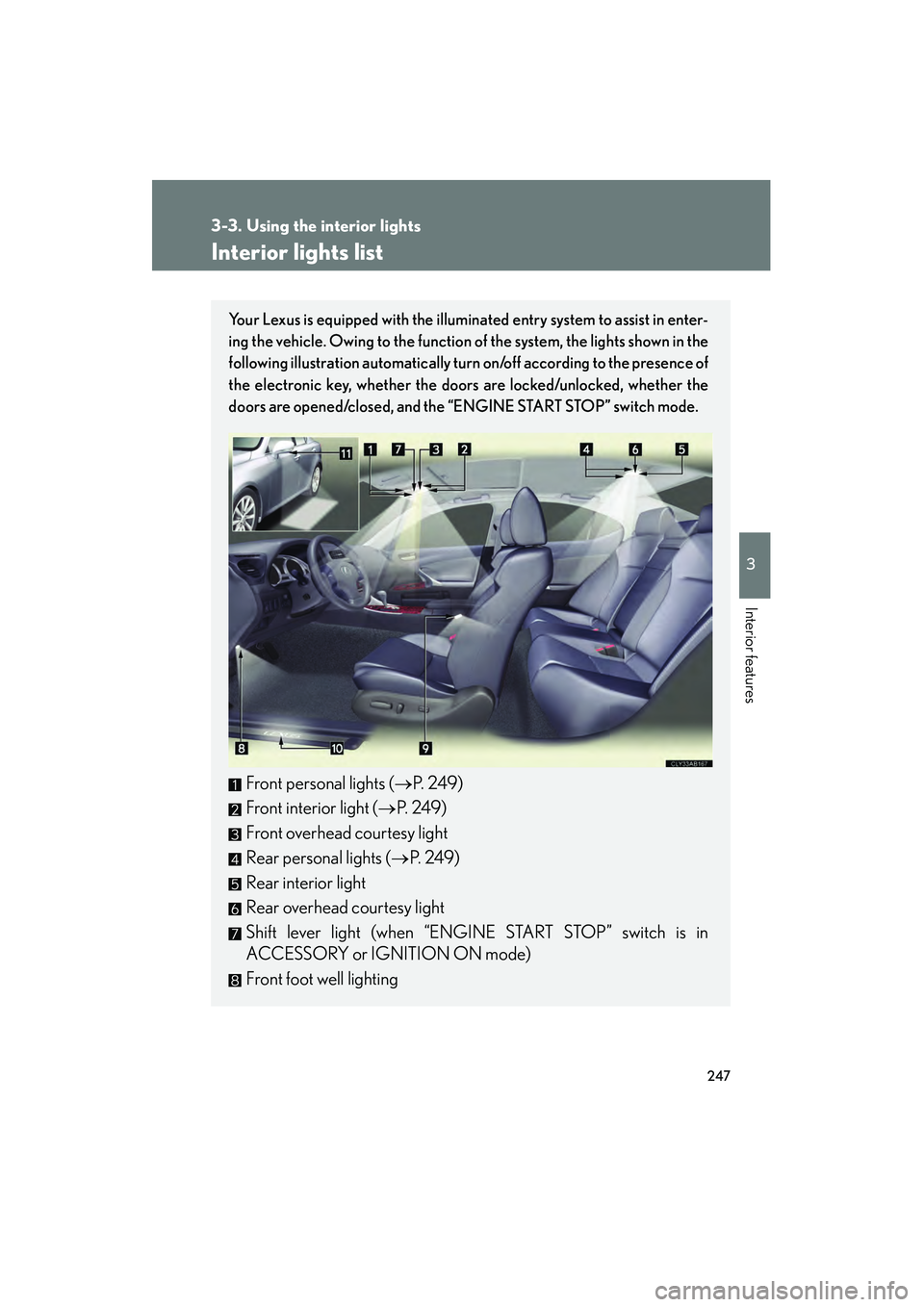

247
3
Interior features
08_IS350/250_U_(L/O_0808)
3-3. Using the interior lights
Interior lights list
Your Lexus is equipped with the illuminated entry system to assist in enter-
ing the vehicle. Owing to the function of the system, the lights shown in the
following illustration automatically turn on/off according to the presence of
the electronic key, whether the door s are locked/unlocked, whether the
doors are opened/closed, and the “ENGINE START STOP” switch mode.
Front personal lights (
P. 2 4 9 )
Front interior light (
P. 2 4 9 )
Front overhead courtesy light
Rear personal lights (
P. 2 4 9 )
Rear interior light
Rear overhead courtesy light
Shift lever light (when “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode)
Front foot well lighting

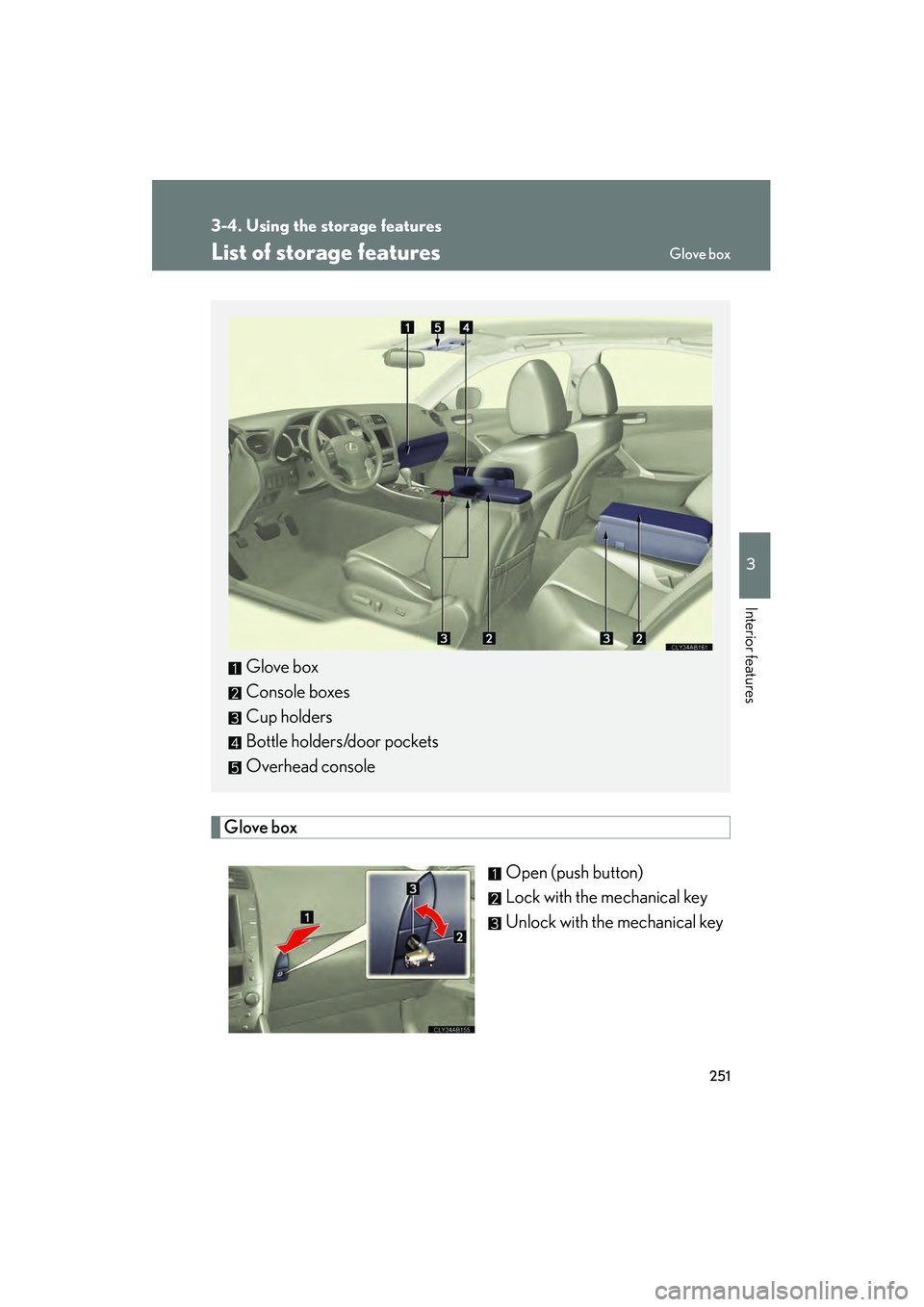

251
3
Interior features
08_IS350/250_U_(L/O_0808)
3-4. Using the storage features
List of storage features
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical key
Glove box
Console boxes
Cup holders
Bottle holders/door pockets
Overhead console
Glove box

Maintenance and care4
291
08_IS350/250_U_(L/O_0808)
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 292
Cleaning and protecting the vehicle interior .............. 295
4-2. Maintenance Maintenance requirements ....................... 298
General maintenance ......... 300
Emission inspection and maintenance (I/M)
programs............................... 303 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions ........................... 304
Hood .......................................... 307
Positioning a floor jack ......... 308
Engine compartment ............ 310
Tires............................................ 325
Tire inflation pressure........... 336
Wheels ...................................... 340
Air conditioning filter ........... 342
Electronic key battery.......... 345
Checking and replacing fuses ........................................ 347
Headlight aim .......................... 361
Light bulbs................................ 363

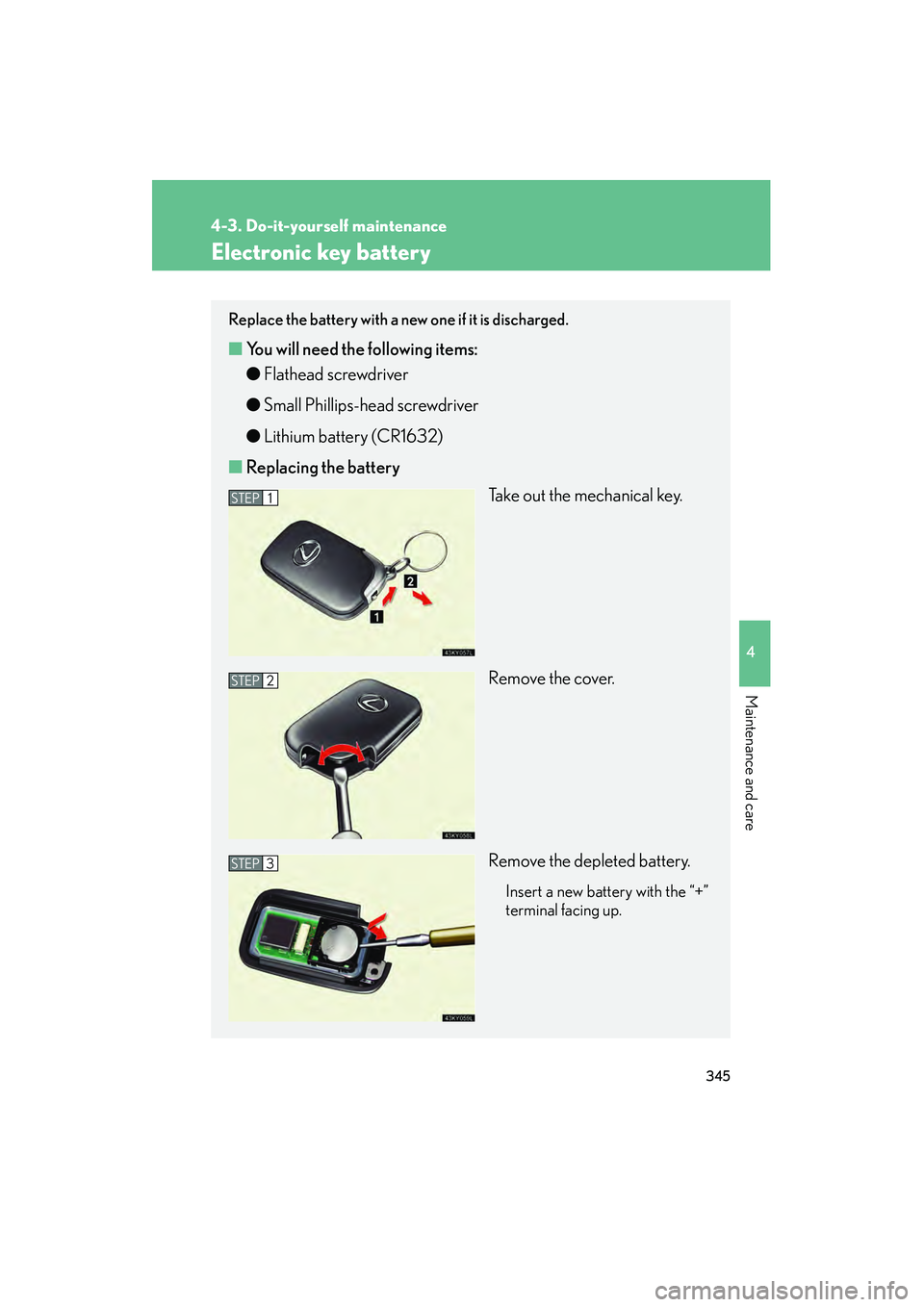

345
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS350/250_U_(L/O_0808)
Electronic key battery
Replace the battery with a new one if it is discharged.
■You will need th e following items:
● Flathead screwdriver
● Small Phillips-head screwdriver
● Lithium battery (CR1632)
■ Replacing the battery
Take out the mechanical key.
Remove the cover.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
STEP1
STEP2
STEP3

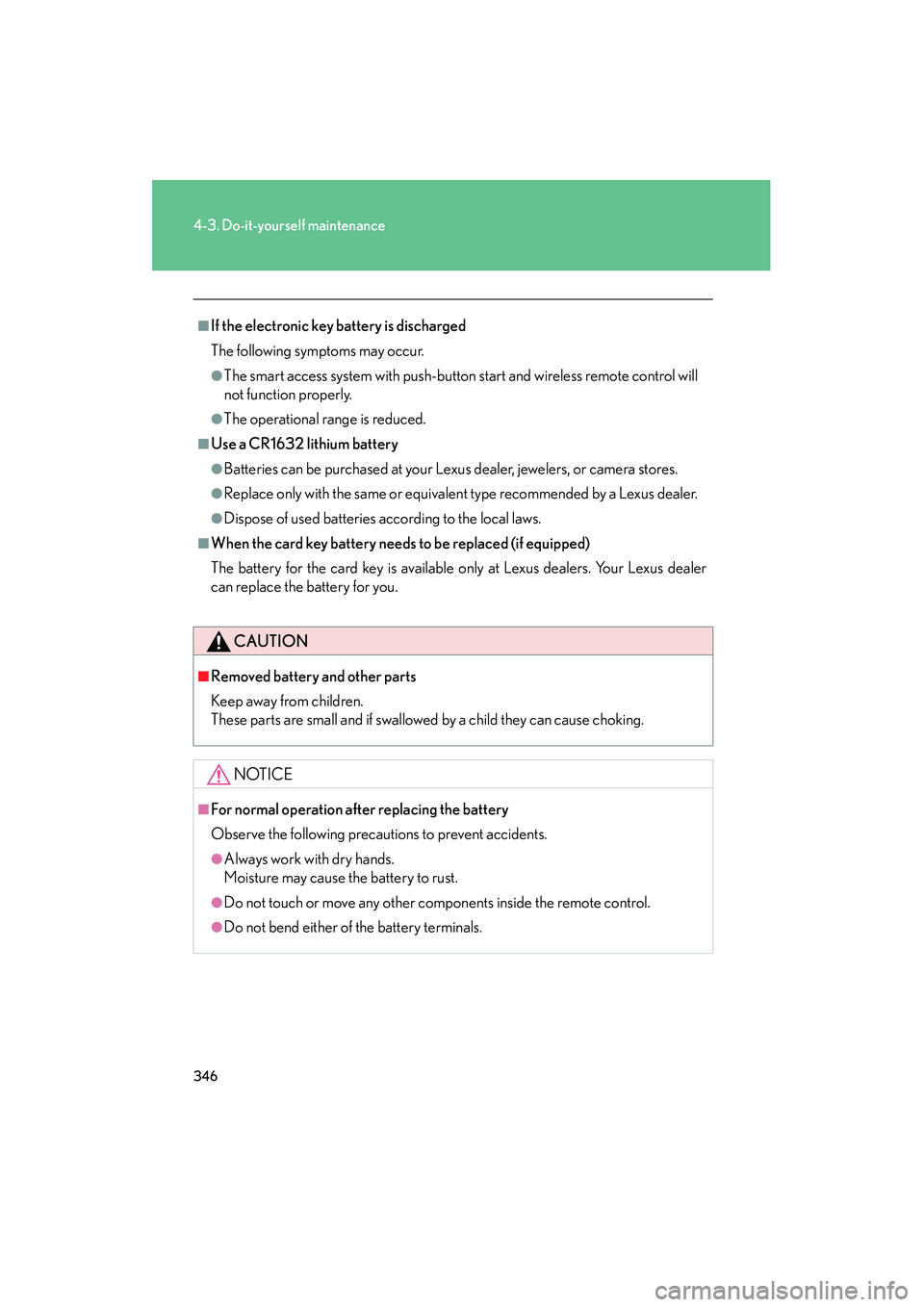

346
4-3. Do-it-yourself maintenance
08_IS350/250_U_(L/O_0808)
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer
can replace the battery for you.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

When trouble arises5
371
08_IS350/250_U_(L/O_0808)
5-1. Essential informationEmergency flashers............... 372
If your vehicle needs to be towed................................. 373
If you think something is wrong .................................. 379
Fuel pump shut off system .................................... 380
Event data recorder ............... 381 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ................................. 383
If a warning message is displayed................................ 392
If you have a flat tire............... 404
If the engine will not start .......................................... 413
If the shift lever cannot be shifted from P ........................ 415
If you lose your keys ............... 416
If the electronic key does not operate properly............ 417
If the vehicle battery is discharged ............................. 421
If your vehicle overheats............................... 424
If the vehicle becomes stuck......................................... 427

400
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
Follow the correction procedures.After taking the specified steps to correct the suspected problem, check
that the warning light turns off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Once
(Comes on for 10 seconds.)
(Flashing)
Indicates that an
attempt was made
to start the engine
without the elec-
tronic key being
present, or the
electronic key was
not functioning
normally.
Start the engine
with the elec-
tronic key
present.
*
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
or closed with the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Confirm the loca-
tion of the elec-
tronic key.

5
When trouble arises
401
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once3 times
(Vehicles with an auto-
matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
outside of the
detection area.
Tu r n t h e
“ENGINE START
STOP” switch
OFF or confirm
the location of the
electronic key.
OnceCon-
tinuous
(Displayed alternately)
(Vehicles with an auto-matic transmission)
(Flashing)
Indicates that the
driver’s door has
been opened or
closed (with the
shift lever out of in
P, t h e “ E N G I N E
START STOP”
switch in any
mode other than
OFF and the elec-
tronic key outside
of the detection
area).
• Shift the shift lever to P.
•Confirm the
location of the
electronic key.
Once
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. (

P. 3 4 5 )

5
When trouble arises

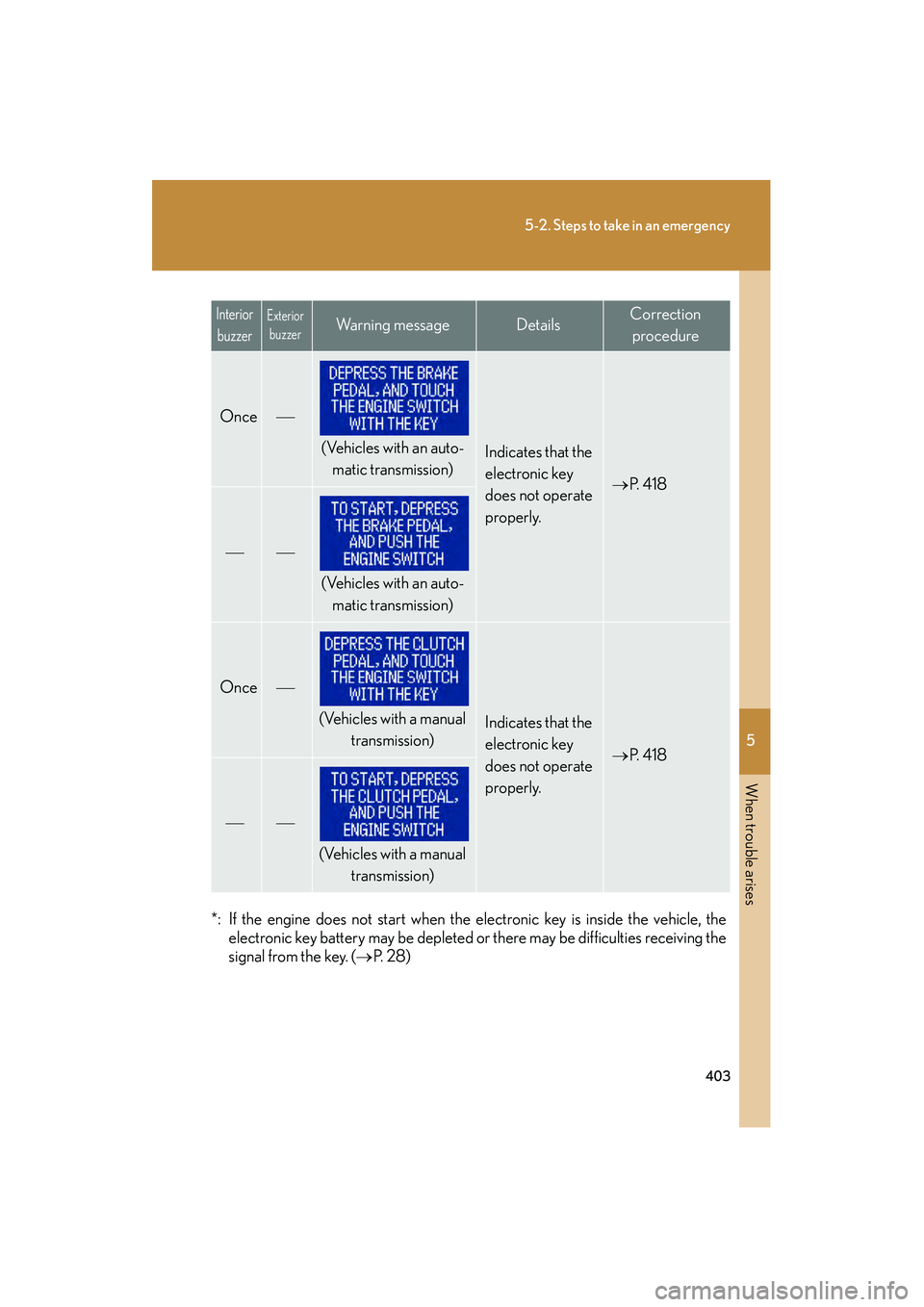

403
5-2. Steps to take in an emergency
08_IS350/250_U_(L/O_0808)
*: If the engine does not start when the electronic key is inside the vehicle, theelectronic key battery may be depleted or there may be difficulties receiving the
signal from the key. (

P. 2 8 )
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once
(Vehicles with an auto- matic transmission)Indicates that the
electronic key
does not operate
properly.

P. 4 1 8

(Vehicles with an auto-
matic transmission)
Once
(Vehicles with a manual transmission)Indicates that the
electronic key
does not operate
properly.

P. 4 1 8

(Vehicles with a manual transmission)
