551-1. For safe use
1
For safety and security
IS300h_EE(OM53C61E)
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction in the sys-
tem. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional.
●Neither “ON” nor “OFF” comes on.
●The indicator light does not change when the airbag manual on-off switch is switched
to “ON” or “OFF”.
CAUTION
■When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In the event that
the rear seat cannot be used, the front seat can be used as long as the airbag manual
on-off system is set to off.
If the airbag manual on-off system is left on, the strong impact of the airbag deployment
(inflation) may cause serious injury or even death.
■When a child restraint system is not installed on the front passenger seat
Ensure that the airbag manual on-off system is set to on.
If it is left off, the airbag may not deploy in the event of an accident, which may result in
serious injury or even death.
IS300h_EE_OM53C61E.book 55 ページ ２０１４年５月２０日　火曜日　午後５時４０分

621-1. For safe use
IS300h_EE(OM53C61E)
Information provided in the table shows your child restraint system suitability for
various seating positions.
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved for the
use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint system
approved for the use in this mass group.
L1: Suitable for “LEXUS G 0
+, BABY SAFE PLUS with SEAT BELT FIXA-
TION, BASE PLATFORM” (0 to 13 kg [0 to 28 lb.]) approved for the use
in this mass group.
L2: Suitable for “LEXUS KIDFIX” (15 to 36 kg [34 to 79 lb.]) approved for the
use in this mass group.
X: Not suitable seat position for children in this mass group.
Child restraint system suitability for various seating positions
Front passenger seat
Rear seatAirbag manual
on-off switch
ONOFFOutboardCenter
0
Up to 10 kg (22 lb.)
(0 - 9 months)X
Never putU
*1U*3
L1*3X
0
+
Up to 13 kg (28 lb.)
(0 - 2 years)X
Never putU*1U*3
L1*3X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)Rear-
facing — X
Never put
U
*1U*3X
Forward-
facing — UF
*1
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)UF
*1, 2U*1, 2U*2, 3
L2*2, 3X
Mass groups
Seating
position
IS300h_EE_OM53C61E.book 62 ページ ２０１４年５月２０日　火曜日　午後５時４０分

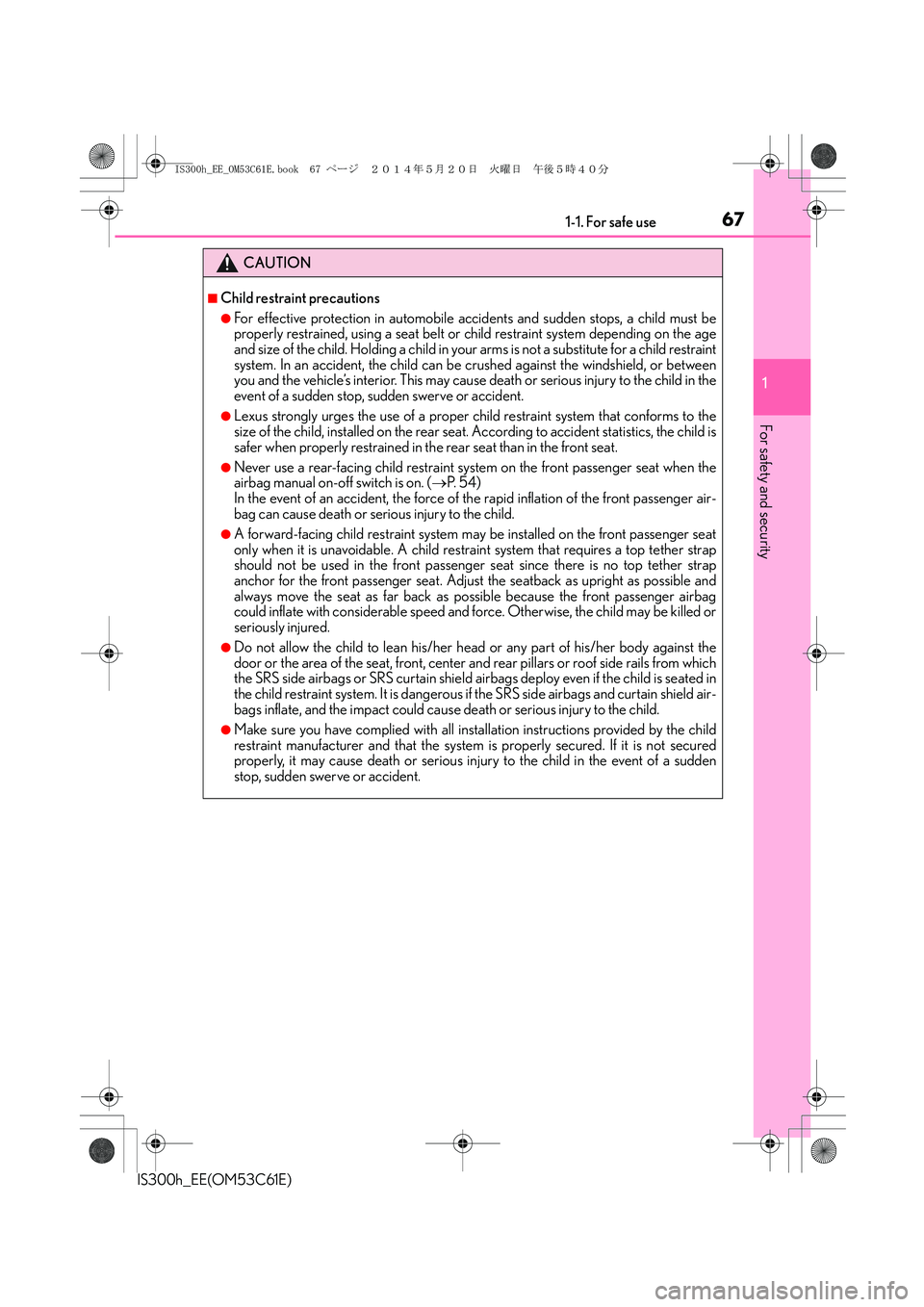

671-1. For safe use
1
For safety and security
IS300h_EE(OM53C61E)
CAUTION
■Child restraint precautions
●For effective protection in automobile accidents and sudden stops, a child must be
properly restrained, using a seat belt or child restraint system depending on the age
and size of the child. Holding a child in your arms is not a substitute for a child restraint
system. In an accident, the child can be crushed against the windshield, or between
you and the vehicle’s interior. This may cause death or serious injury to the child in the
event of a sudden stop, sudden swerve or accident.
●Lexus strongly urges the use of a proper child restraint system that conforms to the
size of the child, installed on the rear seat. According to accident statistics, the child is
safer when properly restrained in the rear seat than in the front seat.
●Never use a rear-facing child restraint system on the front passenger seat when the
airbag manual on-off switch is on. (→P. 5 4 )
In the event of an accident, the force of the rapid inflation of the front passenger air-
bag can cause death or serious injury to the child.
●A forward-facing child restraint system may be installed on the front passenger seat
only when it is unavoidable. A child restraint system that requires a top tether strap
should not be used in the front passenger seat since there is no top tether strap
anchor for the front passenger seat. Adjust the seatback as upright as possible and
always move the seat as far back as possible because the front passenger airbag
could inflate with considerable speed and force. Otherwise, the child may be killed or
seriously injured.
●Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front, center and rear pillars or roof side rails from which
the SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in
the child restraint system. It is dangerous if the SRS side airbags and curtain shield air-
bags inflate, and the impact could cause death or serious injury to the child.
●Make sure you have complied with all installation instructions provided by the child
restraint manufacturer and that the system is properly secured. If it is not secured
properly, it may cause death or serious injury to the child in the event of a sudden
stop, sudden swerve or accident.
IS300h_EE_OM53C61E.book 67 ページ ２０１４年５月２０日　火曜日　午後５時４０分

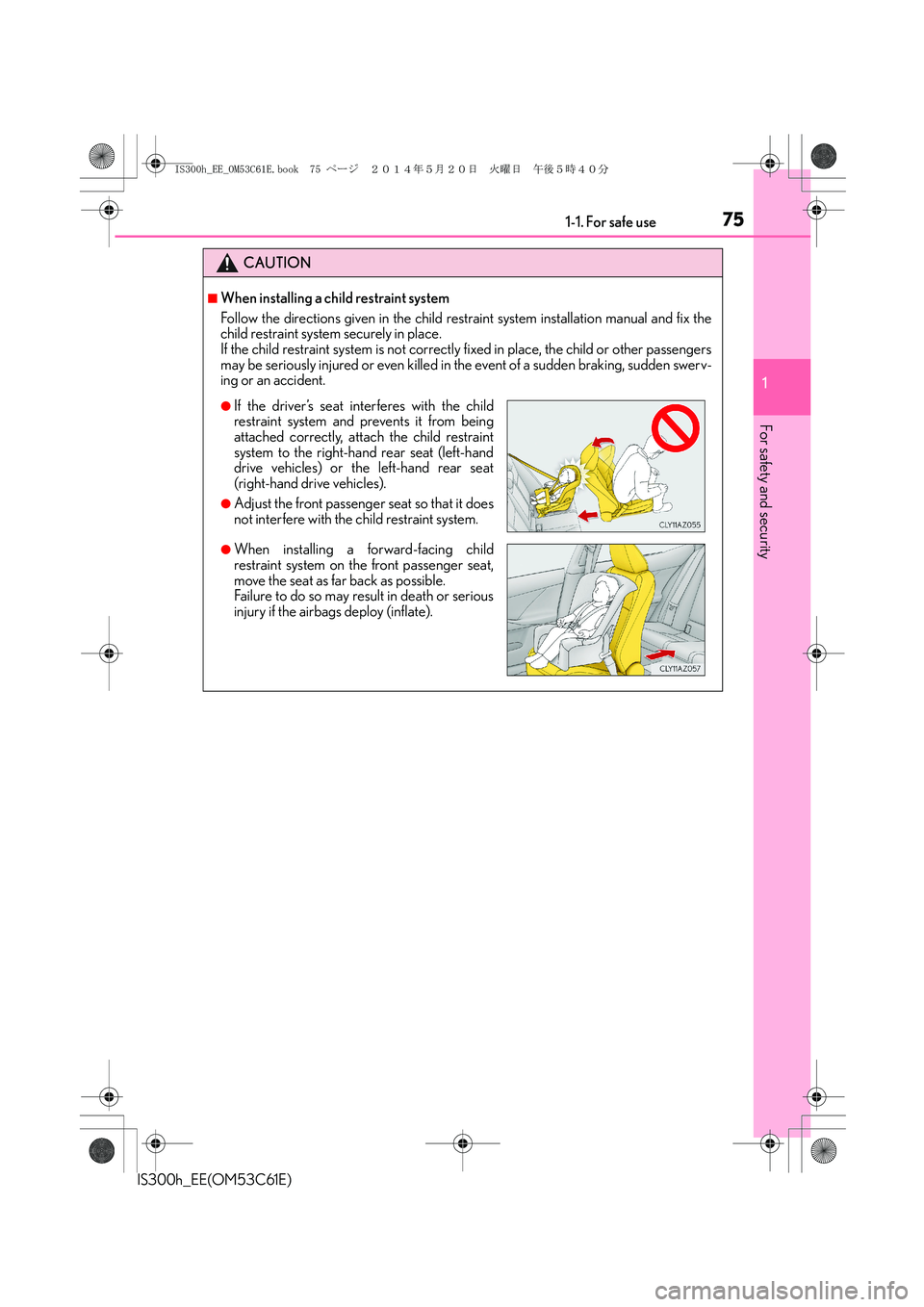

751-1. For safe use
1
For safety and security
IS300h_EE(OM53C61E)
CAUTION
■When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix the
child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other passengers
may be seriously injured or even killed in the event of a sudden braking, sudden swerv-
ing or an accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat (left-hand
drive vehicles) or the left-hand rear seat
(right-hand drive vehicles).
●Adjust the front passenger seat so that it does
not interfere with the child restraint system.
●When installing a forward-facing child
restraint system on the front passenger seat,
move the seat as far back as possible.
Failure to do so may result in death or serious
injury if the airbags deploy (inflate).
IS300h_EE_OM53C61E.book 75 ページ ２０１４年５月２０日　火曜日　午後５時４０分

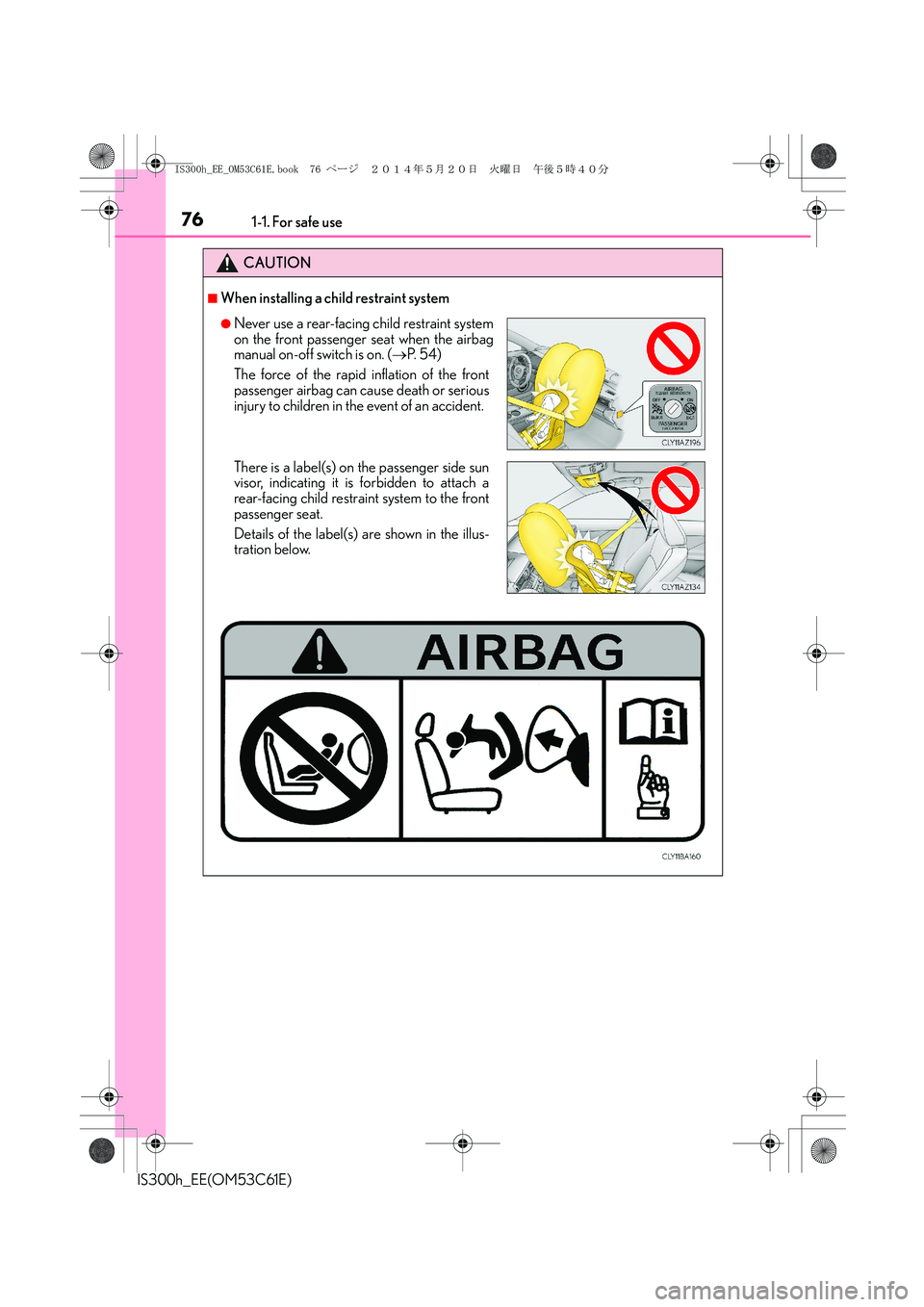

761-1. For safe use
IS300h_EE(OM53C61E)
CAUTION
■When installing a child restraint system
●Never use a rear-facing child restraint system
on the front passenger seat when the airbag
manual on-off switch is on. (→P. 5 4 )
The force of the rapid inflation of the front
passenger airbag can cause death or serious
injury to children in the event of an accident.
There is a label(s) on the passenger side sun
visor, indicating it is forbidden to attach a
rear-facing child restraint system to the front
passenger seat.
Details of the label(s) are shown in the illus-
tration below.
IS300h_EE_OM53C61E.book 76 ページ ２０１４年５月２０日　火曜日　午後５時４０分

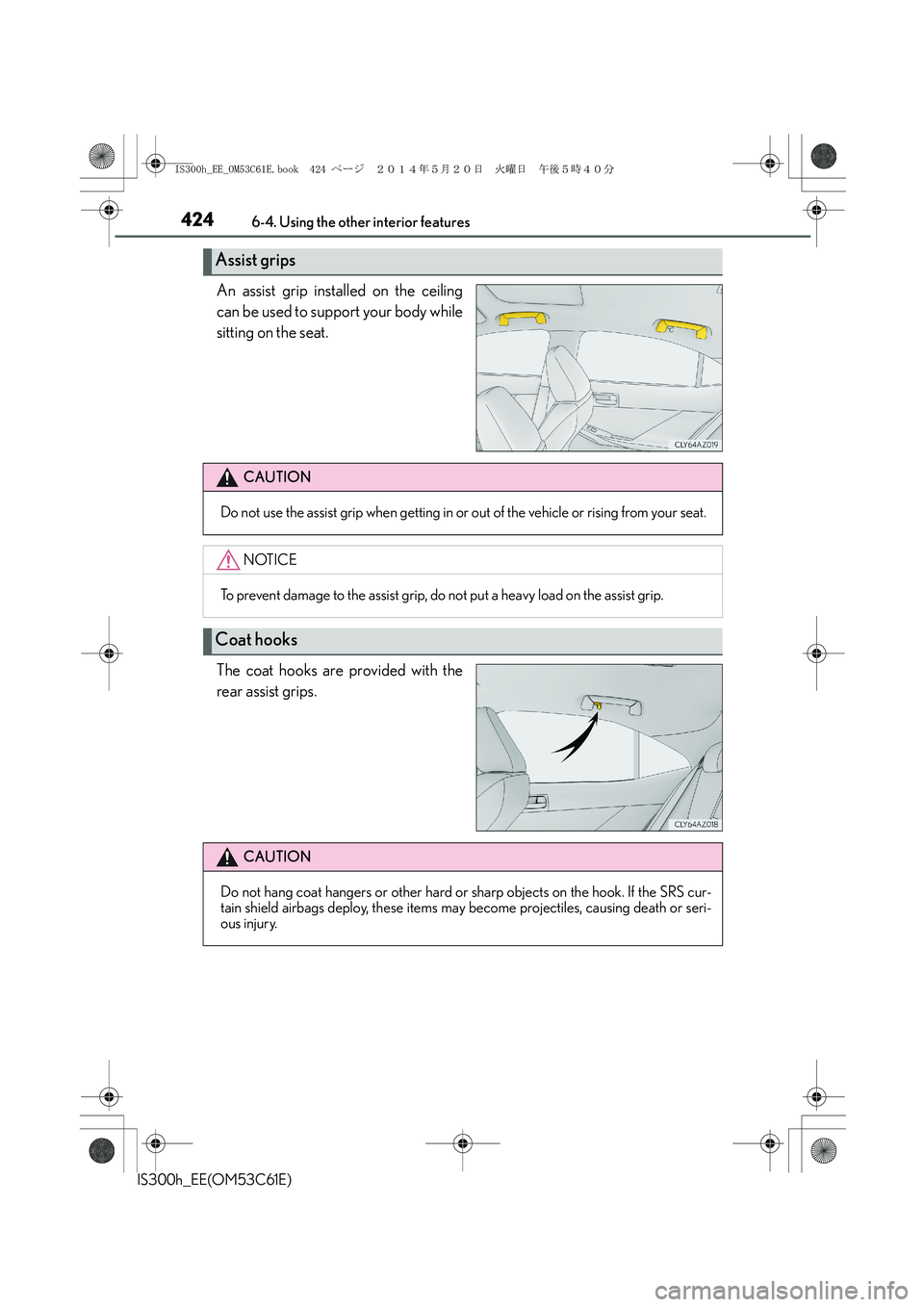

4246-4. Using the other interior features
IS300h_EE(OM53C61E)
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
The coat hooks are provided with the
rear assist grips.
Assist grips
CAUTION
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not put a heavy load on the assist grip.
Coat hooks
CAUTION
Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS cur-
tain shield airbags deploy, these items may become projectiles, causing death or seri-
ous injury.
IS300h_EE_OM53C61E.book 424 ページ ２０１４年５月２０日　火曜日　午後５時４０分

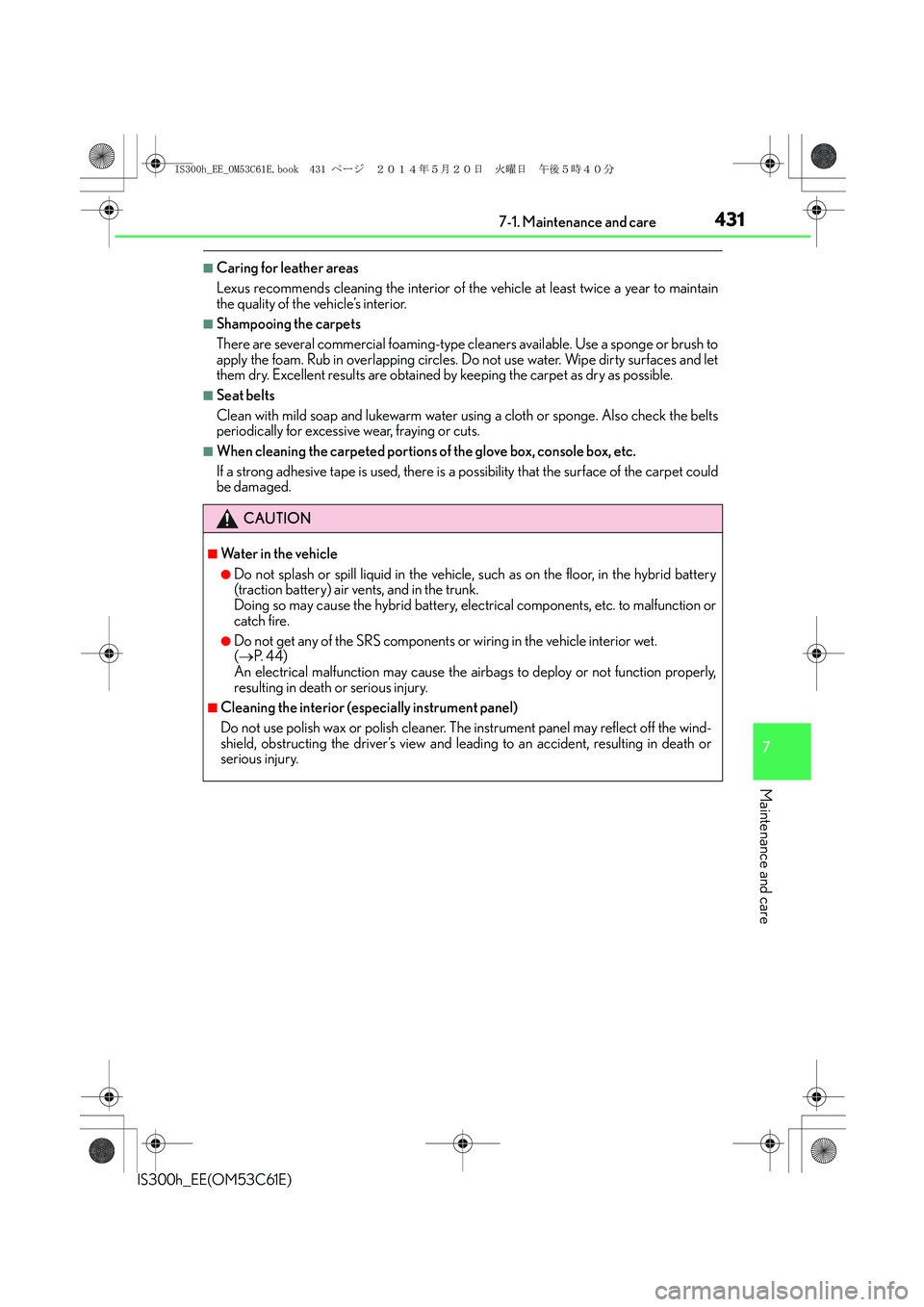

4317-1. Maintenance and care
7
Maintenance and care
IS300h_EE(OM53C61E)
■Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to maintain
the quality of the vehicle’s interior.
■Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or brush to
apply the foam. Rub in overlapping circles. Do not use water. Wipe dirty surfaces and let
them dry. Excellent results are obtained by keeping the carpet as dry as possible.
■Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the belts
periodically for excessive wear, fraying or cuts.
■When cleaning the carpeted portions of the glove box, console box, etc.
If a strong adhesive tape is used, there is a possibility that the surface of the carpet could
be damaged.
CAUTION
■Water in the vehicle
●Do not splash or spill liquid in the vehicle, such as on the floor, in the hybrid battery
(traction battery) air vents, and in the trunk.
Doing so may cause the hybrid battery, electrical components, etc. to malfunction or
catch fire.
●Do not get any of the SRS components or wiring in the vehicle interior wet.
(→P. 4 4 )
An electrical malfunction may cause the airbags to deploy or not function properly,
resulting in death or serious injury.
■Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect off the wind-
shield, obstructing the driver’s view and leading to an accident, resulting in death or
serious injury.
IS300h_EE_OM53C61E.book 431 ページ ２０１４年５月２０日　火曜日　午後５時４０分

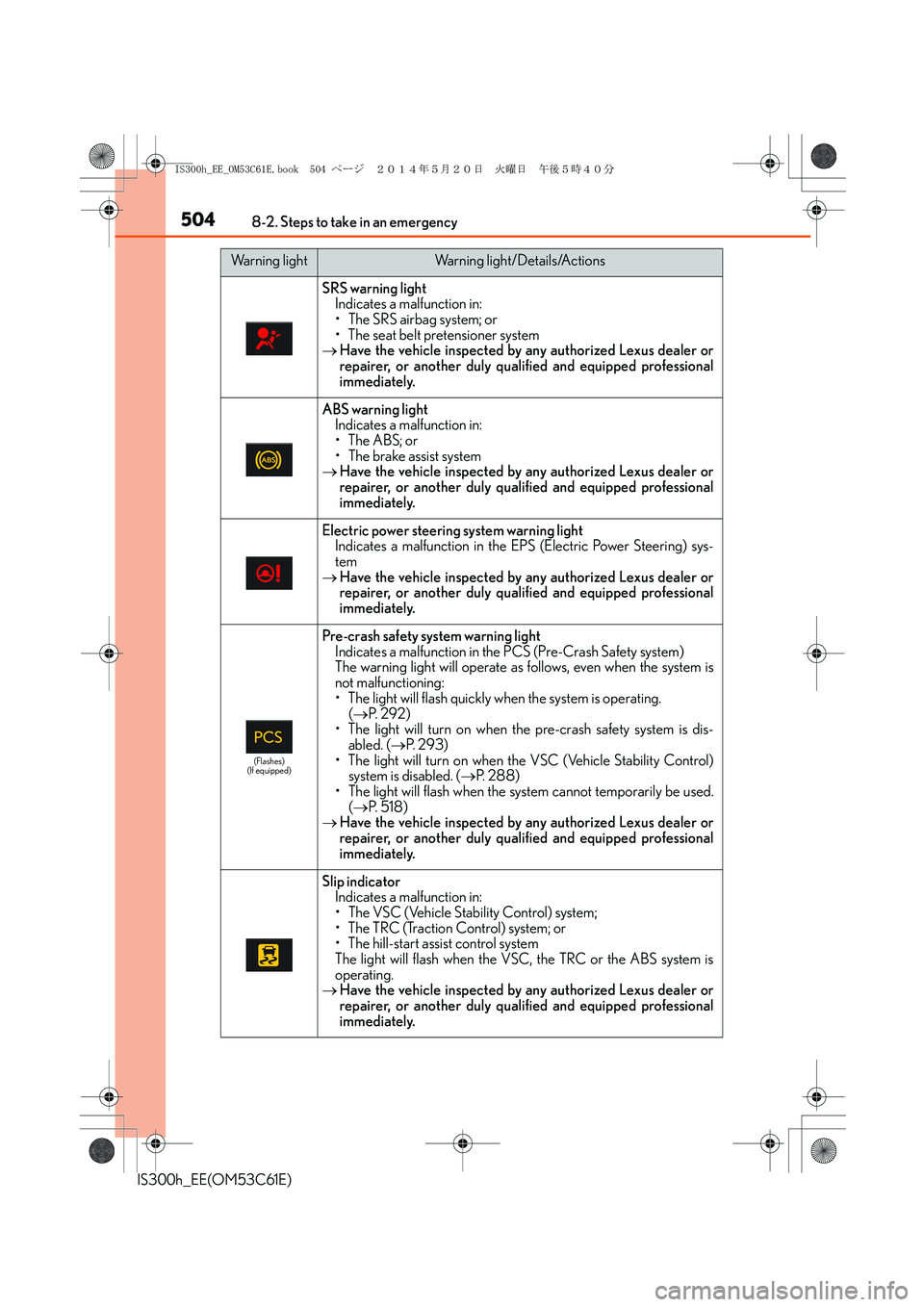

5048-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
→Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
ABS warning light
Indicates a malfunction in:
•The ABS; or
• The brake assist system
→Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Electric power steering system warning light
Indicates a malfunction in the EPS (Electric Power Steering) sys-
tem
→Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
(Flashes)
(If equipped)
Pre-crash safety system warning light
Indicates a malfunction in the PCS (Pre-Crash Safety system)
The warning light will operate as follows, even when the system is
not malfunctioning:
• The light will flash quickly when the system is operating.
(→P. 2 9 2 )
• The light will turn on when the pre-crash safety system is dis-
abled. (→P. 2 9 3 )
• The light will turn on when the VSC (Vehicle Stability Control)
system is disabled. (→P. 2 8 8 )
• The light will flash when the system cannot temporarily be used.
(→P. 5 1 8 )
→Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Slip indicator
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC, the TRC or the ABS system is
operating.
→Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
immediately.
Warning lightWarning light/Details/Actions
IS300h_EE_OM53C61E.book 504 ページ ２０１４年５月２０日　火曜日　午後５時４０分

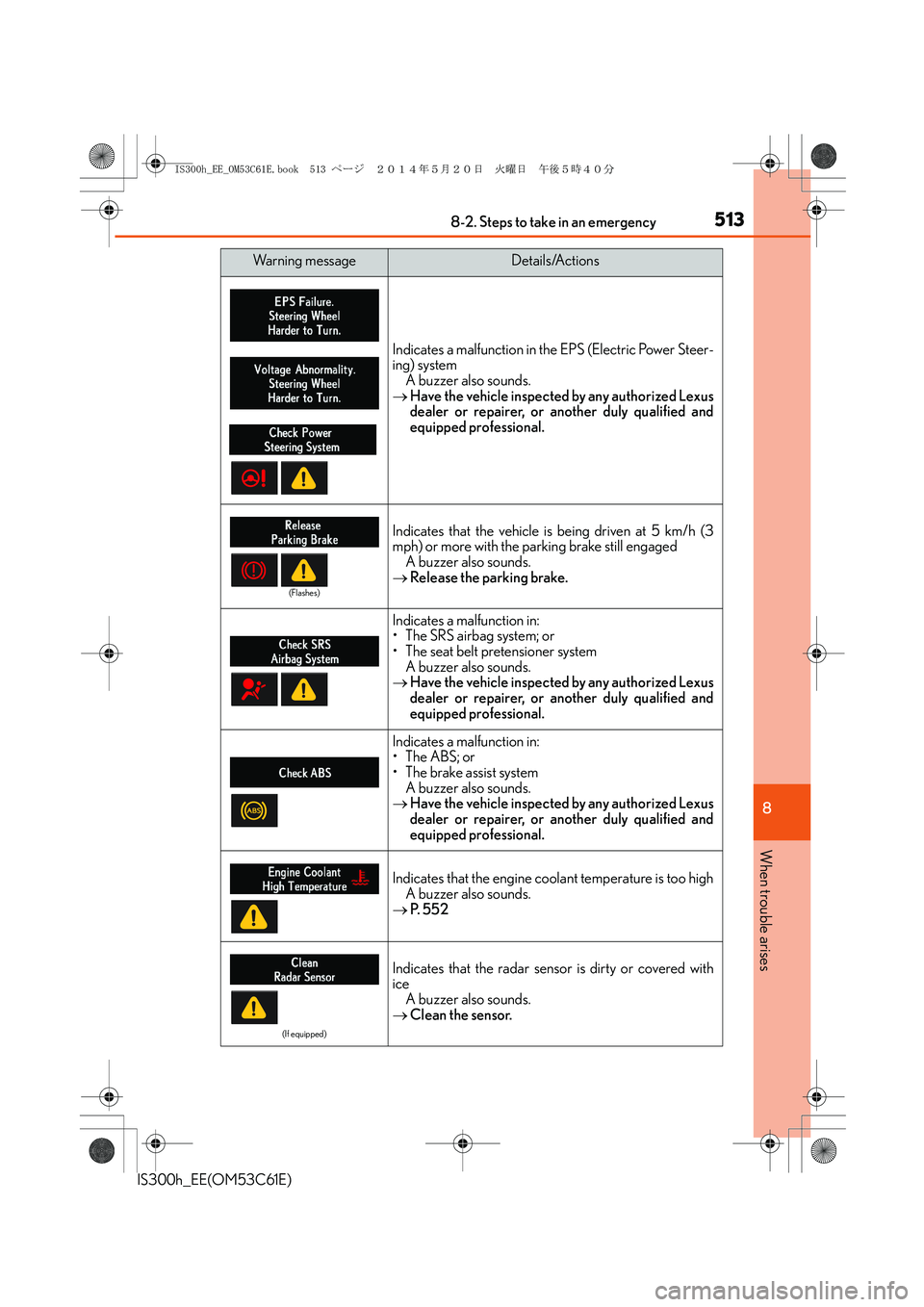

5138-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53C61E)
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system
A buzzer also sounds.
→Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the vehicle is being driven at 5 km/h (3
mph) or more with the parking brake still engaged
A buzzer also sounds.
→Release the parking brake.
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
A buzzer also sounds.
→Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates a malfunction in:
•The ABS; or
• The brake assist system
A buzzer also sounds.
→Have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and
equipped professional.
Indicates that the engine coolant temperature is too high
A buzzer also sounds.
→P. 5 5 2
(If equipped)
Indicates that the radar sensor is dirty or covered with
ice
A buzzer also sounds.
→Clean the sensor.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
IS300h_EE_OM53C61E.book 513 ページ ２０１４年５月２０日　火曜日　午後５時４０分

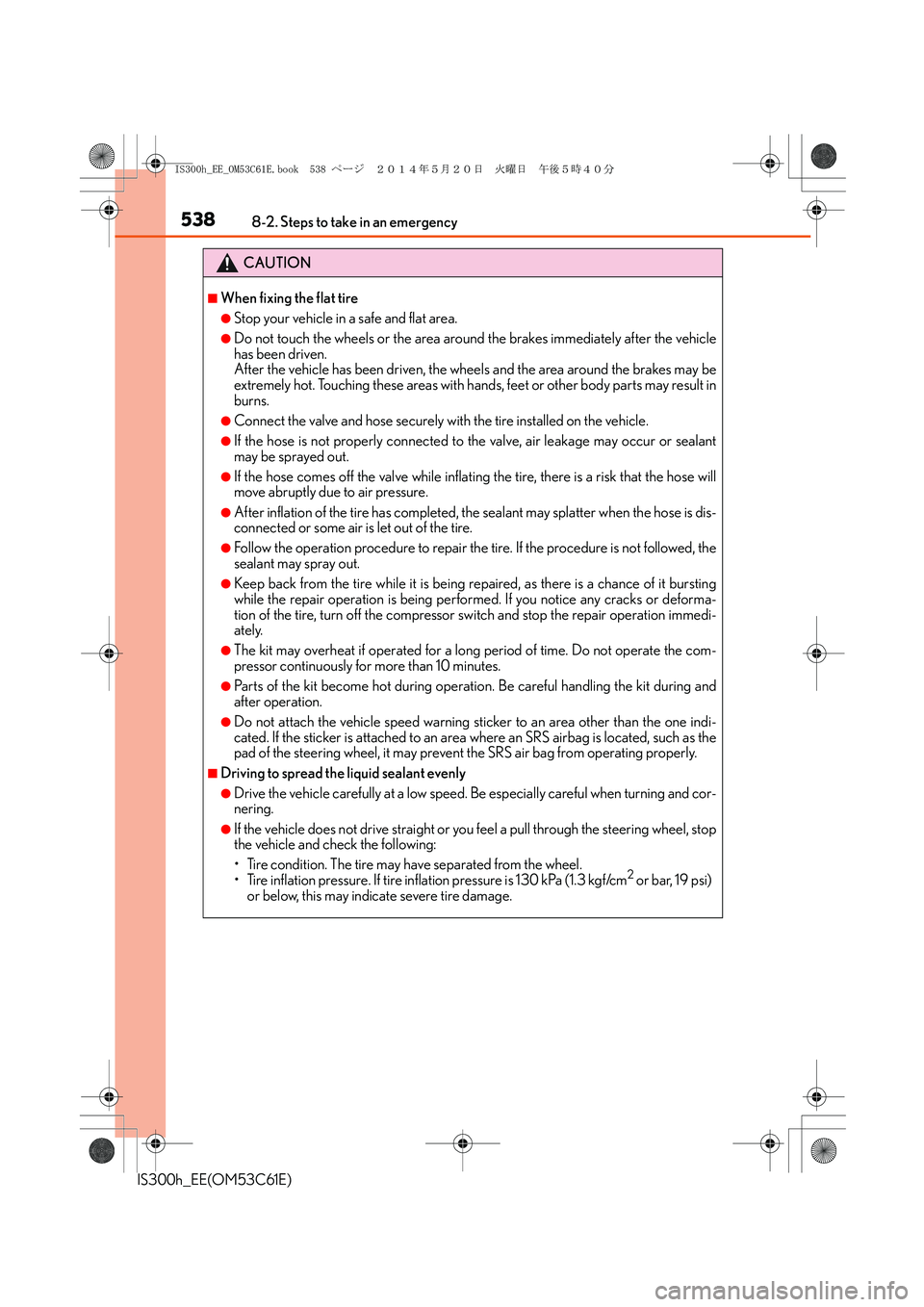

5388-2. Steps to take in an emergency
IS300h_EE(OM53C61E)
CAUTION
■When fixing the flat tire
●Stop your vehicle in a safe and flat area.
●Do not touch the wheels or the area around the brakes immediately after the vehicle
has been driven.
After the vehicle has been driven, the wheels and the area around the brakes may be
extremely hot. Touching these areas with hands, feet or other body parts may result in
burns.
●Connect the valve and hose securely with the tire installed on the vehicle.
●If the hose is not properly connected to the valve, air leakage may occur or sealant
may be sprayed out.
●If the hose comes off the valve while inflating the tire, there is a risk that the hose will
move abruptly due to air pressure.
●After inflation of the tire has completed, the sealant may splatter when the hose is dis-
connected or some air is let out of the tire.
●Follow the operation procedure to repair the tire. If the procedure is not followed, the
sealant may spray out.
●Keep back from the tire while it is being repaired, as there is a chance of it bursting
while the repair operation is being performed. If you notice any cracks or deforma-
tion of the tire, turn off the compressor switch and stop the repair operation immedi-
ately.
●The kit may overheat if operated for a long period of time. Do not operate the com-
pressor continuously for more than 10 minutes.
●Parts of the kit become hot during operation. Be careful handling the kit during and
after operation.
●Do not attach the vehicle speed warning sticker to an area other than the one indi-
cated. If the sticker is attached to an area where an SRS airbag is located, such as the
pad of the steering wheel, it may prevent the SRS air bag from operating properly.
■Driving to spread the liquid sealant evenly
●Drive the vehicle carefully at a low speed. Be especially careful when turning and cor-
nering.
●If the vehicle does not drive straight or you feel a pull through the steering wheel, stop
the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If tire inflation pressure is 130 kPa (1.3 kgf/cm
2 or bar, 19 psi)
or below, this may indicate severe tire damage.
IS300h_EE_OM53C61E.book 538 ページ ２０１４年５月２０日　火曜日　午後５時４０分
