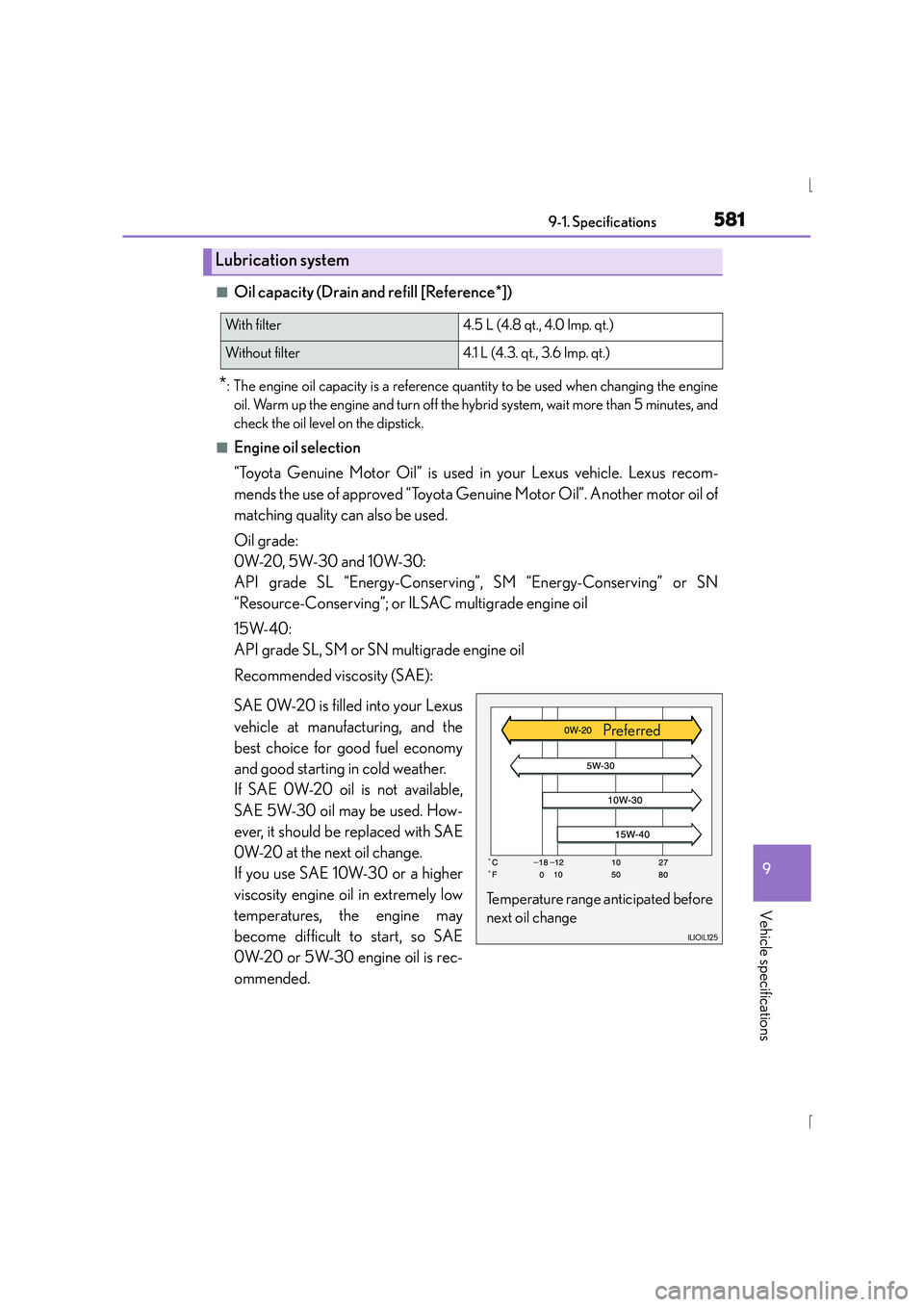

9-1. Specifications
Vehicle specifications
IS300h_EE(OM53D56E)
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engine
oil. Warm up the engine and turn off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Lexus recom-
mends the use of approved “Toyota Ge nuine Motor Oil”. Another motor oil of
matching quality can also be used.
Oil grade:
0W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN
“Resource-Conserving”; or ILSAC multigrade engine oil
15W-40:
API grade SL, SM or SN multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your Lexus
vehicle at manufacturing, and the
best choice for good fuel economy
and good starting in cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used. How-
ever, it should be replaced with SAE
0W-20 at the next oil change.
If you use SAE 10W-30 or a higher
viscosity engine oil in extremely low
temperatures, the engine may
become difficult to start, so SAE
0W-20 or 5W-30 engine oil is rec-
ommended.
Lubrication system
With filter4.5 L (4.8 qt., 4.0 Imp. qt.)
Without filter4.1 L (4.3. qt., 3.6 Imp. qt.)
Temperature range anticipated before
next oil change Preferred

611Alphabetical index
IS300h_EE(OM53D56E)
Child-protectors ................................... 140
Cleaning ........................................442, 446Aluminum wheels .............................. 443
Exterior.................................................... 442
Interior .....................................................446
Seat belts................................................ 447
Clock .........................................................435
Coat hooks ..............................................439
Condenser ............................................. 462
Console box ........................................... 429
Coolant .....................................................460 Capacity ................................................ 583
Checking .............................................. 460
Preparing and checking
before winter .................................... 322
Cooling system......................................460
Engine overheating ............................571
Hybrid system overheating ............571
Cruise control Cruise control .....................................250
Dynamic radar cruise control ..... 254
Cup holders ............................................430
Current fuel consumption....................116
Curtain shield airbags ........................... 43
Customizable features ....................... 592 DAB (Digital Audio Broadcast) ..... 352
Daytime running light system ......... 230
Defogger
Outside rear view mirrors .............. 418
Rear window..........................................418
Windshield ............................................. 418
Differential............................................... 585
Digital Audio Broadcast (DAB) ..... 352
Dimensions ............................................. 578
Display Drive information...................................116
Dynamic radar cruise control ..... 254
LDA (Lane Departure Alert) ........ 271
Multi-information display...................115
Warning message .............................527
Distance ...................................................... 117
Do-it-yourself maintenance ...............451
Door courtesy lights Location ................................................. 425
Wattage ................................................ 588
Door lock
Doors......................................................... 136
Smart entry & start system ............. 149
Wireless remote control .................130D

613Alphabetical index
IS300h_EE(OM53D56E)
If you have a flat tire ............. 545, 559
If you think something is wrong...............................................520
If your vehicle becomes stuck..... 575
If your vehicle has to be stopped in an emergency........... 513
If your vehicle needs to be towed...............................................514
If your vehicle overheats ..................571
Emergency brake signal .................... 297
Emergency flashers .............................. 512
Emergency tire puncture
repair kit ................................................545
Energy monitor......................................... 121
Engine....................................................... 580 ACCESSORY mode ....................... 213
Compartment......................................455
Engine switch......................................... 212
Hood ........................................................453
How to start the hybrid
system .................................................... 212
Identification number ....................... 579
Ignition switch (power switch)................................... 212
Overheating ...........................................571
Power switch ......................................... 212 Engine coolant....................................... 460
Capacity.................................................583
Checking ............................................... 460
Preparing and checking
before winter.....................................322
Engine coolant temperature
gauge ...................................................... 109
Engine oil ................................................. 456
Capacity...................................................581
Checking ............................................... 456
Preparing and checking before winter.....................................322
Engine oil maintenance data ........... 458
Engine switch ........................................... 212
EPS (Electric Power Steering) ....... 296 Function.................................................. 296
Warning light........................................522
EV drive mode......................................... 217
EV indicator ............................................... 117
