Lexus IS300h 2015 Owner's Manual

4216-1. Using the air conditioning system
6
Interior features
IS300h_EE(OM53D56E)
■Registering air conditioning settings to electronic keys (vehicles with driving position
memory)
●Unlocking the vehicle using an electronic key and turning the power switch to ON
mode will recall that key’s regist ered air conditioning settings.
●When the power switch is turned off, the cu rrent air conditioning settings will automati-
cally be registered to the electronic key that was used to unlock the vehicle.
●The system may not operate correctly if more than one electronic key is in the vicinity or
if the smart entry & start system is used to unlock a passenger door.
●The doors that can recall the air conditioni ng setting when unlocked using the smart
entry & start system can be changed.* For details, contact any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
*: The doors that can recall the driving position memory are changed at the same time.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the ambi-
ent conditions.
Therefore, the fan may stop for a while until wa rm or cool air is ready to flow immediately
after is pressed or “AUTO” is selected.
■Fogging up of the windows
The windows will easily fog up when the humidity in the vehicle is high. Turning
(“A/C”) on will dehumidify the air from the outlets and defog the windshield effectively.
●If you turn (“A/C”) off, the windows may fog up more easily.
●The windows may fog up if the recirculated air mode is used.
■Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set the outside/recircu-
lated air mode button to the recirculated air mode. This is effective in preventing out-
side air from entering the vehicle interior. During cooling operation, setting the
recirculated air mode will also cool the vehicle interior effectively.
●Outside/recirculated air mode may automatically switch depending on the tempera-
ture setting or the inside temperature.
■Operation of the air conditioning system in Eco drive mode
In Eco drive mode, the air conditioning system is controlled as follows to prioritize fuel
efficiency:
●Engine speed and compressor operation controlled to restrict heating/cooling capac-
ity
●Fan speed restricted when automatic mode is selected
To improve air conditioning performance, perform the following operations:
●Adjust the fan speed
●Turn off Eco drive mode

4226-1. Using the air conditioning system
IS300h_EE(OM53D56E)
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
●During use, various odors from inside and outside the vehicle may enter into and accu-
mulate in the air conditioning system. This may then cause odor to be emitted from the
vents.
●To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air mode priorto turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time immediately
after the air conditioning system is started in automatic mode.
■Air conditioning filter
→ P. 4 8 6
■Customization
Settings (e.g. A/C Auto switch operation) can be changed.
(Customizable features →P. 5 9 8 )
CAUTION
■To prevent the windshield from fogging up
●Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can cause
the outer surface of the windshield to fog up, blocking your vision.
■To prevent burns
●Do not touch the rear view mirror surfaces when the outside rear view mirror defog-
gers are on.
●Do not touch the glass at lower part of the windshield or to the side of the front pillars
when the windshield wiper de-icer is on.
NOTICE
■To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the hybrid sys-
tem is off.
●Do not place anything on the instrument
panel which may cover the air outlets. Other-
wise, air flow may be obstructed, preventing
the windshield defoggers from defogging.

4236-1. Using the air conditioning system
6
Interior features
IS300h_EE(OM53D56E)
Turn the heated steering wheel on/off
The indicator light comes on when the
heated steering wheel is operating.
Heated steering wheel∗/seat heaters∗/seat ventila-
tors
∗
∗
: If equipped
Heated steering wheel and seat heaters heat the side grips of the steering
wheel and seats, respectively. Seat ventilators maintain good airflow by blow-
ing air from the seats.
CAUTION
●Care should be taken to prevent injury if anyone in the following categories comes in
contact with the steering wheel and seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically challenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold
remedies, etc.)
●Observe the following precautions to prevent minor burns or overheating,
• Do not cover the seat with a blanket or cushion when using the seat heater.
• Do not use seat heater more than necessary.
NOTICE
●Do not put heavy objects that have an uneven surface on the seat and do not stick
sharp objects (needles, na ils, etc.) into the seat.
●To prevent 12-volt battery discharge, do not use the functions when the hybrid system
is off.
Heated steering wheel

4246-1. Using the air conditioning system
IS300h_EE(OM53D56E)
●The heated steering wheel can be used when the power switch is in ON mode.
●The heated steering wheel will automatically turn off after about 30 minutes.
Each time the switch is pressed, the
intensity of the seat heater changes and
the level indicator lights (amber) light
as follows:
Hi (3 segments lit) → Mid (2 segments
lit) → Lo (1 segment lit) → Off
■The seat heaters can be used when
The power switch is in ON mode.
■Seat heater timer control
To enable seat heater timer control, press and hold the driver and front passenger seat
heater switches at the same time until a buzzer sounds once. If a seat heater is turned on
while seat heater timer control is enabled, th e intensity of the seat heater will automati-
cally change from Hi →Mid →Lo.
The timing of the change in seat heater intensity differs depending on the temperature
inside the cabin, etc. when the seat heater is operating.
To disable seat heater timer control, press and hold the driver and front passenger seat
heater switches at the same time until a buzzer sounds twice.
Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator lights (green)
light as follows:
Hi (3 segments lit) → Mid (2 segments
lit) → Lo (1 segment lit) → Off
The seat ventilators can be used when the power switch is in ON mode.
Seat heaters
Ty p e A Ty p e B
Seat ventilators

425
IS300h_EE(OM53D56E)
6
Interior features
6-2. Using the interior lights
Interior lights list
Outer foot lights
Front interior light (→P. 4 2 6 )
Front personal lights ( →P. 4 2 6 )
Inside door handle lights
Rear interior light ( →P. 4 2 6 ) Rear personal lights (
→P. 4 2 6 )
Power window switch lights
Door courtesy lights
Footwell lights1
2
3
4
5
6
7
8
9

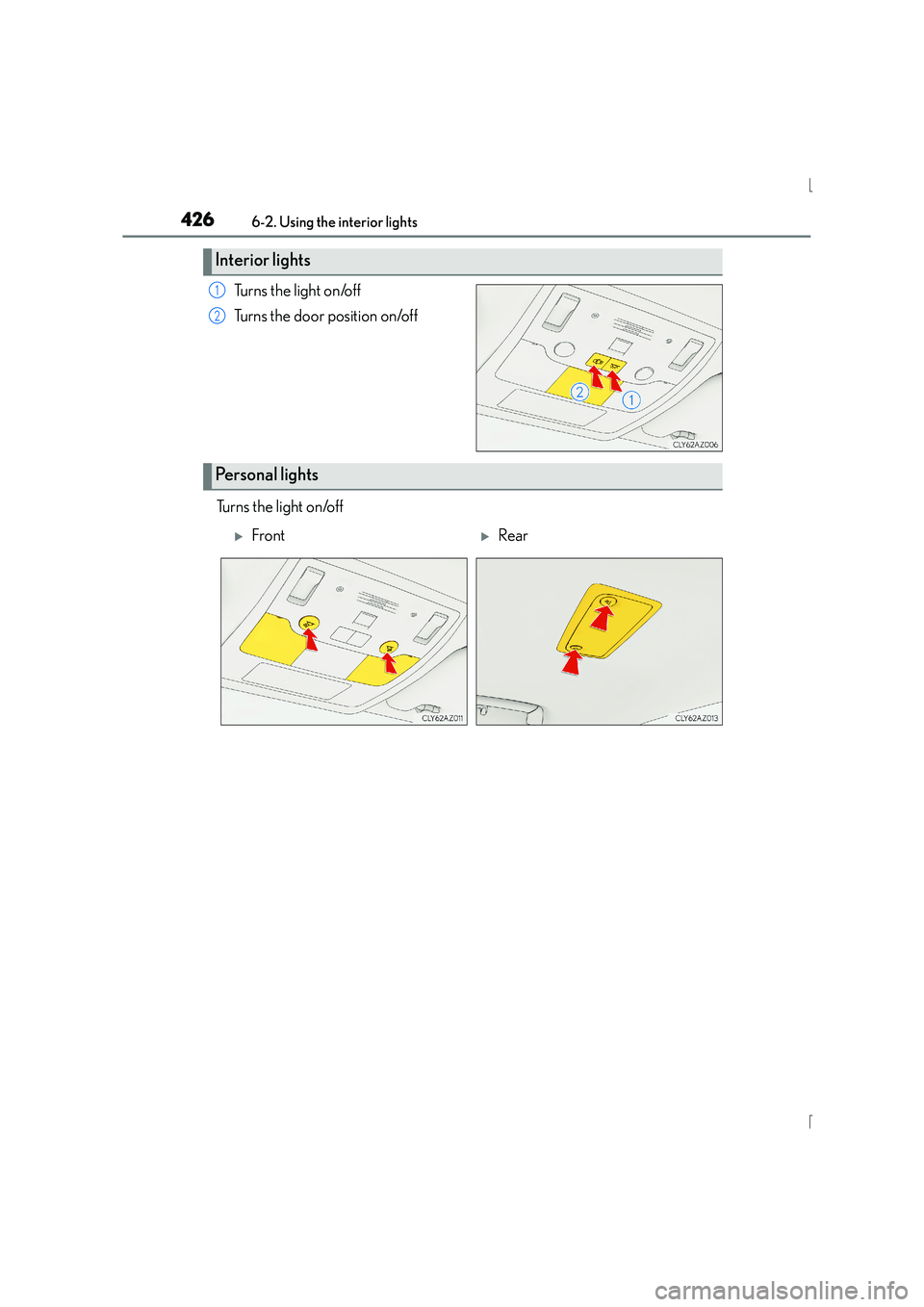

4266-2. Using the interior lights
IS300h_EE(OM53D56E)
Turns the light on/off
Turns the door position on/off
Turns the light on/off
Interior lights
1
2
Personal lights
XFrontXRear

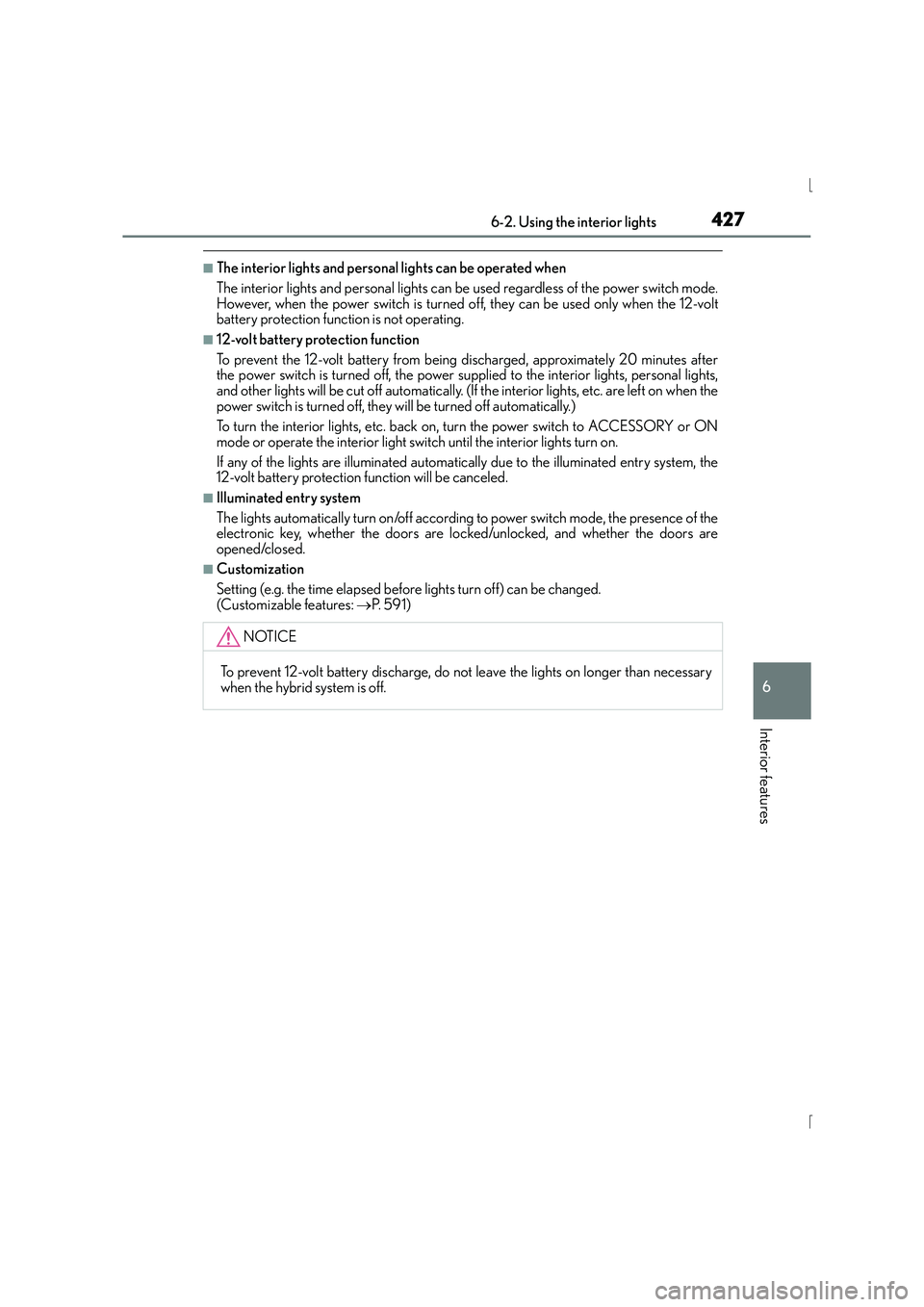

4276-2. Using the interior lights
6
Interior features
IS300h_EE(OM53D56E)
■The interior lights and personal lights can be operated when
The interior lights and personal lights can be used regardless of the power switch mode.
However, when the power switch is turned off, they can be used only when the 12-volt
battery protection function is not operating.
■12-volt battery protection function
To prevent the 12-volt battery from being discharged, approximately 20 minutes after
the power switch is turned off, the power supplied to the interior lights, personal lights,
and other lights will be cut off automatically. (If th e interior lights, etc. are left on when the
power switch is turned off, they will be turned off automatically.)
To turn the interior lights, etc. back on, turn the power switch to ACCESSORY or ON
mode or operate the interior light switch until the interior lights turn on.
If any of the lights are illuminated automatically due to the illuminated entry system, the
12-volt battery protection function will be canceled.
■Illuminated entry system
The lights automatically turn on/off according to power switch mode, the presence of the
electronic key, whether the doors are locked/unlocked, and whether the doors are
opened/closed.
■Customization
Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: →P. 5 9 1 )
NOTICE
To prevent 12-volt battery discharge, do not leave the lights on longer than necessary
when the hybrid system is off.

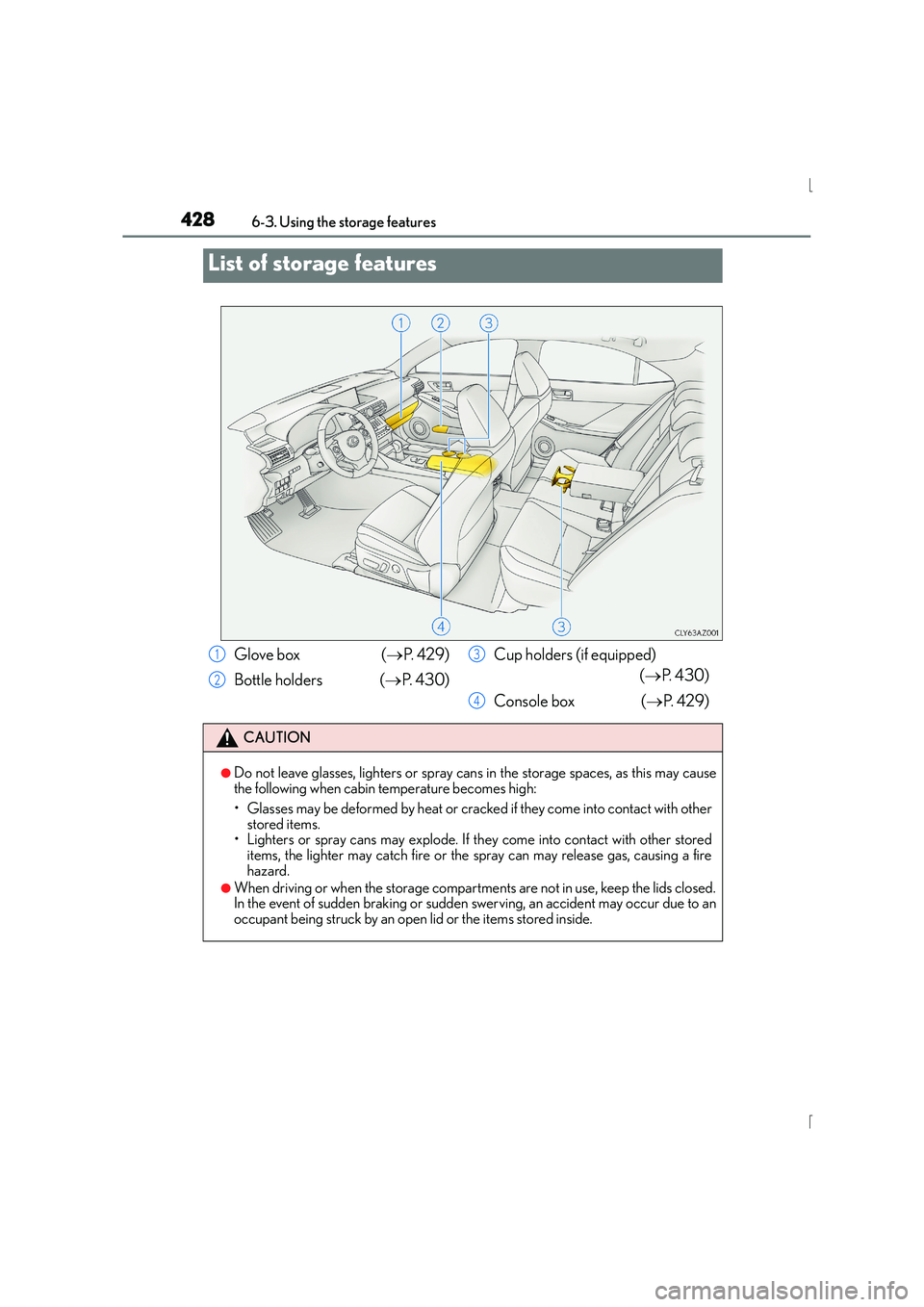

428
IS300h_EE(OM53D56E)6-3. Using the storage features
List of storage features
Glove box (
→P. 4 2 9 )
Bottle holders ( →P. 4 3 0 ) Cup holders (if equipped)
(→ P. 4 3 0 )
Console box ( →P. 4 2 9 )
CAUTION
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact with other
stored items.
• Lighters or spray cans may explode. If th ey come into contact with other stored
items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
●When driving or when the storage compartments are not in use, keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to an
occupant being struck by an open lid or the items stored inside.
1
2
3
4

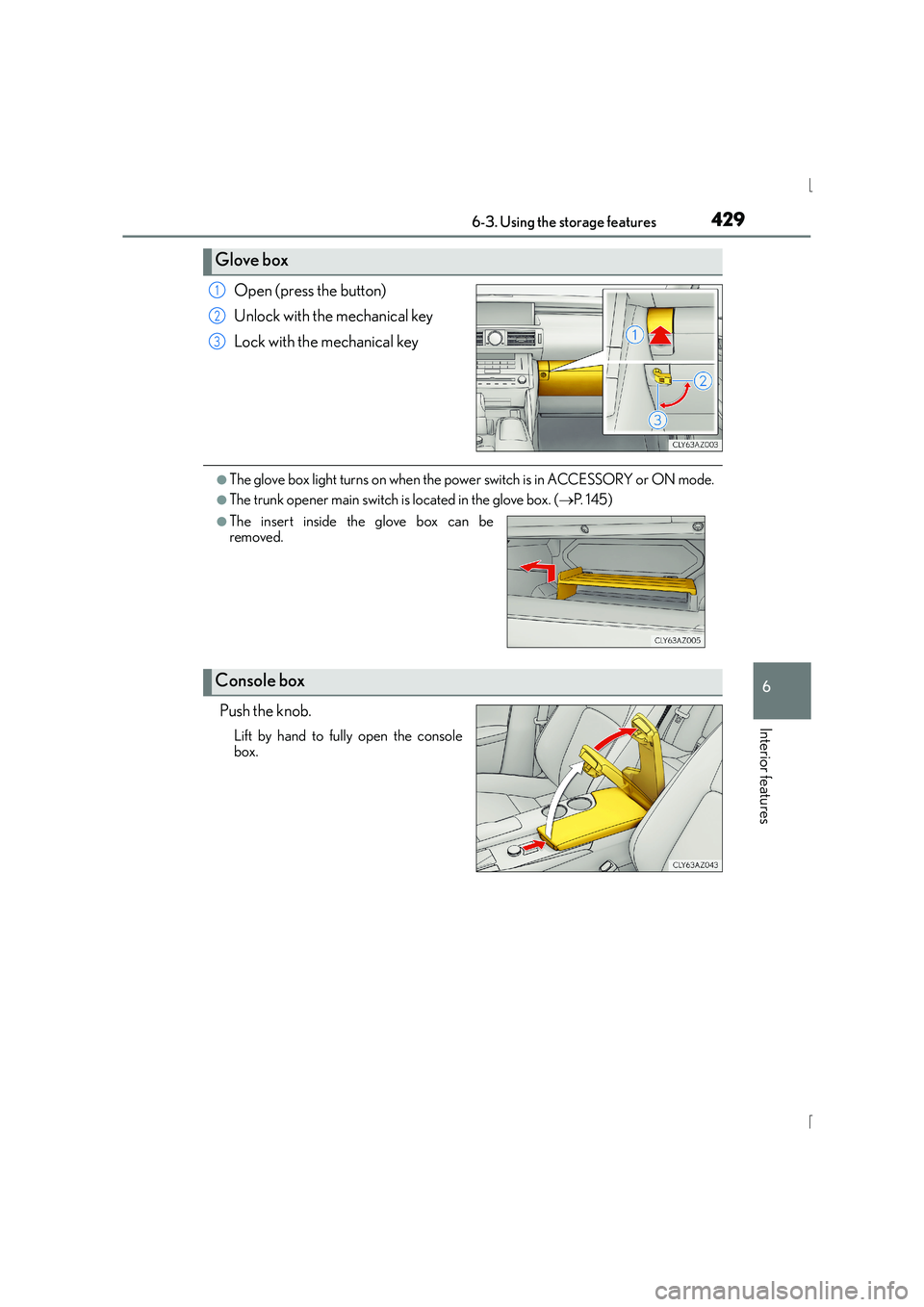

4296-3. Using the storage features
6
Interior features
IS300h_EE(OM53D56E)
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
●The glove box light turns on when the power switch is in ACCESSORY or ON mode.
●The trunk opener main switch is located in the glove box. (→P. 1 4 5 )
Push the knob.
Lift by hand to fully open the console
box.
Glove box
1
2
3
●The insert inside the glove box can be
removed.
Console box

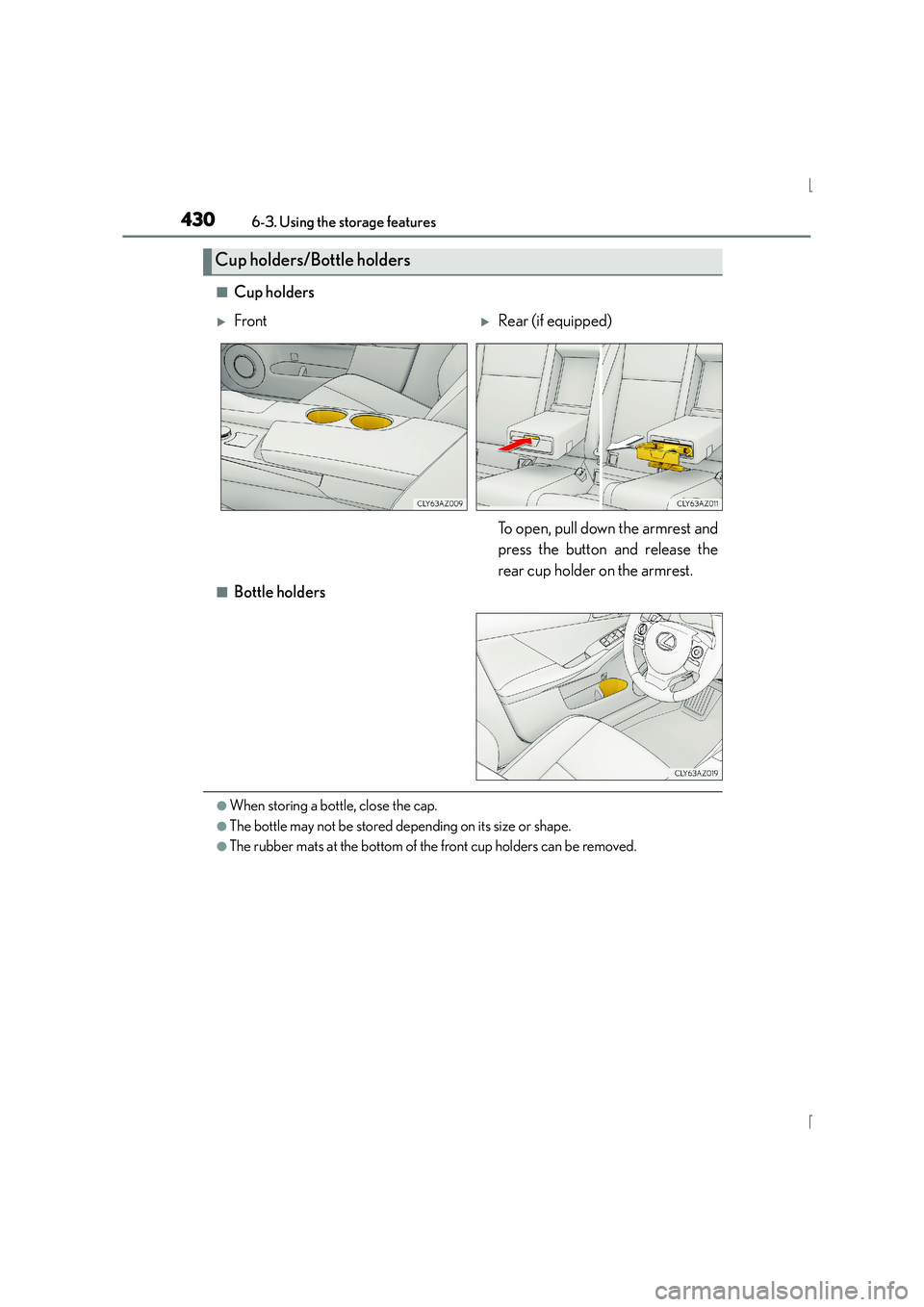

4306-3. Using the storage features
IS300h_EE(OM53D56E)
■Cup holders
■Bottle holders
●When storing a bottle, close the cap.
●The bottle may not be stored depending on its size or shape.
●The rubber mats at the bottom of the front cup holders can be removed.
Cup holders/Bottle holders
XFrontXRear (if equipped)
To open, pull down the armrest and
press the button and release the
rear cup holder on the armrest.
