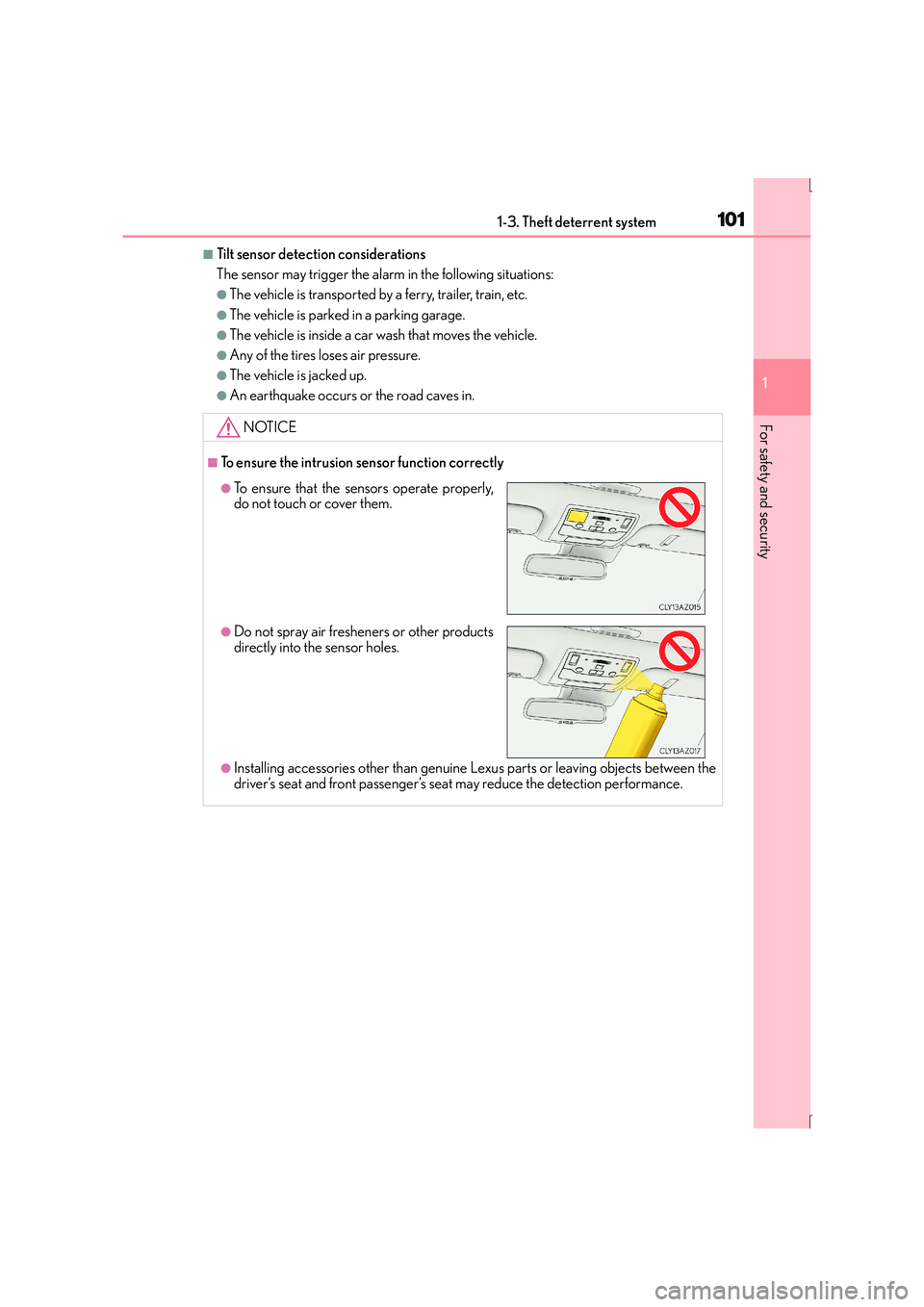

■Tilt sensor detection considerations
The sensor may trigger the alarm in the following situations:
●The vehicle is transported by a ferry, trailer, train, etc.
●The vehicle is parked in a parking garage.
●The vehicle is inside a car wash that moves the vehicle.
●Any of the tires loses air pressure.
●The vehicle is jacked up.
●An earthquake occurs or the road caves in.
NOTICE
■To ensure the intrusion sensor function correctly
●Installing accessories other than genuine Lexus parts or leaving objects between the
driver’s seat and front passenger’s seat may reduce the detection performance.
●To ensure that the sensors operate properly,
do not touch or cover them.
●Do not spray air fresheners or other products
directly into the sensor holes.

1021-3. Theft deterrent system
IS300h_EE(OM53D56E)

103
2Instrument cluster
IS300h_EE(OM53D56E)
2. Instrument clusterWarning lights and indicators..................................... 104
Gauges and meters ................... 109
Multi-information display .......... 115
Energy monitor/ consumption screen ................. 121

104
IS300h_EE(OM53D56E)2. Instrument cluster
XExcept F SPORT models
XF SPORT models
The units used on the meters may differ depending on the target region.

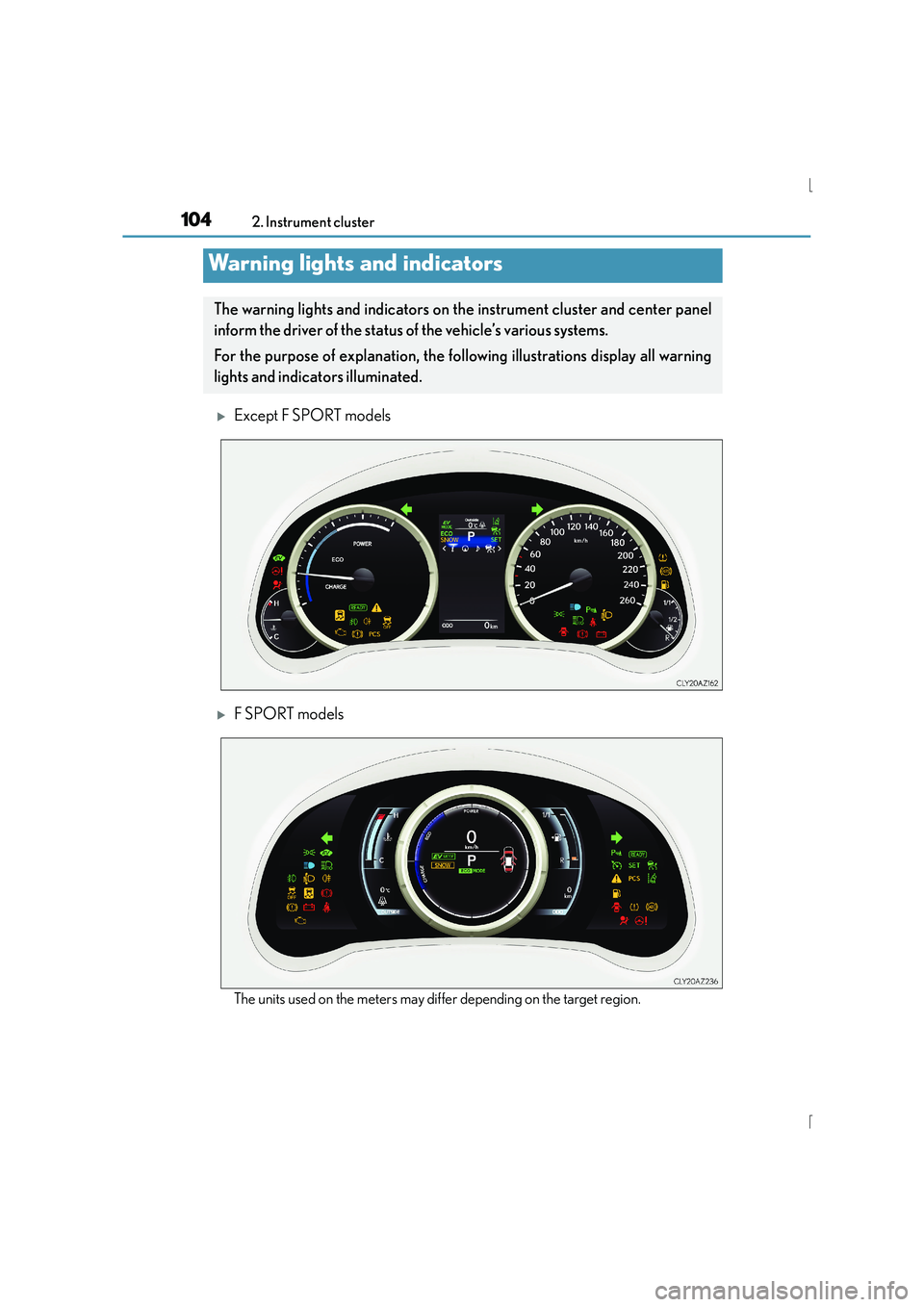

Warning lights and indicators
The warning lights and indicators on th
e instrument cluster and center panel
inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

1052. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D56E)
Warning lights inform the driver of malfunctions in the indicated vehicle systems.
*1: These lights turn on when the power switch is turned to ON mode to indicate that asystem check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if the light does not come
on, or turn off. Have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.
Wa r n i n g l i g h t s
*1Brake system warning light
(→ P. 5 2 1 )*1Slip indicator
(→ P. 5 2 2 )
*1Brake system warning light
(→ P. 5 2 1 )*1 Automatic headlight
leveling system warning
light ( →P. 5 2 3 )
*1Charging system warning
light ( →P. 5 2 1 )Open door warning light
(→ P. 5 2 3 )
*1Malfunction indicator
lamp ( →P. 5 2 1 )Low fuel level warning light
(→ P. 5 2 3 )
*1SRS warning light
(→ P. 5 2 2 )Driver’s and front passen-
ger’s seat belt reminder light
(→ P. 5 2 3 )
*1ABS warning light
(→ P. 5 2 2 )*3Rear passengers’ seat belt
reminder lights ( →P. 5 2 3 )
*1Electric power steering sys-
tem warning light
(→ P. 5 2 2 )*1Master warning light
(→ P. 5 2 3 )
*1, 2
(if equipped)
Pre-crash safety system
warning light ( →P. 5 2 2 )*1Tire pressure warning light
(→ P. 5 2 3 )

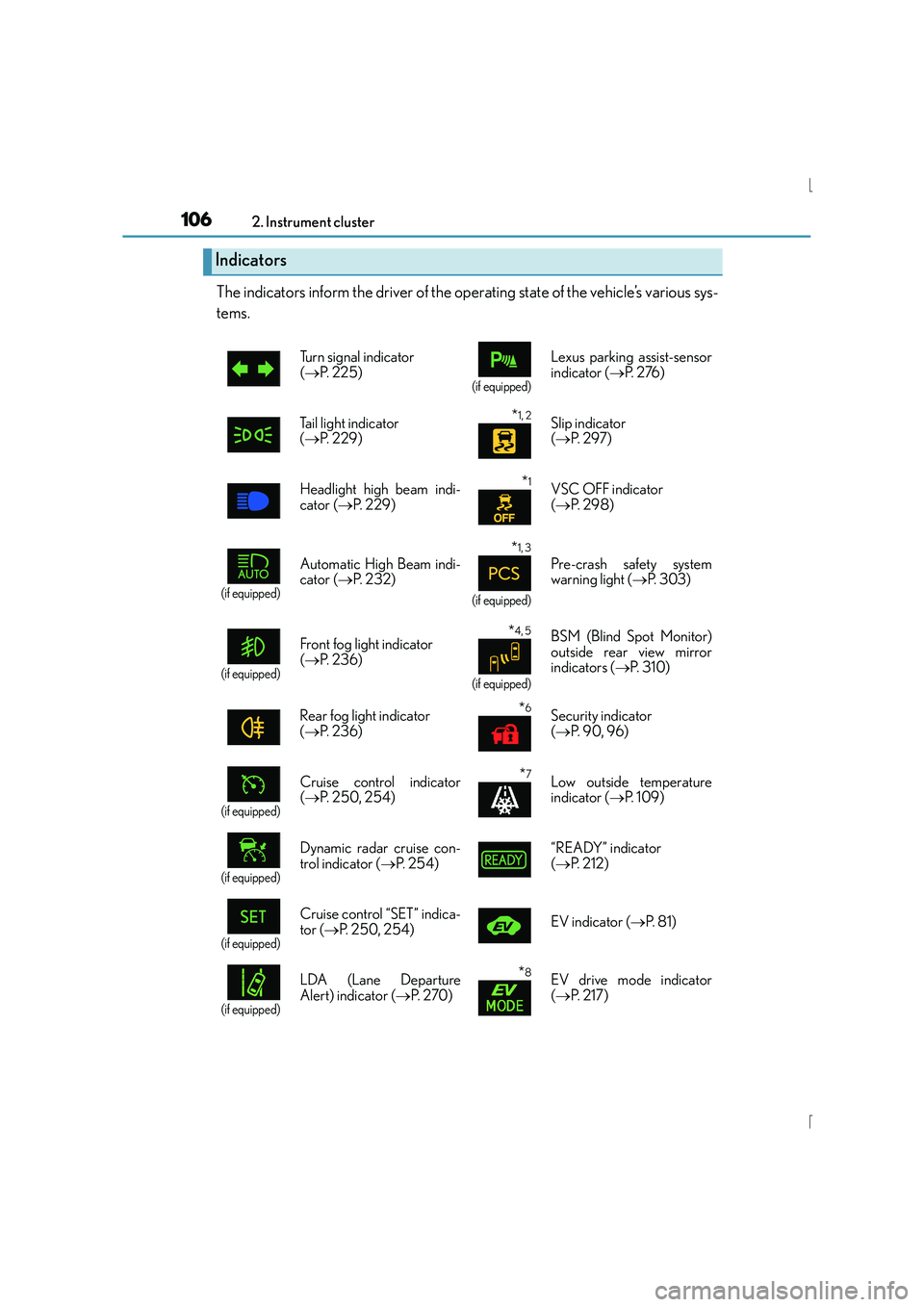

1062. Instrument cluster
IS300h_EE(OM53D56E)
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
(→ P. 2 2 5 )

(if equipped)
Lexus parking assist-sensor
indicator ( →P. 2 76 )
Tail light indicator
( → P. 229)
*1, 2 Slip indicator
(→ P. 2 9 7 )
Headlight high beam indi-
cator ( →P. 229)
*1VSC OFF indicator
(→ P. 2 9 8 )
(if equipped)
Automatic High Beam indi-
cator ( →P. 232)
*1, 3
(if equipped)
Pre-crash safety system
warning light ( →P. 303)
(if equipped)
Front fog light indicator
(→ P. 2 3 6 )*4, 5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( →P. 3 1 0 )
Rear fog light indicator
( → P. 2 3 6 )
*6Security indicator
(→ P. 9 0 , 9 6 )
(if equipped)
Cruise control indicator
(→ P. 250, 254)*7Low outside temperature
indicator ( →P. 1 0 9 )
(if equipped)
Dynamic radar cruise con-
trol indicator ( →P. 2 5 4 ) “READY” indicator
(
→ P. 212)
(if equipped)
Cruise control “SET” indica-
tor ( →P. 250, 254) EV indicator (
→P. 8 1 )
(if equipped)
LDA (Lane Departure
Alert) indicator ( →P. 2 7 0 )*8EV drive mode indicator
(→ P. 2 1 7 )

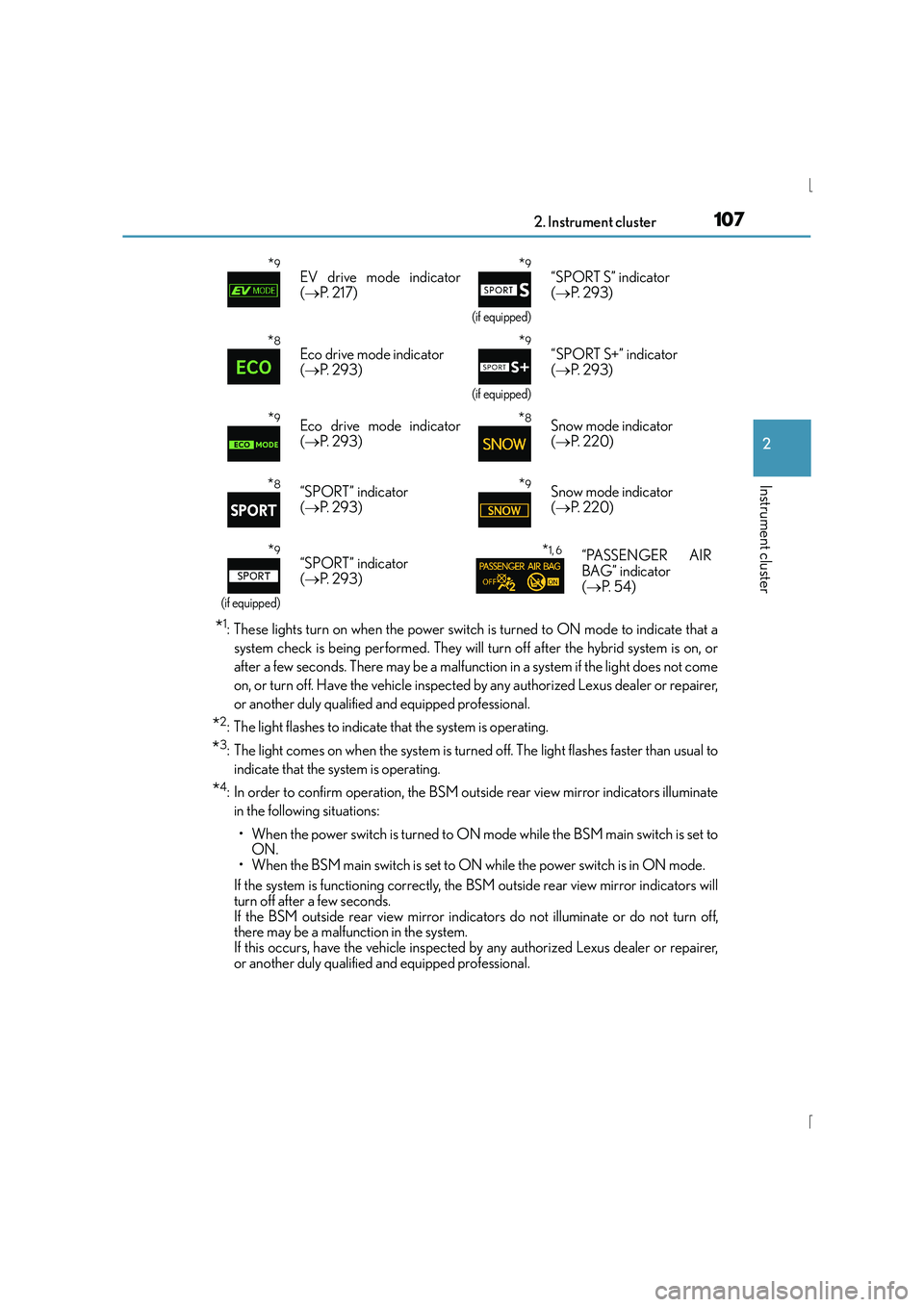

1072. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D56E)
*1: These lights turn on when the power switch is turned to ON mode to indicate that asystem check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if the light does not come
on, or turn off. Have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashes faster than usual toindicate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illuminatein the following situations:
• When the power switch is turned to ON mode while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the power switch is in ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
*9EV drive mode indicator
( → P. 2 1 7 )*9
(if equipped)
“SPORT S” indicator
(→ P. 2 9 3 )
*8Eco drive mode indicator
(→ P. 2 9 3 )*9
(if equipped)
“SPORT S+” indicator
(→ P. 2 9 3 )
*9Eco drive mode indicator
(→ P. 2 9 3 )*8Snow mode indicator
(→ P. 2 2 0 )
*8“SPORT” indicator
(→ P. 2 9 3 )*9Snow mode indicator
(→ P. 2 2 0 )
*9
(if equipped)
“SPORT” indicator
(→ P. 2 9 3 )*1, 6“PASSENGER AIR
BAG” indicator
(→ P. 5 4 )

1082. Instrument cluster
IS300h_EE(OM53D56E)

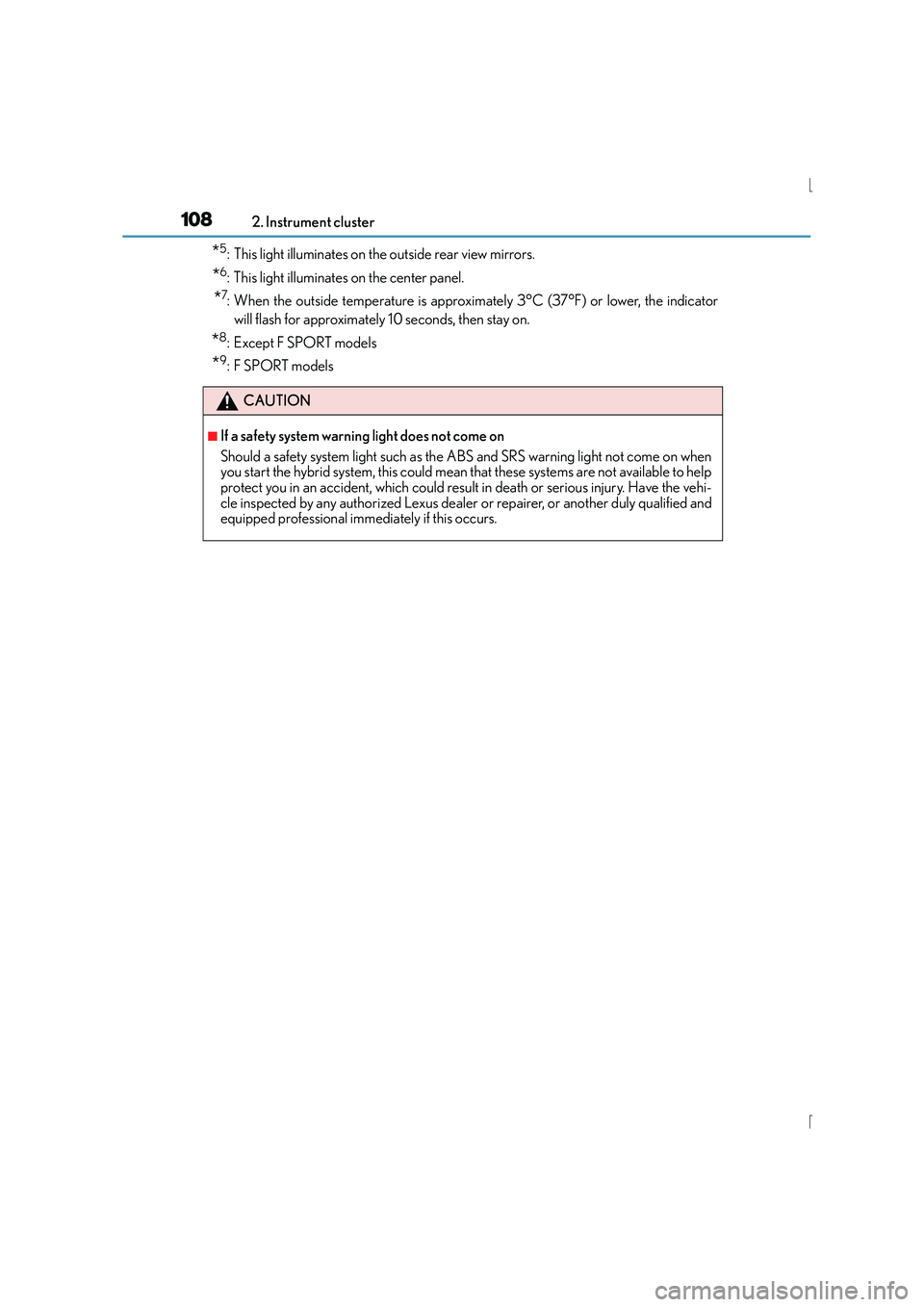

*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 3°C (37°F) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
*8:Except F SPORT models
*9:F SPORT models
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when
you start the hybrid system, this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have the vehi-
cle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional immediately if this occurs.

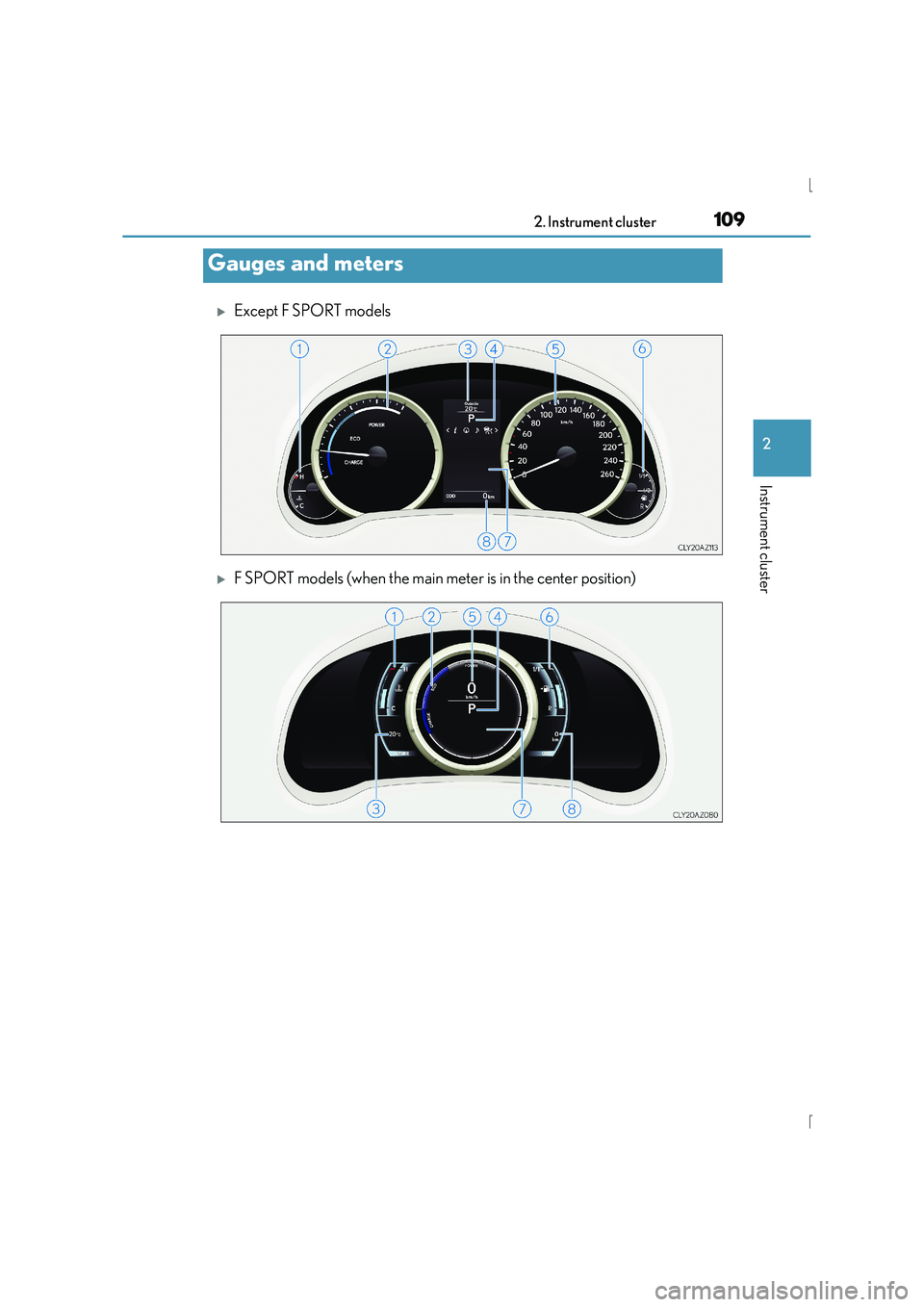

1092. Instrument cluster
2
Instrument cluster
IS300h_EE(OM53D56E)
XExcept F SPORT models
XF SPORT models (when the main meter is in the center position)
Gauges and meters

1102. Instrument cluster
IS300h_EE(OM53D56E)
XF SPORT models (when the main meter is in the right-side position)
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level (→P. 1 1 3 )
This display changes to a tachometer depending on the drive mode, and can be set to
show the tachometer in any drive mode on the settings display. (→P. 1 1 8 )
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient temperature
is 3°C (37°F) or lower.
Shift position and shift range (→ P. 2 1 9 )
Speedometer
Fuel gauge
Multi-information display
Presents the driver with a variety of vehicle data ( →P. 1 1 5 )
Displays warning messages in case of a malfunction ( →P. 5 2 7 )
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Tr i p m e t e r :
Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances indepen-
dently.
1
2
3
4
5
6
7
8
