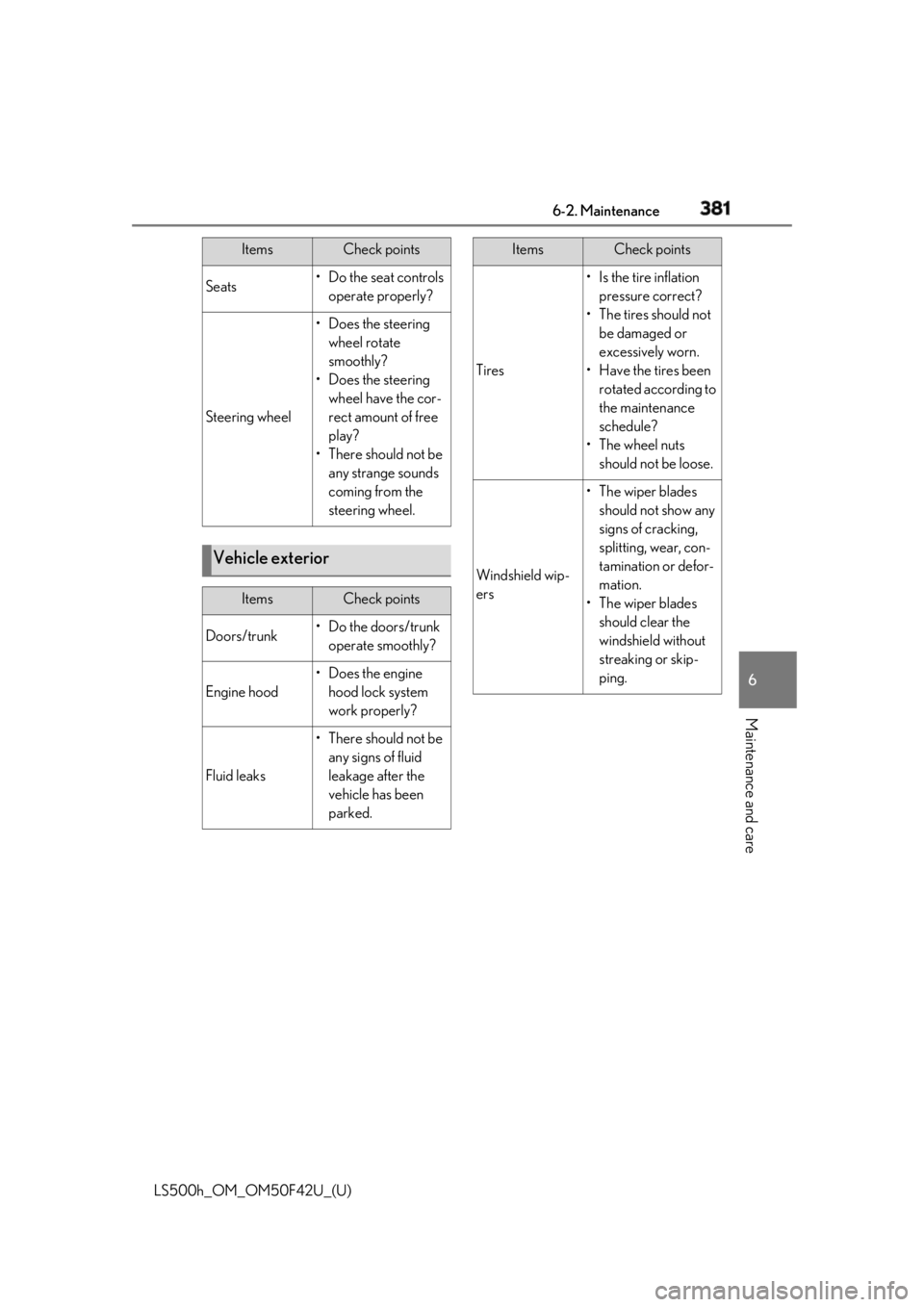

Maintenance and care Seats • Do the seat controls
operate properly?
Steering wheel • Does the steering
wheel rotate
smoothly?
• Does the steering
wheel have the cor-
rect amount of free
play?
•There should not be
any strange sounds
coming from the
steering wheel.
Vehicle exterior Items Check points
Doors/trunk • Do the doors/trunk
operate smoothly?
Engine hood •Does the engine
hood lock system
work properly?
Fluid leaks •There should not be
any signs of fluid
leakage after the
vehicle has been
parked.Items Check points
Tires • Is the tire inflation
pressure correct?
• The tires should not
be damaged or
excessively worn.
• Have the tires been
rotated according to
the maintenance
schedule?
•The wheel nuts
should not be loose.
Windshield wip-
ers • The wiper blades
should not show any
signs of cracking,
splitting, wear, con-
tamination or defor-
mation.
• The wiper blades
should clear the
windshield without
streaking or skip-
ping.Items Check points

382 6-2. Maintenance
LS500h_OM_OM50F42U_(U) The OBD system determines that a
problem exists somewhere in the emis-
sion control system. Your vehicle may
not pass the I/M test and may need to
be repaired. Contact your Lexus
dealer to service the vehicle.
 When the 12-volt battery is discon-
nected or discharged Readiness codes that are set during ordi-
nary driving are erased.
Also, depending on your driving habits, the
readiness codes may not be completely
set.
 When the fuel tank cap is loose The malfunction indicator lamp comes on
indicating a temporary malfunction and
your vehicle may not pass the I/M test. The error code in the OBD system will
not be cleared unless the vehicle is
driven 40 or more times.
Contact your Lexus dealer to prepare
the vehicle for re-testing.Emission inspection and
maintenance (I/M) pro-
grams Some states have vehicle emission
inspection programs which include
OBD (On Board Diagnostics)
checks. The OBD system monitors
the operation of the emission con-
trol system.
If the malfunction indicator lamp
comes on
Your vehicle may not pass the
I/M test in the following situa-
tions: When the malfunction indicator
lamp still remains on after sev-
eral driving trips
If your vehicle does not pass the
I/M test

3836-3. Do-it-yourself maintenance
LS500h_OM_OM50F42U_(U) 6
Maintenance and care 6-3.Do-it-yourself maintenance

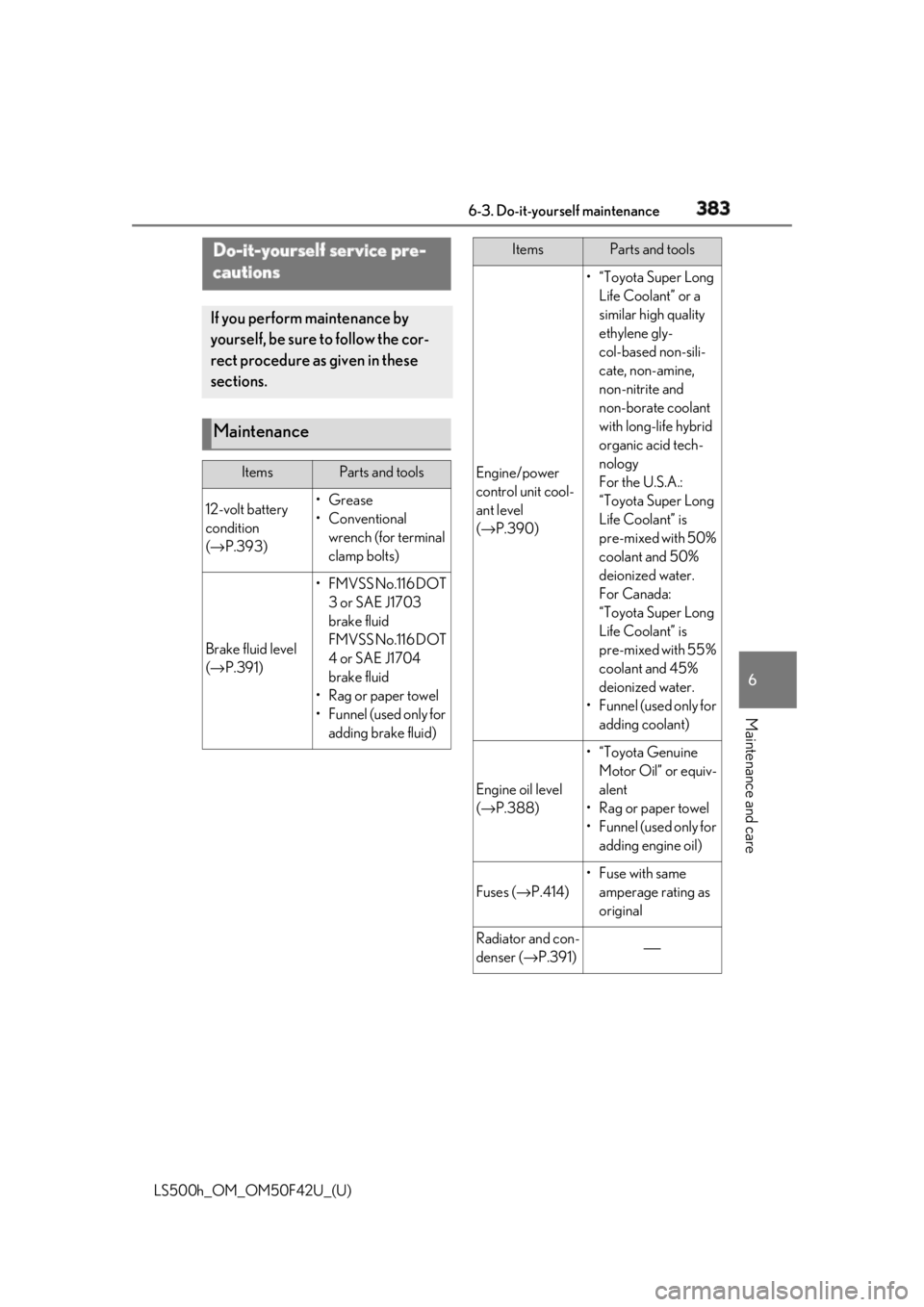

Do-it-yourself service pre-
cautions If you perform maintenance by
yourself, be sure to follow the cor-
rect procedure as given in these
sections.
Maintenance Items Parts and tools
12-volt battery
condition
( → P.393) •Grease
• Conventional
wrench (for terminal
clamp bolts)
Brake fluid level
( → P.391) • FMVSS No.116 DOT
3 or SAE J1703
brake fluid
FMVSS No.116 DOT
4 or SAE J1704
brake fluid
•Rag or paper towel
• Funnel (used only for
adding brake fluid) Engine/power
control unit cool-
ant level
( → P.390) •“Toyota Super Long
Life Coolant” or a
similar high quality
ethylene gly-
col-based non-sili-
cate, non-amine,
non-nitrite and
non-borate coolant
with long-life hybrid
organic acid tech-
nology
For the U.S.A.:
“Toyota Super Long
Life Coolant” is
pre-mixed with 50%
coolant and 50%
deionized water.
For Canada:
“Toyota Super Long
Life Coolant” is
pre-mixed with 55%
coolant and 45%
deionized water.
•Funnel (used only for
adding coolant)
Engine oil level
( → P.388) •“Toyota Genuine
Motor Oil” or equiv-
alent
• Rag or paper towel
•Funnel (used only for
adding engine oil)
Fuses ( → P.414) •Fuse with same
amperage rating as
original
Radiator and con-
denser ( → P.391) ⎯Items Parts and tools

384 6-3. Do-it-yourself maintenance
LS500h_OM_OM50F42U_(U) Tire inflation pres-
sure ( → P.408) • Tire pressure gauge
•Compressed air
source
Washer fluid
( → P.392) • Water or washer
fluid containing anti-
freeze (for winter
use)
• Funnel (used only for
adding water or
washer fluid)
WARNING
The engine compartment contains many
mechanisms and fluids that may move
suddenly, become hot, or become elec-
trically energized. To avoid death or seri-
ous injury, observe the following
precautions. ■
When working on the engine com-
partment●
Make sure that the “ACCESSORY” or
“IGNITION ON” on the multi-infor-
mation display and the “READY” indi-
cator are both off.●
Keep hands, clothi ng and tools away
from the moving fan and engine drive
belt.
●
Be careful not to touch the engine,
power control unit, radiator, exhaust
manifold, etc. right after driving as they
may be hot. Oil and other fluids may
also be hot.
●
Do not leave anything that may burn
easily, such as paper and rags, in the
engine compartment.
●
Do not smoke, cause sparks or expose
an open flame to fuel. Fuel fumes are
flammable. Items Parts and tools ■
When working near the electric cool-
ing fan or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the
electric cooling fan may automatically
start to run if the air conditioning is on
and/or the coolant temperature is high.
( → P.391) ■
Safety glasses
Wear safety glasses to prevent flying or
falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE■
If you remove the air cleaner filter
Driving with the air cleaner filter
removed may cause excessive engine
wear due to dirt in the air.

3856-3. Do-it-yourself maintenance
LS500h_OM_OM50F42U_(U) 6

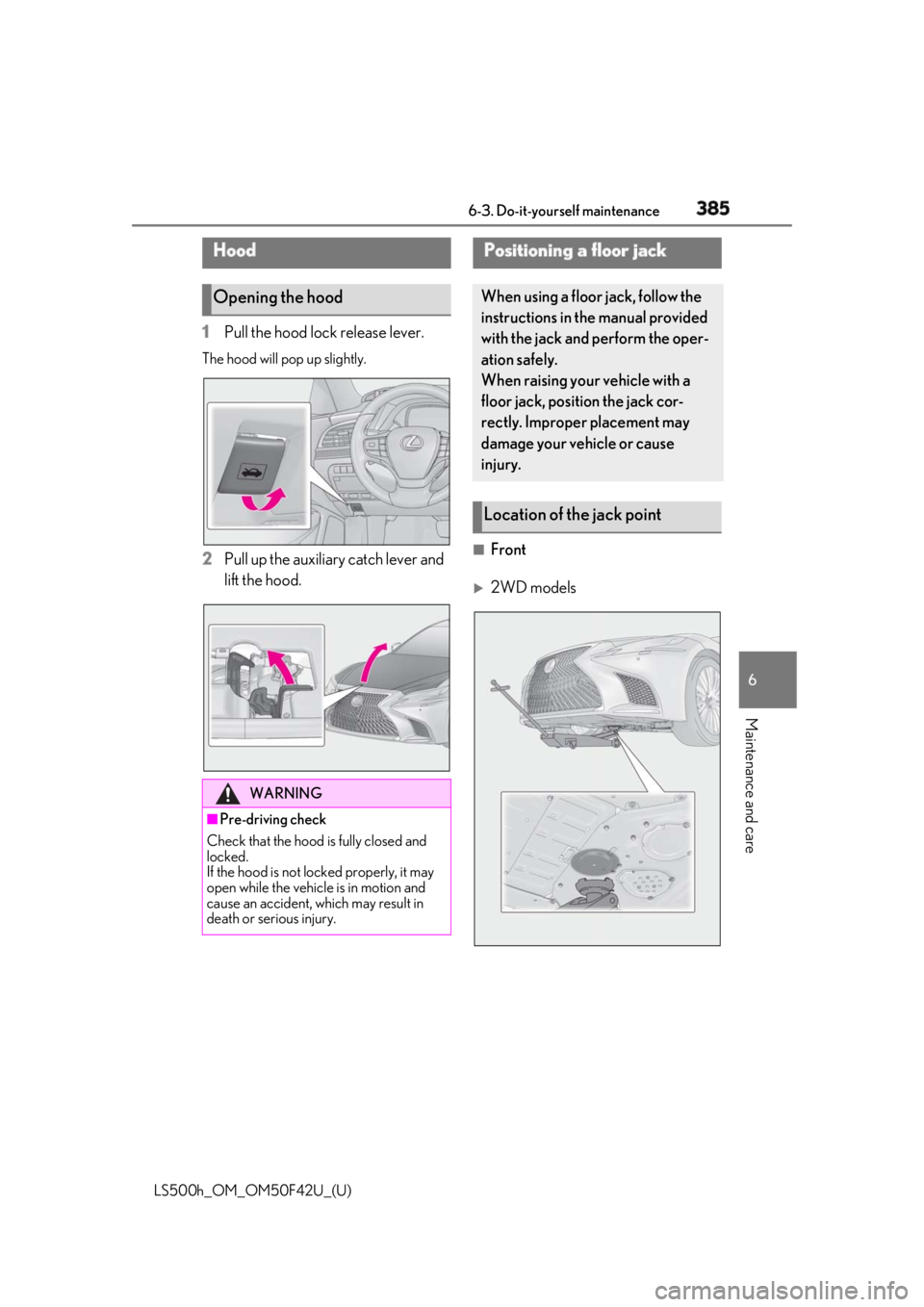

Maintenance and care 1 Pull the hood lock release lever.The hood will pop up slightly.
2 Pull up the auxiliary catch lever and
lift the hood. ■
Front 
2WD modelsHood
Opening the hood
WARNING
■
Pre-driving check
Check that the hood is fully closed and
locked.
If the hood is not locked properly, it may
open while the vehicle is in motion and
cause an accident, which may result in
death or serious injury. Positioning a floor jack When using a floor jack, follow the
instructions in the manual provided
with the jack and perform the oper-
ation safely.
When raising your vehicle with a
floor jack, position the jack cor-
rectly. Improper placement may
damage your vehicle or cause
injury.

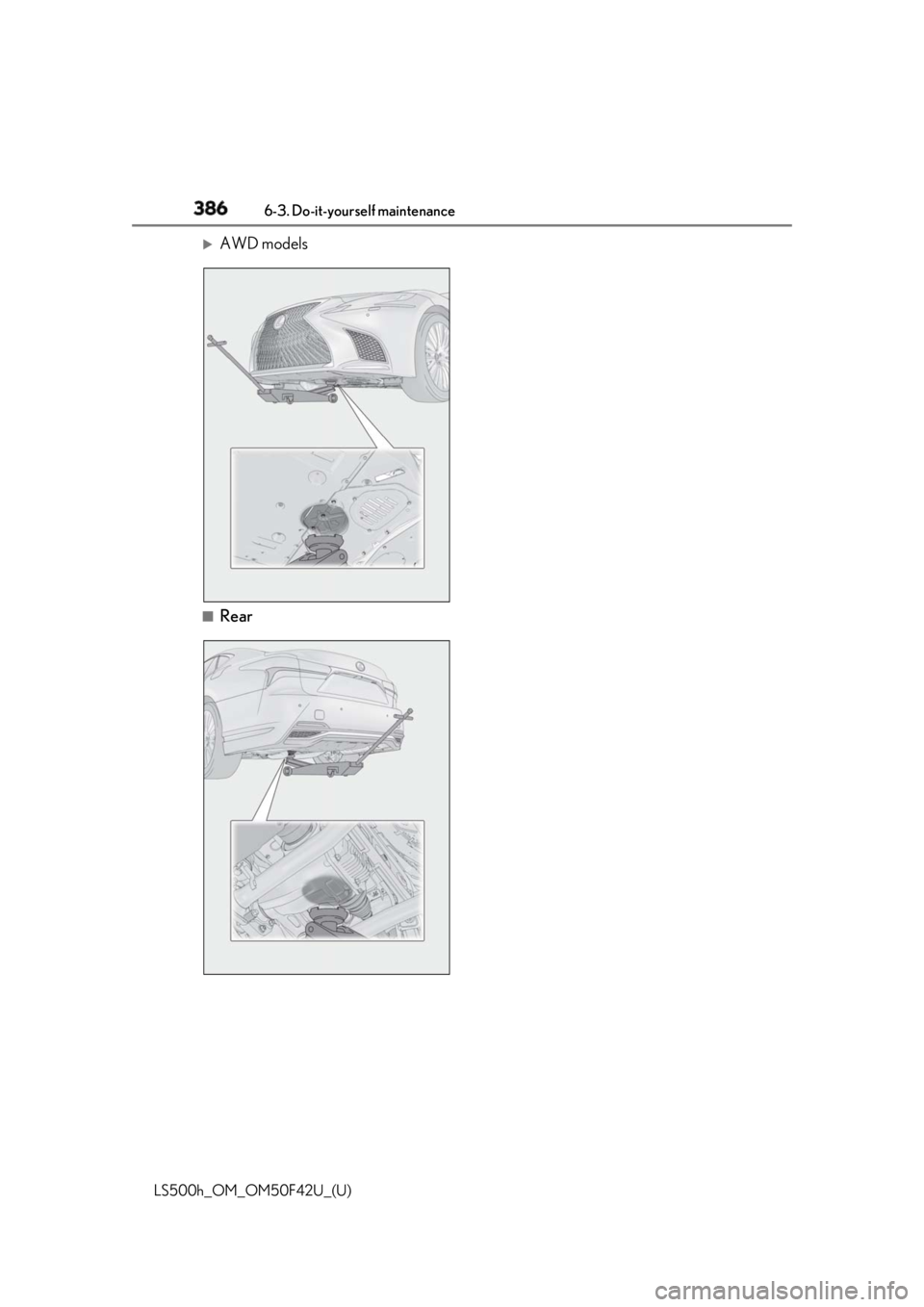

Location of the jack point

386 6-3. Do-it-yourself maintenance
LS500h_OM_OM50F42U_(U) 
AWD models
■
Rear

3876-3. Do-it-yourself maintenance
LS500h_OM_OM50F42U_(U) 6

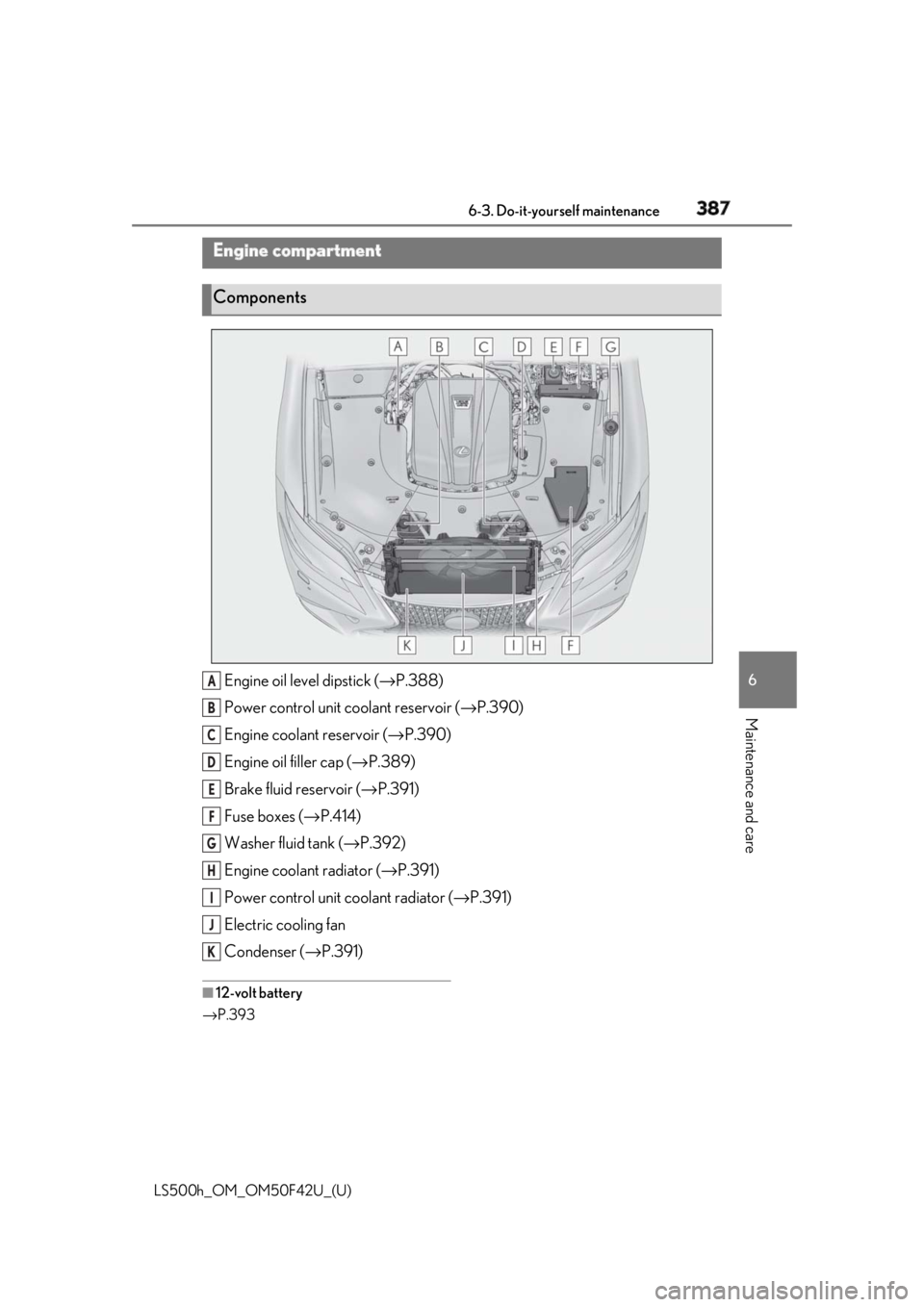

Maintenance and care
Engine oil level dipstick ( → P.388)
Power control unit coolant reservoir ( → P.390)
Engine coolant reservoir ( → P.390)
Engine oil filler cap ( → P.389)
Brake fluid reservoir ( → P.391)
Fuse boxes ( → P.414)
Washer fluid tank ( → P.392)
Engine coolant radiator ( → P.391)
Power control unit coolant radiator ( → P.391)
Electric cooling fan
Condenser ( → P.391)■
12-volt battery
→ P.393Engine compartment
Components
A
B
C
D
E
F
G
H
I
J
K

388 6-3. Do-it-yourself maintenance

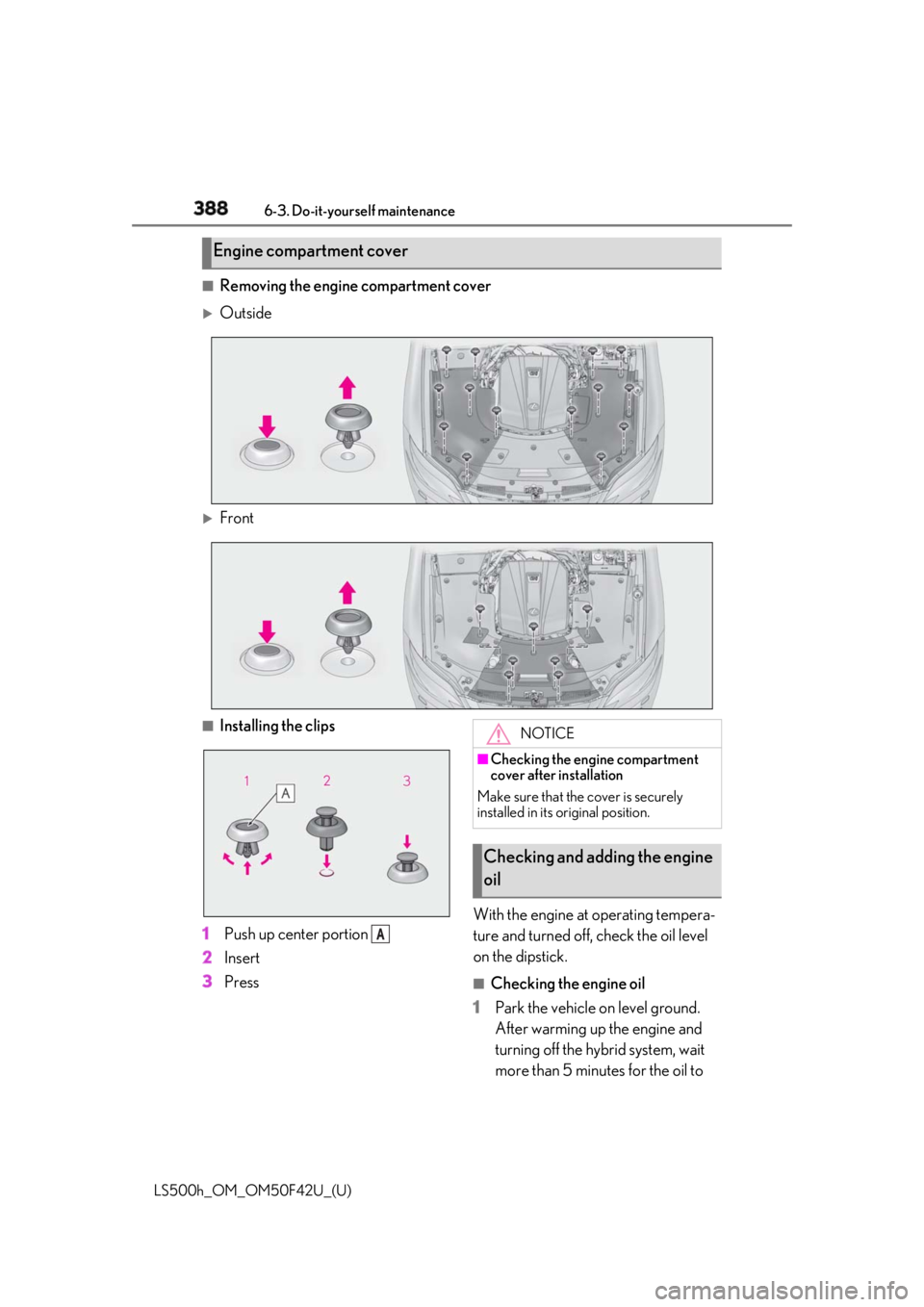

LS500h_OM_OM50F42U_(U) ■
Removing the engine compartment cover 
Outside 
Front
■
Installing the clips
1 Push up center portion
2 Insert
3 Press With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick. ■
Checking the engine oil
1 Park the vehicle on level ground.
After warming up the engine and
turning off the hybrid system, wait
more than 5 minutes for the oil to Engine compartment cover
A NOTICE■
Checking the engine compartment
cover after installation
Make sure that the cover is securely
installed in its original position.
Checking and adding the engine
oil

3896-3. Do-it-yourself maintenance
LS500h_OM_OM50F42U_(U) 6
Maintenance and care drain back into the bottom of the
engine.

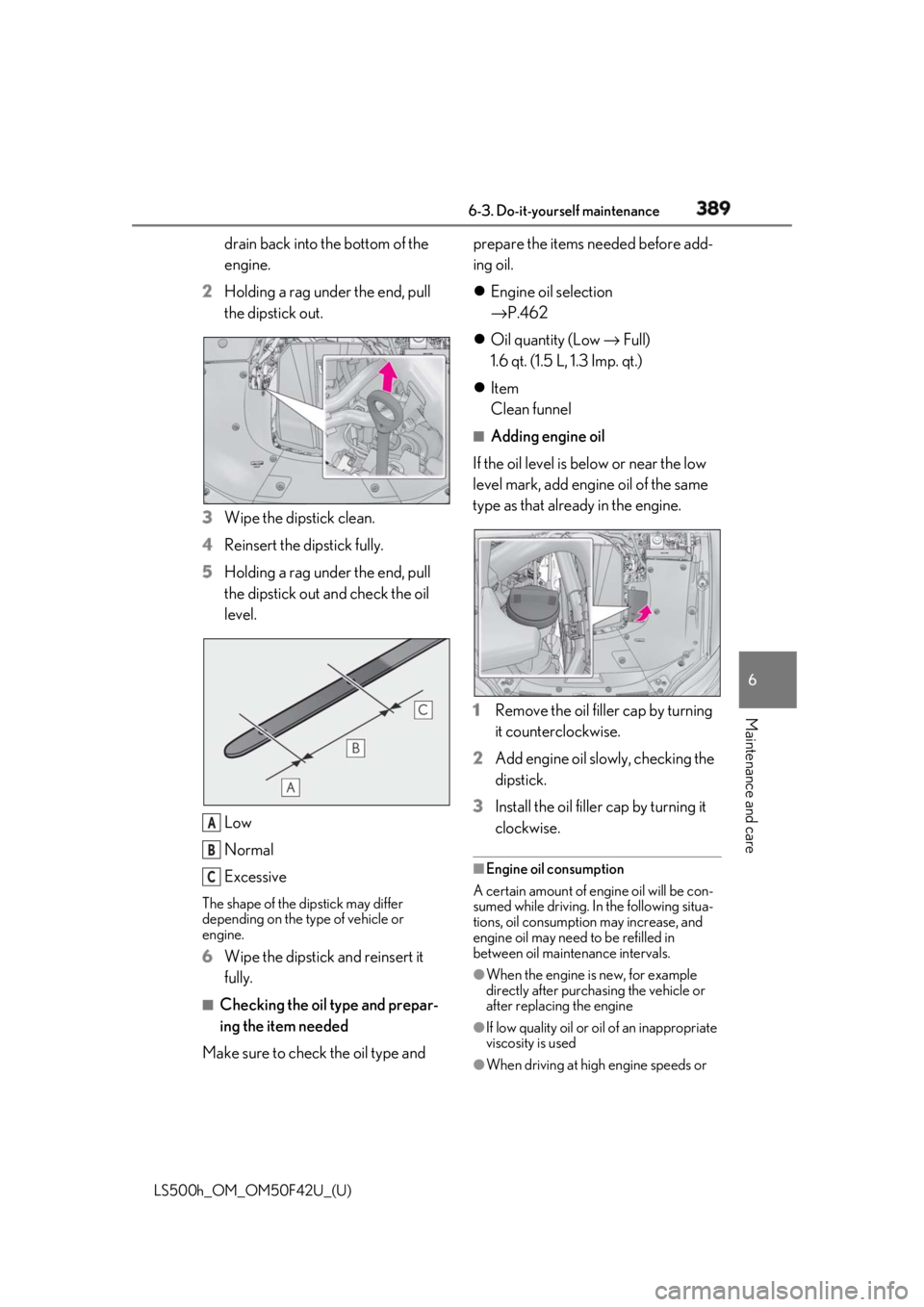

2 Holding a rag under the end, pull
the dipstick out.
3 Wipe the dipstick clean.
4 Reinsert the dipstick fully.
5 Holding a rag under the end, pull
the dipstick out and check the oil
level.
Low
Normal
ExcessiveThe shape of the dipstick may differ
depending on the type of vehicle or
engine.
6 Wipe the dipstick and reinsert it
fully. ■
Checking the oil type and prepar-
ing the item needed
Make sure to check the oil type and prepare the items needed before add-
ing oil.
 Engine oil selection
→ P.462
 Oil quantity (Low → Full)
1.6 qt. (1.5 L, 1.3 Imp. qt.)
 Item
Clean funnel ■
Adding engine oil
If the oil level is below or near the low
level mark, add engine oil of the same
type as that already in the engine.
1 Remove the oil filler cap by turning
it counterclockwise.
2 Add engine oil slowly, checking the
dipstick.
3 Install the oil filler cap by turning it
clockwise. ■
Engine oil consumption
A certain amount of engine oil will be con-
sumed while driving. In the following situa-
tions, oil consumption may increase, and
engine oil may need to be refilled in
between oil maintenance intervals.
●
When the engine is new, for example
directly after purchasing the vehicle or
after replacing the engine
●
If low quality oil or oil of an inappropriate
viscosity is used
●
When driving at high engine speeds or A
B
C

390 6-3. Do-it-yourself maintenance
LS500h_OM_OM50F42U_(U) with a heavy load, or when driving while
accelerating or decelerating frequently●
When leaving the engine idling for a long
time, or when driving frequently through
heavy traffic■
After changing the engine oil
The engine oil maintena nce data should be
reset. Perform the following procedures:

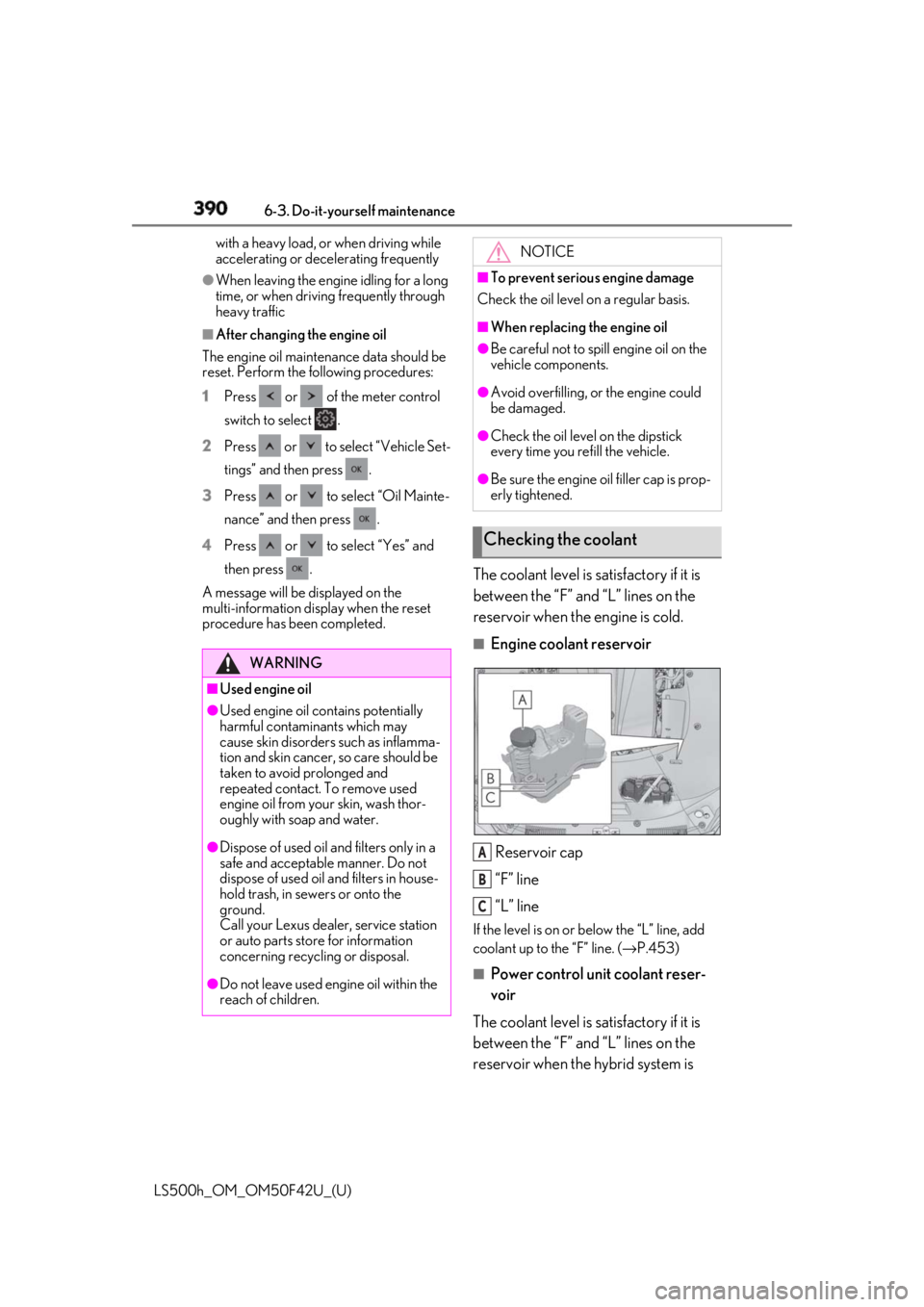

1 Press or of the meter control
switch to select .
2 Press or to select “Vehicle Set-
tings” and then press .
3 Press or to select “Oil Mainte-
nance” and then press .
4 Press or to select “Yes” and
then press .
A message will be displayed on the
multi-information disp lay when the reset
procedure has been completed.
The coolant level is satisfactory if it is
between the “F” and “L” lines on the
reservoir when the engine is cold. ■
Engine coolant reservoir
Reservoir cap
“F” line
“L” line If the level is on or below the “L” line, add
coolant up to the “F” line. ( → P.453)
■
Power control unit coolant reser-
voir
The coolant level is satisfactory if it is
between the “F” and “L” lines on the
reservoir when the hybrid system is WARNING■
Used engine oil●
Used engine oil contains potentially
harmful contaminants which may
cause skin disorders such as inflamma-
tion and skin cancer, so care should be
taken to avoid prolonged and
repeated contact. To remove used
engine oil from your skin, wash thor-
oughly with soap and water.
●
Dispose of used oil and filters only in a
safe and acceptable manner. Do not
dispose of used oil and filters in house-
hold trash, in sewers or onto the
ground.
Call your Lexus dealer, service station
or auto parts store for information
concerning recycling or disposal.
●
Do not leave used engine oil within the
reach of children. NOTICE■
To prevent serious engine damage
Check the oil level on a regular basis. ■
When replacing the engine oil ●
Be careful not to spill engine oil on the
vehicle components. ●
Avoid overfilling, or the engine could
be damaged. ●
Check the oil level on the dipstick
every time you re fill the vehicle.●
Be sure the engine o il filler cap is prop-
erly tightened.
Checking the coolant
A
B
C
