3312-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) Shifting between “H4” and “L4”
■ Shifting from “H4” to “L4”
Stop the vehicle completely.
Shift the shift lever to “N”.
Push and shift the four-wheel drive control switch to “L4”. Maintain this condition until the low speed four-wheel drive indicator
light turns on.
■ Shifting from “L4” to “H4”
Stop the vehicle completely.
Shift the shift lever to “N”.
Shift the four-wheel drive control switch to “H4”. Maintain this condition until the low speed four-wheel drive indicator
light turns off.■
The four-wheel drive control switch can be operated when ●
The “ENGINE START STOP” switch is in IGNITION ON mode. ●
The shift lever is in the “N” position. ●
The vehicle is stopped completely.■
The low speed four-wheel drive indicator light
The indicator light blinks while shifting between “H4” and “L4”. STEP 1
STEP 2
STEP 3
STEP 1
STEP 2
STEP 3

3322-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■
Advice for driving on slippery roads ●
If you shift the four-wheel drive control sw itch to “L4” and the shift lever to the
“2” range of “S” or “D” (vehicles with paddle shift switches) while driving in
steep off-road areas, the output of the brake can be controlled effectively by the
Active TRAC, which assists the driver to control the driving power of 4 wheels. ●
Use the “1” range of “S” or “D” (vehicles with paddle shift switches) of the shift
lever for maximum power and traction when your wheels get stuck or when
driving down a steep incline.■
The center differential lock indicator light
The indicator light blinks while locking/unlocking the center differential. ■
The center differential lock/unlock switch can be operated when ●
The “ENGINE START STOP” switch is in IGNITION ON mode. ●
The vehicle speed is less than 60 mph (100 km/h).■
Locking/unlocking the center differential ●
When the four-wheel drive control switch is in L4 with the center differential
locked, VSC is automatically turned off. (The center differential lock and VSC
OFF indicator lights come on.) ●
If the operation is not completed, the center differential lock indicator blinks. If
the indicator light does not turn off when unlocking the center differential, drive
straight ahead while accelerating or decelerating, or drive in reverse. ●
If the center differential lock/unlock is not completed within 5 seconds while the
cruise control system is on, ca ncel the cruise control system.

3332-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■
If the low speed four-wheel drive indicator light or the center differential lock
indicator light blinks ●
If the low speed four-wheel drive indicator light continues to blink when using
the four-wheel drive control switch, stop the vehicle completely, move the shift
lever to “N” and operate the switch again. ●
If the shift lever is moved before the low speed four-wheel drive indicator turns
on/off, the transfer mode may not be shifted completely. The transfer mode dis-
engages both the front and rear driveshafts from the powertrain and allows the
vehicle to move regardless of the shift po sition. (At this time, the indicator blinks
and the buzzer sounds.)
Therefore, the vehicle is free to roll even if the automatic transmission is in “P”.
You or someone else could be seriously injured. You must complete the shifting of
the transfer mode.
To complete the shifting, stop the vehicle completely, return the shift lever to “N”,
and confirm that the shift was completed (the indicator turns on/off). ●
If the engine coolant temperature is too low, the four-wheel drive control system
may not be able to shift. When the engine is warmer operate the switch again.
If the low speed four-wheel drive indicator light or the center differential lock indi-
cator light continues to blink even after attempting the above, there may be a mal-
function in the engine, the brake system or the four-wheel drive system. In this case,
you may not be able to shif t between “H4” and “L4”, and the center differential lock
may not be operable. Have the vehicle inspected by your Lexus dealer immediately.

3342-4. Using other driving systems
LX570_OM_OM60L21U_(U) CAUTION■
While driving
Never move the four-wheel drive control switch if the wheels have lost traction.
Doing so may cause an accident resu lting in death or serious injury.■
When the vehicle is parked
If the shift lever is moved before the low speed four-wheel drive indicator turns on/
off, the transfer mode may not be shifte d completely. The transfer mode disengages
both the front and rear driveshafts from the powertrain and allows the vehicle to
move regardless of the shift position. (A t this time, the indicator blinks and the
buzzer sounds.)
Therefore, the vehicle is free to roll even if the automatic transmission is in “P”. You
or someone else could be se riously injured. You must complete the shifting of the
transfer mode. (  P. 3 3 0 )
NOTICE■
To prevent damage to the center differential ●
For normal driving on dry and hard surface roads, unlock the center differential.●
Unlock the center differential after the wheels are out of the ditch or off the slip-
pery or bumpy surface. ●
Do not push the center differential lock/u nlock switch when the vehicle is turning
or when its wheels are spinni ng freely off the ground.

3352-4. Using other driving systems
2
When driving

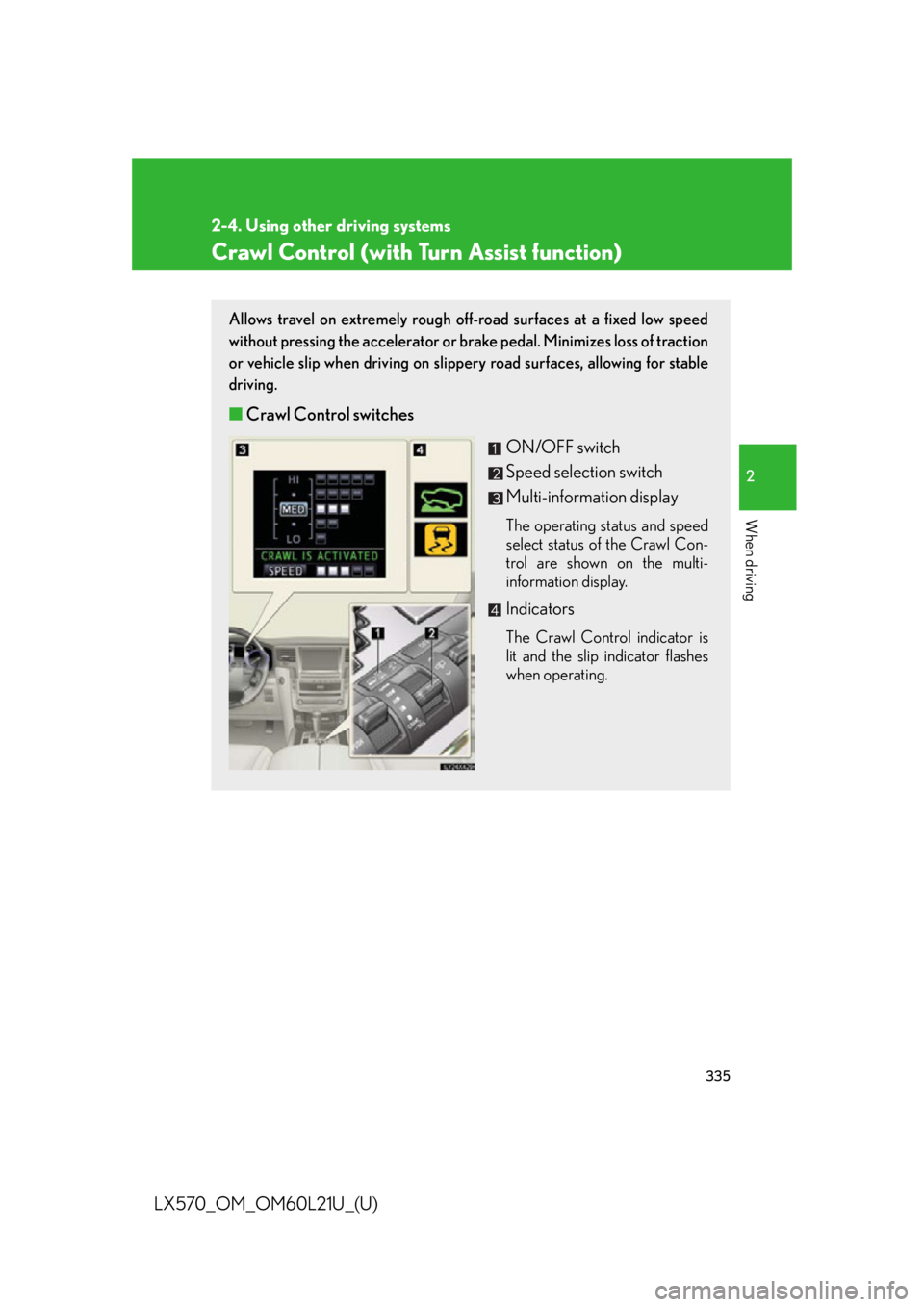

LX570_OM_OM60L21U_(U) Crawl Control (with Turn Assist function) Allows travel on extremely rough off-road surfaces at a fixed low speed
without pressing the accelerator or br ake pedal. Minimizes loss of traction
or vehicle slip when driving on slippery road surfaces, allowing for stable
driving.
■ Crawl Control switches
ON/OFF switch
Speed selection switch
Multi-information display The operating status and speed
select status of the Crawl Con-
trol are shown on the multi-
information display.
Indicators The Crawl Control indicator is
lit and the slip indicator flashes
when operating.

3362-4. Using other driving systems

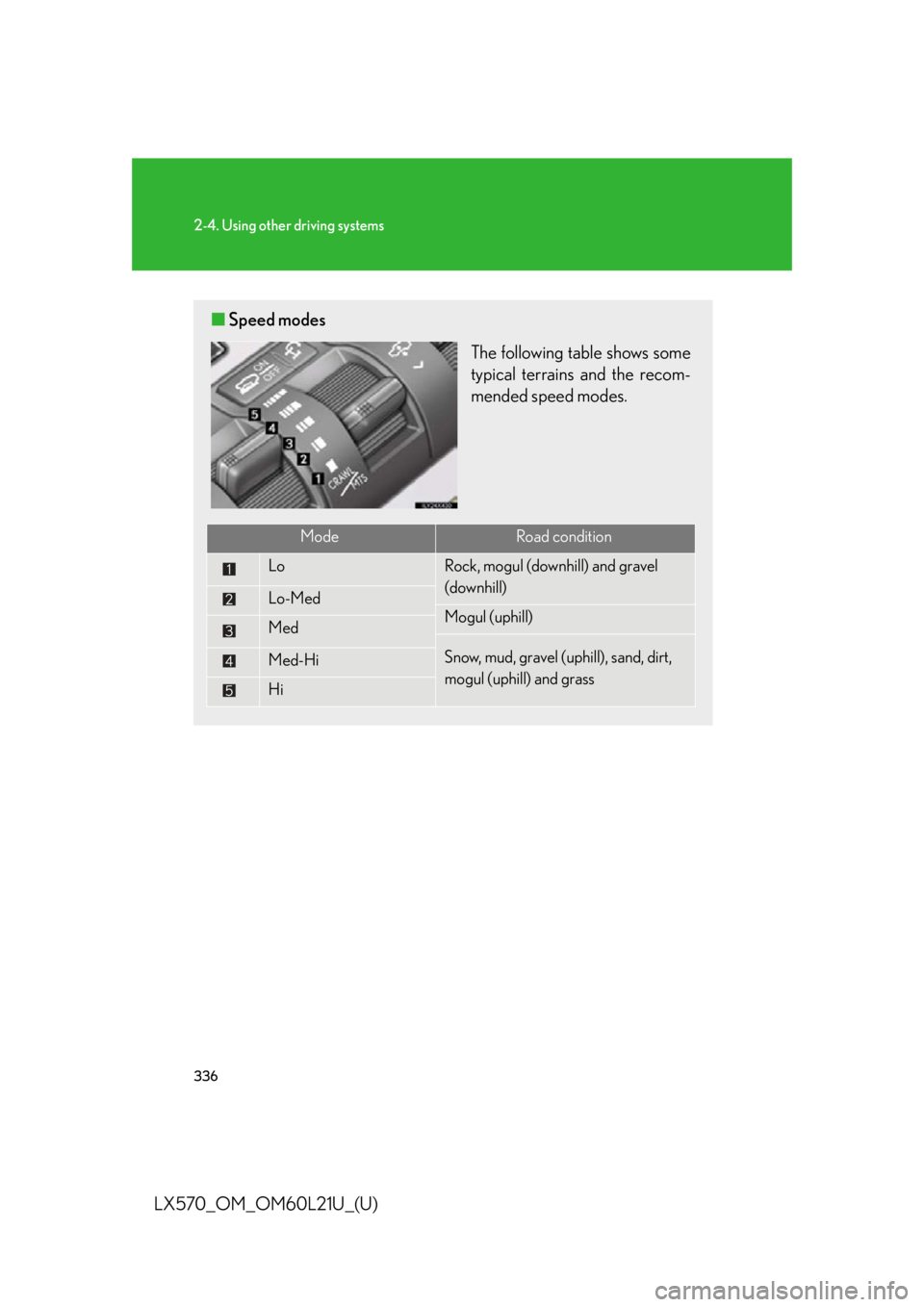

LX570_OM_OM60L21U_(U) ■ Speed modes
The following table shows some
typical terrains and the recom-
mended speed modes.
Mode Road condition
Lo Rock, mogul (downhill) and gravel
(downhill)
Lo-Med
Mogul (uphill)
Med
Snow, mud, gravel (uphill), sand, dirt,
mogul (uphill) and grassMed-Hi
Hi

3372-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■ Turn Assist function
This function assists cornering performance in accordance with
steering operation when driving th rough a tight corner. It maintains
vehicle speed while driving an d reduces the number of turns
needed to navigate a corner that requires turning the wheel in the
opposite direction.
Press the Turn Assist switch
while Crawl Control is operat-
ing. Turn Assist indicator will come
on.
To turn the system off, press the
switch again.

3382-4. Using other driving systems
LX570_OM_OM60L21U_(U) When the system is turned off
Crawl Control
Press the ON/OFF switch while Craw l Control is operating. If the
switch is turned off, the slip indicat or and the Turn Assist indicator will
go off (if the Turn Assist function is in use), th e Crawl Control indicator
will flash until the system has turn ed off completely, and a message
stating that Crawl Control has been turned off will be displayed on the
multi-information display for several seconds.
When turning off Crawl Control while driving, stop the vehicle before
the Crawl Control indicator turns off, or drive extremely carefully.
Turn Assist function
Press the Turn Assist switch while the Turn Assist function is operating.
When the switch is pressed, the Turn Assist indicator will go off, and a
message stating that the Turn Assist function has been turned off will
be displayed on the multi-informati on display for several seconds.

3392-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■
The Crawl Control and Turn Assist function can be operated when
Crawl Control ●
The engine is running. ●
The shift lever is in any gear other than “P” or “N”. ●
The four-wheel drive control switch is in “L4”. ●
The driver’s door is closed.
Tu r n A s s i s t f u n c t i o n ●
Crawl Control is operating. ●
The center differential is not locked. ●
The accelerator and brake are not being operated. ●
The shift lever is in any gear other than “P”, “R” or “N”.●
The steering wheel is turned very far.■
Automatic system cancelation
Crawl Control
In the following situations, the buzzer will sound intermittently and Crawl Control
will be canceled automatically. In this event, the Crawl Control indicator will flash
and then go off, the Turn Assist indicator will go off (if the Turn Assist function is in
use), and a message stating that Crawl Co ntrol has been turned off will be dis-
played on the multi-information display for several seconds. ●
When the shift lever is moved to “P” or “N”. ●
When the four-wheel drive control switch is in “H4”. ●
When the driver’s door is opened.
Tu r n A s s i s t f u n c t i o n
When the center differential is locked, th e buzzer will sound intermittently and the
Turn Assist function will be canceled automatically. In this event, the Turn Assist indi-
cator will go off, and a message stating that the Turn Assist function has been turned
off will be displayed on the multi-information display for several seconds.

3402-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■
Function limitations
Crawl Control ●
In the following situations, brake control can be used to drive downhill at a con-
stant speed. However, engine control is not available when driving uphill at a
constant speed.
• When switched to second start mode. ●
In the following situation, engine control and brake control will stop temporarily.
In this event, the Crawl Control indicator will flash.
• When the vehicle speed exceeds approximately 15 mph (25 km/h).
Tu r n A s s i s t f u n c t i o n
In the following situations, the Turn Assist fu nction will stop temporarily. In this event,
the Turn Assist indicator will flash. ●
When the vehicle speed exceeds approximately 6 mph (10 km/h).●
When the shift lever is moved to “R”.■
When the Crawl Control system is operated continuously ●
If Crawl Control is used continuously for a long time, the buzzer will sound, a
malfunction notification will be displaye d on the multi-information display, the
Crawl Control indicator will go off, and Crawl Control will be temporarily inop-
erable as a result of the brake system over heating. In this event, stop the vehicle
immediately in a safe place, and allow the brake system to cool down sufficiently
until the “TRAC OFF” on the multi-inform ation display goes off. (In the mean-
time, normal driving is possible.) ●
If Crawl Control is used continuously for a long time, the buzzer will sound, the
system will be temporarily canceled, and a malfunction notification will be dis-
played on the multi-information display as a result of the automatic transmission
system overheating. Stop the vehicle in a safe place until the display goes off.
