2562-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■ Display on/off setting
On or off can be selected for intuitive parking assist display.
Touch “Display Off”. When the “Display Off” indicator is turned on, the disp lay of intuitive
parking assist will be off. Touch “Display Off” again to turn the display of
intuitive parking assist on.
Touch “Save”.
■ Alert distance setting
Front or rear center sensors display and tone indication can be set.
Touch “Rear”. Long distance or short di stance can be selected.
Touch “Save”.■
The intuitive parking assist can be operated when ●
Front corner sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in a position other than “P”.
• The vehicle speed is less than approximately 6 mph (10 km/h). ●
Rear corner and rear center sensors:
• The “ENGINE START STOP” switch is in IGNITION ON mode.
• The shift lever is in “R”.■
Intuitive parking assist display
When an obstacle is detected while the rear view monitor system, Lexus parking
assist monitor or wide view front & side monitor is in use, the warning indicator will
appear in the top right of the screen even if the display setting has been set to off.STEP 1
STEP 2
STEP 1
STEP 2

2572-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■
Sensor detection information ●
The sensor’s detection areas are limited to the areas around the vehicle’s front
corner and rear bumpers. ●
Certain vehicle conditions and the su rrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where this
may occur are listed below.
• There is dirt, snow or ice on the sensor. (Wiping the sensors will resolve this
problem.)
• The sensor is frozen. (Thawing the area will resolve this problem.)
In especially cold weather, if a sensor is frozen the screen may show an abnor-
mal display, or obstacles may not be detected.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines,
air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensor s in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelets are installed.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather
•The area directly under th e bumpers is not detected.
• If obstacles draw too close to the sensor.
• A non-genuine Lexus suspension (low ered suspension etc.) is installed.
• People may not be detected if they are wearing certain types of clothing.
In addition to the examples above, there are instances in which, because of their
shape, signs and other object s may be judged by the sensor to be closer than they
are.

2612-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) Using the rear view monitor system
■ Screen display
The rear view monitor system screen will be displayed if the shift lever
is shifted to the “R” position whil e the “ENGINE START STOP” switch
is in IGNITION ON mode. The rear view monitor system displays the last-used parking mode first.

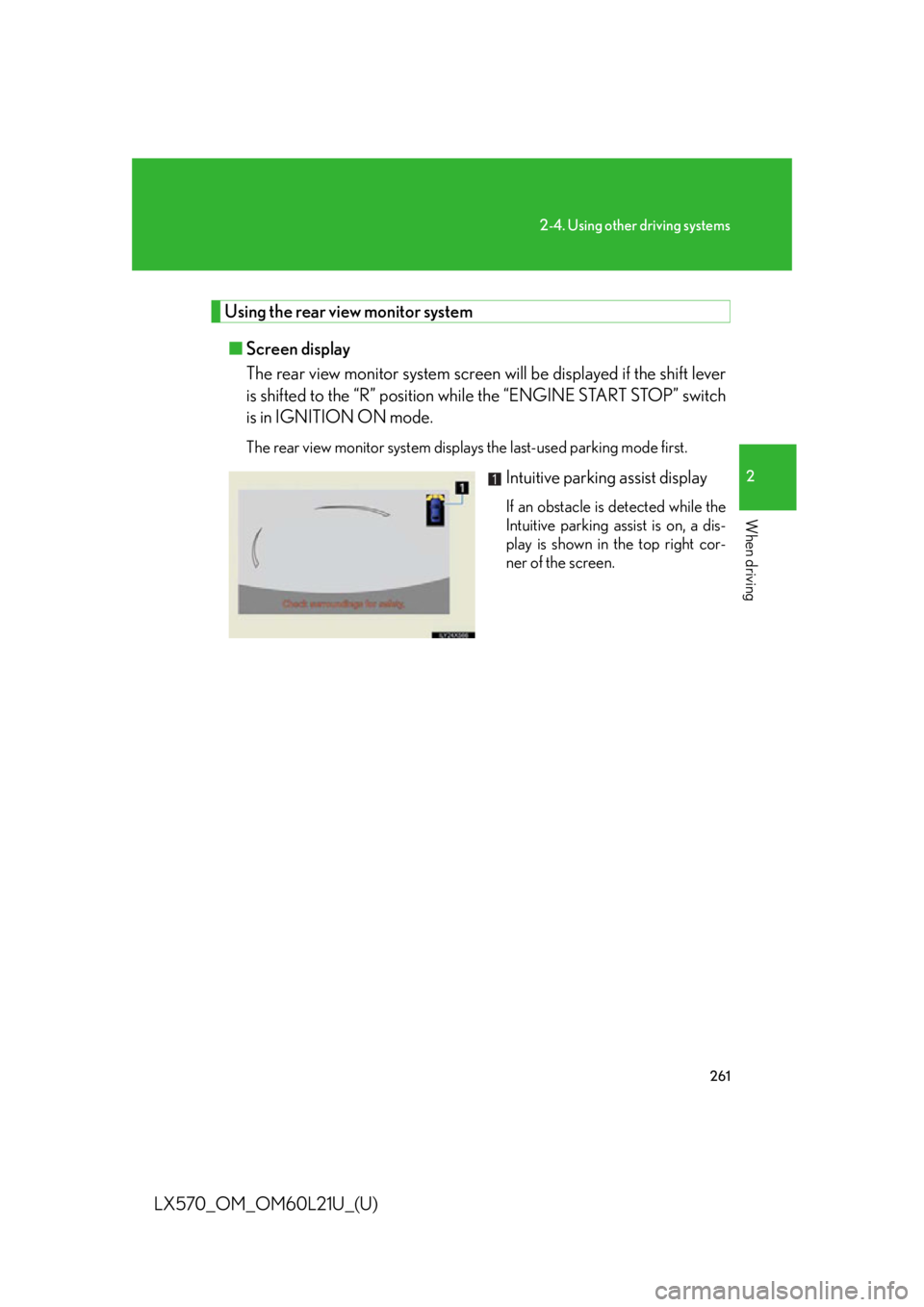

Intuitive parking assist display If an obstacle is detected while the
Intuitive parking assist is on, a dis-
play is shown in the top right cor-
ner of the screen.

2692-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) Using the Lexus parking assist monitor
■ Screen display
The parking assist monitor screen will be disp layed if the shift lever is
shifted to the “R” position while the “ENGINE START STOP” switch is
in IGNITION ON mode. The parking assist monitor displays the last-used parking mode first.
Perpendicular parking
Display mode switch screen
button (  P. 270)Switches the display mode.
Intuitive parking assist display If an obstacle is detected while the
intuitive parking assist is on, a dis-
play is shown in the top right cor-
ner of the screen.
Parking mode switch screen
button Switches the parking mode
(between perpendicular parking
and parallel parking assist screens)
Narrow mode screen on-off
button Switch the narrow mode on and off.
(
 P. 2 8 6 )Parallel parking

2862-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■ Narrow mode
If the position the vehicl e is to be parked in is narrower than usual, nar-
row mode can be used.
Normal mode
Narrow mode The “ENGINE START STOP”
switch is turned off when the park-
ing assist monitor is canceled with
narrow mode, the caution screen is
displayed first when the parallel
parking assist is selected next time.

3122-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■
The wide view front & side monitor can be operated when ●
The “ENGINE START STOP” switch is in IGNITION ON mode. ●
The vehicle speed is less than approximately 6 mph (10 km/h).■
Automatic system cancelation
In the following situations, the system is canceled automatically. ●
When the vehicle speed exceeds approximately 7 mph (12 km/h).●
When the shift lever is in “R”.■
When the outside rear view mirrors have been folded
The side monitor screen can be displayed even if the outside rear view mirrors have
been folded. In this case, there will be a slight difference between the image dis-
played when the outside rear view mirrors are extended and when the outside rear
view mirrors have been folded.
If the side monitor is displayed while the outside rear view mirrors are folded, you
cannot check the area near the front edge of the vehicle as the base of the outside
rear view mirrors will be in the way. ■
When switched to from the Lexus parking assist monitor
If the wide view front & side monitor is
switched to from the Lexus parking assist
monitor, the icon display area will flash to
inform the driver that the currently displayed
area is the front or side. The icon display area
will continue to flash until the screen is turned
off.

3212-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) Conditions for changing the vehicle height mode
Some modes may not be selectable depending on the vehicle speed
when the four-wheel drive control swit ch is in the “H4” position. Refer to
the following table.
Easy access mode
You can select this mode for easy
access and easy loading of the
vehicle.
If the “ENGINE START STOP” switch is turned to OFF within 30 seconds after
the vehicle stops while this mode is on, the vehicle height is lowered automati-
cally.
When the vehicle begins to lower a beep will sound twice, and while the vehicle
is lowering the indicator light will flash to alert the driver and surrounding people
that the vehicle is lowering. Low mode Normal mode High mode
Under 7 mph (12 km/h) Ye s Ye s Ye s
7 mph (12 km/h) to
18 mph (30 km/h) No Ye s Ye s
18 mph (30 km/h) or over No Ye s No

3222-4. Using other driving systems
LX570_OM_OM60L21U_(U) The indicator light stops blinking, and come s on continuously to indicate that the
shift is completed.
Easy access mode is available if the following conditions have been met:
● The vehicle height mode is in normal mode.
● The vehicle is stopped on a flat surface.
● The shift lever is in “P”.
● The side door and the back door are not opened from the vehicle stopped to
the “ENGINE START STOP” switch is turned to off.
The following method will cancel the vehicle lowering operation and raise the
vehicle again:
● Press the height control OFF switch.
● Push the height select switch to “  ”.
Disabling the height control
When the height control OFF
switch is pressed with the vehicle
stopped. The “OFF” indicator will appear on
the multi-information display, and
the vehicle height will be fixed in
the current mode. Push the switch
again to turn the system back on.■
Operating conditions ●
The engine must be running. ●
Vehicle height control must be turned off. ●
All side doors and the back door must be closed.

3232-4. Using other driving systems
2
When driving
LX570_OM_OM60L21U_(U) ■
Switching vehicle height mode while the engine is stopped●
If the engine is stopped wh ile the vehicle height is being lowered, lowering will
continue. ●
If any luggage is removed from the vehicle or if any occupants leave the vehicle
within approximately 30 seconds of the “ENGINE START STOP” switch being
turned OFF, the vehicle height may be lowered by the auto leveling function. ●
Operating the height select switch will have no effect while the engine is
stopped.■
Automatic change in vehicle height when the four-wheel drive control switch is in
the “L4” position
If the vehicle speed exceeds 2 mph (3 km/h) while driving on an uneven road with
the four-wheel drive control switch in the “L4” position, high mode is automatically
selected. (On even roads, the height mode will not change.) ■
Automatic change in vehicle height when in the high mode ●
If the vehicle speed exceeds 18 mph (30 km/h) with the four-wheel drive con-
trol switch in the “H4” position, no rmal mode is automatically selected.●
If the vehicle speed exceeds 25 mph (40 km/h) with the four-wheel drive con-
trol switch in the “L4” position, the vehicle height is lowered to 1.0 in. (25 mm)
higher than the normal mode height. If the vehicle speed drops to 12 mph (20
km/h) or less, high mode is automatically resumed.■
Extra high mode
If the vehicle becomes stuck or the Crawl Control system requests the vehicle
height be raised, extra high mode may be automatically selected when the vehicle
height is in high mode with the four-wheel drive control switch in the “L4” position.
The vehicle height is raised to 0.8 in. (2 0 mm) higher than the high mode height, or
slightly higher. ●
Extra high mode will change back to high mode when:
• The vehicle speed exceeds 6 mph (10 km/h)
• The four-wheel drive control switch is shifted to “H4”. ●
If you pull the height select switch to “  ” when in extra high mode, normal mode
is selected. ●
Extra high mode cannot be manually selected.

3242-4. Using other driving systems
LX570_OM_OM60L21U_(U) ■
Turning off the height control ●
The system will remain of f until the height control OFF switch is pushed again,
even if the “ENGINE START STOP” switch is turned off. ●
Even if the system is turned off, the system automatically modulated if the vehi-
cle speed exceeds following.
• 18 mph (30 km/h) with high or low mode
• 50 mph (80 km/h) with normal mode■
Automatic leveling function
The vehicle is adjusted to a fixed height for each mode, regardless of the number of
occupants and the luggage load. ●
However the vehicle cannot be raised if the vehicle load exceeds the following
limits:
• Up to 4 occupants
* plus approximately 661 lb. (300 kg) in the normal mode
• Up to 4 occupants
* plus approximately 441 lb. (200 kg) in the high mode
* : average weight 150 lb. (68 kg) per person ●
If the vehicle height cannot be raised when in the normal mode, and “LO”
appears on the display, the vehicle is loaded too heavily. Take extra care when
driving in this condition.
If the vehicle height cannot be raised even after unloading the vehicle, pull the
height select switch to “  ” then push to “  ”. If the vehicle height still cannot be
raised, turn the ignition off then on again, then try once more.■
When the vehicle is st opped during driving
The activation of the automatic leveling function may cause the vehicle height to
change. This is not a malfunction. ■
If the vehicle height does not change
If the vehicle is loaded too heavily, or the undercarriage has come into contact with
the road surface, the vehicle height cannot be raised/lowered.
