812-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2
Vehicle status information and indicators outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Background color of drive modeBackground color changes according to the drive mode. ( → P.249)
•Sport mode: Red
•Eco mode: Blue
When in Normal mode, the background color is Black.
ClockTime displayed is linked to the analog clock on the instrument panel. ( → P.288)
Multi-information displayPresents the driver with a variety of vehicle data ( → P.85)
Displays warning messages in case of a malfunction ( → P.374)
SpeedometerDisplays the vehicle speed
Fuel gaugeDisplays the quantity of fuel remaining in the tank
Shift position and shift rangeDisplays the selected shift posi tion or selected shift range ( → P.173)
Odometer, trip meter and maintena nce required information displayOdometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset.
Trip meters “A” and “B” can be used to record and display different distances inde-
pendently.
Maintenance required information:
Displays the remaining distance unt il the engine oil sh ould be changed.
• Displays the maintenance requ ired information when the power switch is ON mode.
• It can be reset on of the multi-information display. D
E
F
G
H
I
J

82 2-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
Operating condition
The power switch is in ON mode. ■
Hybrid System Indicator
Power area
Shows that an Eco-friendly driving
range is being exceeded (during full
power driving etc.)
Eco area
Shows that the vehicle is being driven in
an Eco-friendly manner.
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
Charge area
Shows that energy is being recovered
via the regenerative brake.
●
Hybrid System Indicator is displayed
when the driving mode is in other than
the sport mode.
●
By keeping the indicator needle within
Eco area, more Eco-friendly driving can
be achieved.
●
Charge area indicates regeneration *
sta-
tus. Regenerated energy will be used to charge the hybrid battery (traction bat-
tery). *
: When used in this manual, “regeneration”
refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy. ■
Tachometer
Hybrid System Indicator switches to the
tachometer when drivin g mode is in sport
mode. The settings of the tachometer dis-
play can be changed on the multi-informa-
tion display. ■
Engine speed
On hybrid vehicles, engine speed is pre-
cisely controlled in order to help improve
fuel efficiency and reduce exhaust emis-
sions, etc.
There are times when the engine speed that
is displayed may differ even when vehicle
operation and driving conditions are the
same. ■
Outside temperature display ●
In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change.
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.) ●
When “--” or “E” is displayed, the system
may be malfunctioning.
Take your vehicle to your Lexus dealer.
■
Pop-up display
In some situations, a pop-up display will be
temporarily displayed on the multi-informa-
tion display or the odometer/trip meter/
maintenance required information screen.
The pop-up display function can be set on/
off.
■
Liquid crystal display
Small spots or light sp ots may appear on the
display. This phenomen on is characteristic
of liquid crystal disp lays, and there is no
problem continuing to use the display.A
B
C
D

832-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2
Vehicle status information and indicators ■
Customization
The meter display can be customized on
the multi-information display.
(Customizable features: → P.419)
WARNING■
The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the in formation display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver's shifting and the new gear num-
ber appearing on the display. This lag
could cause the driver to downshift
again, causing rapid and excessive
engine braking and possibly an accident
resulting in personal death or injury.
NOTICE■
To prevent damage to the engine and
its components●
When the tachometer is displayed, do
not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.
●
The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H); or “Engine Cool-
ant Temp High” or “Hybrid System
Overheated” is shown on the multi-
information display. In this case, imme-
diately stop the vehicle in a safe place,
and check the engine or hybrid system
after it has cooled completely.
( → P.394)

84 2-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U Switches between odometer, trip
meter and maintenance required infor-
mation displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.
The brightness of the instrument panel
lights can be adjusted.
1 Darker
2 Brighter ■
Instrument panel brightness adjustment
The instrument panel brightness levels
when the tail lights are on and off can be
adjusted individually. However, when the
surroundings are bright (daytime, etc.),
turning on the tail lights will not change the instrument panel brightness. At this time,
any adjustments made to the instrument
panel brightness levels will be applied to
both settings at once.
Changing between the odome-
ter, trip meter and maintenance
required information
Changing the Instrument panel
light brightness

852-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2
Vehicle status information and indicators ■
Menu icons
■
Liquid crystal display
→ P.82 The multi-information display is oper-
ated using the meter control switches.
1 Select an item/change pages
2 Enter/set
3 Return to the previous screen
4 Press:
Displays the screen registered to
When no screen has been regis-
tered, the drive information screen
will be displayed.
Press and hold:
Registers the currently displayed
screen to The registration confirmation screen is dis-
played. If the selected screen cannot be
registered, a registra tion failure message
will be shown.Multi-information display The multi-information display pres-
ents the driver with a variety of
vehicle data.
Displays and menu icons
Drive information
Navigation system-linked dis-
play (if equipped)
Audio system-linked display (if
equipped)
Driving assist system informa-
tion
Warning message display
Settings display NOTICE■
The multi-information display at low
temperatures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
Changing the meter display

86 2-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U ■
Content displayed as drive infor-
mation
Select to display various drive data.
Items displayed can be switched by
pressing or of the meter con-
trol switches to select and pressing
or .
 Current fuel consumption *1
Displays the current rate of fuel consump-
tion
 Average fuel consumption (after
reset *2
/after start/after refuel) *1
Displays the average fuel consumption
since the function was reset, the hybrid sys-
tem was started, and the vehicle was refu-
eled, respectively
Use the displayed average fuel consump-
tion as a reference.
 Average vehicle speed (after
reset *2
/after start) *1
Displays the average vehicle speed since
the function was reset and the hybrid sys-
tem was started, respectively
 Elapsed time (after reset *2
/after
start) *1
Displays the elapsed time since the func-
tion was reset and the hybrid system was
started, respectively
 Distance (driving range/after start) *1
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining and the distance driven after the
hybrid system was st arted respectively.
• This distance is computed based on your
average fuel consumption. As a result, the actual distance that can be driven
may differ from that displayed.
• When only a small amount of fuel is
added to the tank, the display may not be
updated.
When refueling, turn the power switch
off. If the vehicle is refueled without turn-
ing the power switch off, the display may
not be updated. *1
: Displayed when the it em is set in “Drive
Info 1”, “Drive Info 2” and “Drive Info 3”. *2
: The function can be reset by pressing
the of the meter control switches
for longer than 1 second when the item
to reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear. ■
Energy monitor
→ P.94 ■
Speedometer
Displays the vehicle speed. ■
Tire inflation pressure
Displays inflation pressure of each tire. The inflation pressure of the spare tire will
not be displayed.
■
Sway warning
Detects the sway of the vehicle within a
lane, which is often associated with a
decrease in the driver's attention level,
and displays the decrease in attention
using a bar display.
The shorter the bar length, the more
the driver may need to rest.
This display is a part of the LDA (Lane
Departure Alert with steering control)
system. The display is enabled when
the operating conditions of the vehicle Drive information

872-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2
Vehicle status information and indicators sway warning are met. ( → P.211)■
Display off
A blank screen is displayed ■
Tire inflation pressure●
It may take a few minutes to display the
tire inflation pressure after the power
switch is turned to ON mode. It may also
take a few minutes to display the tire infla-
tion pressure after inflation pressure has
been adjusted.●
“---” may be displayed if the tire informa-
tion cannot be determined due to unfa-
vorable radio wave conditions.●
Tire inflation pressu re changes with tem-
perature. The displayed values may also
be different from the values measured
using a tire pressure gauge.■
When disconnecting and reconnecting
12-volt battery terminals
The drive information will be reset.
Select to display the following naviga-
tion system-linked information.
 Route guidance
 Compass display (north-up display/
heading-up display)
Select to enable selection of an audio
source or track on the display using the
meter control switches.
Select to display the operational status
of the following systems:  LDA (Lane Departure Alert with
steering control) ( → P.210)
 Dynamic radar cruise control with
full-speed range ( → P.217)
The displayed icon changes depending
on the system used.
Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. ( → P.374)
The settings of the following items can
be changed using the meter control
switches.
For functions that can be enabled or
disabled, the function switches
between on and off each time is
pressed. ■
LDA (Lane Departure Alert
with steering control) ( → P.210)
Select to set up the following items.
 Steering Assist Select to enable/dis able steering wheel
assistance.
 Alert Select to set a vibrator or buzzer as the
notification method used to warn the
driver.
 Alert sensitivity Select to set the warning sensitivity.
 Sway warning
Select to enable/disable the vehicle sway Navigation system-linked dis-
play (if equipped)
Audio system-linked display (if
equipped)
Driving assist system information Warning message display
Settings display

88 2-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U warning.
 Sway sensitivity Select to set the vehicle sway warning sen-
sitivity. ■
PCS (Pre-Collision System)
( → P.203)
Select to set up the following items.
 PCS on/off Select to enable/dis able the pre-collision
system.
 PCS sensitivity Select to change the warning timing.■
Intuitive parking assist sensor
(if equipped) ( → P.227)
Select to set up the following items.
 Intuitive parking assist sensor Select to enable/disab le the intuitive park-
ing assist sensor.
 Volume Select to set the volume of the buzzer
which sounds when the intuitive parking
assist sensor is operated.
■
PKSB (Parking Support
Brake System) (if equipped)
( → P.232)
 PKSB on/off Select to enable/dis able the parking sup-
port brake function (for static objects).
■
Clock ( → P.288)
Select to switch between 12-hour dis-
play and 24-hour display. ■
Vehicle Settings
 PBD (Power Back Door)
( → P.110) *1 Select to set up the following items.
•System settings
Select to enable/disable the power back
door system.
•Volume
Select to set the volume of the buzzer
which sounds when the power back door
system.
• Kick Sensor *2
Select to enable/dis able the kick sensor. *1
: Vehicles with power back door *2
: Vehicles with power back door and kick
sensor
 TPMS (Tire Pressure Warning Sys-
tem) ( → P.338)Select to initialize the tire pressure warning
system.
 Scheduled Maintenance ( → P.319)Select to initialize the scheduled mainte-
nance.
 Oil maintenance ( → P.329)Select to reset the engine oil maintenance
information (message indicating mainte-
nance is required and distance until the
next oil change) after engine oil mainte-
nance is performed.
■
Meter settings
 Language Select to change the language on the dis-
play.
 Units Select to change the unit of measure for
fuel consumption.
 EV Indicator ( → P.62)Select to set the EV indicator on/off.
 Switch settings ( → P.85)

892-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U 2
Vehicle status information and indicators Displays a procedure to register a desired
screen to
.
You can register 1 screen as a shortcut,
which can be displayed by pressing .
 Drive information screen ( → P.85)Select to choose betwee n 2 items that will
be displayed on each drive information
screen (“
Drive info 1”, “Drive info 2” and
“Drive info 3 ”) respectively.
 Pop-up display ( → P.82)Select to set the foll owing pop-up displays,
which may appear in some situations, on/
off.
• Intersection guidance display of the nav-
igation system-linked system
• Incoming call display of the hands-free
phone system
• Instrument panel brightness adjustment
display
 Accent color Select to change the accent colors on the
screen, such as the cursor color.
 Tachometer settings Select to set the display of the tachometer
or Hybrid System Indicator to automati-
cally change according to the driving
mode or static.
 Initialization Select to reset the me ter display settings.
Automatically displayed when the sys-
tem is used. ( → P.227) Displays the status of the hybrid sys-
tem. ( → P.94) ■
Suspension of the settings display
In the following situations, the settings dis-
play using the meter control switches will be
suspended. ●
When a warning message appears on the
multi-information display ●
When the vehicle begins to move
Intuitive parking assist (if
equipped) Energy monitor
WARNING■
Cautions during setting up the dis-
play
As the hybrid system needs to be operat-
ing during setting up the display, ensure
that the vehicle is parked in a place with
adequate ventilation. In a closed area
such as a garage, ex haust gases includ-
ing harmful carbon monoxide (CO) may
collect and enter the vehicle. This may
lead to death or a serious health hazard.
NOTICE■
During setting up the display
To prevent 12-volt battery discharge,
ensure that the hybrid system is operat-
ing while setting up the display features.

90 2-1. Instrument cluster
LEXUS NX300h Owners Manu-
al_USA_OM78212U *
:If equipped
■

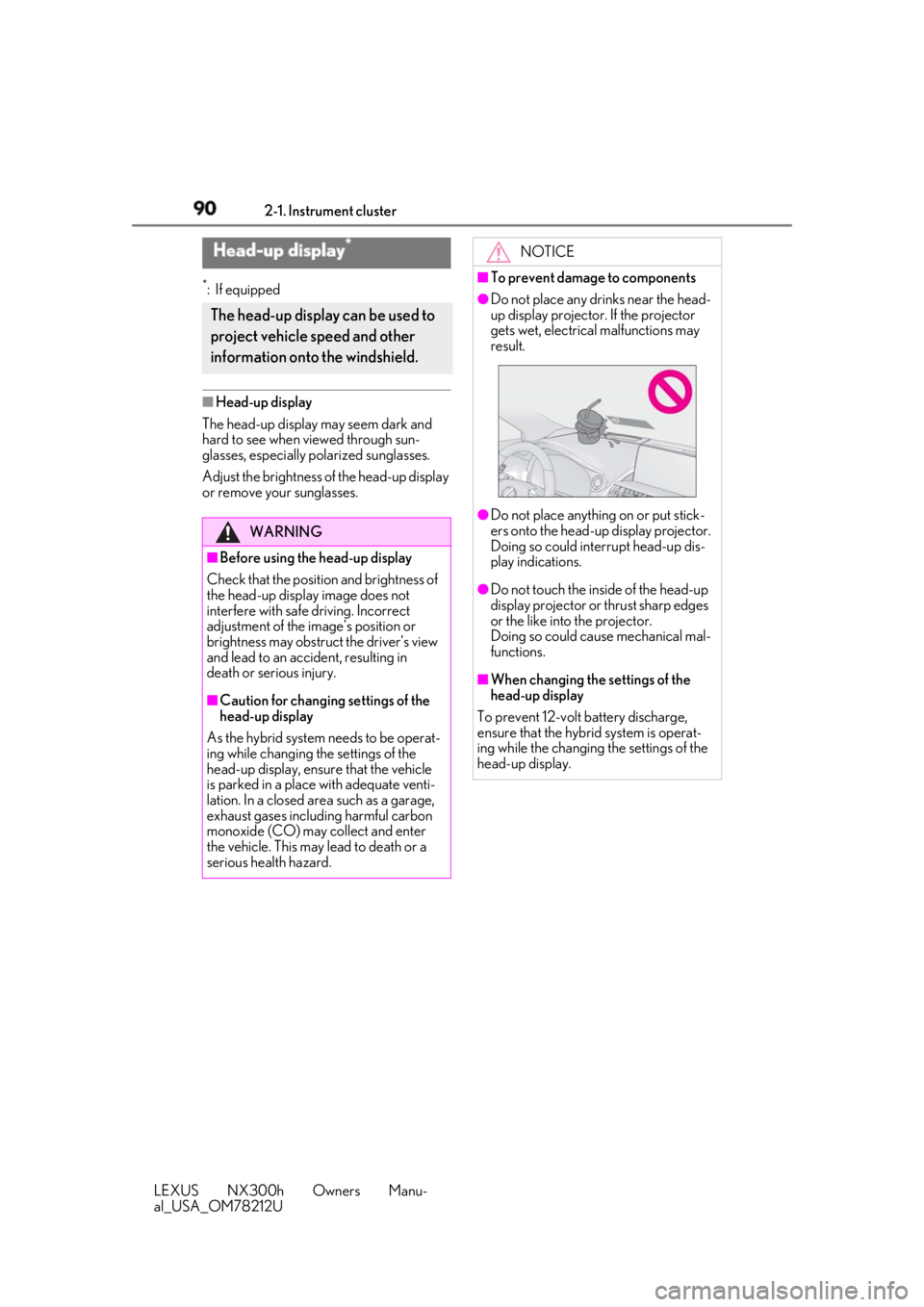

Head-up display
The head-up display may seem dark and
hard to see when viewed through sun-
glasses, especially polarized sunglasses.
Adjust the brightness of the head-up display
or remove your sunglasses.Head-up display *
The head-up display can be used to
project vehicle speed and other
information onto the windshield.
WARNING■
Before using the head-up display
Check that the position and brightness of
the head-up display image does not
interfere with safe driving. Incorrect
adjustment of the image’s position or
brightness may obstruct the driver’s view
and lead to an accident, resulting in
death or serious injury. ■
Caution for changing settings of the
head-up display
As the hybrid system needs to be operat-
ing while changing th e settings of the
head-up display, ensure that the vehicle
is parked in a place with adequate venti-
lation. In a closed area such as a garage,
exhaust gases includ ing harmful carbon
monoxide (CO) may collect and enter
the vehicle. This may lead to death or a
serious health hazard. NOTICE■
To prevent damage to components ●
Do not place any drinks near the head-
up display projector. If the projector
gets wet, electrical malfunctions may
result.
●
Do not place anything on or put stick-
ers onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications. ●
Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions. ■
When changing the settings of the
head-up display
To prevent 12-volt battery discharge,
ensure that the hybrid system is operat-
ing while the changing the settings of the
head-up display.
