display LEXUS RCF 2019 Owners Manual

TABLE OF CONTENTS
2
RC F_U For your information................................... 8
Reading this manual................................... 12
How to search ..............................................13
Pictorial index............................................... 14
1-1. For safe use
Before driving ................................ 30
For safe driving .............................. 32
Seat belts .......................................... 34
SRS airbags ..................................... 40
Front passenger occupant
classification system ...................51
Safety information for
children .......................................... 57
Child restraint systems ............... 58
Exhaust gas precautions............ 78
1-2. Theft deterrent system
Engine immobilizer system....... 79
Alarm .................................................80
Theft prevention labels ............... 82 2. Instrument cluster
Warning lights and
indicators....................................... 84
Gauges and meters
(RC350/RC300) .....................91
Gauges and meters (RC F)...... 96
Multi-information display
(RC350/RC300) ................. 103
Multi-information display
(RC F) ............................................. 118
Fuel consumption
information ..................................1351
For safety and security 2
Instrument cluster

TABLE OF CONTENTS
4
RC F_U 4-5. Using the driving support
systems
Lexus Safety System+ .............. 245
PCS
(Pre-Collision System) ......... 250
LDA
(Lane Departure Alert
with steering control) ..............261
Dynamic radar cruise
control ......................................... 268
Intuitive parking assist..............280
BSM
(Blind Spot Monitor) ............. 290
• BSM function......................... 293
• RCTA function...................... 297
Driving mode select
switch ............................................ 301
Active rear wing ......................... 307
TVD
(Torque Vectoring
Differential) ................................ 310
Driving assist systems ................312
4-6. Driving tips
Winter driving tips ..................... 320 5-1. Using the air conditioning
system
Remote Touch ............................ 326
10.3-inch display ..........................331
Automatic air conditioning
system.......................................... 333
Heated steering wheel/
seat heaters/
seat ventilators ......................... 344
5-2. Using the interior lights
Interior lights list ......................... 347
• Interior lights.......................... 348
• Personal lights....................... 349
5-3. Using the storage features
List of storage features ............ 350
• Glove box .................................351
• Console box ............................351
• Cup holders ........................... 352
Trunk features ............................. 3535
Interior features

TABLE OF CONTENTS
6
RC F_U 7-1. Essential information
Emergency flashers .................. 442
If your vehicle has
to be stopped in
an emergency .......................... 443
7-2. Steps to take in
an emergency
If your vehicle needs
to be towed ............................... 444
If you think something is
wrong.............................................451
Fuel pump shut off system ...... 452
If a warning light turns on
or a warning buzzer
sounds ......................................... 453
If a warning message is
displayed .................................... 460
If you have a flat tire
(vehicles with a
spare tire) ................................... 489
If you have a flat tire
(vehicles with
an emergency
tire puncture repair kit) ........ 502
If the engine will not start ..........516
If the electronic key does
not operate pr operly .............. 518
If the vehicle battery is
discharged ................................. 522
If your vehicle overheats......... 526
If the vehicle becomes
stuck ............................................. 532 8-1. Specifications
Maintenance data
(fuel, oil level, etc.) .................. 536
Fuel information ......................... 554
Tire information .......................... 557
8-2. Customization
Customizable features ............ 569
8-3. Items to initialize
Items to initialize......................... 578
8-4. Certifications
Certifications ............................... 579
Reporting safety defects for
U.S. owners ...............................600
Seat belt instructions for
Canadian owners
(in French) .................................. 601
SRS airbag instructions for
Canadian owners
(in French) ................................. 6037
When trouble arises 8
Vehicle specifications
9
For owners

19Pictorial index
RC F_U Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103, 118 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 103, 118
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 2 22Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2 22
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 321
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 221Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Headlights/parking lights/tail lights/daytime runnin g lights . . . . . . . . . . . . P. 225
Front fog lights
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 232
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 411
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 478
Headlight cleaners
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 442
Trunk opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 151
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 393
Tilt and telescopic steering control switch
* 1
. . . . . . . . . . . . . . . . . . . . . . . P. 174Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Driving position memory
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 166
Tilt and telescopic steering lock release lever
* 1
. . . . . . . . . . . . . . . . . . . P. 174Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 333 Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 333
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 338
Audio system
* 2
Trunk opener main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152
* 1
: If equipped
* 2
: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.4
5
6
7
8
9
10
11
12
13
14
15

711-1. For safe use
1
For safety and security
RC F_U ■
Child restraint LATCH anchors (RC350/RC300)
LATCH anchors are provided for
the each rear seat. (Buttons display-
ing the location of the anchors are
attached to the seats.) ■
Child restraint LATCH anchors (RC F)
LATCH anchors are provided for
the each rear seats. (Mark display-
ing the location of the anchors are
attached to the seats.)Child restraint system fixed w ith child restraint LATCH anchors

83
Instrument cluster
2
RC F_U 2. Instrument cluster
Warning lights and
indicators ....................................... 84
Gauges and meters
(RC350/RC300)......................91
Gauges and meters (RC F) ...... 96
Multi-information display
(RC350/RC300).................. 103
Multi-information display
(RC F) .............................................118
Fuel consumption
information ................................. 135

84

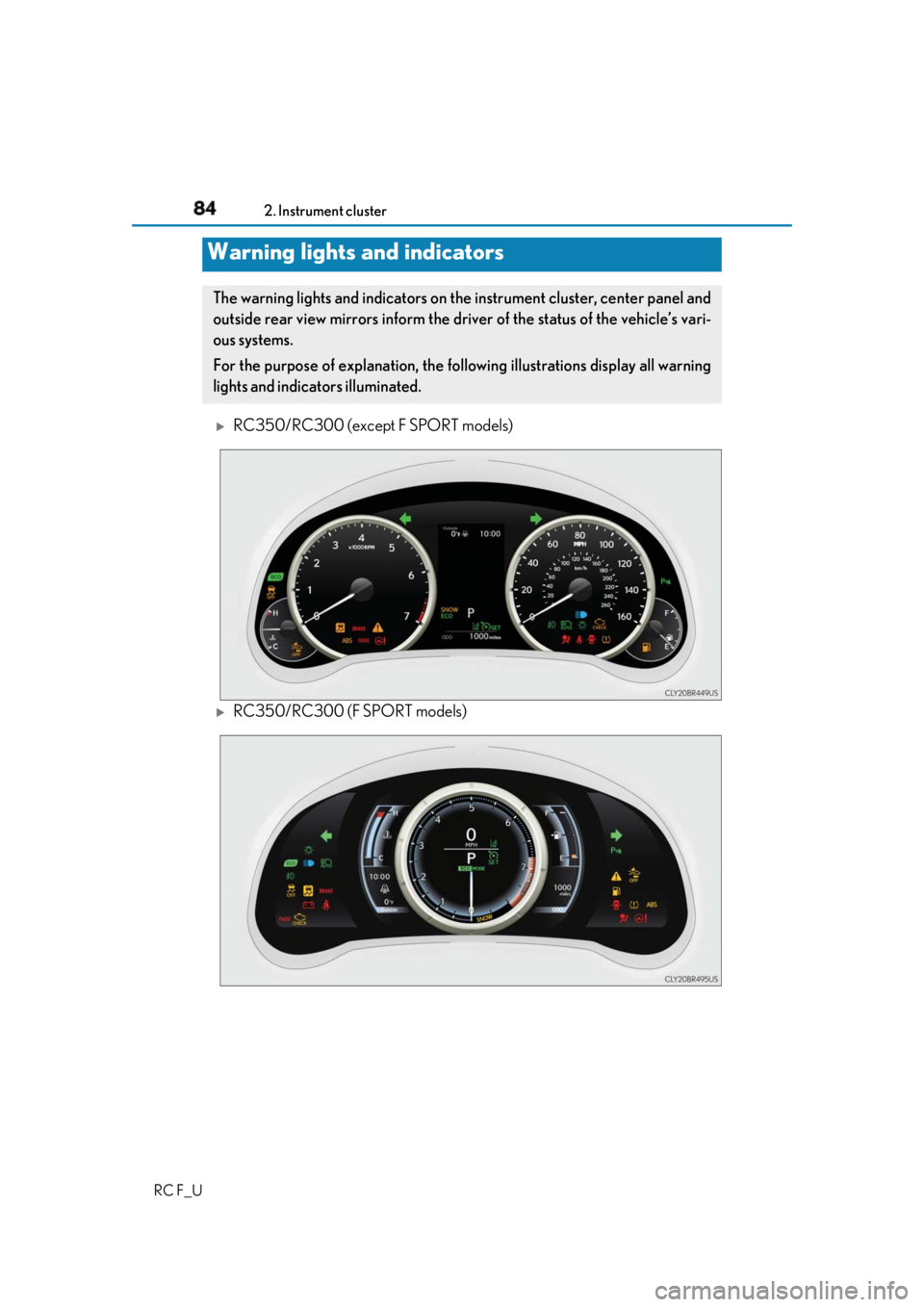

RC F_U 2. Instrument cluster 
RC350/RC300 (except F SPORT models) 
RC350/RC300 (F SPORT models)Warning lights and indicators The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driv er of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustrations display all warning
lights and indicators illuminated.

912. Instrument cluster
2
Instrument cluster
RC F_U ◆ Except F SPORT models
◆ F SPORT models
When the main meter is moved to the ri ght, some of the meter displays and
the gauge layout will change. 
Main meter in center positionGauges and meters (RC350/RC300)

92 2. Instrument cluster
RC F_U 
Main meter moved to the right
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge Displays the engine coolant temperature
Tachometer Displays the engine speed in revolutions per minute
F SPORT models: When sport mode is select ed for the driving mode, the periphery
of the tachometer will change color and th e scale of the tachometer will be empha-
sized.
Outside temperature Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient temperature
is 37°F (3°C) or lower.
Multi-information display Presents the driver with a variety of vehicle data (  P. 103)
Displays warning me ssages in case of a malfunction (  P. 460)
Clock Time displayed on the clock can be adjust ed on of the multi-information display.
(  P. 111)
Speedometer
Fuel gauge
Shift position/shift range/gear position (  P. 213)
Odometer and trip meter display (  P. 115)1
2
3
4
5
6
7
8
9

932. Instrument cluster
2
Instrument cluster
RC F_U ■
Speed indicator (F SPORT models)
When the vehicle reaches a set
speed, indicators will be displayed
on both sides of the displayed speed
unit. • The indicators will be displayed in
yellow (correspondi ng to a speed set
by a user) or red (fixed at 100 mph
[160 km/h])
* .
• The desired vehicle speed at which
the speed indicator will begin to be
displayed can be set in of the
multi-information display. (  P. 111)
• The default setting of the indicator is off. This setting can be changed in of the
multi-information display. (  P. 111)
* : Always observe the legal speed limi t when driving on public roads.■
Rev indicator (F SPORT models)
When the engine speed reaches a
set speed, a ring-shaped indicator
will be displayed on the tachometer. The desired engine speed at which
the Rev indicator will begin to be dis-
played can be set on of the multi-
information display. ( 
P. 111 )
■
Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 rpm, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 0.5 seconds.
