hood open LINCOLN MKT 2010 Owners Manual

3. Turn on the headlamps to illuminate the wall or screen and open the
hood.
To see a clearer light pattern for adjusting, you may want to block the
light from one headlamp while adjusting the other.
4. On the wall or screen you will
observe a light pattern with a
distinct horizontal edge towards the
right. If this edge is not at the
horizontal reference line, the beam
will need to be adjusted so the edge
is at the same height as the
horizontal reference line.
5. Locate the vertical adjuster on
each headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise (to adjust down) or
counterclockwise (to adjust up).
The horizontal edge of the brighter
light should touch the horizontal
reference line. Close the hood and
turn off the lamps.
HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
12
Lights
103
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

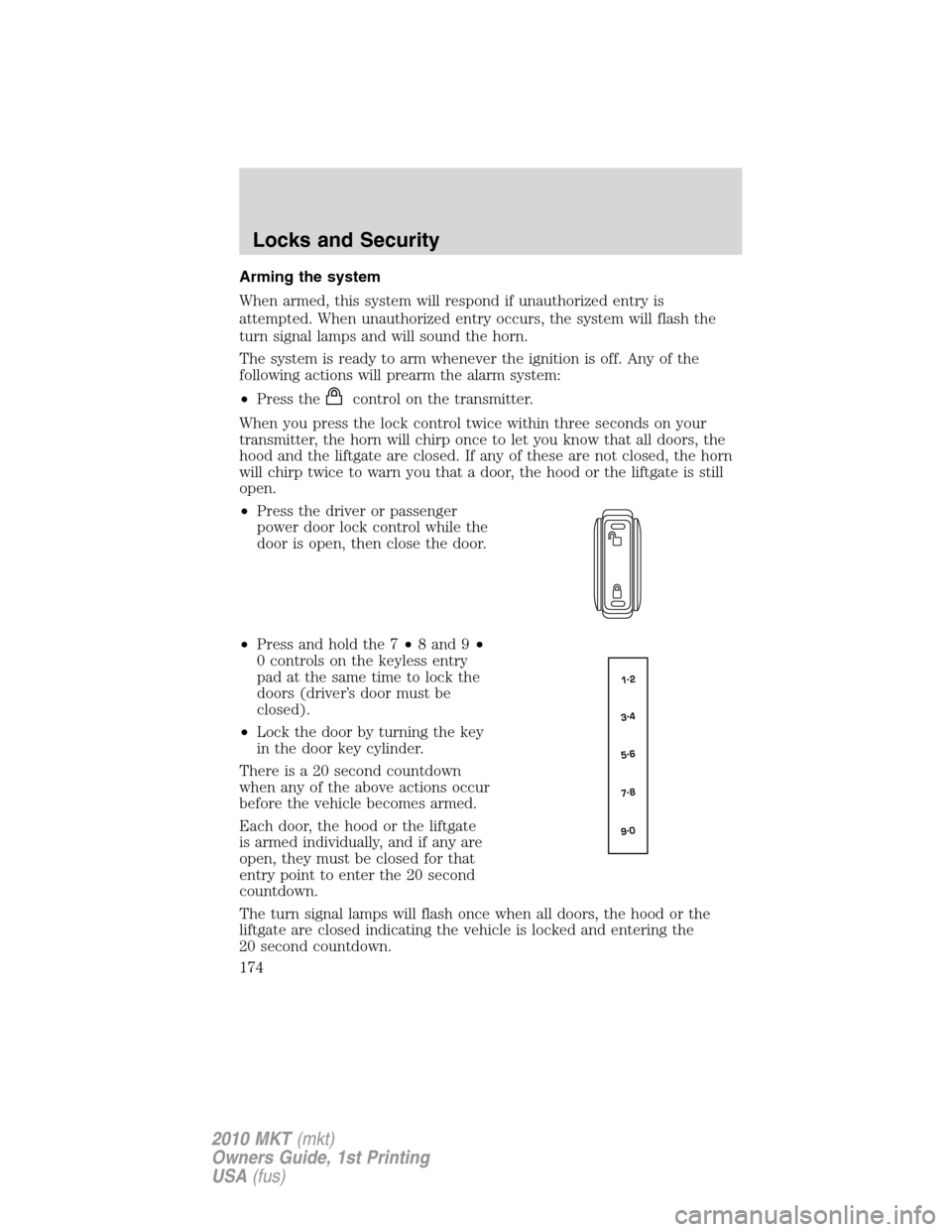

Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
turn signal lamps and will sound the horn.
The system is ready to arm whenever the ignition is off. Any of the
following actions will prearm the alarm system:
•Press the
control on the transmitter.
When you press the lock control twice within three seconds on your
transmitter, the horn will chirp once to let you know that all doors, the
hood and the liftgate are closed. If any of these are not closed, the horn
will chirp twice to warn you that a door, the hood or the liftgate is still
open.
•Press the driver or passenger
power door lock control while the
door is open, then close the door.
•Press and hold the 7•8 and 9•
0 controls on the keyless entry
pad at the same time to lock the
doors (driver’s door must be
closed).
•Lock the door by turning the key
in the door key cylinder.
There is a 20 second countdown
when any of the above actions occur
before the vehicle becomes armed.
Each door, the hood or the liftgate
is armed individually, and if any are
open, they must be closed for that
entry point to enter the 20 second
countdown.
The turn signal lamps will flash once when all doors, the hood or the
liftgate are closed indicating the vehicle is locked and entering the
20 second countdown.
Locks and Security
174
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

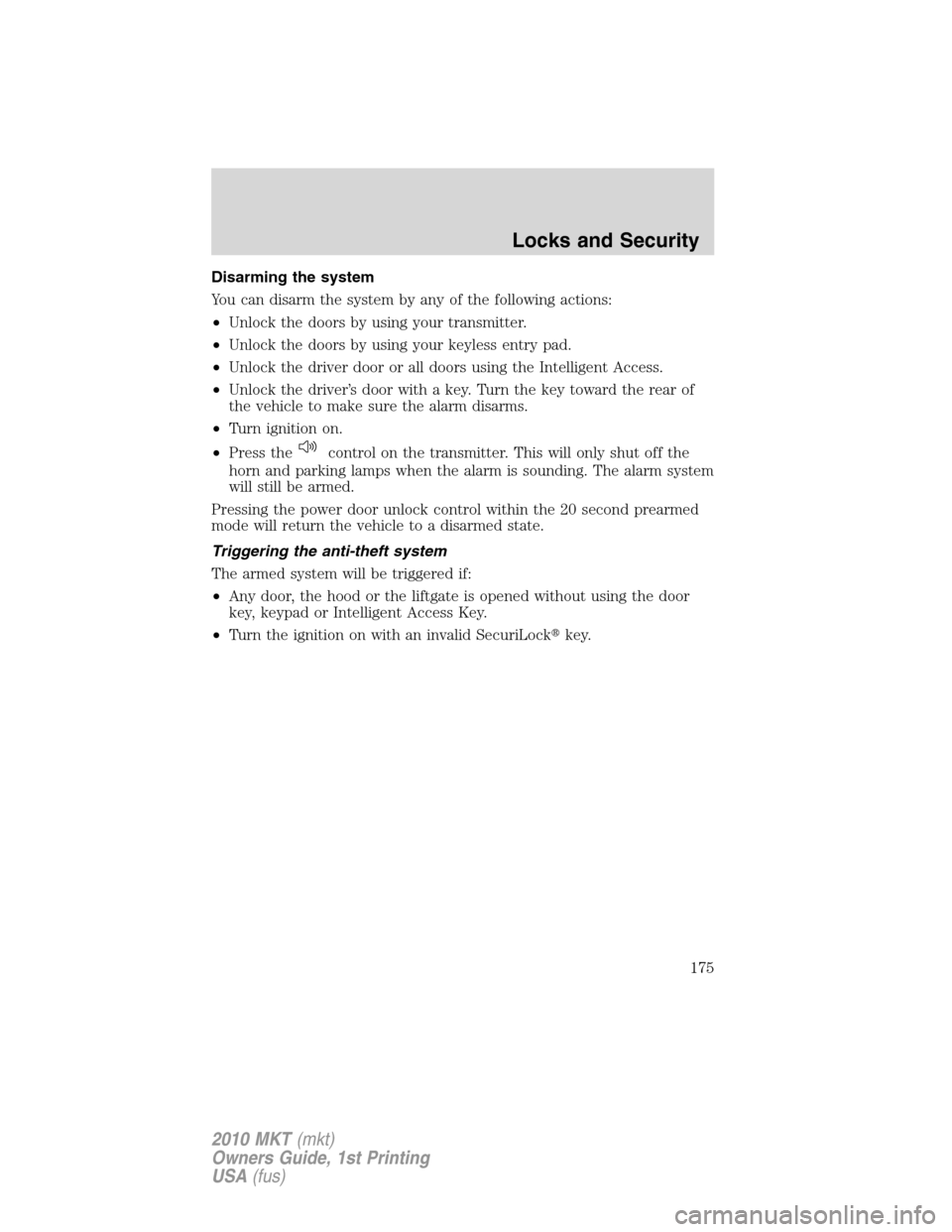

Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by using your transmitter.
•Unlock the doors by using your keyless entry pad.
•Unlock the driver door or all doors using the Intelligent Access.
•Unlock the driver’s door with a key. Turn the key toward the rear of
the vehicle to make sure the alarm disarms.
•Turn ignition on.
•Press the
control on the transmitter. This will only shut off the
horn and parking lamps when the alarm is sounding. The alarm system
will still be armed.
Pressing the power door unlock control within the 20 second prearmed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if:
•Any door, the hood or the liftgate is opened without using the door
key, keypad or Intelligent Access Key.
•Turn the ignition on with an invalid SecuriLock
key.
Locks and Security
175
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

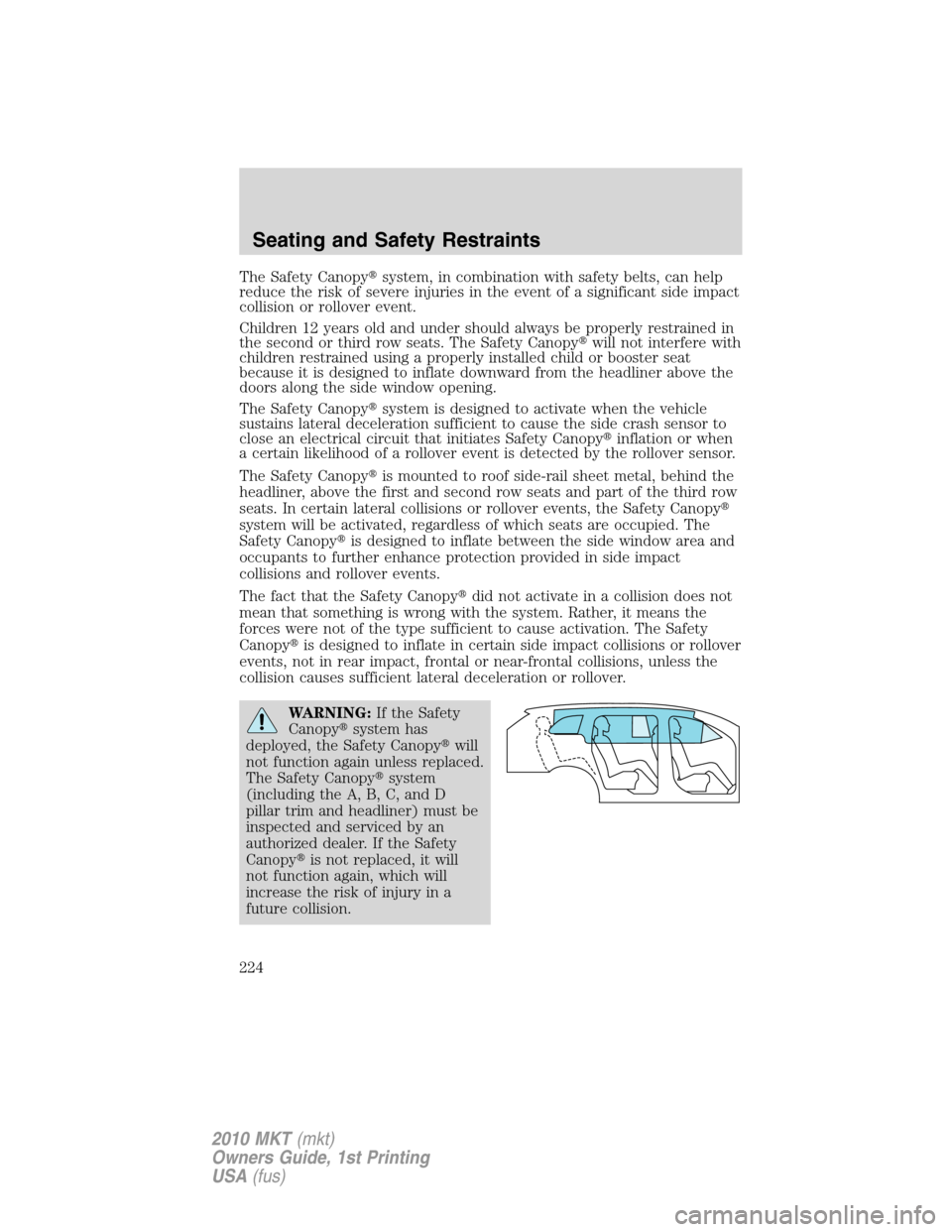

The Safety Canopy
system, in combination with safety belts, can help
reduce the risk of severe injuries in the event of a significant side impact
collision or rollover event.
Children 12 years old and under should always be properly restrained in
the second or third row seats. The Safety Canopy
will not interfere with
children restrained using a properly installed child or booster seat
because it is designed to inflate downward from the headliner above the
doors along the side window opening.
The Safety Canopy
system is designed to activate when the vehicle
sustains lateral deceleration sufficient to cause the side crash sensor to
close an electrical circuit that initiates Safety Canopy
inflation or when
a certain likelihood of a rollover event is detected by the rollover sensor.
The Safety Canopy
is mounted to roof side-rail sheet metal, behind the
headliner, above the first and second row seats and part of the third row
seats. In certain lateral collisions or rollover events, the Safety Canopy

system will be activated, regardless of which seats are occupied. The
Safety Canopy
is designed to inflate between the side window area and
occupants to further enhance protection provided in side impact
collisions and rollover events.
The fact that the Safety Canopy
did not activate in a collision does not
mean that something is wrong with the system. Rather, it means the
forces were not of the type sufficient to cause activation. The Safety
Canopy
is designed to inflate in certain side impact collisions or rollover
events, not in rear impact, frontal or near-frontal collisions, unless the
collision causes sufficient lateral deceleration or rollover.
WARNING:If the Safety
Canopy
system has
deployed, the Safety Canopy
will
not function again unless replaced.
The Safety Canopy
system
(including the A, B, C, and D
pillar trim and headliner) must be
inspected and serviced by an
authorized dealer. If the Safety
Canopy
is not replaced, it will
not function again, which will
increase the risk of injury in a
future collision.
Seating and Safety Restraints
224
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

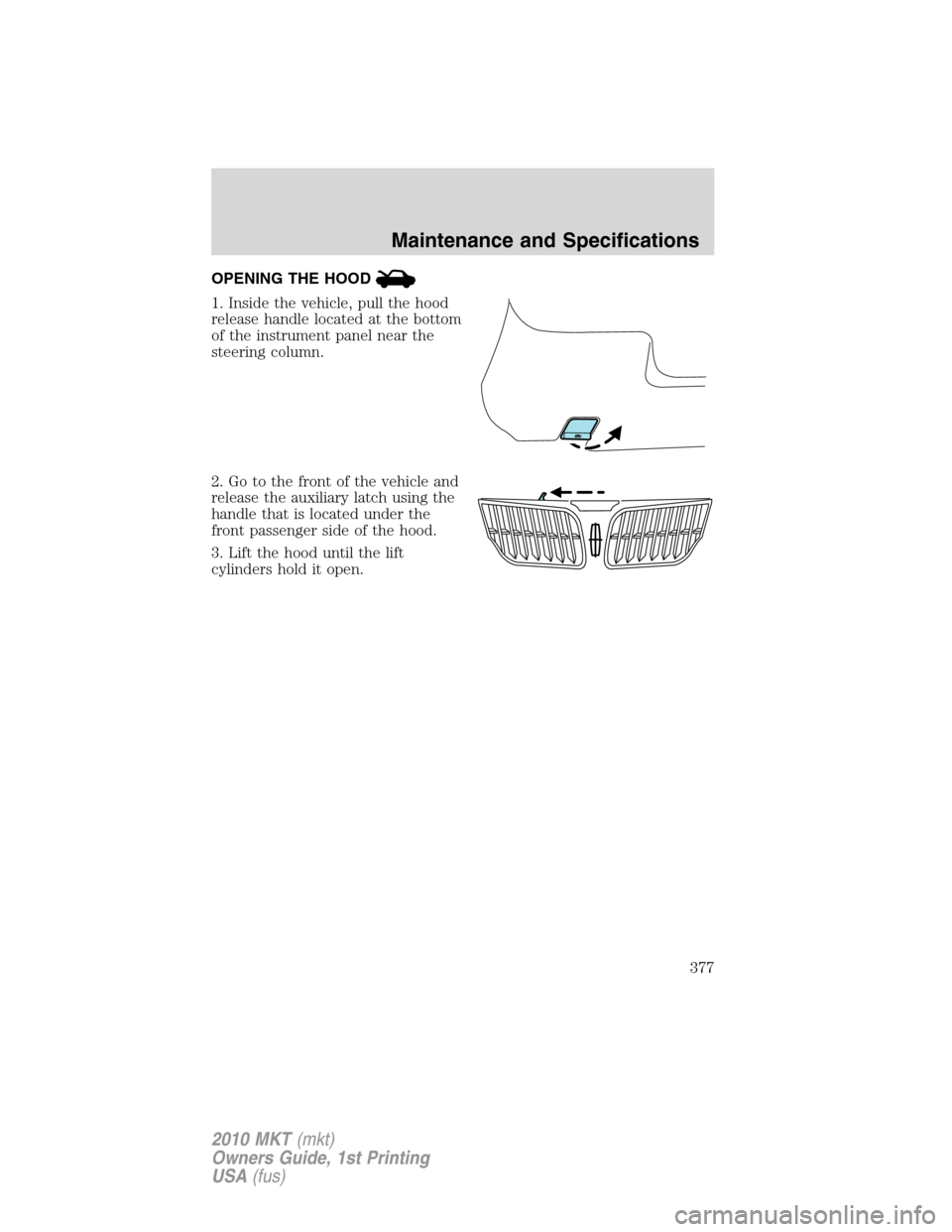

OPENING THE HOOD
1. Inside the vehicle, pull the hood
release handle located at the bottom
of the instrument panel near the
steering column.
2. Go to the front of the vehicle and
release the auxiliary latch using the
handle that is located under the
front passenger side of the hood.
3. Lift the hood until the lift
cylinders hold it open.
Maintenance and Specifications
377
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)

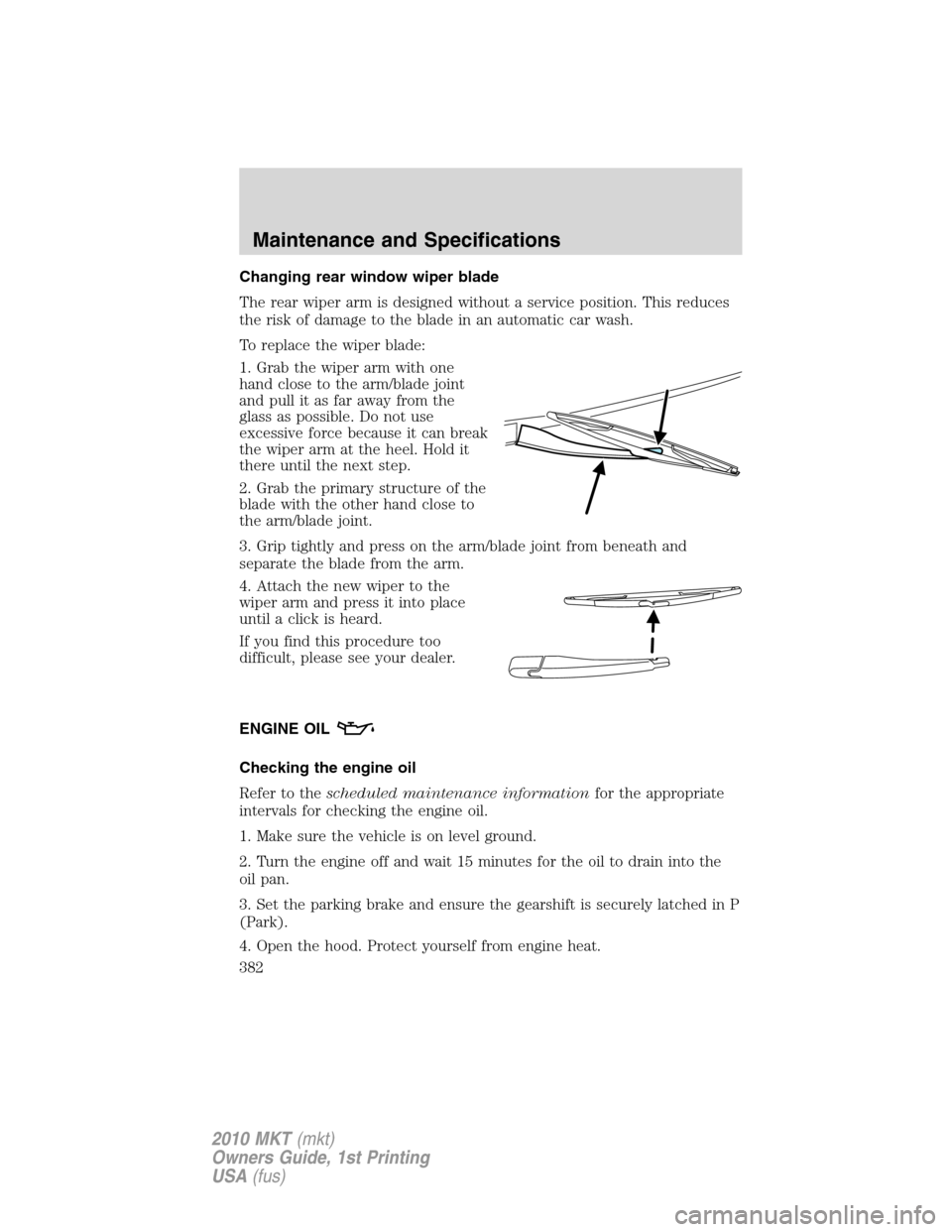

Changing rear window wiper blade
The rear wiper arm is designed without a service position. This reduces
the risk of damage to the blade in an automatic car wash.
To replace the wiper blade:
1. Grab the wiper arm with one
hand close to the arm/blade joint
and pull it as far away from the
glass as possible. Do not use
excessive force because it can break
the wiper arm at the heel. Hold it
there until the next step.
2. Grab the primary structure of the
blade with the other hand close to
the arm/blade joint.
3. Grip tightly and press on the arm/blade joint from beneath and
separate the blade from the arm.
4. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
If you find this procedure too
difficult, please see your dealer.
ENGINE OIL
Checking the engine oil
Refer to thescheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait 15 minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
4. Open the hood. Protect yourself from engine heat.
Maintenance and Specifications
382
2010 MKT(mkt)
Owners Guide, 1st Printing
USA(fus)
