headlamp LINCOLN MKX 2010 User Guide

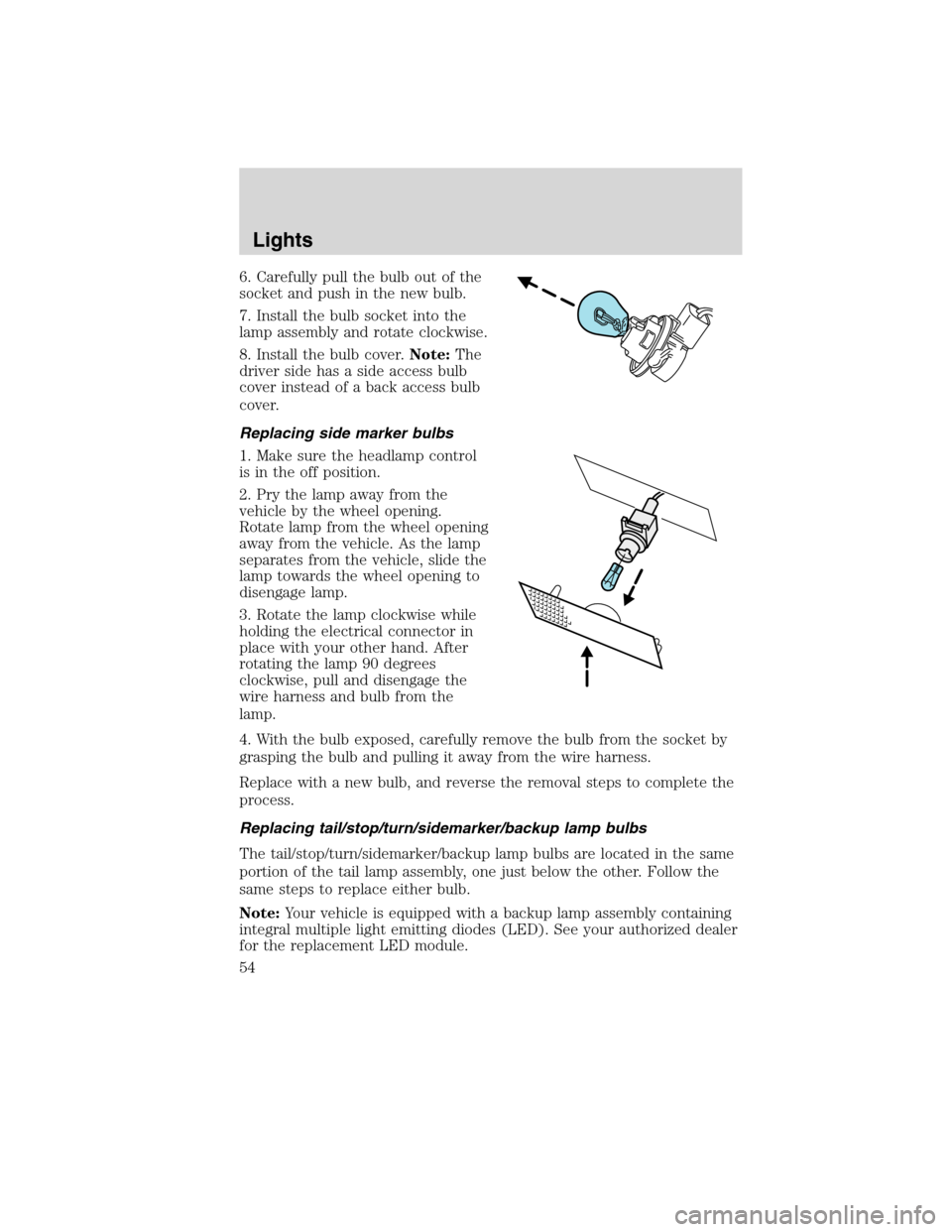

6. Carefully pull the bulb out of the
socket and push in the new bulb.
7. Install the bulb socket into the
lamp assembly and rotate clockwise.
8. Install the bulb cover.Note:The
driver side has a side access bulb
cover instead of a back access bulb
cover.
Replacing side marker bulbs
1. Make sure the headlamp control
is in the off position.
2. Pry the lamp away from the
vehicle by the wheel opening.
Rotate lamp from the wheel opening
away from the vehicle. As the lamp
separates from the vehicle, slide the
lamp towards the wheel opening to
disengage lamp.
3. Rotate the lamp clockwise while
holding the electrical connector in
place with your other hand. After
rotating the lamp 90 degrees
clockwise, pull and disengage the
wire harness and bulb from the
lamp.
4. With the bulb exposed, carefully remove the bulb from the socket by
grasping the bulb and pulling it away from the wire harness.
Replace with a new bulb, and reverse the removal steps to complete the
process.
Replacing tail/stop/turn/sidemarker/backup lamp bulbs
The tail/stop/turn/sidemarker/backup lamp bulbs are located in the same
portion of the tail lamp assembly, one just below the other. Follow the
same steps to replace either bulb.
Note:Your vehicle is equipped with a backup lamp assembly containing
integral multiple light emitting diodes (LED). See your authorized dealer
for the replacement LED module.
Lights
54
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

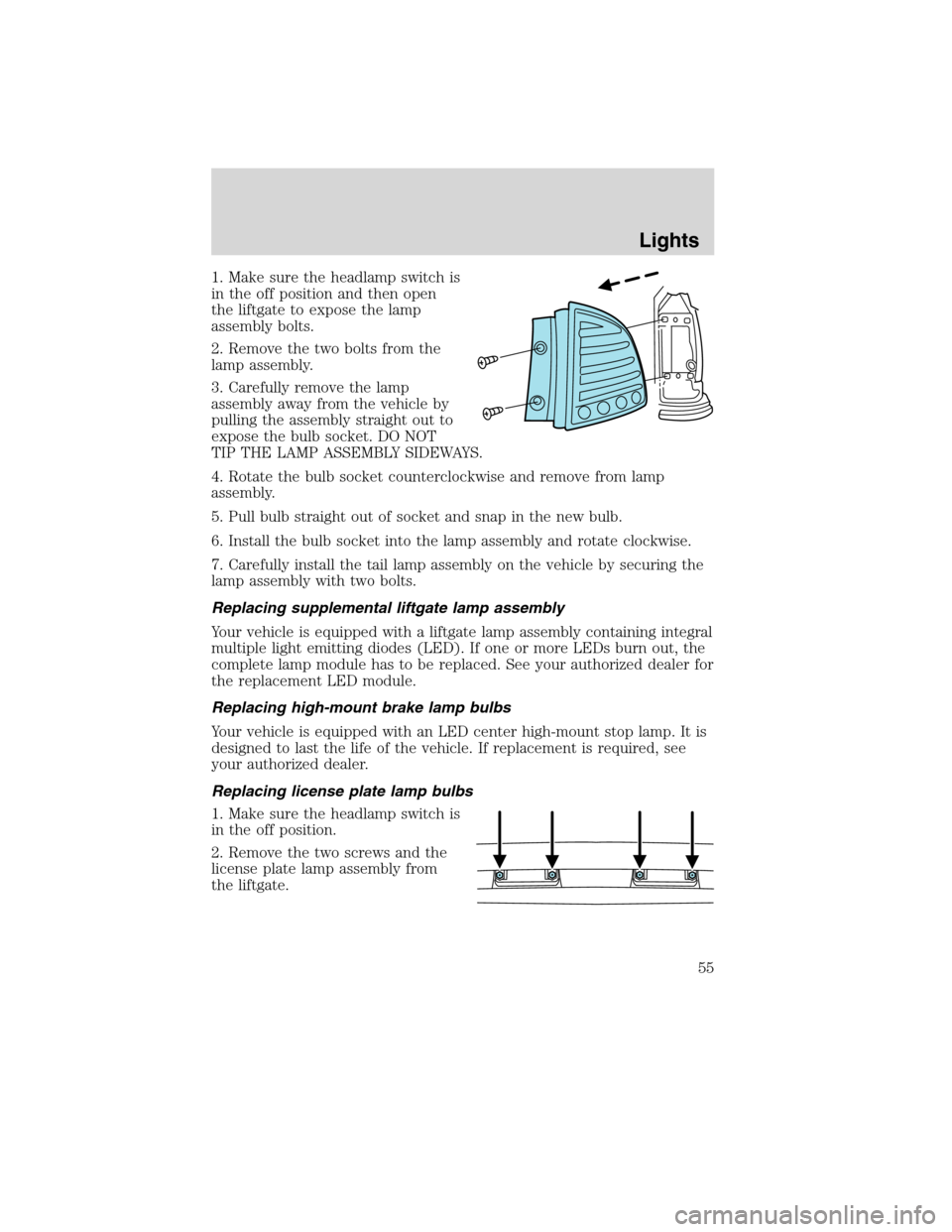

1. Make sure the headlamp switch is
in the off position and then open
the liftgate to expose the lamp
assembly bolts.
2. Remove the two bolts from the
lamp assembly.
3. Carefully remove the lamp
assembly away from the vehicle by
pulling the assembly straight out to
expose the bulb socket. DO NOT
TIP THE LAMP ASSEMBLY SIDEWAYS.
4. Rotate the bulb socket counterclockwise and remove from lamp
assembly.
5. Pull bulb straight out of socket and snap in the new bulb.
6. Install the bulb socket into the lamp assembly and rotate clockwise.
7. Carefully install the tail lamp assembly on the vehicle by securing the
lamp assembly with two bolts.
Replacing supplemental liftgate lamp assembly
Your vehicle is equipped with a liftgate lamp assembly containing integral
multiple light emitting diodes (LED). If one or more LEDs burn out, the
complete lamp module has to be replaced. See your authorized dealer for
the replacement LED module.
Replacing high-mount brake lamp bulbs
Your vehicle is equipped with an LED center high-mount stop lamp. It is
designed to last the life of the vehicle. If replacement is required, see
your authorized dealer.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the off position.
2. Remove the two screws and the
license plate lamp assembly from
the liftgate.
Lights
55
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

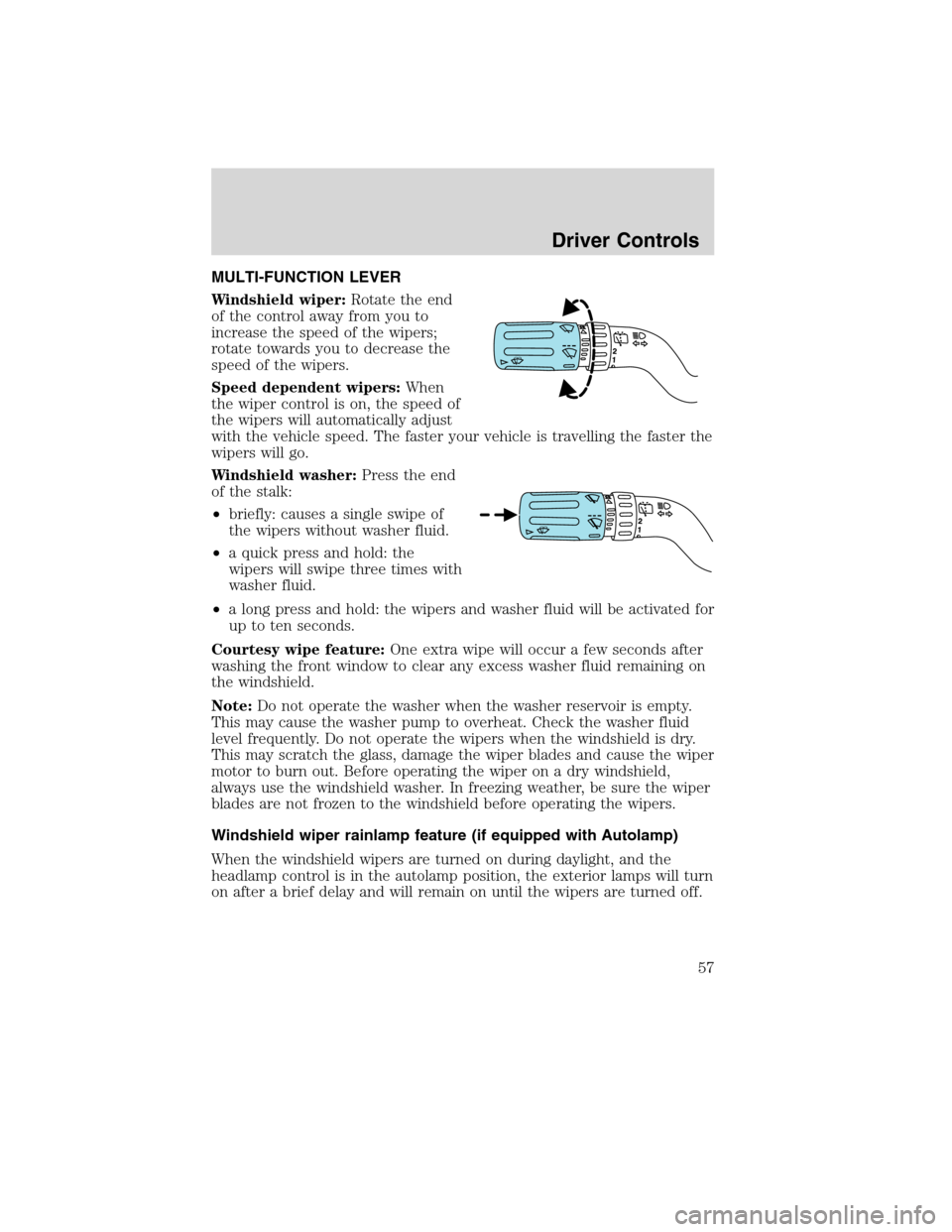

MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Speed dependent wipers:When
the wiper control is on, the speed of
the wipers will automatically adjust
with the vehicle speed. The faster your vehicle is travelling the faster the
wipers will go.
Windshield washer:Press the end
of the stalk:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick press and hold: the
wipers will swipe three times with
washer fluid.
•a long press and hold: the wipers and washer fluid will be activated for
up to ten seconds.
Courtesy wipe feature:One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Windshield wiper rainlamp feature (if equipped with Autolamp)
When the windshield wipers are turned on during daylight, and the
headlamp control is in the autolamp position, the exterior lamps will turn
on after a brief delay and will remain on until the wipers are turned off.
Driver Controls
57
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

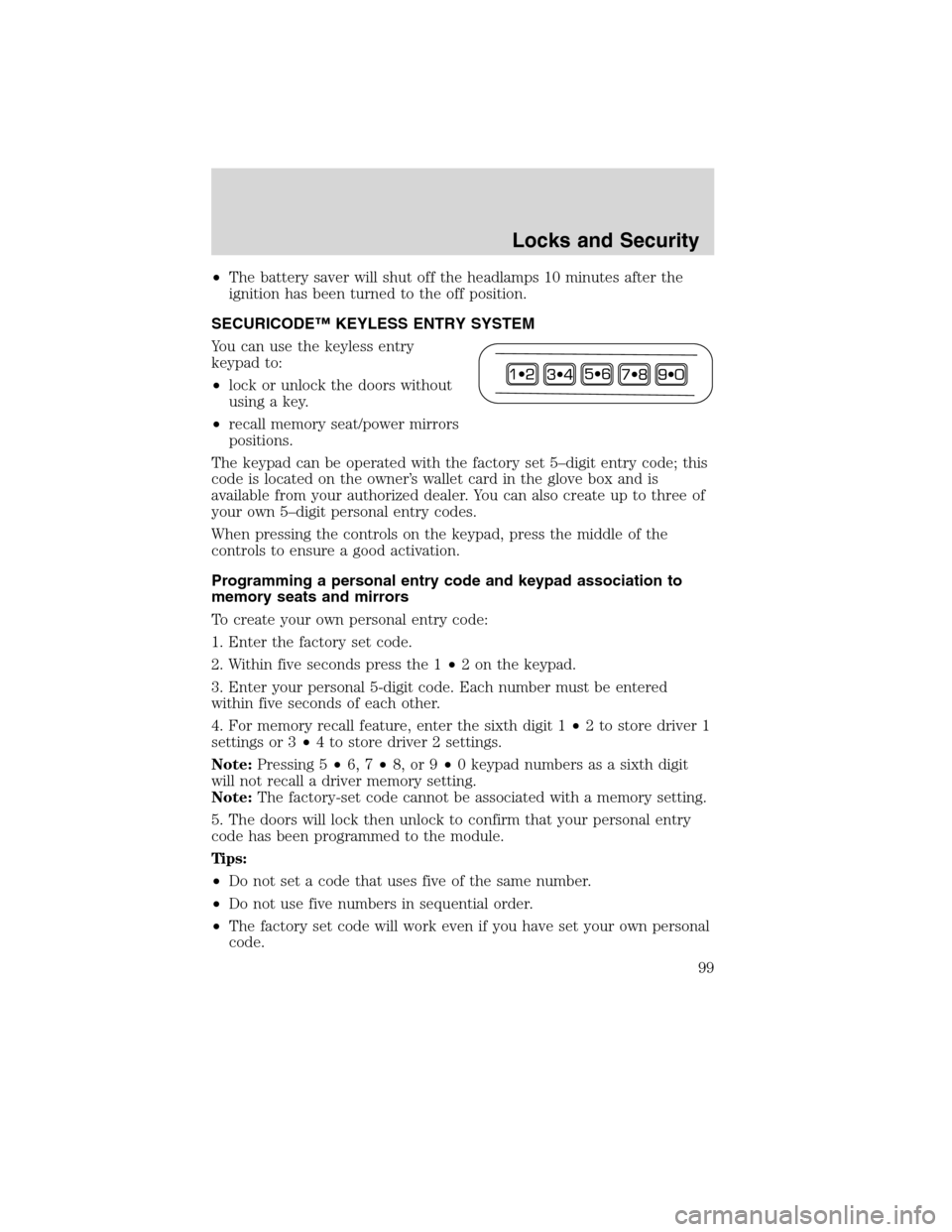

•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the off position.
SECURICODE™ KEYLESS ENTRY SYSTEM
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•recall memory seat/power mirrors
positions.
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to three of
your own 5–digit personal entry codes.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory seats and mirrors
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. For memory recall feature, enter the sixth digit 1•2 to store driver 1
settings or 3•4 to store driver 2 settings.
Note:Pressing 5•6, 7•8, or 9•0 keypad numbers as a sixth digit
will not recall a driver memory setting.
Note:The factory-set code cannot be associated with a memory setting.
5. The doors will lock then unlock to confirm that your personal entry
code has been programmed to the module.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Locks and Security
99
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

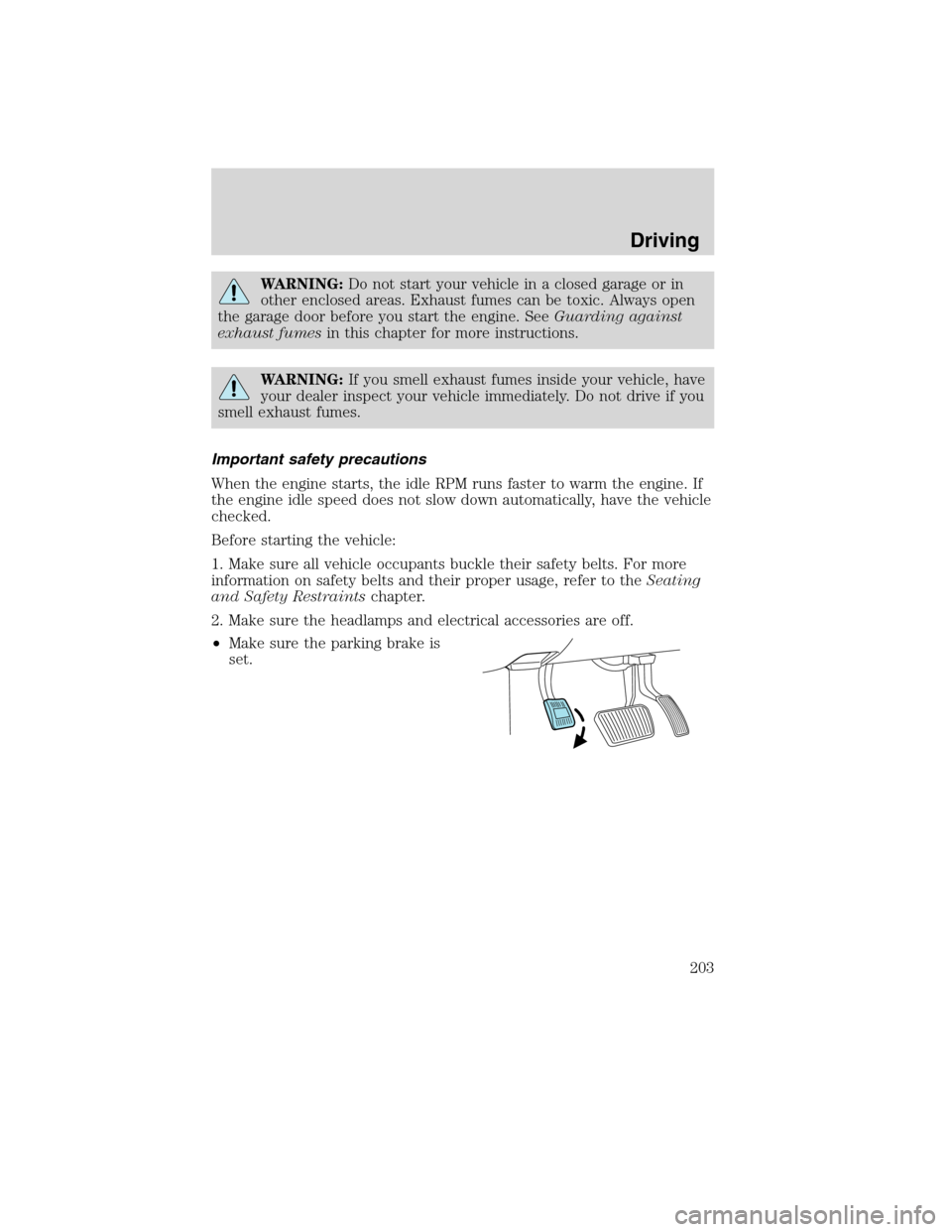

WARNING:Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine. SeeGuarding against
exhaust fumesin this chapter for more instructions.
WARNING:If you smell exhaust fumes inside your vehicle, have
your dealer inspect your vehicle immediately. Do not drive if you
smell exhaust fumes.
Important safety precautions
When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.
Before starting the vehicle:
1. Make sure all vehicle occupants buckle their safety belts. For more
information on safety belts and their proper usage, refer to theSeating
and Safety Restraintschapter.
2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
Driving
203
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Passenger front smart window
2 15A High-mount brake lamp (brake
on/off)
3 15A SYNCmodule
4 30A Driver front smart window
5 10A Keypad illumination, 2nd row seat
6 20A Turn signals
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior lights, Cargo lamps
10 15A Backlighting, Puddle lamps
11 10A All wheel drive (AWD)
Roadside Emergencies
233
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 7.5A Power mirror switch, Driver side
power seat memory, Driver seat
module – keep alive power
13 5A Satellite radio
14 10A Power liftgate – keep alive power
15 10A Climate control, GPS module
16 15A Not used (spare)
17 20A All power lock motor feeds,
Liftgate release, Express down
front windows
18 20A THX system
19 25A Rear wiper
20 15A Datalink
21 15A Fog lamps
22 15A Park lamps
23 15A High beam headlamps
24 20A Horn relay
25 10A Demand lamps
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Overdrive cancel
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Steering angle sensor
35 10A Rear park assist, Yaw rate sensor,
Heated seats
36 5A Passive anti-theft system
transceiver
37 10A Climate control
Roadside Emergencies
234
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

Engine block heater .................205
Engine oil ..................................272
change oil soon warning,
message center .......................272
checking and adding ..............272
dipstick ....................................272
filter, specifications ........275, 299
recommendations ...................275
refill capacities ........................300
specifications ..........................300
Event data recording ....................7
Exhaust fumes ..........................205
F
Fail safe cooling ........................282
Fluid capacities .........................300
Fog lamps ....................................46
Four-Wheel Drive vehicles
driving off road .......................222
Fuel ............................................283
calculating fuel
economy ............................20, 288
cap ...........................................286
capacity ...................................300
choosing the right fuel ...........287
comparisons with EPA fuel
economy estimates .................291
detergent in fuel .....................288
filling your vehicle
with fuel ..................283, 286, 288
filter, specifications ........283, 299
fuel pump shut-off switch .....231
improving fuel economy ........288
octane rating ...................287, 303
quality ......................................287
running out of fuel .................288
safety information relating to
automotive fuels .....................283
Fuses ..................................231–232G
Garage door opener ....................70
Gas cap (see Fuel cap) ............286
Gas mileage (see Fuel
economy) ...................................288
Gauges .........................................16
H
Hazard flashers .........................230
Head restraints .........................116
Headlamps ...................................45
aiming ........................................47
autolamp system .......................45
bulb specifications ....................51
daytime running lights .............46
flash to pass ..............................46
high beam .................................46
replacing bulbs .........................52
turning on and off ....................45
Heating
heating and air conditioning
system .......................................40
Homelink wireless control
system ..........................................70
Hood ..........................................268
I
Ignition ...............................202, 303
Illuminated visor mirror .............59
Infant seats
(see Safety seats) .....................155
Inspection/maintenance (I/M)
testing ........................................293
Instrument panel
cleaning ...................................264
Index
313
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)

cluster ........................................12
lighting up panel and
interior .......................................47
J
Jack ............................................239
positioning ...............................239
storage .....................................239
Jump-starting your vehicle ......246
K
Keyless entry system
autolock .....................................88
keypad .......................................99
locking and unlocking
doors ........................................100
programming entry code .........99
Keys .....................................87, 102
positions of the ignition .........202
L
Lamps
autolamp system .......................45
bulb replacement
specifications chart ..................51
daytime running light ...............46
fog lamps ...................................46
headlamps .................................45
headlamps, flash to pass ..........46
instrument panel, dimming .....47
interior lamps ...............49–50, 52
replacing bulbs .........................52
LATCH anchors .........................158
Liftgate ......................79, 83, 85, 94
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........208
Load limits .................................189Locks
autolock .....................................88
childproof ..................................92
doors ..........................................88
Lubricant specifications ...........300
Lug nuts ....................................245
Lumbar support, seats .............111
M
Message center ...........................18
english/metric button ...............22
system check button ................22
Mirrors ...................................63–64
automatic dimming rearview
mirror ........................................63
fold away ...................................64
heated ........................................64
programmable memory ............95
side view mirrors (power) .......64
Moon roof ..............................68, 94
Motorcraft parts ................266, 299
N
Navigation system .......................39
O
Octane rating ............................287
Oil (see Engine oil) ..................272
Overdrive ...................................216
P
Parking brake ............................208
Parts (see Motorcraft parts) ....299
Passenger Occupant
Classification Sensor .................121
Index
314
2010 MKX(mkx)
Owners Guide(own2002), 1st Printing
USA(fus)
