ACCESSING AND ADJUSTING MODES THROUGH YOUR
INFOTAINMENT DISPLAY (IF EQUIPPED)
Your vehicle may have an infotainment display located on the right side
of your instrument cluster. The display allows you to view and make
minor adjustments to your active modes without taking your hands off
the wheel. For example:
•In phone mode, you can accept or reject an incoming call.
•In Entertainment mode, you can view what is playing and make some
adjustments.
•You can also access and make adjustments in Navigation mode (if
equipped) and Climate mode.
Use the OK and arrow buttons on
the right side of your steering wheel
to scroll through your available
modes:
•
Entertainment
•
Phone
•
Navigation (if equipped)
•
Climate
Note:If your vehicle is not equipped with navigation,Compasswill
appear in the display instead ofNavigation. If you press
to go into
theCompassmenu, you can see the compass graphic.
•Press
/to scroll through the modes.
km/h
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
100120140
MPH
Instrument cluster
9
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)

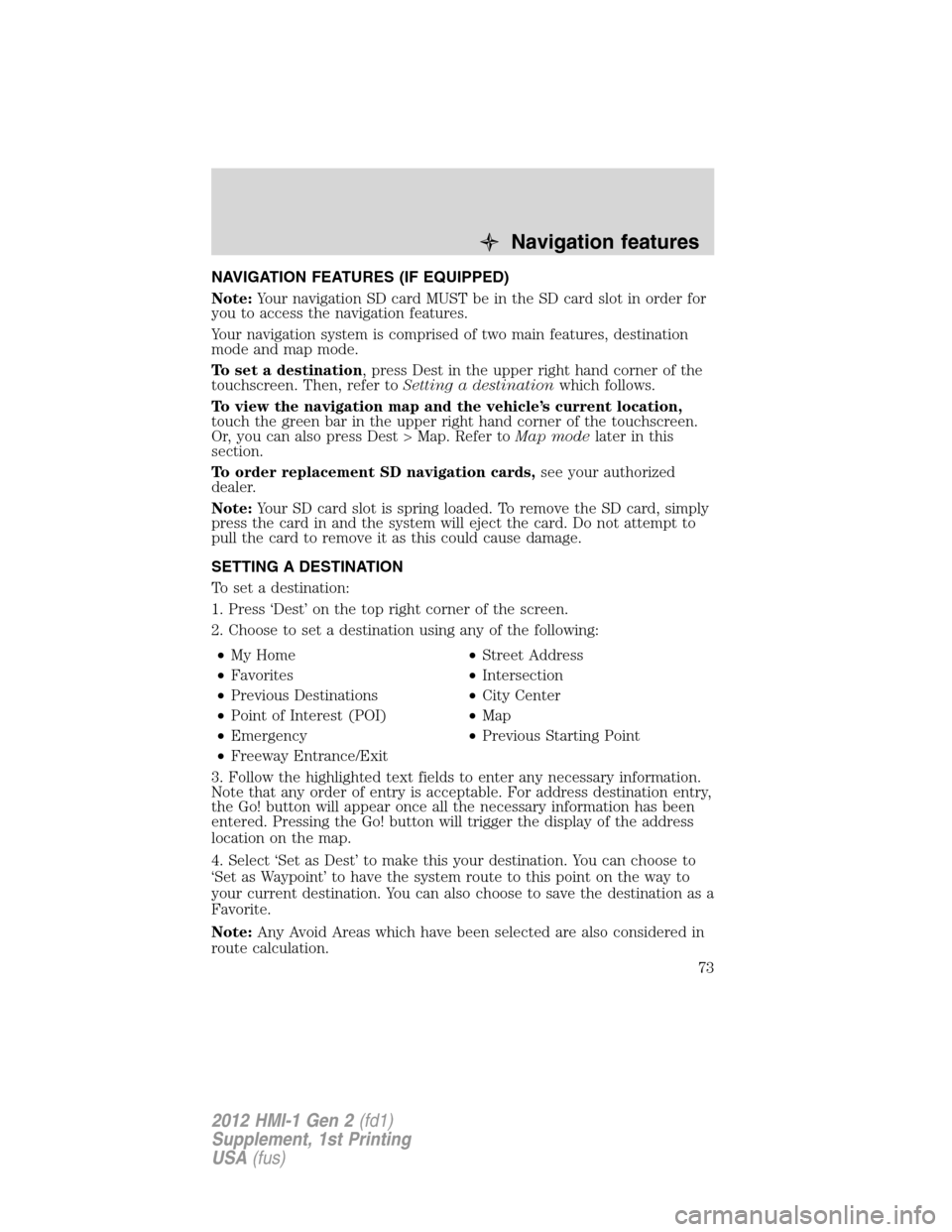

NAVIGATION FEATURES (IF EQUIPPED)
Note:Your navigation SD card MUST be in the SD card slot in order for
you to access the navigation features.
Your navigation system is comprised of two main features, destination
mode and map mode.
To set a destination, press Dest in the upper right hand corner of the
touchscreen. Then, refer toSetting a destinationwhich follows.
To view the navigation map and the vehicle’s current location,
touch the green bar in the upper right hand corner of the touchscreen.
Or, you can also press Dest > Map. Refer toMap modelater in this
section.
To order replacement SD navigation cards,see your authorized
dealer.
Note:Your SD card slot is spring loaded. To remove the SD card, simply
press the card in and the system will eject the card. Do not attempt to
pull the card to remove it as this could cause damage.
SETTING A DESTINATION
To set a destination:
1. Press ‘Dest’ on the top right corner of the screen.
2. Choose to set a destination using any of the following:
•My Home•Street Address
•Favorites•Intersection
•Previous Destinations•City Center
•Point of Interest (POI)•Map
•Emergency•Previous Starting Point
•Freeway Entrance/Exit
3. Follow the highlighted text fields to enter any necessary information.
Note that any order of entry is acceptable. For address destination entry,
the Go! button will appear once all the necessary information has been
entered. Pressing the Go! button will trigger the display of the address
location on the map.
4. Select ‘Set as Dest’ to make this your destination. You can choose to
‘Set as Waypoint’ to have the system route to this point on the way to
your current destination. You can also choose to save the destination as a
Favorite.
Note:Any Avoid Areas which have been selected are also considered in
route calculation.
Navigation features
73
2012 HMI-1 Gen 2(fd1)
Supplement, 1st Printing
USA(fus)
