MAP MODE
To enter map mode:
1. Ensure that the system is on.
2. Press the MAP hard button on the navigation system. The map screen
will display.
When in MAP mode, an icon appears on the upper left side of the
screen; this is a toggle button to change the view of the map displayed.
The following methods exist for orientation of the map:
•Heading up:In this mode, the
direction of forward travel is
always the upward direction on
screen. Available for map scales up to 2.5 mi /5km. For scales above
that, the setting for Heading-Up is remembered, but the map is shown
in North-Up only. If the scale returns below this level, then the
Heading-Up setting is restored.
•North up:In this mode, the
Northern Direction is always the
upward direction on screen.
MAP SCALE
The map display scale on the map
has 17 levels, ranging from
0.02 miles to 1,000 miles. Zoom
scales for ‘North up’ , ‘Heading up’
and 3D map view are synchronized. In MAP mode, you can also zoom in
or out, changing the display scale by pressing on one of the arrows on
the button appearing on the left side of the screen. When in Full Screen
Map Mode, touching this button will cause the Zoom Direct buttons to
appear. The Zoom Direct buttons represent the most common scales and
can be pressed directly to show the map at the desired scale. The scale
is approximate and based on the width of the display button (A). The
size of the scale will vary based on the screen size.
Map road colors and building representation on the map:
•Roads:Will be displayed in a variety of colors.
•Building footprints:Will display areas of major buildings in the 20
largest cities in the U.S. These areas will be displayed depending on
their size and the map zoom level.
A
Setting a destination
109
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Route guidance in incomplete mapped areas
There are some rural areas in the map database where roads have not
been fully verified. When the system is in route guidance mode, and the
navigation system encounters these incomplete mapped areas, the
system will alert you by:
•AnnouncingEntering an area with incomplete map data, please follow
with caution.
•Sayingwith cautionin the first route guidance instruction before
each turn.
•Highlighting the route on the map in yellow.
•Highlighting the incomplete mapped streets in yellow on the turn list.
•Coloring the guidance arrows yellow.
Please drive using extra caution when driving in these areas as the
mapping information may be somewhat inaccurate.
Setting a destination
113
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

NAVIGATION FEATURES
To access the navigation features, press NAV on the navigation system.
You can then select from the following options:
Map Prefs:Select to access/adjust
map content such as Street name,
Time to destination, Speed Limit ,
Bread crumbs, POI, Map views,
Bird’s eye view and Turn list format.
Route Prefs:Press to select
between Shortest Distance, Fastest
time when navigating a route. Also
select to avoid freeways, toll roads
ferries, etc.
Traffic Prefs:Select to have the
system color code roads according
to speed of traffic flow, or if you
would like to receive traffic alerts.
Note:Requires SIRIUSTravel
Link™ (if activated). SIRIUS
Travel Link™ is only available in the
U.S.
Navigation route preferences
114
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

You can also have the system add
special icons to the map for things
such as road work, accidents, etc.
Navigation Prefs:Select to
access/adjust guidance prompts,
average speed, fuel price display,
calibration and default settings.
Avoid Areas:Press to select
specific areas which you would like
the navigation system to avoid when
routing a destination. The system
will do its best to avoid the items
and areas that have been set. There
will be some situations where it may
be impossible to completely honor
the avoid settings. For example, if a
destination or waypoint is located in
an area that is set to avoid, the system will not be able to avoid it.
Navigation route preferences
115
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

MAP PREFERENCES
1. Press the NAV hard button on the
navigation system.
2. Select ’Map Preferences’ tab on
the touchscreen to choose from the
following options:
Map Content
•Street name:This feature will display the current street name in a
window at the top of the screen during guidance.
•Time to Dest:This feature will display the distance to the selected
destination as well as the Estimated Time of Arrival (ETA) on a
pop-up screen activated by an icon on the left side of the map.
•Speed Limit:This feature will display the speed limit of major roads
at the bottom of the map while in route guidance.
•Breadcrumbs:This feature will display the vehicle’s previously
traveled route with white dots. The system can store around 140 miles
(230 km).
•Point of Interest (POI) icons:This feature displays POI icons on
the map.
Map View
•Full map:When selected during guidance, the map will be displayed
in full screen and turn icons will appear in the upper right corner of
the screen.
•Arrow/map:When selected during guidance, the screen will be
divided in two with a map displayed on the left and upcoming turn
information on the right.
•Turn list/map:When selected during guidance, this screen will be
divided in two with the map displayed on the left and a turn list on
the right.
Navigation route preferences
116
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Bird’s eye view
•On:Select to enable the Bird’s
eye view feature when the map
screen is displayed. This view
provides an elevated perspective.
•Off:Select to disable the Bird’s
eye view feature.
•Adjust angle:Select to adjust
the angle of the Bird’s eye view.
You have six different options.
Turn list format
•Top-to-bottom:Select to have the turn instructions begin at the top
and work down.
•Bottom-to-top:Select to have the turn instructions begin at the
bottom and work up.
ROUTE PREFERENCES
Your navigation system can search for up to three different routes. You
can select from the fastest route, the shortest route, or the ‘unrestricted’
route which does not consider any ‘avoid’ areas which may have been
selected. If there are not any ‘avoid’ settings, the system will only
produce two possible routes. You can select the order in which the
routes are displayed. The system will automatically avoid unpaved roads
as much as possible. To access:
1. Press the NAV hard button on the navigation system.
2. Select the ‘Route Preferences’ tab on the touchscreen and select from
the following:
Shortest Distance:Select to have
the navigation system display the
shortest route first.
Fastest Time:Select to have the
navigation system display the fastest
route first.
Avoid Freeways/Toll
Roads/Ferries/HOV Lanes/Time
Restrictions:The system will
search for routes using or attempting to avoid the use of freeways, toll
roads, ferries and or time restrictions whenever possible, according to
Navigation route preferences
117
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

your preferences. HOV lanes are High Occupancy Vehicle Lanes also
known as carpool or diamond lanes. These lanes are reserved for people
who ride in buses, vanpools or carpools. Time restricted roads are roads
that have turn, lane or entrance restrictions based on local traffic
conditions or seasonal restrictions. Select the desired preferences from
the avoid menu.
NAVIGATION PREFERENCES
1. Press the NAV hard button on the navigation system.
2. Select the ’Navigation Preferences’ tab on the touchscreen. Select
from the following:
Guidance Prompts
•Voice:Select to have the
navigation system guide you with
tones and voice prompts.
•Tone only:Select to have the
navigation system guide you with
tones only.
•Off:Select to not receive tone or
voice prompts from the system
during an active route.
Auto-fill state/province:When set to ‘On’, the state/province will be
automatically filled in based on the vehicle’s GPS location.
Note:If you live in a border area, you may not want this selection to fill
automatically.
Average speed: ResidentialWhen this feature is enabled, the system
will display the average speed on a residential road, initially set to
25 mph (40 km/h). You can adjust the setting using + or — for your
specific driving preferences. These settings help the system better
estimate your arrival time at a destination based on your driving
preferences.
Average speed: Main RoadsWhen this feature is enabled, the system
will display the average speed on a main road, initially set to 45 mph
(72 km/h). You can adjust the setting for specific roads. You can adjust
the setting using + or — for your specific driving preferences. These
settings help the system better estimate your arrival time at a destination
based on your driving preferences.
Navigation route preferences
118
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Average speed: FreewaysWhen this feature is enabled, the system will
display the average speed on a freeway, initially set to 65 mph
(105 km/h). You can adjust the setting for specific roads. You can adjust
the setting using + or — for your specific driving preferences. These
settings help the system better estimate your arrival time at a destination
based on your driving preferences.
Parking POI Notification:When enabled, this feature will display
available parking accommodations around a destination (when part of a
route).
Low Fuel POI Notification:When enabled, this feature will display gas
station icons on the map when the vehicle fuel level is low.
Fuel Price Display:When enabled, this feature will display fuel prices
at local gas stations. You can choose to display Unleaded or Diesel.
Note:Requires SIRIUSTravel Link™ (if activated).
Calibrate
•Position:You can adjust the direction of the vehicle by pressing the
arrow buttons on the screen.
•Distance:Press to have the system re-calibrate the distance to the
destination as the vehicle is in motion.
Restore Default Settings:Press to return to the factory default settings.
Avoid Areas:When enabled, you can select an area you would like the
system to avoid when creating a navigation route.
AVOID AREAS
You can tell the navigation system to avoid certain areas when
calculating a route.
1. Press the NAV hard button on the navigation system.
2. Select the ‘Avoid Areas’ tab to
select specific areas which you
would like the navigation system to
avoid when routing to destination.
3. Select ‘Add’ to add areas for the
system to avoid.
Navigation route preferences
119
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

The system will show you your
current avoid area on a map screen.
You can then choose to ’reduce’ the
avoid area, ‘expand’ the avoid area
or to ‘save’ the shown area. When
you are satisfied with your choice,
select ‘Save Area’. You can also
choose to edit the name of the
location. The system will add the
area to your ’avoid list’ and will
avoid that chosen area when calculating a route.
The system will do its best to avoid the items and areas that have been
set by the user. There will be some situations where it may be impossible
to completely honor avoid settings, for example, if a destination or
waypoint is located in an area that is set to avoid, the system will not be
able to avoid it.
Navigation voice commands
Press
or VOICE on the steering wheel controls. When prompted, say,
“Navigation” and then wait for the system to sound two tones and you
may say any of the following commands:
•Play nametags•Repeat instruction
•Detour•Cancel route
•Cancel next waypoint•Show destination
•Show next waypoint•Show route
•Show turn list•Show north up
•Show heading up•Show map
•Select map POI icons•Voice on
•Voice off•Voice volume increase
•Voice volume decrease•Zoom in
•Zoom out•Destination home
•Navigation destination
•Destination nearest POI
•Destination street address•Destination previous destination
•Destination Intersection•Destination POI
•Destination POI Category•Destination
•Help
Navigation route preferences
120
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

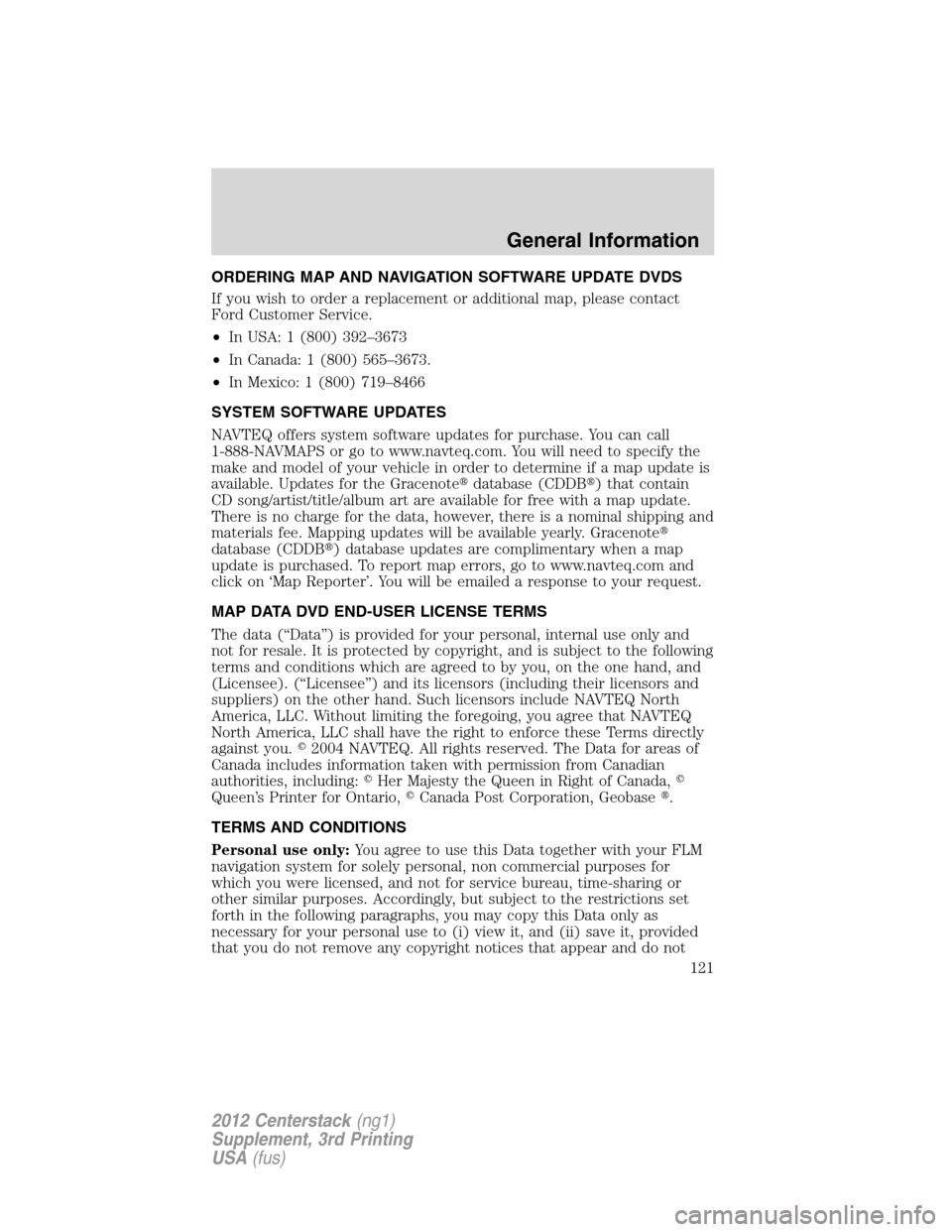

ORDERING MAP AND NAVIGATION SOFTWARE UPDATE DVDS
If you wish to order a replacement or additional map, please contact
Ford Customer Service.
•In USA: 1 (800) 392–3673
•In Canada: 1 (800) 565–3673.
•In Mexico: 1 (800) 719–8466
SYSTEM SOFTWARE UPDATES
NAVTEQ offers system software updates for purchase. You can call
1-888-NAVMAPS or go to www.navteq.com. You will need to specify the
make and model of your vehicle in order to determine if a map update is
available. Updates for the Gracenotedatabase (CDDB) that contain
CD song/artist/title/album art are available for free with a map update.
There is no charge for the data, however, there is a nominal shipping and
materials fee. Mapping updates will be available yearly. Gracenote
database (CDDB) database updates are complimentary when a map
update is purchased. To report map errors, go to www.navteq.com and
click on ‘Map Reporter’. You will be emailed a response to your request.
MAP DATA DVD END-USER LICENSE TERMS
The data (“Data”) is provided for your personal, internal use only and
not for resale. It is protected by copyright, and is subject to the following
terms and conditions which are agreed to by you, on the one hand, and
(Licensee). (“Licensee”) and its licensors (including their licensors and
suppliers) on the other hand. Such licensors include NAVTEQ North
America, LLC. Without limiting the foregoing, you agree that NAVTEQ
North America, LLC shall have the right to enforce these Terms directly
against you.2004 NAVTEQ. All rights reserved. The Data for areas of
Canada includes information taken with permission from Canadian
authorities, including:Her Majesty the Queen in Right of Canada,
Queen’s Printer for Ontario,Canada Post Corporation, Geobase.
TERMS AND CONDITIONS
Personal use only:You agree to use this Data together with your FLM
navigation system for solely personal, non commercial purposes for
which you were licensed, and not for service bureau, time-sharing or
other similar purposes. Accordingly, but subject to the restrictions set
forth in the following paragraphs, you may copy this Data only as
necessary for your personal use to (i) view it, and (ii) save it, provided
that you do not remove any copyright notices that appear and do not
General Information
121
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
