Voice recognition visual feedback
When Voice recognition (VR) is activated, the following icons will appear
in the status bar.
VR State VR Icon
Main Menu/Generic
VR recognition failure
VR session unsuccessful?
Listening
Listening paused
Speaking instructions
For the best voice recognition, please ensure that:
•The interior of the vehicle needs to be as quiet as possible. Wind noise
from open windows and road vibrations may prevent the system from
correctly recognizing voice commands.
•Press
or VOICE and wait until the second tone sounds before
speaking a command.
•Speak naturally without large pauses in between words.
•Speak louder if background noise is preventing the system from
recognizing your command
•Only one person should speak while the system is listening for a
command.
•Please realize voice recognition performance is not 100% and varies by
user. The voice recognition system is meant to be a secondary
convenience control and if it doesn’t operate optimally, you can still
operate your system via the touch screen and hard buttons.
To speak voice commands:
Depending on the feedback setting, the system will respond differently. If
the feedback settings are set to ‘Standard’, the system will respond with a
tone, a prompt and another tone. If the feedback settings are set to
Advanced, the system will respond without a prompt and with tones only.
1. Pressor VOICE on the steering wheel. A tone will sound.
2. The system will say, “Please say a command” and VOICE/Main Menu
and
will appear in the status bar.
Voice recognition system overview
34
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Selecting a user profile using voice recognition
1. Press
or VOICE on the steering wheel. A tone will sound and the
system will say, “Please say a command”. Another tone will sound
signaling the system is ready for your command.
2. Say “User Profile”.
VOICE/User Profile and
will appear in the status bar and then the
icon will change to the listening icon (Listening).
3. Say “Select”.
4. Depending on the chosen level of feedback, you will need to select
which user profile.
Editing a user profile
1. Press the MENU hard button on the navigation system.
2. Select the ‘Feedback Settings’ tab on the touchscreen.
3. Scroll down and select ‘Edit’.
4. Select ‘Continue’ to edit either Profile 1 or Profile 2.
5. A pop-up window will appear to confirm and the system will prompt
“This profile has been partially created by . Only
should continue to create this profile. Would you like to continue to
create this profile?”
Editing a user profile using voice recognition
1. Press
or VOICE on the steering wheel. A tone will sound and the
system will say, “Please say a command”. Another tone will sound
signaling the system is ready for your command.
2. Say “User Profile”.
VOICE/User Profile and
will appear in the status bar and then the
icon will change to the listening icon (Listening).
3. Say “Edit”.
4. Depending on the chosen level of feedback, you will need to
tell/confirm which user profile to edit.
Voice recognition system overview
39
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Deleting a user profile
1. Press the MENU hard button on the navigation system.
2. Select the ‘Feedback Settings’ tab on the touchscreen.
3. Use the scroll arrow to go to the second page and press the ‘Edit’
button to ‘Manage Voice Recognition User Profiles’.
4. Select ‘Delete’ to delete either Profile 1 or Profile 2.
5. Select YES when the confirmation pop-up window appears.
Deleting all user profiles at once
1. Press the MENU hard button.
2. Select the ‘System Settings’ tab.
3. Press the ‘View’ button for ‘Delete Stored items’.
4. Select ‘Voice Recognition User Profile’.
Deleting a user profile using voice recognition
1. Press
or VOICE on the steering wheel. A tone will sound and the
system will say, “Please say a command”. Another tone will sound
signaling the system is ready for your command.
2. Say “User Profile”.
VOICE/User Profile and
will appear in the status bar and then the
icon will change to the listening icon (Listening).
3. Say “Delete”.
VOICE/User Profile and
will appear in the status bar and then the
icon will change to the listening icon (Listening).
4. Depending on the chosen level of feedback, you will need to
tell/confirm which user profile to delete.
Voice recognition system overview
40
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

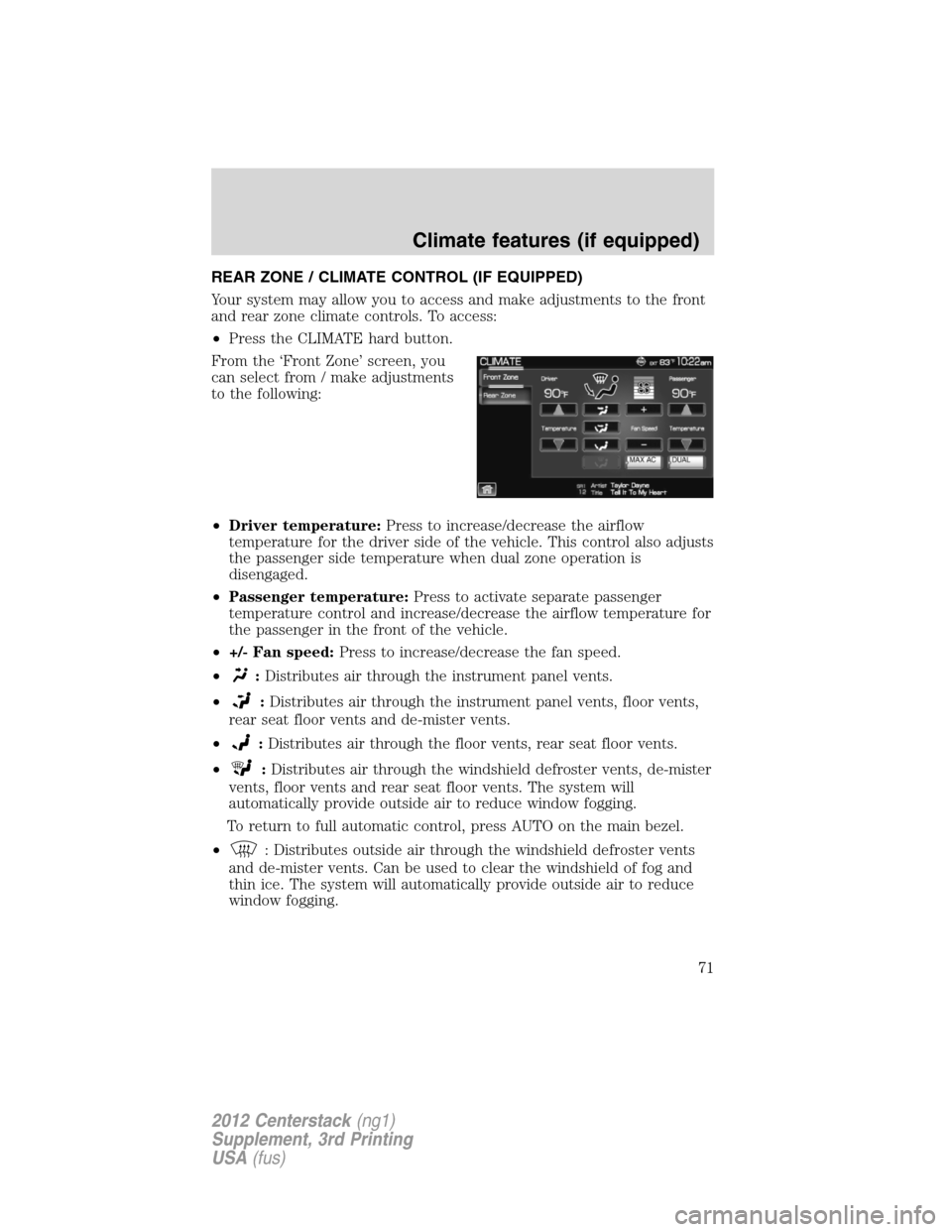

REAR ZONE / CLIMATE CONTROL (IF EQUIPPED)
Your system may allow you to access and make adjustments to the front
and rear zone climate controls. To access:
•Press the CLIMATE hard button.
From the ‘Front Zone’ screen, you
can select from / make adjustments
to the following:
•Driver temperature:Press to increase/decrease the airflow
temperature for the driver side of the vehicle. This control also adjusts
the passenger side temperature when dual zone operation is
disengaged.
•Passenger temperature:Press to activate separate passenger
temperature control and increase/decrease the airflow temperature for
the passenger in the front of the vehicle.
•+/- Fan speed:Press to increase/decrease the fan speed.
•
:Distributes air through the instrument panel vents.
•
:Distributes air through the instrument panel vents, floor vents,
rear seat floor vents and de-mister vents.
•
:Distributes air through the floor vents, rear seat floor vents.
•
:Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will
automatically provide outside air to reduce window fogging.
To return to full automatic control, press AUTO on the main bezel.
•
: Distributes outside air through the windshield defroster vents
and de-mister vents. Can be used to clear the windshield of fog and
thin ice. The system will automatically provide outside air to reduce
window fogging.
Climate features (if equipped)
71
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

TheHome & Gardensub-category contains:
•Floor covering•Furniture store
•Florist•Garden center
•Glass & window•Hardware store
•Home center•Paint
•Major appliances
TheFinancialcategory contains:
•AT M•Banking
TheEntertainment & Artscategory contains:
•Amusement / Theme Park•Night Club
•Casino•Exhibition / Conference Center
•Movie Theater•Museum
•Performing arts•Video & DVD rentals
•Zoo & Botanical gardens
TheEmergencycategory contains:
•Hospital•Police
TheRecreation & Sportscategory contains:
•Bowling•Fitness center
•Golf course•Ice arena
•Marina•Ski resort
•Parks•Race Track
•Recreation facility
TheCommunitycategory contains:
•Business facility•Community center
•Education•Fire department
•Library•Named place
•Parks•Police
•Religious facility
TheEducationsub-category contains:
•Higher education•K-12 school
Setting a destination
102
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Edit traffic preferences:Press to adjust traffic preferences.
Note:Requires SIRIUSTravel Link™ (if activated). Check with your
authorized dealer for availability.
Edit destination/waypoints:Press in order to add, delete or adjust any
waypoints or your destination.
Edit turn list:Press to display the turn list screen and make any
desired adjustments.
Map scrolling
Single scroll:In single scroll mode, press and release on the map
display will bring the pressed position to the center of the screen. The
scroll mode will time out after five minutes of inactivity.
Continuous scroll:During scroll mode, press and hold to begin
scrolling continuously in one of eight directions closest to the point that
is pressed. The scroll will continue until the map is released, and will
increase in speed after three seconds. This is not possible if the vehicle
is moving. The scroll mode will time out after five minutes of inactivity.
Map icon descriptions
•Vehicle mark:This icon is shown
in scroll mode also. The ring
around the vehicle mark will
flash. The vehicle mark is shown in the center of the map display,
except when in scroll mode.
•Scroll cursor:This icon is fixed
in the center of the screen. The
map position closest to the cursor
is in a window on the top center
part of the screen.
•Address book entry default
icon:This icon indicates the
location on the map of an address
book entry. This is the default symbol shown after the entry has been
stored to the Address Book by any method other than the map. A
different icon can be selected from the 22 icons available; each icon
can be used more than once.
Setting a destination
111
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

MAP PREFERENCES
1. Press the NAV hard button on the
navigation system.
2. Select ’Map Preferences’ tab on
the touchscreen to choose from the
following options:
Map Content
•Street name:This feature will display the current street name in a
window at the top of the screen during guidance.
•Time to Dest:This feature will display the distance to the selected
destination as well as the Estimated Time of Arrival (ETA) on a
pop-up screen activated by an icon on the left side of the map.
•Speed Limit:This feature will display the speed limit of major roads
at the bottom of the map while in route guidance.
•Breadcrumbs:This feature will display the vehicle’s previously
traveled route with white dots. The system can store around 140 miles
(230 km).
•Point of Interest (POI) icons:This feature displays POI icons on
the map.
Map View
•Full map:When selected during guidance, the map will be displayed
in full screen and turn icons will appear in the upper right corner of
the screen.
•Arrow/map:When selected during guidance, the screen will be
divided in two with a map displayed on the left and upcoming turn
information on the right.
•Turn list/map:When selected during guidance, this screen will be
divided in two with the map displayed on the left and a turn list on
the right.
Navigation route preferences
116
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

PRINCIPLES OF GPS
Your system directs you based on information derived from global
positioning satellites, road maps stored on the hard disk drive, sensors in
your vehicle and the desired destination. The system compiles all
necessary information to guide you to your selected destination. Space
satellites determine the vehicle’s current location and transmit position
and time signals to your car. If the vehicle has been parked for a long
period of time, the navigation function may be temporarily unresponsive.
The navigation system will operate reliably again once GPS reception is
available for a few minutes.
LIMITED GPS RECEPTION
System performance may be adversely affected if GPS reception is
interrupted or interference occurs over a distance of several miles. The
following are possible causes for GPS reception being interrupted. If the
vehicle is:
•In multi-story parking garages
•In tunnels and under bridges
•Inside or in between buildings
•By forests or tree-lined avenues
•In heavy rain showers and thunderstorms
•In valleys and in mountainous regions
•Roads under cliffs
Ensure that you do not have any metal objects on the dashboard and that
if your windows are tinted, they use non-metal tinting instead of metal
oxide tinting. Both of these factors can also interrupt GPS reception.
SYSTEM LIMITATIONS
Navigation system cold temperature operational limitations:The
navigation system’s performance will be slower than normal at
temperatures lower than -5° F (-20° C). At temperatures lower than -22°
F (-30° C), you will be notified that the system has shut down key
elements to protect itself. Normal system operation will return once the
unit has warmed up enough to operate without damage.
Other conditions:When calculating a route, the system doesn’t take
into consideration any of the following conditions:
•Traffic Conditions
•Weather Conditions
General Information
126
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

How do I recover after accidental language re-set?
1. Press the MENU hard button on the navigation system.
2. Select the ‘Feedback settings’/Retour/Reaccion tab on the touchscreen.
3. Press the ‘English’/Anglais/Ingles button to reset language to English.
4. Press the ‘Spanish’/Espanol/Espanol button to reset language to
Spanish.
5. Press the ‘French’/Francais/Frances button to reset language to
French.
Or, you can also turn vehicle off to restart system. Then from the
DISCLAIMER screen, select the desired language before pressing ‘Agree’.
TROUBLESHOOTING
Symptoms Possible Cause Action
Focus Error System unable to play
reproduced disc.Contact your dealer.
Bad Disc Disc was inserted
upside down or the
system is unable to
read the information
in the disc.The mechanism will
automatically eject
disc.
Track Error The system is unable
to reproduce a corrupt
MP3 file.The system will skip
the corrupted track.
Invalid Disc Detected Dirty CD/DVD or
unsupported formatWipe the CD/DVD with
a dry, soft cloth from
the center to the outer
edge of the disc.
Address not found/
Address range does
not exist. Show the
midpoint of the street?
(Popup window)The house number
entered is not
registered in the
database.Press NO and enter a
valid number for the
specified street, or
press YES to view the
middle point of the
street.
General Information
130
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)

Symptoms Possible Cause Action
Navigation Fault. A
system fault has been
detected that may
cause the navigation
to perform abnormally.
Please contact your
dealership. (Popup
window)System hardware or
software errorContact your dealer.
Error. PINs did not
match. Please re-enter.
(Popup window)A different PIN was
entered to unlock the
system for valet mode.Press OK and try
entering PIN again. If
unable, contact your
dealer.
Invalid PIN. Please
Re-enter. (Popup
window)System does not
recognize PIN as valid.Press OK and enter
different PIN to lock
the system.
General Information
131
2012 Centerstack(ng1)
Supplement, 3rd Printing
USA(fus)
